Baileigh Industrial BA9-1001684 Horizontal and Vertical Band Saw BS-712MS
Description
Description
Baileigh Industrial 1001684 Description

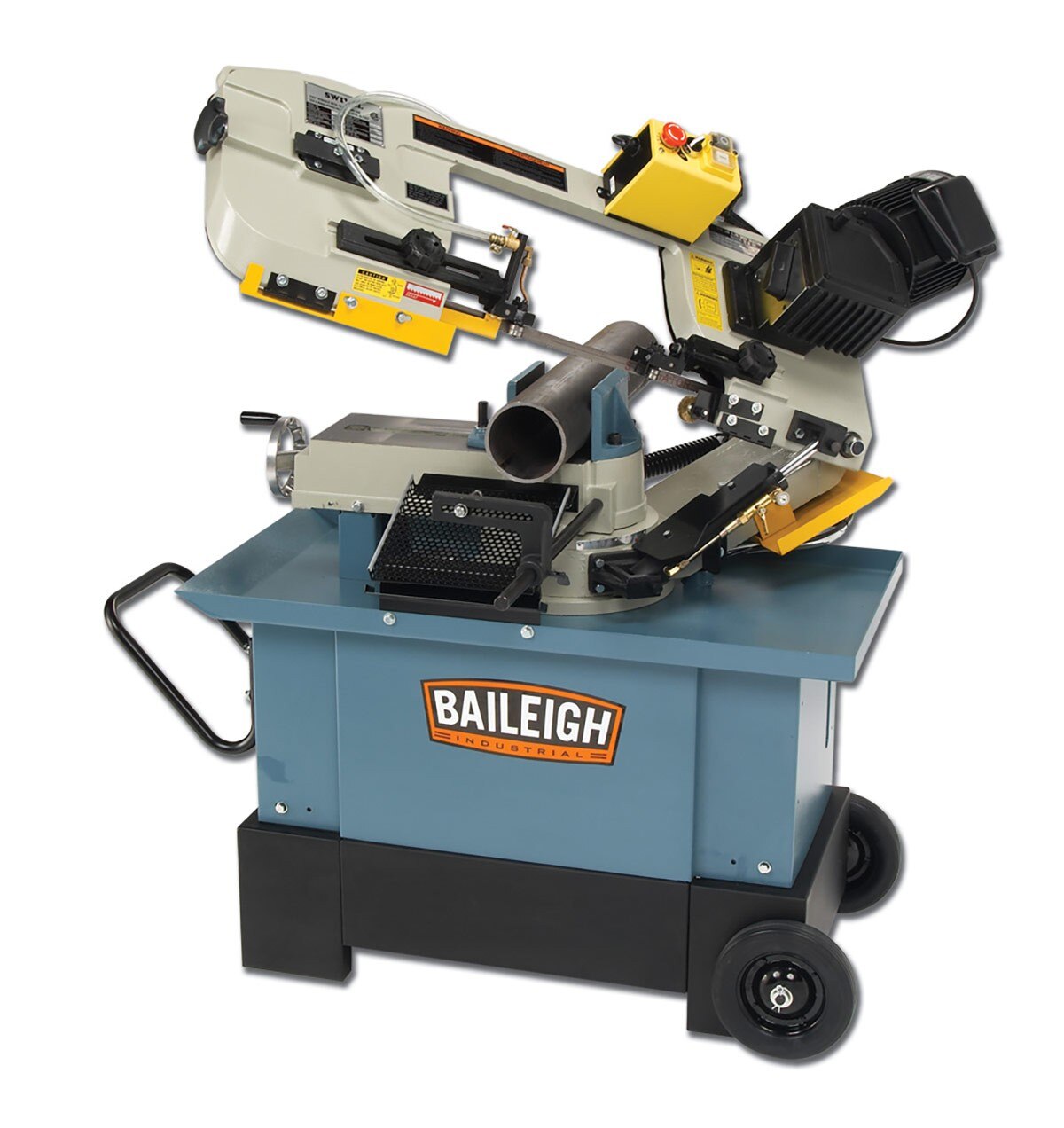

The BS-712MS is one of the most versatile “horizontal” band saws on the market. The design is based off of the BS-712M, except we’ve added a heavy duty, cast iron, swivel head for mitering, instead of using the vise. This feature allows for faster production times and less waste. Like the BS-712M, the BS-712MS can be ran in the traditional horizontal position, for general cut offs, or in a vertical position. Vertical cutting is achieved by simply lifting the bow and locking it in place. With the bow locked vertically, you can do precise shape cutting. This versatility is extremely important when space is at a premium in a shop; you are basically getting two saws for the price of one.
Baileigh Industrial 1001684 Includes
- (1) Band Saw
Baileigh Industrial 1001684 Features
- The BS-712MS horizontal vertical metal bandsaw is recommended for any shop, home or work, where space is at a premium.
- Powered by 120-volt single-phase power, so you can run it just about anywhere.
- Capacity of 7” OD round and 7” x 10-1/4” rectangle in horizontal position (for traditional cutoffs) at 90°.
- Accepts standard .75"-wide blades.
- Choose from 3 cutting speeds: 125, 215, and 270 fpm.
- Cast iron head and bow, machined to exacting tolerances, ensure proper alignment during the cutting process and help the saw last for years.

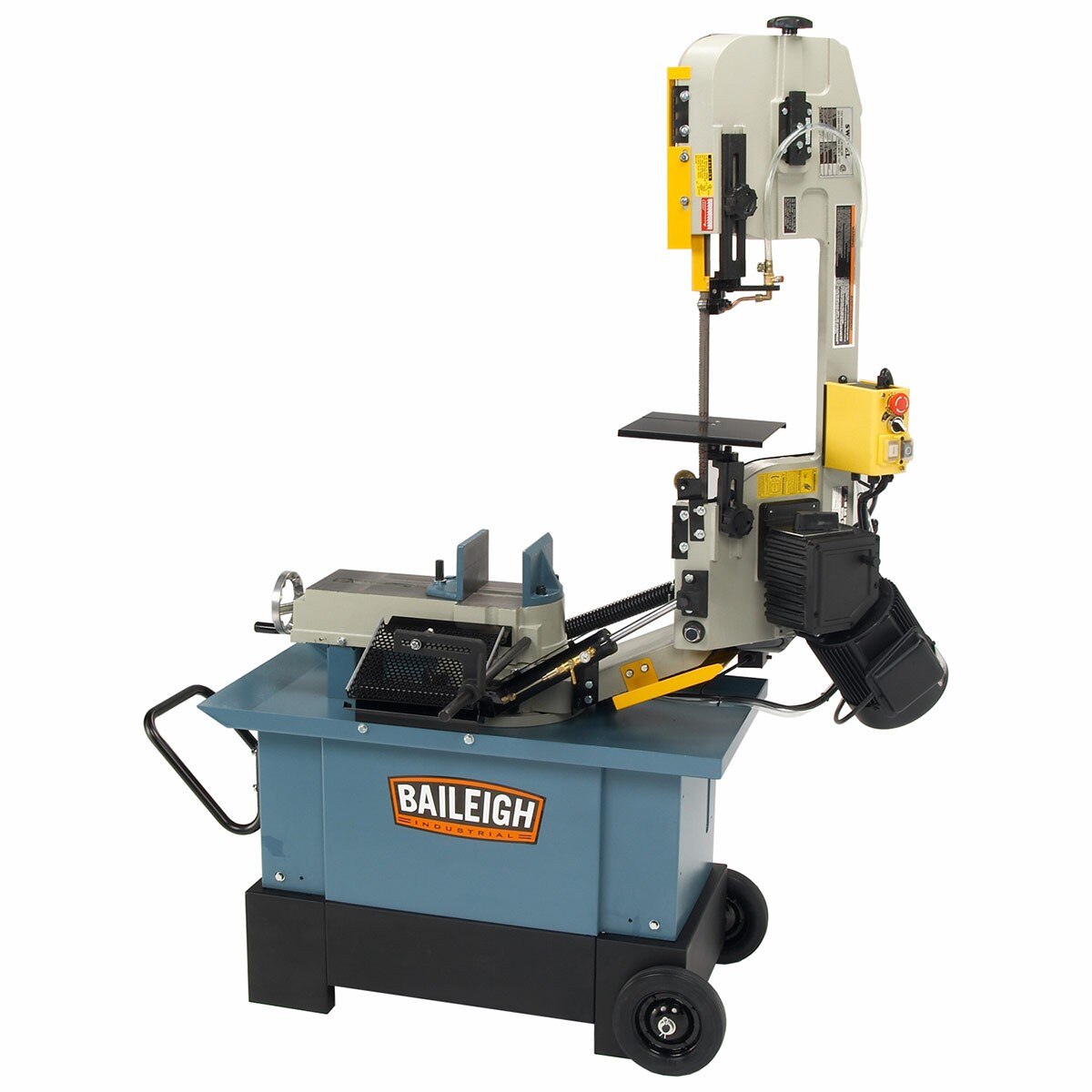

- Operate the machine in vertical position (for precise shape cutting) just by lifting the bow and locking it in place.
- Swivel head for mitering allows for faster production times and less waste than you’d get with a moving vise.
- Pair of adjustable blade guides, attached to the saw head along with 8 sealed ball bearings, maintain alignment and increase the life of the blade.
- Fully-welded steel plate framework keeps the machine stable and gives it the structural strength to tackle its maximum capacity.
- Wheels on the base make this saw easy to move and store.

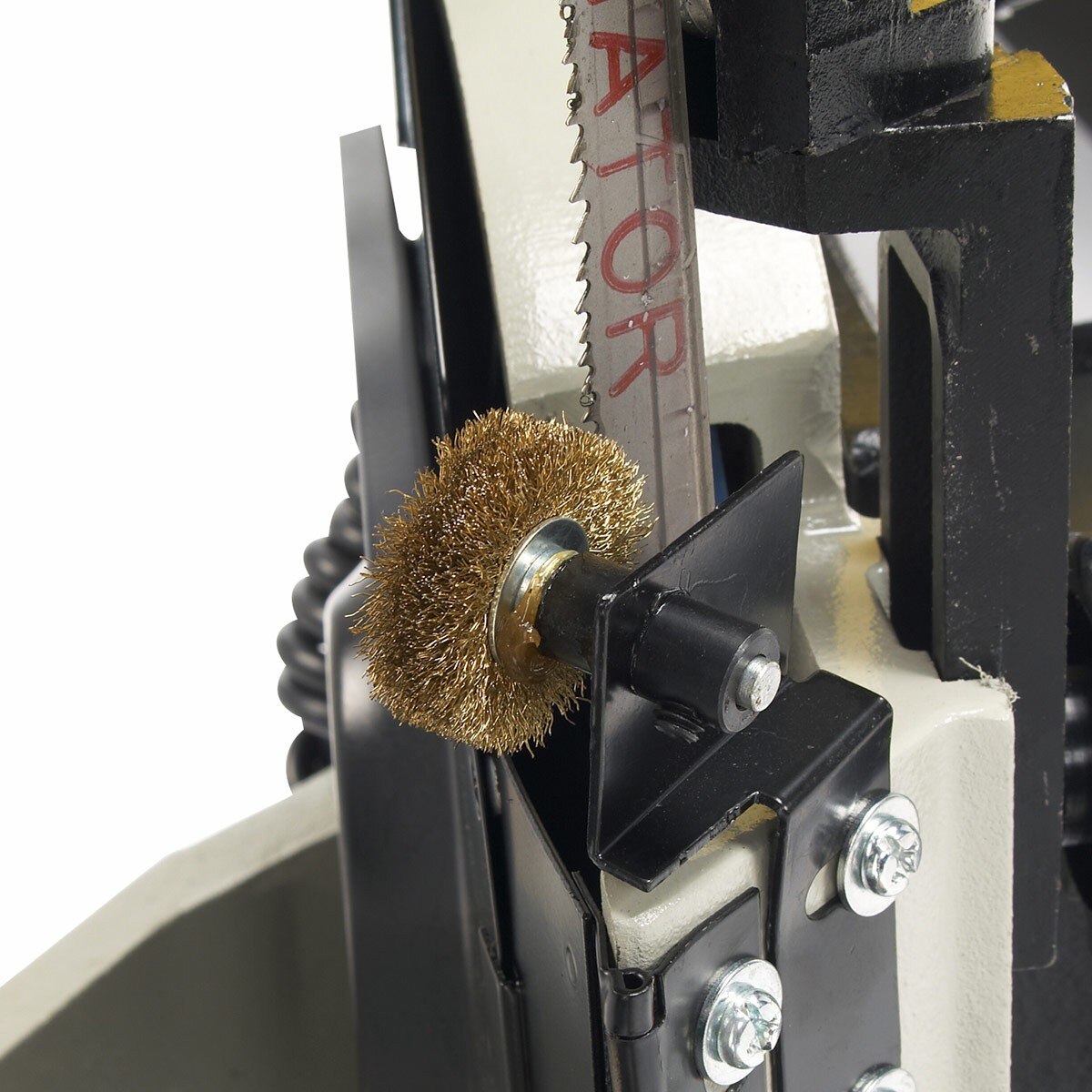

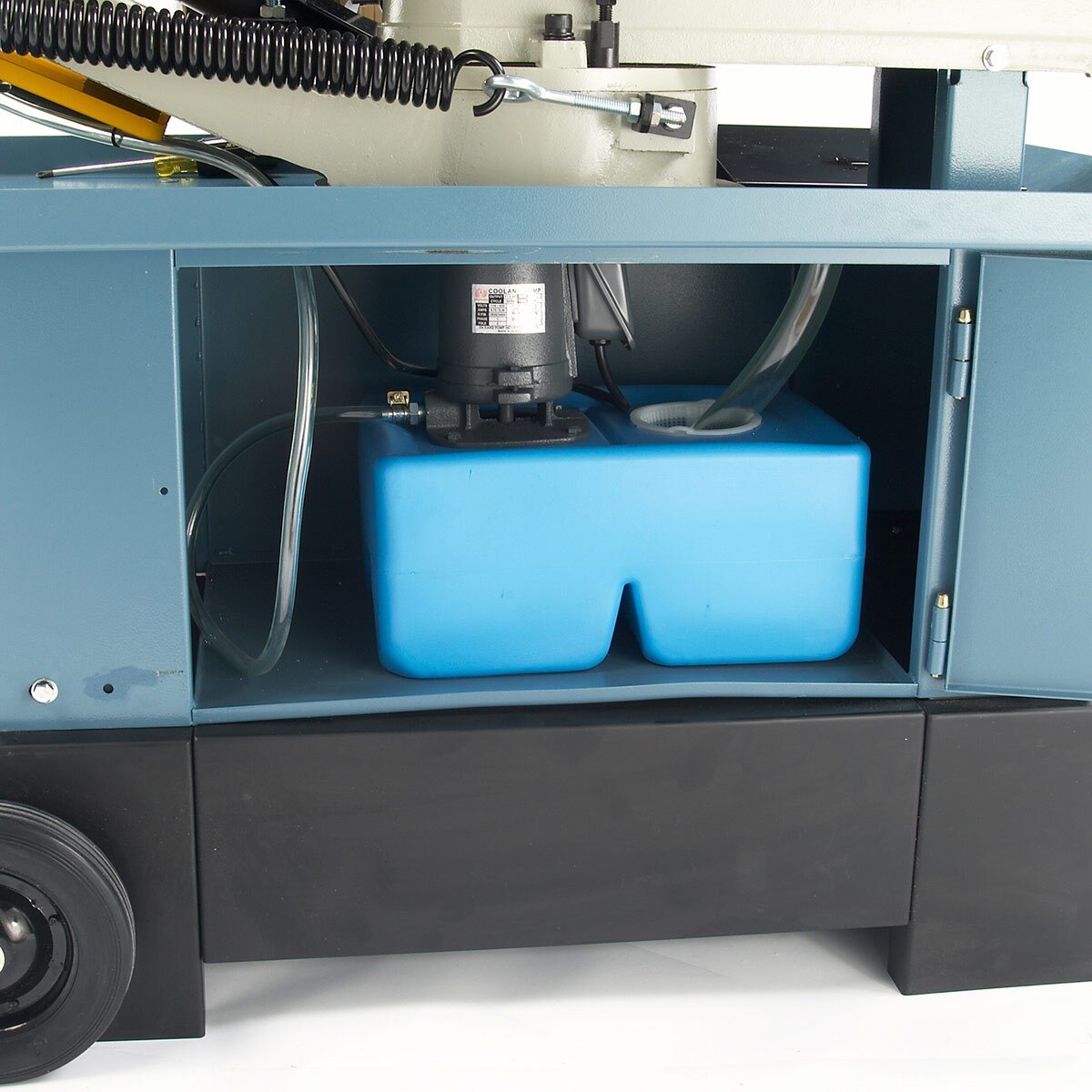

- Comes standard a flood coolant system, often considered an upgrade by other brands, and a chip removal brush.
- We cover this metal-cutting band saw with a 1-year parts warranty.
Baileigh Industrial 1001684 Specifications
| Return | Manual |

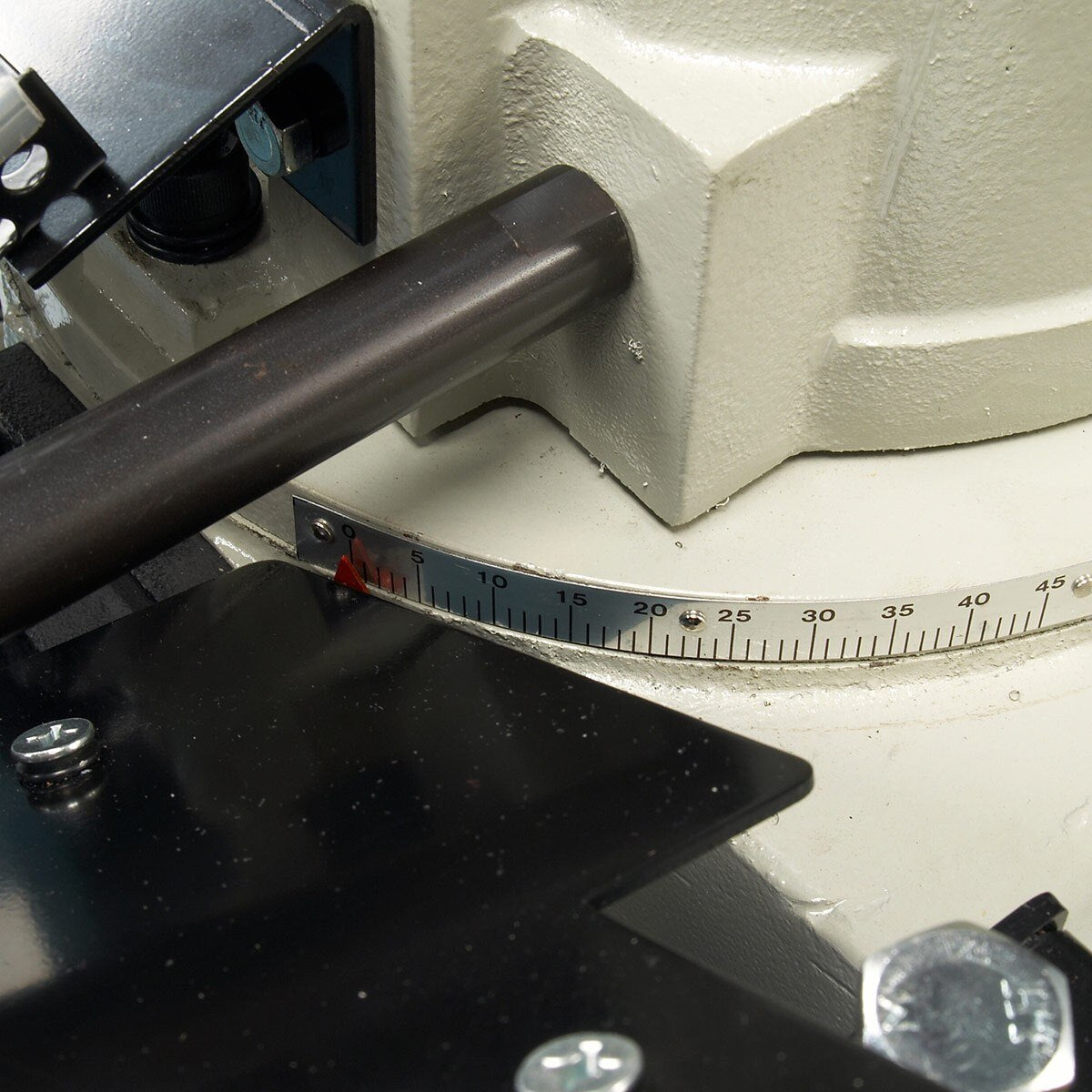

| Miter Adjustment | Swivel Head |
| Miter Angle | 0 – 45° |
| Motor | 1 HP |
| Capacity Rectangular 90 x 45 x 45L | 7" x 10.23" x 4.72" x 4.13" |
| Capacity Round 90° x 45° | 7" x 4.33" |
| Table Height | 23" |
| Blade Guide | Roller |
| Blade Size | .75" x .035" x 92.91" |
| Blade Speed (fpm) | 125 x 215 x 270 |
