Baileigh Industrial BA9-1001740 Horizontal Band Saw BS-916M
Description
Description
Baileigh Industrial 1001740 Description

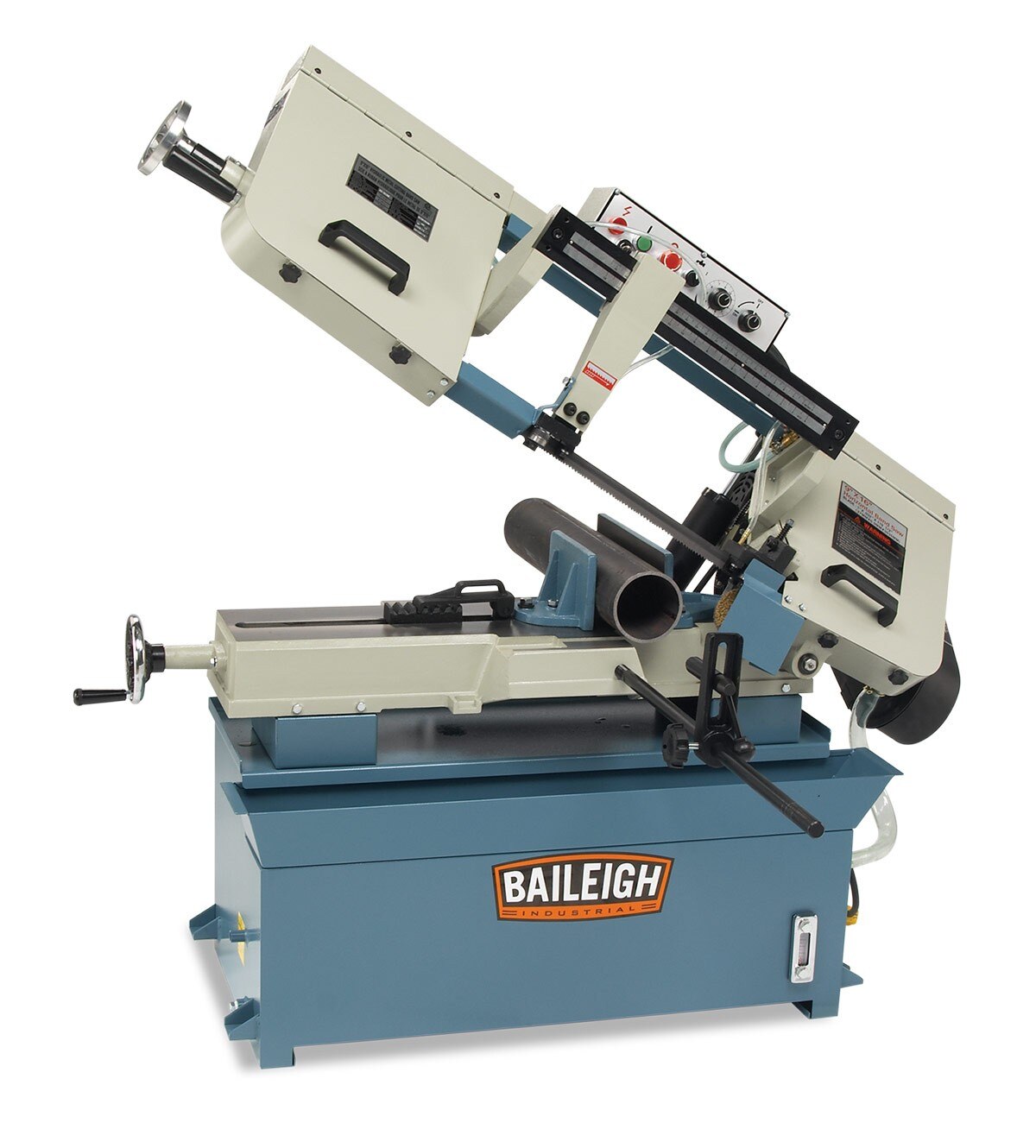

The BS-916M horizontal band saw is based off of the BS-300M, but with a little smaller footprint for those shops with limited space. The BS-916M is modeled after the American style saw that has been around for decades, and carries over many of those saws traits. Like all Baileigh Industrial bandsaws, the BS-916M is built to last, with a full cast iron bed and fully welded base to take years of punishment. An easy access control panel, located on top of the bow, makes operation of the BS-916M a breeze. An automatic shut off feature at the end of the cut, coolant system, blade and a blade tension device are also included. Baileigh Industrial designed this saw to take abuse and keep working hard.
Baileigh Industrial 1001740 Includes
- (1) Band Saw
Baileigh Industrial 1001740 Features
- 1.5 hp motor is powered by 240-volt single-phase power.
- 8.75” round capacity at 90°.

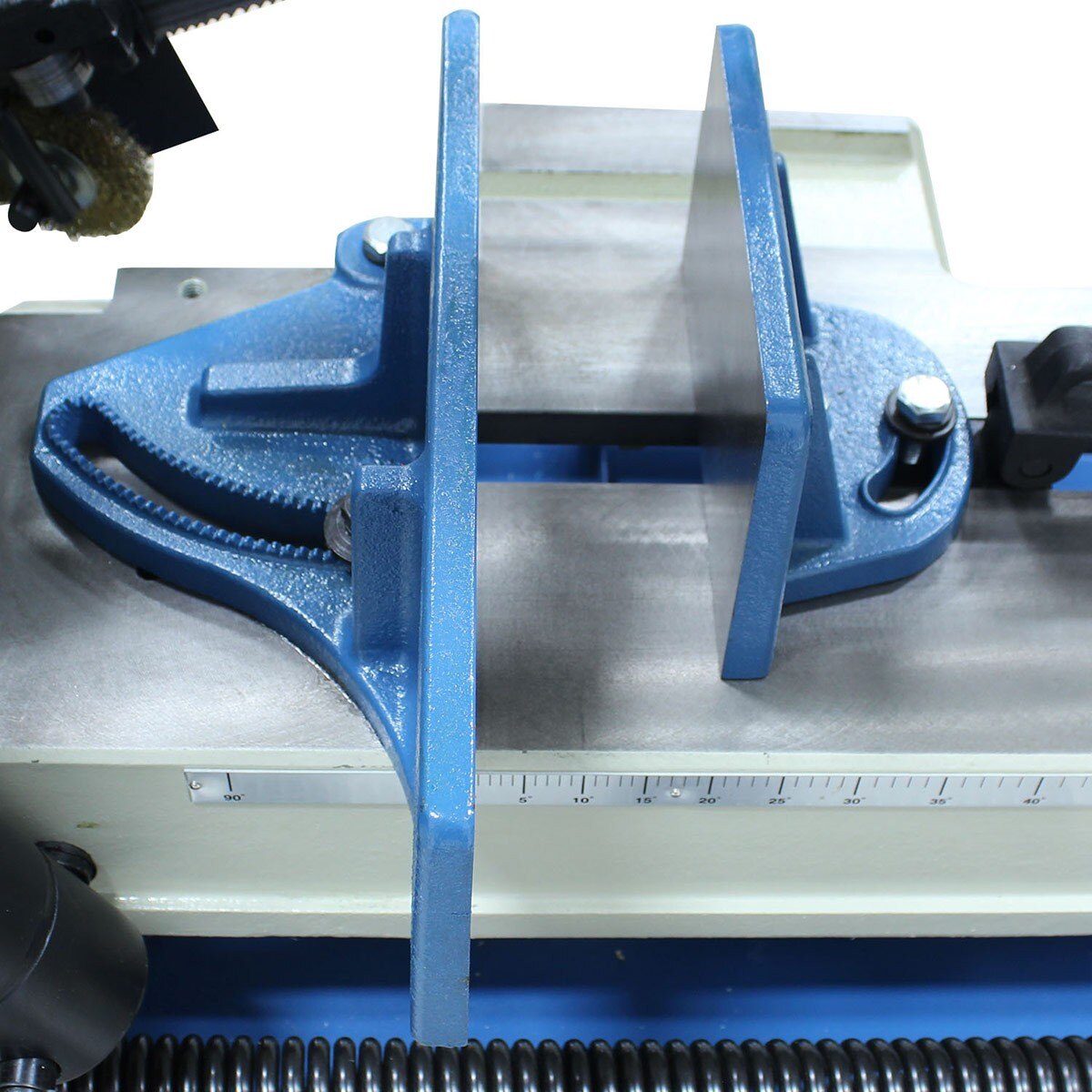

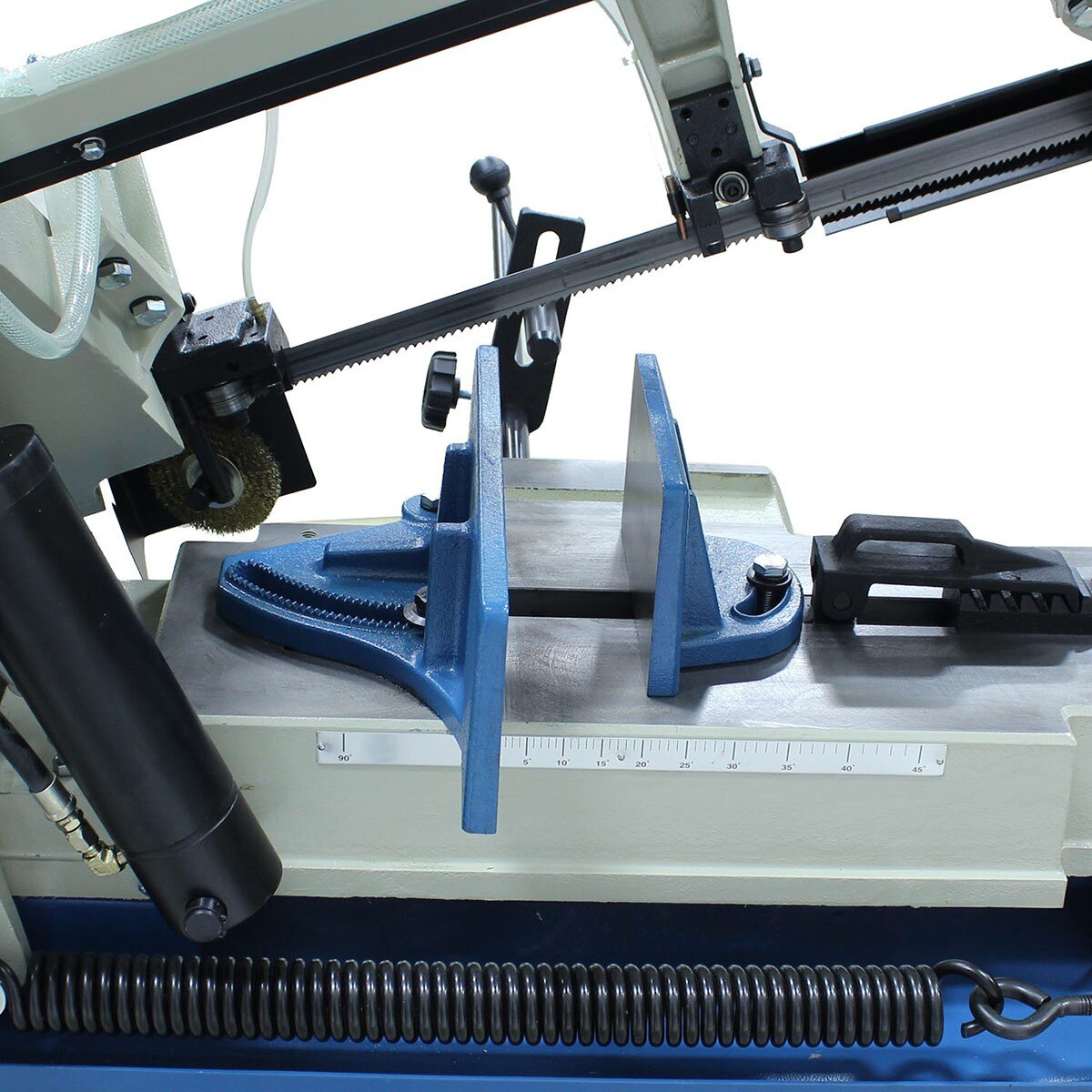

- Vise miters up to 45°.
- Accepts standard 1” blades.

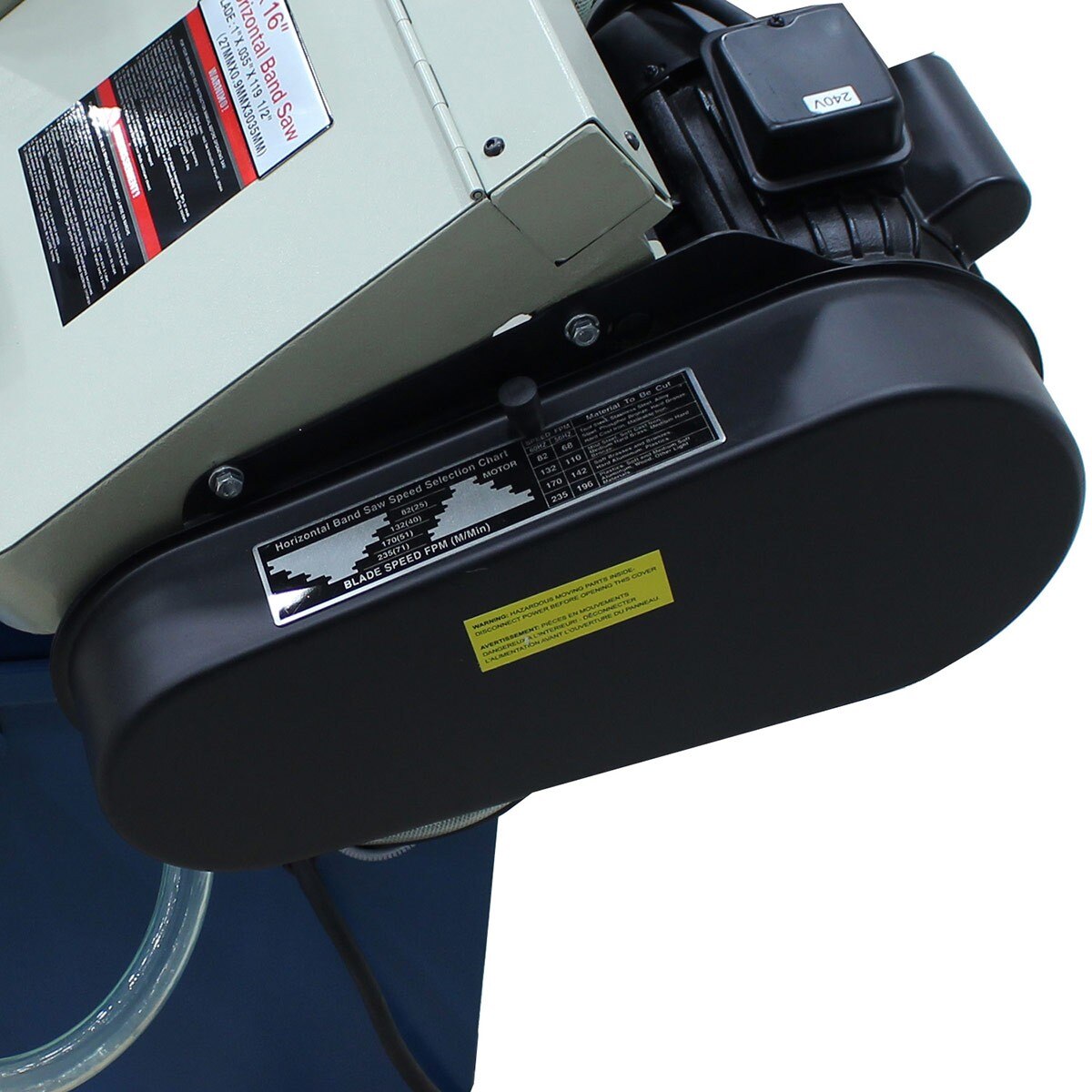

- 4 cutting speeds: 82, 132, 170, and 235 fpm.
- Patented blade tension device, with a liquid-filled gauge, lets you adjust the blade to the correct tension without difficulty.

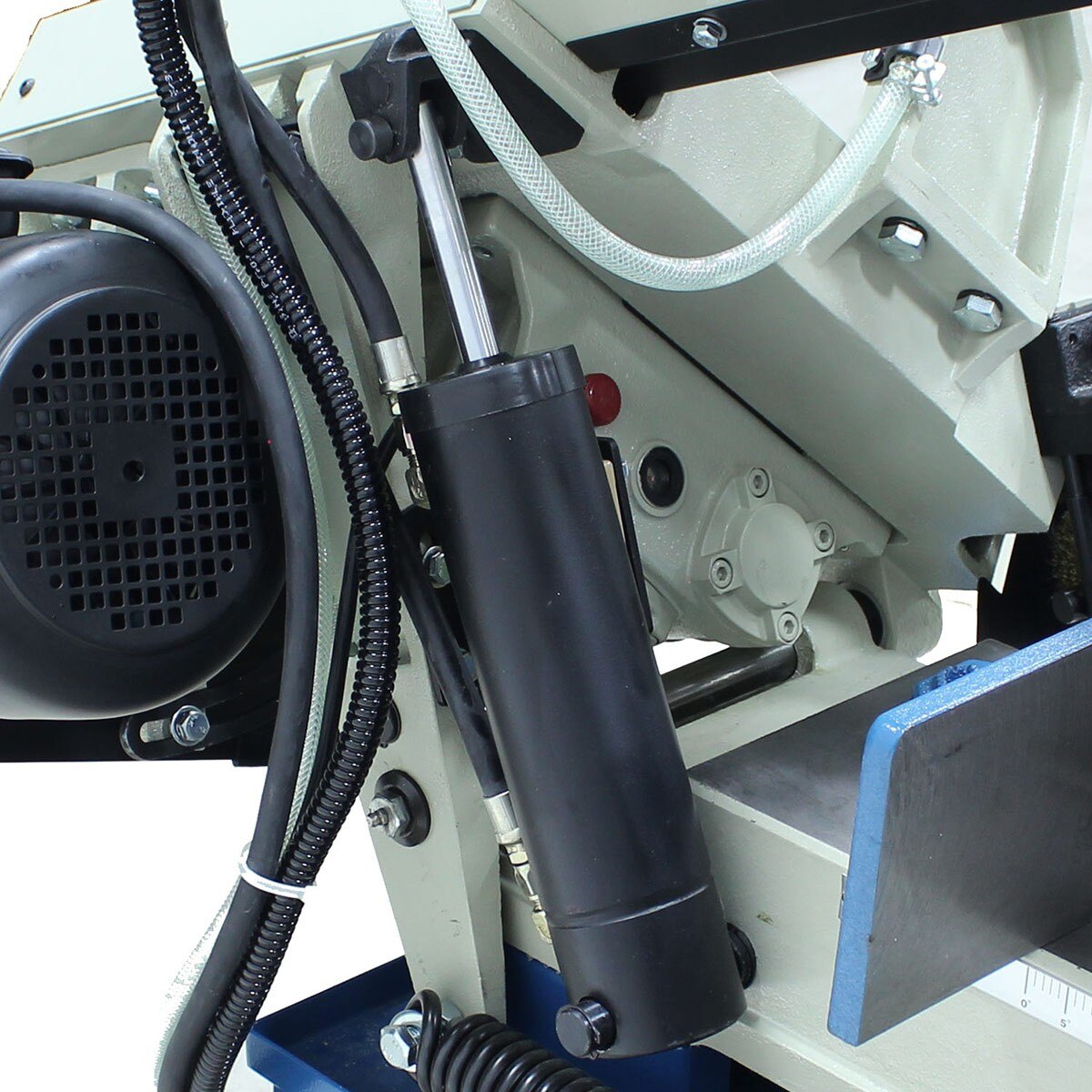

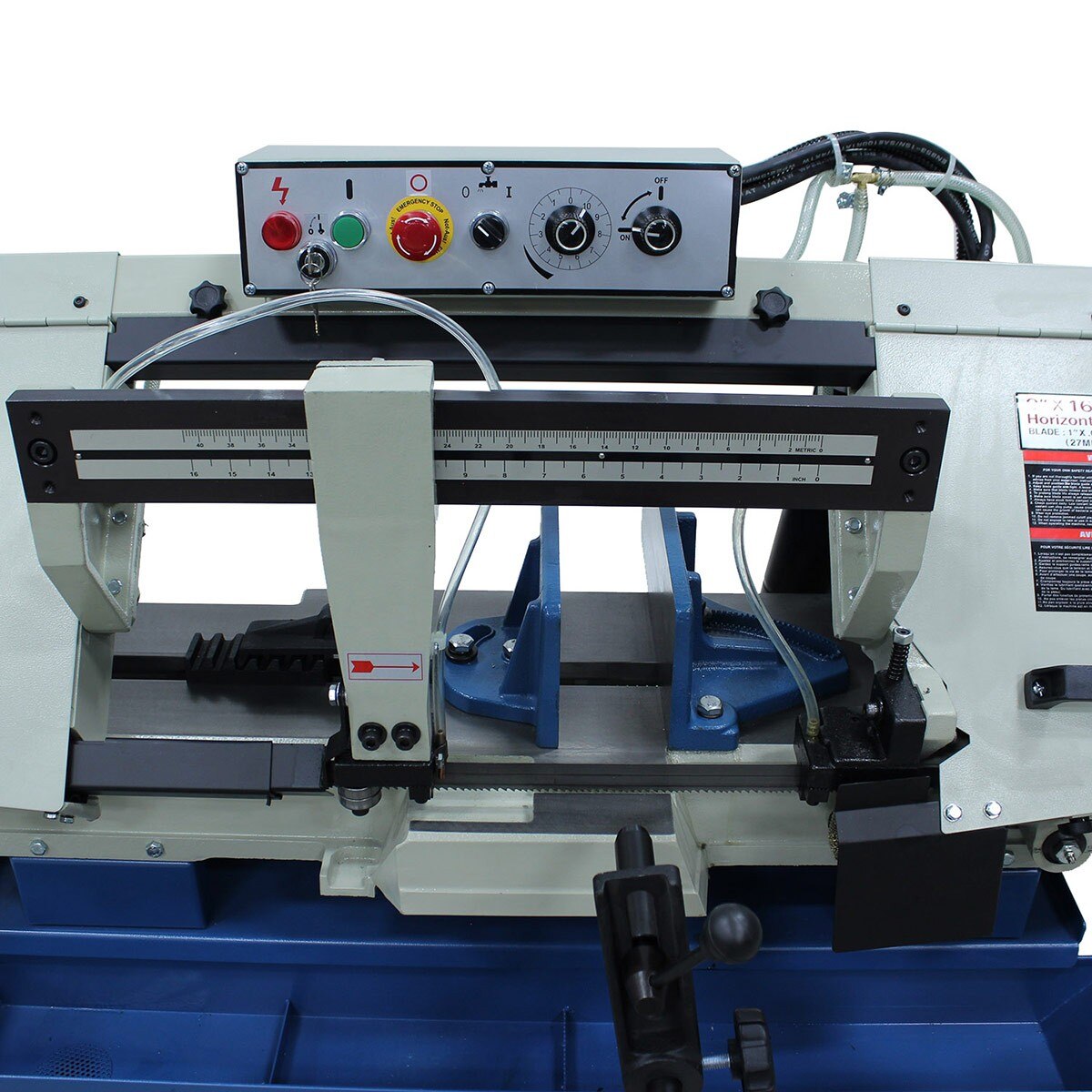

- You can control the hydraulic descent through an easy-to-access panel located on top of the bow.
- Automatically shuts off at the end of the cut for safety and efficiency.
- Comes standard with a flood coolant system that washes away chips, lubricates the blade, and prolongs blade life.
- This Baileigh Industrial band saw is covered by a 1-year parts warranty.
Baileigh Industrial 1001740 Specifications
| Return | Manual |
| Miter Adjustment | Vise |
| Miter Angle | 0 – 45° |
| Motor | 1.5 HP |
| Capacity Rectangular 90 x 45 x 45L | 8.85" x 13.5" x 8.85" x 6.5" |
| Capacity Round 90° x 45° | 8.85" x 6.5" |
| Capacity Square 90° x 45° | 8.85" x 6.5" |
| Table Height | 24" |

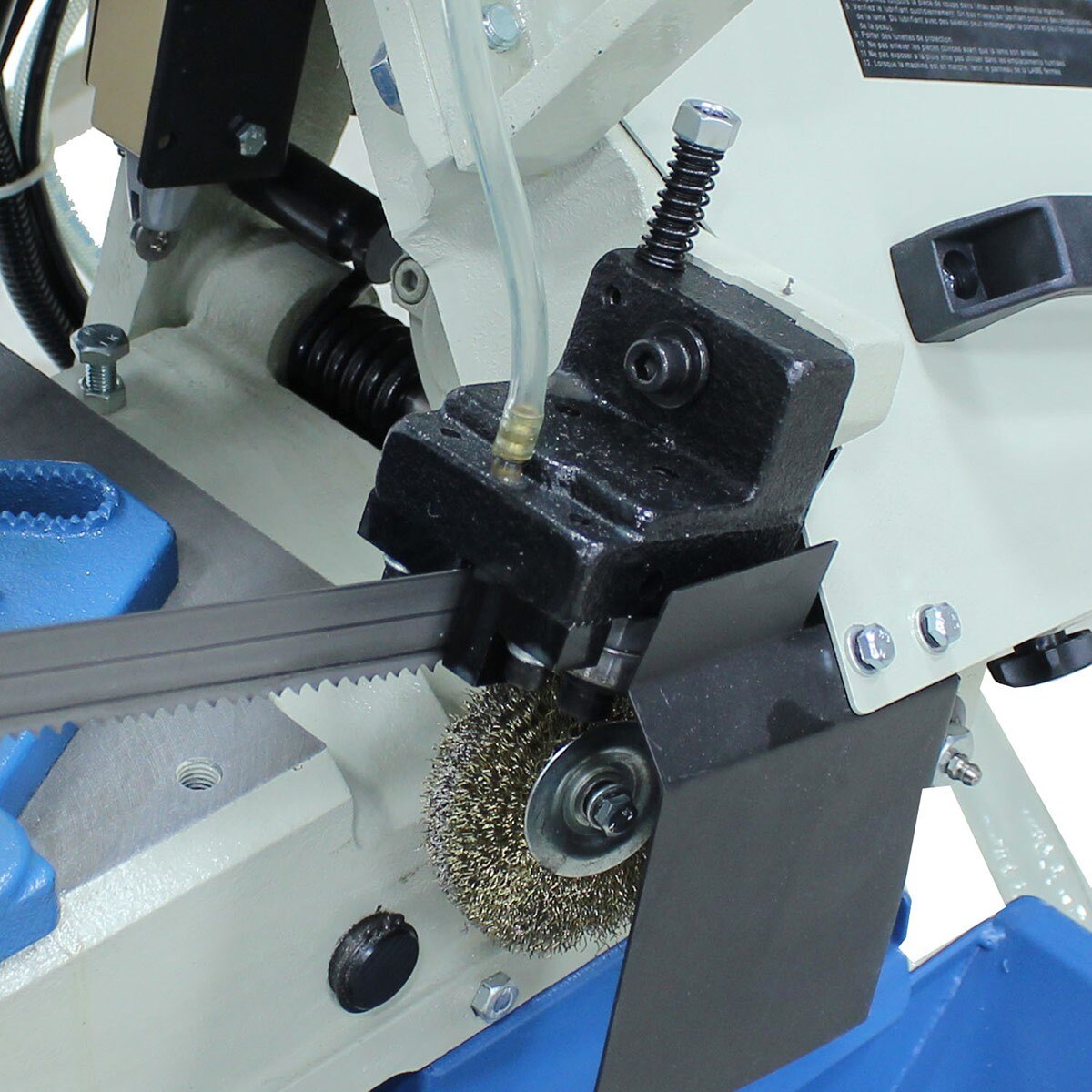

| Blade Guide | Roller |
| Blade Size | 1" x .035" x 119.48" |
