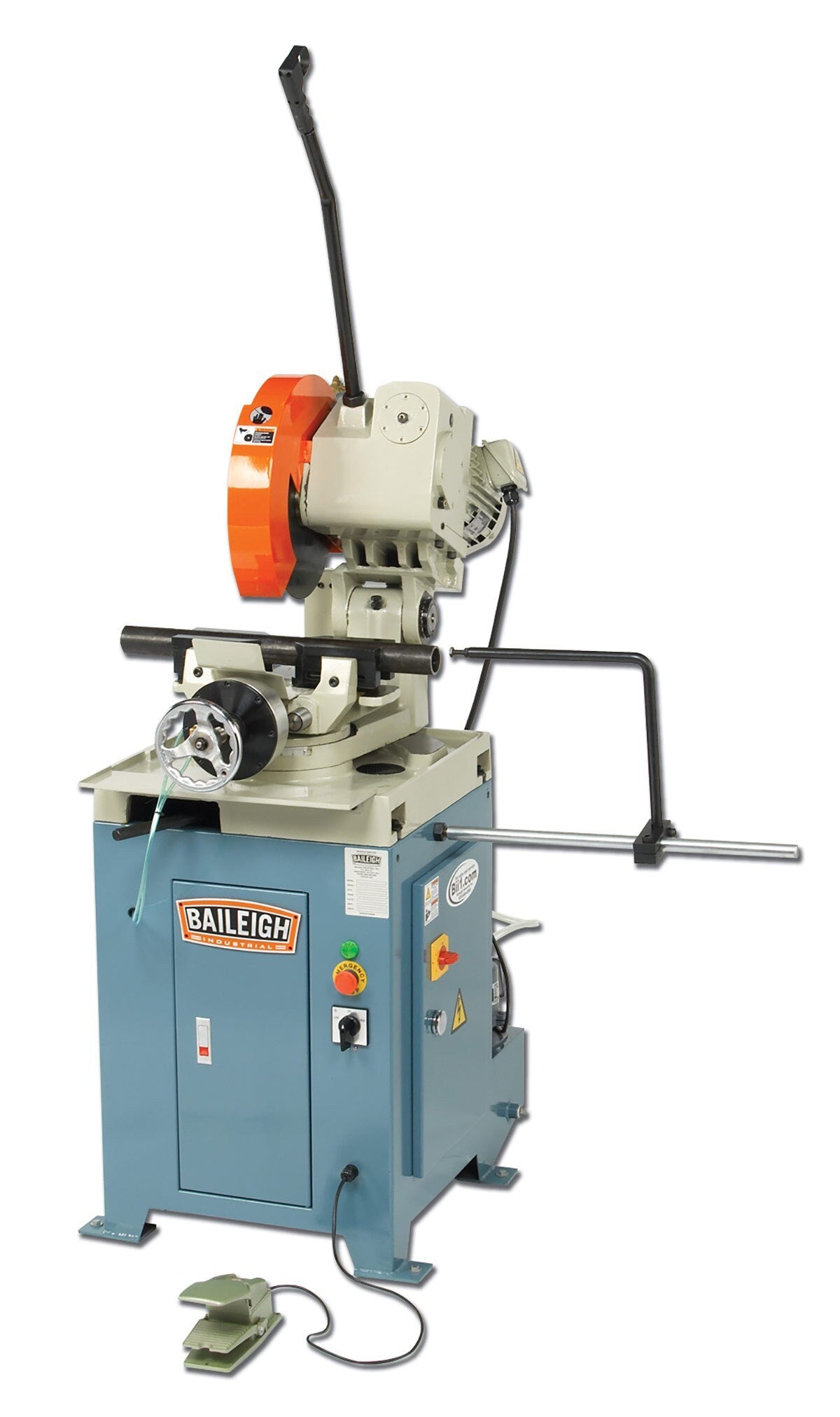

Baileigh Industrial BA9-1002574 Manual Cold Saw CS-350P
Description
Description
Baileigh Industrial 1002574 Description
Ever wish you had an extra hand to help clamp material in a vise? This metal cutting cold saw offers a foot pedal-controlled pneumatic vise to solve that problem and speed up production.The CS-350P cold cutting saw will fit well in any industrial environment and is designed to give years of trouble free use. Baileigh Industrial only uses the best component when building our cold saws. The CS-350P runs on 220 volt three phase power that allows the motor to spin at speeds of either 26 or 52 rpm. The choice of RPM is good because different types of material require different speeds for the best possible cut. Recommended for marine rails, playground equipment, hand railing, chassis application and many more fabrication cutting jobs.
Baileigh Industrial 1002574 Includes
- (1) Manual Cold Saw
Baileigh Industrial 1002574 Features
- Manual cold saw accepts a 14” blade.
- Maximum capacity of 4.25” round tube at 90°.
- 2 blade speeds: 26 or 52 rpm.
- Choice of rpm lets you switch speeds to fit your material and get a better cut.

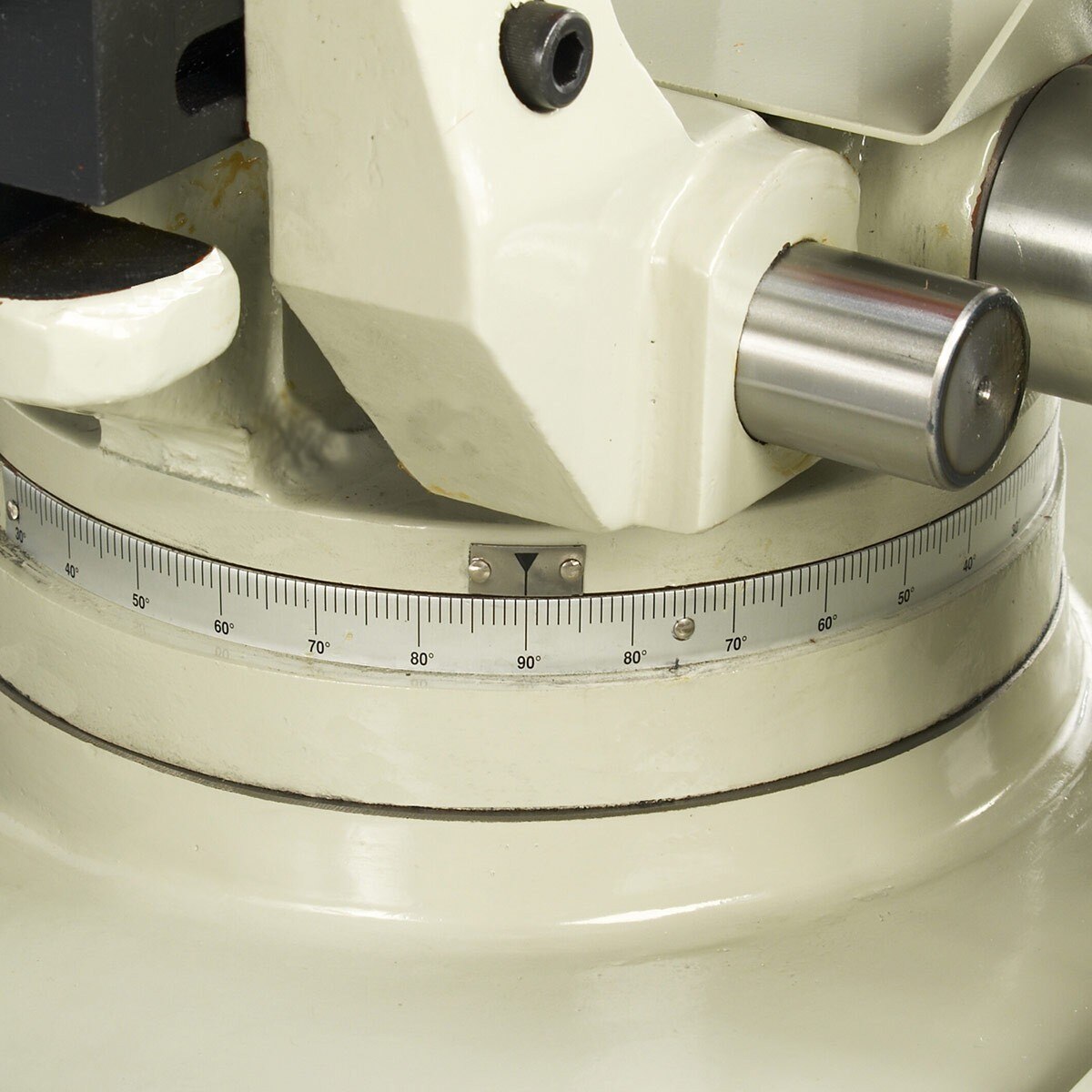

- Miters 45° left and 90° right, a total of 135°, great for jobs that involve slotting.
- 4 hp motor runs on 220-volt 3-phase power.

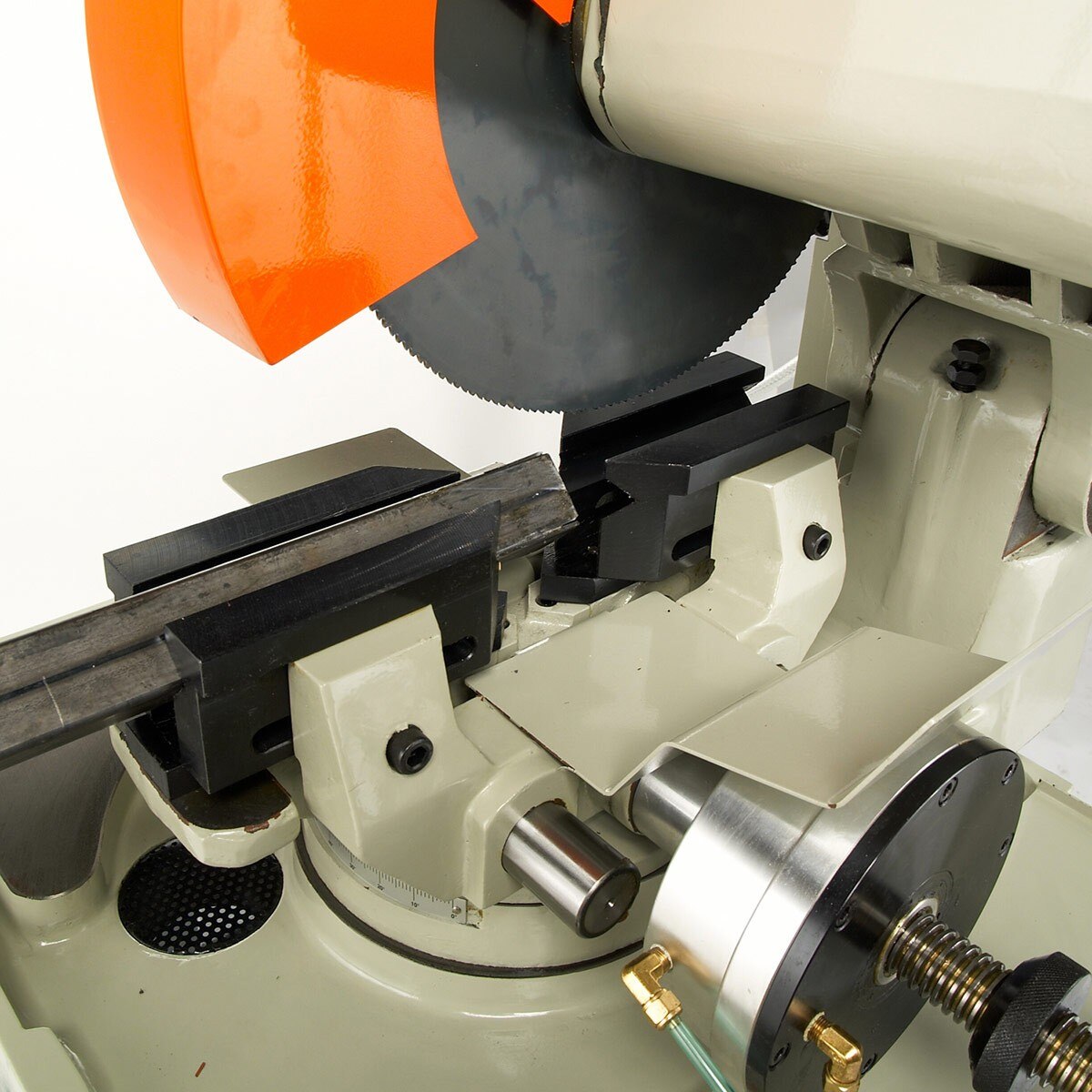

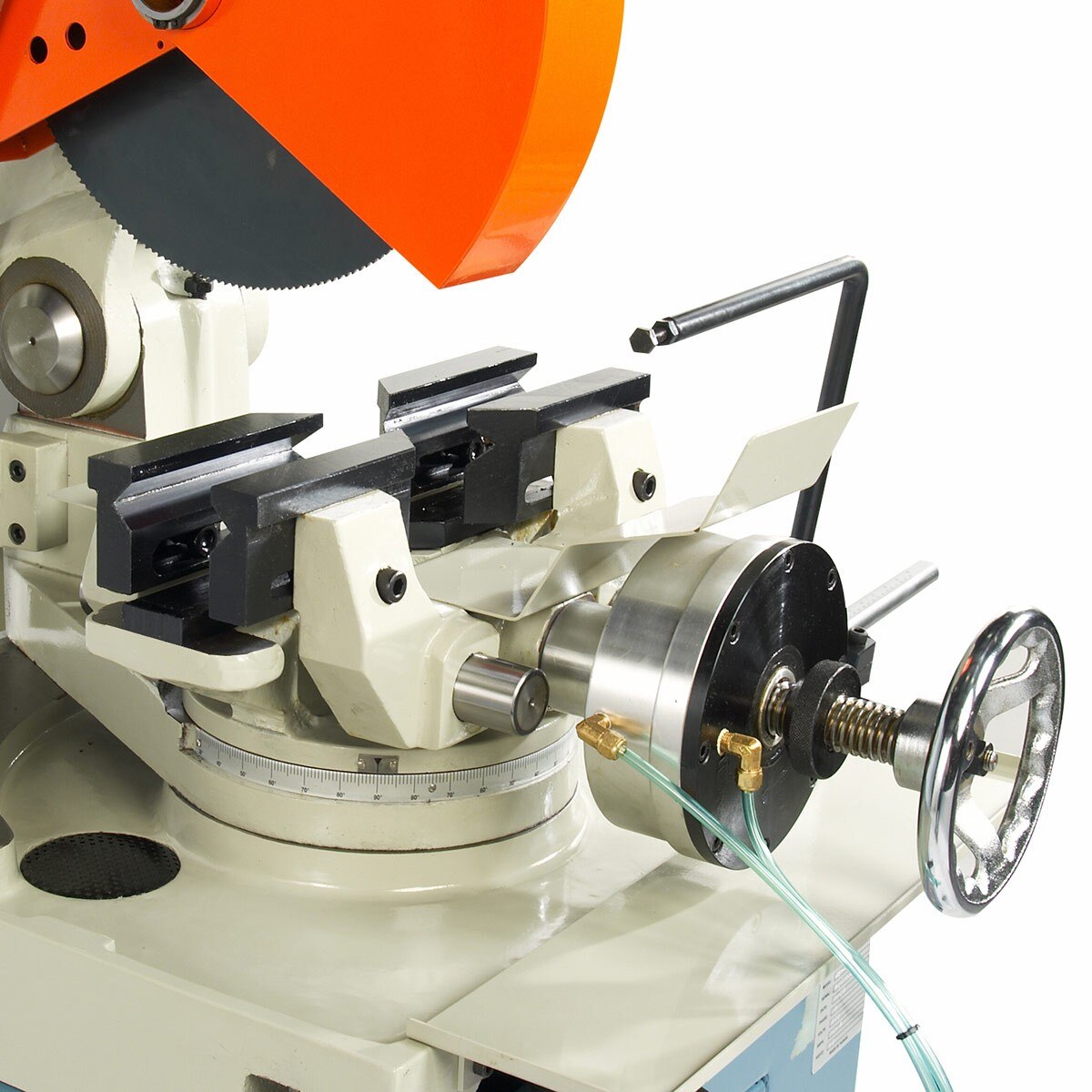

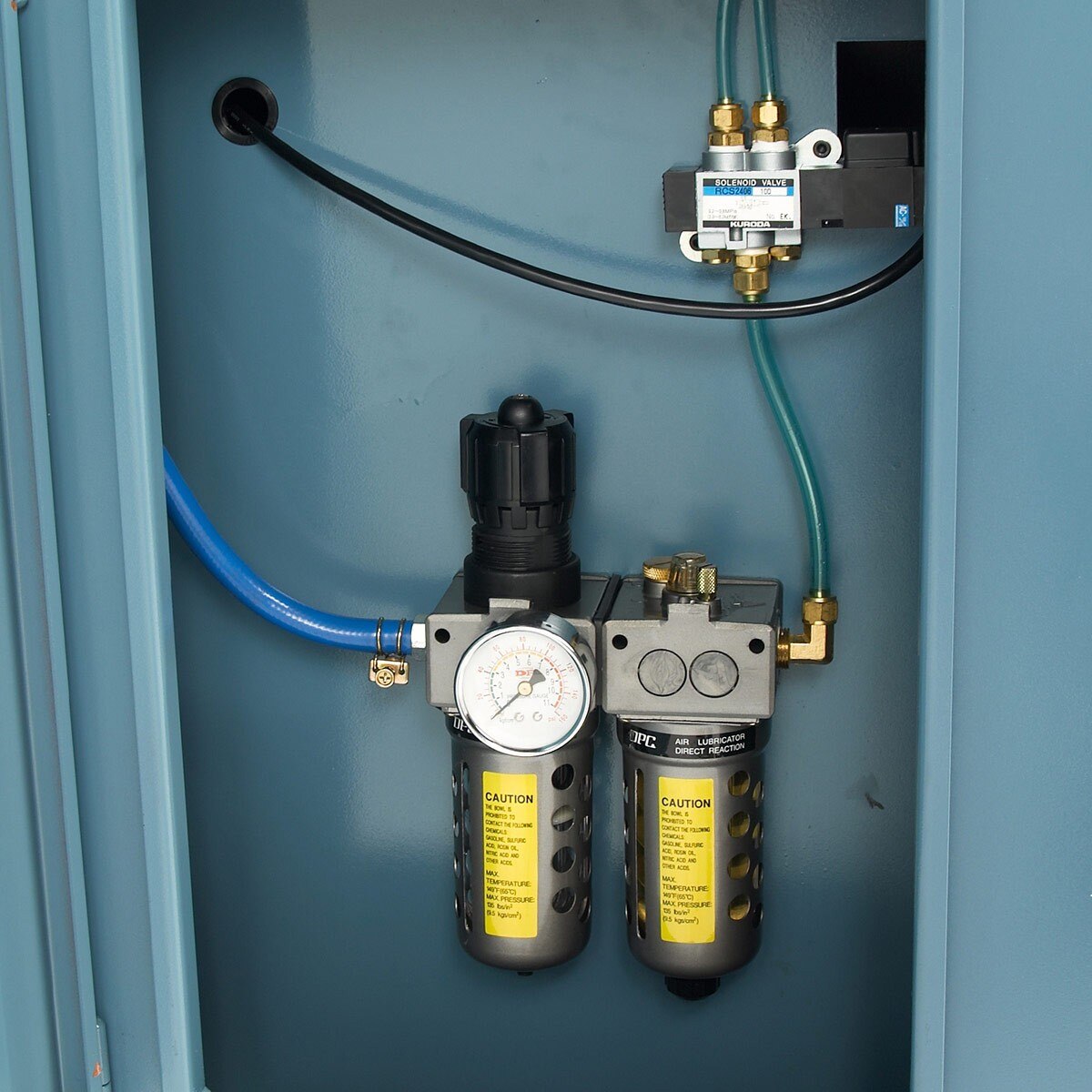

- Air-powered vise lets you clamp the material by tapping the included foot pedal.
- Vise stays under pressure until you tap the foot pedal again. No need to worry whether the material is clamped tight enough!
- Stop rod ensures that you’re cutting a repeatable length each time, perfect for production runs.
- Movable safety guard comes standard.
- Cast iron saw base resists vibrations, so that the saw gives you clean, accurate cuts for many years.
- Robust folded steel stand stabilizes the machine and keeps the saw at a comfortable cutting height.

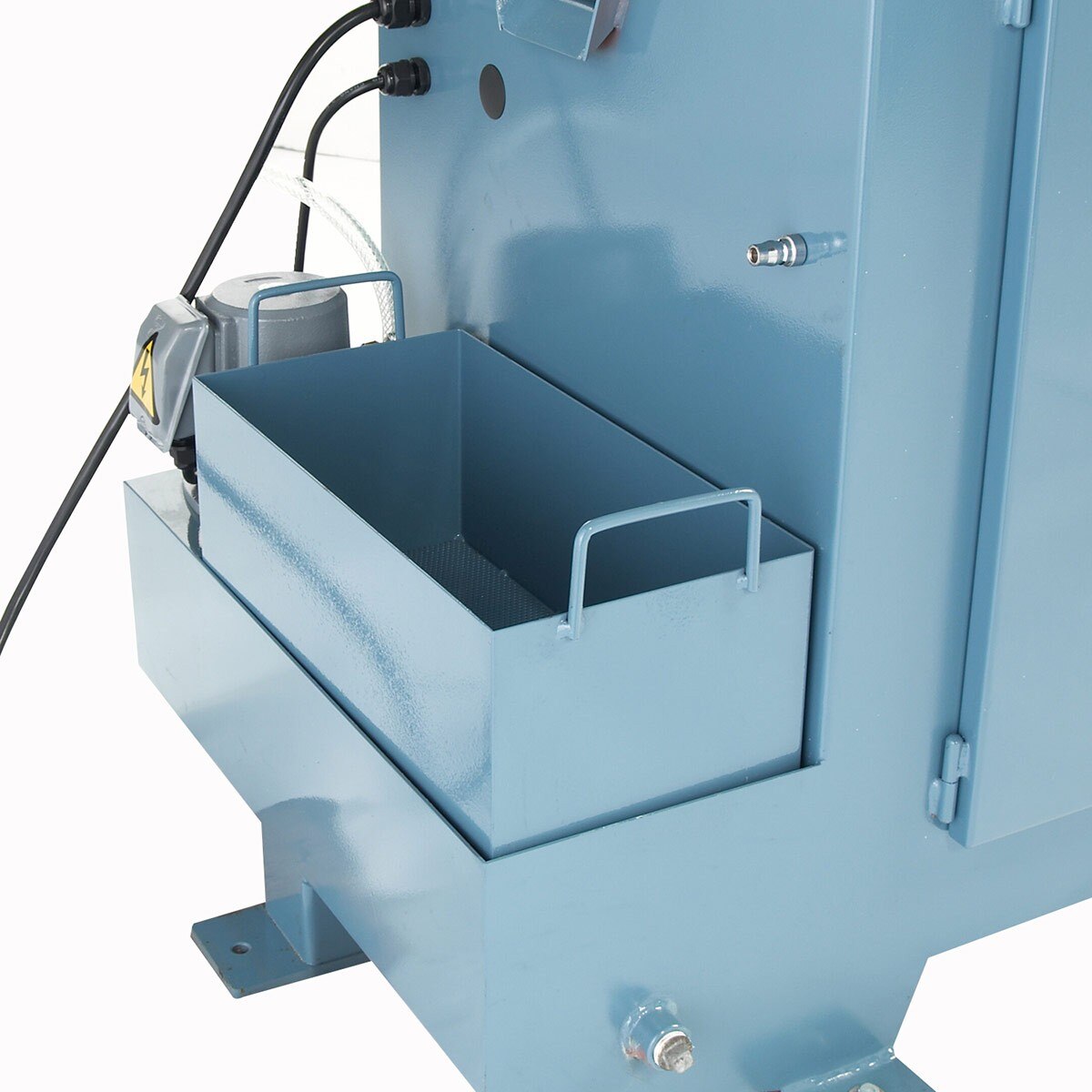

- Flood coolant system helps blades last longer, makes the machine easier to operate, and gives you smooth, burr-free cuts.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1002574 Specifications
| Max. Blade Diameter | 14" |
| Operation | Manual with Pneumatic Vice |
| Head Miter | 45° Left / 45° Right |
| Round Solid at 45° | 1.575" |
| Square Tube at 45° | 2.953" x 2.953" |
| Round Tube at 45° | 2.953" |
| Rectangle Tube at 45° | 2.953" x 2.362" |
| Round Solid at 90° | 2.362" |
| Rectangle Tube at 90° | 4.25" x 3.5" |
| Square Tube at 90° |
