Baileigh Industrial BA9-1002578 Cut Off Saw CS-350SA
Description
Description
Baileigh Industrial 1002578 Description

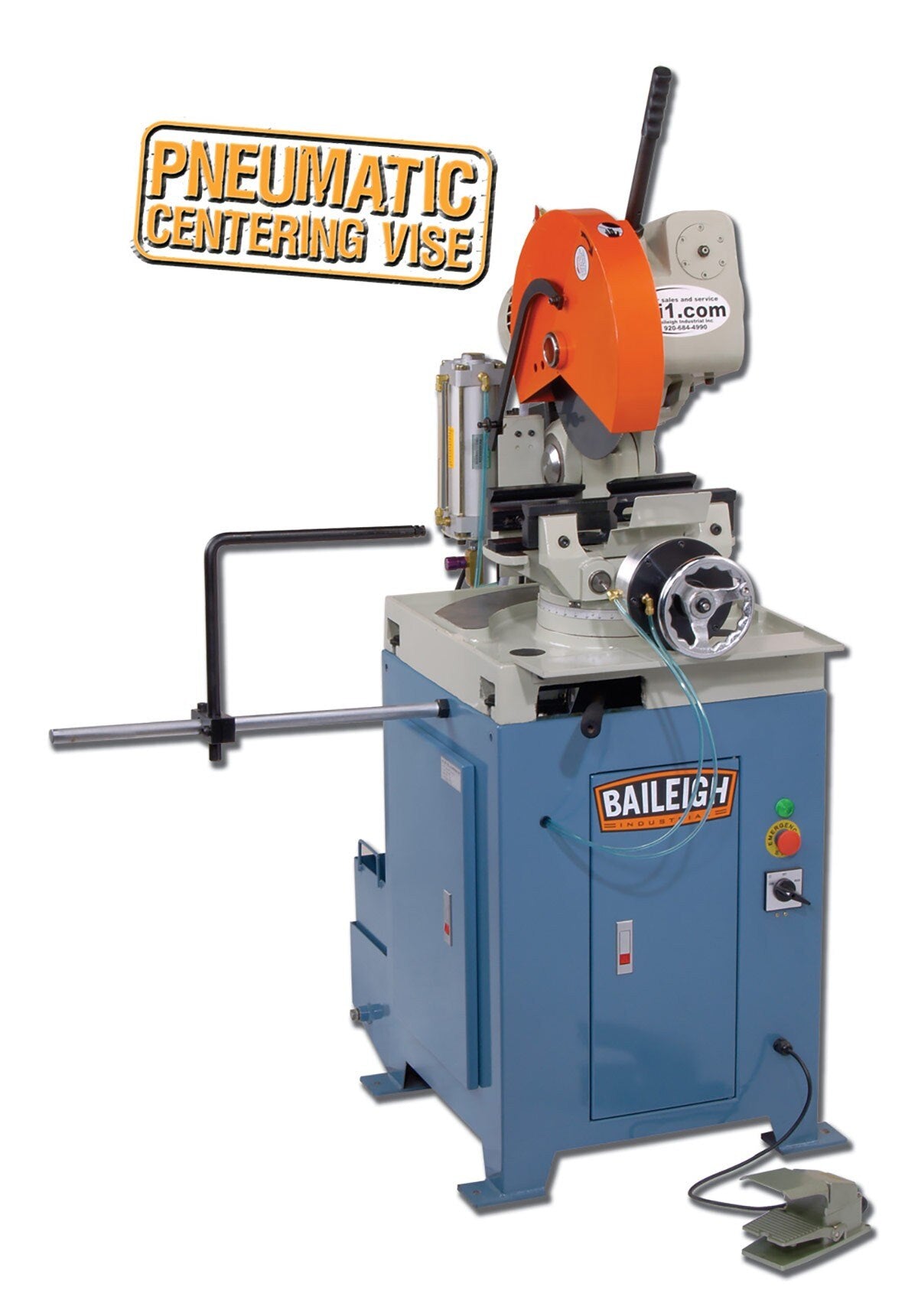

Do you have the need for more production from your current cut off saw? The CS-350SA from Baileigh industrial might just be the right choice. It is a great production saw for any shop that is cutting thin, medium, or thick walled pipe, tubing, extrusions, or solid bar stock. Designed from the CS-350M, this design has proven itself to be one of the best production saws available. The head of the CS-350SA is made from heavy duty cast iron and has a self centering vise that is unique because it keeps the material perfectly centered with the blade for absolutely perfect cuts.
Baileigh Industrial 1002578 Includes
- (1) Semi-Automatic Cold Saw
Baileigh Industrial 1002578 Features
- Accepts a massive 14” blade.
- 4.33” round tube capacity at 90°.
- You can switch between 2 speeds, 26 and 52 rpm, depending on your material.
- 4 hp motor runs the direct-drive blade and requires 220-volt 3-phase power.
- Miters 45° right and 90° left, which is important if you have any slotting applications.
- Rigid cast iron head minimizes vibrations so that the blade gives you high-quality cuts—and will for many years to come.
- Ground and hardened all-metal gears in blade head ensure tight tolerances throughout the life of the saw.
- Backlash adjustment allows you to tighten the gears when needed and keep the saw accurate.
- Design adds semi-automatic features to our manual CS-350M, which has proven itself one of the best production saws available.
- Semi-automatic system is simple to operate.
- Simply put the material in the vise and push the foot pedal down. The saw handles the rest.
- The blade starts, descends, cuts, and returns on its own. Once the cut is complete the blade will shut off and the head will raise back up.

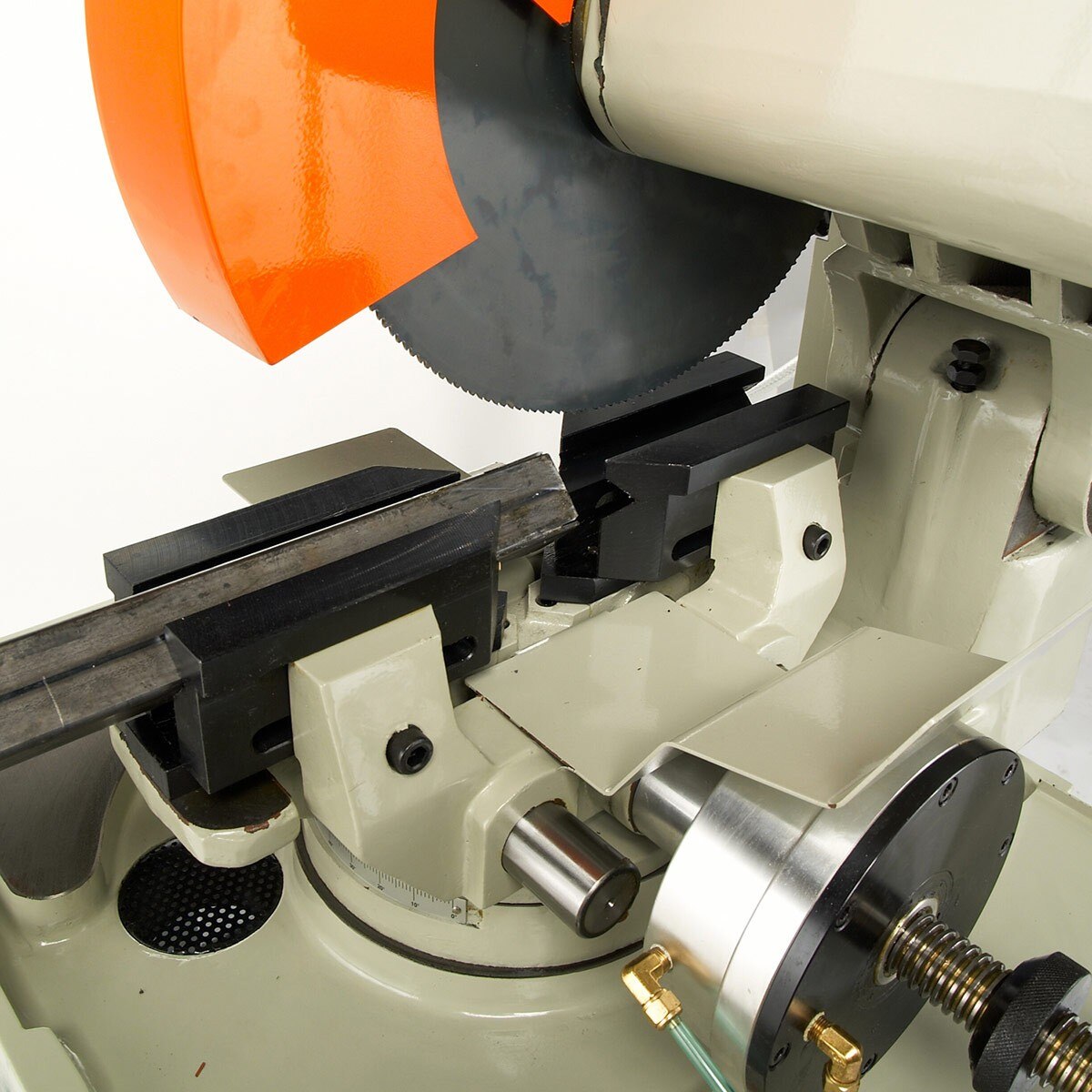

- Air-powered vise, controlled by the foot pedal, clamps the material with jaws on both sides.
- American-style vise is self-centering. It keeps the material in the right position for the blade, so you don’t have to worry about different material diameters.
- Steel stop rod allows you to cut repeatable lengths conveniently.
- Rigid cast iron saw base maintains accuracy and high cut quality by preventing the blade from wobbling.
- Durable folded steel stand puts the machine at a comfortable working height.
- Flood coolant system lubricates the blade and helps it deliver clean, precise cuts, like only a cold saw can.
