Baileigh Industrial BA9-1002869 Baileigh Drill Press DP-1250VS
Description
Description
Baileigh Industrial 1002869 Description

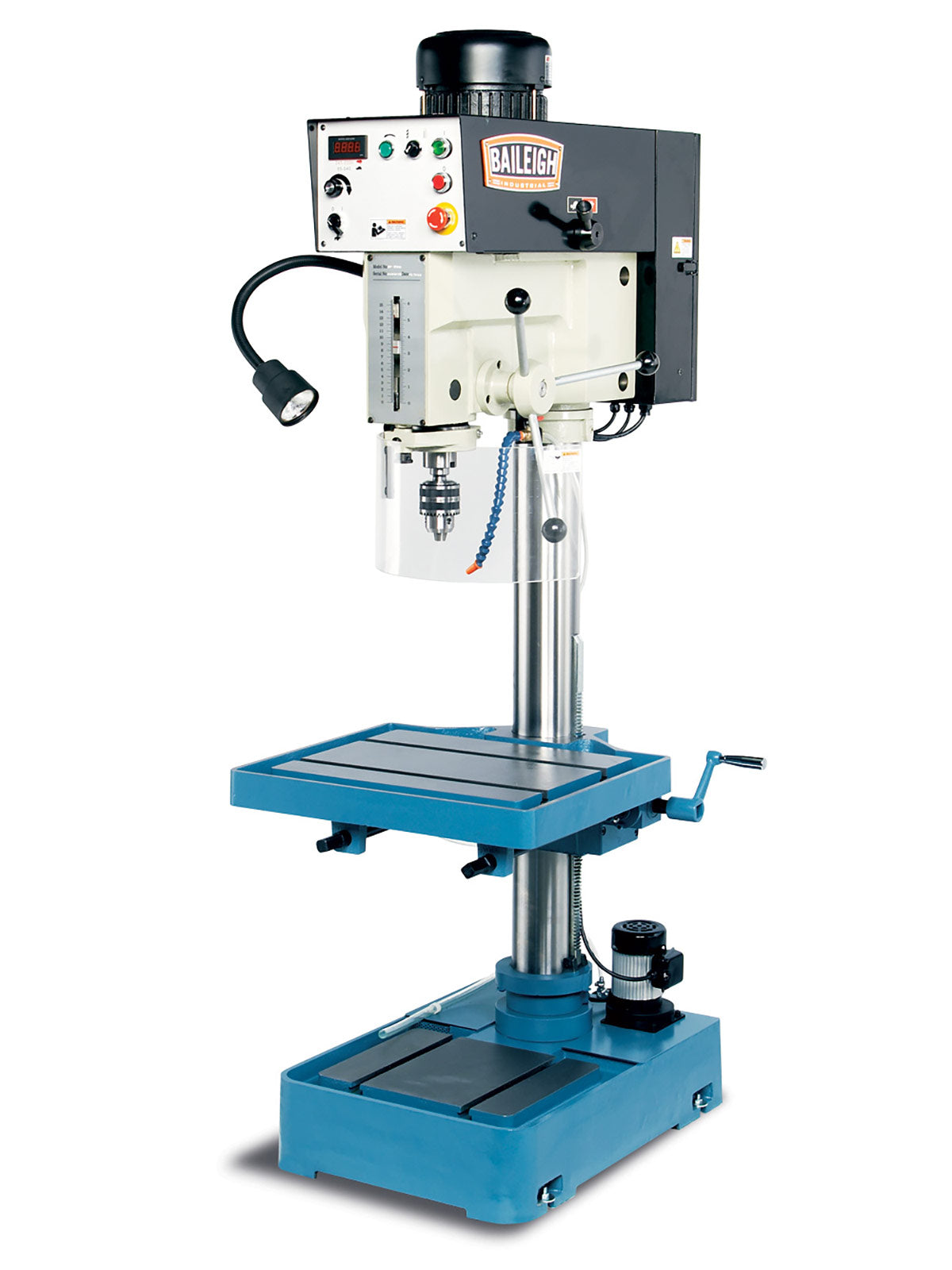

Built to last for years, the DP-1250VS floor drill press draws strength from its sturdy base and column that won’t flinch during the heaviest drilling sessions. With a 20.8” swing, this variable-speed drill press will prove an ideal investment for any machinist or fabricator.
Baileigh Industrial 1002869 Includes
- (1) Drill Press
Baileigh Industrial 1002869 Features
- 2 hp motor runs on just 220 volts of single-phase power.
- Tackles a maximum drilling capacity of 1.25” mild steel.

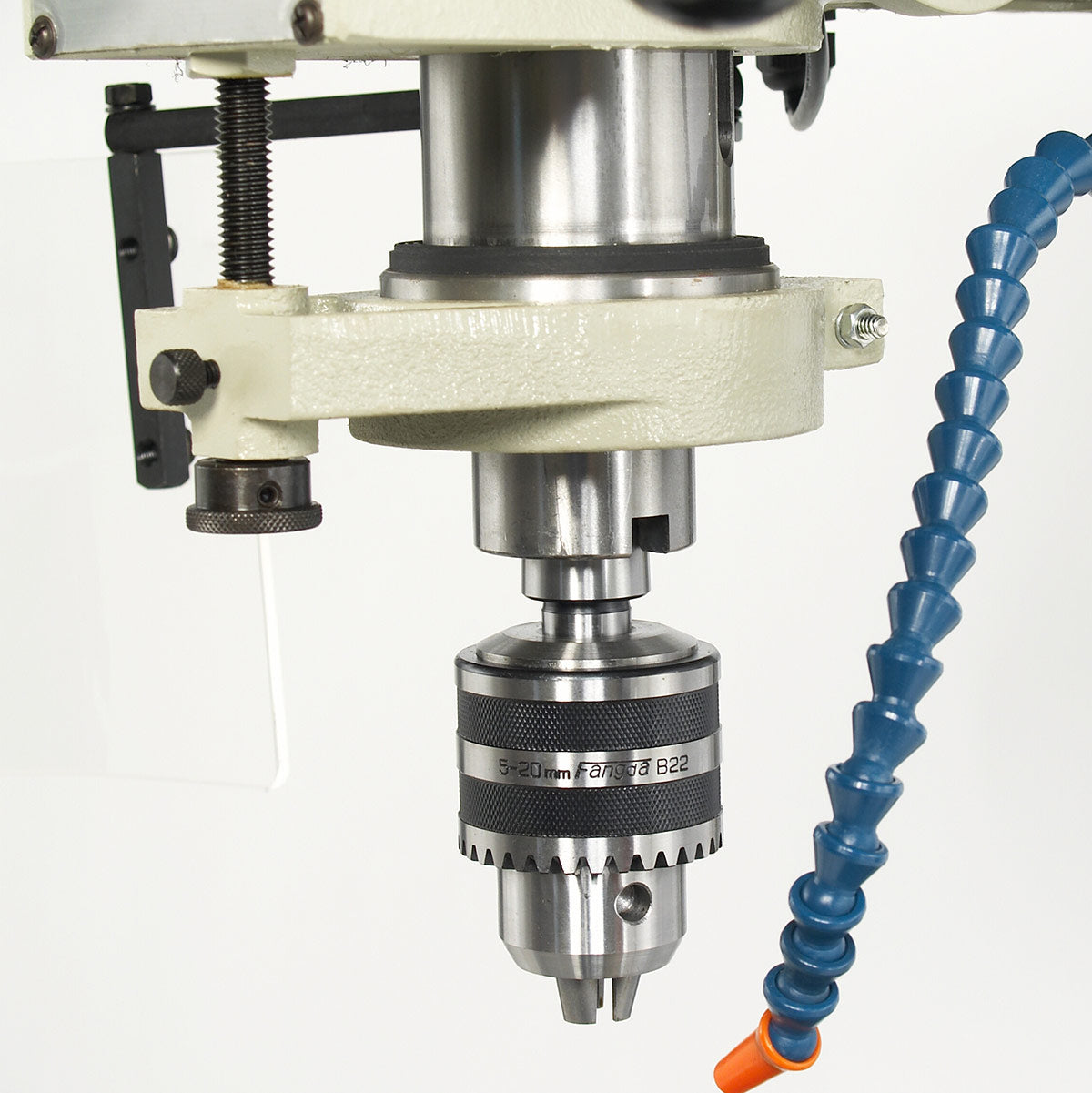

- Heavy duty spindle transfers power to the #4 Morse taper tooling .

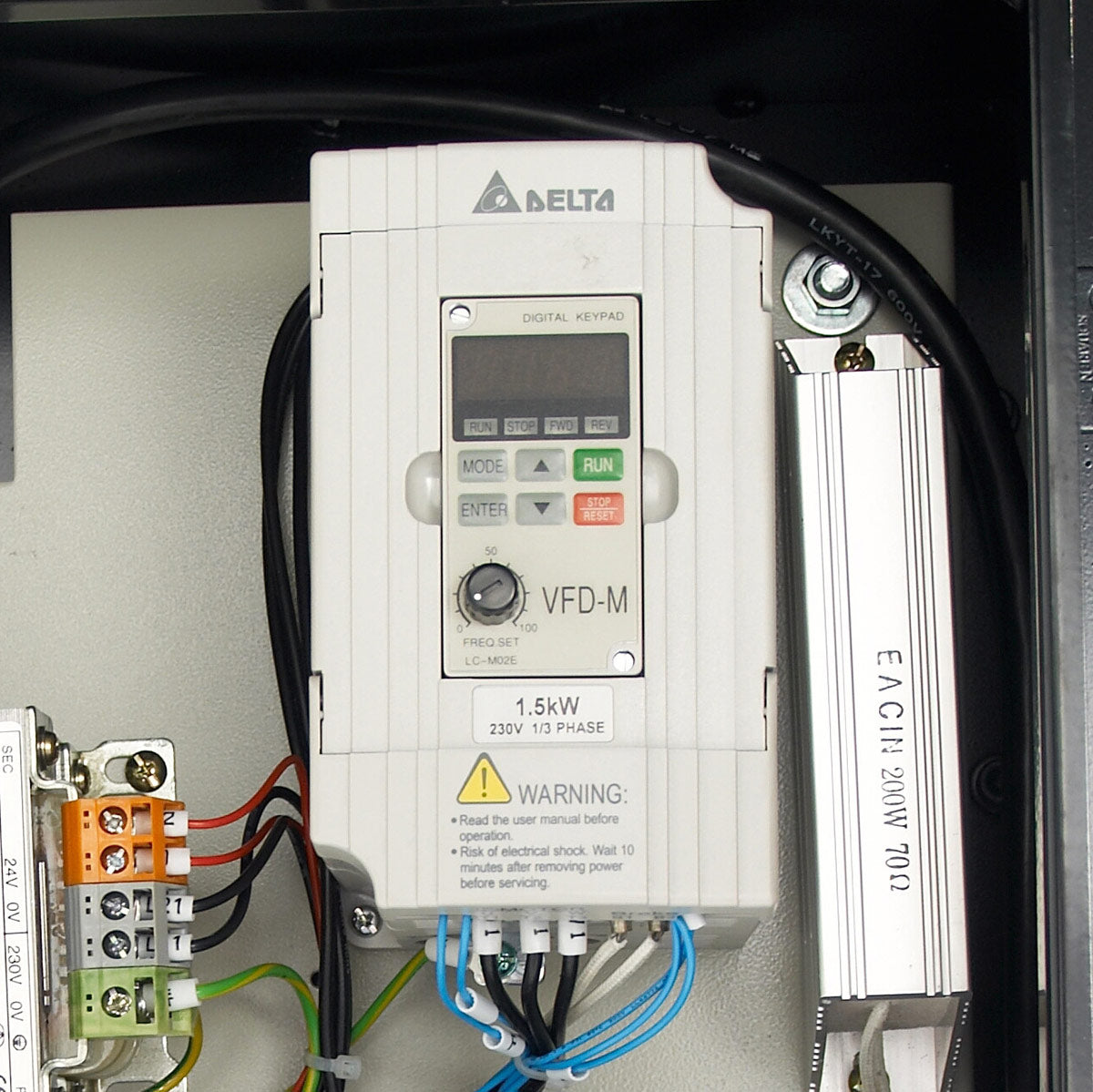

- Speed potentiometer dial controls powerful inverter-driven head.
- Variable drilling speed, ranging from 85 to 2000 rpm, lets you choose the right setting to suit your application.

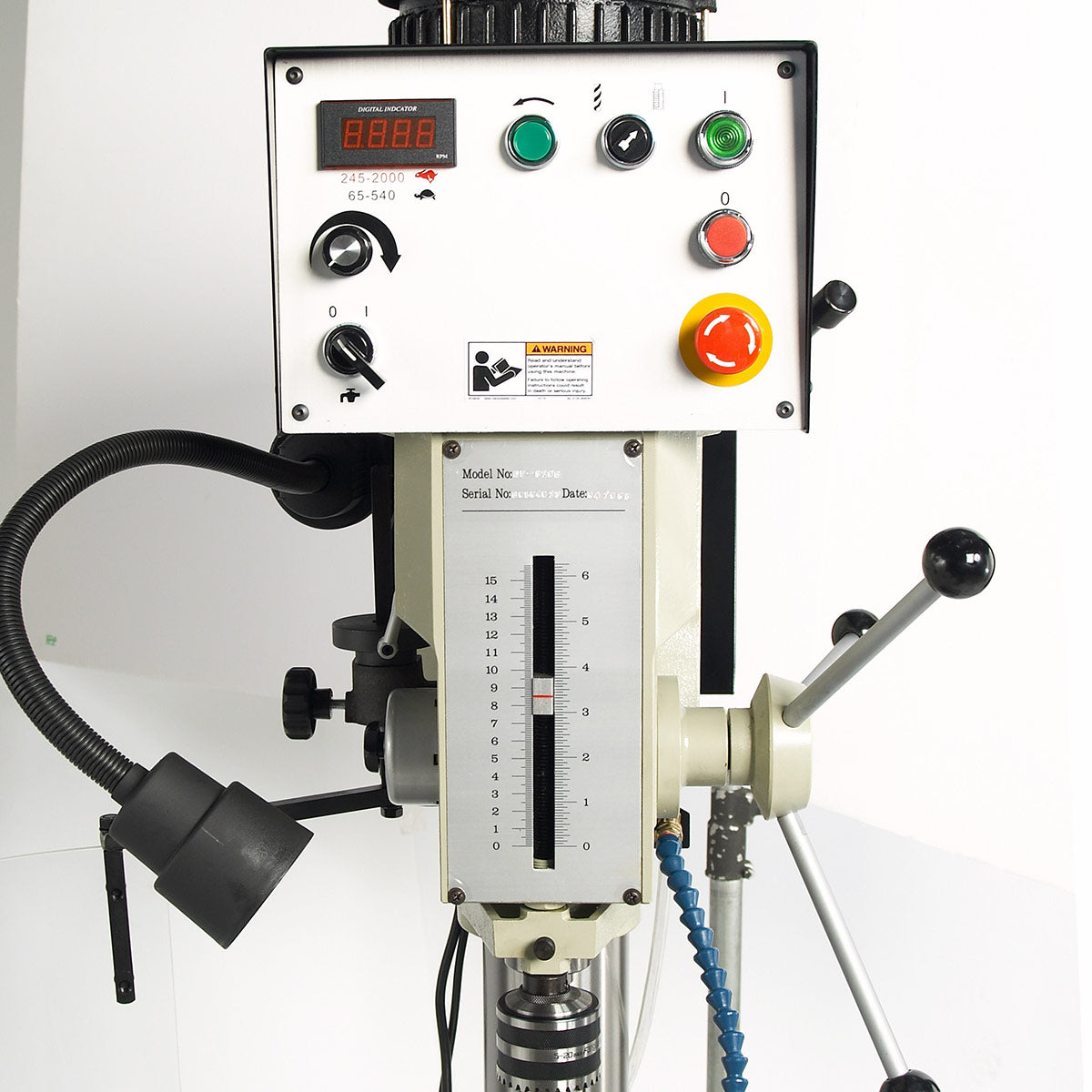

- Digital readout displays actual spindle rpm, ensuring precise results time after time.
- Features an auto-reversing tap function with up to .75” capacity.
- Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.

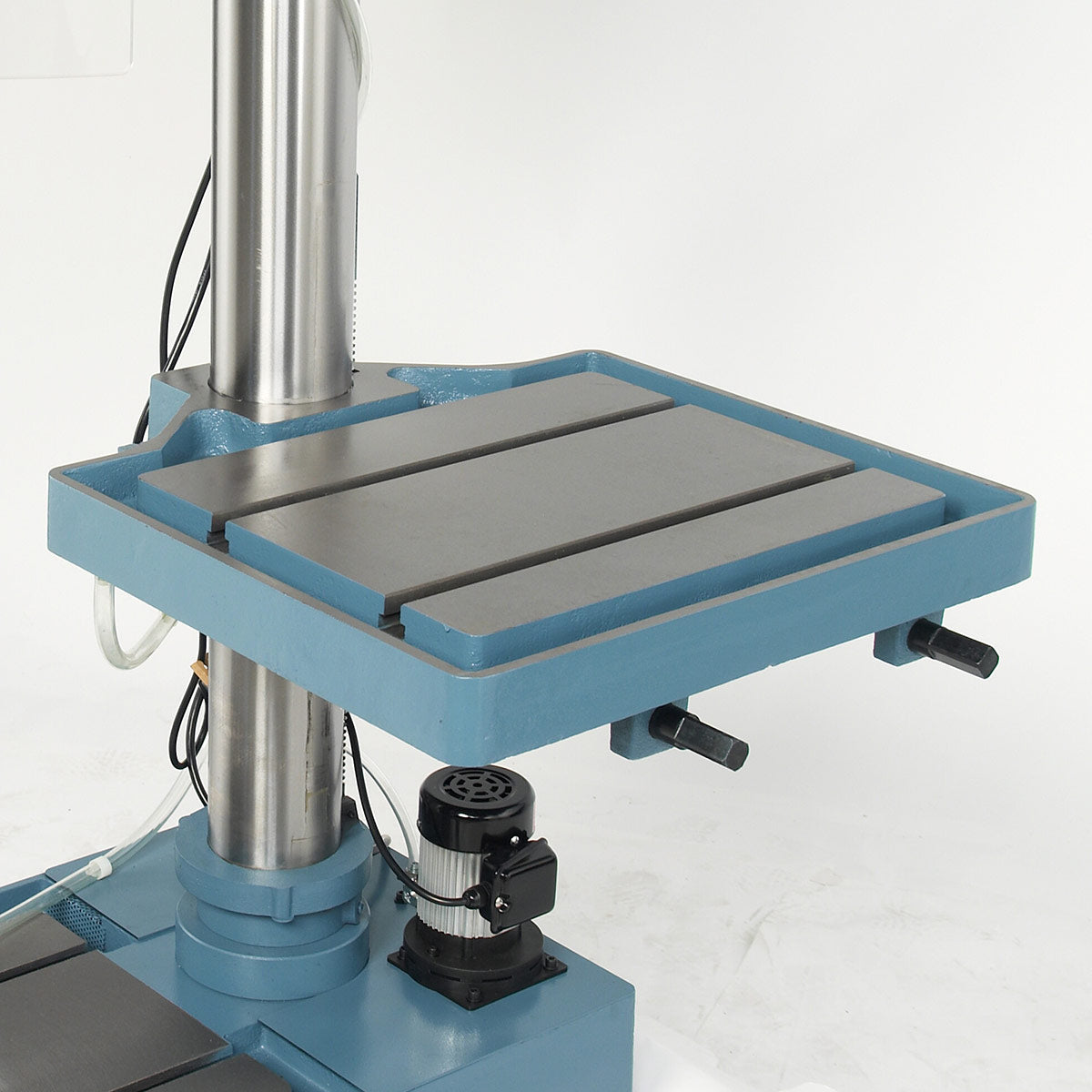

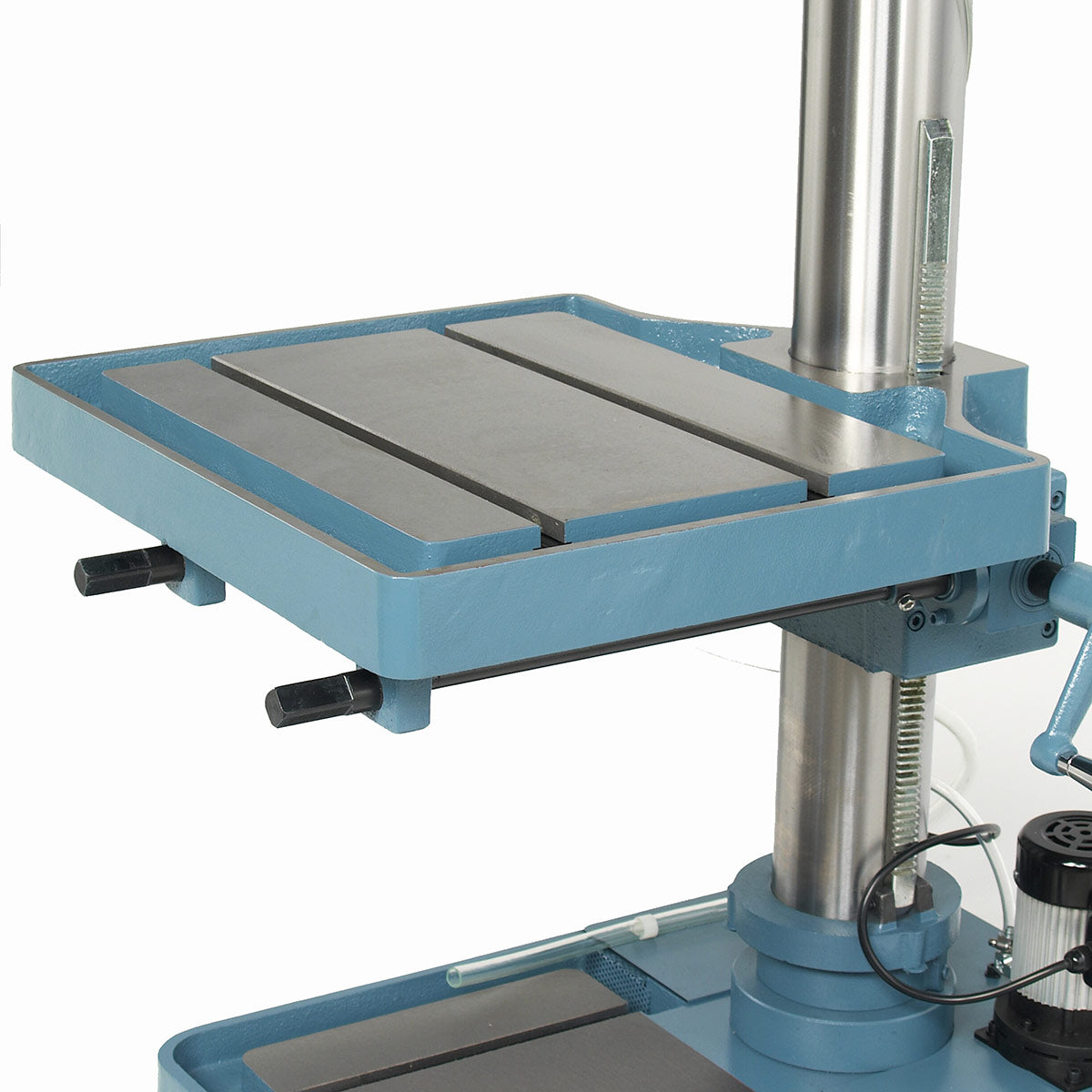

- Base and 22” x 18.5” table are made of a heavy iron casting to increase rigidity.
- Very large .625" T-slots let a vise or fixture securely hold your material.

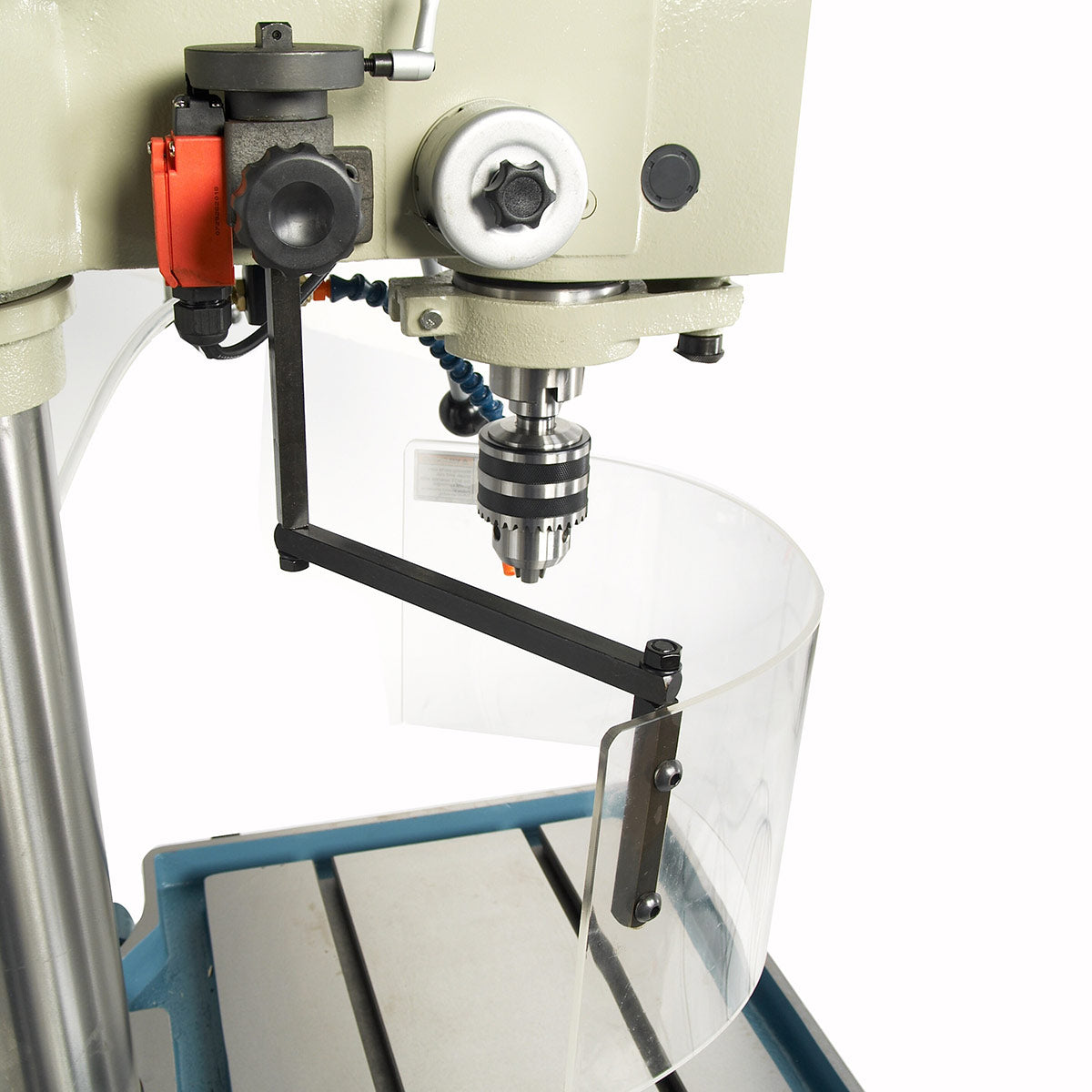

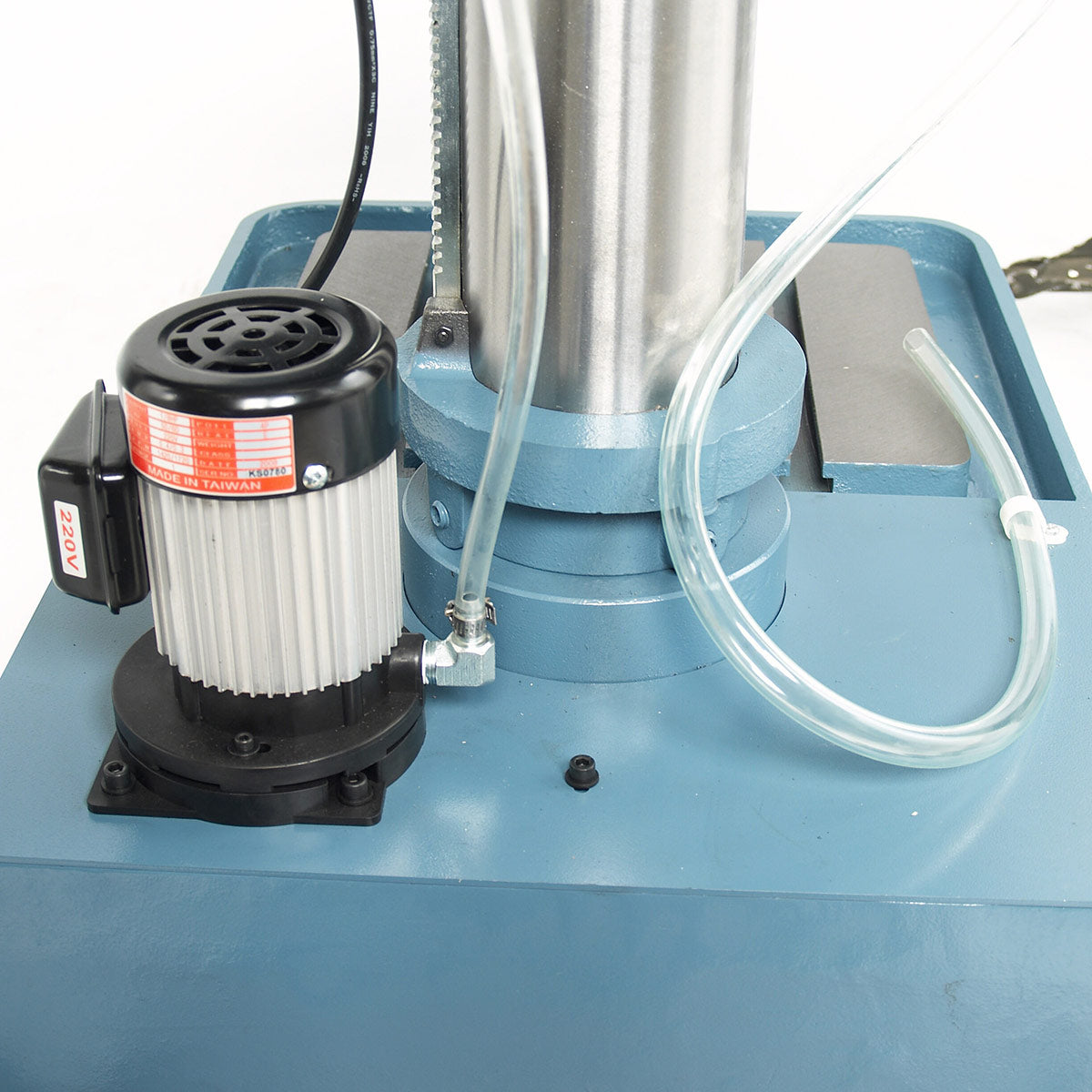

- Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1002869 Specifications
Table Size | 22" x 18.5" |
Quill Diameter | 2.95" |
Spindle Nose to Table | 36.41" |
Spindle Nose to Base | 48.22" |
Spindle Speed High | 245 – 2000 RPM |
Spindle Speed Low | 85 – 540 RPM |
Spindle Taper | MT 4 |
Table Slot | .625" |
Tapping Capacity | 3/4" |
Main Motor | 2 HP |
