Baileigh Industrial BA9-1002923 Variable Speed Drill Press DP-1500VS
Description
Description
Baileigh Industrial 1002923 Description

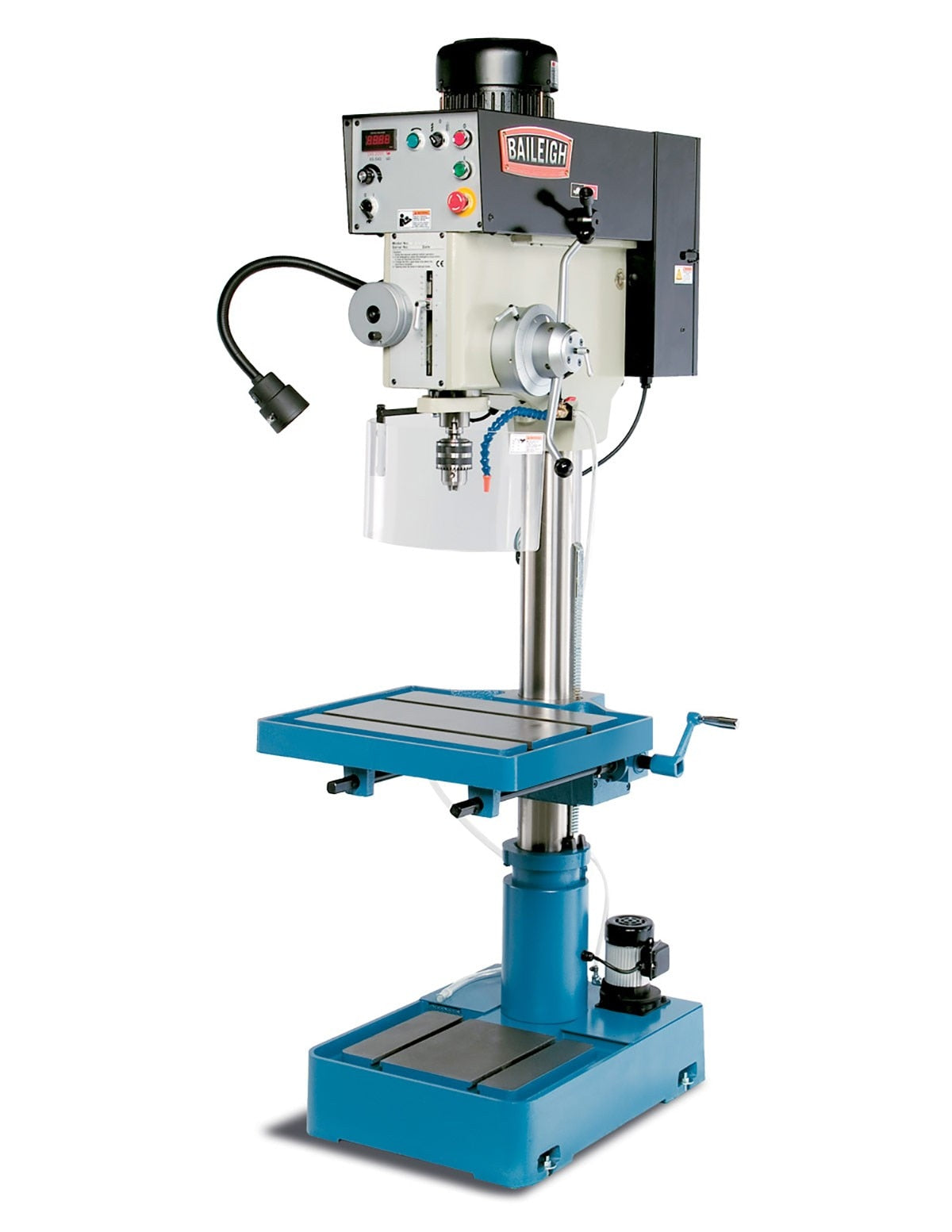

Drill smarter and harder with this 20” floor-type drill press which tackles hefty capacities at up to 2000 rpm. Built to deliver precise results for years, the DP-1500VS comes equipped with a variety of time-saving and performance-enhancing features. You can extend tooling usage by adjusting the inverter-driven head and quill speed to each different drill size. Continuous speed range, instead of just a few pre-set speeds, allows you to fine-tune the setting as you work. We use only the best-quality heavy metal castings for the base and table to add to the overall strength of the drill press.
Baileigh Industrial 1002923 Includes
- (1) Drill Press
Baileigh Industrial 1002923 Features
- 2 hp motor runs on 220-volt single-phase power and will work practically anywhere.
- Handles a maximum drilling capacity of 1.5” steel and 1.75” cast iron.
- Auto-reversing tapping feature has a capacity of .937”.
- Speed range from 65 to 2000 rpm lets you pick the right setting for your project.
- Potentiometer dial controls the drill speed.
- Digital readout on the front displays the speed in rpm for easy checking.
- Sophisticated Delta® inverter drives #4 Morse taper spindle.
- Chuck with automatic tool ejector simplifies tooling changes.
- Large, machined 22” x 18.5” drill table offers plenty of room for material.
- Oversized .625” T-slots allow for secure clamping of a vise or fixture.
- Sturdy 4.52” column eliminates flex and boosts drilling accuracy.
- Cast base supports rigidity at maximum capacity.
- Power-down feed helps to prolong the machine’s lifetime of use.
- Safety guard around the spindle with a limit switch protects you and your shop.
- Powerful coolant system, housed in the base, keeps the drill from overheating and helps the drill last longer.
- Includes a bright halogen light that bends to enable you to see the material better as you work.
- Baileigh covers this drill with a 1-year parts warranty.
Baileigh Industrial 1002923 Specifications
| Table Size | 22" x 18.5" |
| Quill Diameter | 2.95" |
| Quill Feed | .0078", .004", .002" per Rev. |
| Spindle Nose to Table | 22.75" |
| Spindle Nose to Base | 40.75" |
| Spindle Speed High | 245 – 2000 RPM |
| Spindle Speed Low | 65 – 540 RPM |
| Spindle Taper | MT 4 |
| Table Slot | .625" |
| Tapping Capacity | .937" |
