Baileigh Industrial BA9-1004165 Electronically Controlled Tapping Arm ETM-32-1500
Description
Description
Baileigh Industrial 1004165 Description

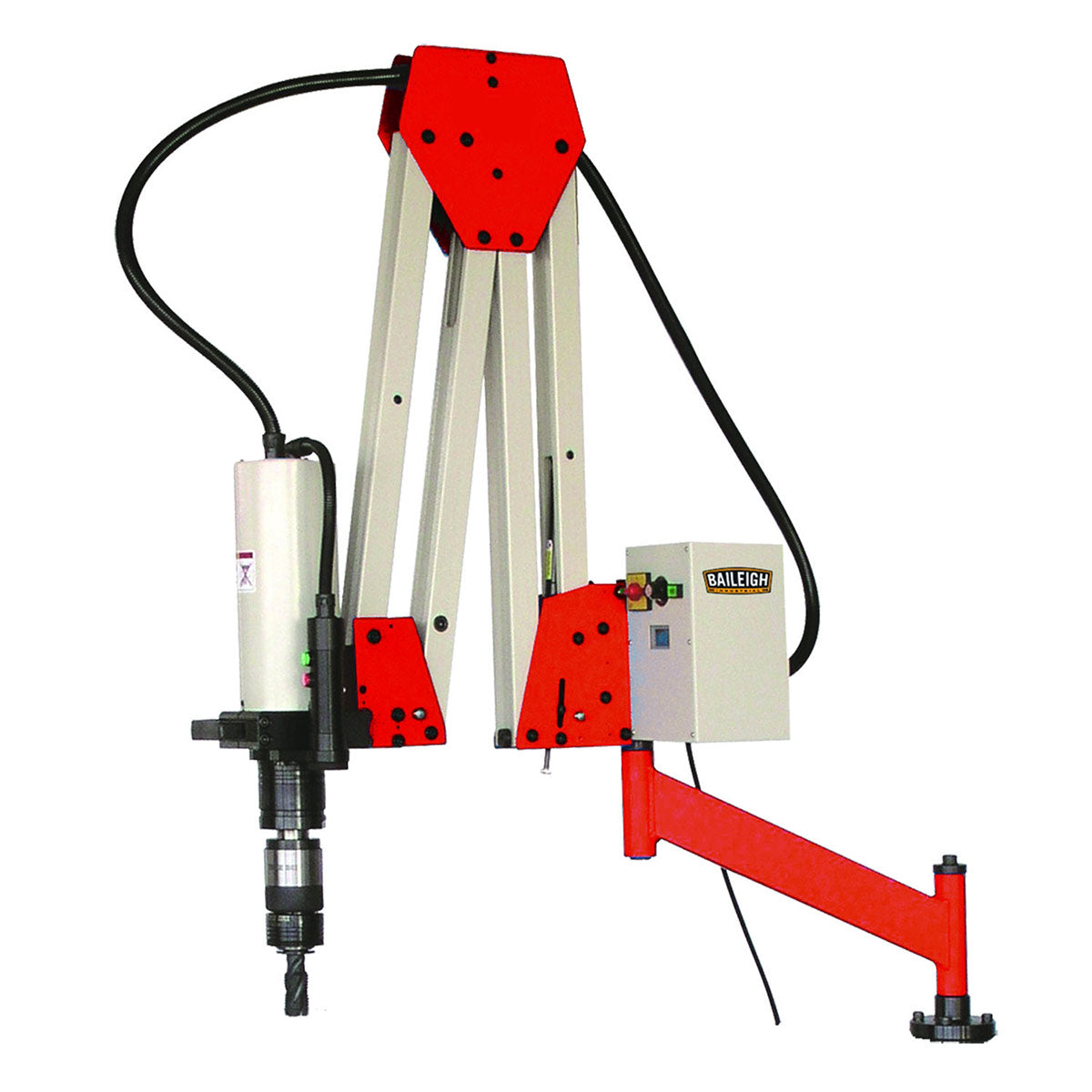

The ETM-32-1500 is an electronically controlled tapping arm that has a maximum tapping capacity of 1-1/4”. This is a self-contained unit that has a variable speed spindle making it perfect for most every job. The ETM-32-1500 has a double articulated arm to extend its reach to 59”. The sturdy cast iron swing arm is connected to the base by means of a hardened and ground shaft that incorporates a leveling system. The twin parallel arms are made of heavy gauge aluminum tubing that effective sat neutralizing vibration and torque reaction. Tapping arms are very popular for jobs that require employees to do the same process over and over accurately. It also has an ergonomic design, to protect workers from injuries that tend to develop over time during repetitious work. Also included are 6 sets of tap holders in various sizes. To make the ETM-32-1500 even more versatile ask about the optional work cart.
Baileigh Industrial 1004165 Includes
- (1) Tapping Arm
- (6) Tap Holders
Baileigh Industrial 1004165 Features
- Electric tapping spindle
- 0 to 300 rpm
- Work range 7.8" to 59"
- Slanted arm for increased reach
- Table mount system
- Adjustable spindle mount forvariable degree tapping
- 1/4", 3/8", 1/2", 5/8", 1", and 1-1/8" tap holders included
- Optional work cart available
- 220V single phase
Baileigh Industrial 1004165 Specifications
| Tapping Range | .11" to 1.25" |
| Work Range (Maximum) | 59" |
| Work Range (Minimum) | 7.8" |
| Spindle Speeds | 0 to 300 RPM |
| Spindle Operation | Electric |
| Included Tap Holders | 1/4", 3/8", 1/2", 5/8", 1" and 1-1/8" |
| Voltage | 220V / 1-phase |
| Shipping Dimensions | 69" x 44" x 32" |
| Country of Origin | Taiwan |
