Baileigh Industrial | SKU:
BA9-1004703

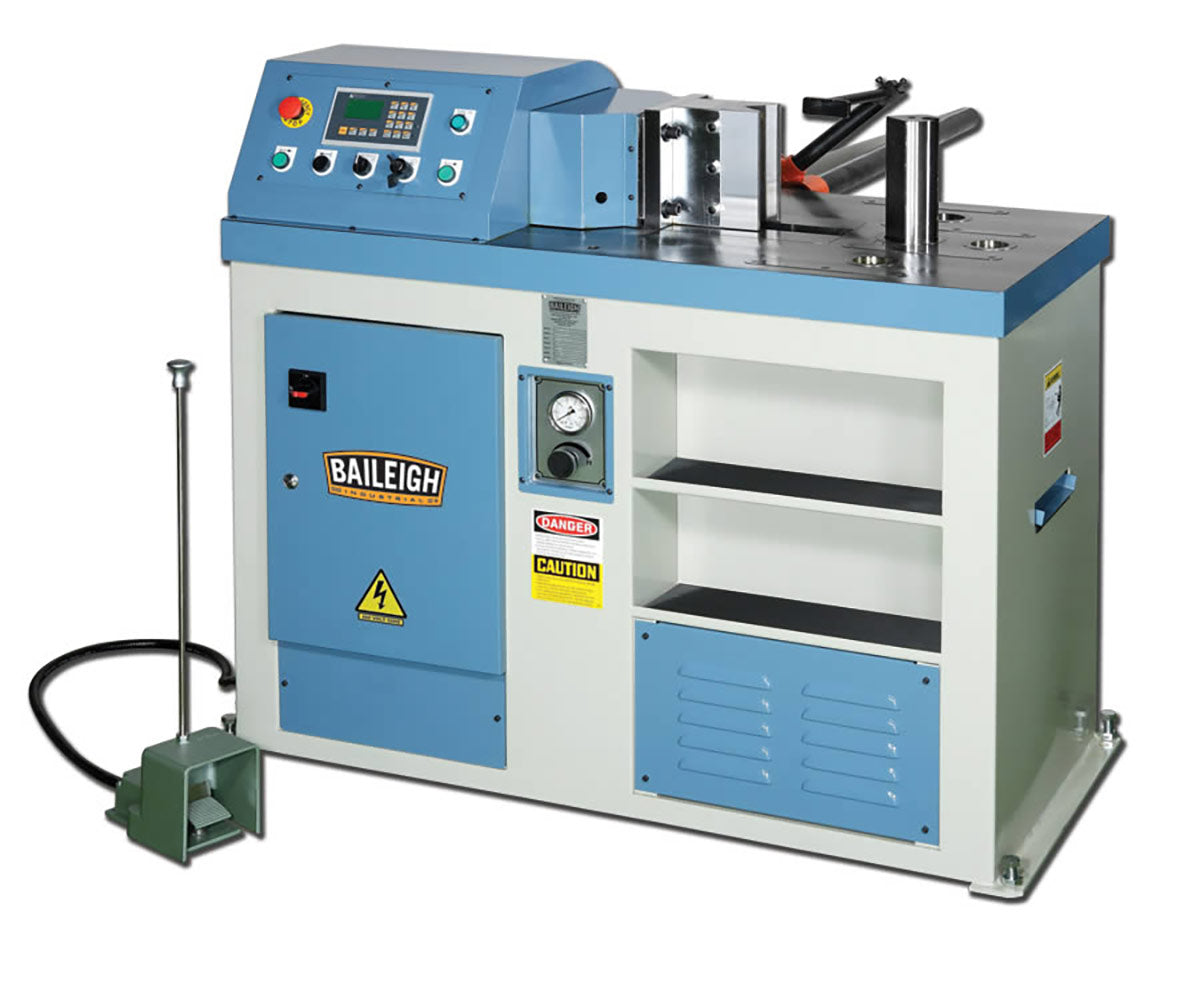

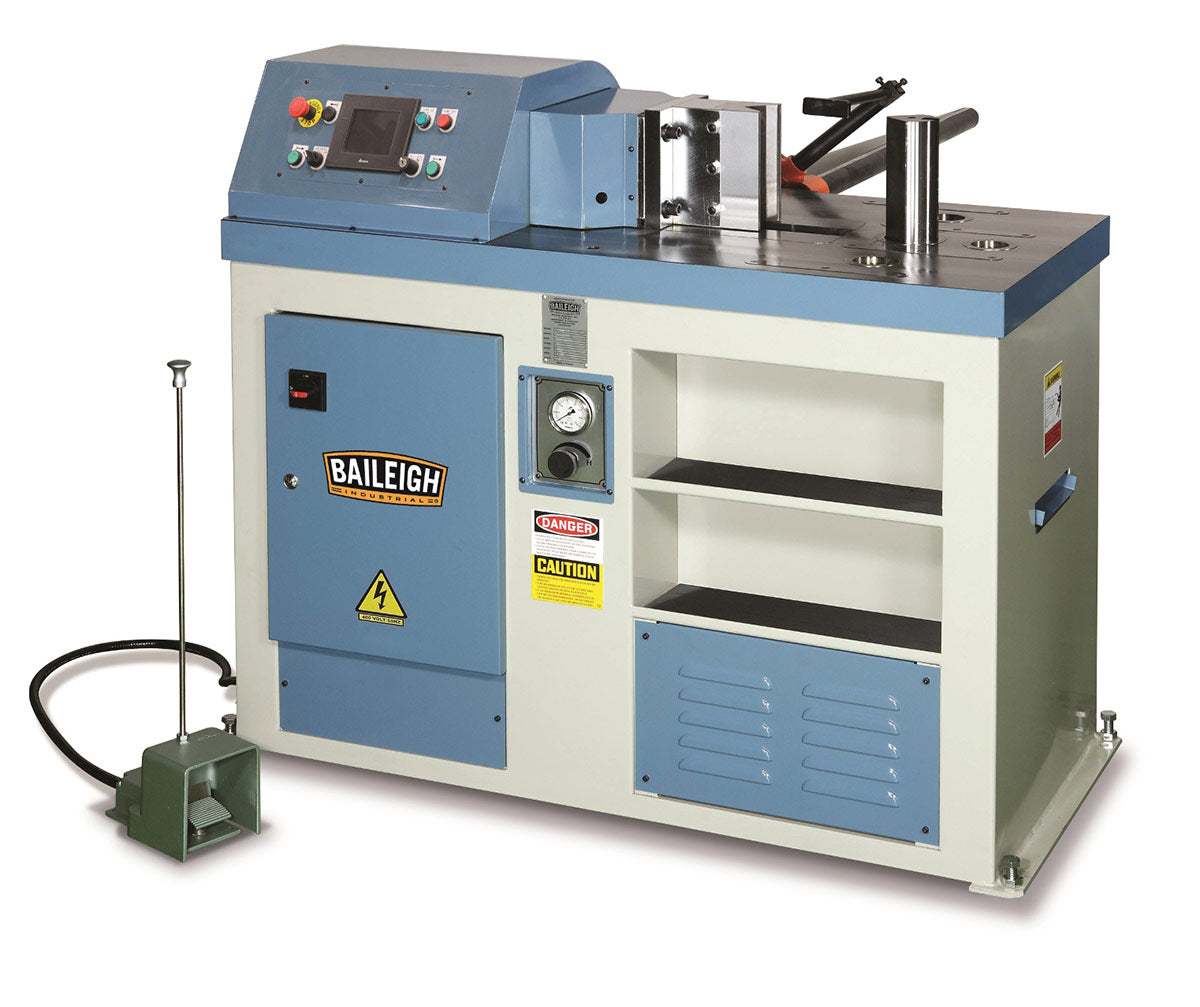

Baileigh Industrial BA9-1004703 Horizontal Press Brake HPB-45NC
Free Shipping
$24,479.00
$29,141.64
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1004703 Description
The HPB-45NC horizontal press brake form Baileigh Industrial is truly a must have in any fabrication shop. This do it all machine can bend, punch, and shear with the correct tooling, yet takes up very little space. The HPB-45NC makes it much easier to make smaller parts such as flanges and brackets, because the material has a surface to lie on during the process. No having to hold one side and hope that it is perfectly level or lined up; the perfectly machined table takes care of that for you.
Baileigh Industrial 1004703 Includes
- (1) Horizontal Press Brake
Baileigh Industrial 1004703 Features
- 5 hp motor produces up to 45 tons of pressure.
- 9.84” stroke length.
- Runs on 220-volt 3-phase power.
- Industrial-grade hydraulic system is located on top of the metal press brake to reduce flex.
- You can adjust the pressure of the the hydraulics for your material.
- Designed for simple operation. In 15 minutes, anyone could learn to run it.
- Numerical control (NC) programmer can store up to 50 programs with 10 bends per program.
- Electronic encoders make this hydraulic press brake accurate to +/- .002”.
- Product counter makes production runs more efficient.
- Control the bending stroke with 2 buttons or with the foot pedal, so your hands are free to guide the material.
- You can also run the metal press brake in a manual mode for one-off projects as well as set-up.
- Robust manual back gauge bolts to the machine and helps with repeatability.
- Machined table, 36” high, keeps your material perfectly level. No need to hold one side and hope it’s lined up!
- Quick-release tooling system makes changes fast and simple. Just turn the handle and the post will lift. The V die slides in and out.

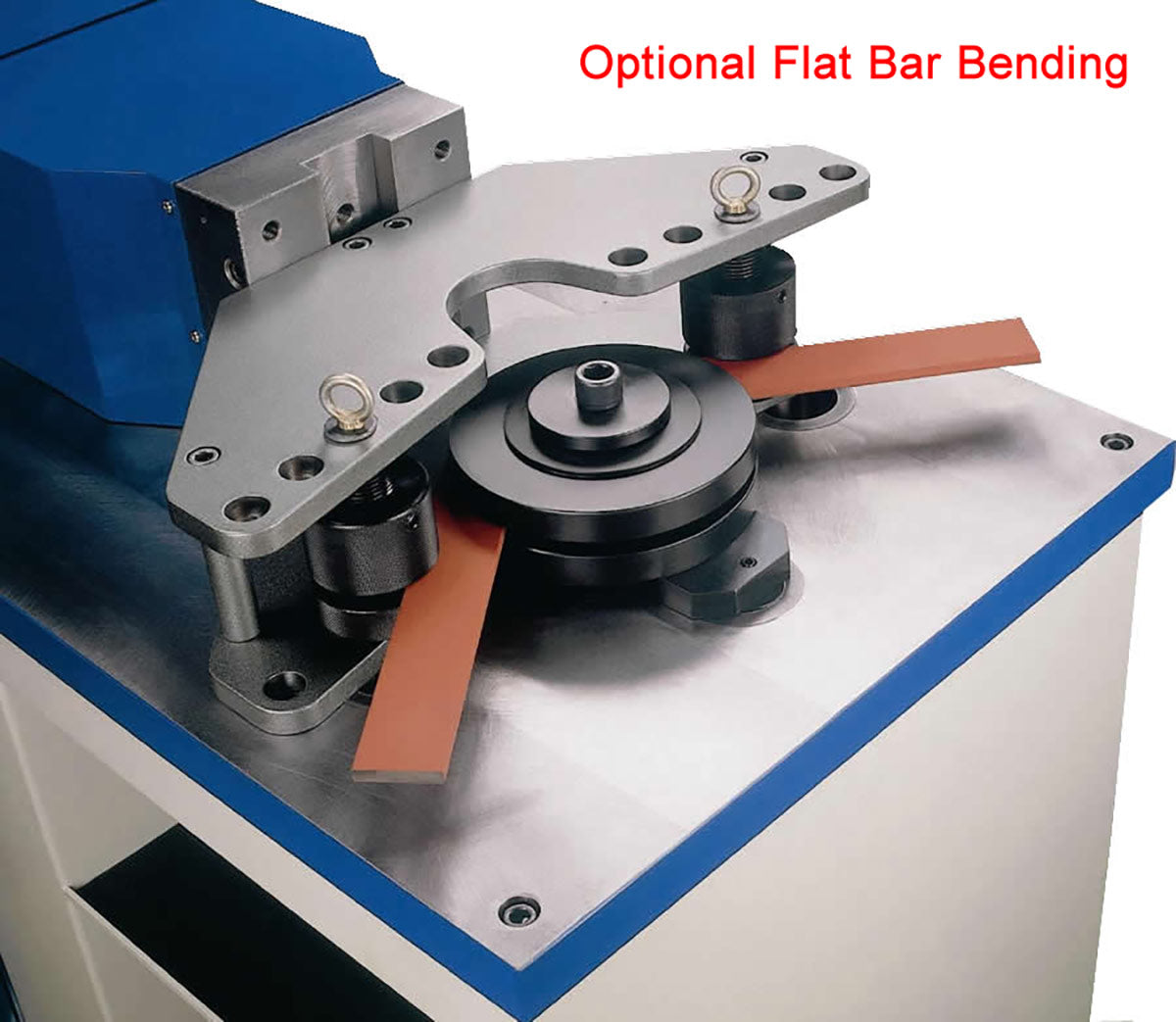

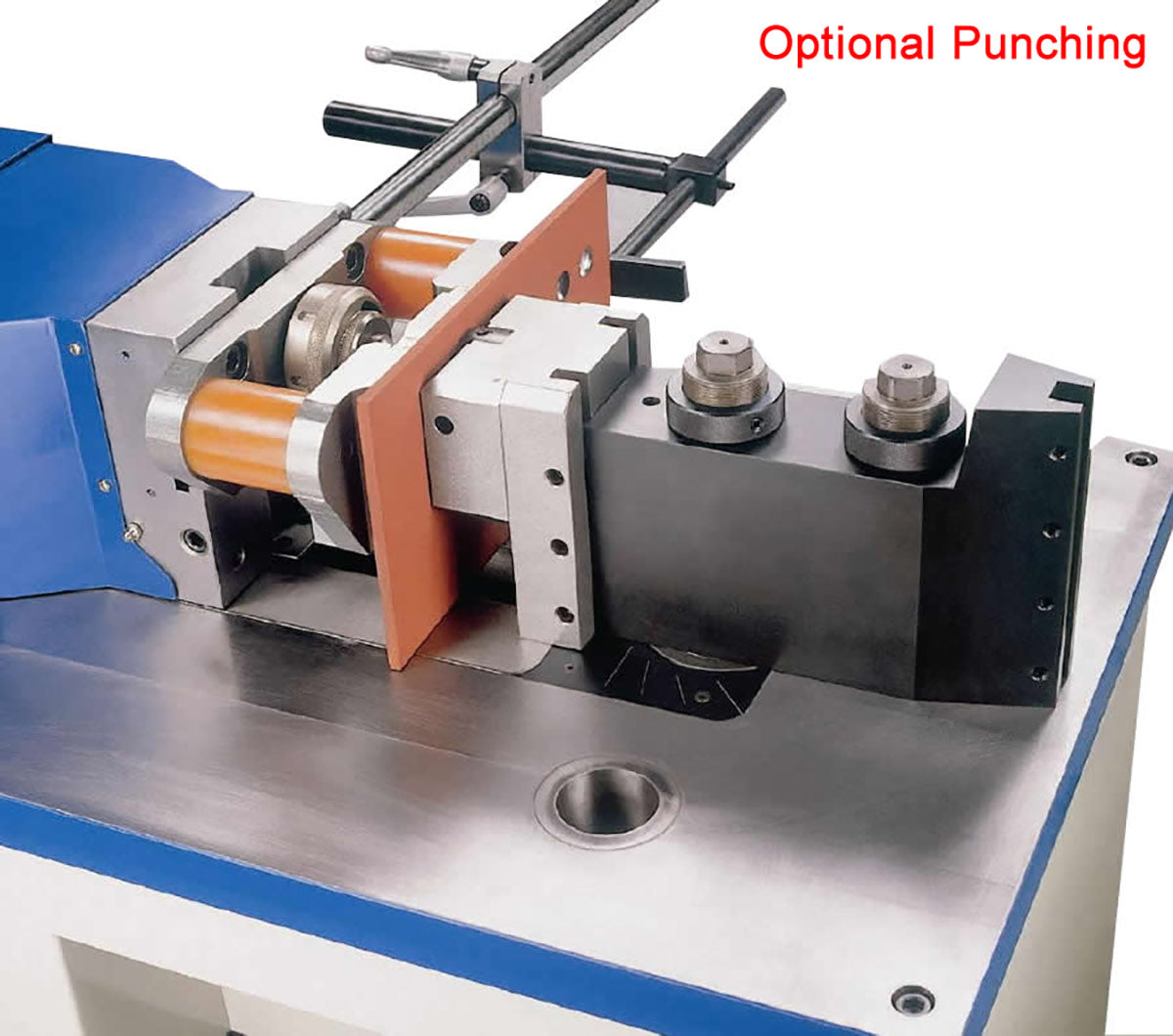

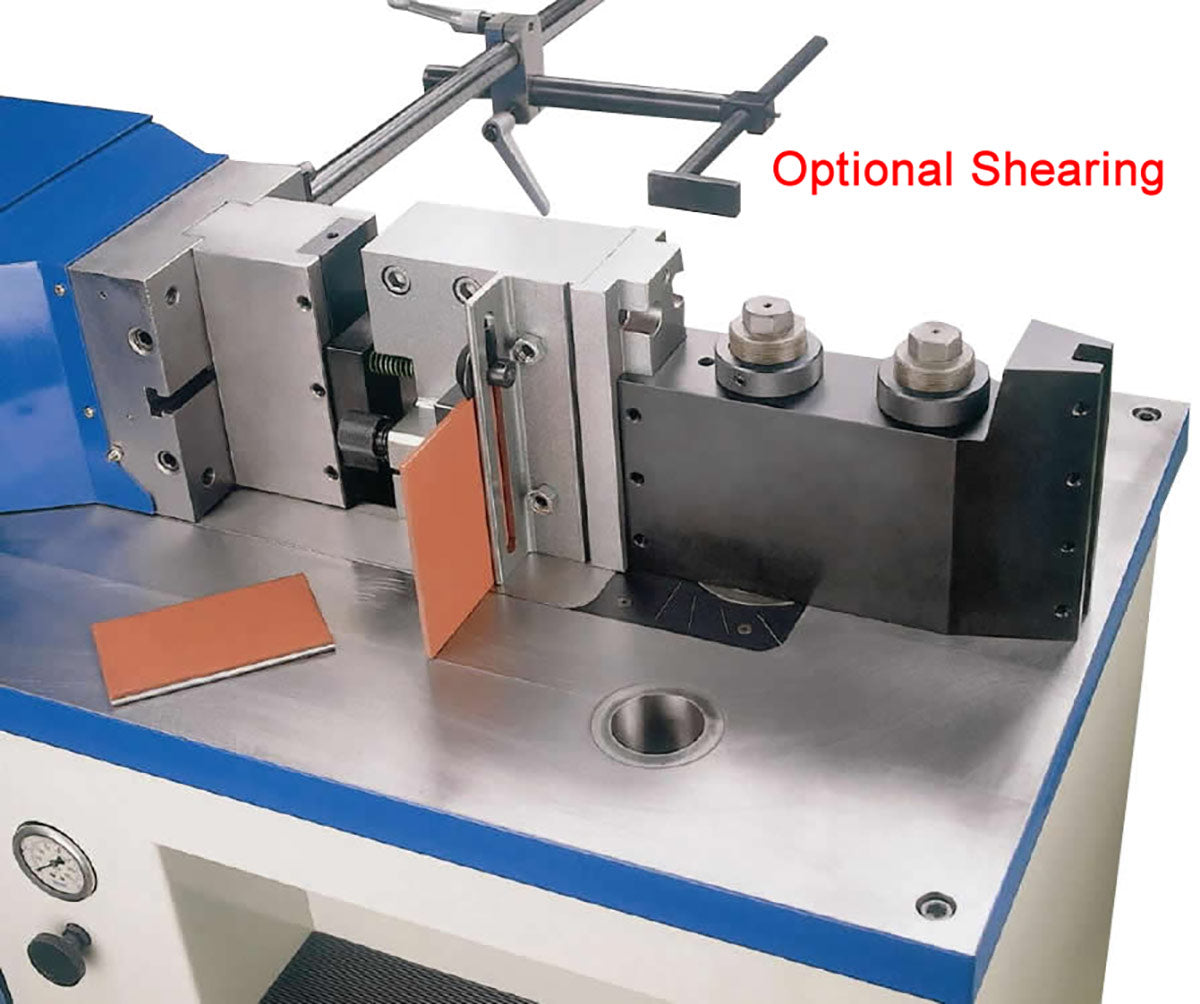

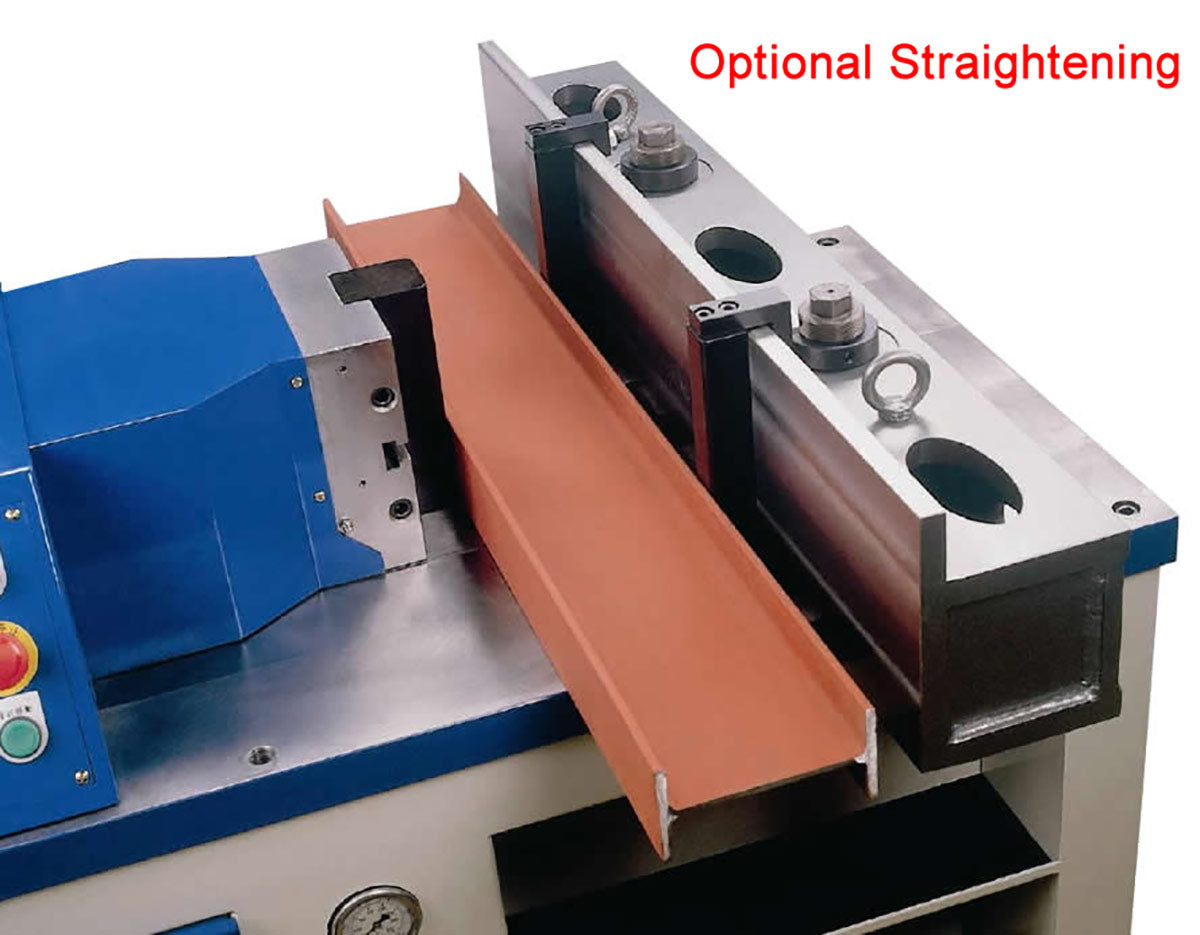

- Accepts attachments for punching, straightening, shearing, and even pipe bending.

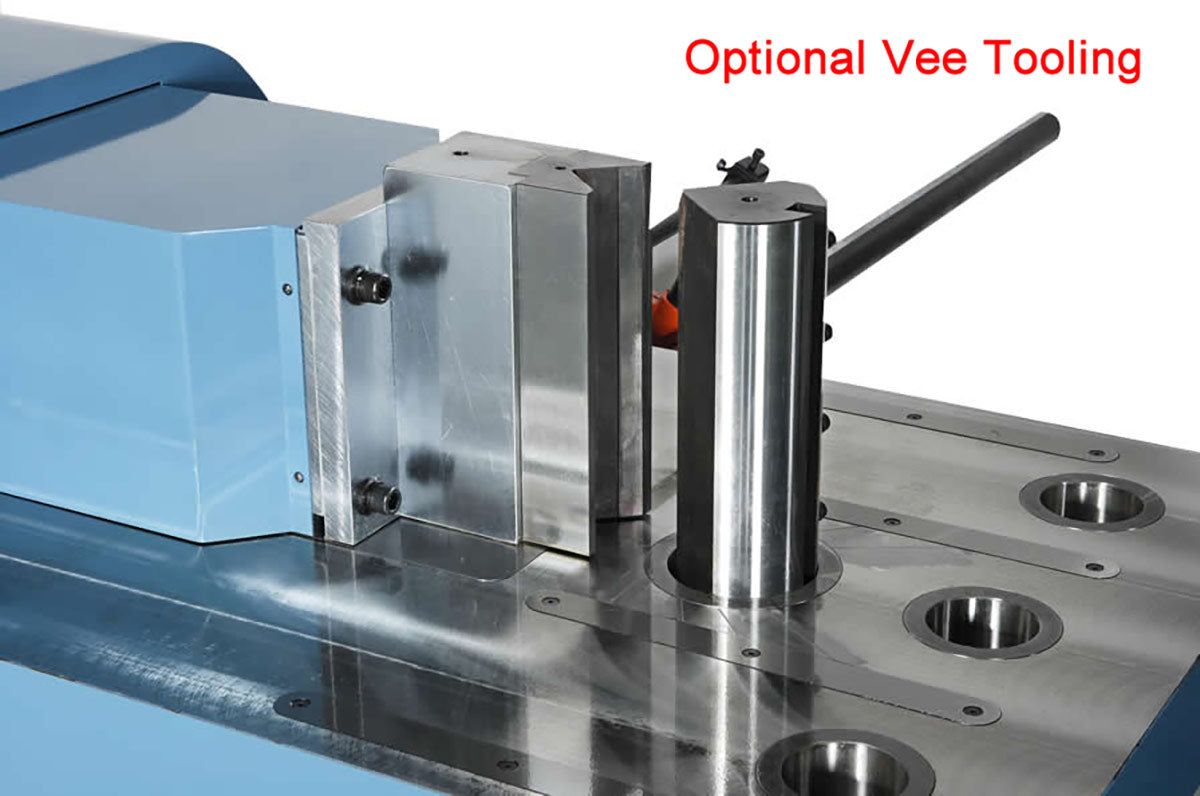

- Includes 80mm single-V tooling (V-opening die and V post).

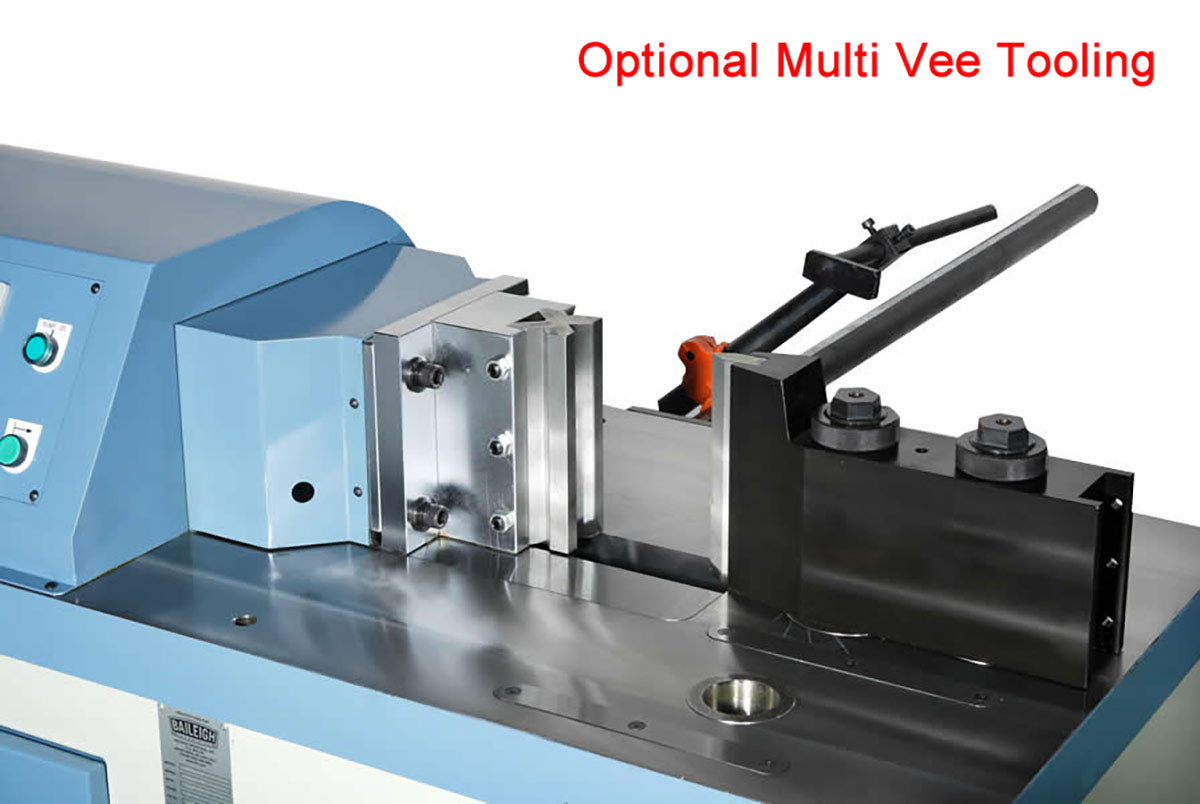

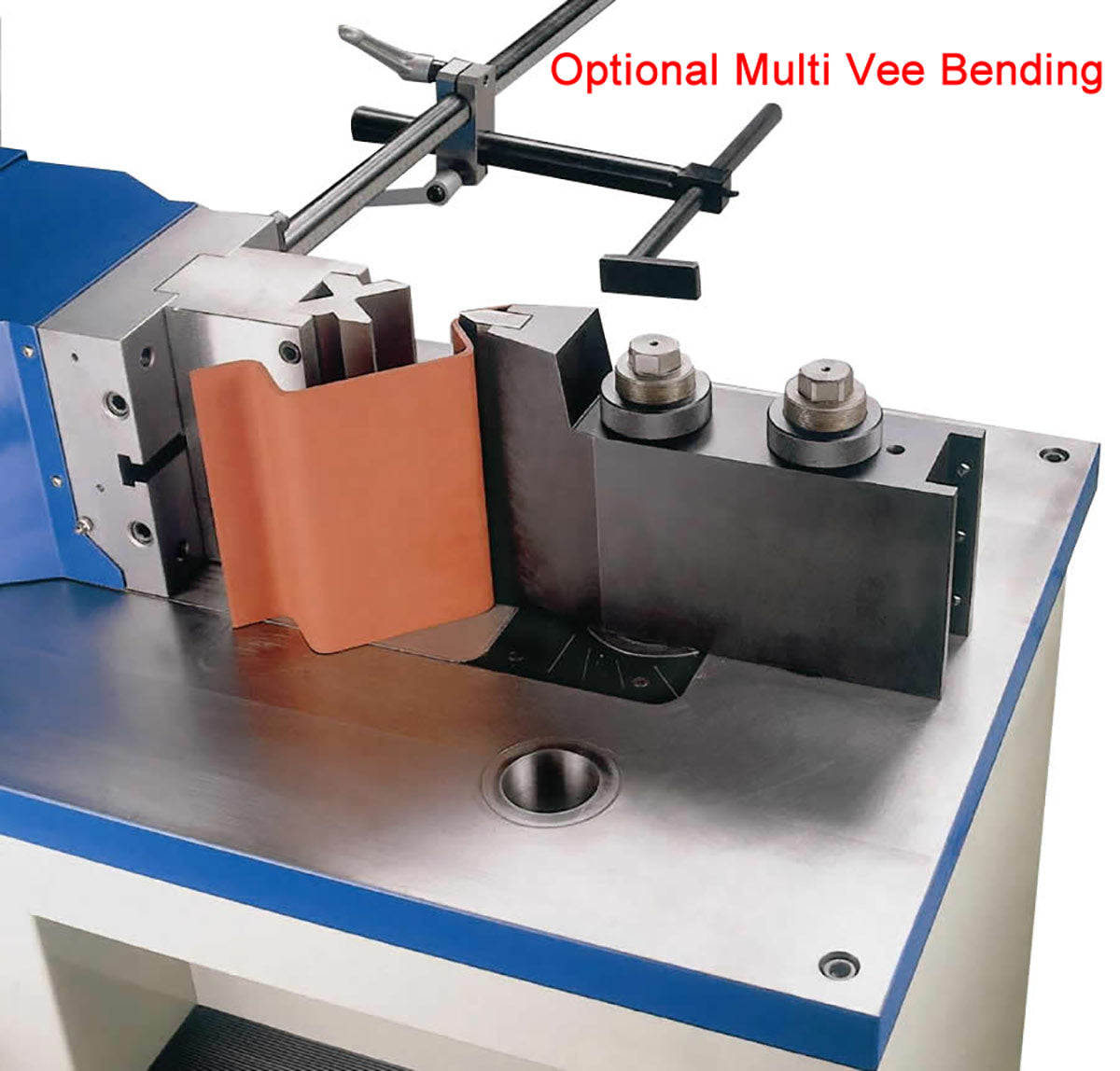

- Many additional tooling sets are available. We can find the right one for your project or create a custom set, if necessary.
- 2,266-pound steel frame, made from 4 powerful pieces of inch-thick flat bar, will keep results accurate for many years and won’t flinch under pressure.
