At a Glance
Voltage
220 V
Motor Horsepower
7.5 HP
Material
Steel
Sold As
Individual
Description
Description
Baileigh Industrial 1004720 Description

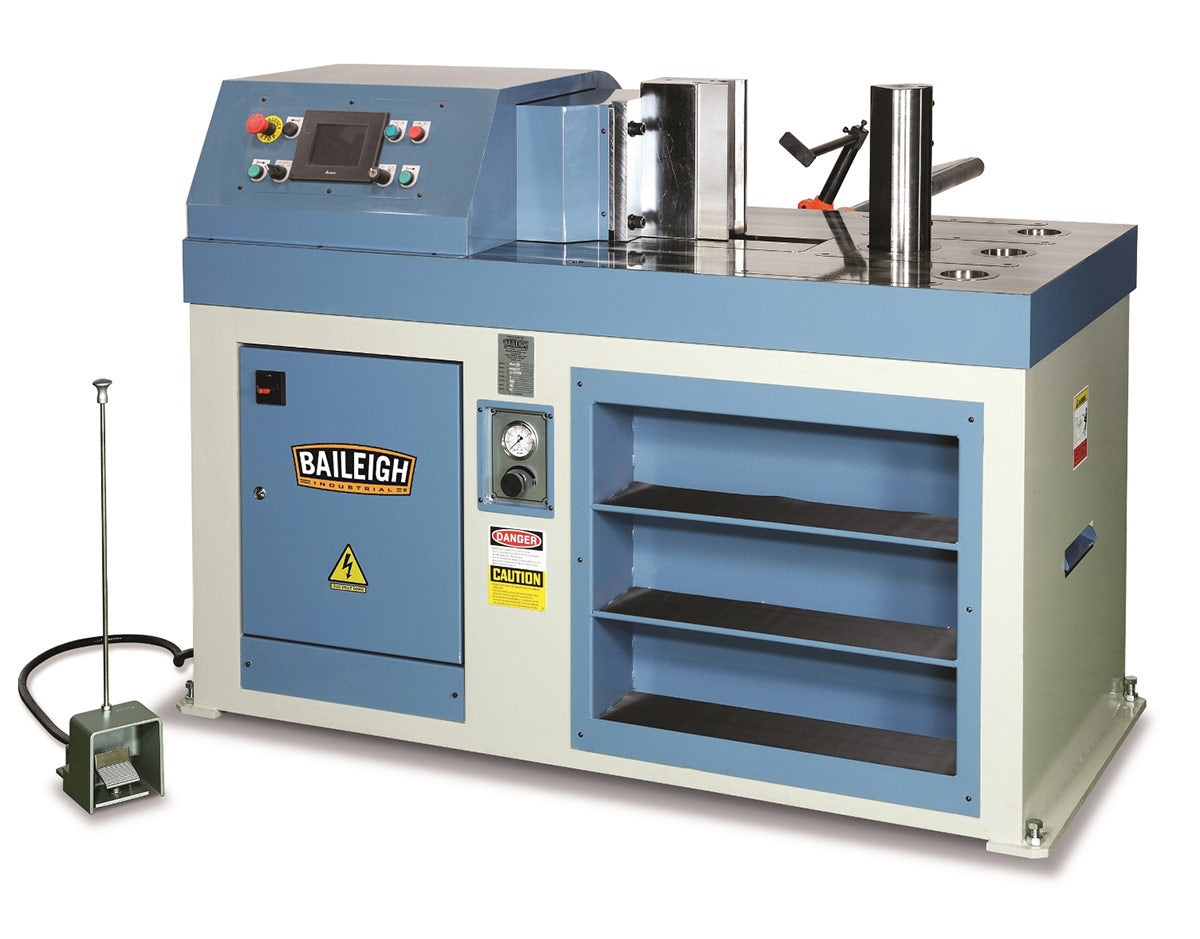

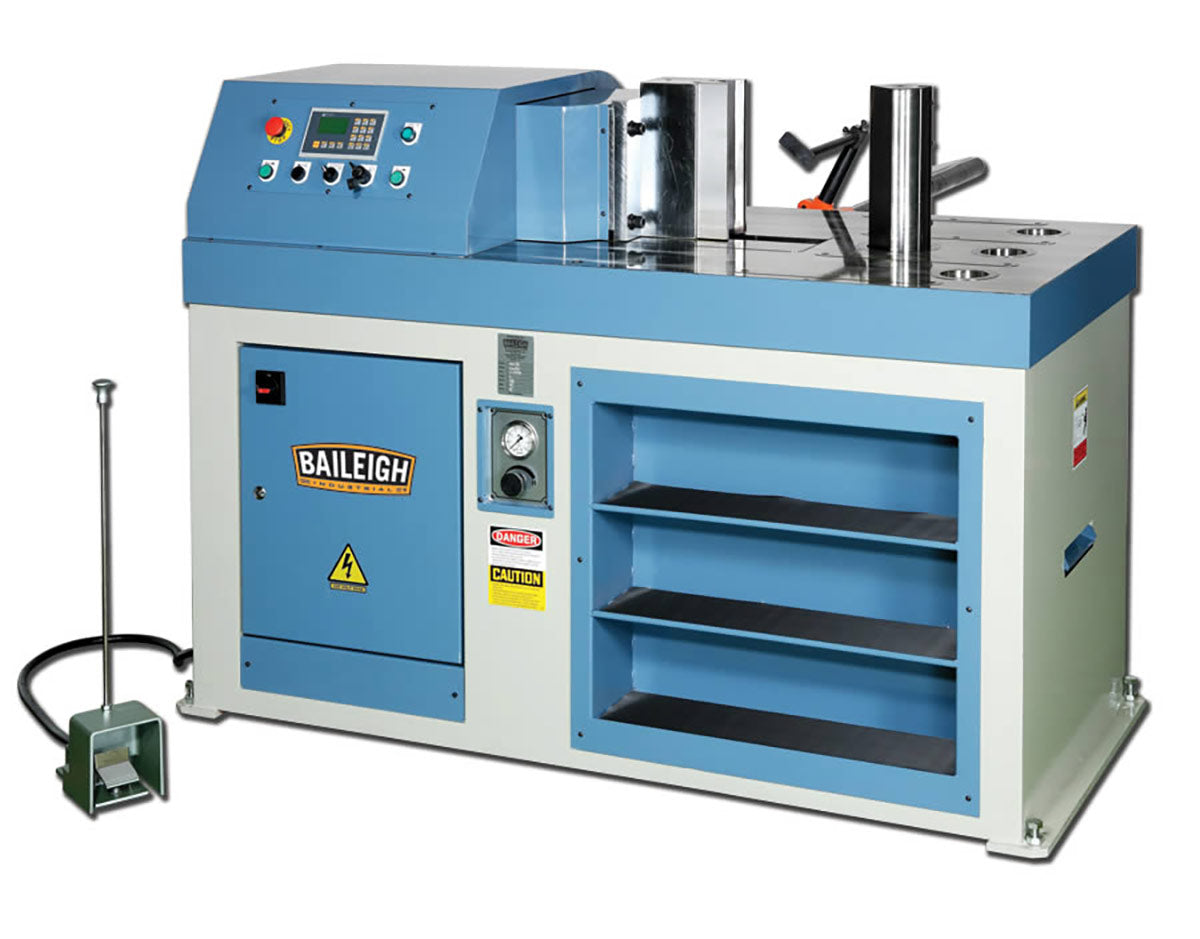

Making smaller parts? This Baileigh horizontal press brake can save time and money, since material lies on the table and stays square. The HPB-78NC industrial hydraulic press brake can shear, bend, punch, and straighten. Recommended for full industrial production, including shipbuilding yards, boiler manufacturers, nuclear applications and making parts that are thick but not wide (die size is limited).
Baileigh Industrial 1004720 Includes
- (1) Horizontal Press Brake
Baileigh Industrial 1004720 Features
- 7.5 hp motor produces up to 78 tons of pressure.
- 13.78” stroke length.
- Runs on 220-volt 3-phase power.
- Industrial-grade hydraulic system is located on top of the machine to reduce flex.
- You can adjust the pressure of the the hydraulics for your material.
- Designed for simple operation. In 15 minutes, anyone could learn to run it.
- Numerical control (NC) programmer can store up to 50 programs with 10 bends per program.
- Electronic encoders make this hydraulic press brake accurate to +/- .002”.
- Product counter makes production runs more efficient.
- Control the bending stroke with 2 buttons or with the foot pedal, so your hands are free to guide the material.
- You can also run the machine in a manual mode for one-off projects as well as set-up.
- Robust manual back gauge bolts to the machine and helps with repeatability.
- Machined table, 37.4” high, keeps your material perfectly level. No need to hold one side and hope it’s lined up!
- Quick-release tooling system makes changes fast and simple. Just turn the handle and the post will lift. The V die slides in and out.

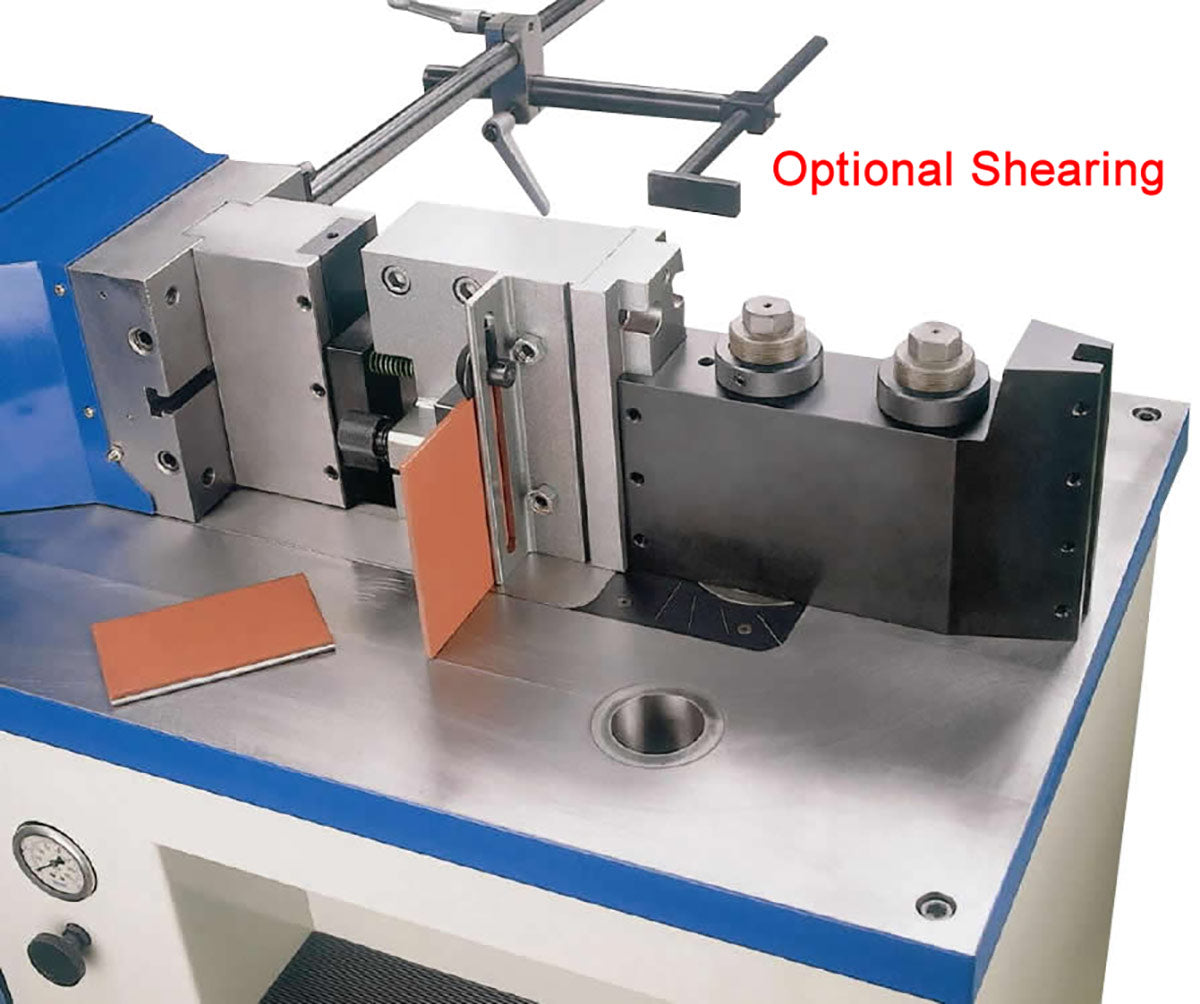

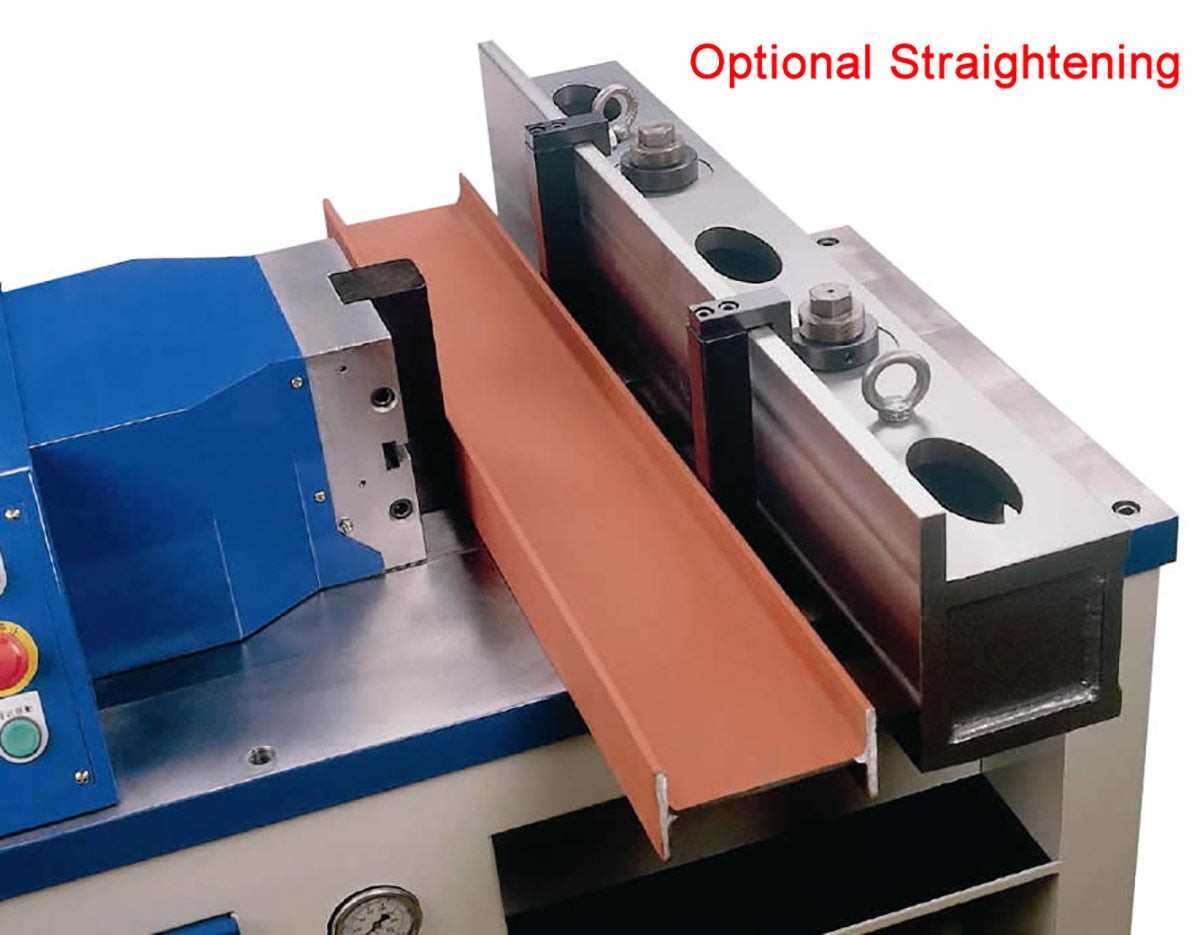

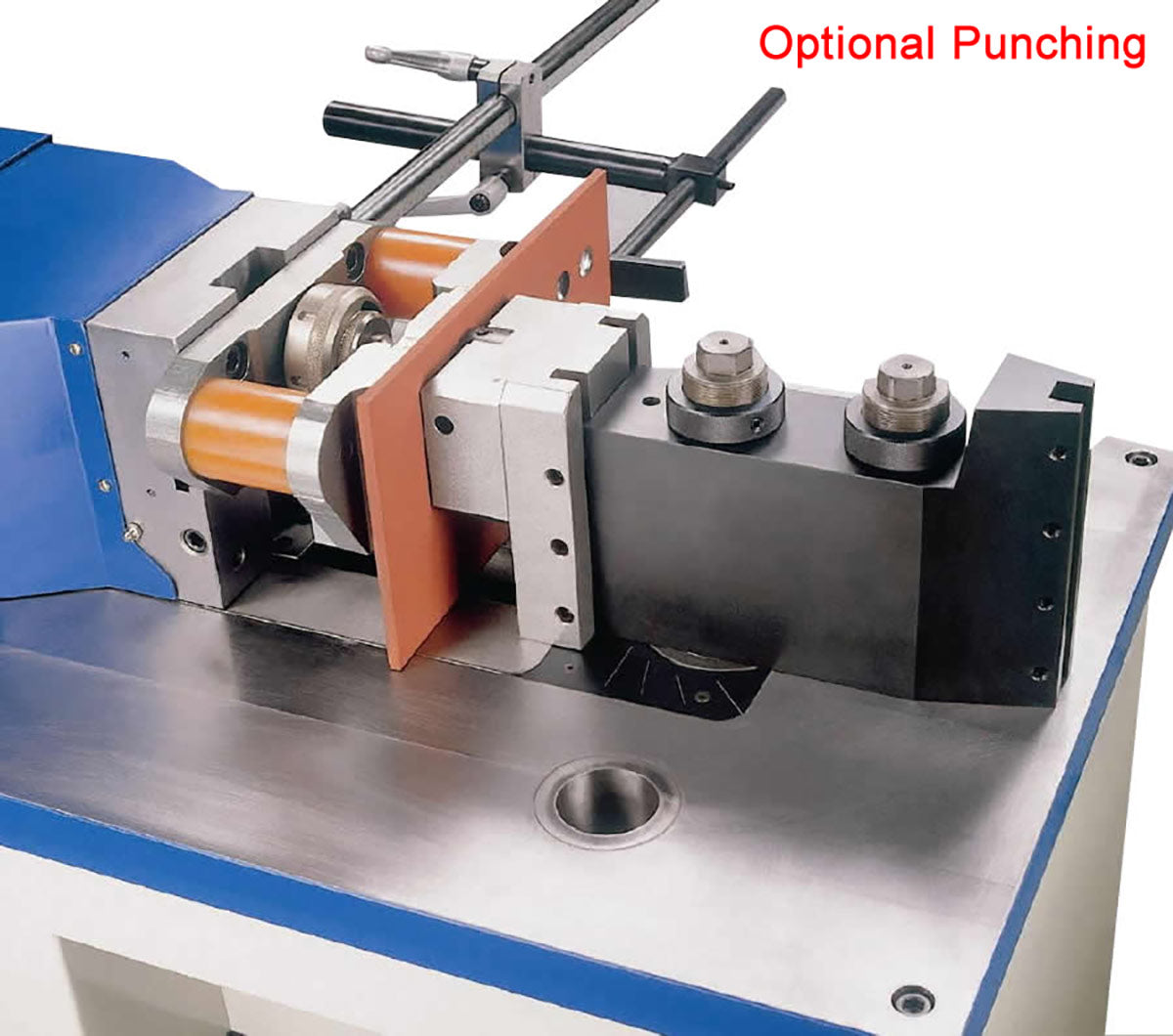

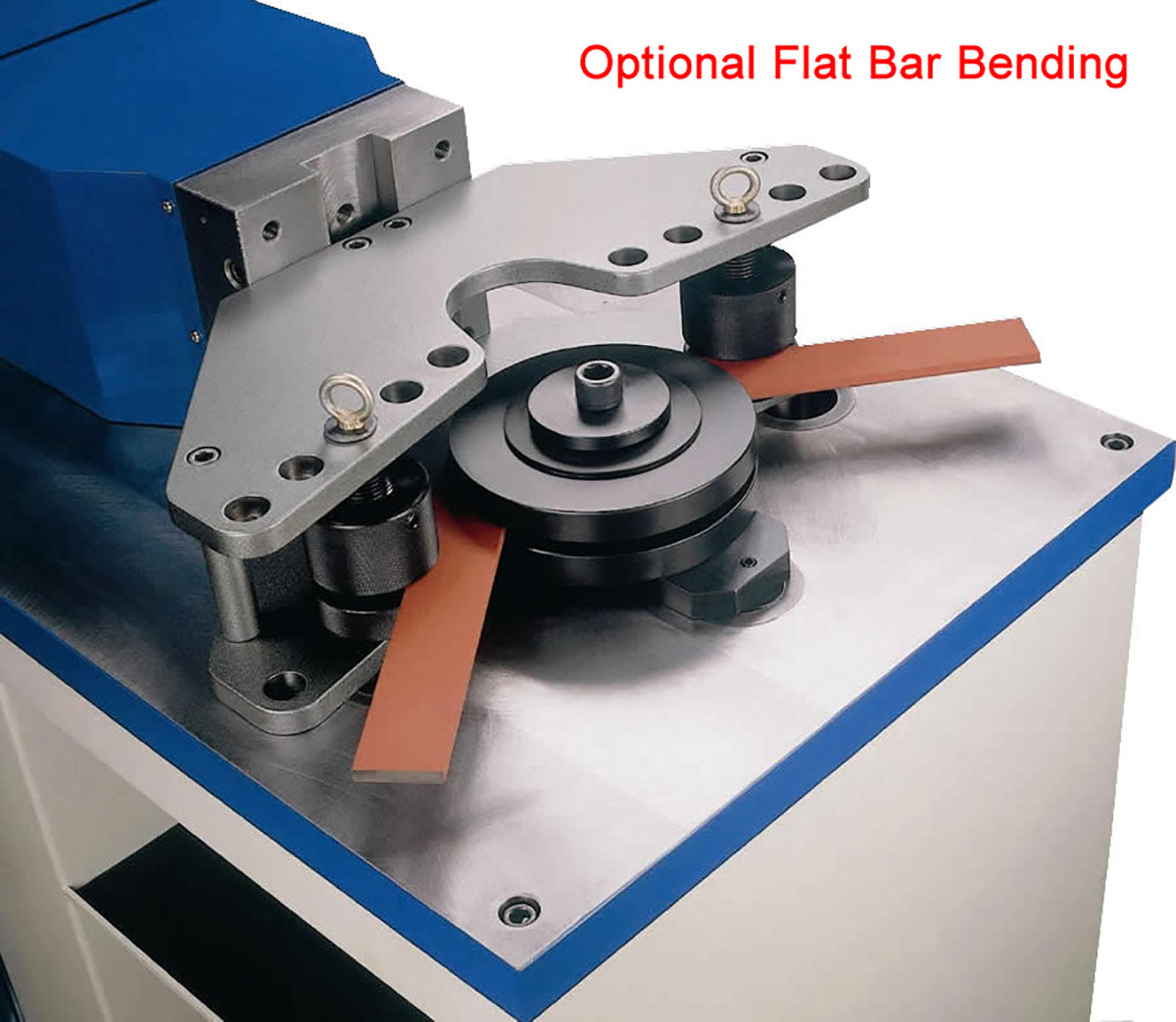

- Accepts attachments for punching, straightening, shearing, and even pipe bending.

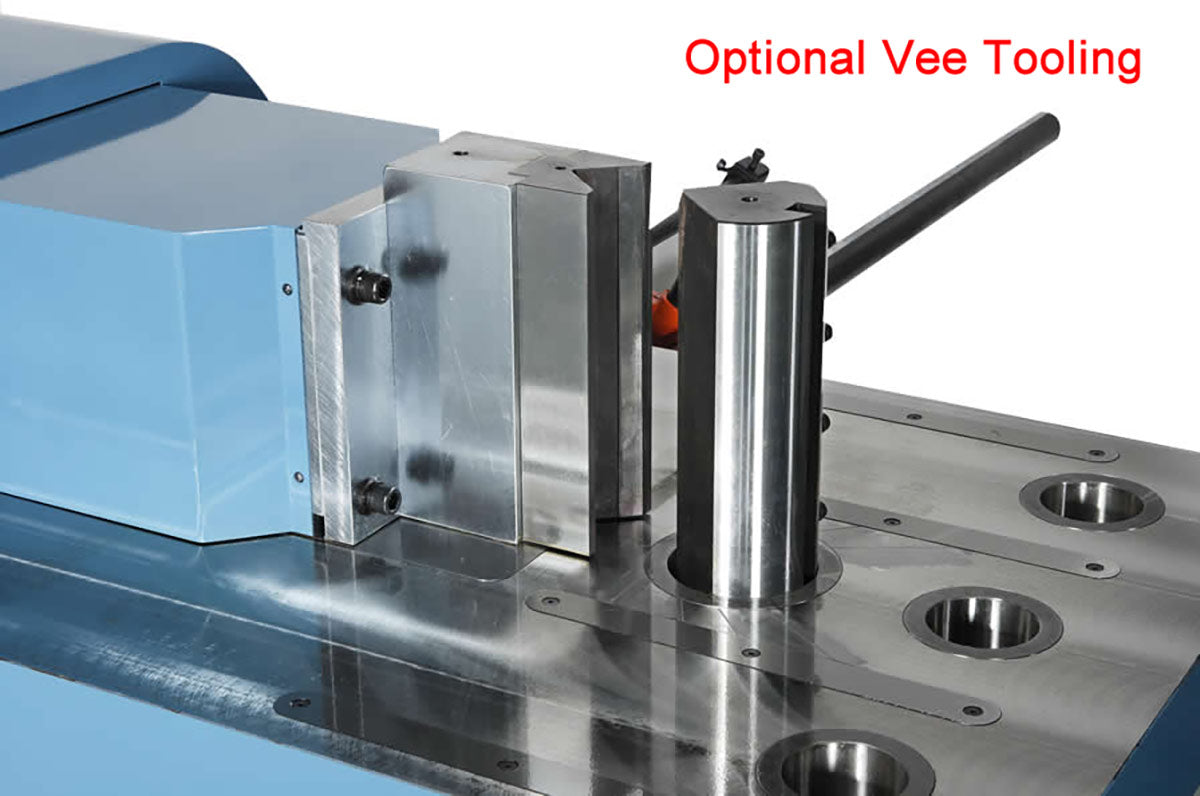

- Includes a set of single-V tooling (V-opening die and V post).

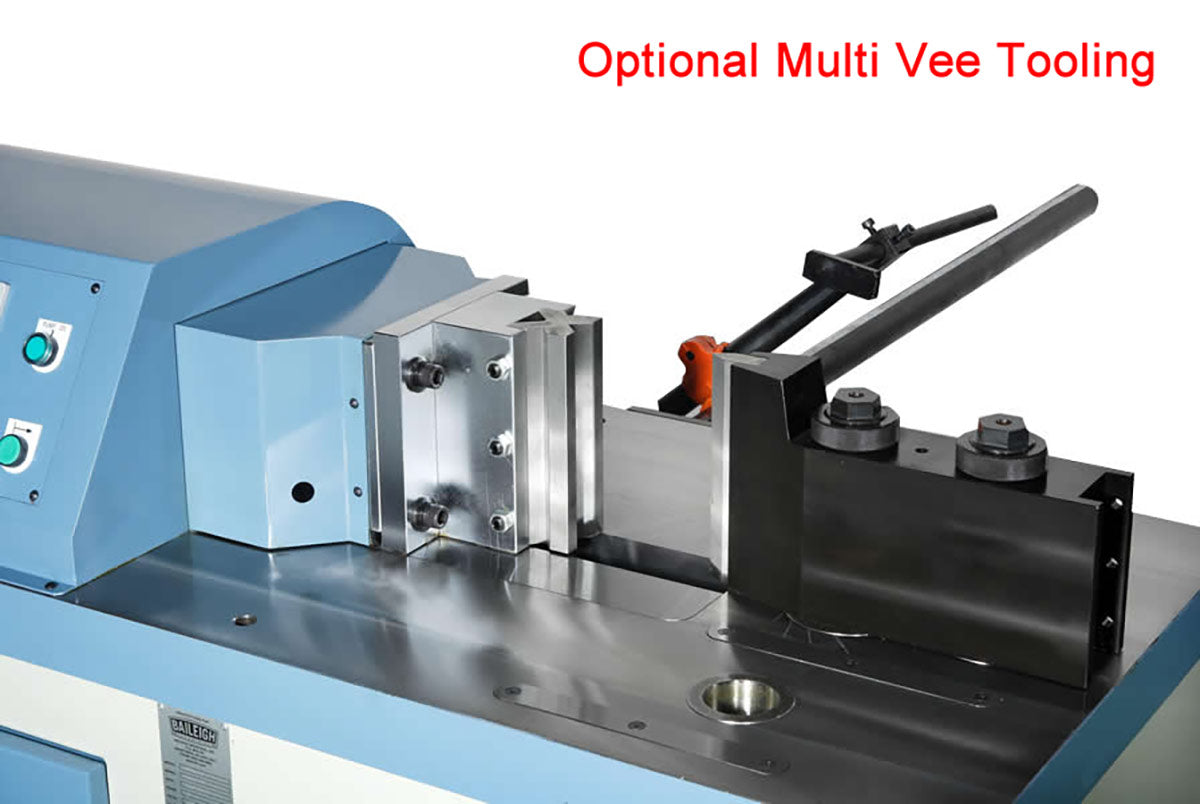

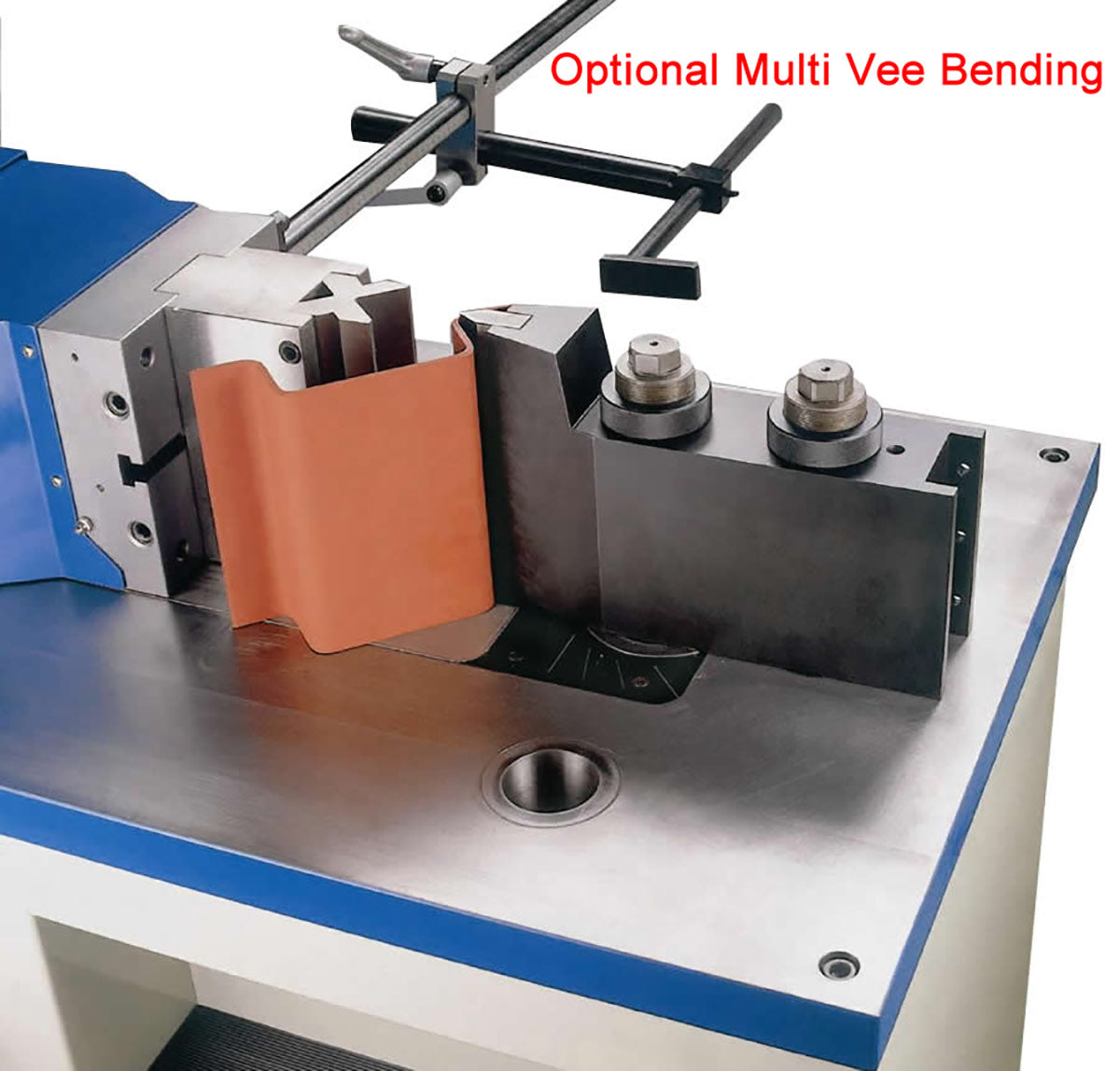

- Many additional tooling sets are available. We can find the right one for your project or create a custom set, if necessary.
- 4,580-pound steel frame, made from 4 powerful pieces of inch-thick flat bar, will keep results accurate for many years and won’t flinch under pressure.
