Baileigh Industrial | SKU:
BA9-1004816

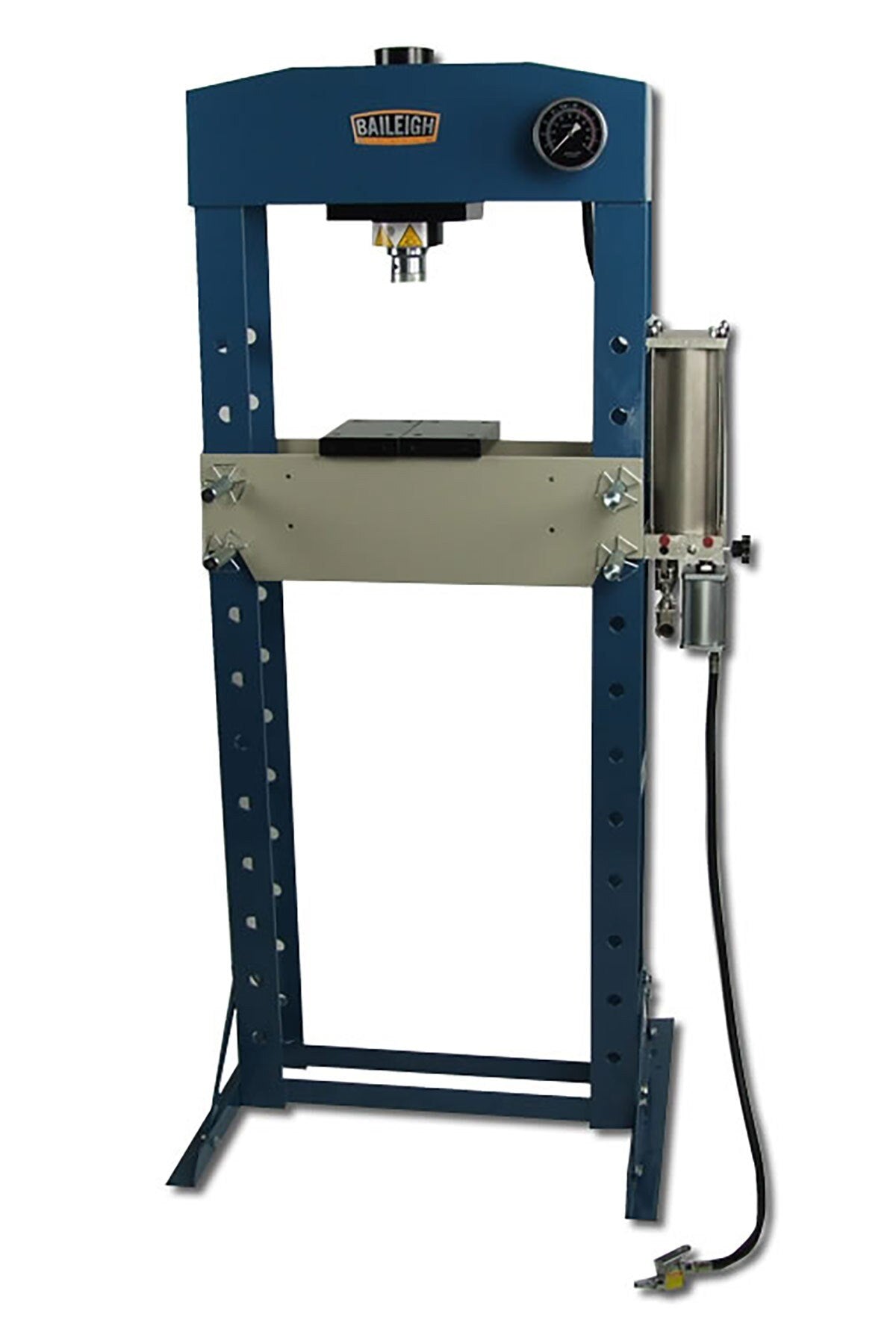

Baileigh Industrial BA9-1004816 Air/Hand Operated H-Frame Shop Press HSP-30A
Free Shipping
$2,109.00
$2,560.93
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1004816 Description
Baileigh Industrial HSP-30A shop presses feature a ridged, fully welded main frame, allowing the operator to use a full 30 tons of force. The machines are built with industrial-grade hydraulic components for years of worry-free performance. An option to work them manually is also included for precise control on delicate jobs. The cylinder is also able to be moved left and right, depending on the orientation of the job. These shop presses come standard with their own set of V-block, making them a great value.
Baileigh Industrial 1004816 Includes
- (1) H-Frame Shop Press
Baileigh Industrial 1004816 Features
- 21.653” working width.
- 5.9” cylinder stroke.
- Industrial-grade hydraulic parts ensure smooth, dependable use for years.
- Cylinder can move left and right within the frame, depending on orientation of the job.
- You have the option to work the HSP-30A manually, if you need finer control.

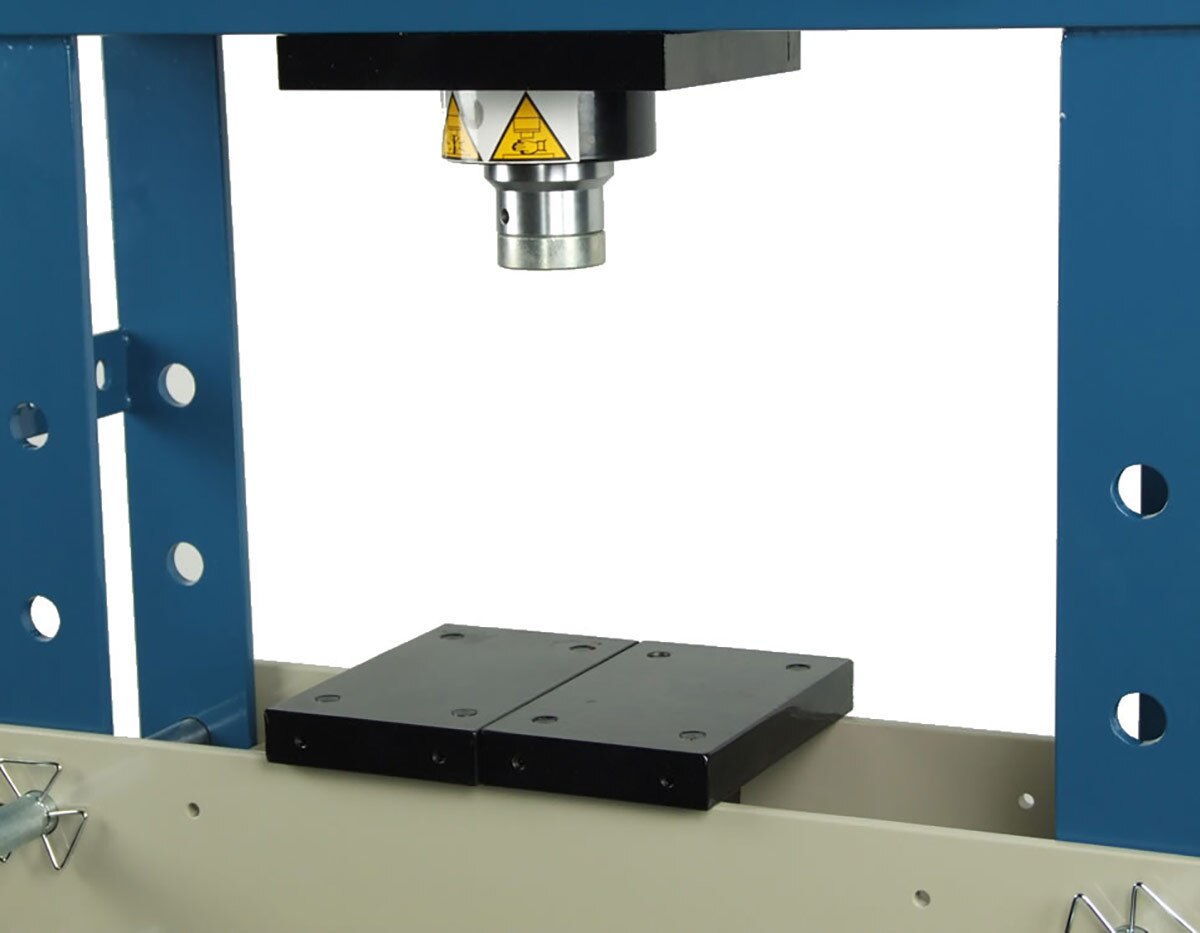

- Comes standard with a set of V-blocks.
- Rigid, fully-welded steel main frame eliminates flexing at full force to deliver accurate results.
- Baileigh covers this H-frame press with a 1-year parts warranty.
Baileigh Industrial 1004816 Specifications
| Piston Head Diameter | 2.375" |
| Movable Cylinder | Yes |
| Working Width | 21.653" |
| Maximum Capacity | 30 Tons |
| Cylinder Stroke | 5.9" |
| Cylinder Diameter | 4.5" |
| Distance From Table To Ram | Min. 5.94" - Max. 40.59" |
| Power | Pneumatic / Manual |
| Shipping Dimensions | 75" x 31" x 11" |
| Country of Origin | China |
