Baileigh Industrial | SKU:
BA9-1004984

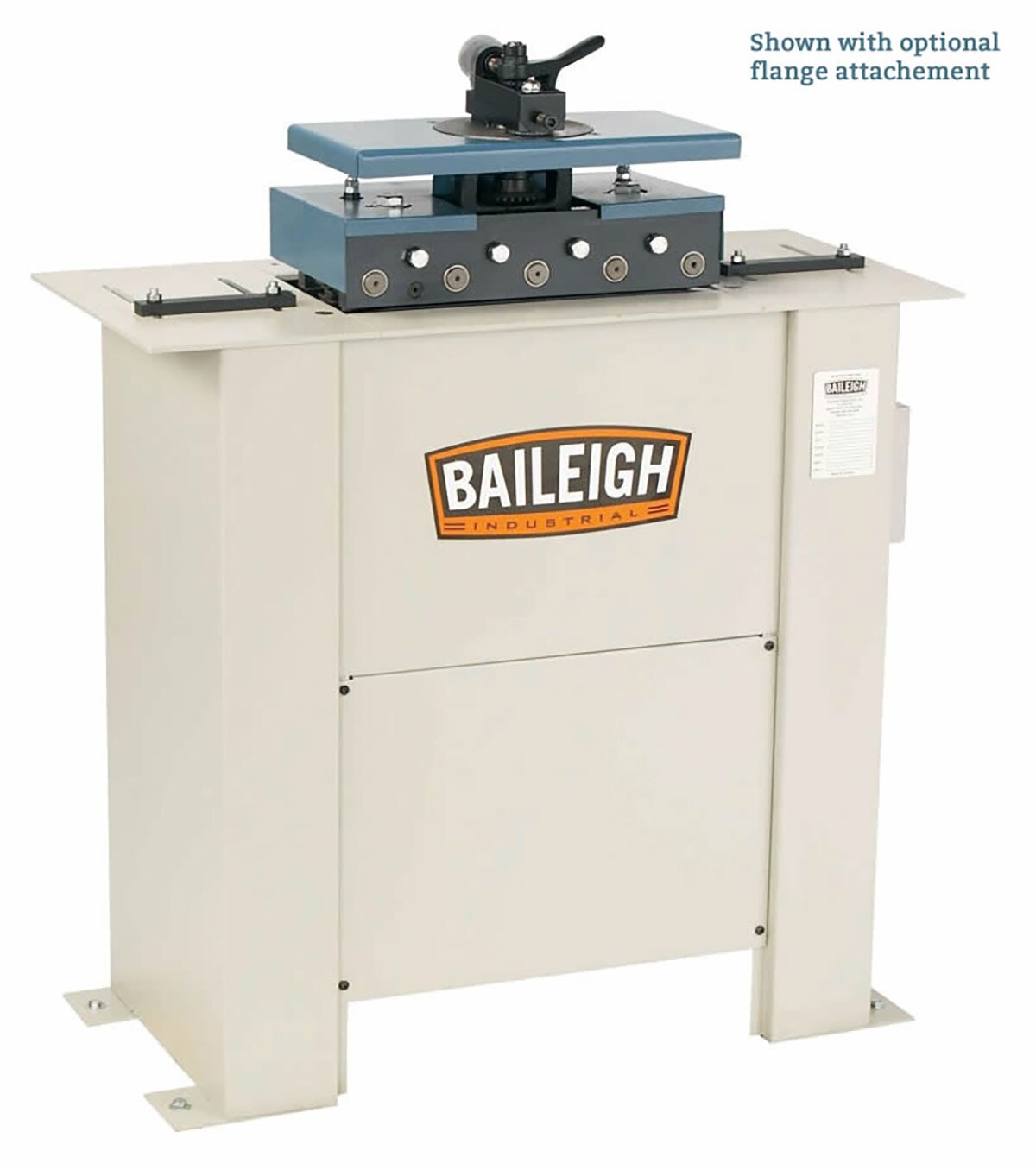

Baileigh Industrial BA9-1004984 Lock Former Pittsburgh Machine LF-20
$5,439.00
$6,349.50
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1004984 Description

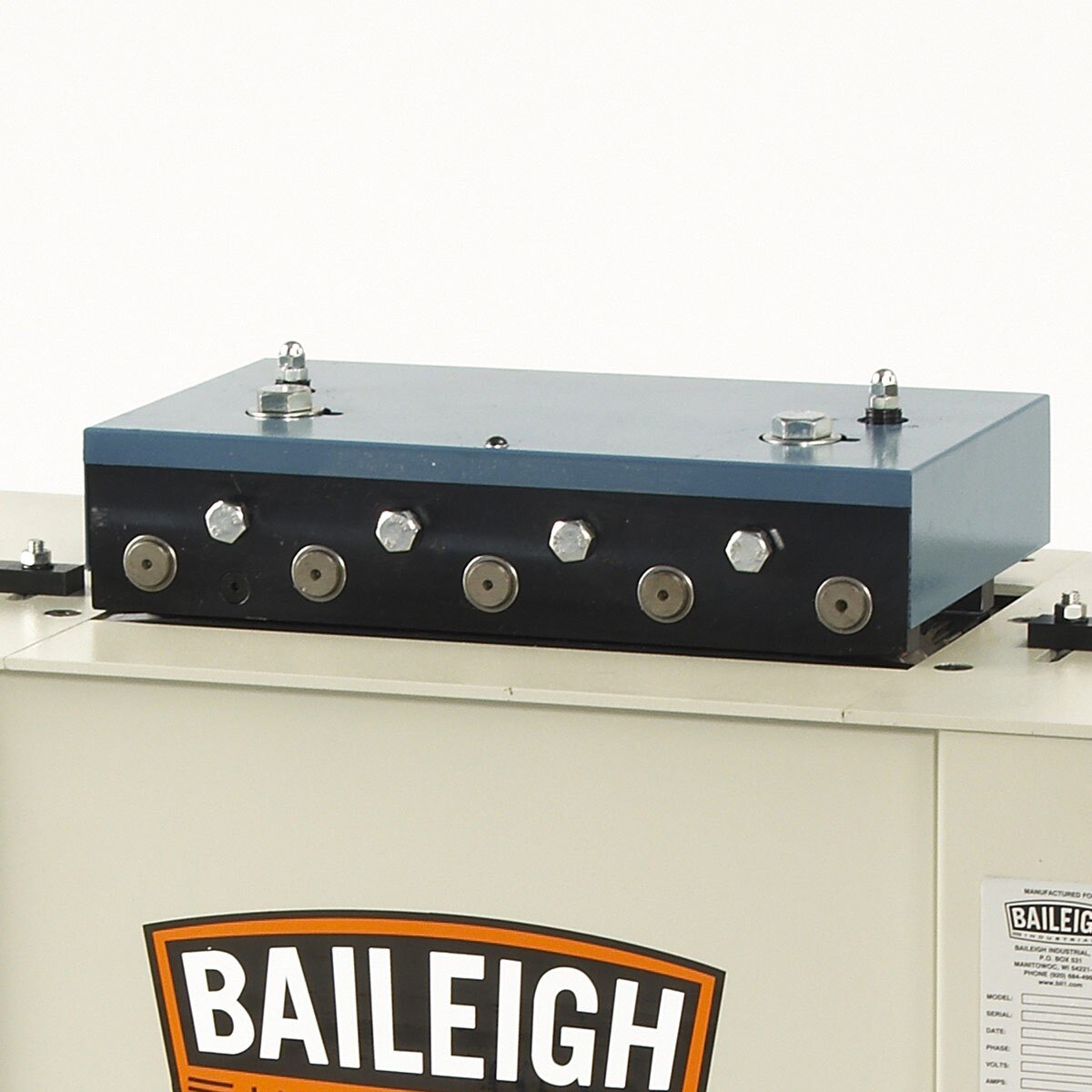

HVAC shops demand a lot out of their equipment, so when Baileigh Industrial developed the LF-20 Pittsburgh machine, they knew it had to be able to last. The LF-20 Pittsburgh sheet metal machine is made from only the highest quality components which include an all steel forming head and hardened with ground shafts.
Baileigh Industrial 1004984 Includes
- (1) Pittsburgh Machine
Baileigh Industrial 1004984 Features
- The steel forming rolls on this Pittsburgh sheet metal machine are case hardened using matching cut gears and needle bearings throughout for years of use and abuse.

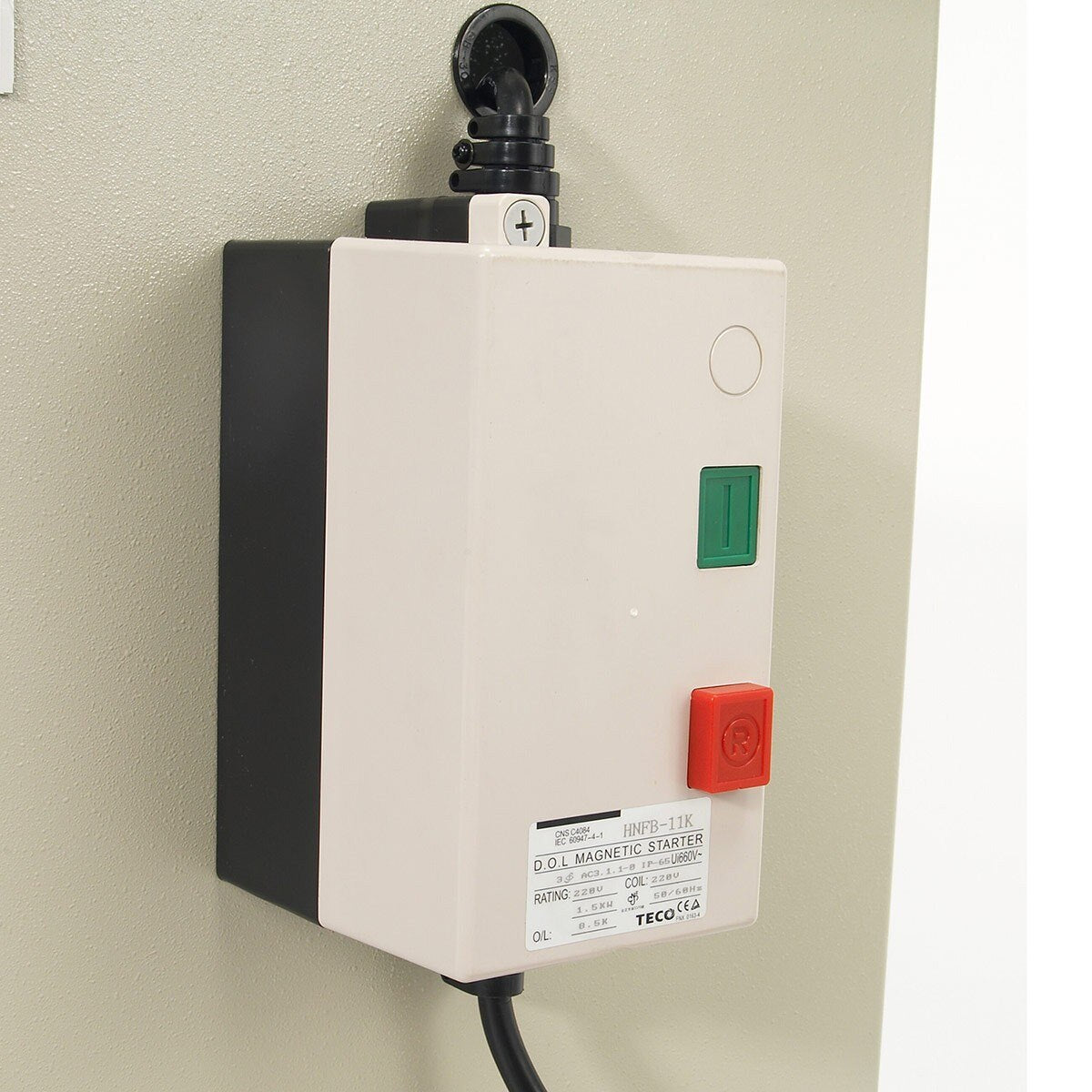

- Running on 220 volt single phase power the Baileigh Industrial LF-20 is great for making Pittsburgh joints on sheet metal up to 20 gauge

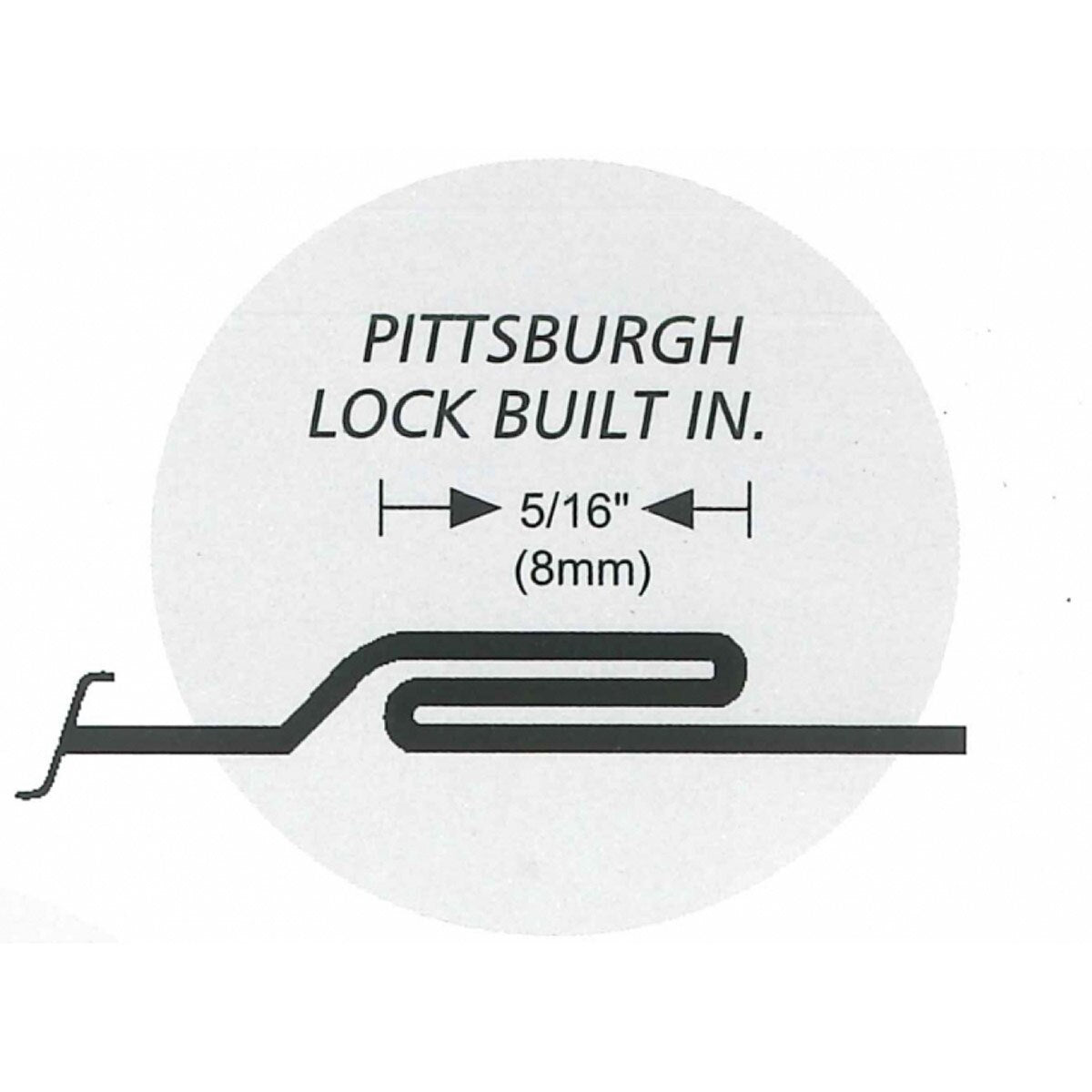

- Using approximately 1" of material for each lock, the LF-20 has pocket depth ranges from 5/16" to 3/8", so material waste is kept to a minimum.
- Has other attachments available, each creating a unique joint. These optional attachments are double seam, drive cleat, flange attachment, and right angle. This do it all is a must in any shop.
Baileigh Industrial 1004984 Specifications
| Speed | 25 FPM |
| Motor | 1 HP |
| Capacity | 20 Gauge |
| Depth Of Pocket Adjustable | .314" up to .375" |
| Power | 220V / 1-phase |
| Shipping Dimensions | 48" x 45" x 48" |
| Country of Origin | Taiwan |
