Baileigh Industrial | SKU:
BA9-1006057
Baileigh Industrial BA9-1006057 Metal Lathe PL-1340
Free Shipping
$16,999.00
$20,884.29
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Baileigh Industrial 1006057 Description

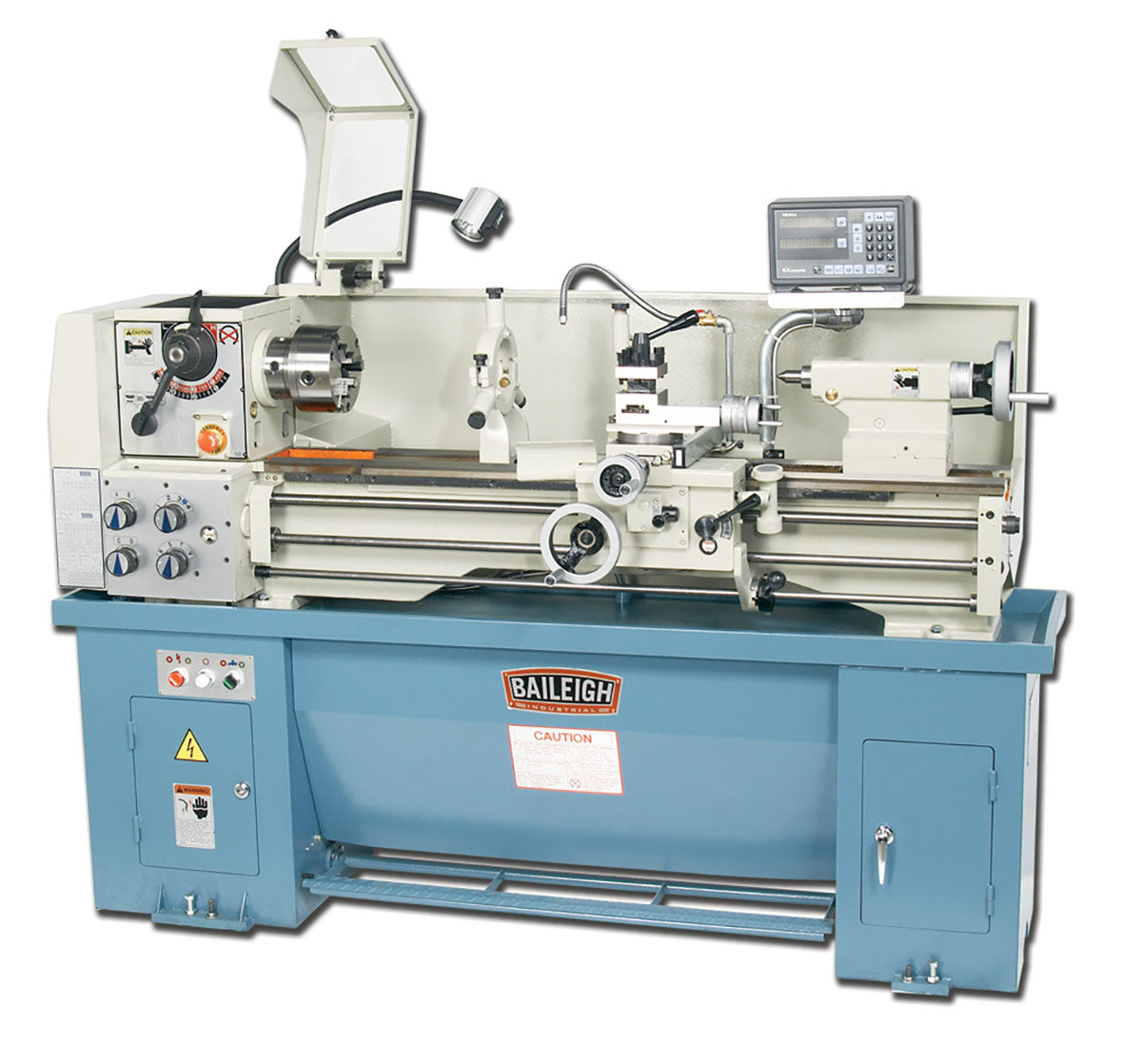

The PL-1340 precision metal lathe from Baileigh Industrial is perfect for those machine shops where precision cannot be compromised. Like all Baileigh Industrial precision lathes, this small yet sturdy lathe is built to exacting specifications using only the best quality components. Equipped with a Mitutoyo DRO, quick-change tool post, and cast iron base, this compact gear-head metal lathe is one of the most rigid in its class.
Baileigh Industrial 1006057 Includes
- (1) Metal Lathe
Baileigh Industrial 1006057 Features
- 8 speeds from 70 to 2,000 rpm.
- 2 hp motor runs on 220-volt single-phase power, great for shops with limited power.
- No assembly required.
- Comes with a factory-installed Mitutoyo DRO (digital readout) for making precise cuts.
- Capable of making metric and standard threads.
- Quick-change 4-way tool post saves you time and hassle.
- All movement of the machining carriage rides on precision ground and hardened slideways.
- This is a gap lathe, so you can remove a section of the slide to fit a slightly larger diameter.
- We use the best iron castings in the industry to support the ways and maintain high accuracy over many years of use.
- Comes standard with: 3-jaw chuck, Headstock chuck guard with automatic safety switch, Steady rest and follow rest, Emergency foot brake, Flood coolant system (with backsplash guard) to prolong machine life and Halogen work light.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1006057 Specifications
| Set Over | +/– .375" |
| Speed | 70 – 2000 RPM |
| Spindle Bore | 1.5" |
| Threads Diametrical Qty Type | 32 / 8–120 D.P. |
| Threads Imperial Qty Type | 31 / 4–56 T.P.I. |
| Threads Metric Qty Type | 26 / .4–7 mm Pitch |
| Threads Module Qty Type | 21 / .2–3 M.P. |
| Spindle Taper Sleeve | Morse #3 |
| Spindle Taper Nose | Morse #5 |
| Tailstock Quill Diameter | 1.65" |
