Baileigh Industrial | SKU:
BA9-1006481

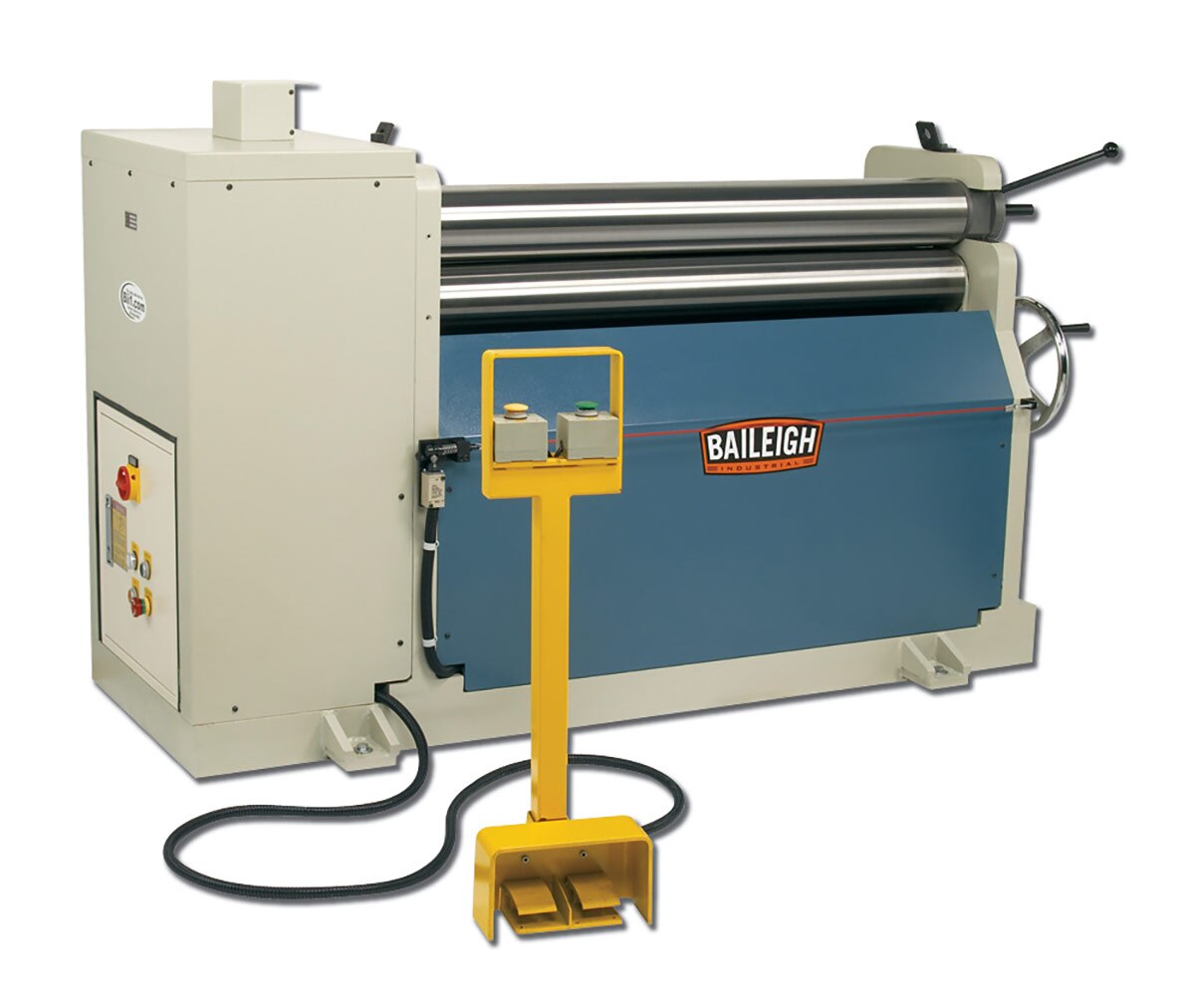

Baileigh Industrial BA9-1006481 Plate Roll PR-403
Free Shipping
$25,799.00
$31,327.36
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1006481 Description
This durable, easy-to-use plate roll will last for many years in small to medium shops. Its 3 hydraulically driven rolls can handle maximum capacity with ease and finish jobs faster. Complete hydraulically driven for increased durability and reliability.
Baileigh Industrial 1006481 Includes
- (1) Plate Roll
Baileigh Industrial 1006481 Features
- 4’ forming width.
- 3 gauge (¼”) mild sheet steel capacity.
- 3 hp motor runs on 220-volt 3-phase power.
- Large planetary gearbox, connected to main motor, drives the top and bottom rolls.

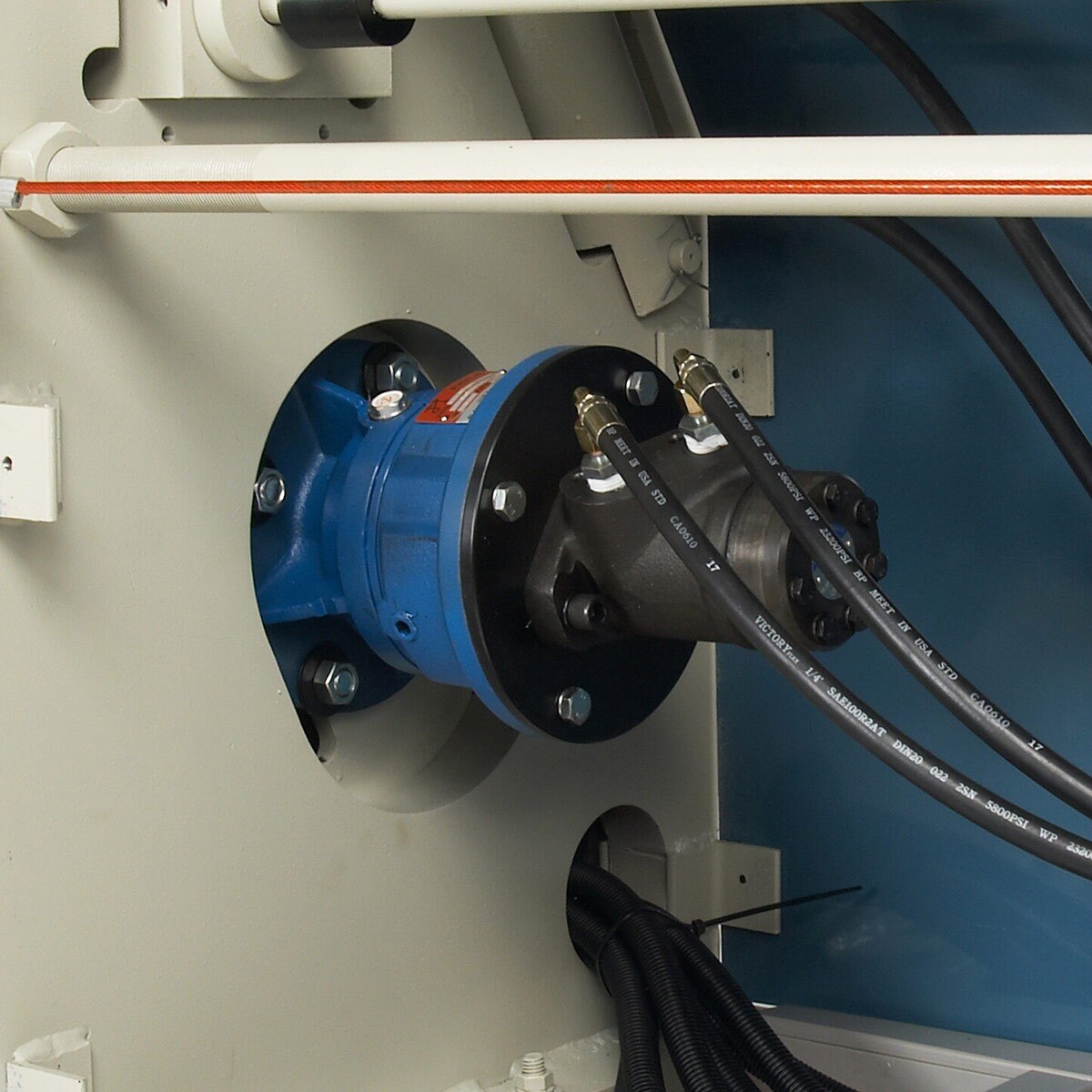

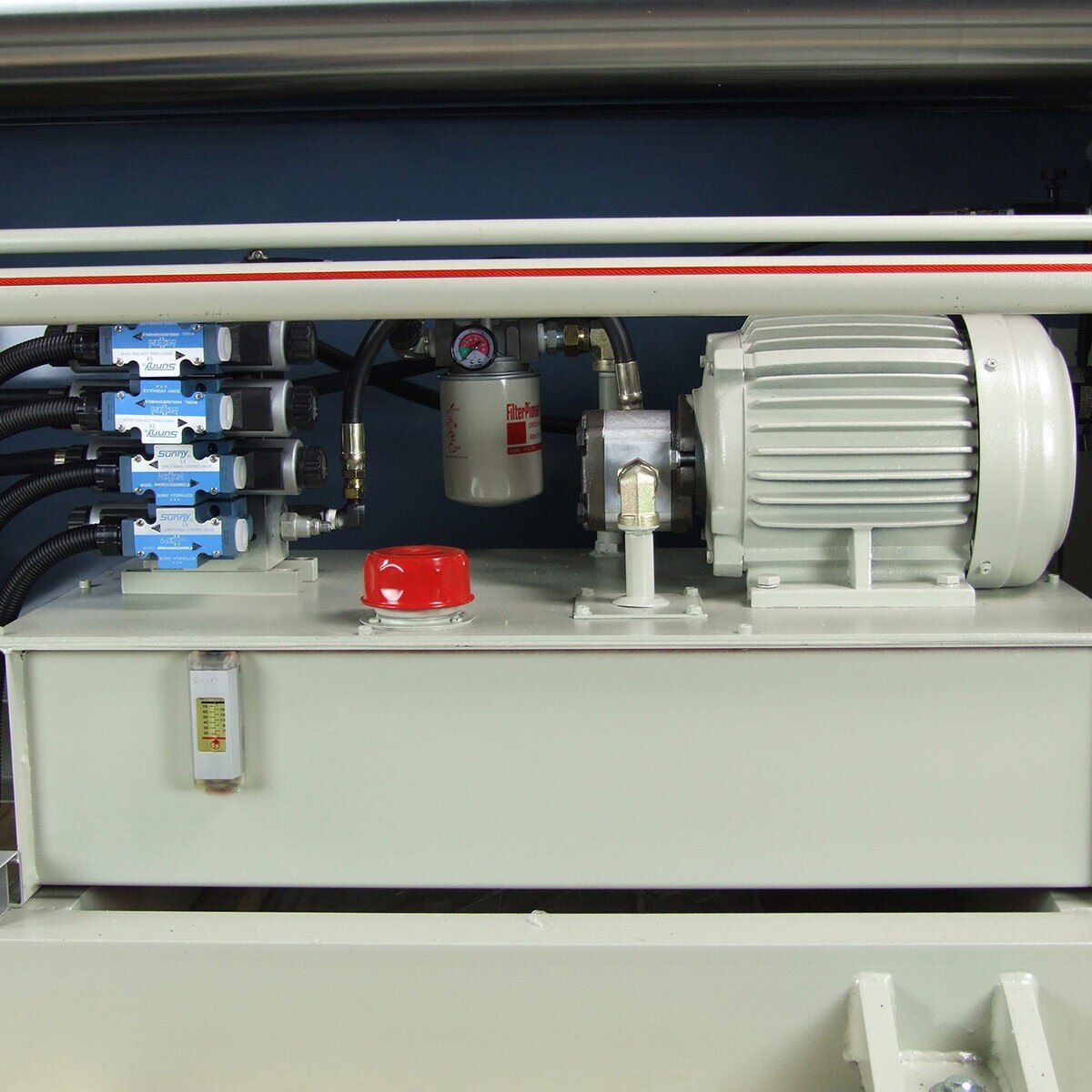

- Industrial-grade hydraulic system drives all 3 rolls.

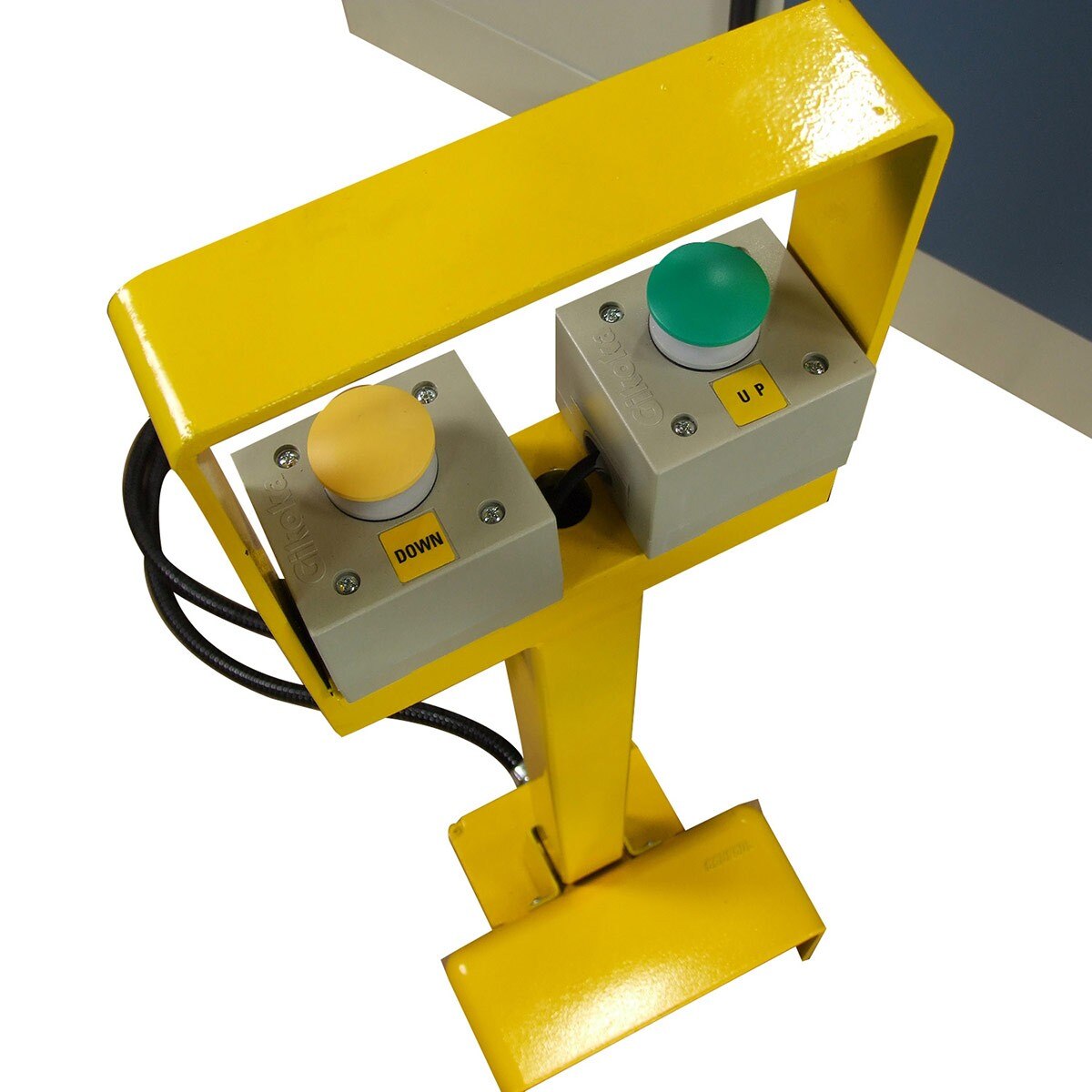

- Movable control pedestal includes foot pedals to run the rolling and buttons to move the forming roll up and down.

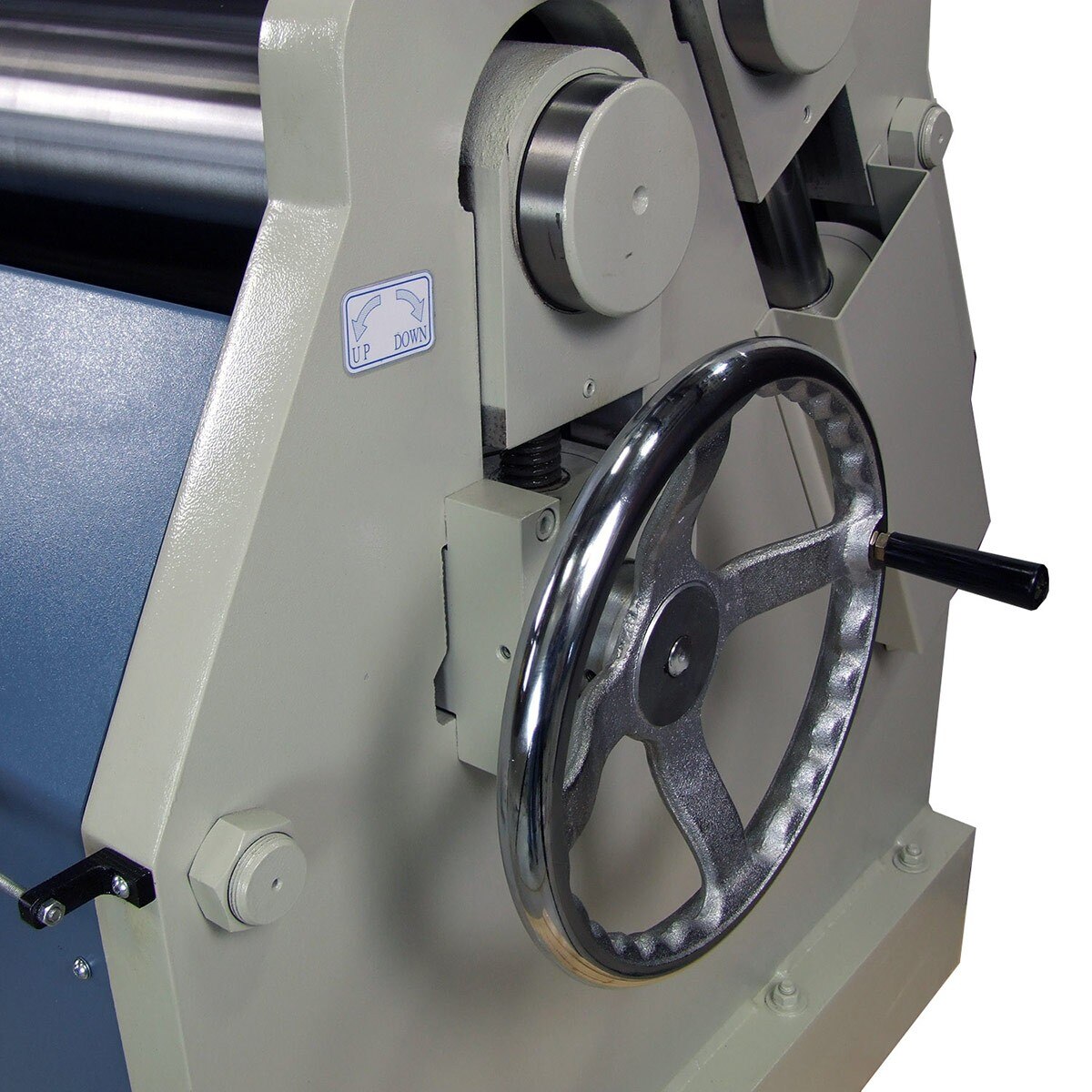

- Easy to operate: insert material, turn the handwheel to bring up the pinch roll, then use the foot pedals to start rolling.

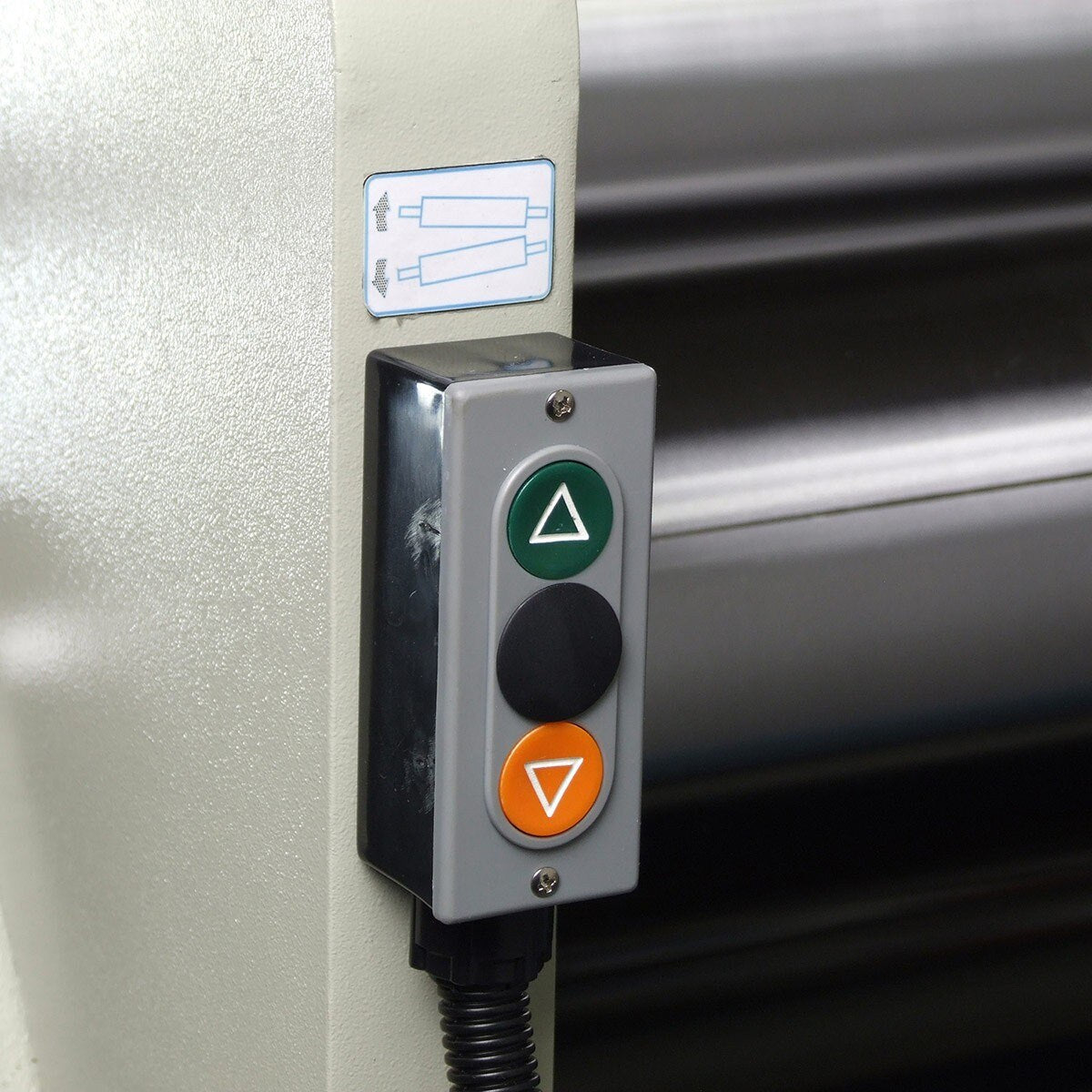

- Just flip a switch to bring the back roll up at an angle for coning.

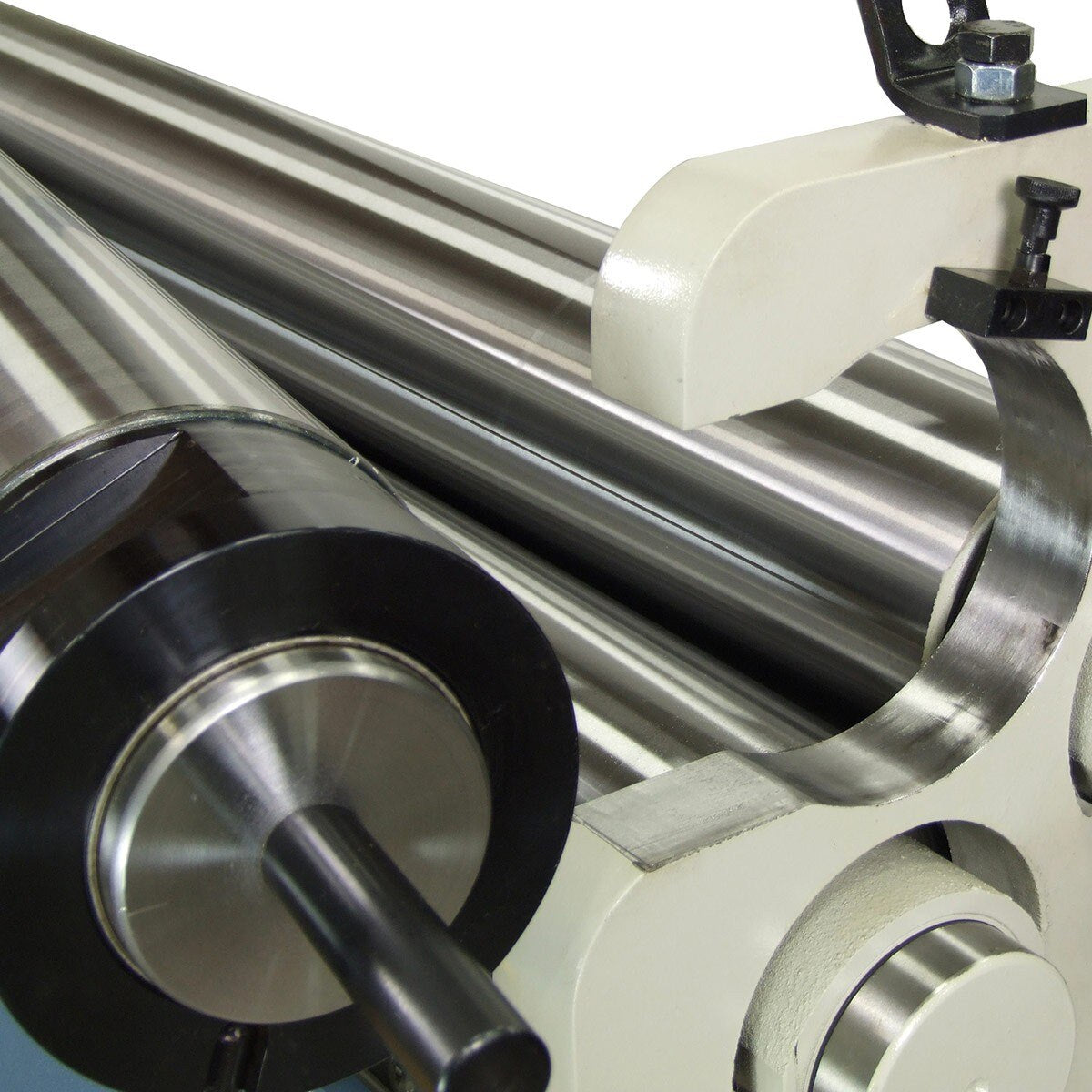

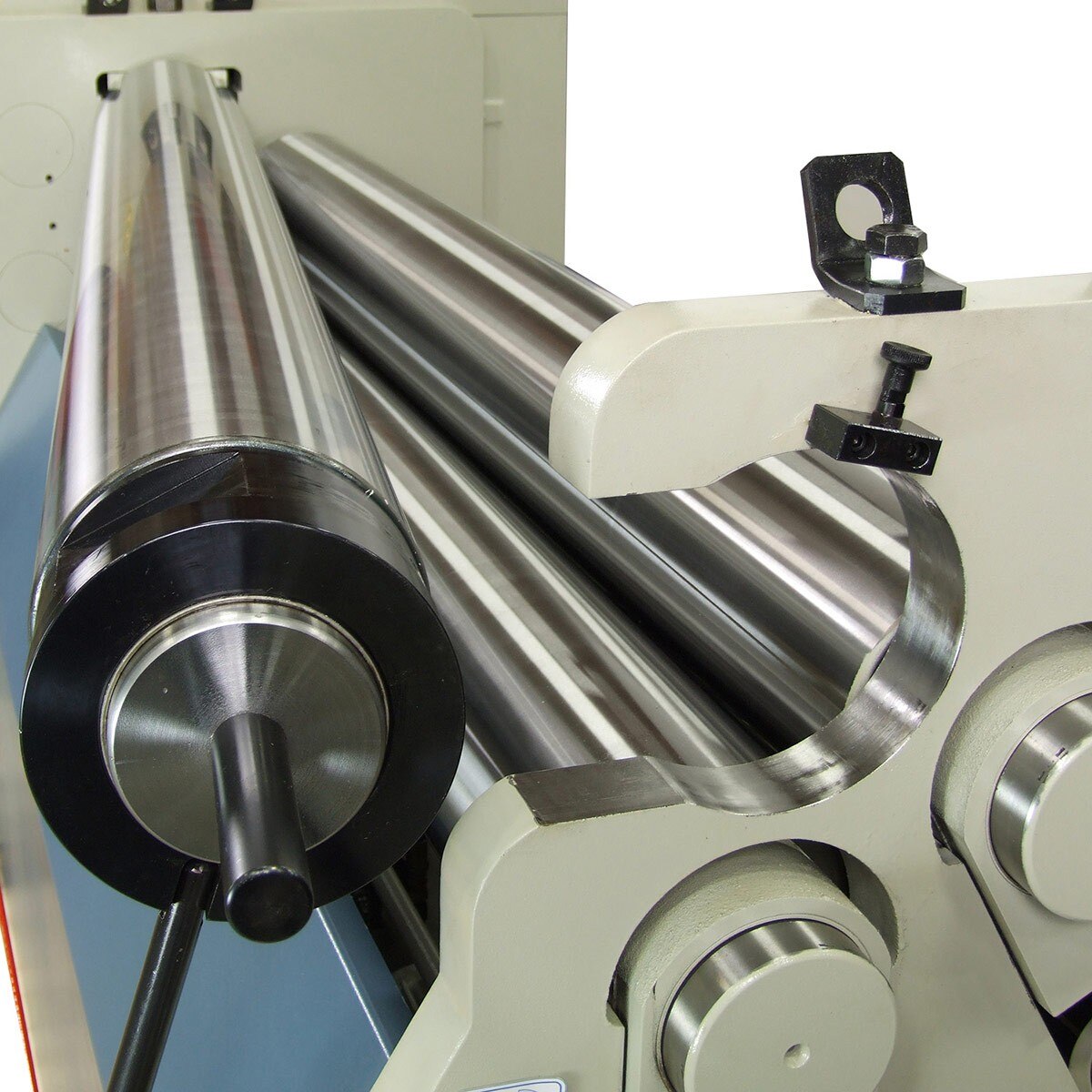

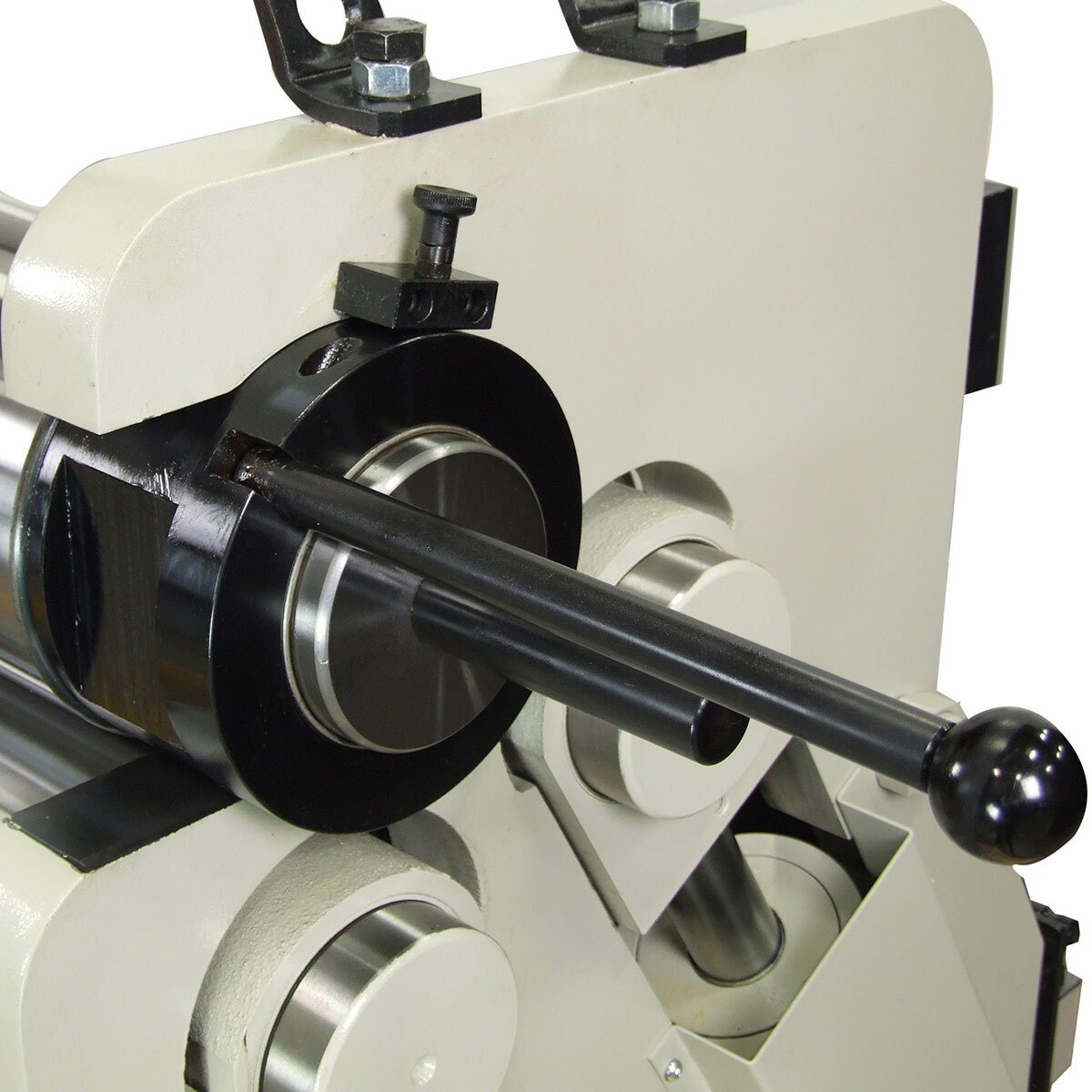

- Quick-release mechanism on the top roll makes it easy to slide off the finished work.

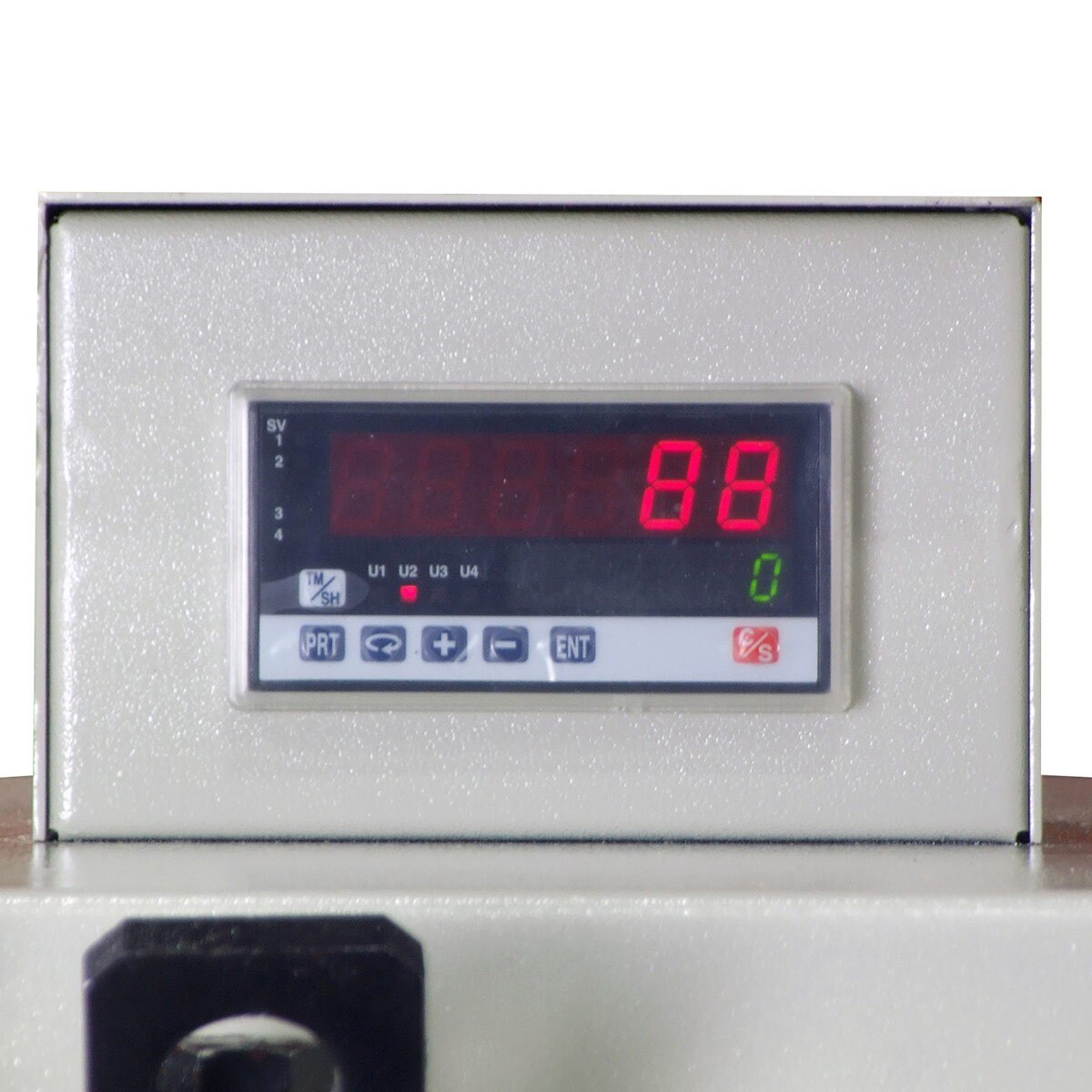

- Digital readout tracks the position of the back roll so you can make repeatable bends.
- Robust welded steel frame maintains accuracy and rigidity by keeping the rolls in alignment.

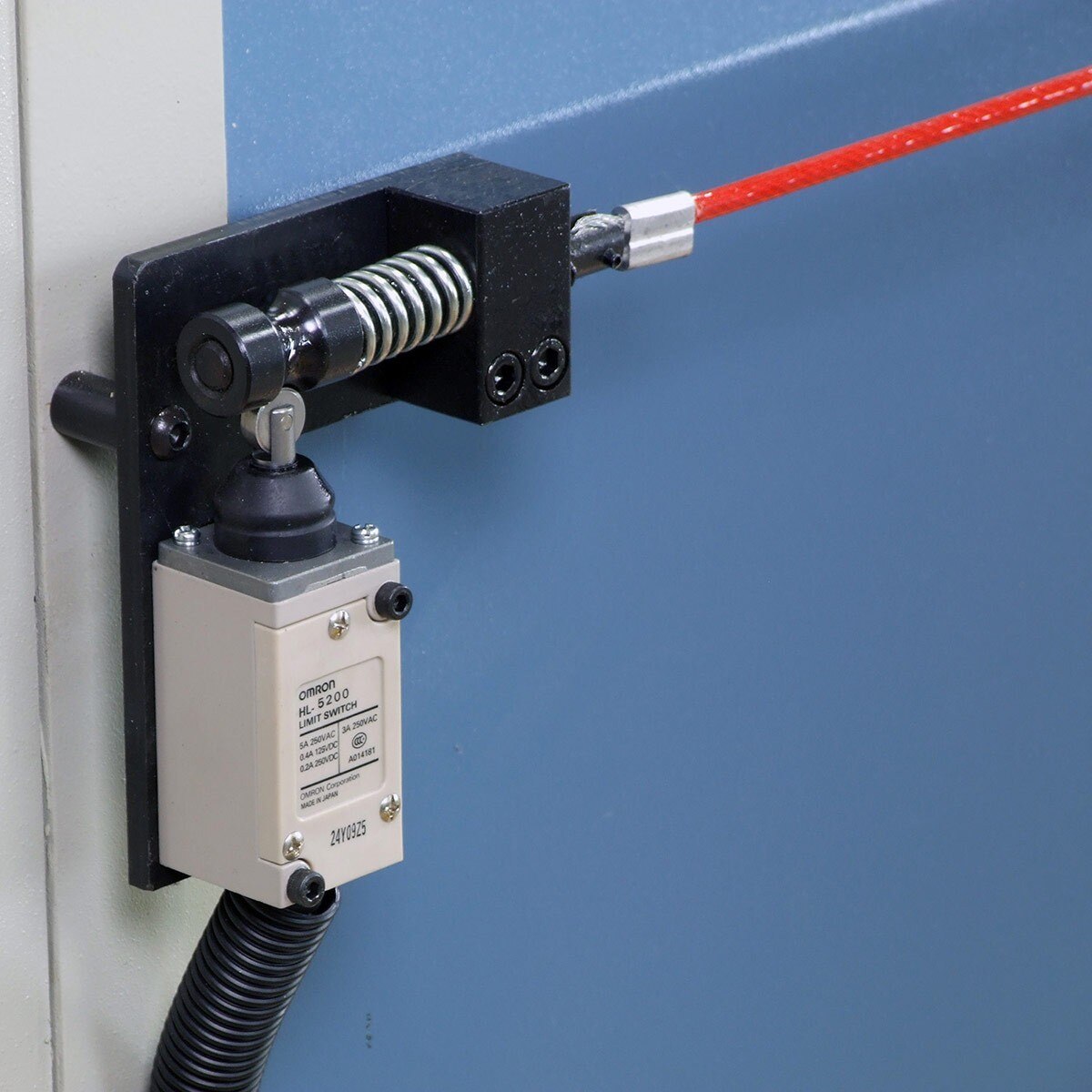

- Dual emergency stop cables are located on the front and back of the machine for your safety.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1006481 Specifications
| Forming Width | 48" |
| Roll Speed | 4.67 RPM |
| Upper Roll Diameter | 5.91" |
| Roll Adjustment Back | Hydraulic |
| Minimum Forming Dia | 8.86" |
| Motor | 3 HP |
| Power | 220V / 3-phase |
| Accessories | Included |
| Shipping Dimensions | 98" x 43" x 58" |
| Country of Origin | Taiwan |
