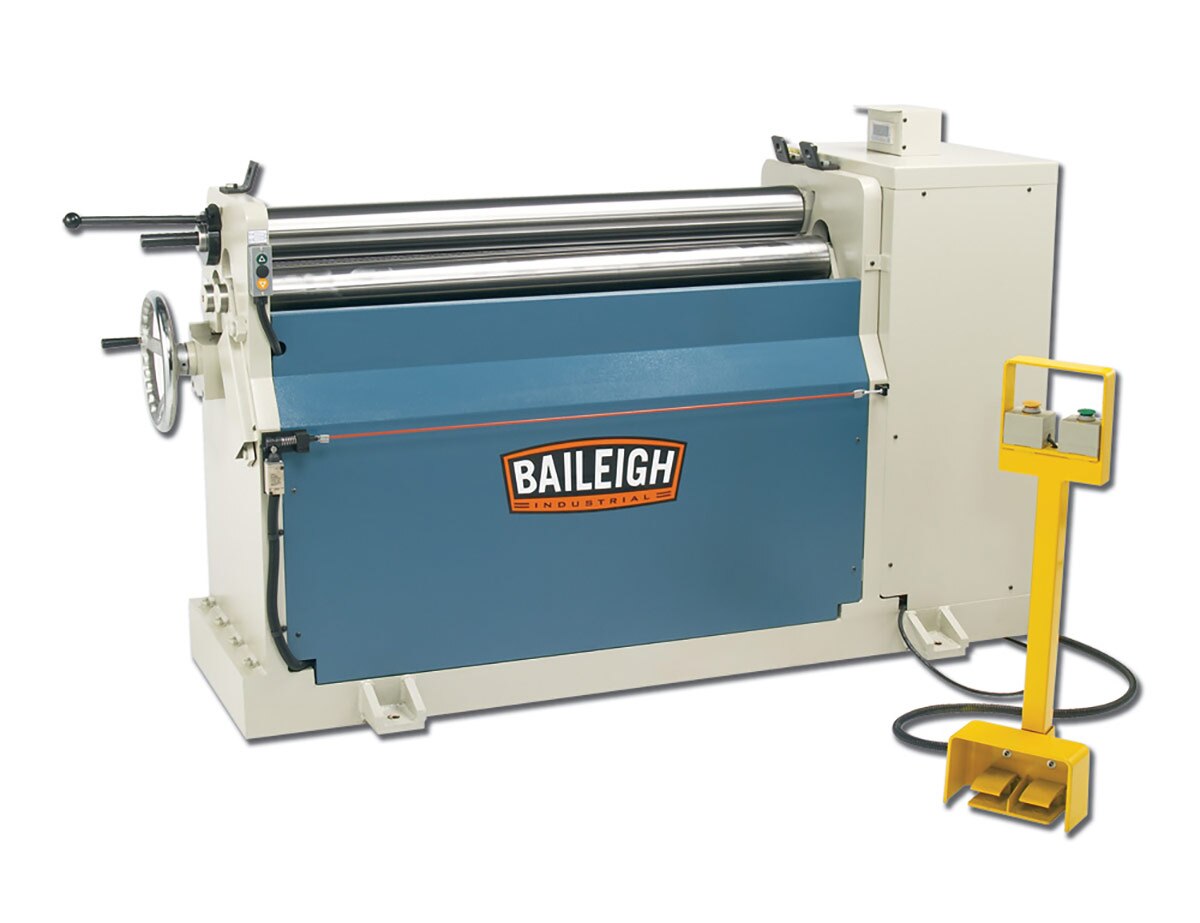

Baileigh Industrial BA9-1006517 Plate Roll PR-409
Free Shipping
$22,229.00
$26,992.36
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1006517 Description

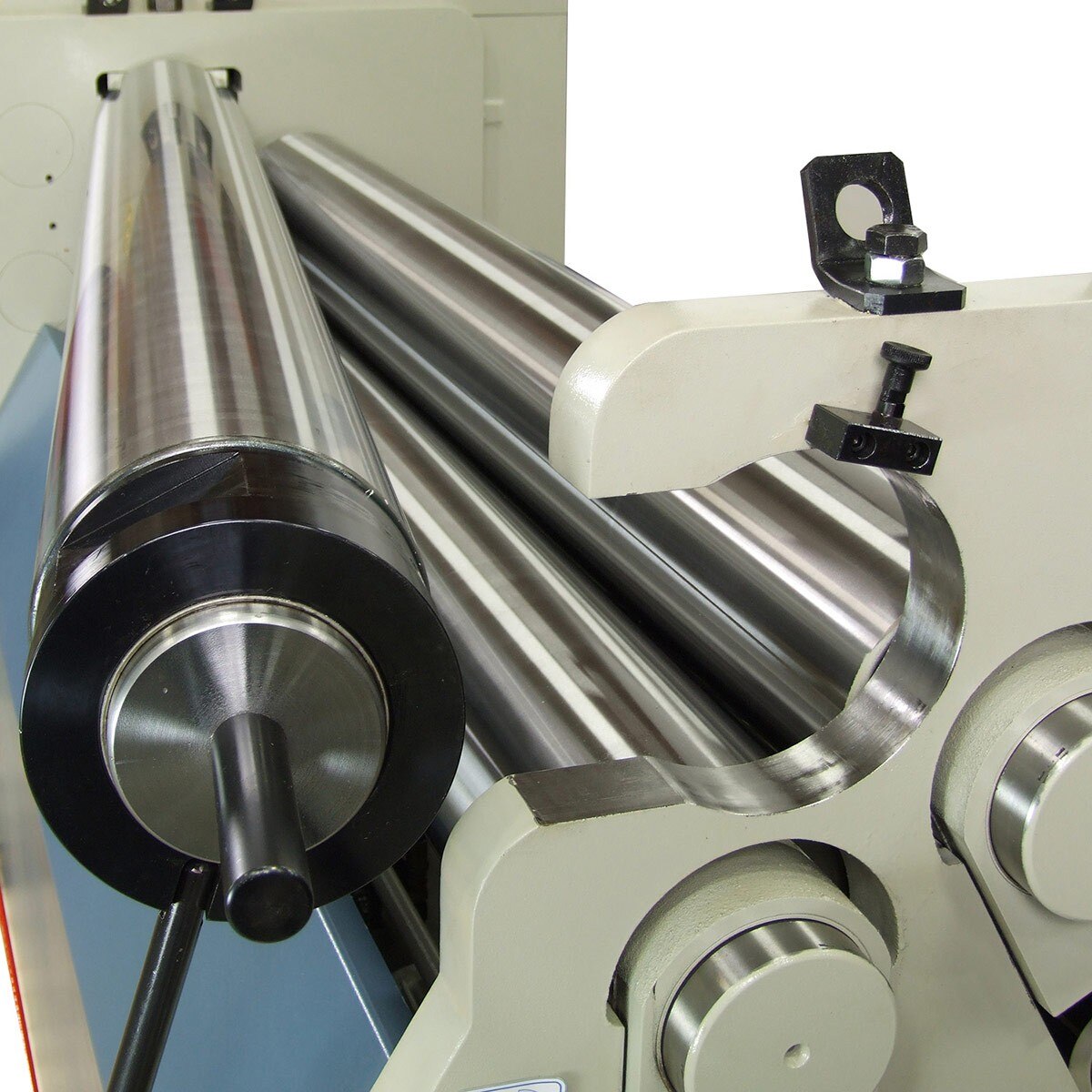

With 3 driven rolls, this single-pinch hydraulic plate roll cuts down on forming time so you can get jobs done faster.
Baileigh Industrial 1006517 Includes
- (1) Plate Roll
Baileigh Industrial 1006517 Features
- 4’ forming width.

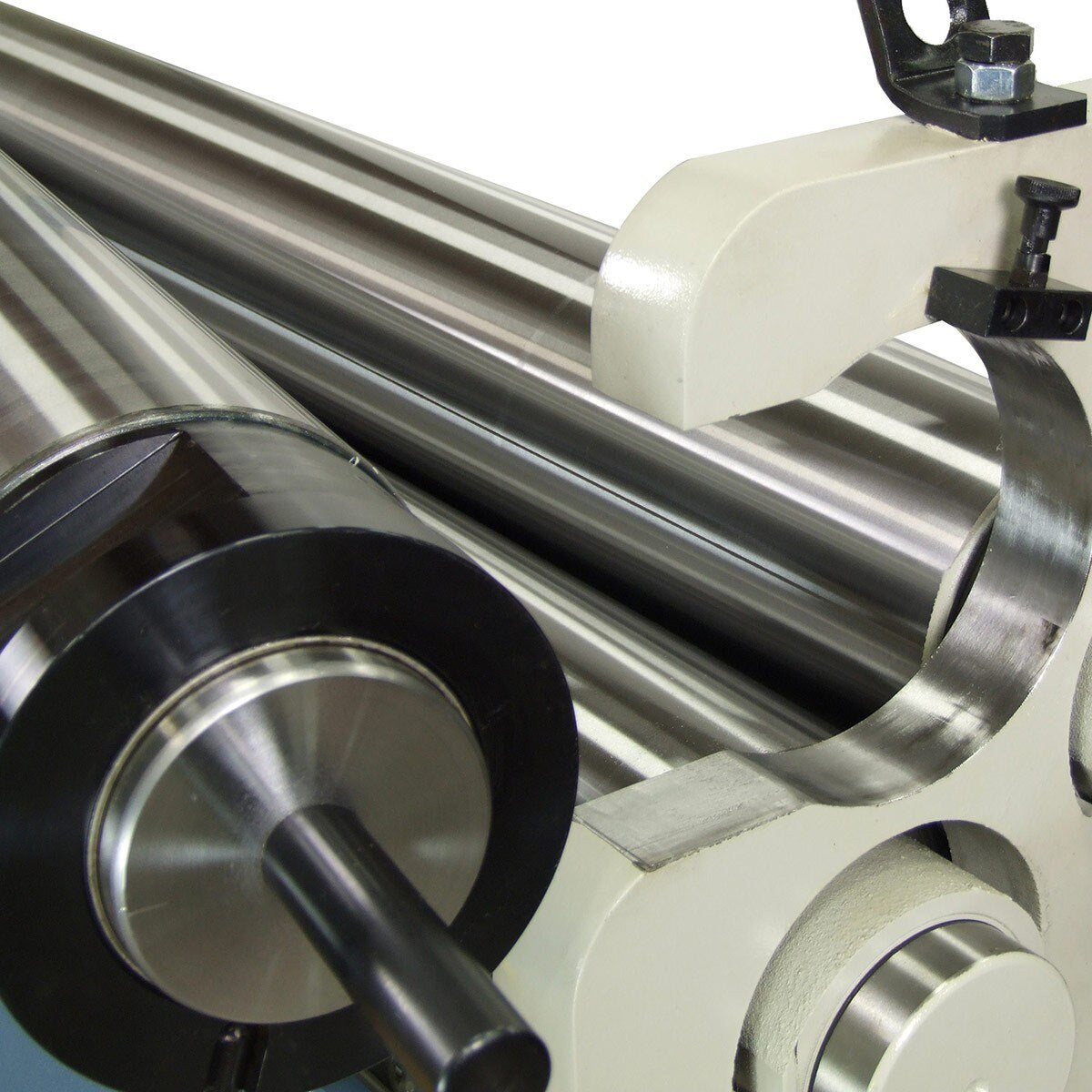

- Can bend 9 gauge mild steel into a 7” ring on its full length.

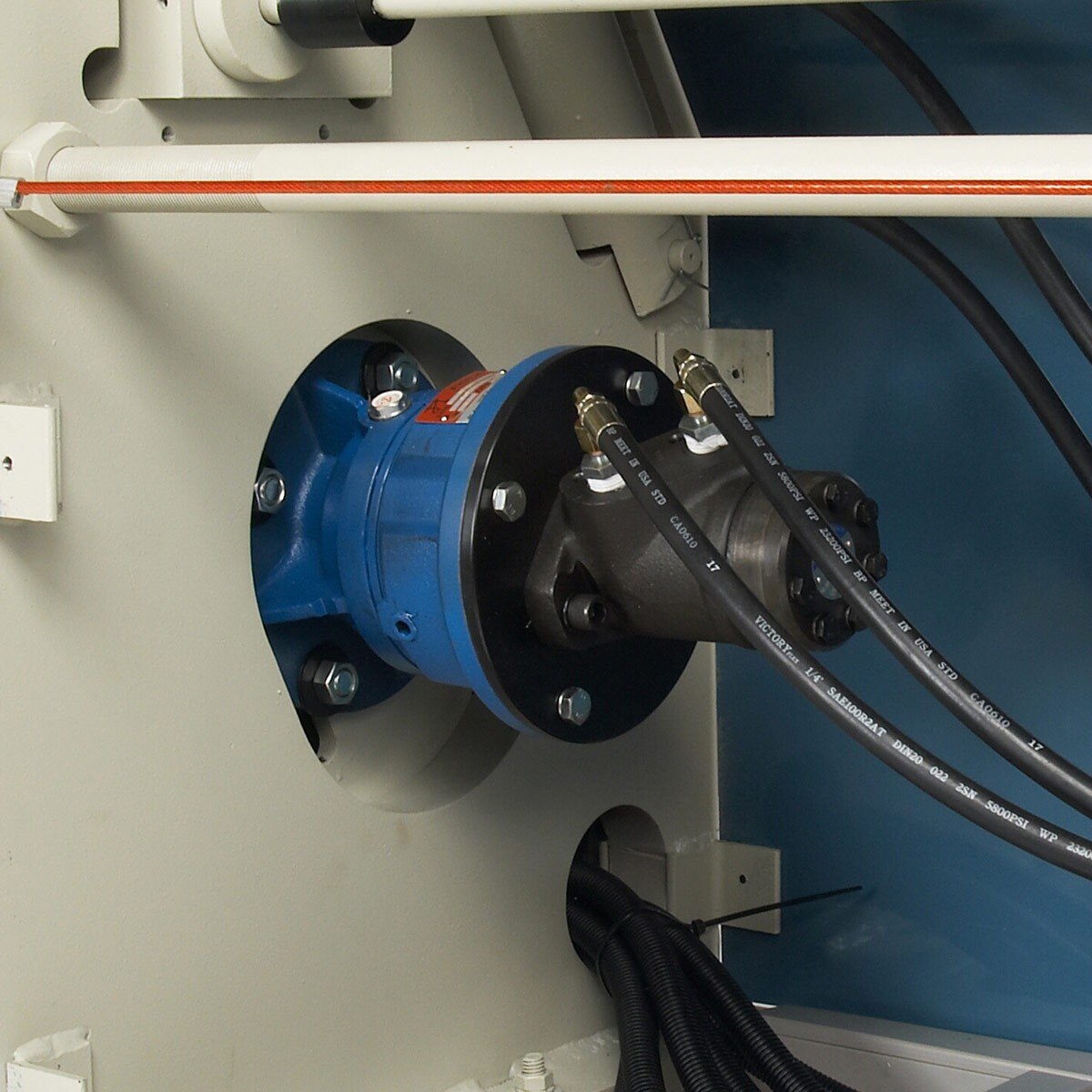

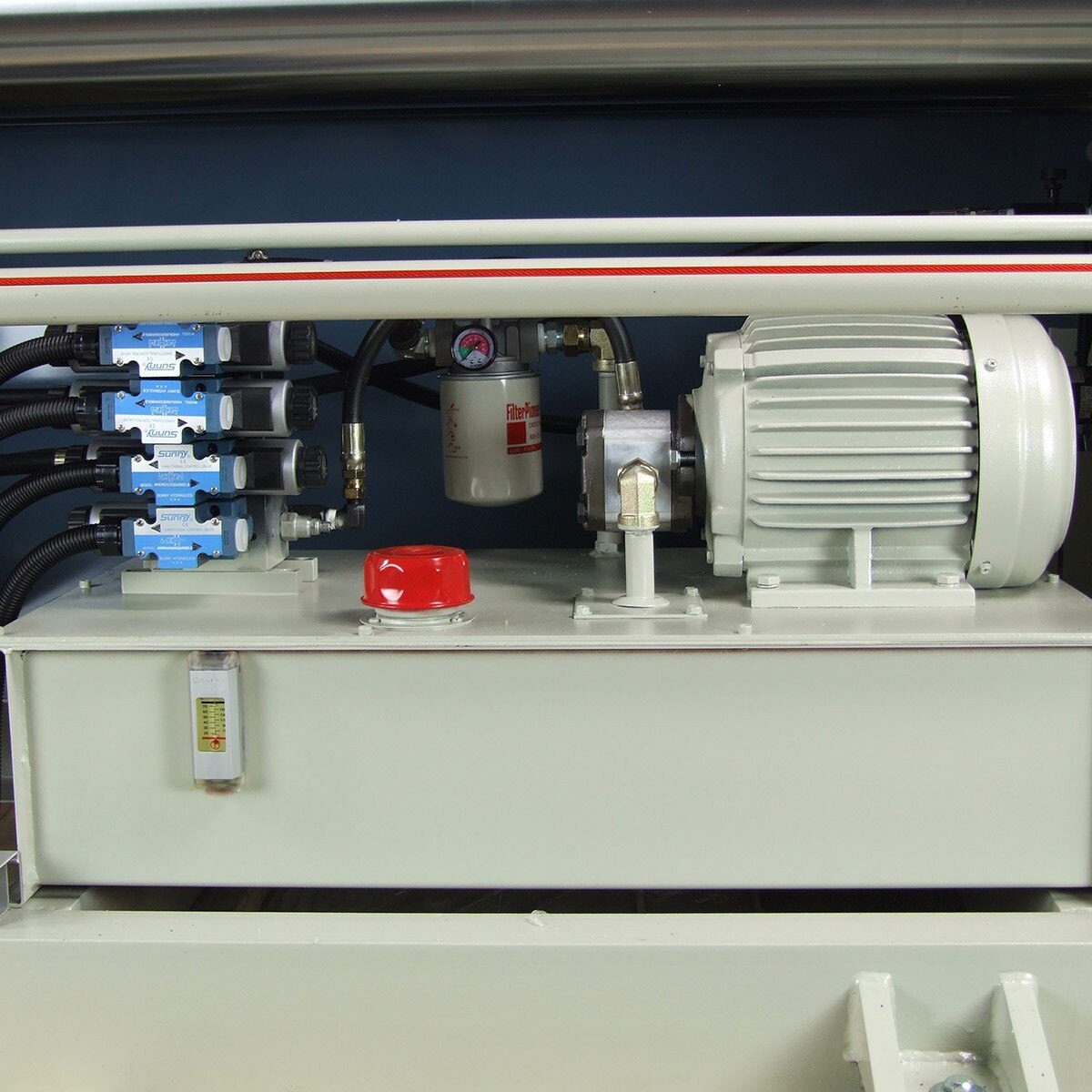

- Operated entirely by an industrial-grade hydraulic system.
- 2 hp 220-volt 3-phase motor controls movement of the back roll and the rolling of all 3 forming rolls.

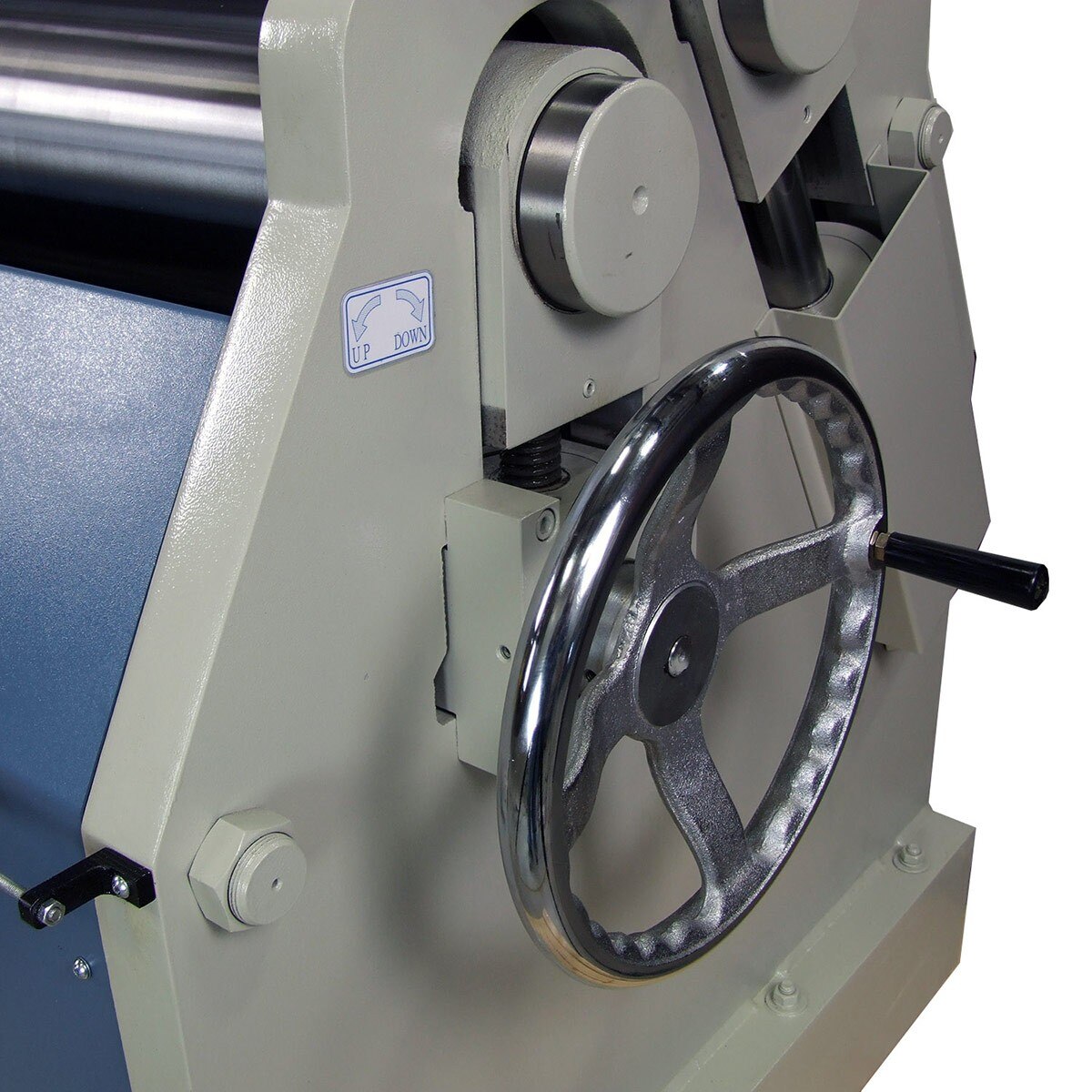

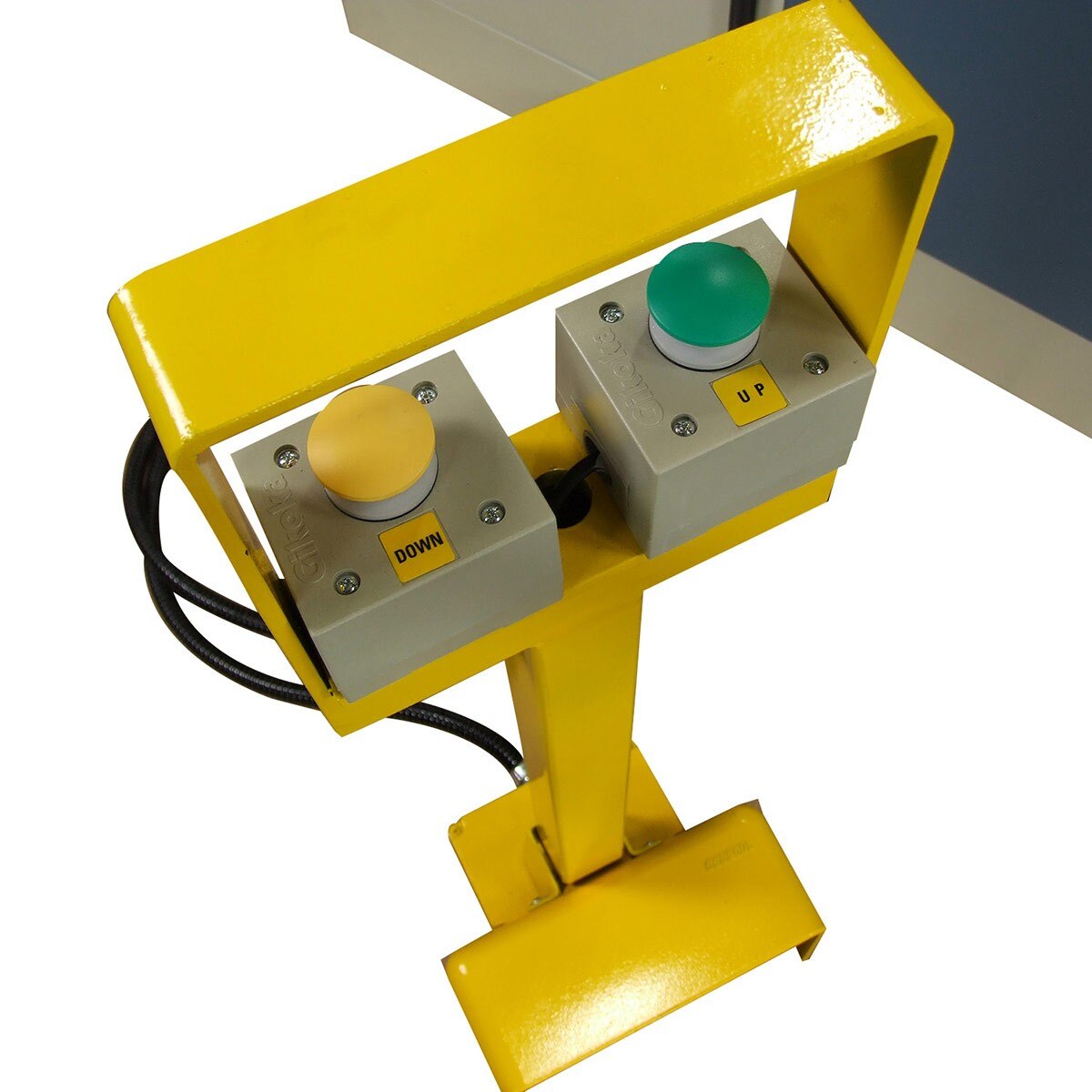

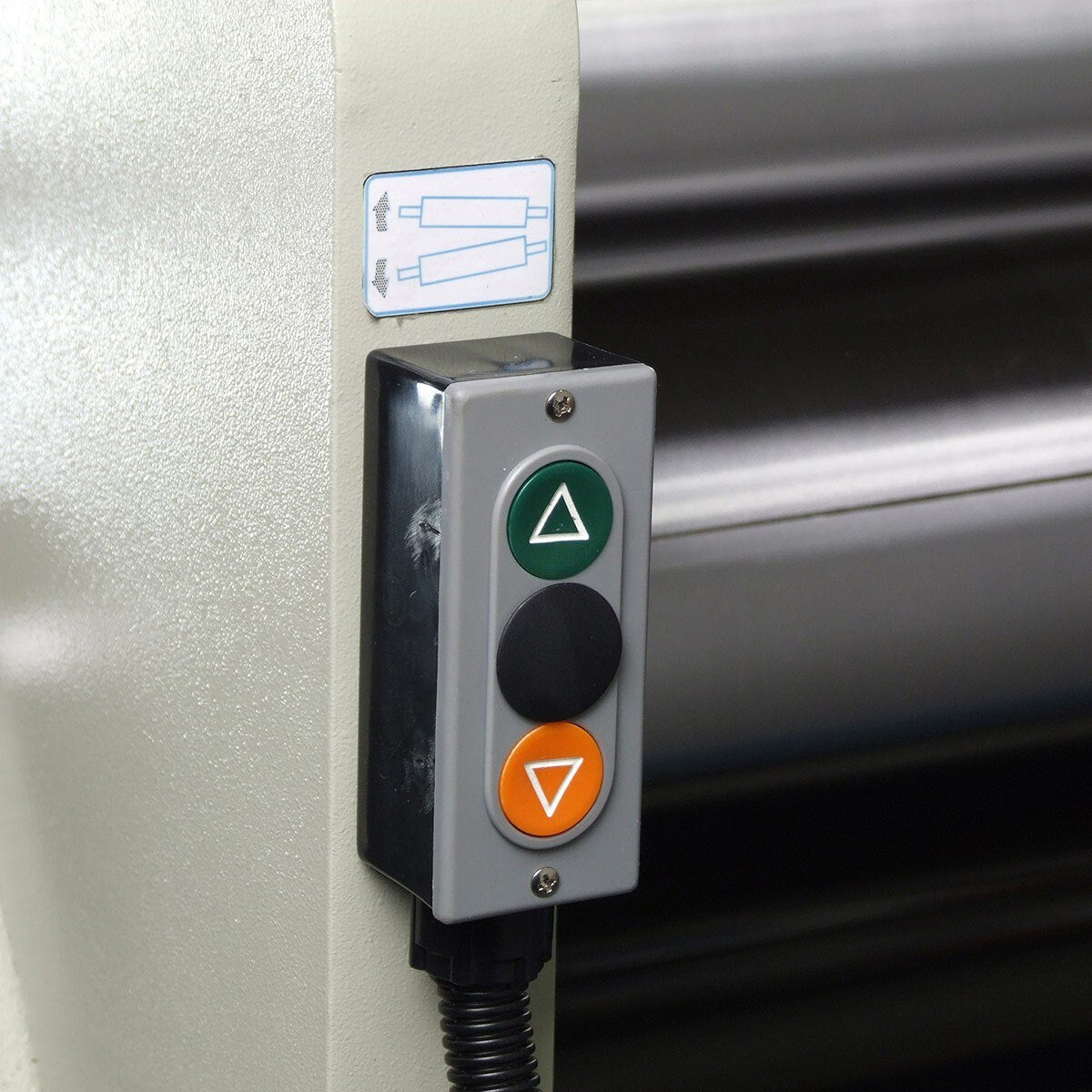

- Convenient control pedestal includes forward and reverse foot pedal and buttons to control the up and down movement of the back roll.

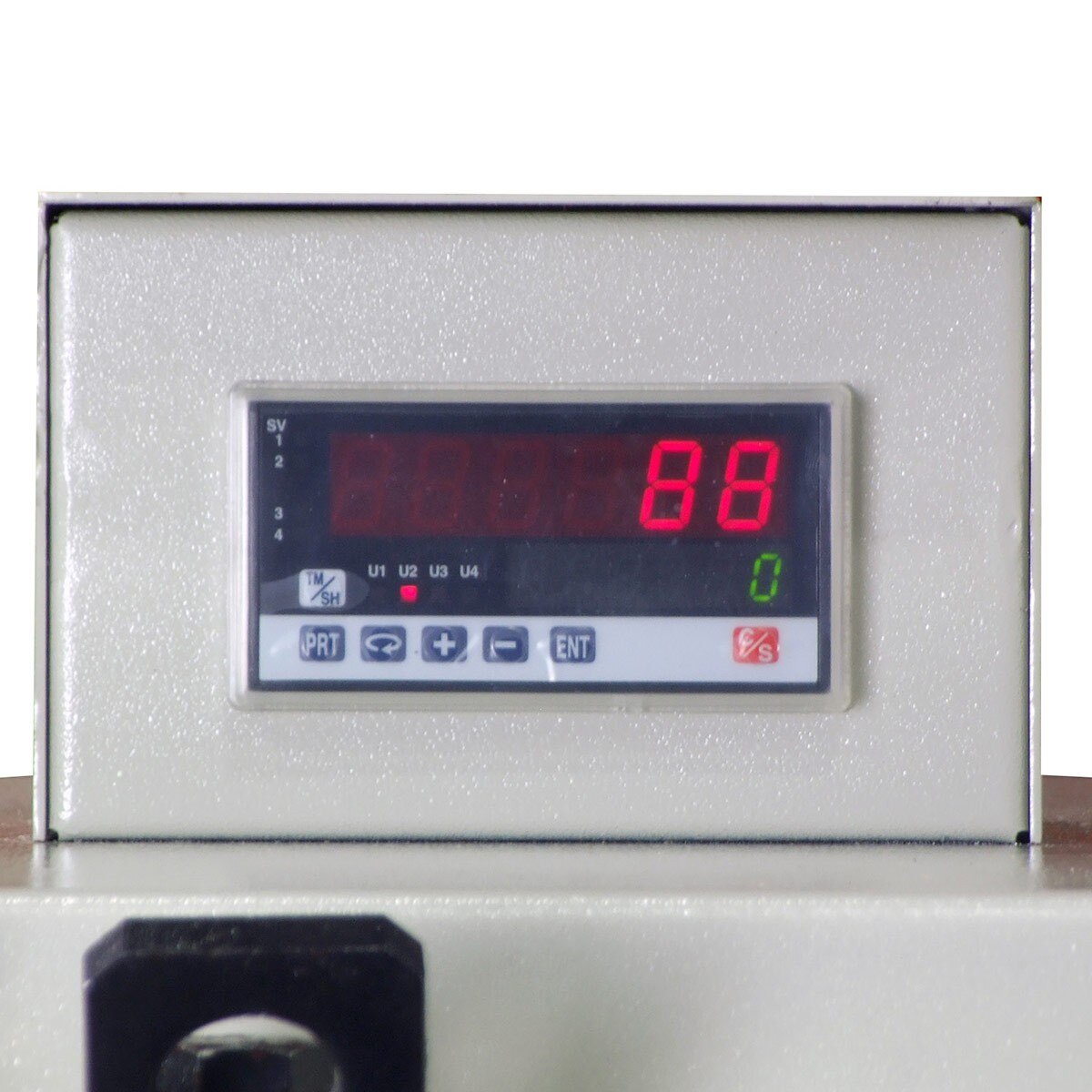

- Digital readout shows the position of the back roll for easy repeatability.
- Full steel frame, machined to exacting tolerances, maintains accuracy and prevents deflection.

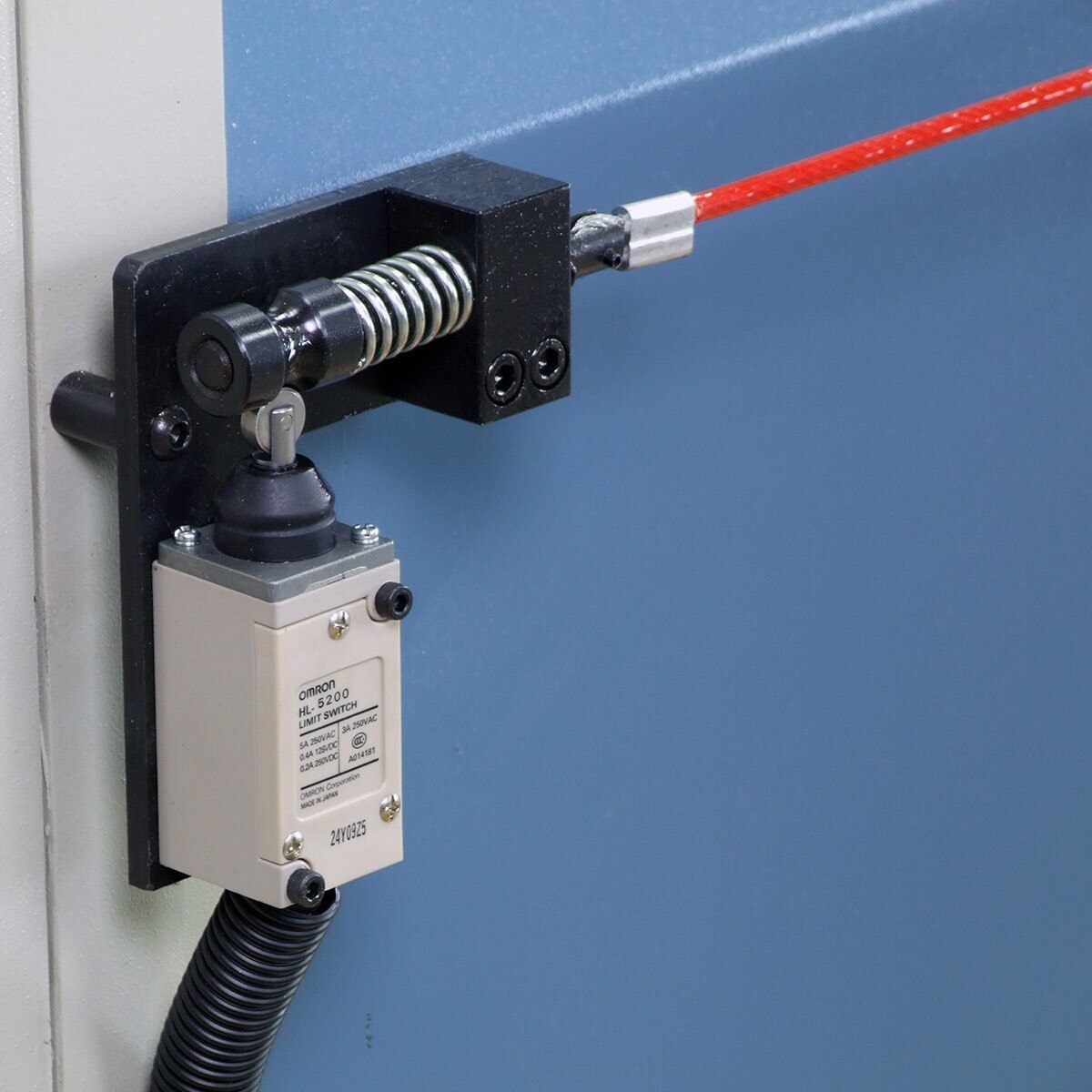

- Emergency stop cable on the front and back of the machine help to keep your shop safe.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1006517 Specifications
| Forming Width | 48" |
| Roll Speed | 5.85 RPM |
| Upper Roll Dia. | 4.75" |
| Roll Adjustment Back | Hydraulic |
| Minimum Forming Dia | 7.125" |
| Motor | 2 HP |
| Capacity (Mild Steel) | 9 Gauge (.150") |
| Power | 220V / 3-phase |
| Accessories | Included |
| Shipping Dimensions | 98" x 39" x 60" |
