Baileigh Industrial BA9-1006521 Plate Roll PR-413
Free Shipping
$16,759.00
$20,350.21
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1006521 Description

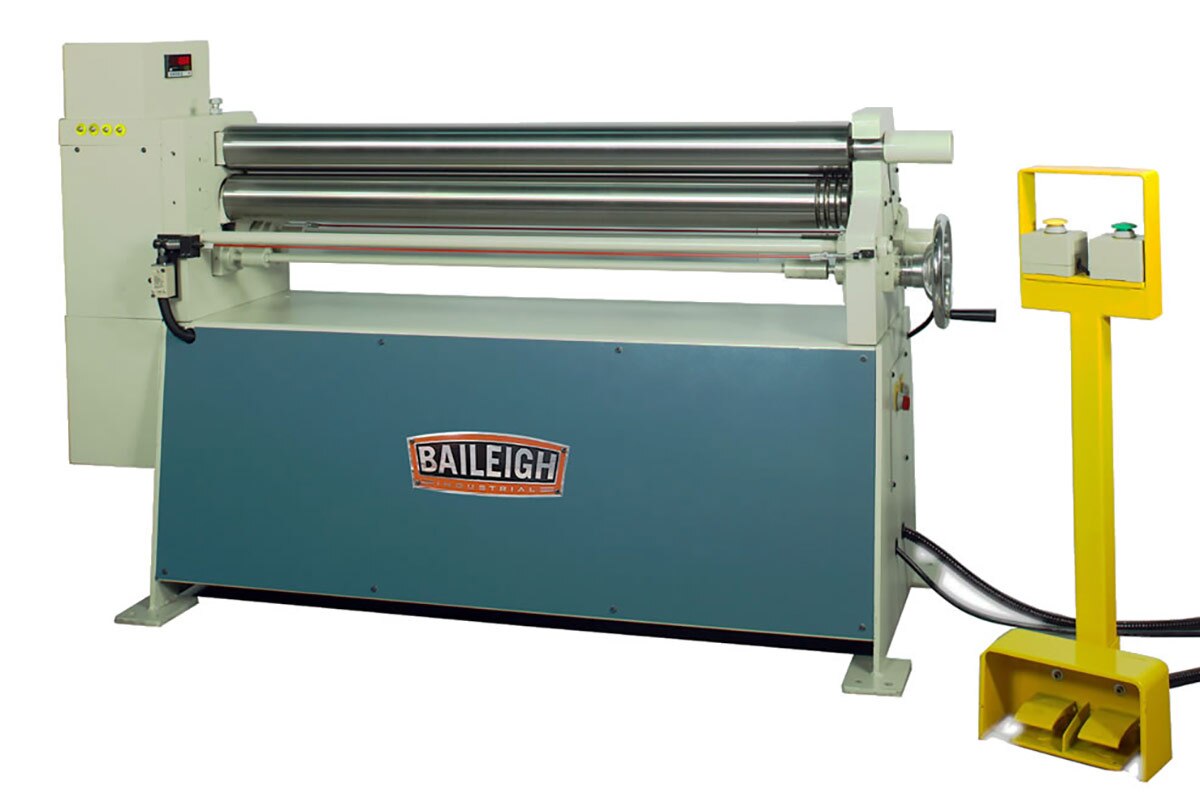

Do you currently have a slip roll but are constantly being bogged down when you need to form something a little thicker. That is where the PR-413 roll former comes in. This economical plate roll has the ability to handle up to 13 gauge mild steel over its whole 4’ length. Built with a 2 hp motor, hydraulically controlled back roll, and a steel frame, this electrical plate roller lets you tackle thicker gauges without getting bogged down. It comes with a DRO.
Baileigh Industrial 1006521 Includes
- (1) Plate Roll
- (3) Wire Gloves
Baileigh Industrial 1006521 Features

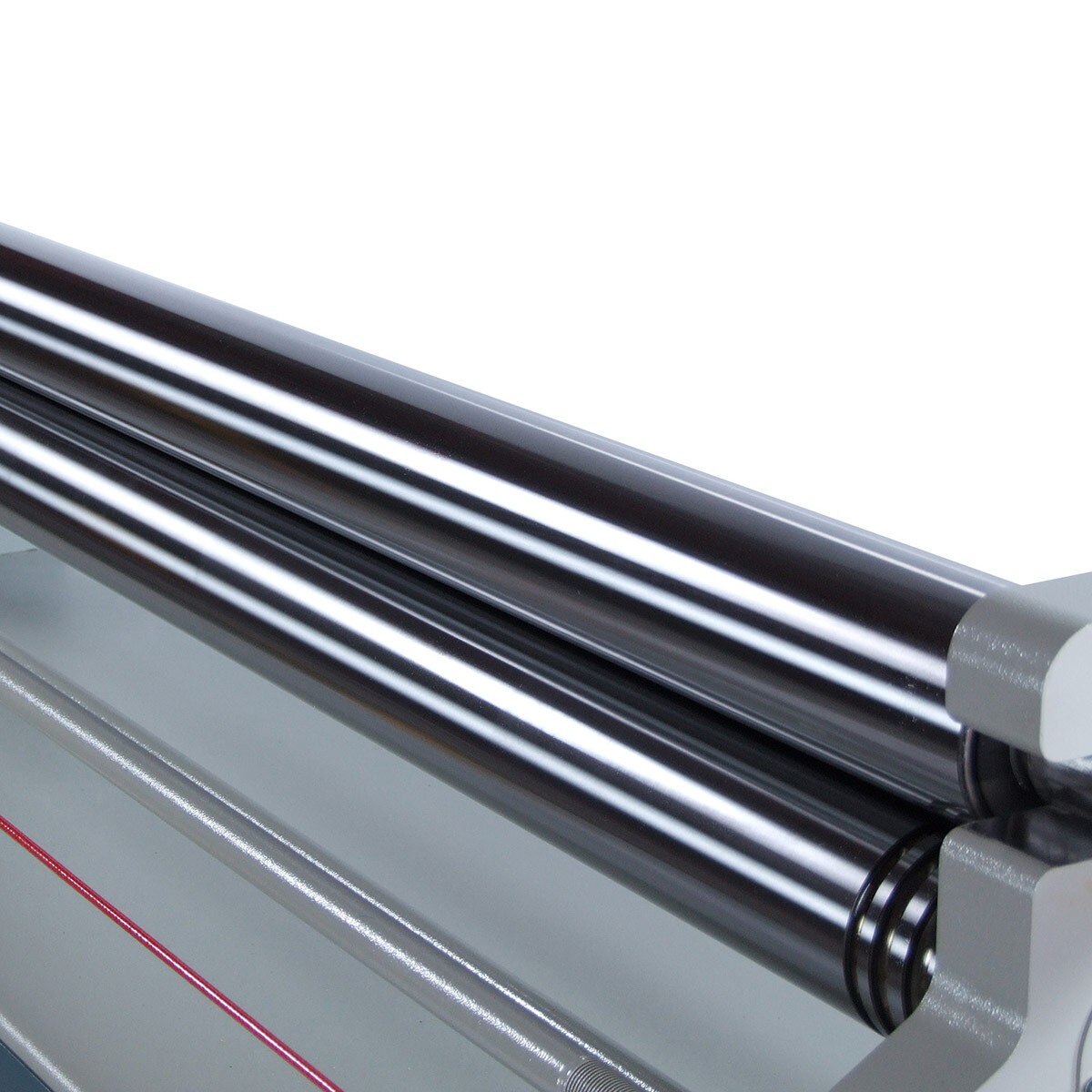

- 4’ forming width.
- Bends 13 gauge mild steel over its whole width.
- 2 hp motor runs on 220-volt single-phase power, so you can use it almost anywhere.

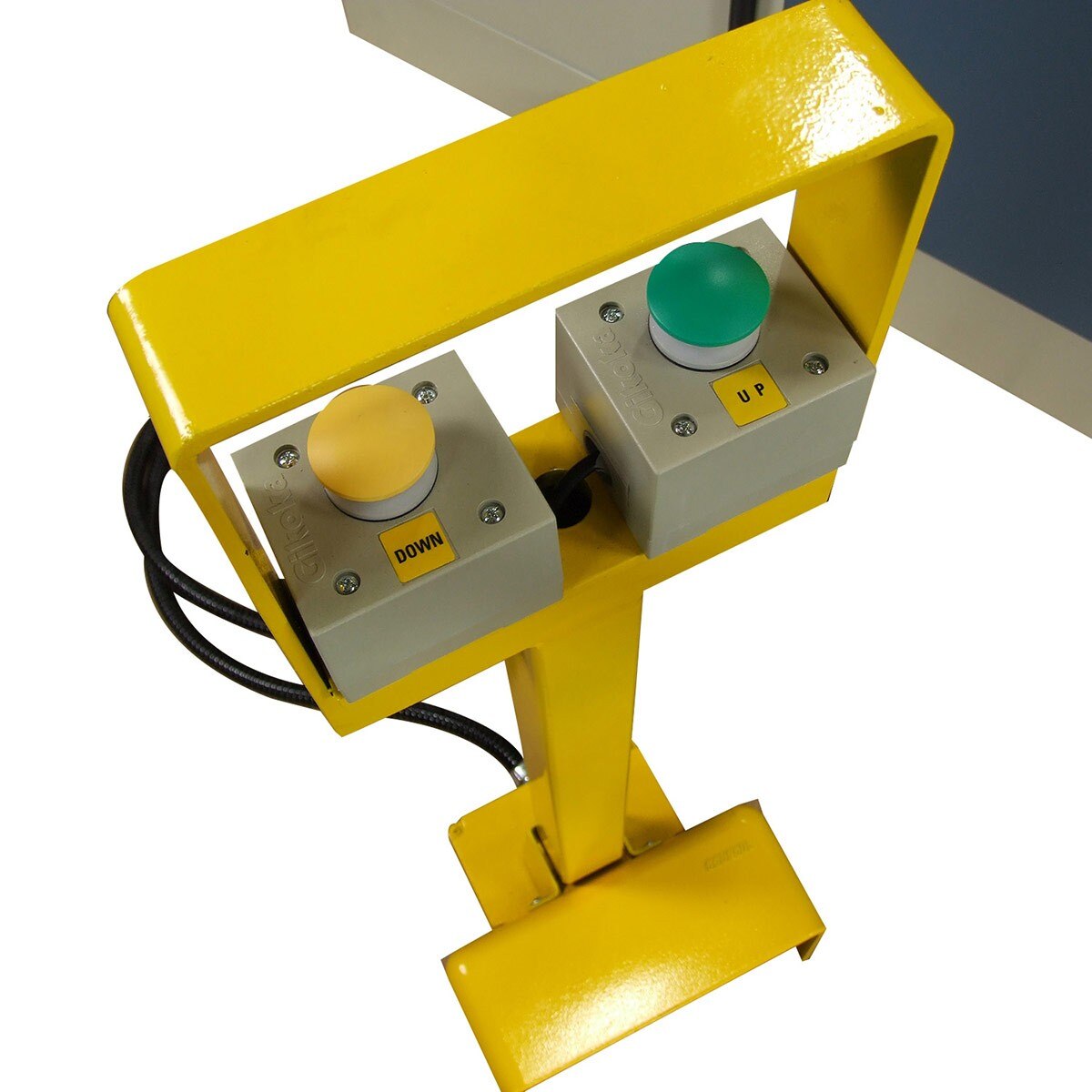

- Convenient control pedestal has forward and reverse foot pedals and buttons to control the up and down movement of the back roll.

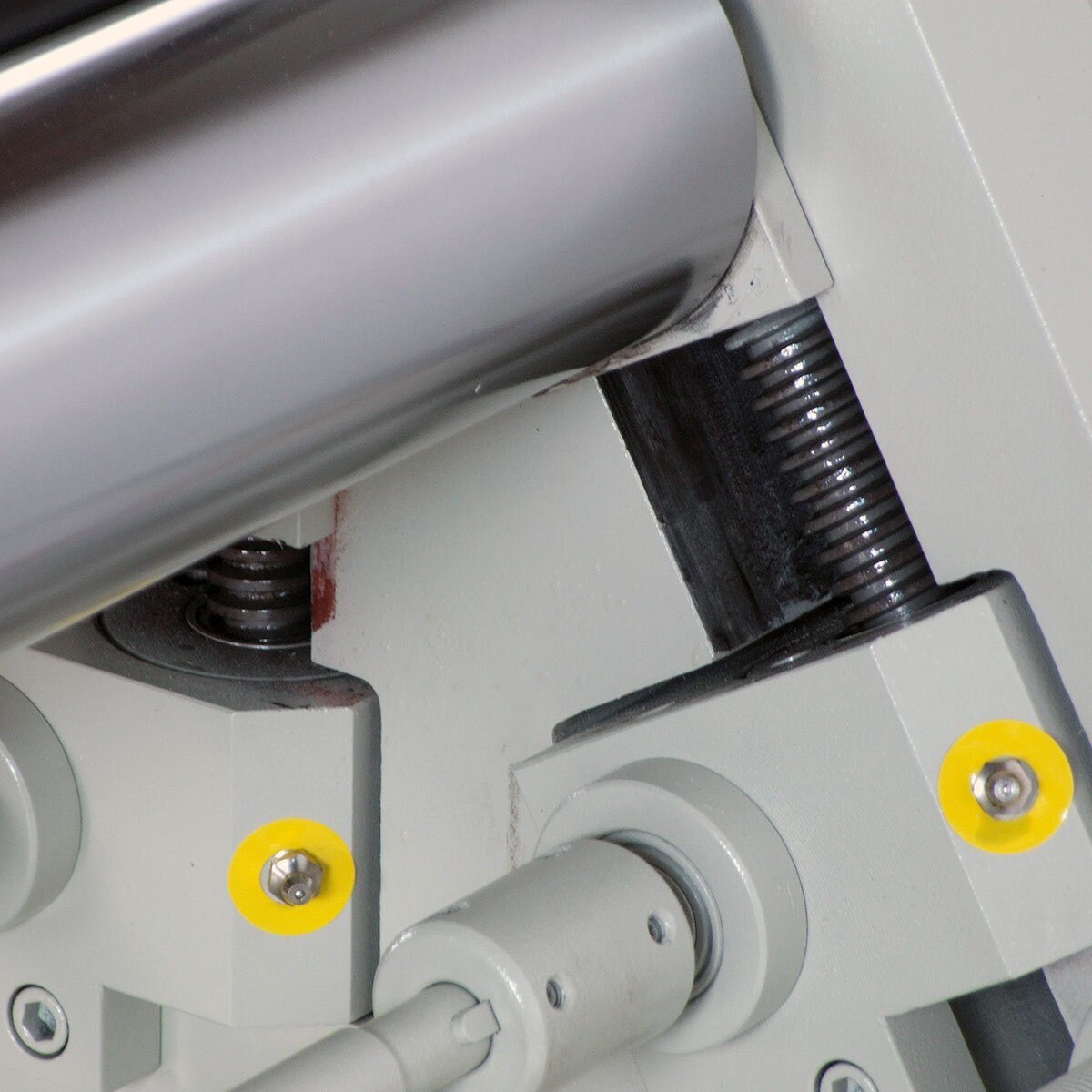

- Industrial-grade hydraulic system allows the back roll to move up and down and tilt left and right for coning.

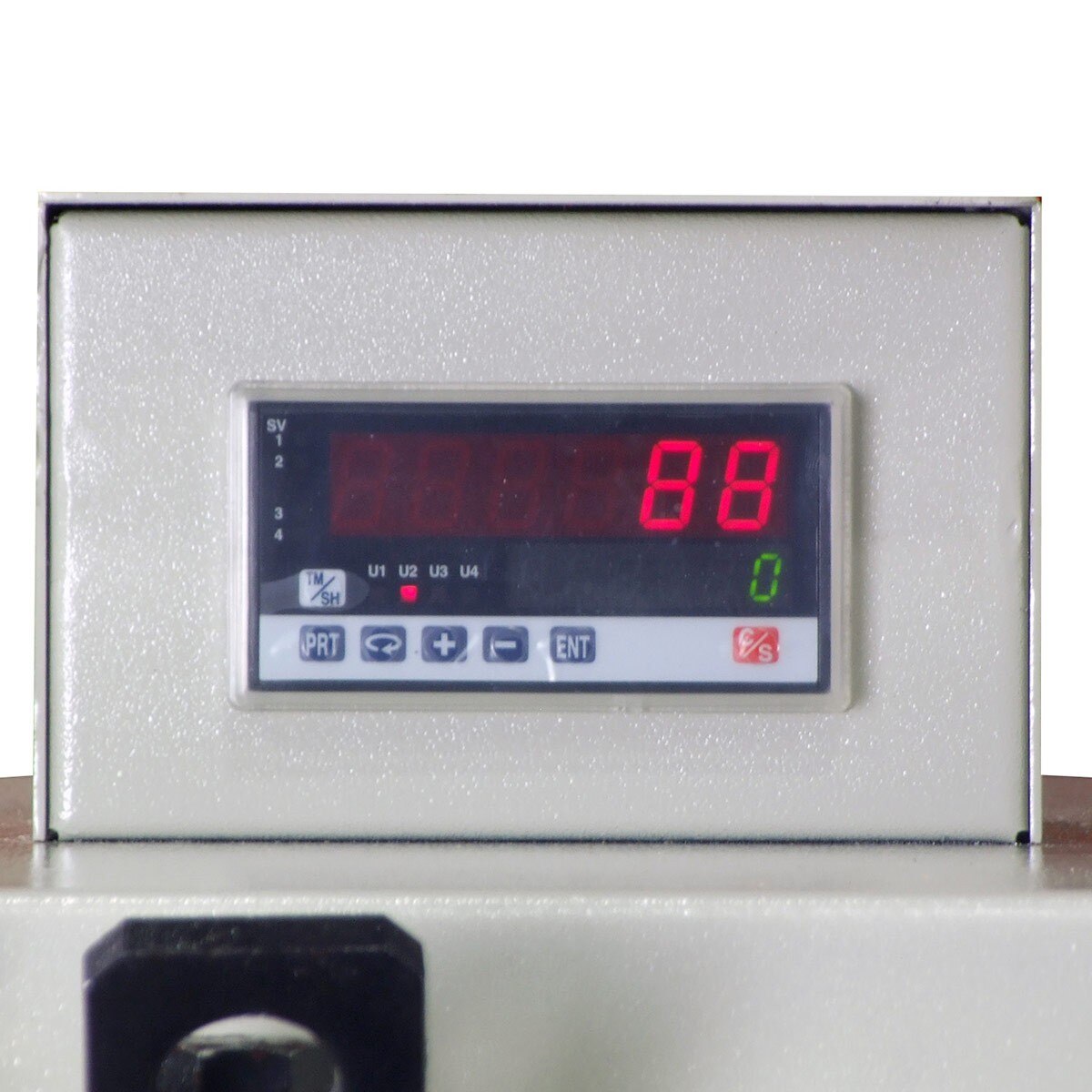

- Digital readout gives the position of the back roll for easy repeatability.
- Full steel frame, machined to exacting tolerances, maintains accuracy for many years of use at full capacity.

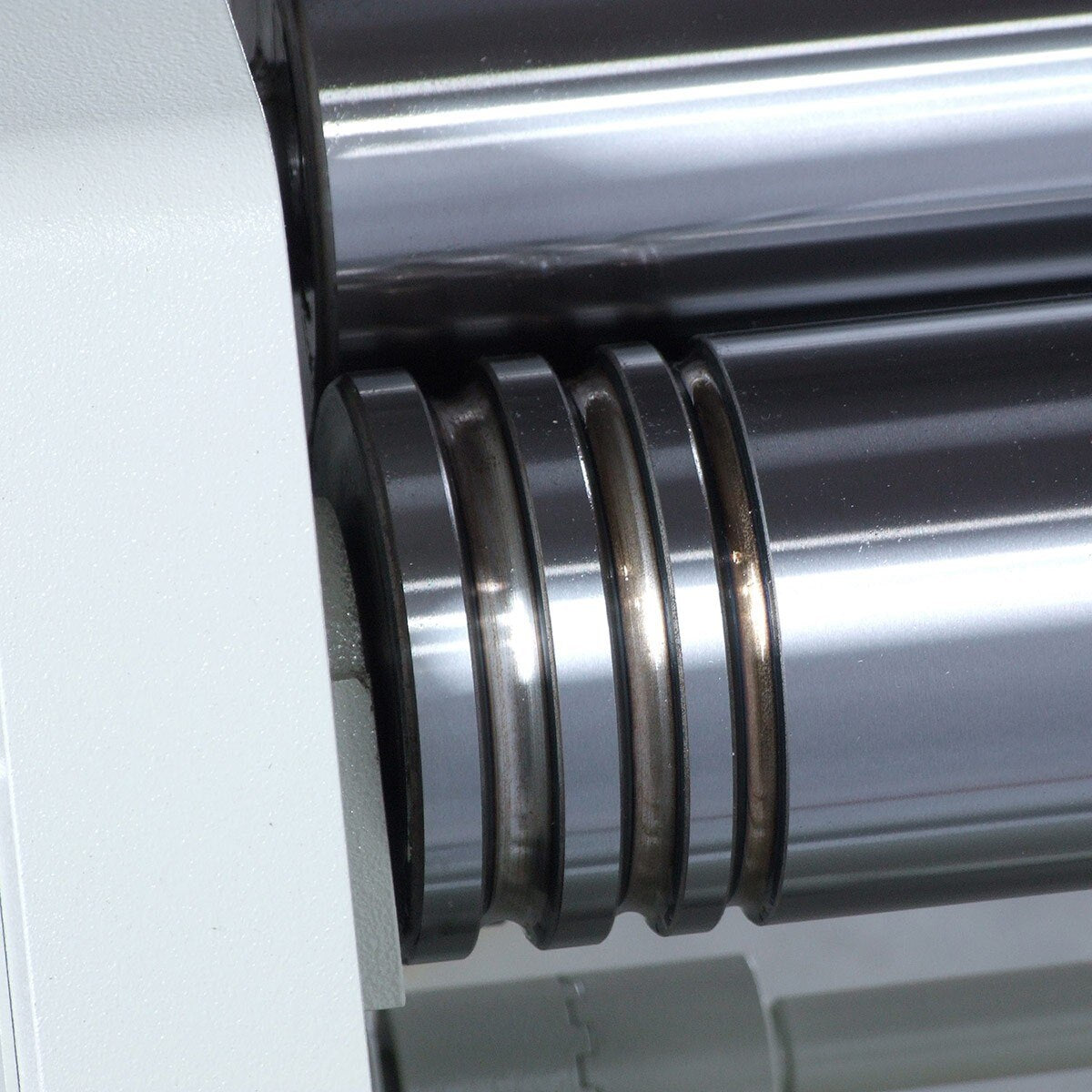

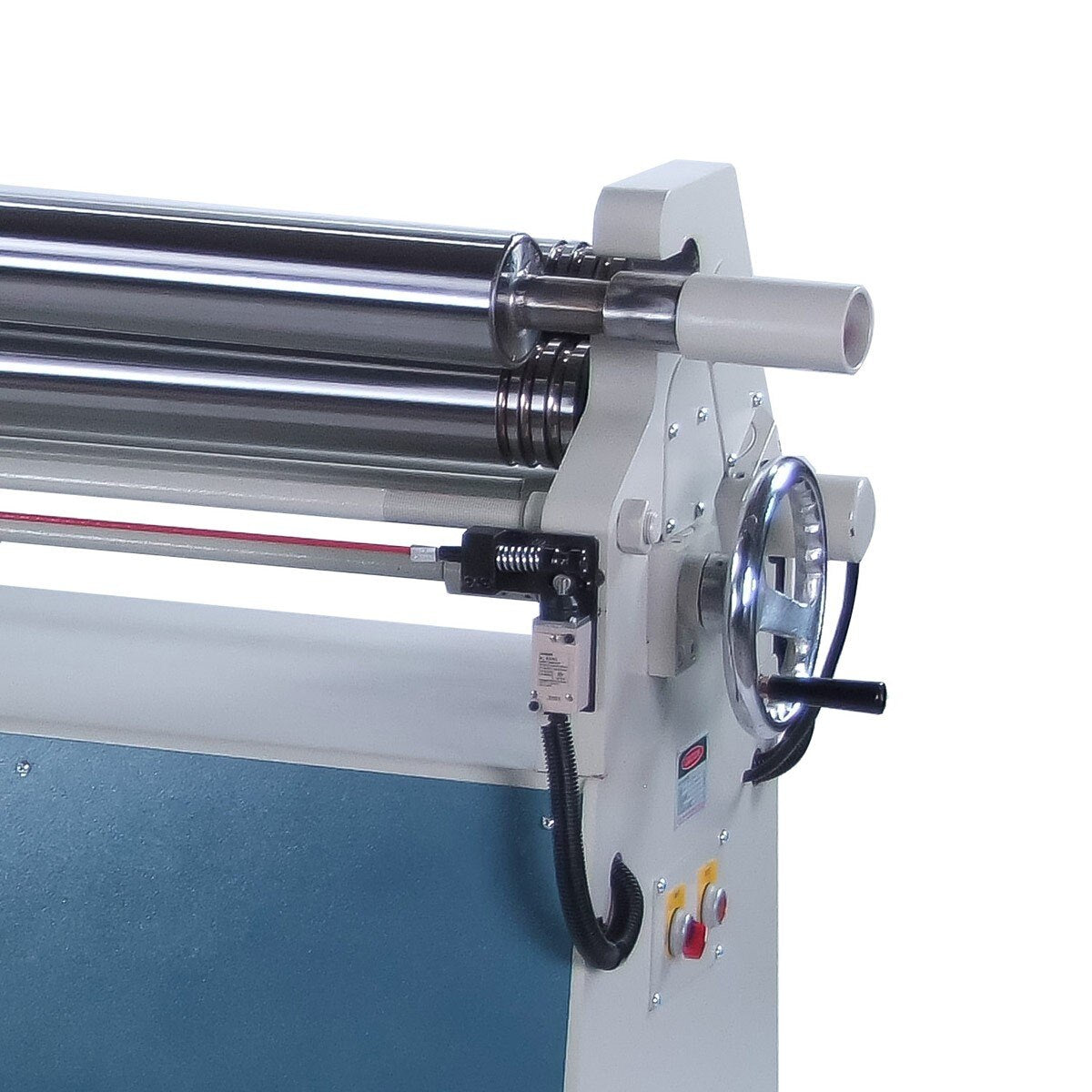

- Includes 3 wire grooves for forming rings.

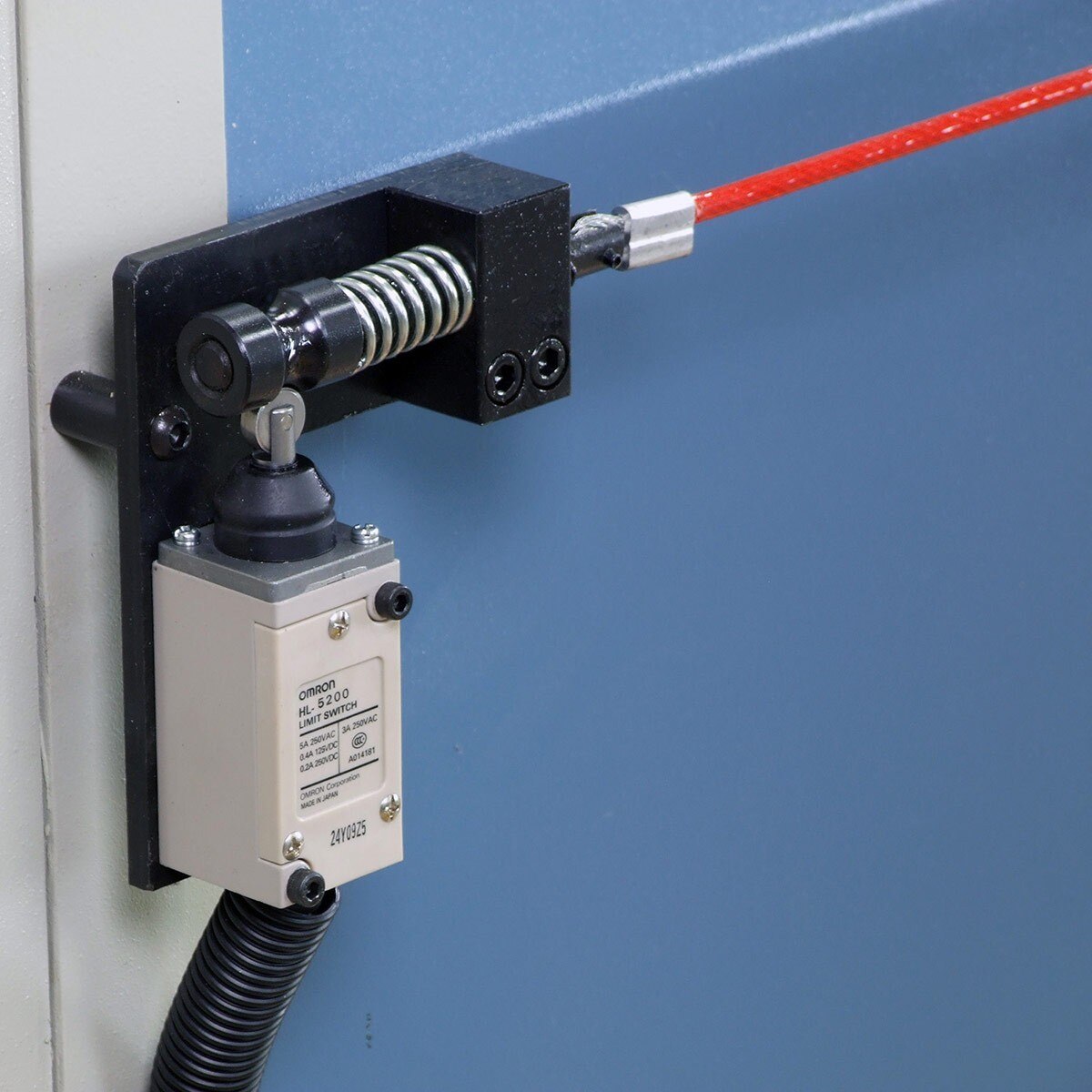

- Emergency stop cable on the front and back of the machine for safety.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1006521 Specifications
| Forming Width | 48" |
| Roll Speed | 6 RPM |
| Upper Roll Dia. | 3.50" |
| Roll Adjustment Back | Hydraulic |
| Minimum Forming Dia | 5.25" |
| Motor | 2 HP |
| Wire Grooves | Yes |
| Capacity (Mild Steel) | 13 Gauge (.090") |
| Power | 220V / 1-phase |
| Accessories | Included |
