Baileigh Industrial | SKU:
BA9-1006531

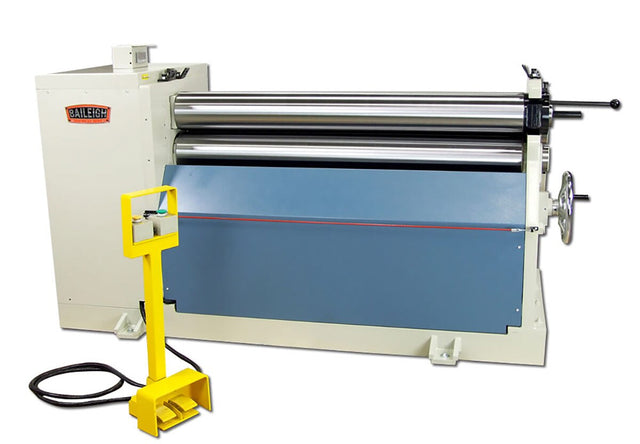

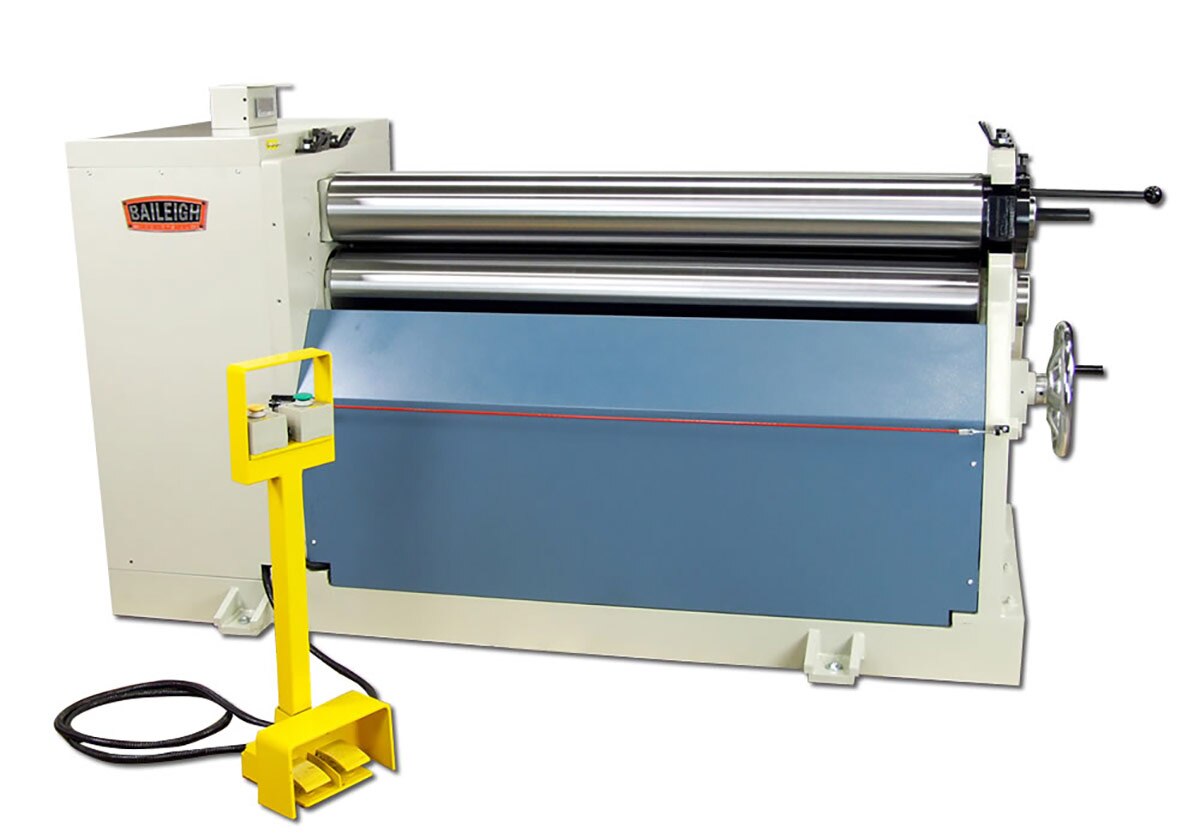

Baileigh Industrial BA9-1006531 Plate Roll PR-503
Free Shipping
$31,549.00
$38,309.50
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1006531 Description

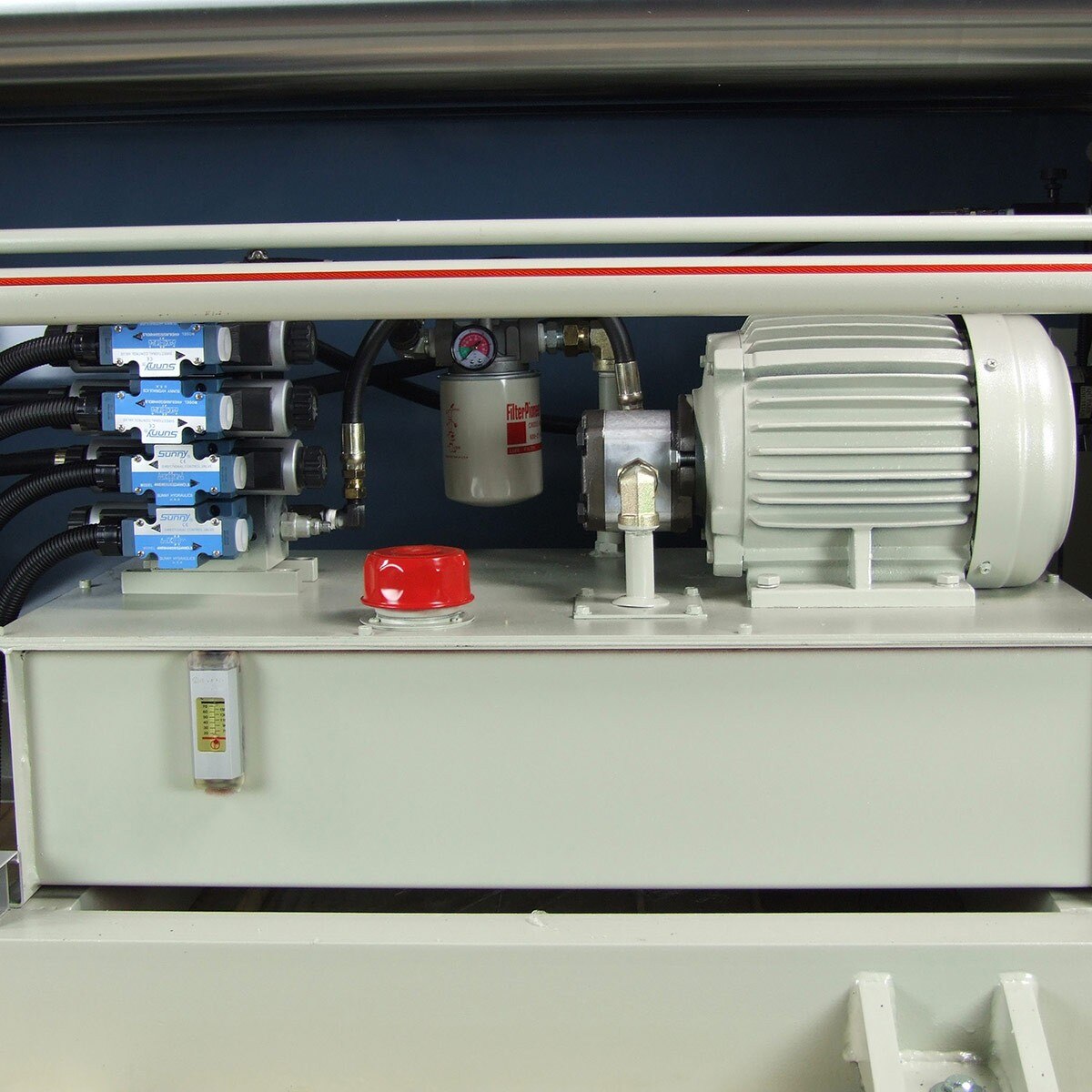

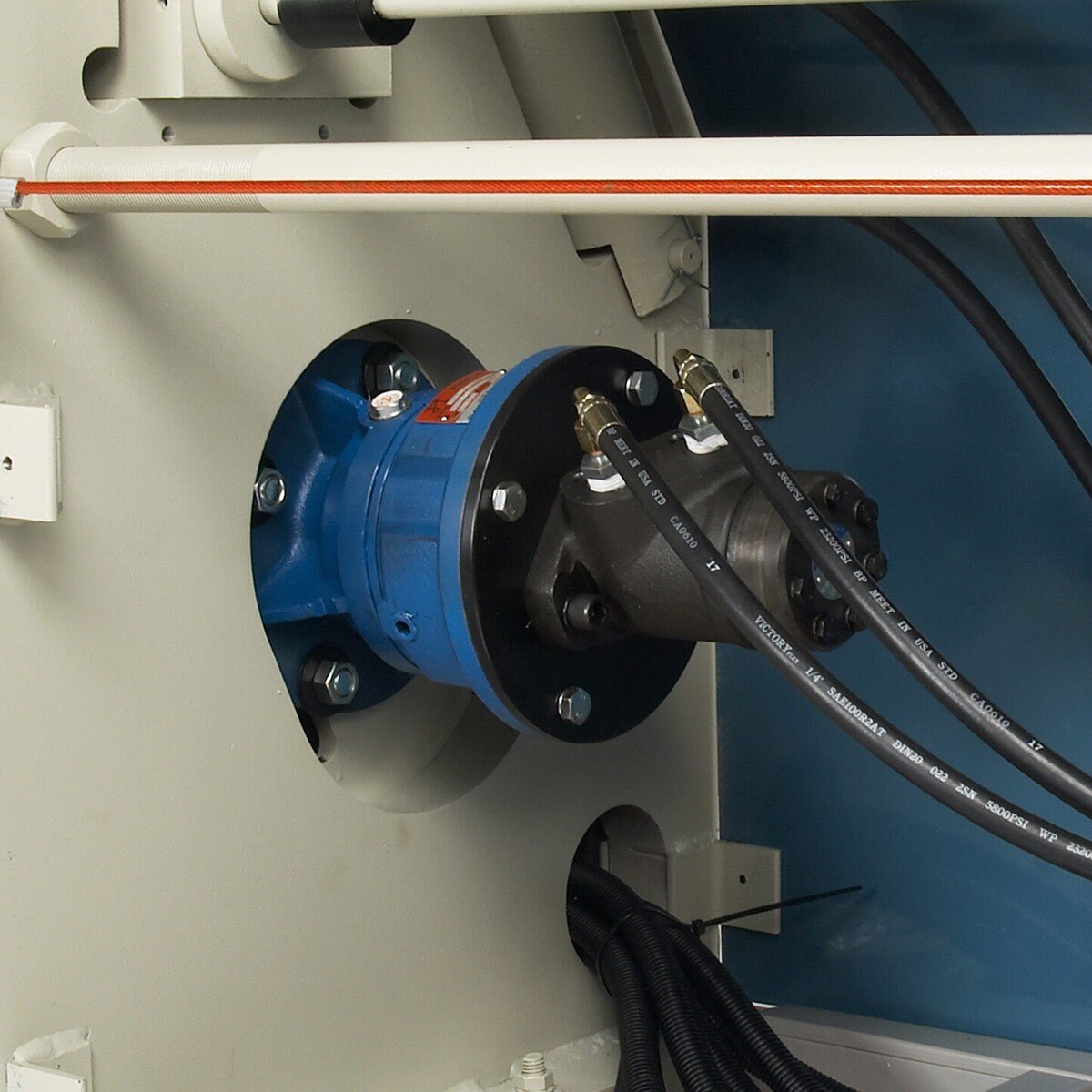

A true workhorse and a staple of Baileigh’s plate roll line, the PR-503 was built for small to medium fabrication shops. Its welded steel frame maintains accuracy. The PR-503 sheet metal roller is completely hydraulically driven for increased durability and reliability. All 3 rolls are driven on the PR-503 plate bending machine such that the operator can roll more material faster and increase the productivity of the shop.
Baileigh Industrial 1006531 Includes
- (1) Plate Roll
Baileigh Industrial 1006531 Features
- Maximum 61” forming width.
- Rolls up to 3 gauge (¼”) mild steel sheet metal across its full width.
- 5 hp motor runs on 220-volt 3-phase power.
- 3 driven rolls let you shape more material faster and increase productivity.

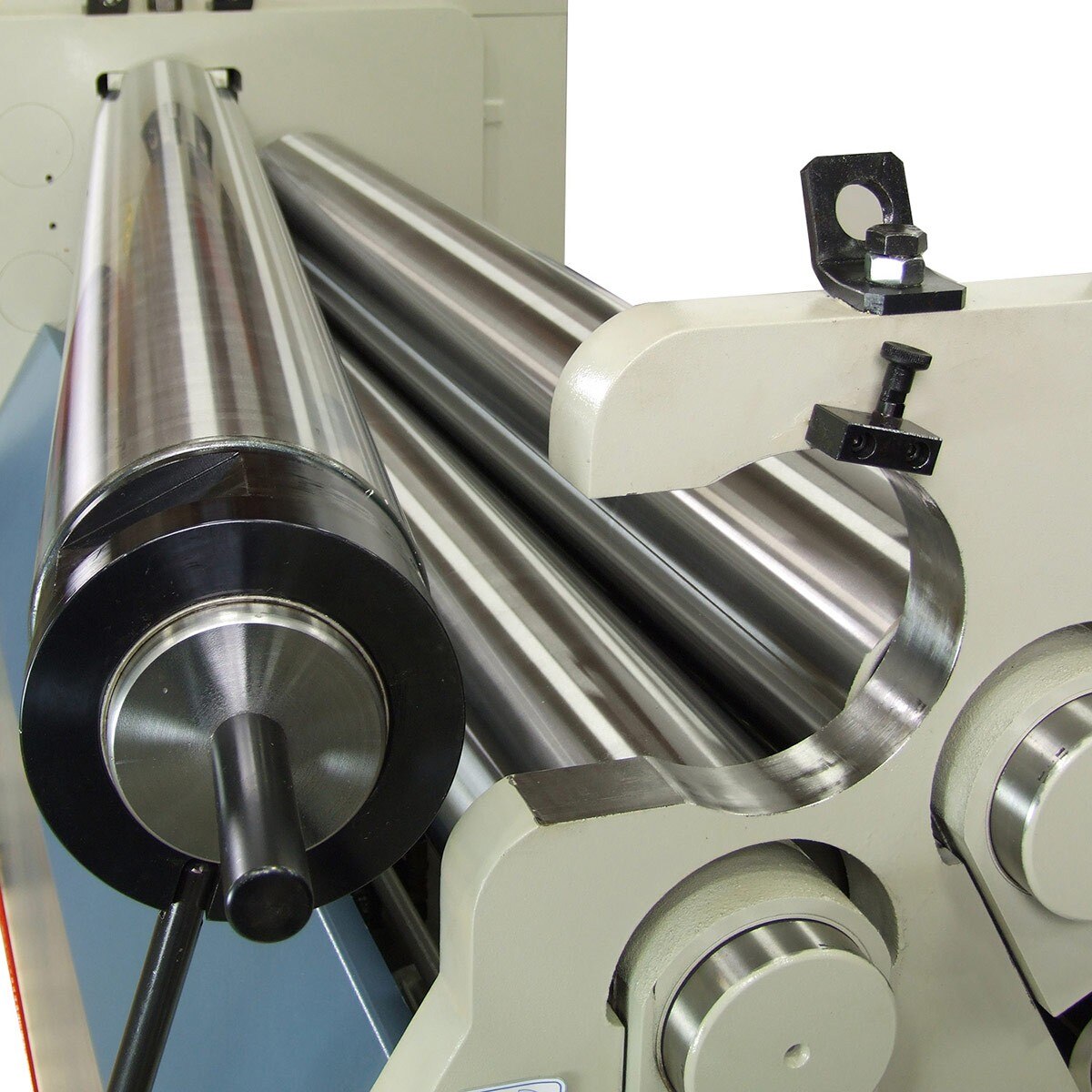

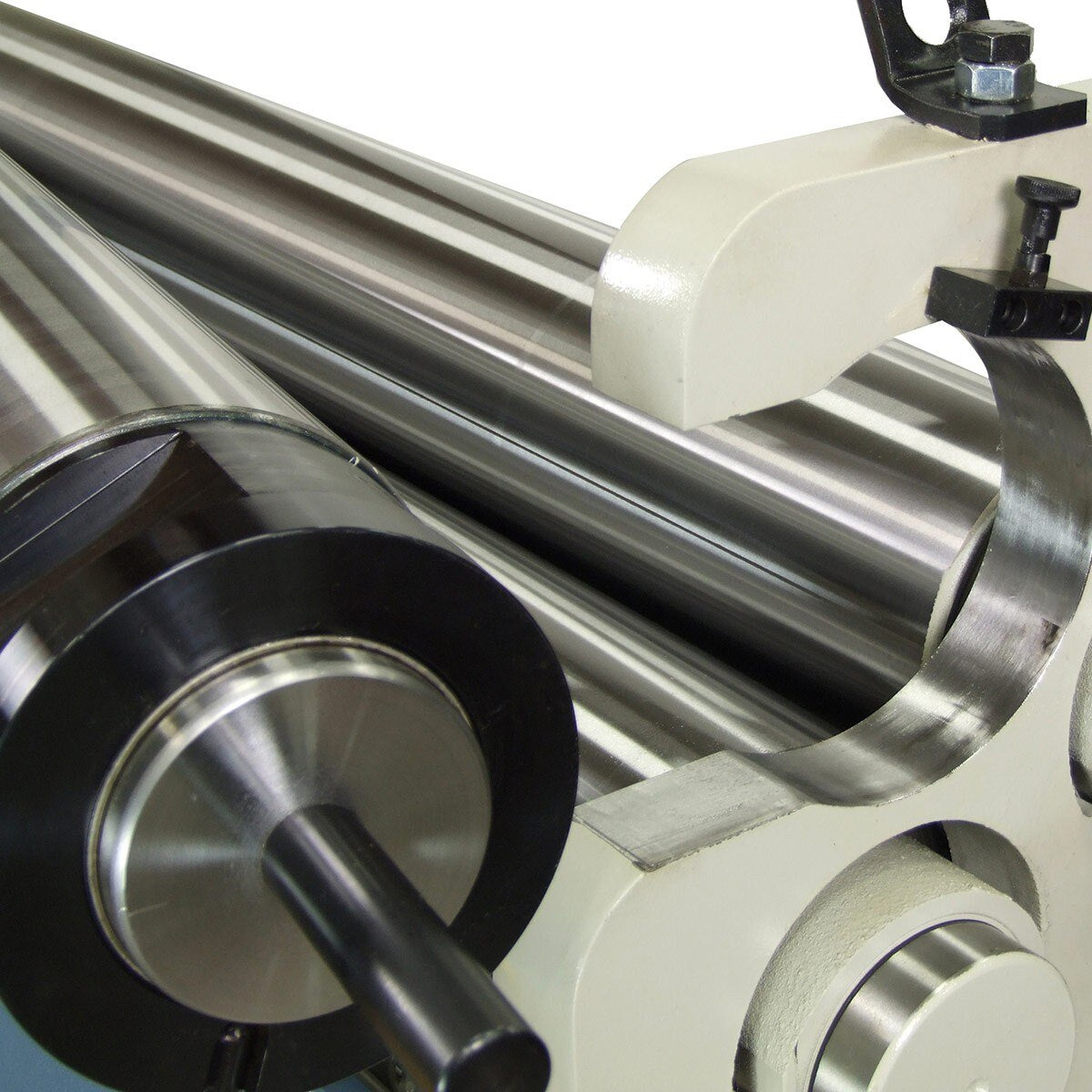

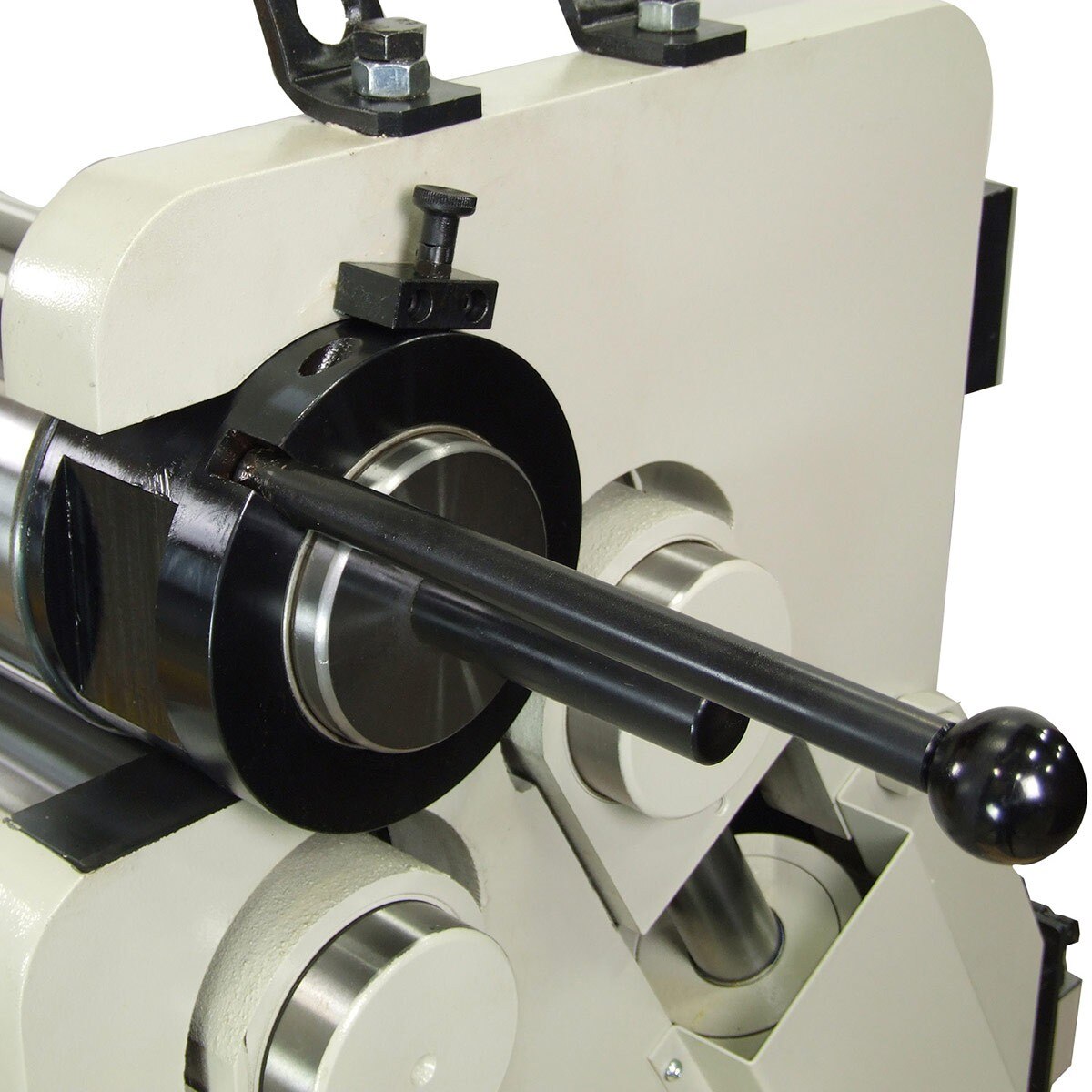

- Quick-release mechanism on the top roll makes it simple to remove work that’s wrapped around roll.

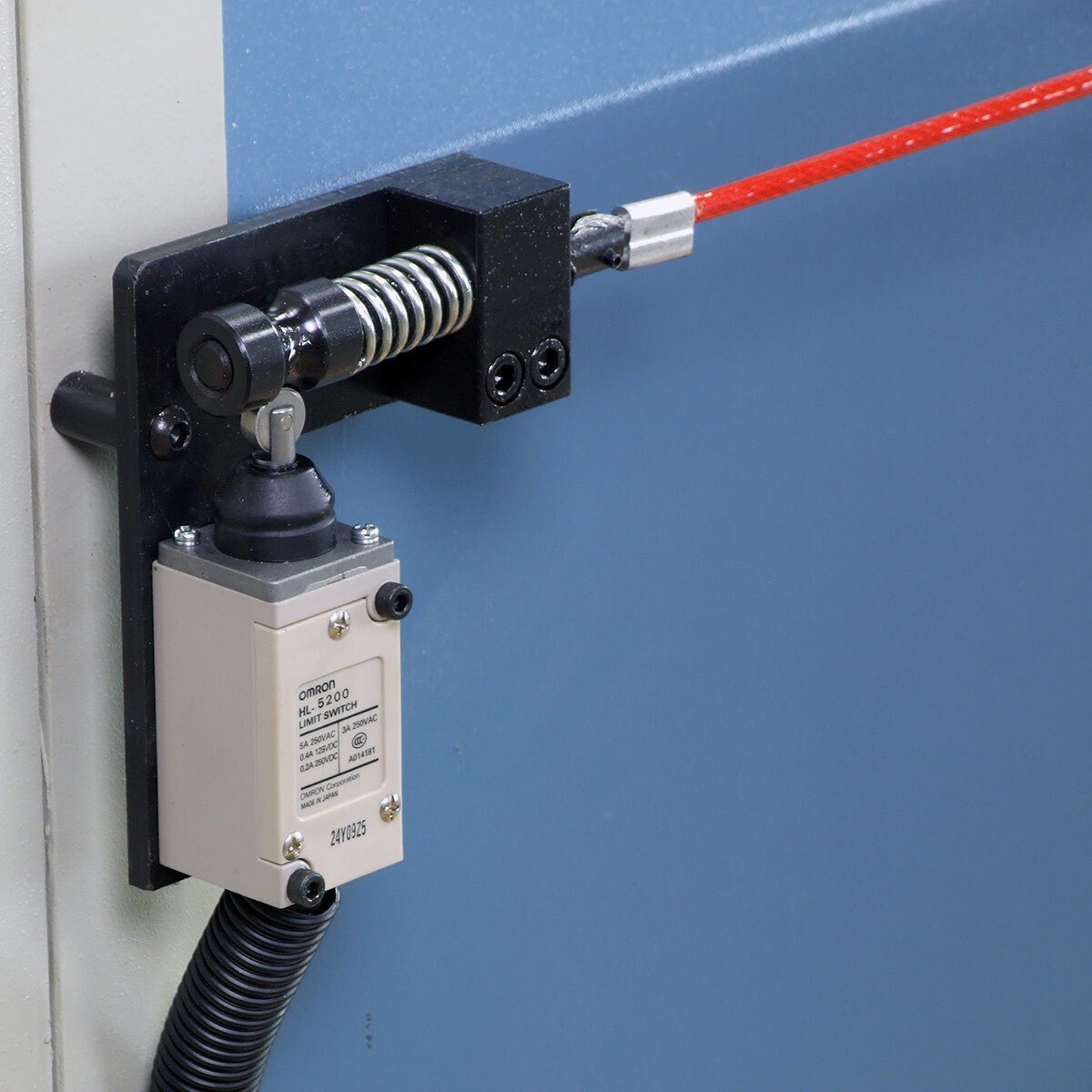

- Dual emergency stop cables that are located on both the front and back of the machine.
- Heavy steel frame helps prevent flex for longer machine life.
- Comes with a 1-year parts warranty.
Baileigh Industrial 1006531 Specifications
| Forming Width | 61" |
| Roll Speed | 5 RPM |
| Upper Roll Dia. | 7" |
| Roll Adjustment Back | Hydraulic |
| Minimum Forming Dia | 10.500" |
| Motor | 5 HP |
| Power | 220V / 3-phase |
| Shipping Dimensions | 108" x 47" x 62" |
| Country of Origin | Taiwan |
