Baileigh Industrial | SKU:
BA9-1006533
Baileigh Industrial BA9-1006533 Plate Roller PR-510
Free Shipping
$24,799.00
$30,113.07
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1006533 Description

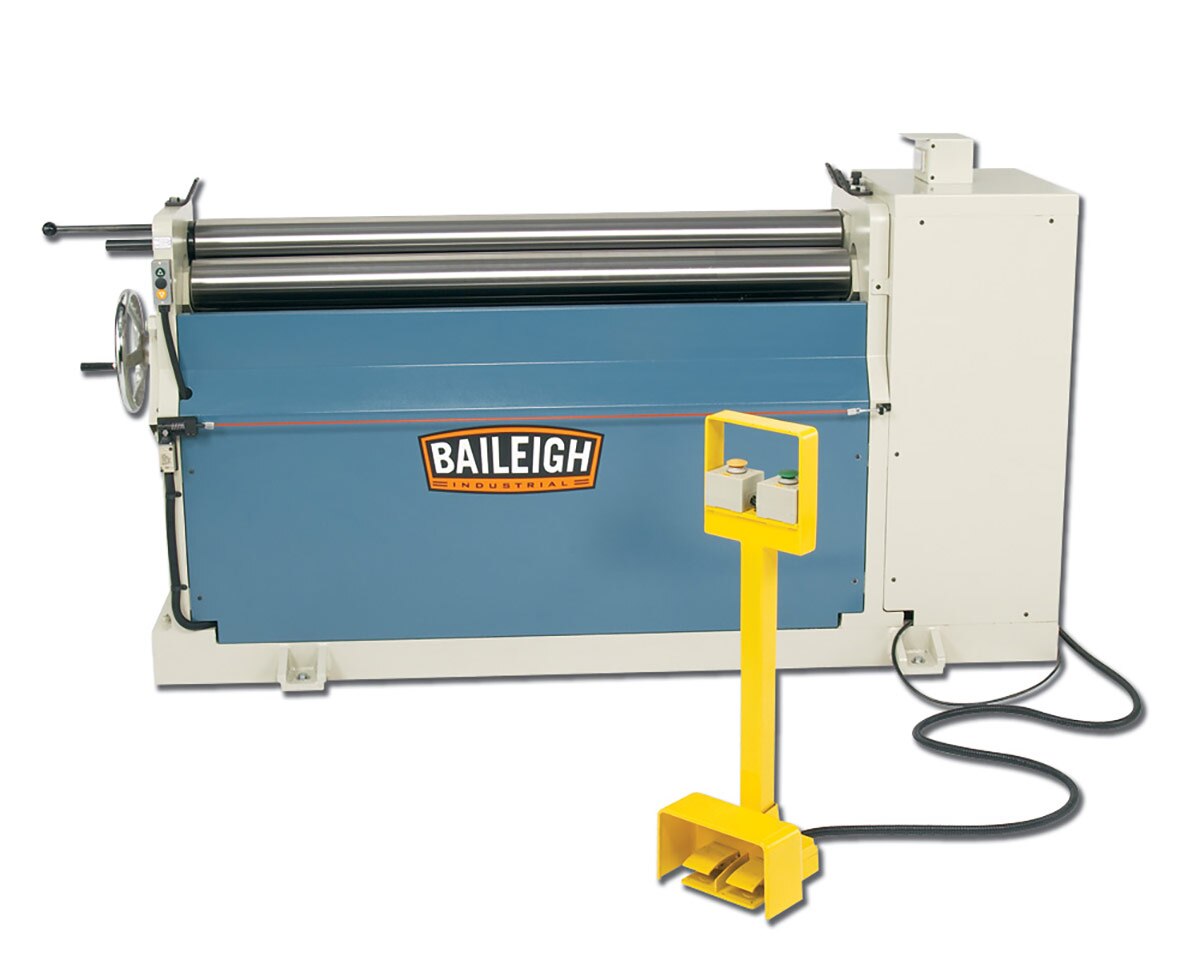

The PR-510 is a great value hydraulic plate roll that would be at home in any shop. Its rigid steel frame prevents deflection, so you can accurately bend at maximum capacity for years.
Baileigh Industrial 1006533 Includes
- (1) Plate Roll
Baileigh Industrial 1006533 Features
- 5’ working width.
- 10 gauge mild steel capacity across its full width.
- 2 hp motor runs on 220-volt 3-phase power.
- Single pinch roll former has 3 driven rolls to increase the efficiency of the machine.

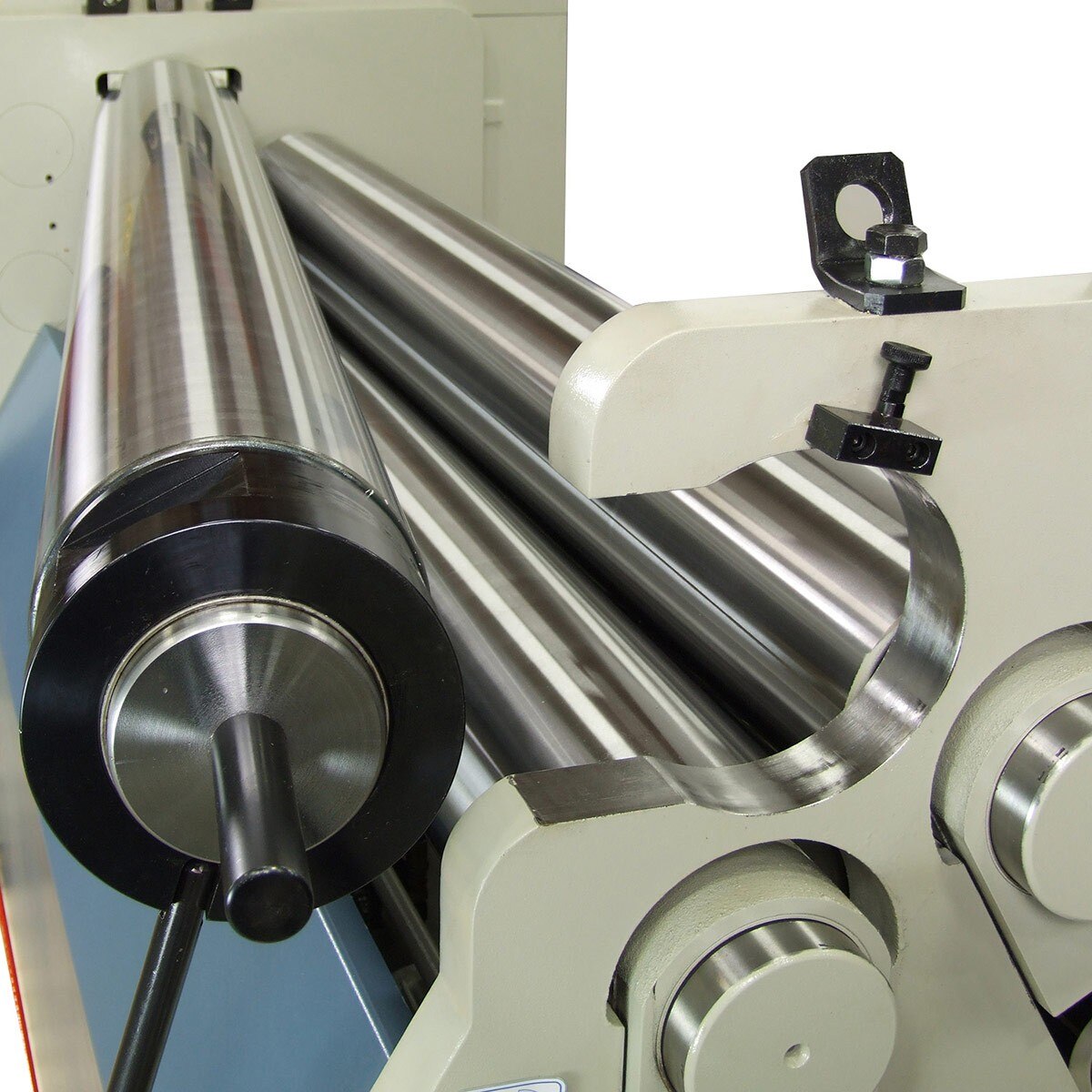

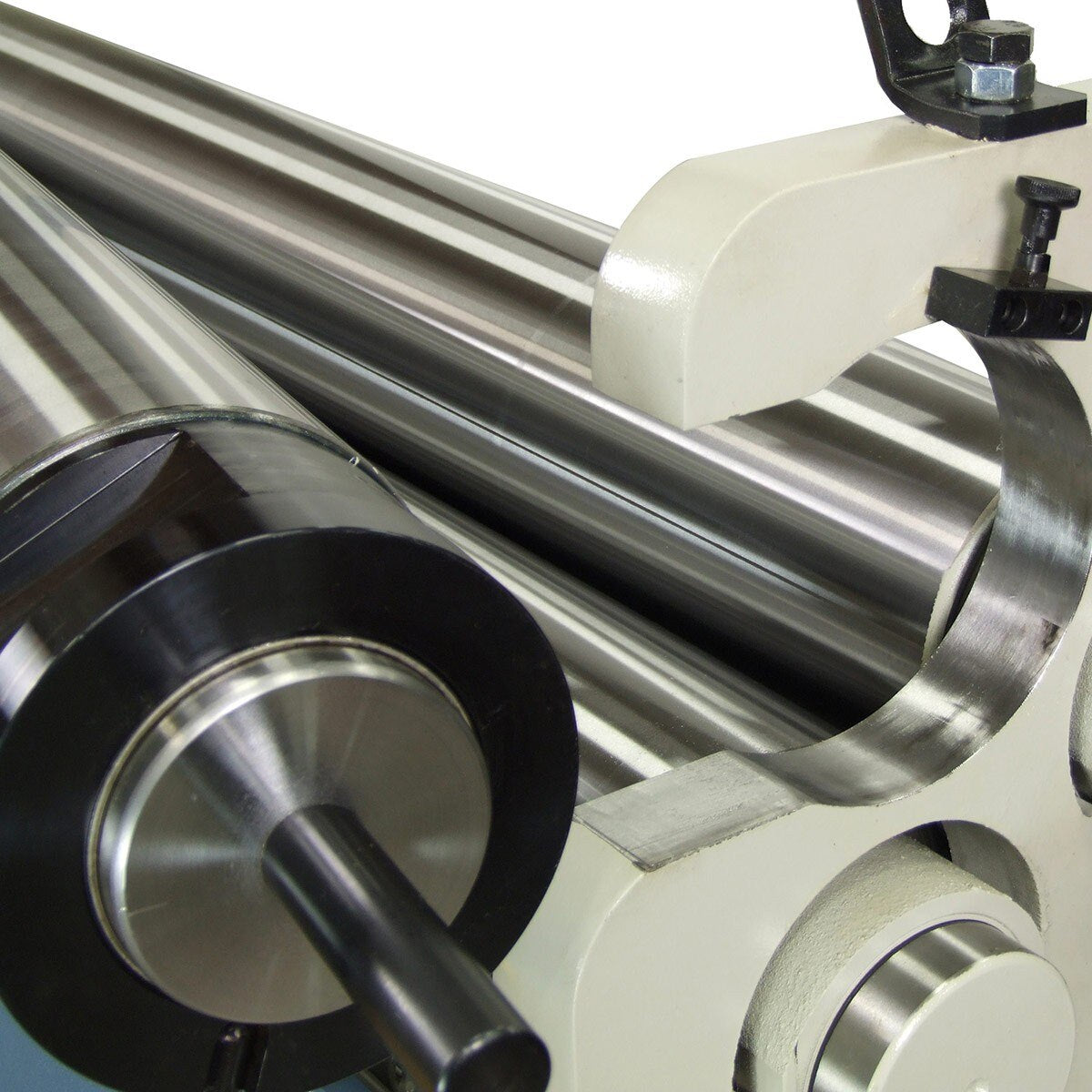

- 4-¾“ OD rolls are hardened, then polished to ensure no marring to the material.

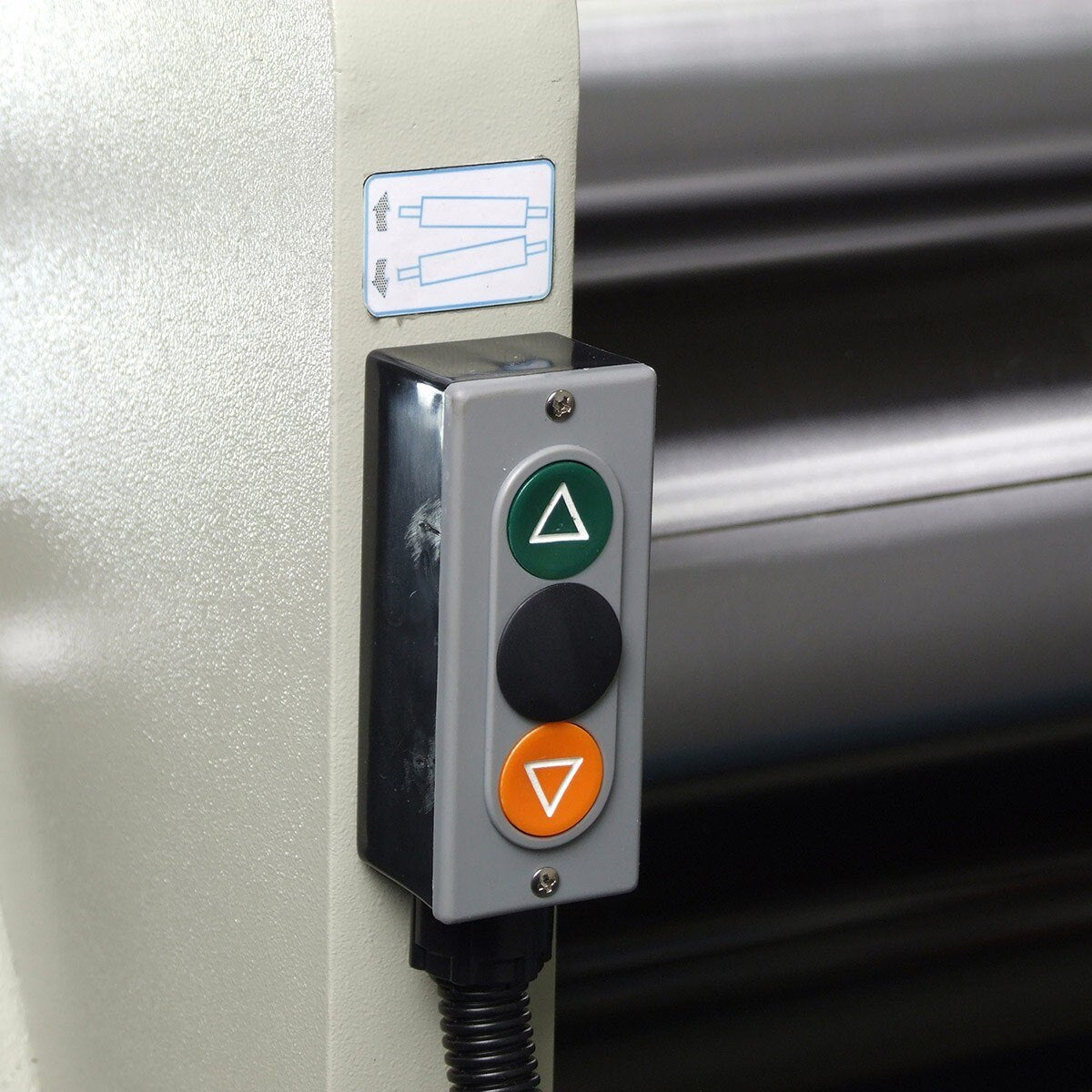

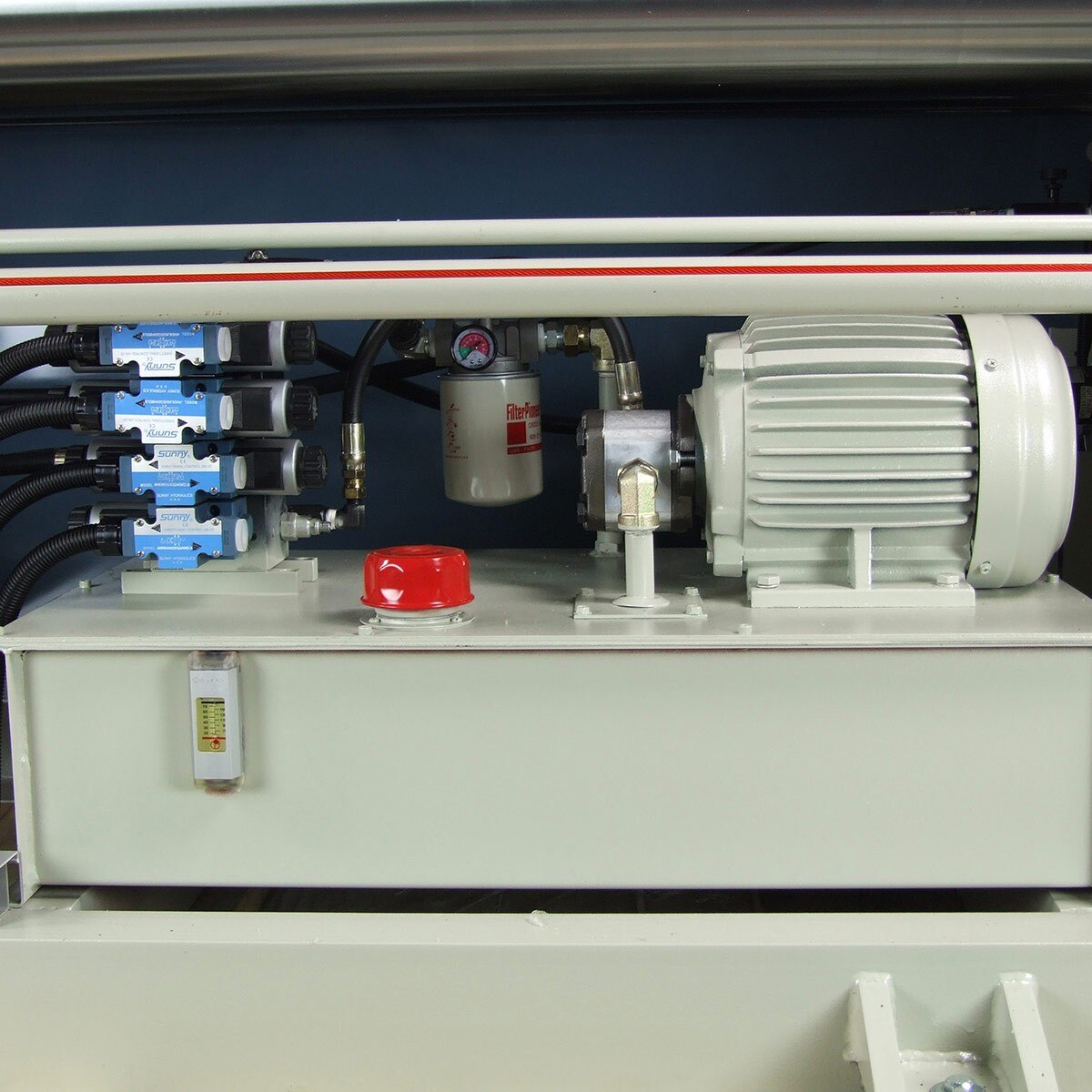

- Hydraulically controlled back roll can move up and down and tilt left and right for coning.

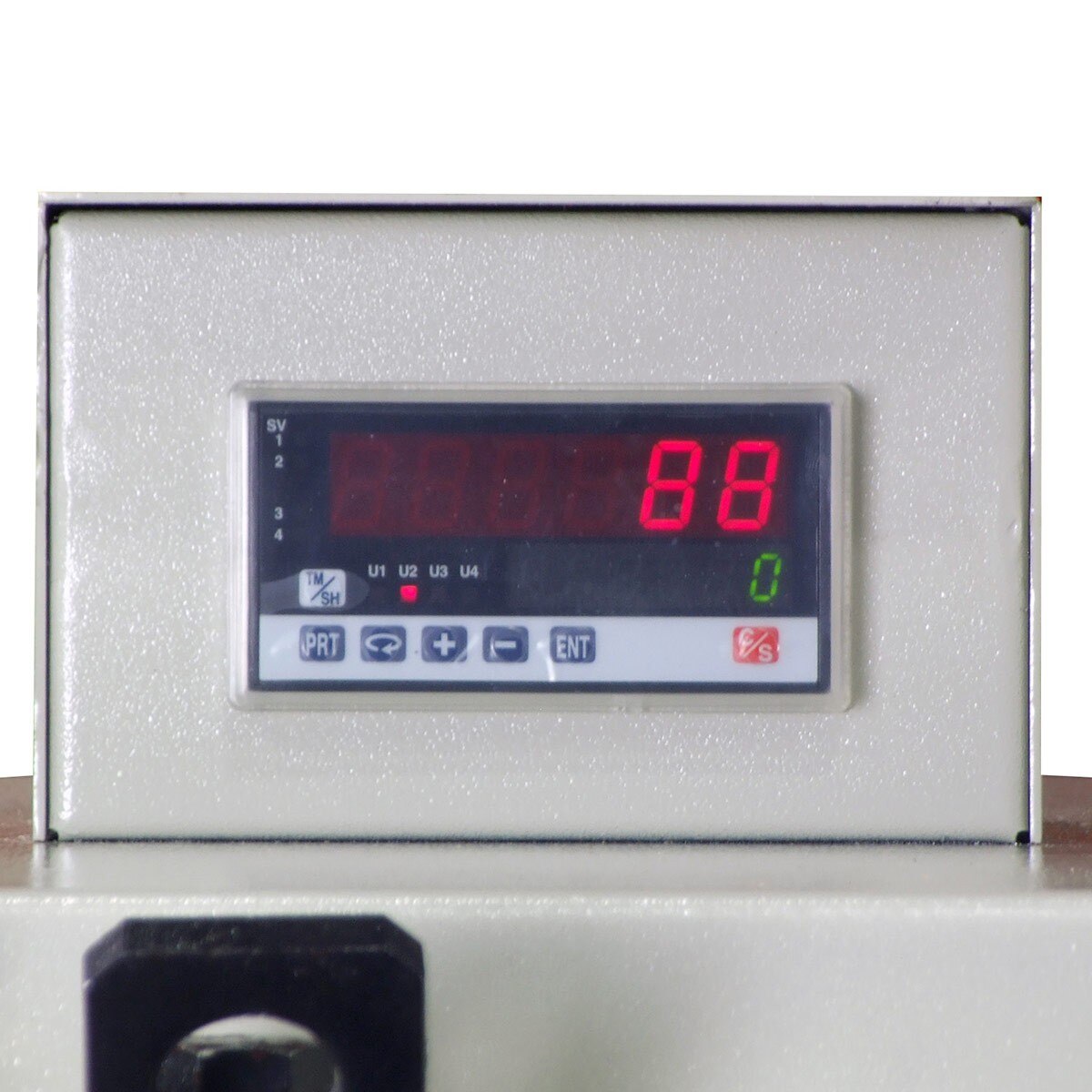

- Digital readout displays the back roll position for repeatable bends.
- Fully welded plate steel frame eliminates any deflection of the rolls even at maximum thickness capacity.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1006533 Specifications
| Forming Width | 60" |
| Roll Speed | 5.85 RPM |
| Upper Roll Dia. | 4.75" |
| Roll Adjustment Back | Hydraulic |
| Minimum Forming Dia | 7.125" |
| Motor | 2 HP |
| Capacity (Mild Steel) | 10 Gauge (.135") |
| Power | 220V / 3-phase |
| Shipping Dimensions | 106" x 39" x 59" |
| Country of Origin | Taiwan |
