Baileigh Industrial | SKU:
BA9-1006554

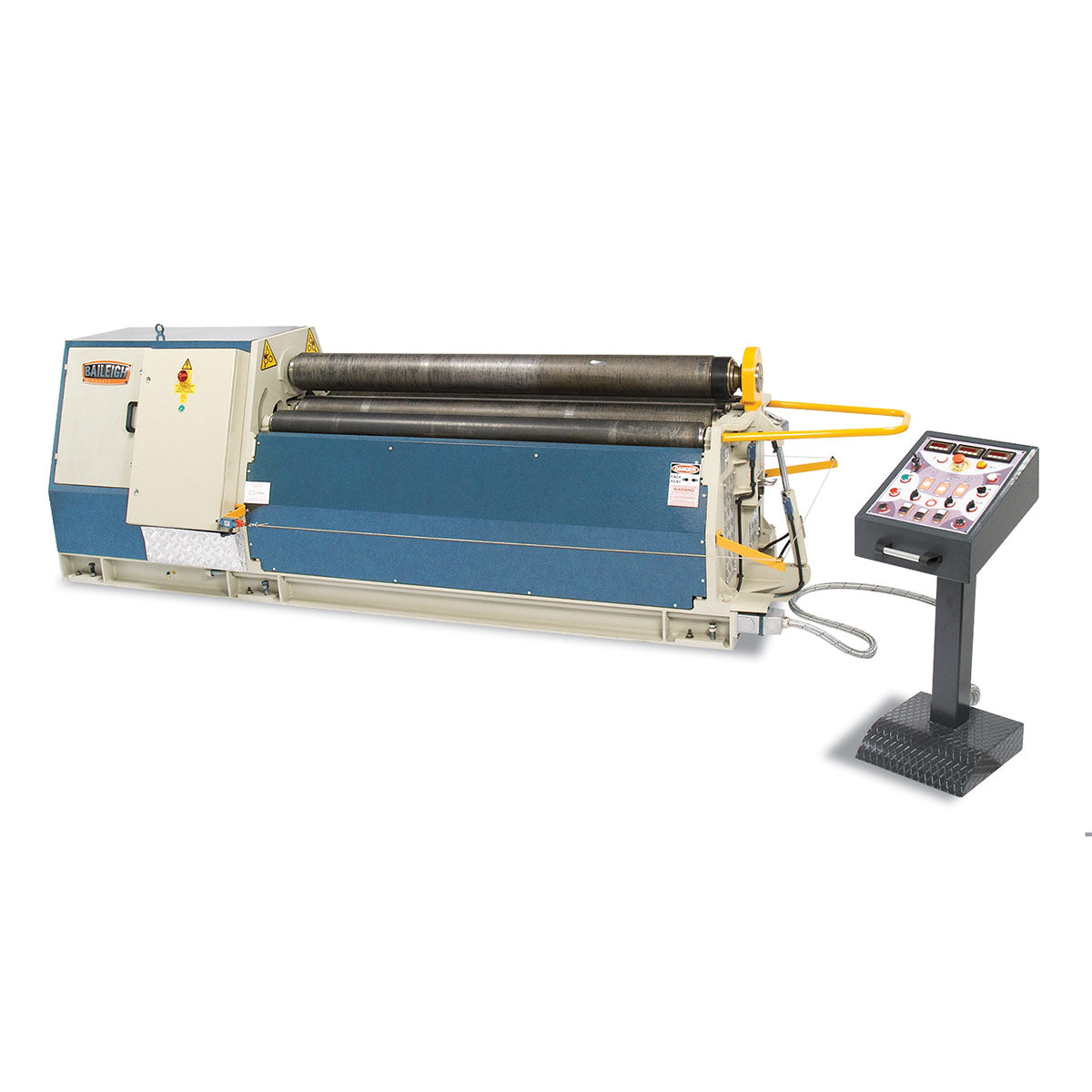

Baileigh Industrial BA9-1006554 Four Roll Plate Roll PR-603-4
Free Shipping
$55,309.00
$67,160.93
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1006554 Description
We designed this plate roll for years of trouble-free use. Direct movement on the lateral rolls can form tighter diameters with less work, whereas many plate rolls rely on orbital movement.
Baileigh Industrial 1006554 Includes
- (1) Plate Roll
Baileigh Industrial 1006554 Features
- Rolls up to ¼” mild steel in 6-foot lengths.
- Robust 4 hp motor runs on 220-volt 3-phase power.
- Planetary gearbox, connected to main motor, drives the top and bottom rolls at a solid 16 feet per minute.
- Direct linear piston movement for the lateral and forming rolls delivers even more power.
- Industrial 1.5 hp hydraulic motor moves the lateral rolls.
- 3 digital readouts give accurate roll locations for easy repeatability.

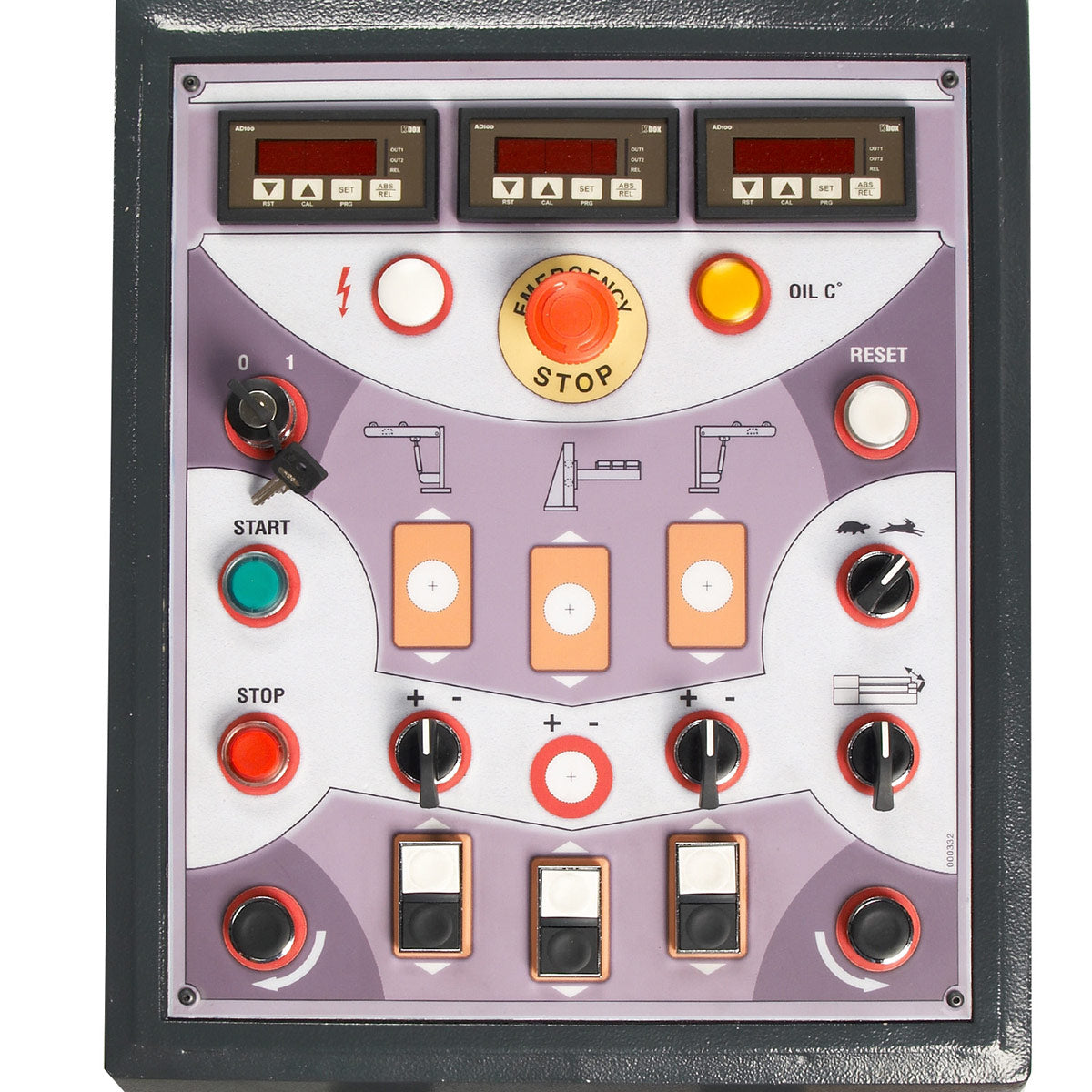

- Operator control pedestal lets you conveniently manage all movements of the machine.
- Welded steel plate frame keeps the machine rigid and helps prevent flex.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1006554 Specifications
| Working Length | 78.74" |
| Forming Width | 80" |
| Driven Rolls | 2 |
| Roll Speed | 16 FPM (5 mpm) |
| Upper Roll Dia. | 7" |
| Roll Adjustment Back | Hydraulic |
| Roll Diameter | 7.4" |
| Side Roll Dia | 5.9" |
| Roll Length | 80.70" |
| Minimum Forming Dia | 10.6" |
