Baileigh Industrial | SKU:
BA9-1006577

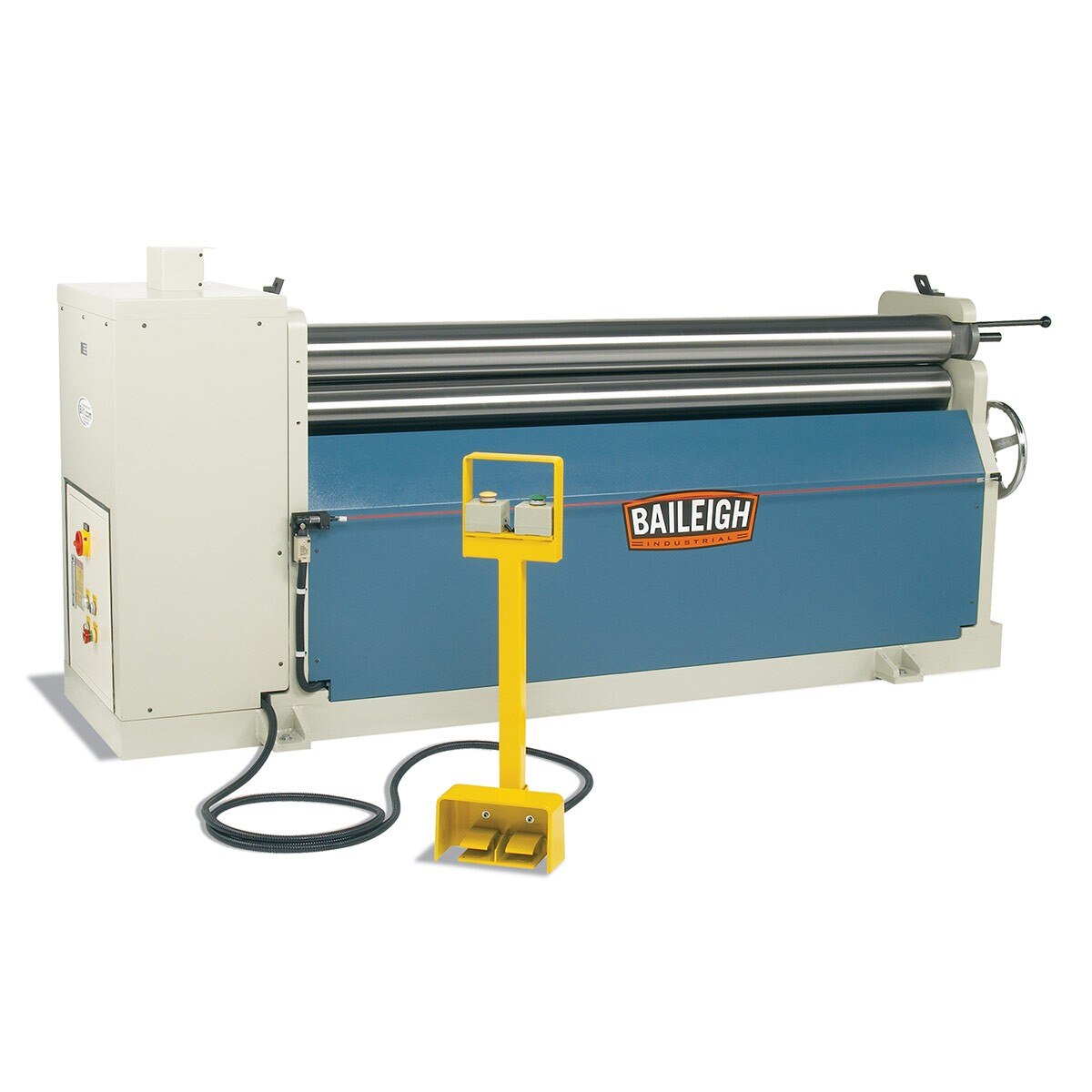

Baileigh Industrial BA9-1006577 Plate Roll PR -609
Free Shipping
$31,739.00
$38,540.21
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1006577 Description
This plate roll’s industrial-grade hydraulic system and welded steel frame offer enough power to handle 9 gauge mild steel all day long. All functions are hydraulically controlled for reliability.
Baileigh Industrial 1006577 Includes
- (1) Plate Roll
Baileigh Industrial 1006577 Features
- 6' forming width.
- 9 gauge mild steel maximum capacity.
- 3 hp motor runs on 220-volt 3-phase.

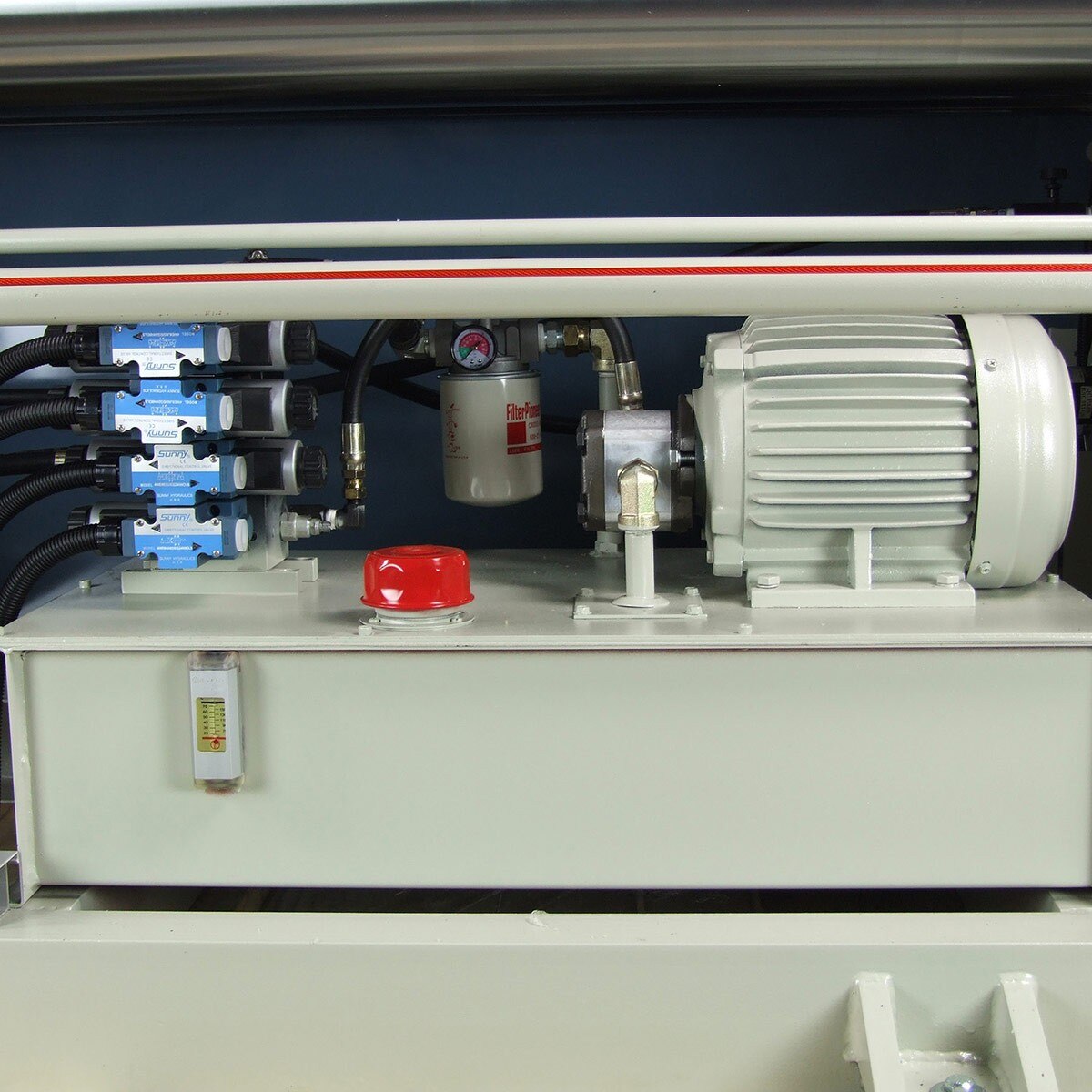

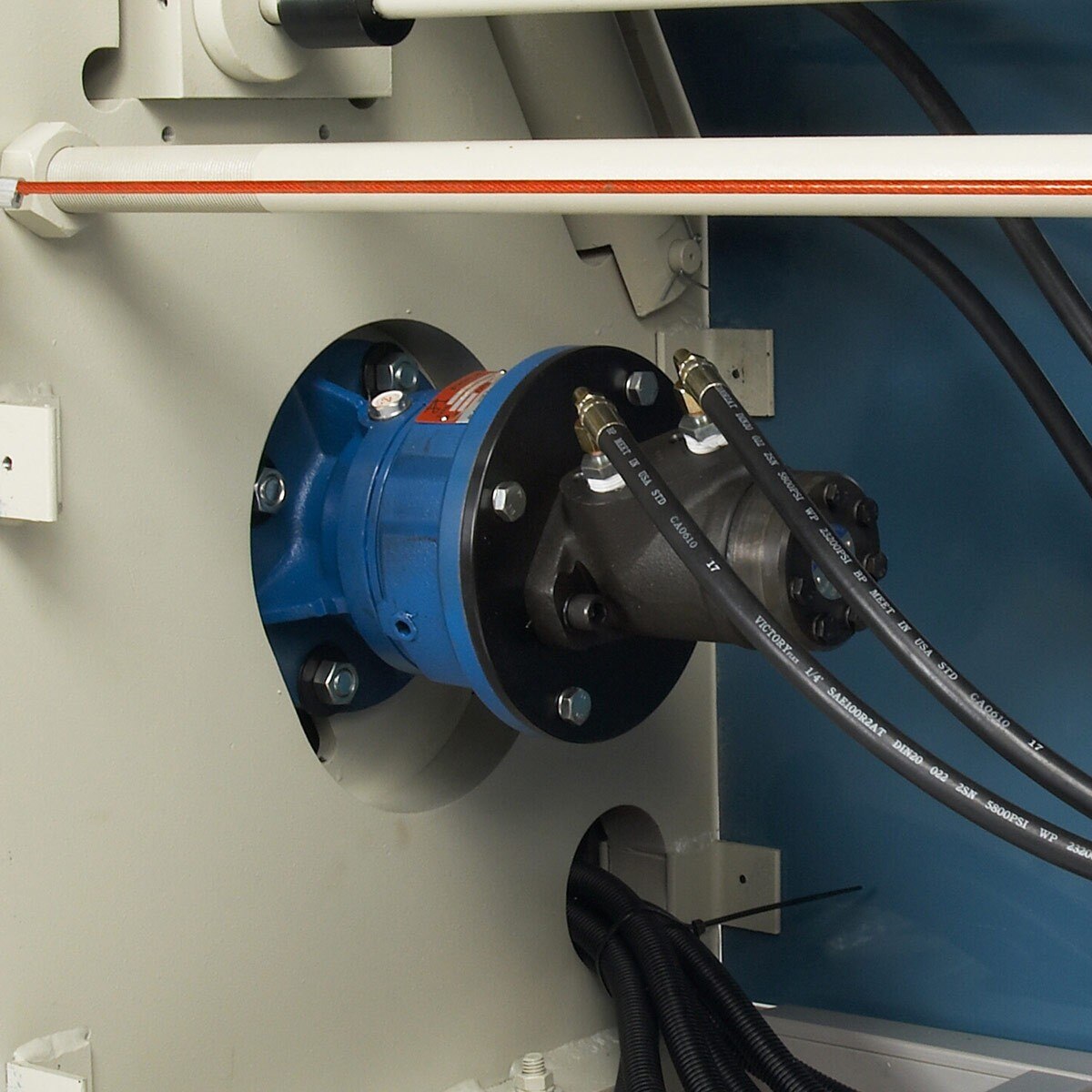

- Hydraulic system controls the back roll.

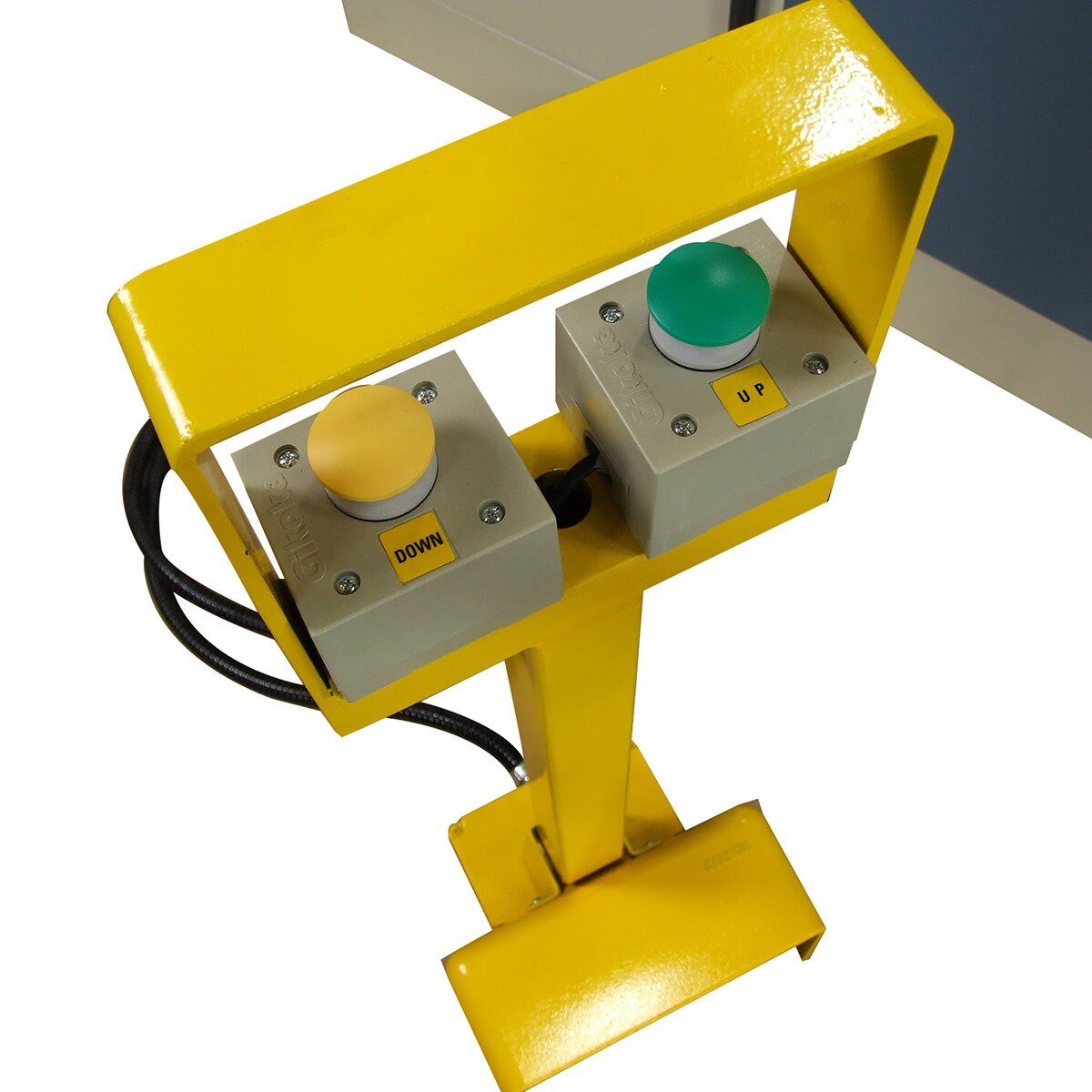

- Foot pedestal allows you to easily control some bending functions; forward, reverse, up, and down.

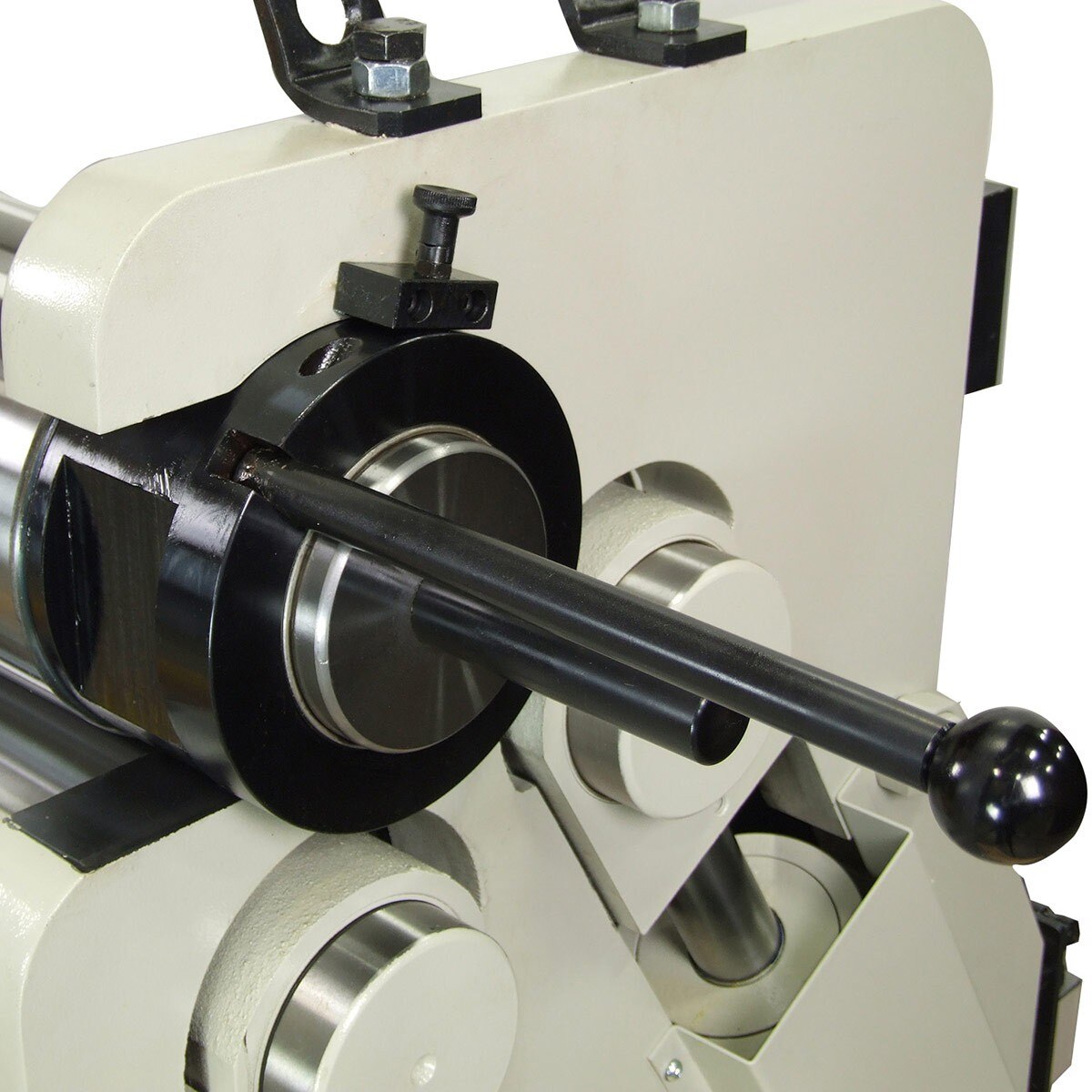

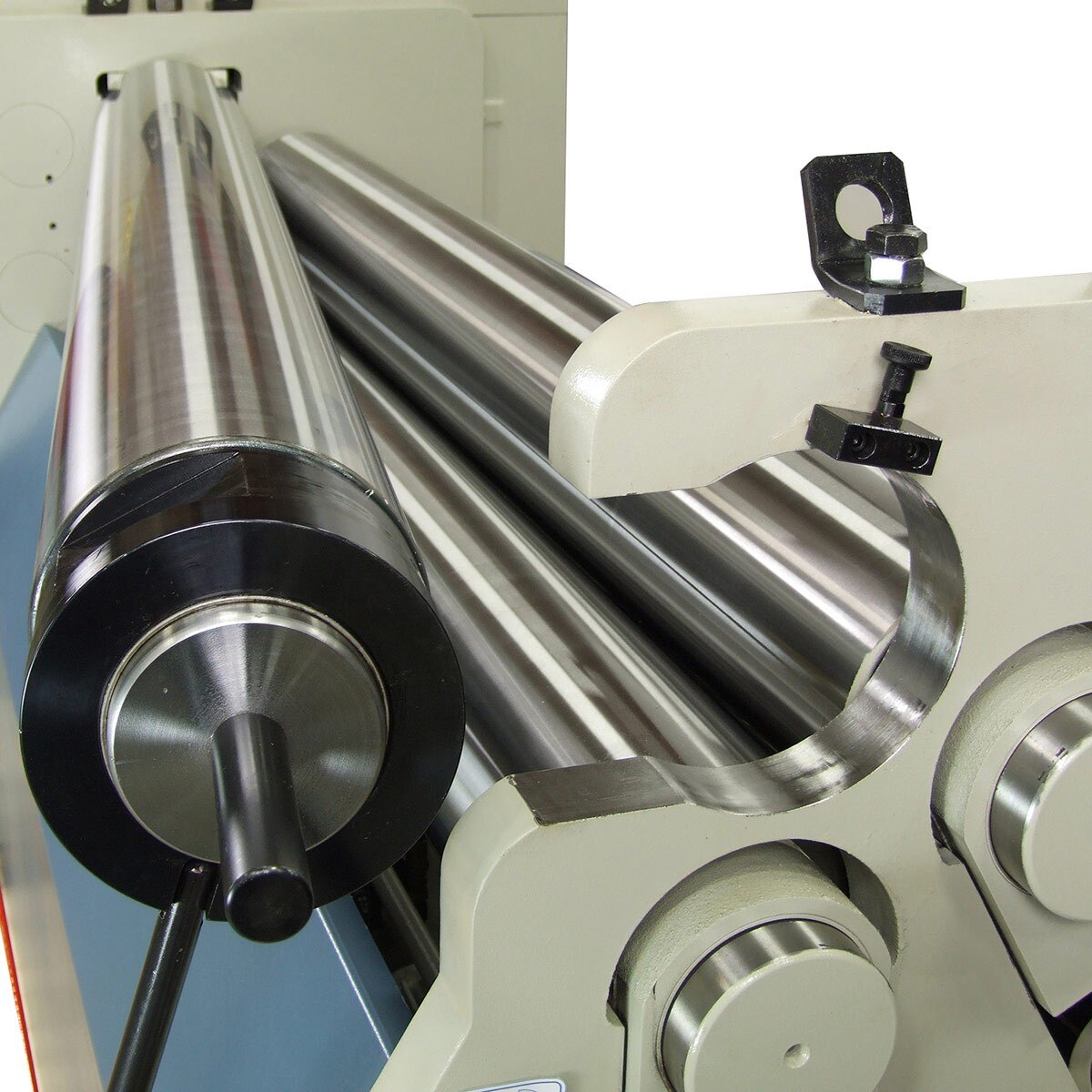

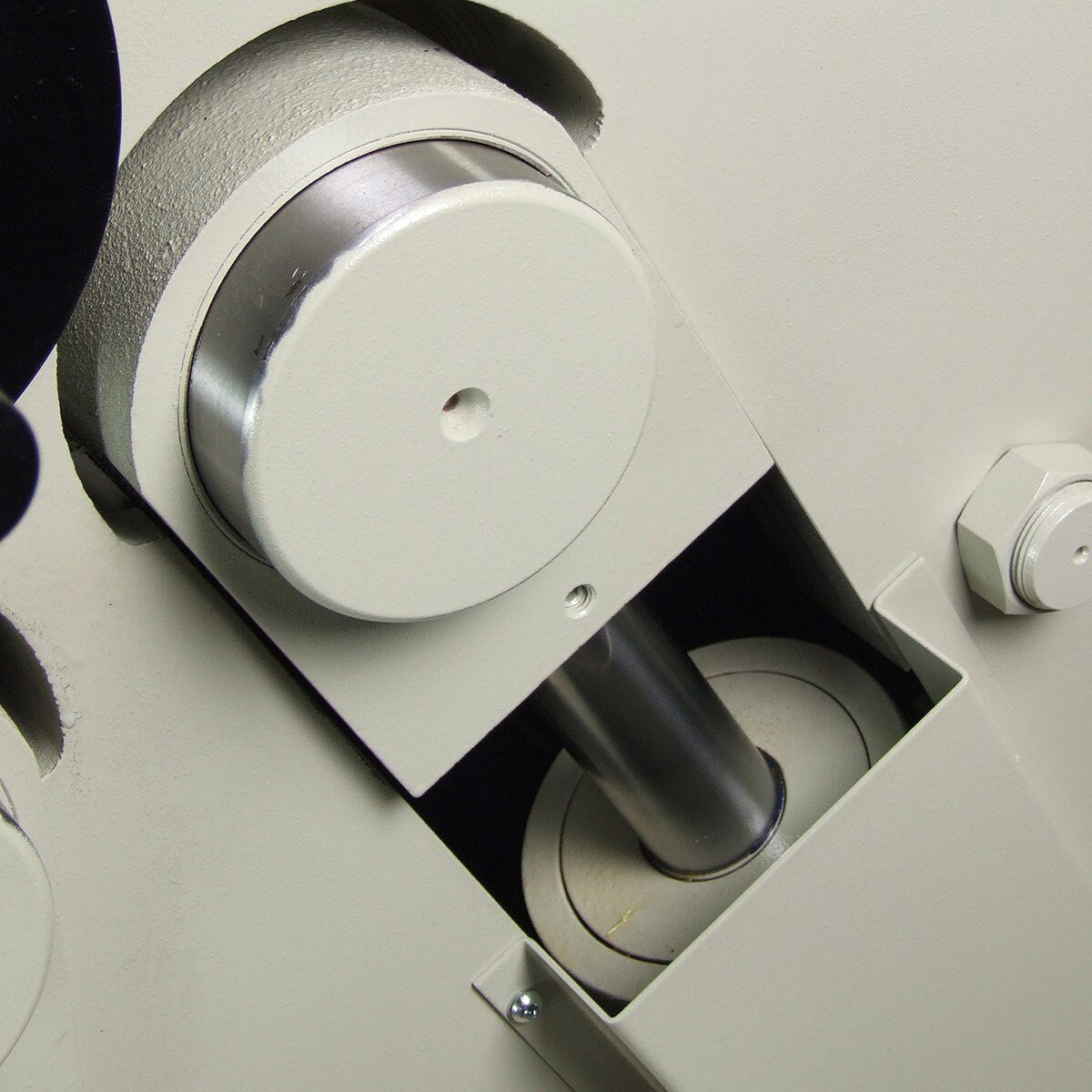

- Simple release mechanism on the top roll to release work that has been wrapped around the top roll.
- Digital readout shows you the back roll’s exact position the whole time.

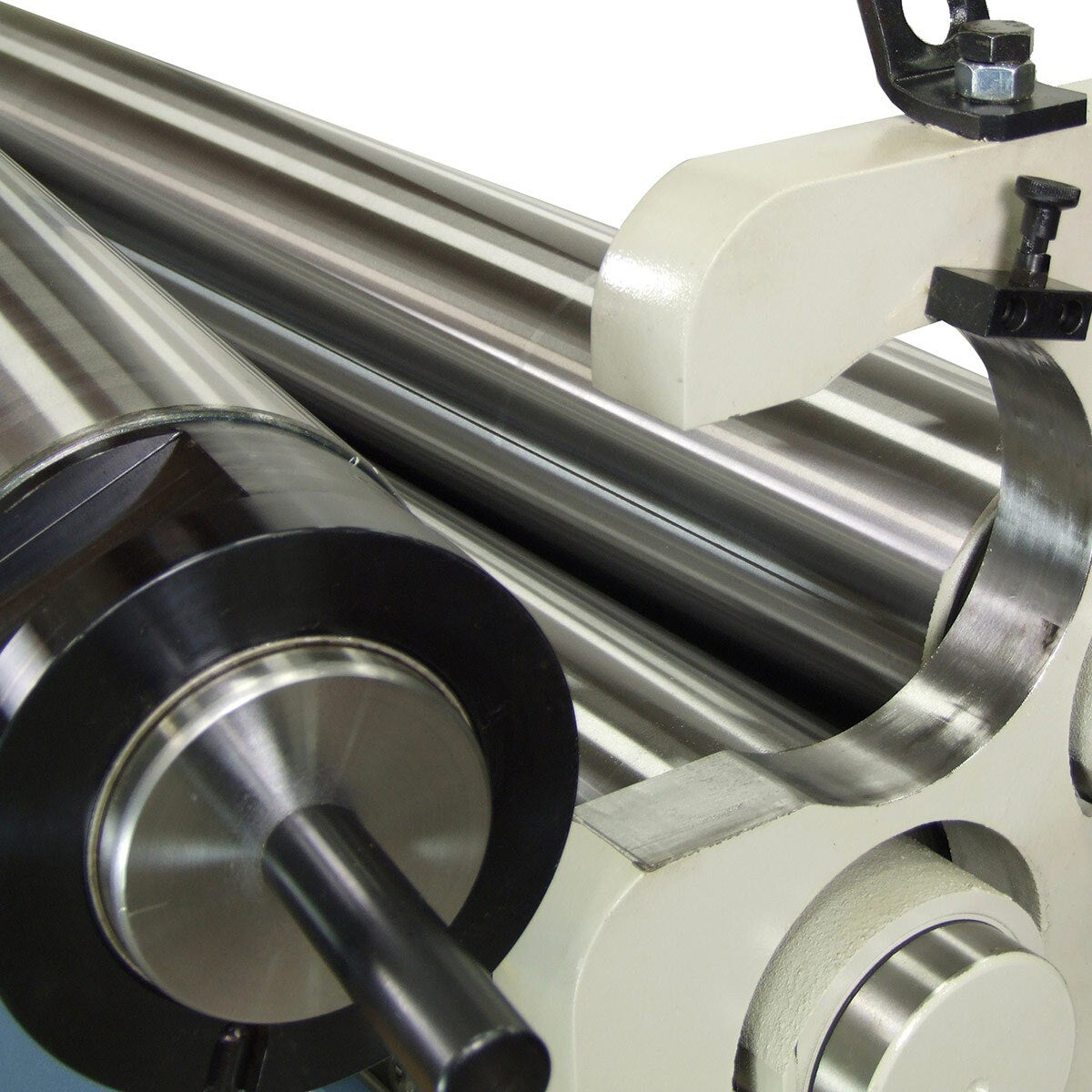

- Fully integrated plate steel frame keeps the forming rolls perfectly in alignment during the bending process.

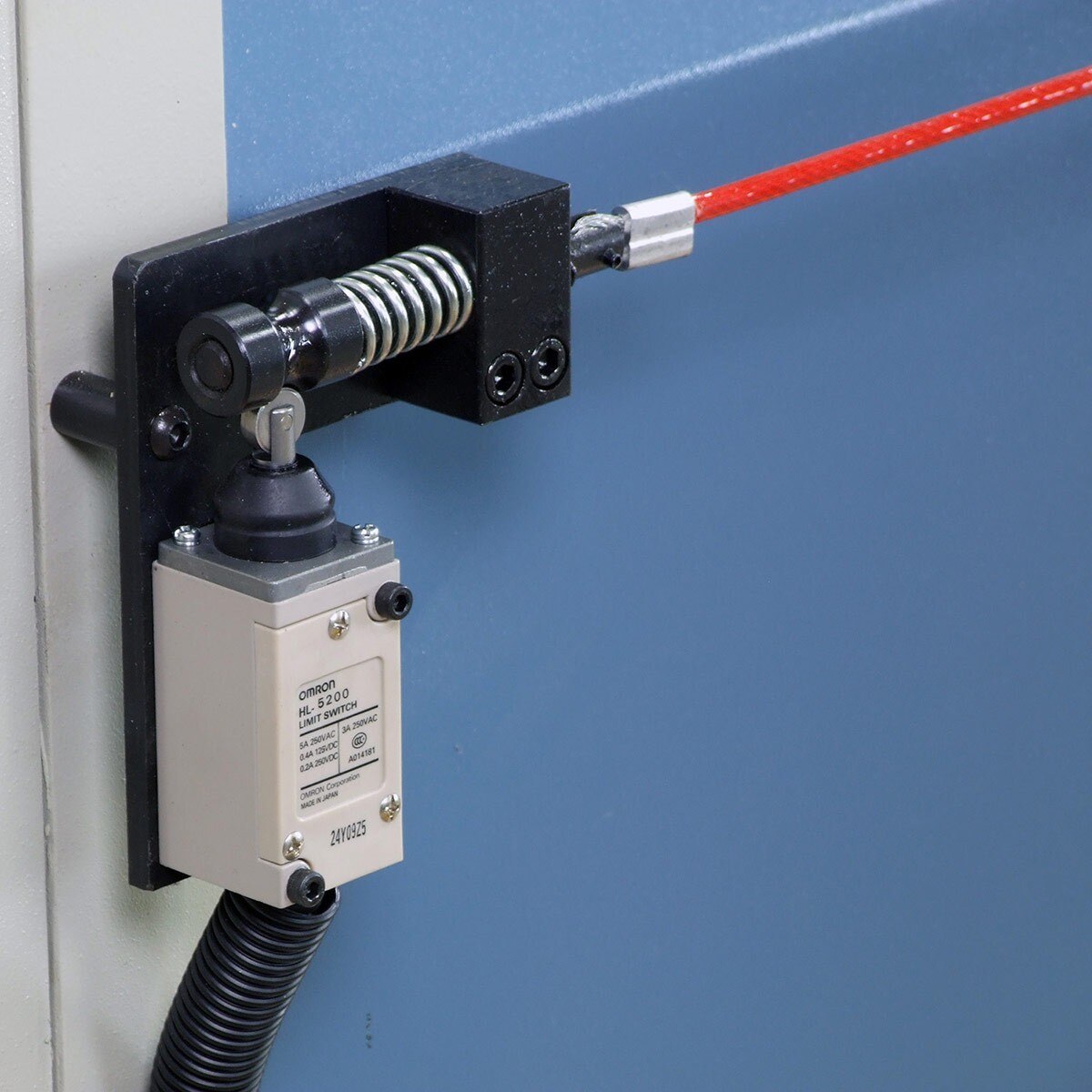

- Dual emergency stop cables are located on the back and front of the machine.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1006577 Specifications
| Forming Width | 72" |
| Roll Speed | 4.67 RPM |
| Upper Roll Dia. | 5.91" |
| Roll Adjustment Back | Hydraulic |
| Minimum Forming Dia | 8.86" |
| Motor | 3 HP |
| Capacity (Mild Steel) | 9 Gauge (.150") |
| Power | 220V / 3-phase |
| Shipping Dimensions | 127" x 44" x 61" |
| Country of Origin | Taiwan |
