At a Glance
Voltage
220 V
Motor Horsepower
5 HP
Material
Steel
Sold As
Individual
Description
Description
Baileigh Industrial 1006836 Description

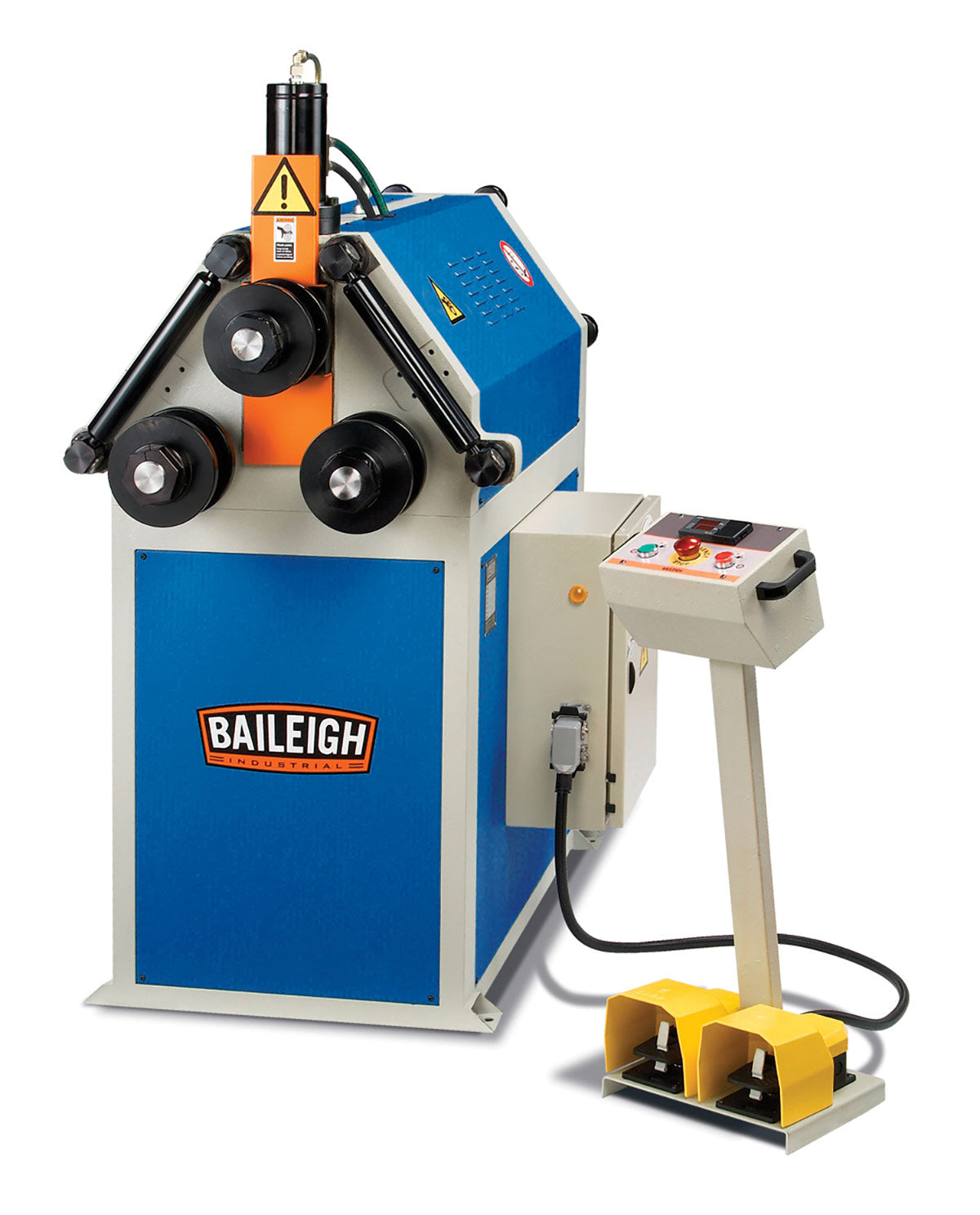

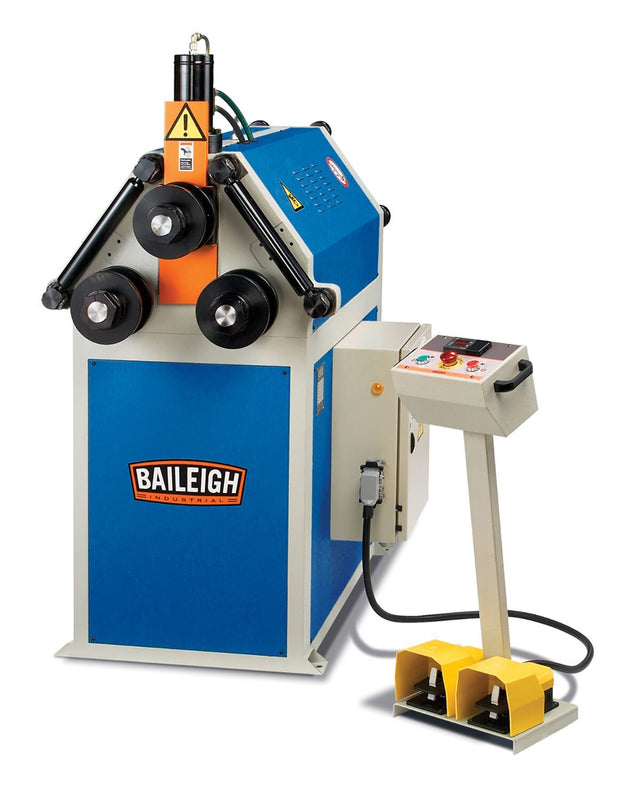

You can operate this programmable ring roller on its back for horizontal bending of large radii or in the vertical position for smaller diameters. You won’t find many tube rollers with rugged steel construction like the R-H55! The heavy framework adds to the tube roller’s durability and ensures that the machine won’t buckle or lose accuracy when bending at full capacity.
Baileigh Industrial 1006836 Includes
- (1) Angle Roller
Baileigh Industrial 1006836 Features
- This angle ring roller runs on 220-volt 3-phase power.
- Bend up to 4” round tubing with a .083 wall.

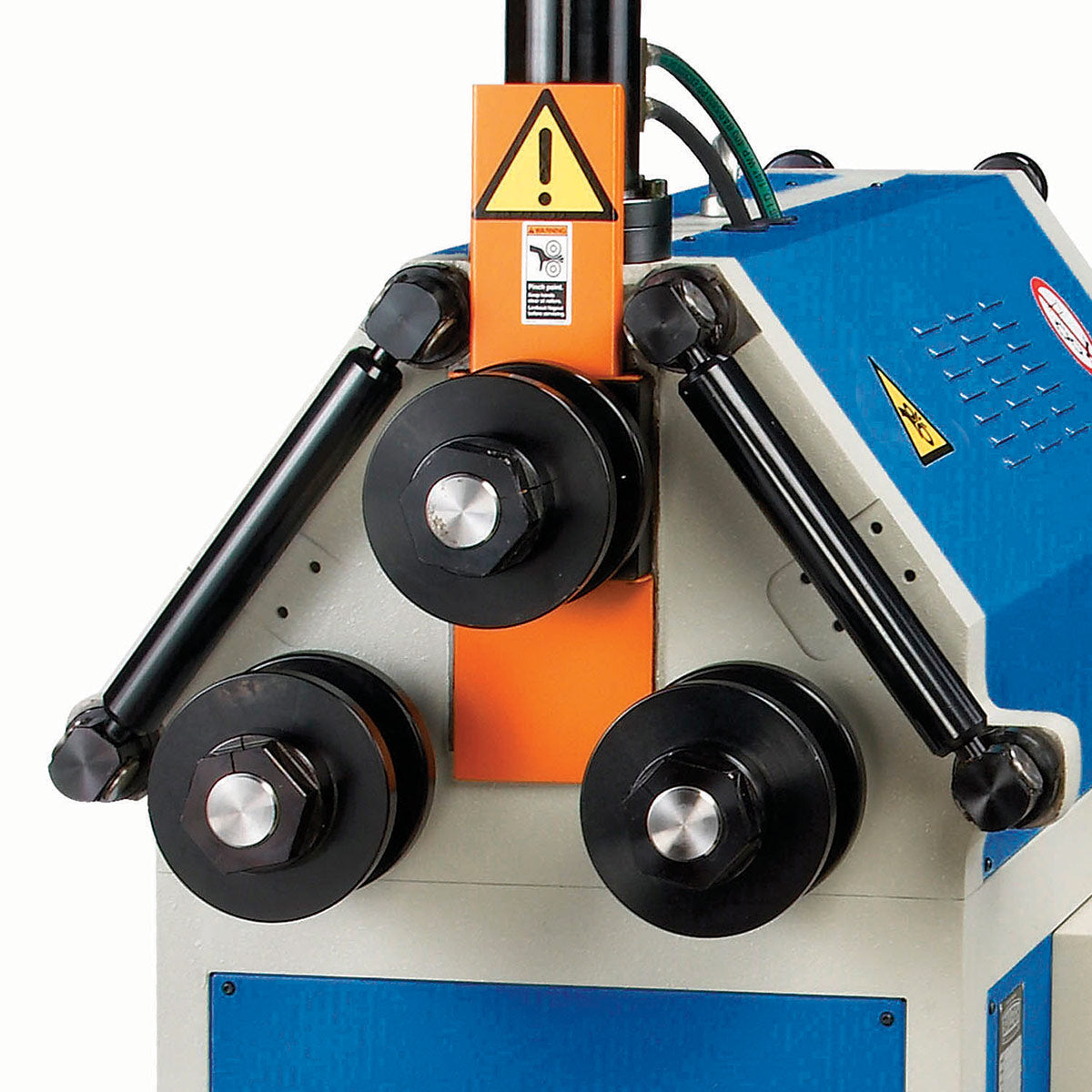

- 3 rolls driven by 5 HP motor with direct-drive transmission.

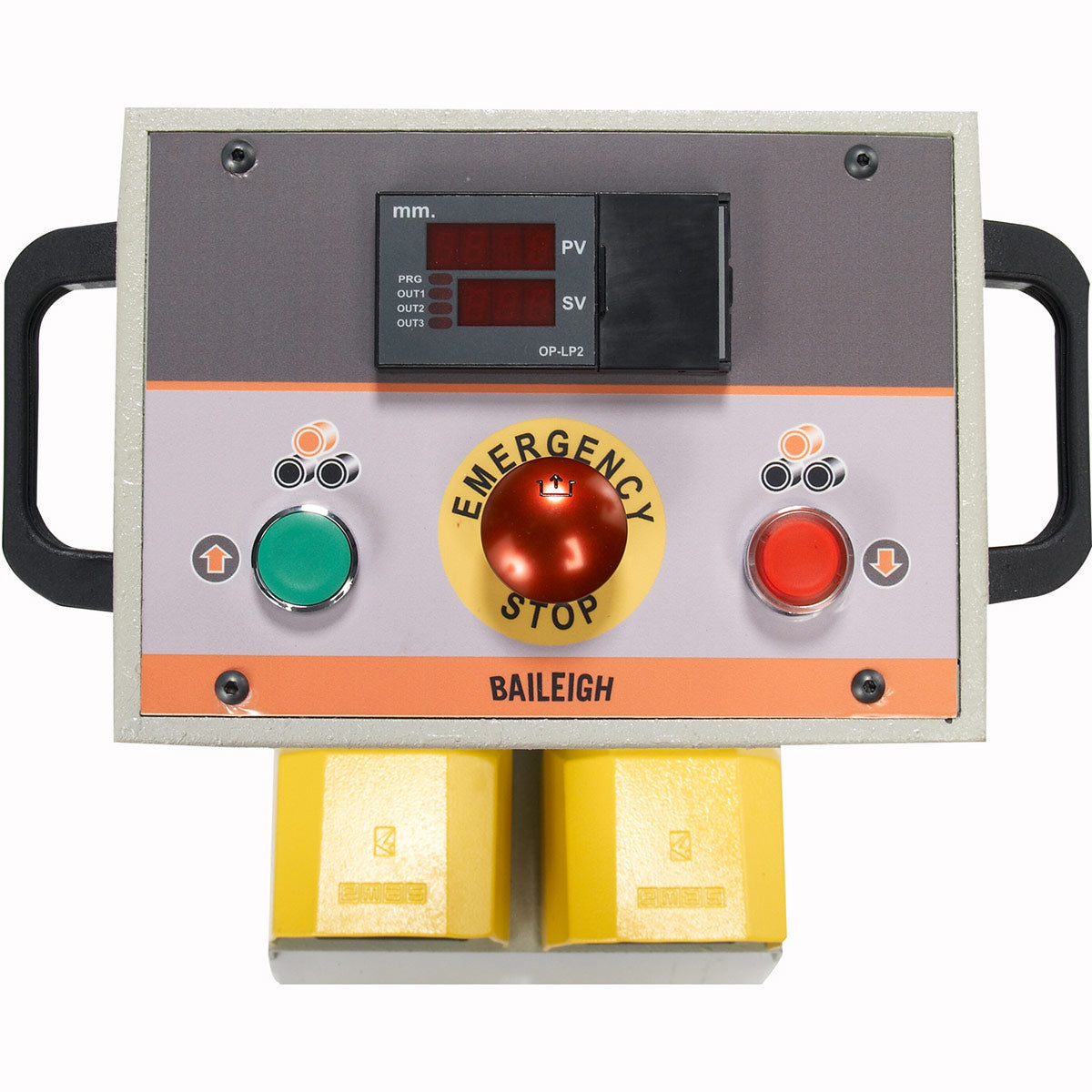

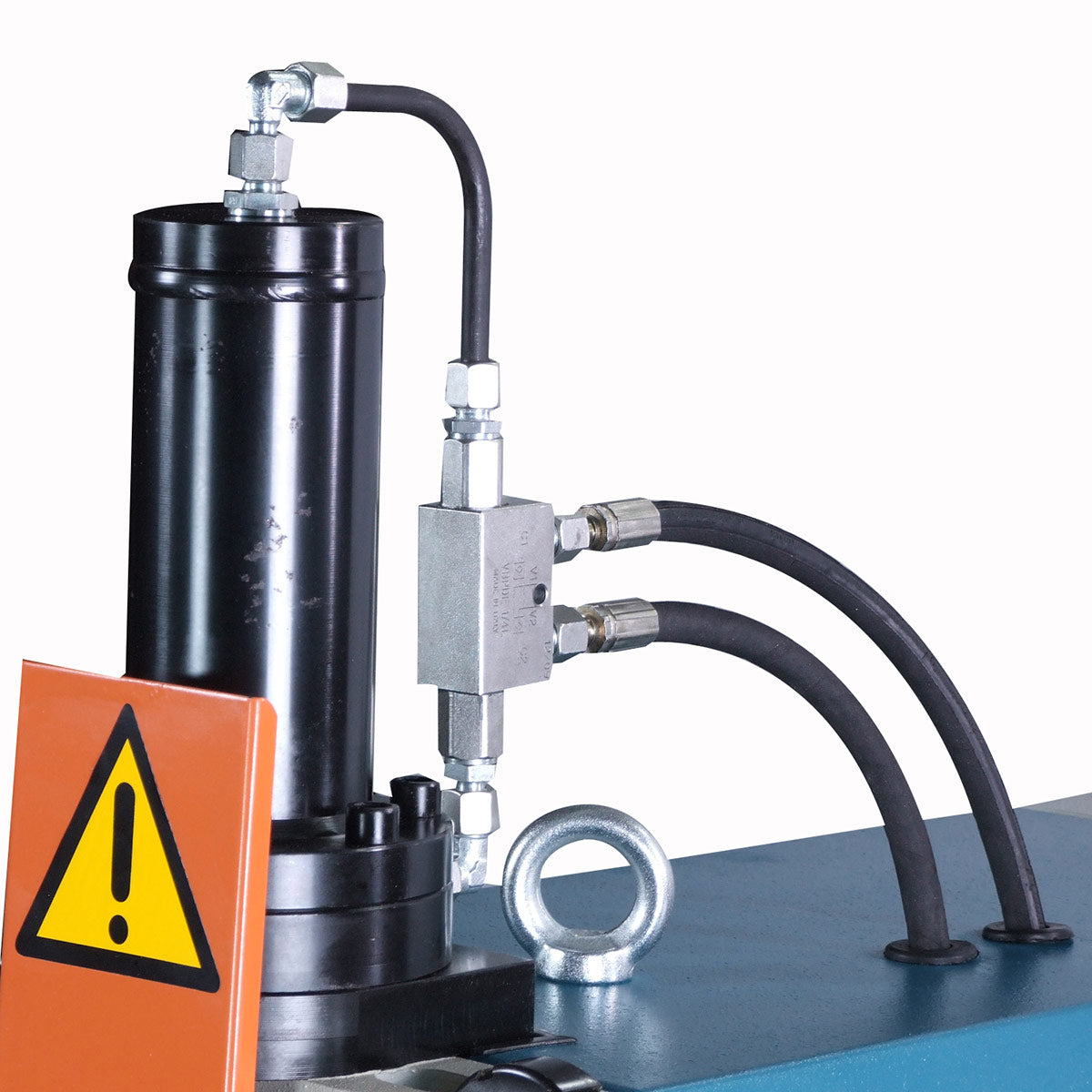

- Industrial-grade hydraulic cylinder system lets you adjust the positioning of top forming roll with the programmable control station.
- Digital readout on top roll position makes each bend easily repeatable, key for those multiple-piece production runs.
- Built from heavy steel plate and mounted on a fully-welded steel housing to sustain machine’s strength.
- Baileigh covers this tube roller with 1-year parts warranty
Baileigh Industrial 1006836 Specifications
| Roll Adjustment | Hydraulic |
| Pipe Capacity Size | 2.5" (sch. 40) / Min. Dia. |
| Round Tube Capacity Size | 3" (.095") / Min. Dia. |
| Square Tube Capacity Size | 2.75" (.083") / Min. Dia. |
| Solid Round Capacity Size | 2" / Min. Dia. 28" |
| Flat Bar Easy Way Size | 5" (.75") / Min. Dia. 28" |
| Flat Bar Hard Way Size | 3.5" (.675")/ Min. Dia. |
| Angle Iron Capacity Size | 3" (.250")/ Min. Dia. |
| Shaft Diameter | 2.165" |
| Shaft Center Distance Lower Rolls | 11.875" |
Toolup Part # :
655954
