Baileigh Industrial | SKU:
BA9-1006840
Baileigh Industrial BA9-1006840 Hydraulic Roll Bender R-H65
Free Shipping
$24,059.00
$29,214.50
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1006840 Description

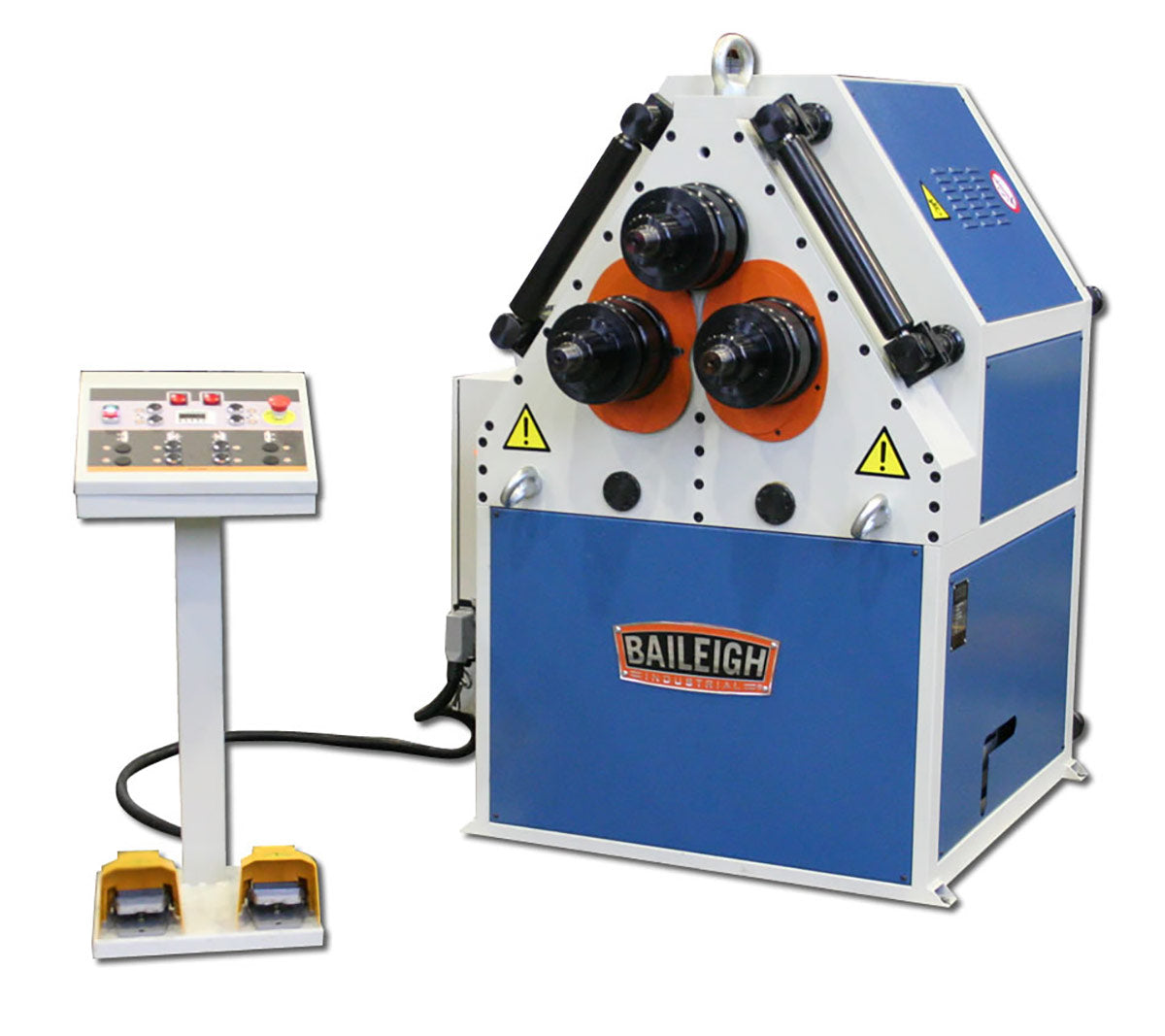

This hydraulic roll bender offers the speed and strength of a double-pinch ring roller without the high cost of a CNC model. Double-pinch design allows for pre-bending and post-bending of material, saving production time and decreasing material waste. Comes standard with a set of segment rolls for bending many shapes and profiles.
Baileigh Industrial 1006840 Includes
- (1) Hydraulic Roll Bender
Baileigh Industrial 1006840 Features
- This pipe bender runs on 220-volt 3-phase power.
- Maximum capacity of 2” schedule 40 pipe.

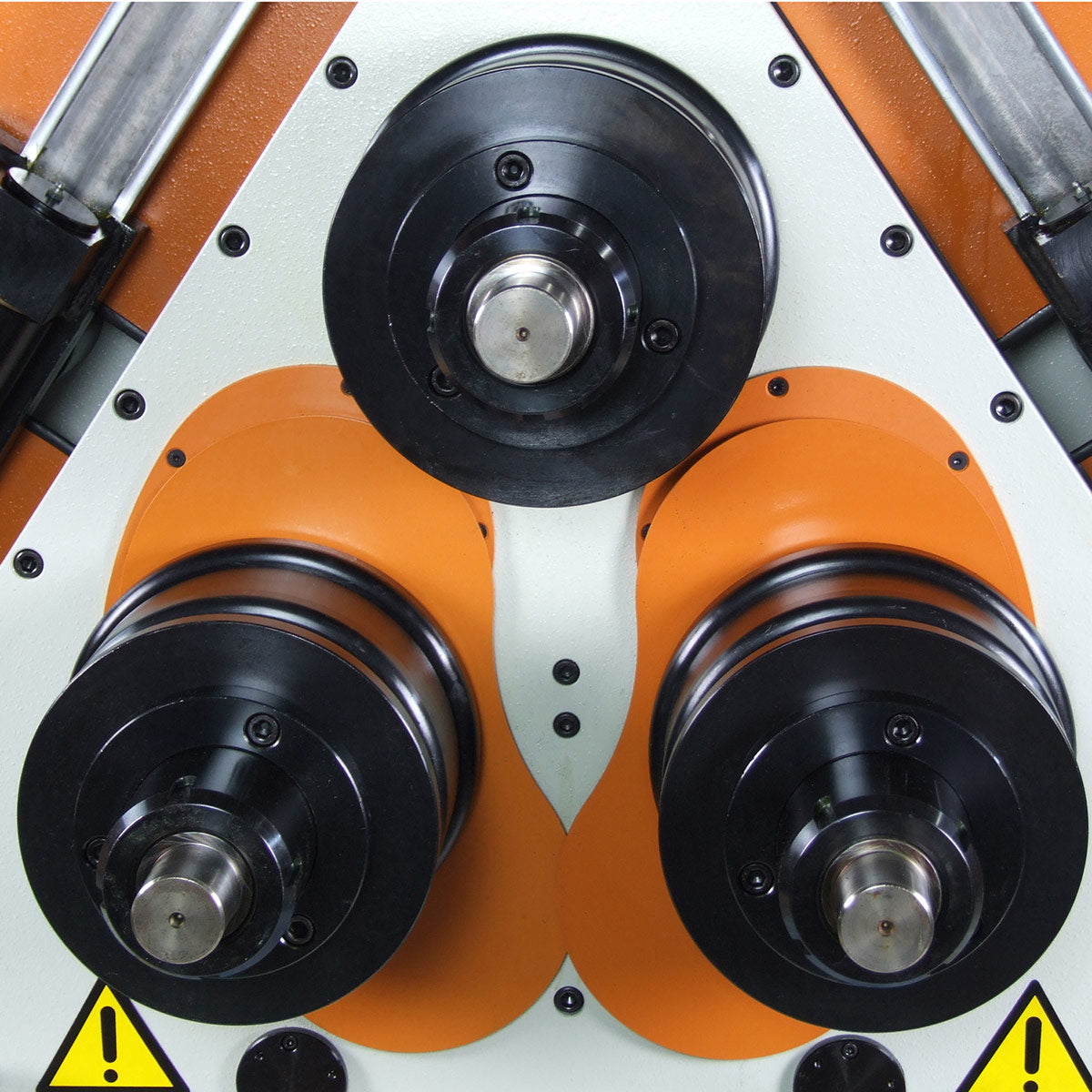

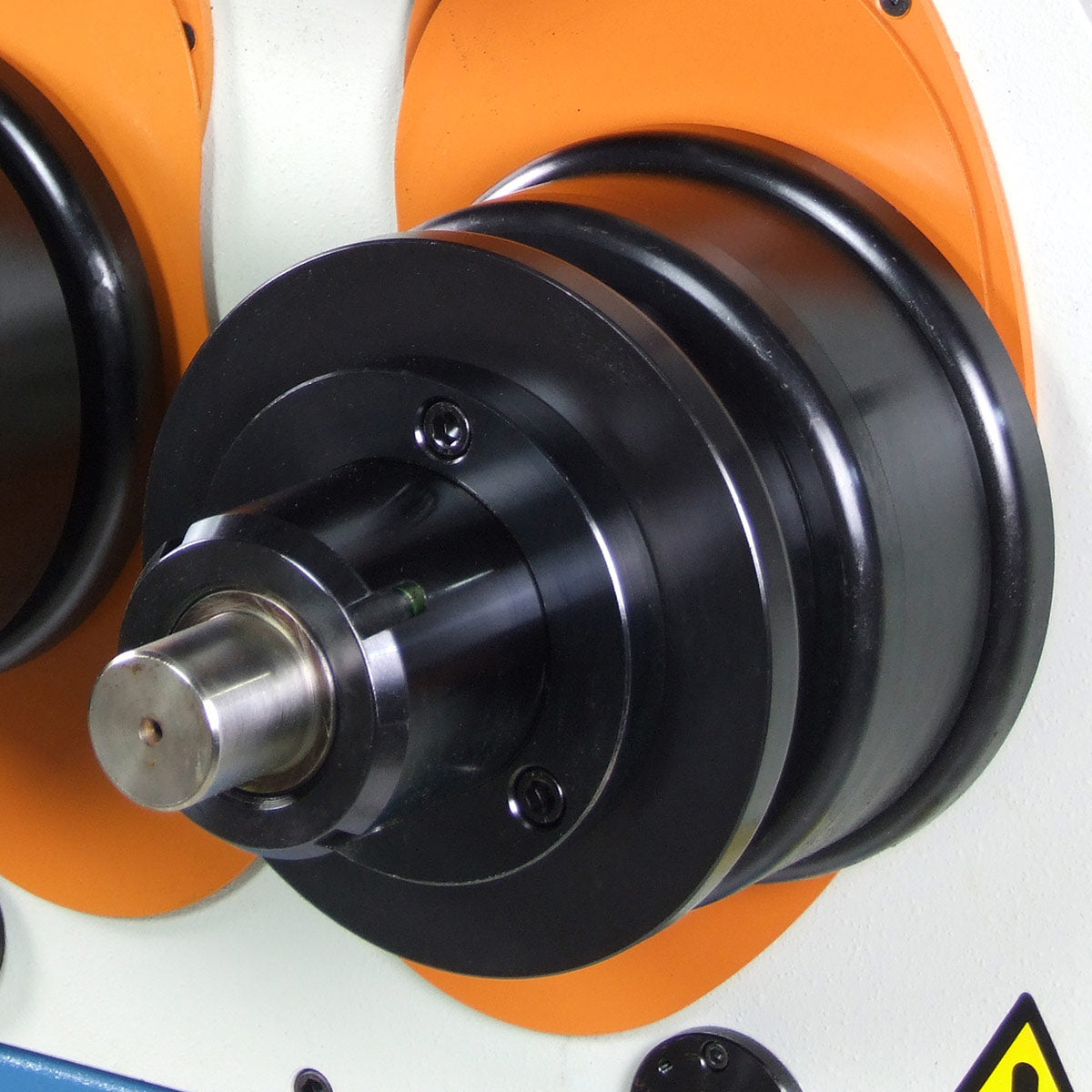

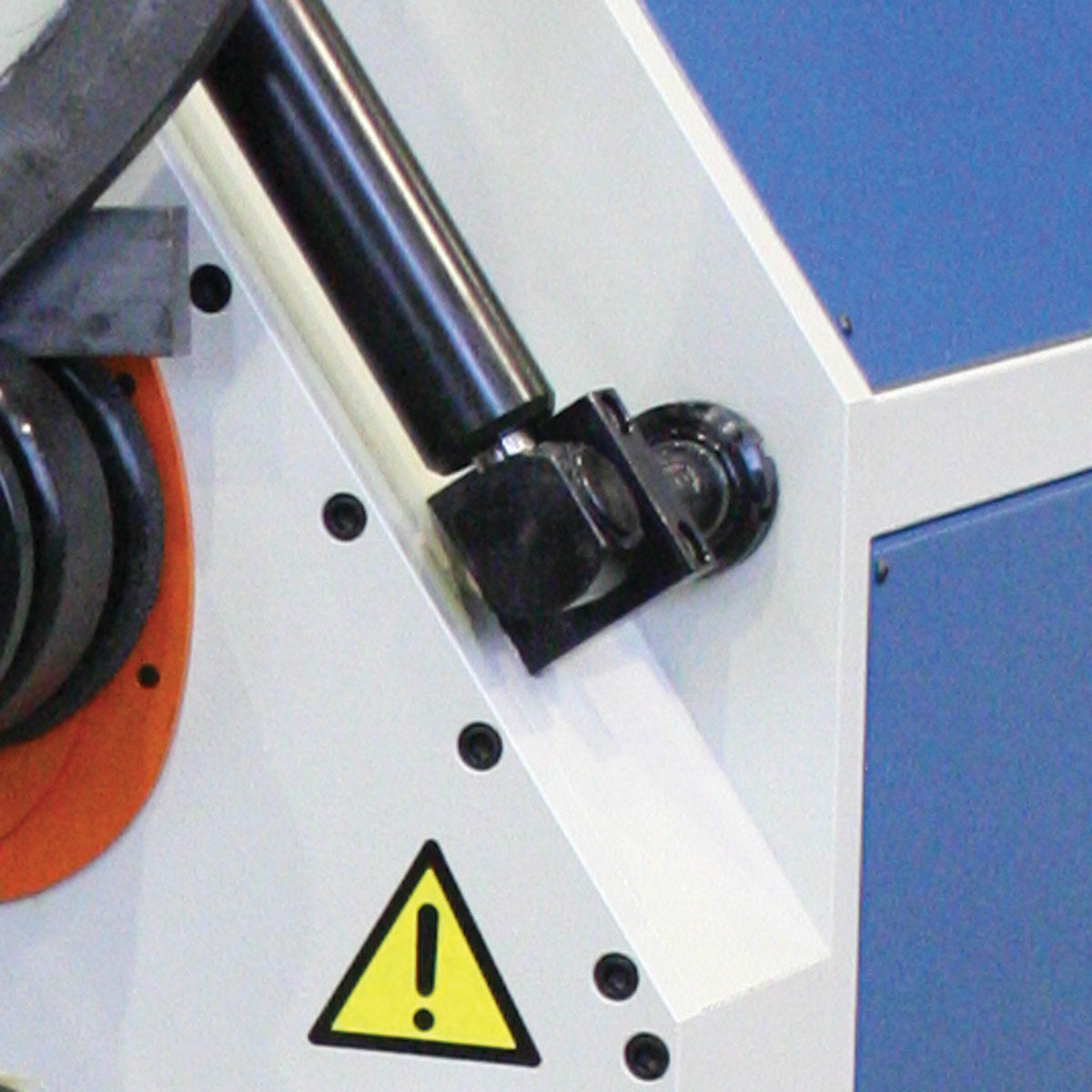

- Double-pinch bending rolls with 1 fixed top roll and 2 bottom rolls operate on independently-controlled hydraulic cylinders.

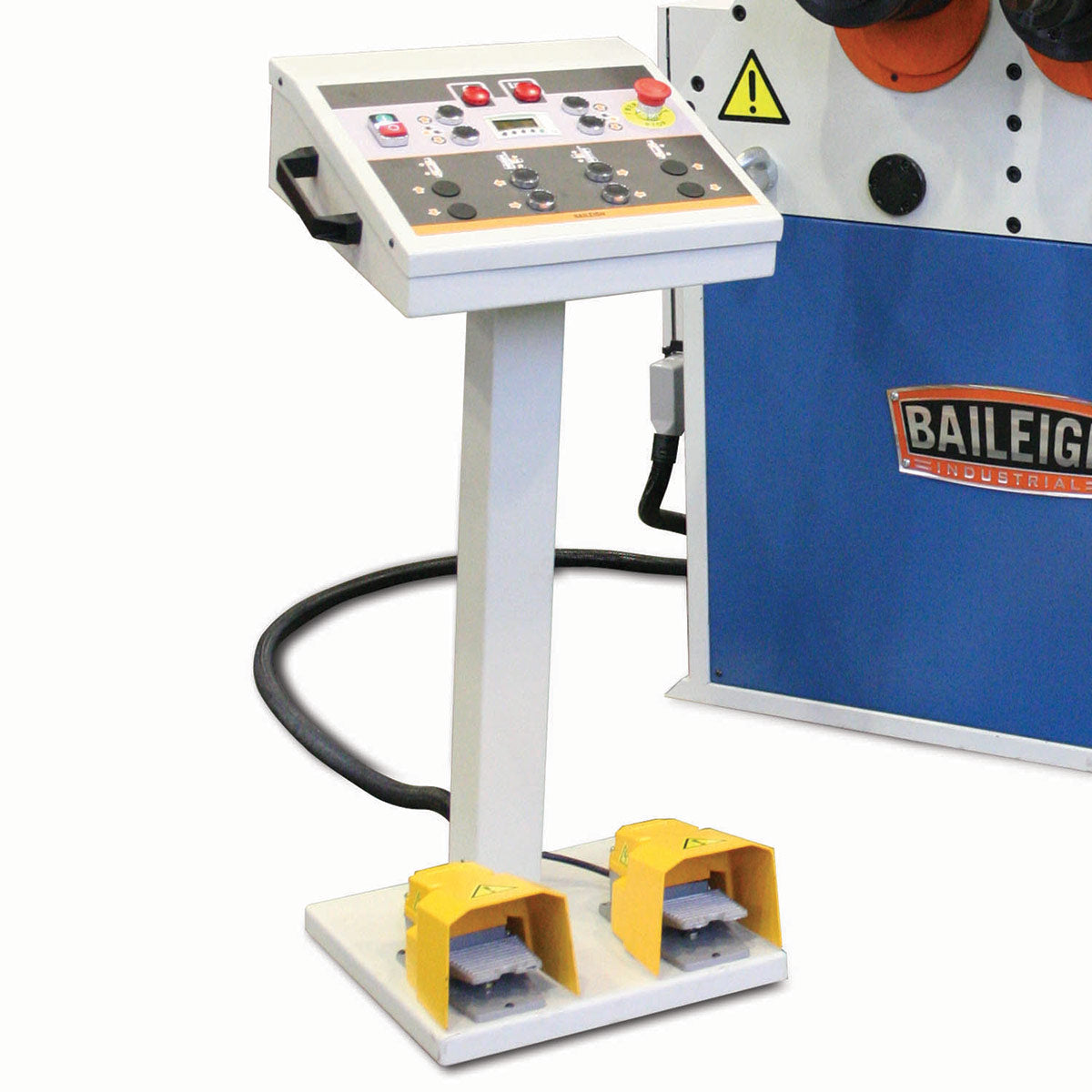

- You can input bend patterns from the convenient programmable controller podium.
- Foot pedals let you run the roller forward or in reverse.
- Hydraulic encoders communicate the exact position of each roll.
- Digital readout helps you make elaborate, repeatable series of bends without difficulty.
- Rigid electro-welded heavy steel plate frame prevents flex at full capacity.
- Baileigh covers this hydraulic pipe bender with 1-year warranty
Baileigh Industrial 1006840 Specifications
| Number of Rolls | 3 |
| Driven Rolls | 3 |
| Top Roll Dia. | 7" |
| Bottom Roll Dia. | 7" |
| Roll Adjustment | Hydraulic |
| Pipe Capacity Size | 2" (sch. 40) / Min. Dia. |
| Round Tube Capacity Size | 2.75" (.120") / Min. Dia. |
| Square Tube Capacity Size | 2" (.120") / Min. Dia. |
| Solid Square Capacity Size | 1.375" / Min. Dia. 48" |
| Solid Round Capacity Size | 1.575" / Min. Dia. 32" |
