Baileigh Industrial 1006849 Description

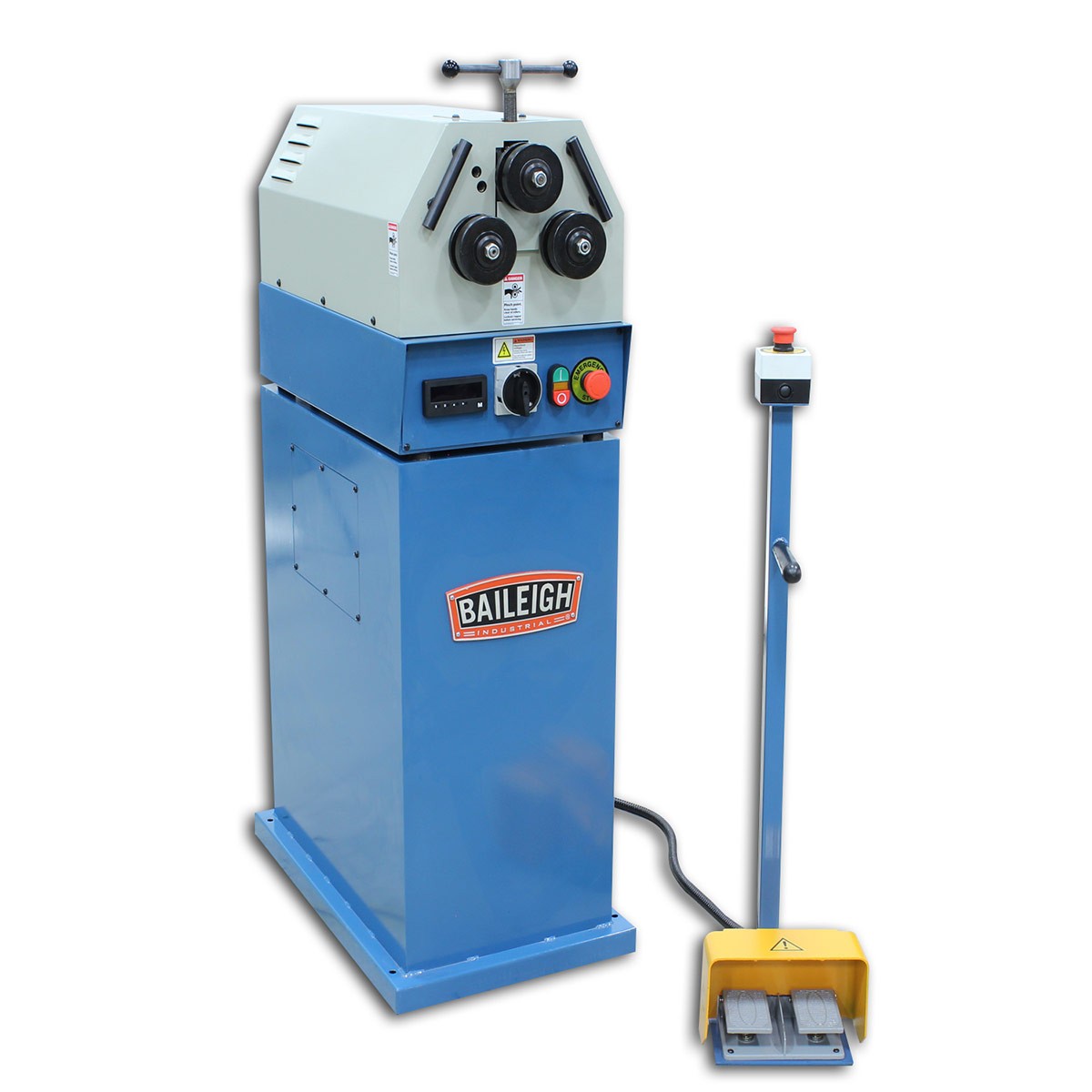

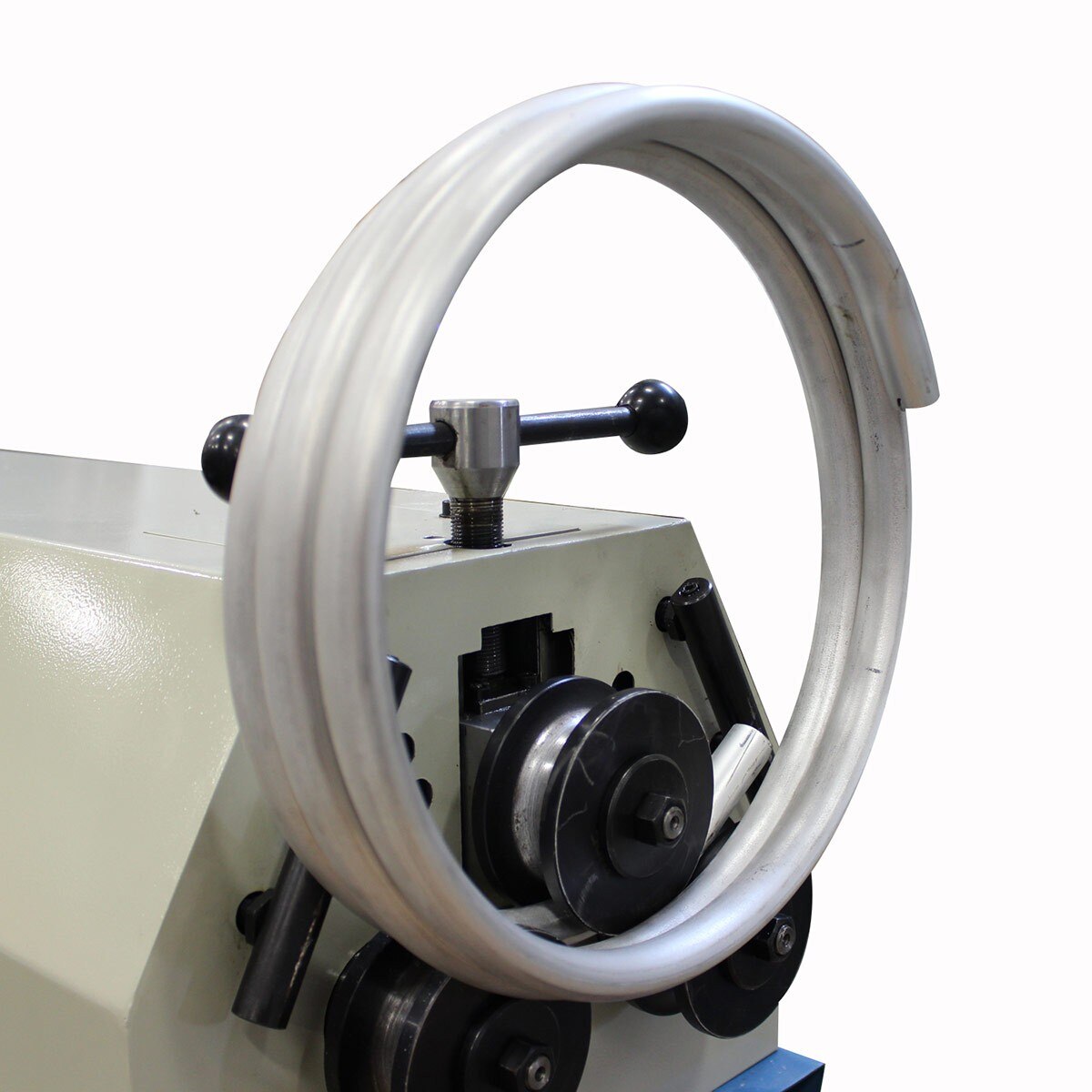

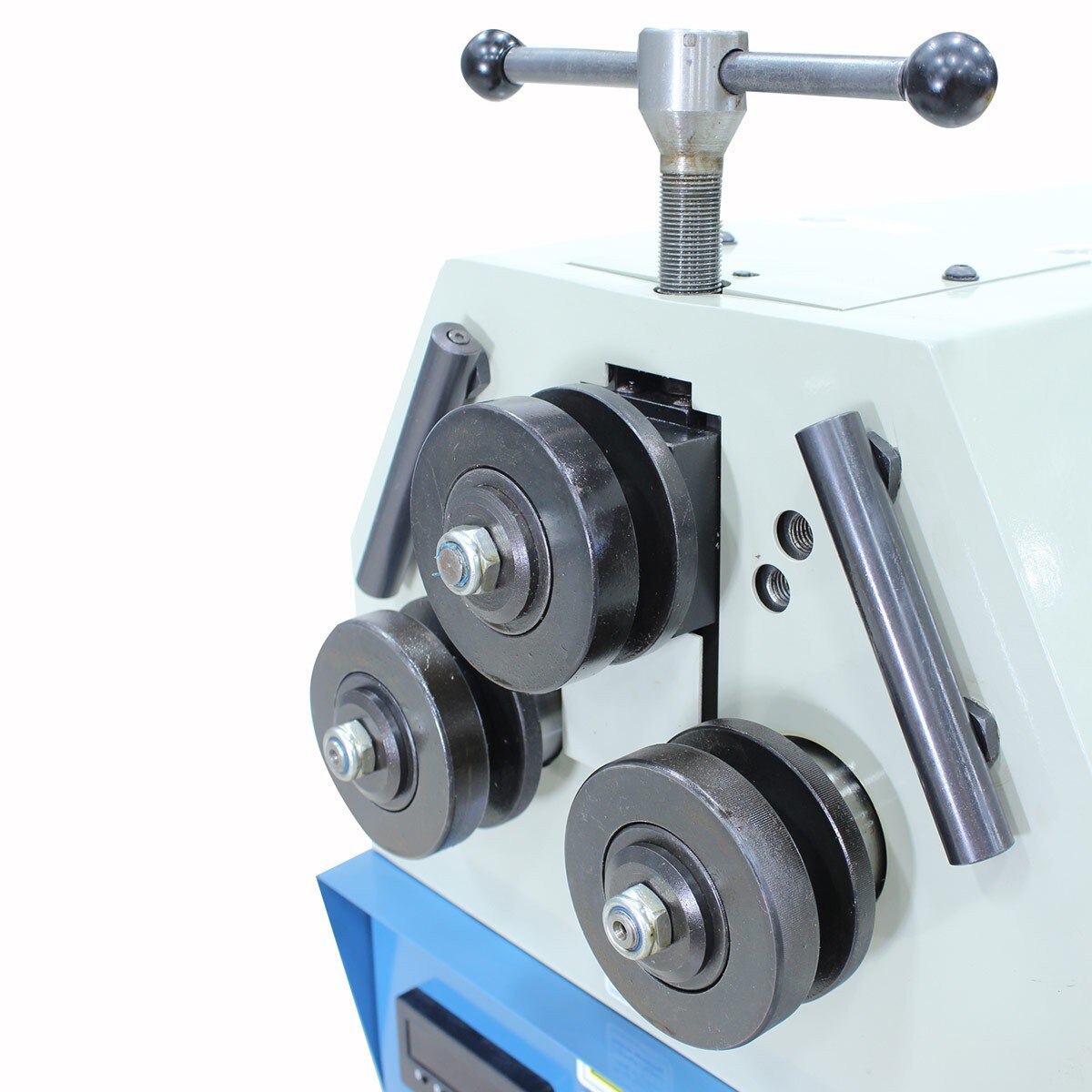

Rolling coils is one of the hardest thing to do in metal forming. This is where the R-M20 comes in and makes easy work of the job. The R-M20 from Baileigh Industrial is the perfect Ring and Angle Roll Bender for doing small diameter material or coils because of its tight compact roll formation. Lateral guides are also adjustable, making it easy to bend just about any width coil imaginable.
Baileigh Industrial 1006849 Includes
- (1) Roll Bender
Baileigh Industrial 1006849 Features
- Heavy duty steel frame
- Ground and heated treated shafts

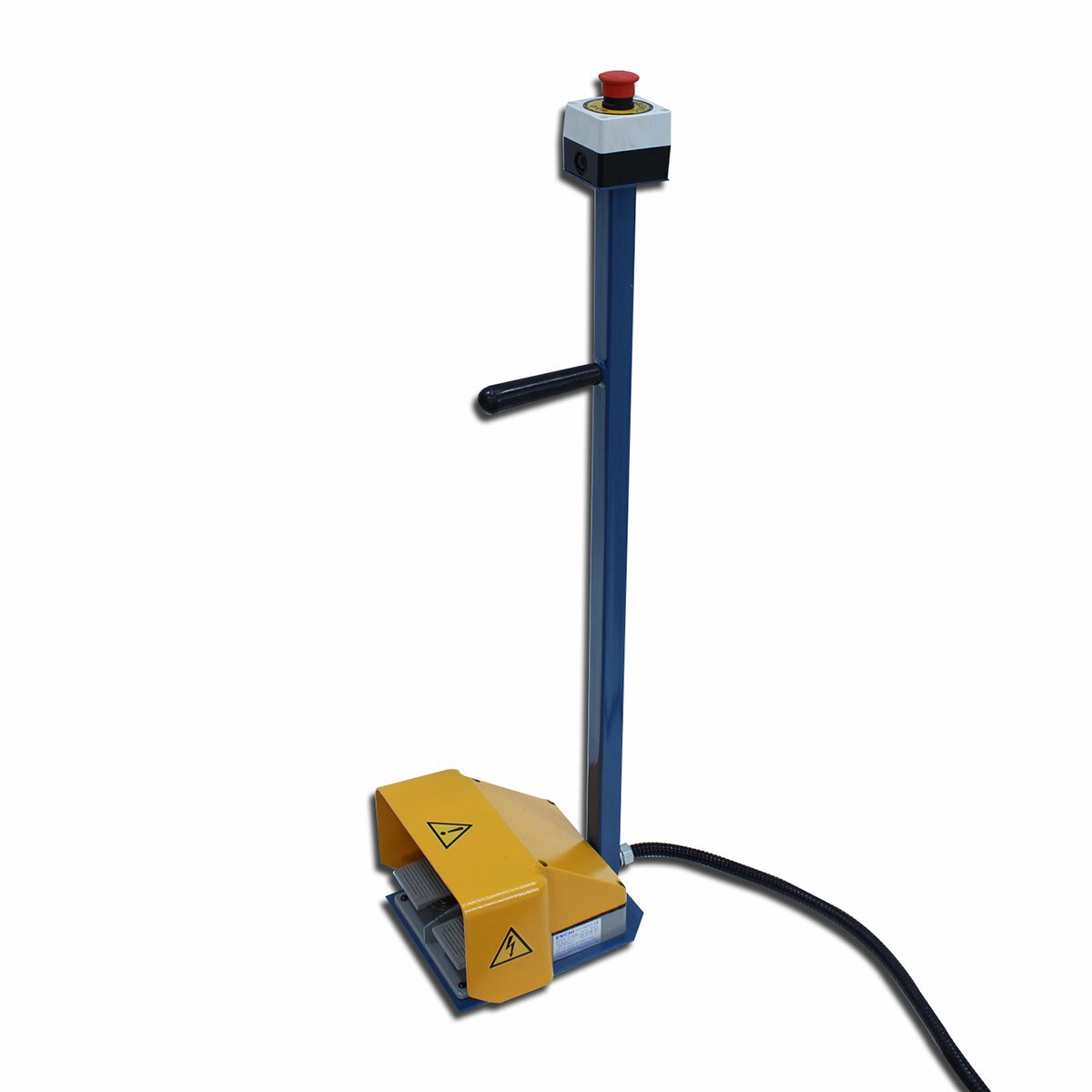

- Foot pedal operation
- Emergency stop

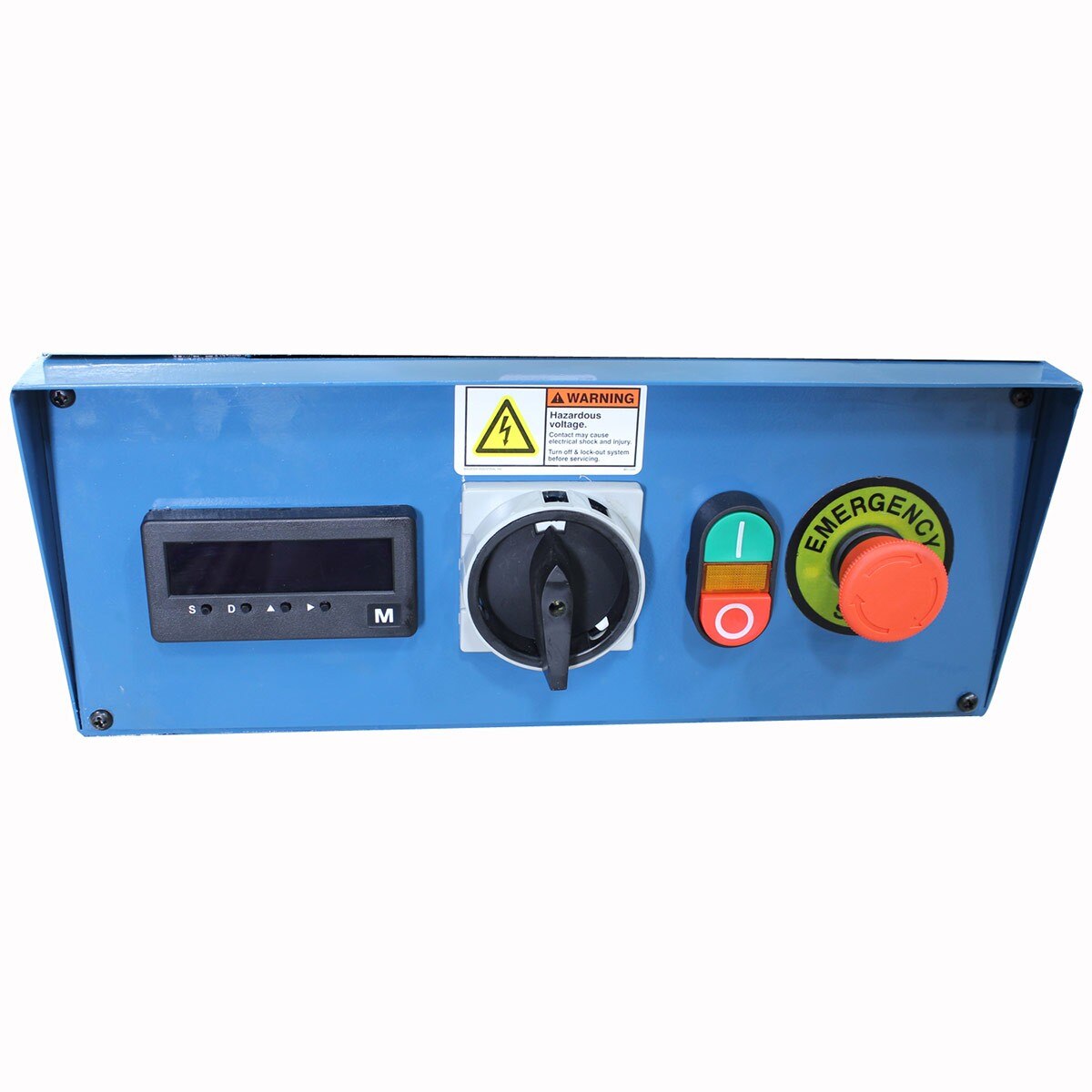

- Digital display for top roll
- Gear driven
- 110V (or 220V, 3-phase available)
- Stand included
Baileigh Industrial 1006849 Specifications
| Driven Rolls | 2 |
| Roll Adjustment | Manual |
| Pipe Capacity Size | .5” (sch.40) / Min. Dia. |
| Round Tube Capacity Size | 1" (.0625") Min. Dia. |
| Square Tube Capacity | .75" (.0625") Min. Dia. |
| Solid Round Capacity Size | .5" Min. Dia. |
| Flat Bar Easy Way Size | 1.75" Min. Dia. |
| Flat Bar Hard Way Size | 1" Min. Dia. |
| Angle Iron Capacity Size | .75" (.125") Min. Dia. |
| Shaft Diameter | .78" |
Toolup Part # :
655960
