Baileigh Industrial | SKU:
BA9-1006852

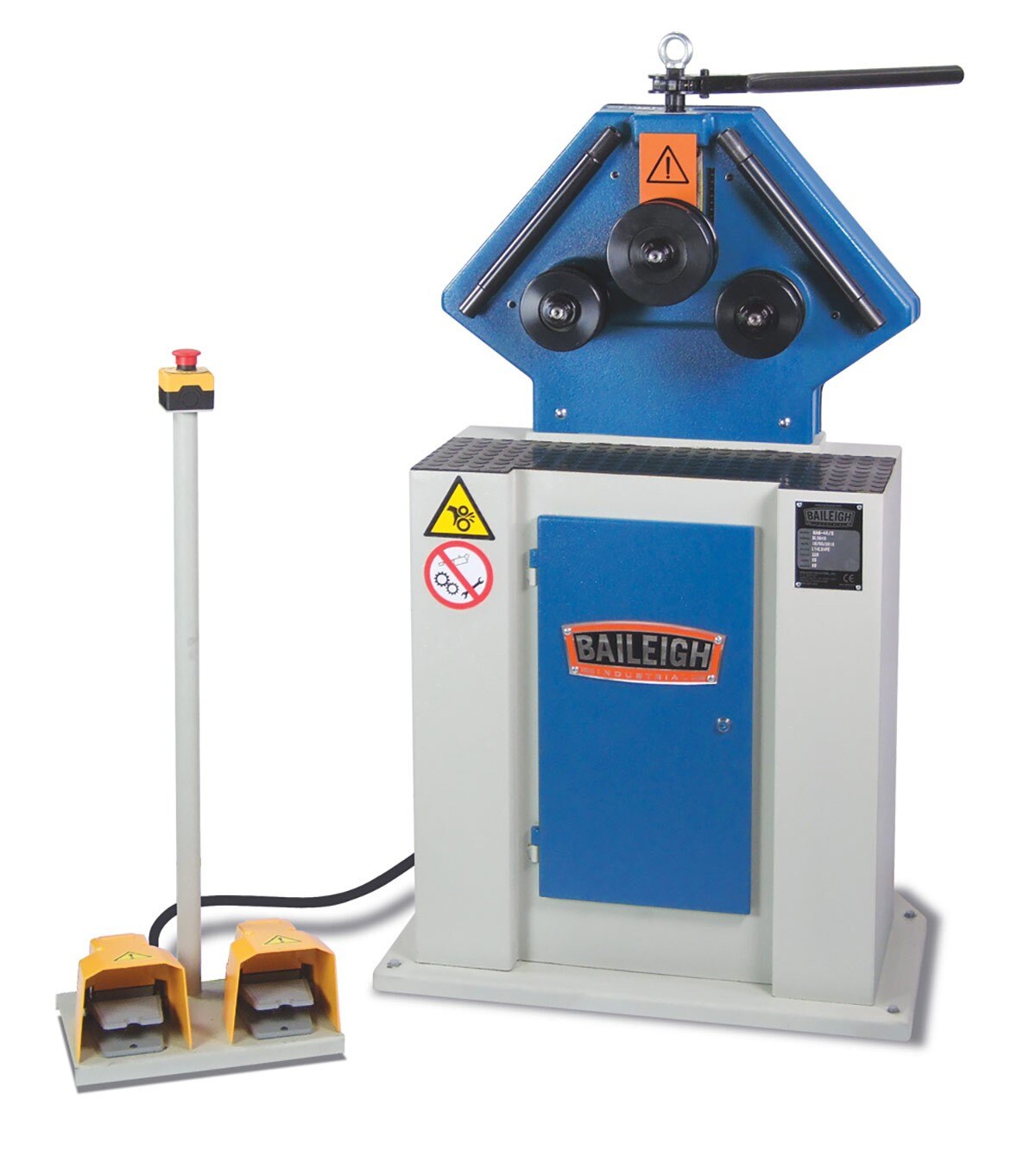

Baileigh Industrial BA9-1006852 Ring Roll Machine R-M40
Free Shipping
$5,659.00
$6,871.64
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1006852 Description
This versatile metal ring roller makes a strong starter tube roll and ring roll machine for any fabricator looking to dive into profile bending. Use this metal ring roller for: Coiling tubing, hay hoops, metal art, stair railings, and many other applications. You won’t find many roll benders built to the same rugged standards as the R-M40. The steel plate construction of this tube roller maintains accuracy and minimizes flex.
Baileigh Industrial 1006852 Includes
- (1) Ring Roll Machine
Baileigh Industrial 1006852 Features
- 220-volt single-phase motor can run at almost any site in North America.
- 2" round tube and 1.5" schedule 40 pipe maximum capacity.

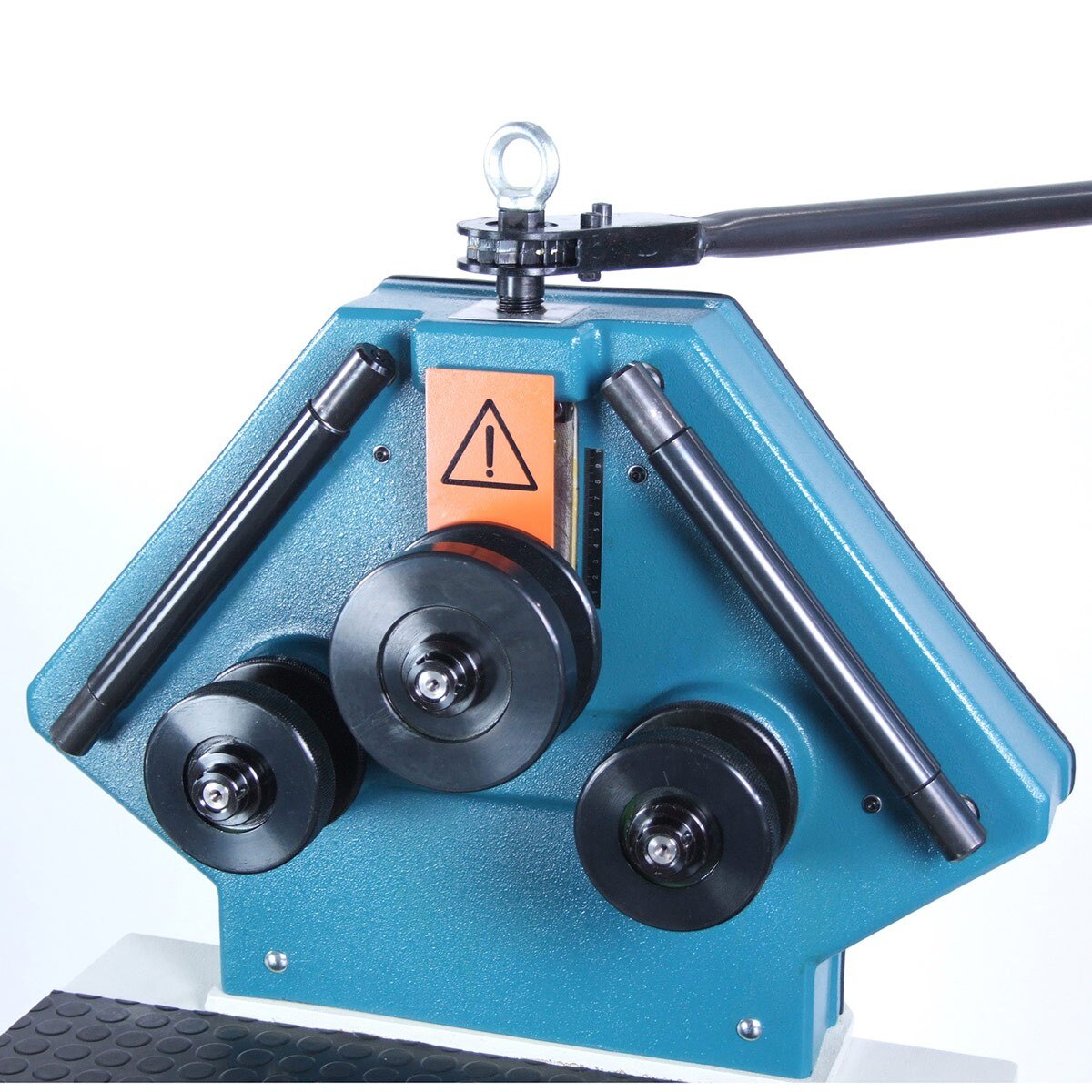

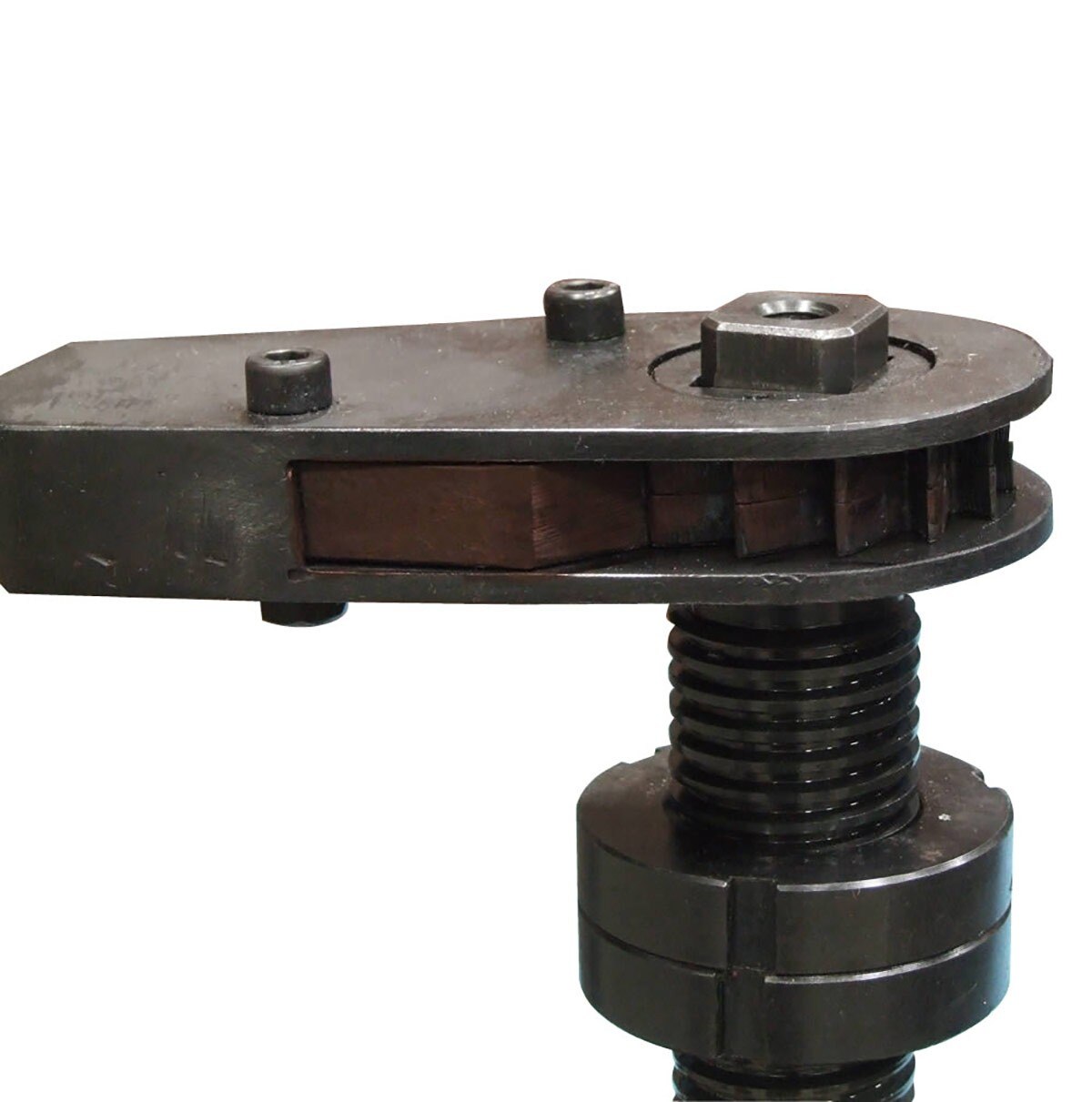

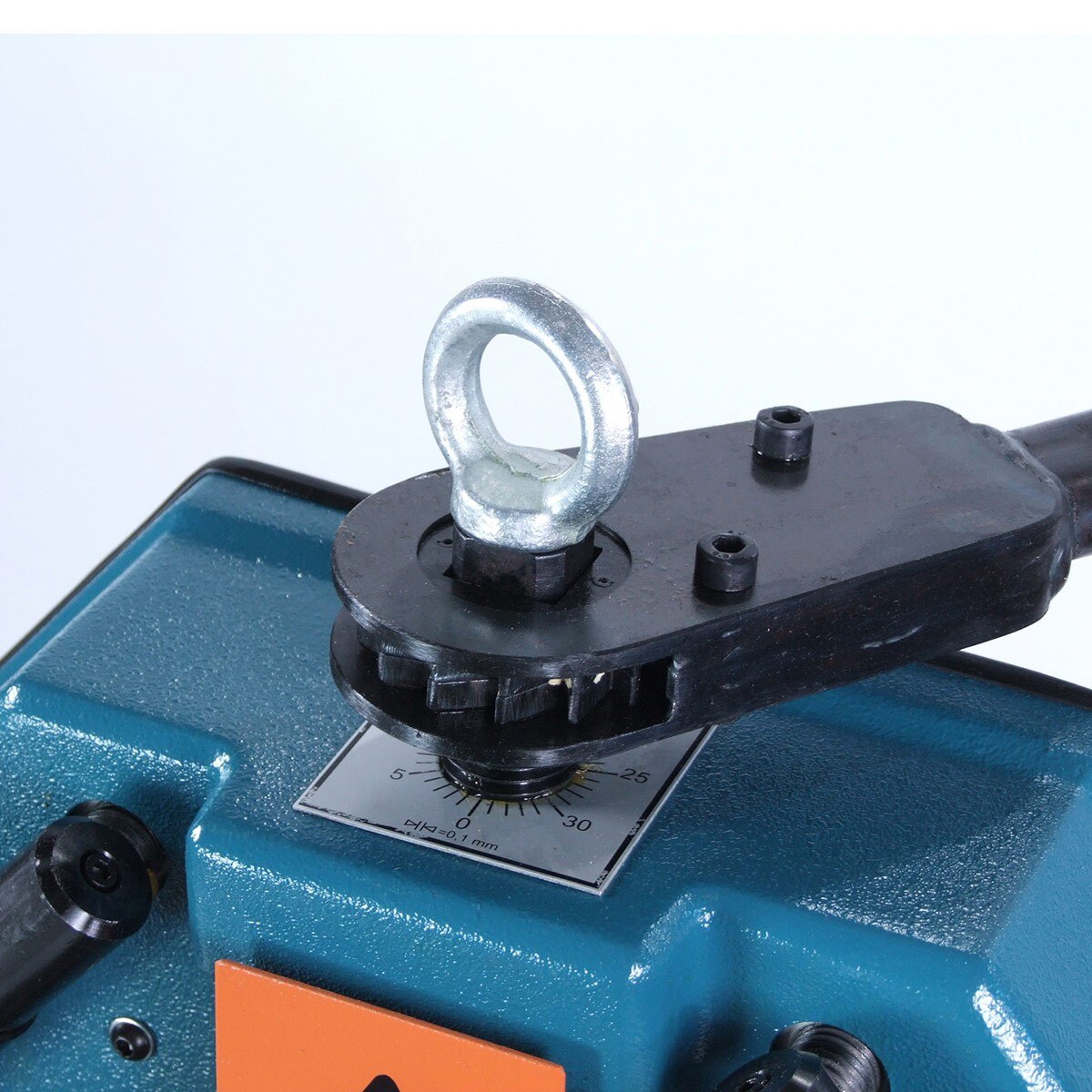

- Ratchet-style manual top shaft allows you to adjust forming pressure.

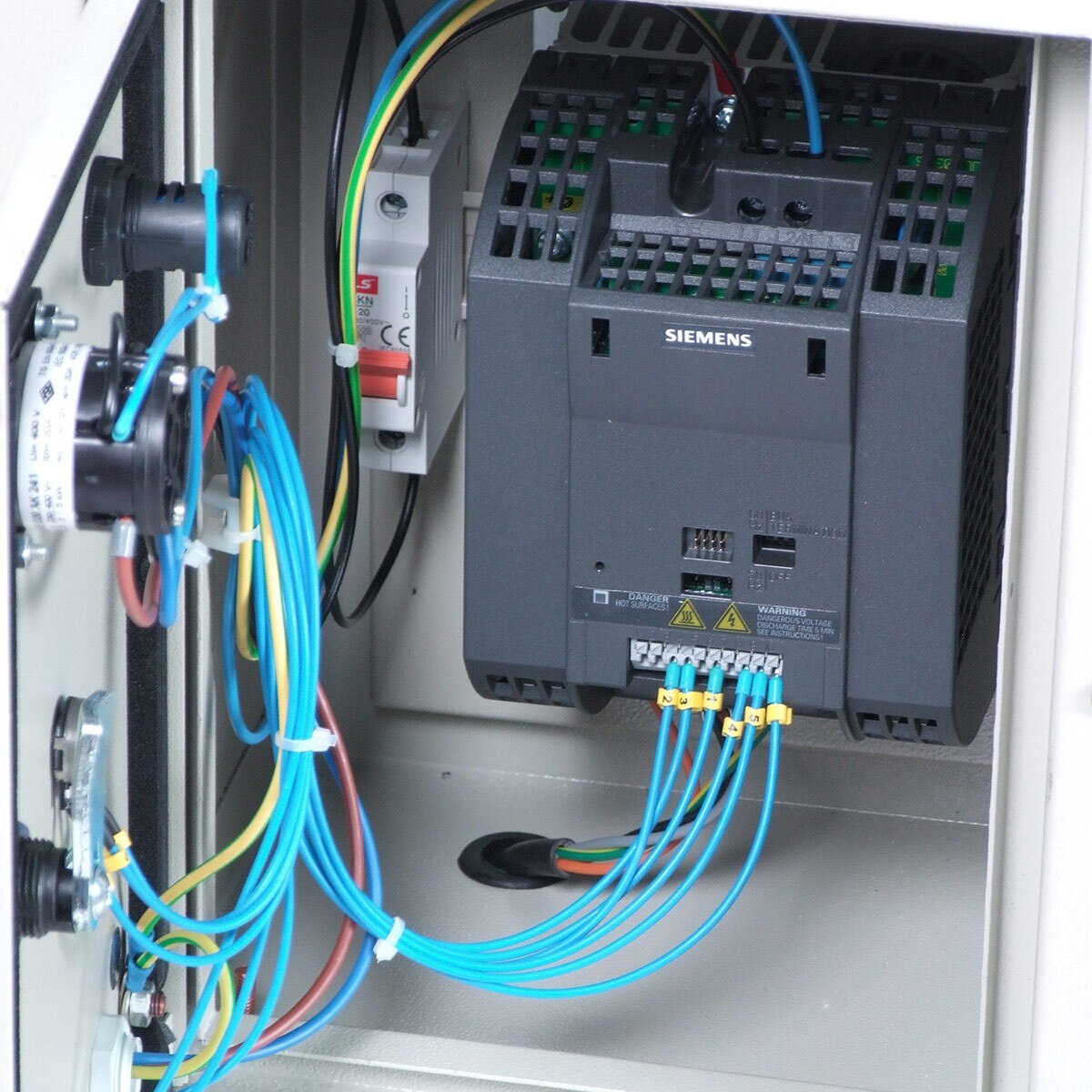

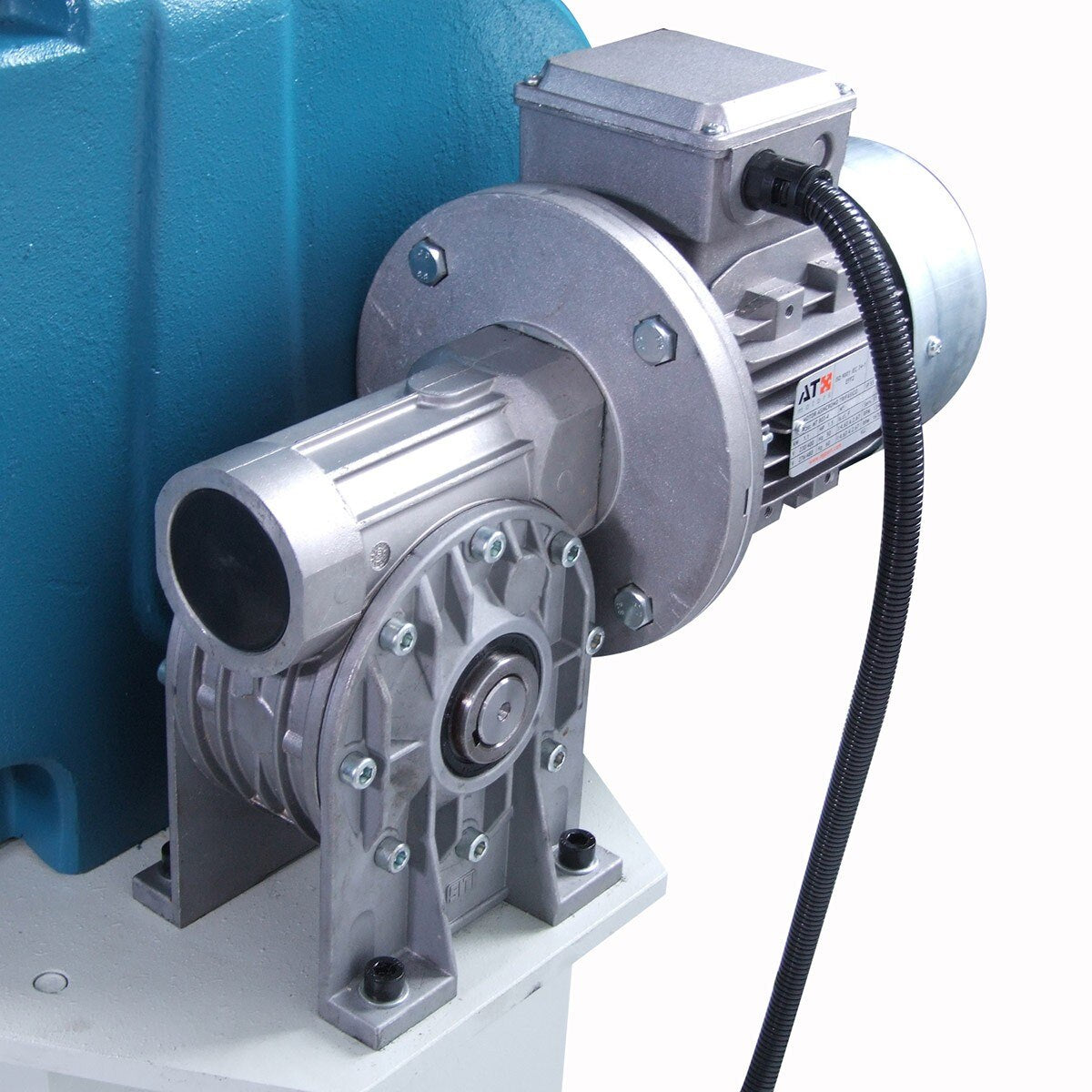

- Variable-speed inverter drives and industrial-grade transmission provide delicate control over material.
- Executes bends in upright or horizontal positions, to accommodate a range of material lengths.
- Sturdy base opens into a storage cabinet for tooling and other options.

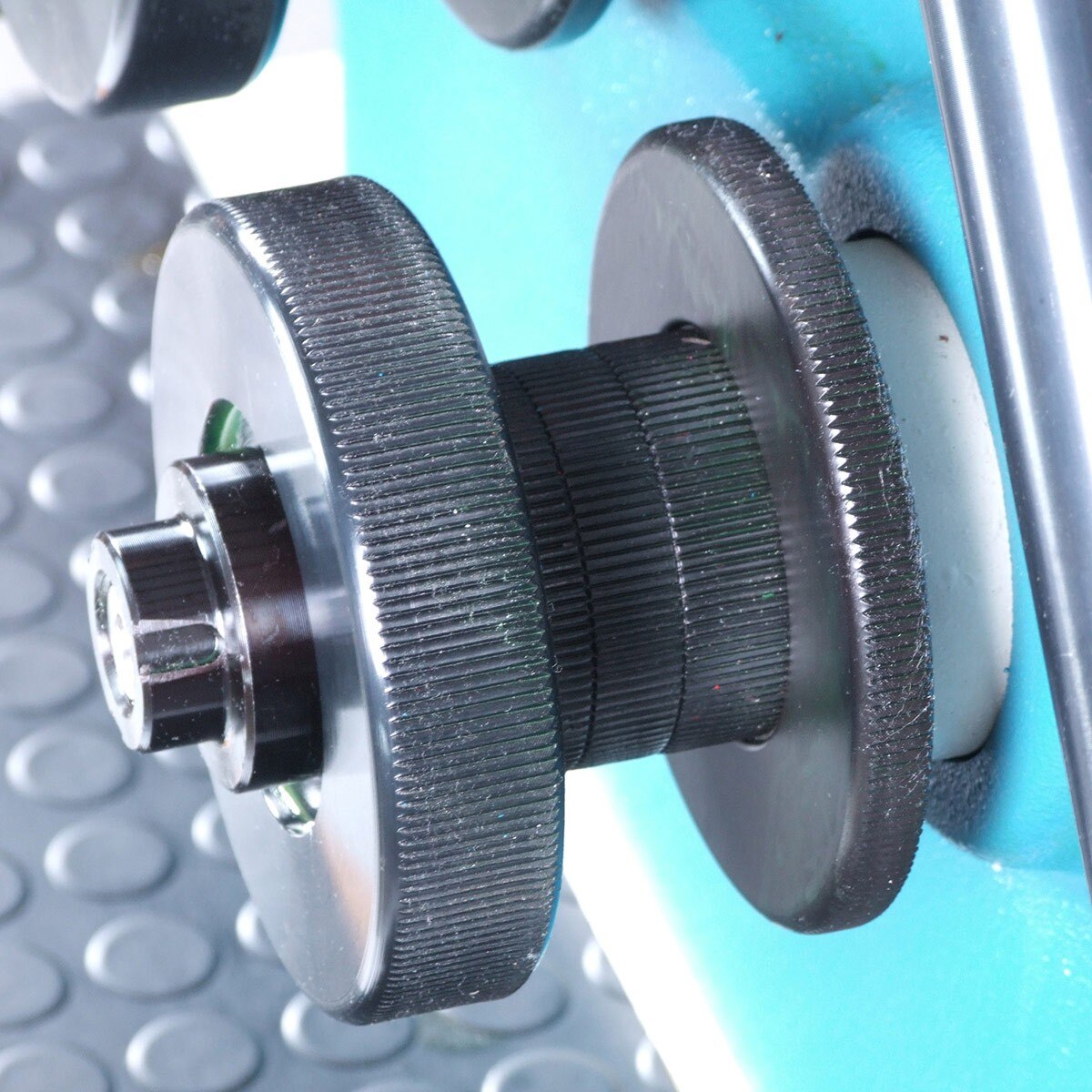

- Comes standard with a set of segment rolls that can be used for bending flat bar, solid rod, and some square applications.
- Manufactured from heavy steel plate to extend machine’s lifetime of use.
- Baileigh covers this tubing roller with a 1-year warranty
Baileigh Industrial 1006852 Specifications
| Roll Adjustment | Manual |
| Pipe Capacity Size | 1.5" (sch. 40) / Min. Dia. |
| Round Tube Capacity Size | 2" (.078") / Min. Dia. |
| Square Tube Capacity Size | 1.5" (.078") / Min. Dia. |
| Solid Round Capacity Size | 1.375" / Min. Dia. |
| Flat Bar Easy Way Size | 3" (.5") / Min. Dia. |
| Flat Bar Hard Way Size | 2.25" (.375") / Min. Dia. |
| Angle Iron Capacity Size | 1.5" (.157") / Min. Dia. |
| Shaft Diameter | 1.181" |
| Shaft Center Distance Lower Rolls | 10.88" |
