Baileigh Industrial | SKU:
BA9-1006859

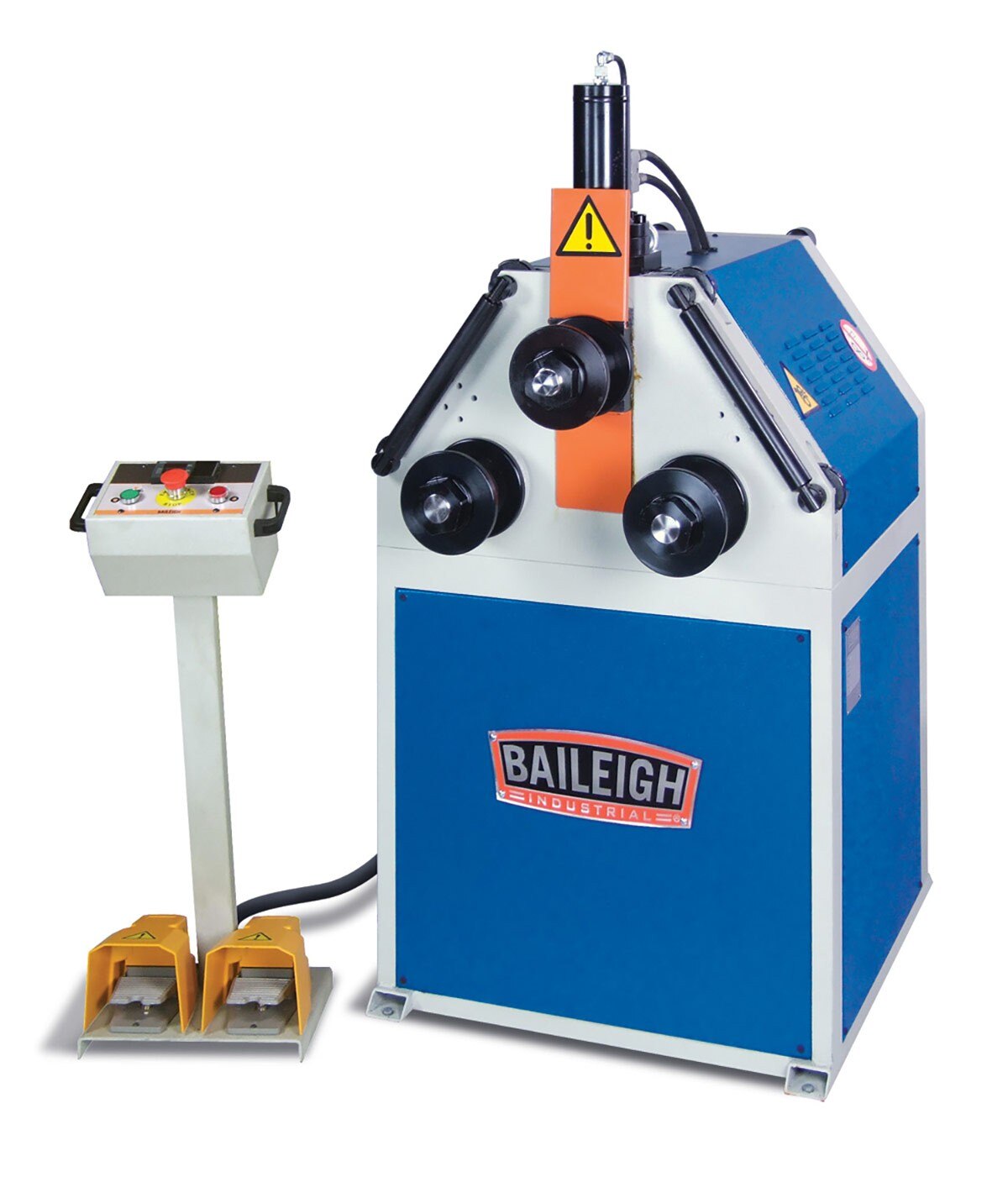

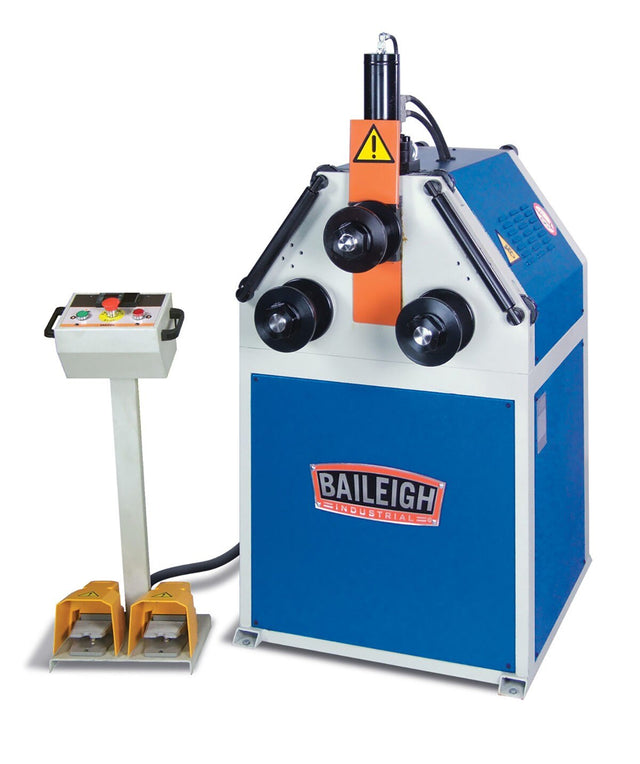

Baileigh Industrial BA9-1006859 Profile Bender R-M55H
Free Shipping
$11,299.00
$13,720.21
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1006859 Description

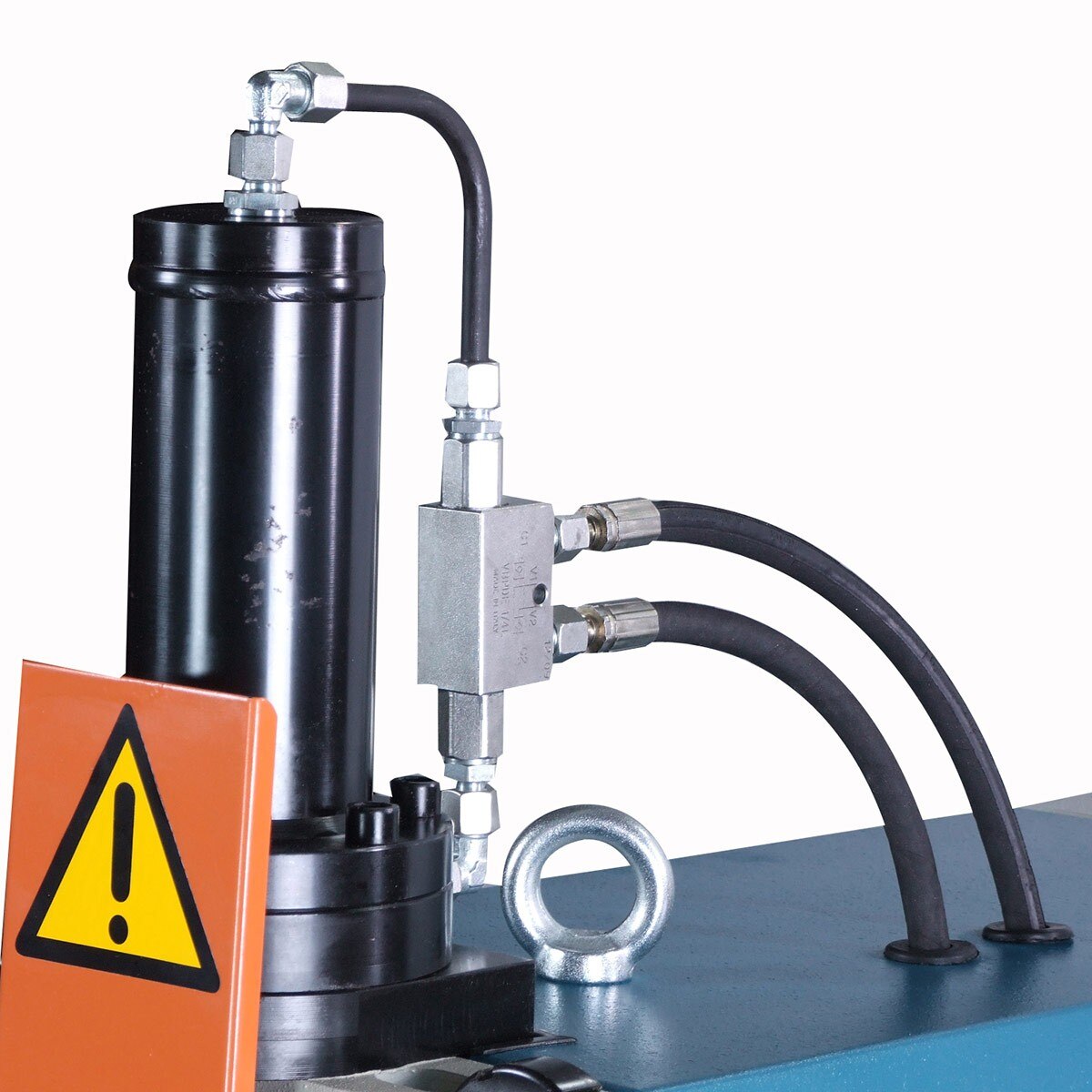

This hardworking ring roller adds an industrial-grade hydraulic system to the many tried-and-true features from our landmark R-M55. Hydraulic system controls top forming roll, ensuring precision and reducing the time and effort necessary to produce repeatable radii. Rugged one piece framework adds to this roll bender’s strength and ensures that it will deliver accurate results when bending at maximum capacity—for years! Overload-protected Allen-Bradley inverter monitors rolling speed to extend the machine’s use as long as possible.
Baileigh Industrial 1006859 Includes
- (1) Profile Bender
Baileigh Industrial 1006859 Features
- This ring roller bender runs on 220-volt single-phase power.
- Bends a maximum capacity of 2.75" round tube and 2” schedule 40 pipe.

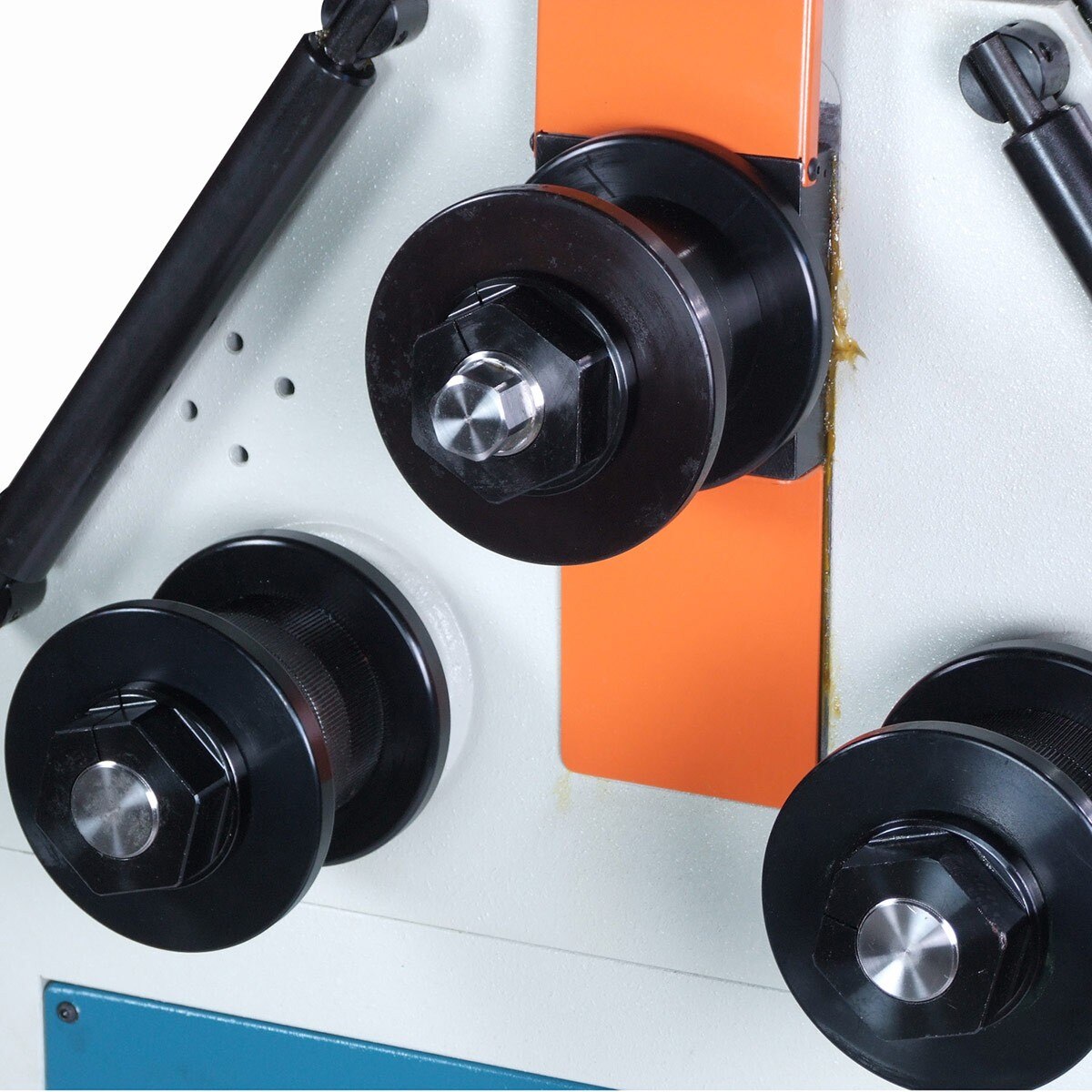

- Works with 3 rolls: 1 top forming roll and 2 driven bottom rolls.
- You can operate the R-M55H in 2 positions: vertical, for small rolling projects, and horizontal (on its back) for longer sections of material.

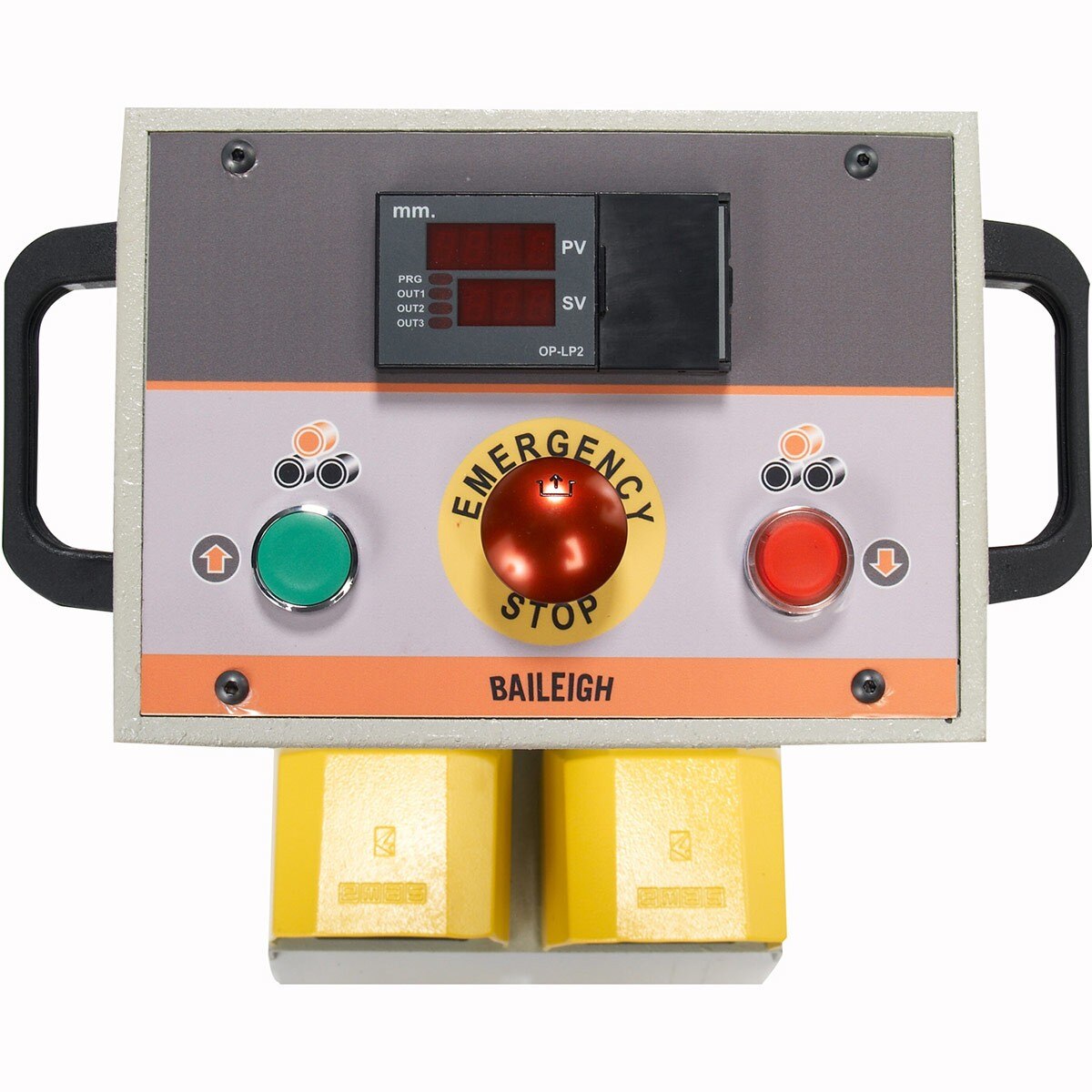

- Independent, easily-movable control pedestal lets you adjust the top roll’s positioning and program stops.
- Digital readout tells you the exact position of the top shaft to ensure simple repeatability for production runs.
- Direct gearbox drive system delivers mighty full torque even when bending at full capacity.
- Foot pedal control lets you conveniently switch between forward and reverse modes.

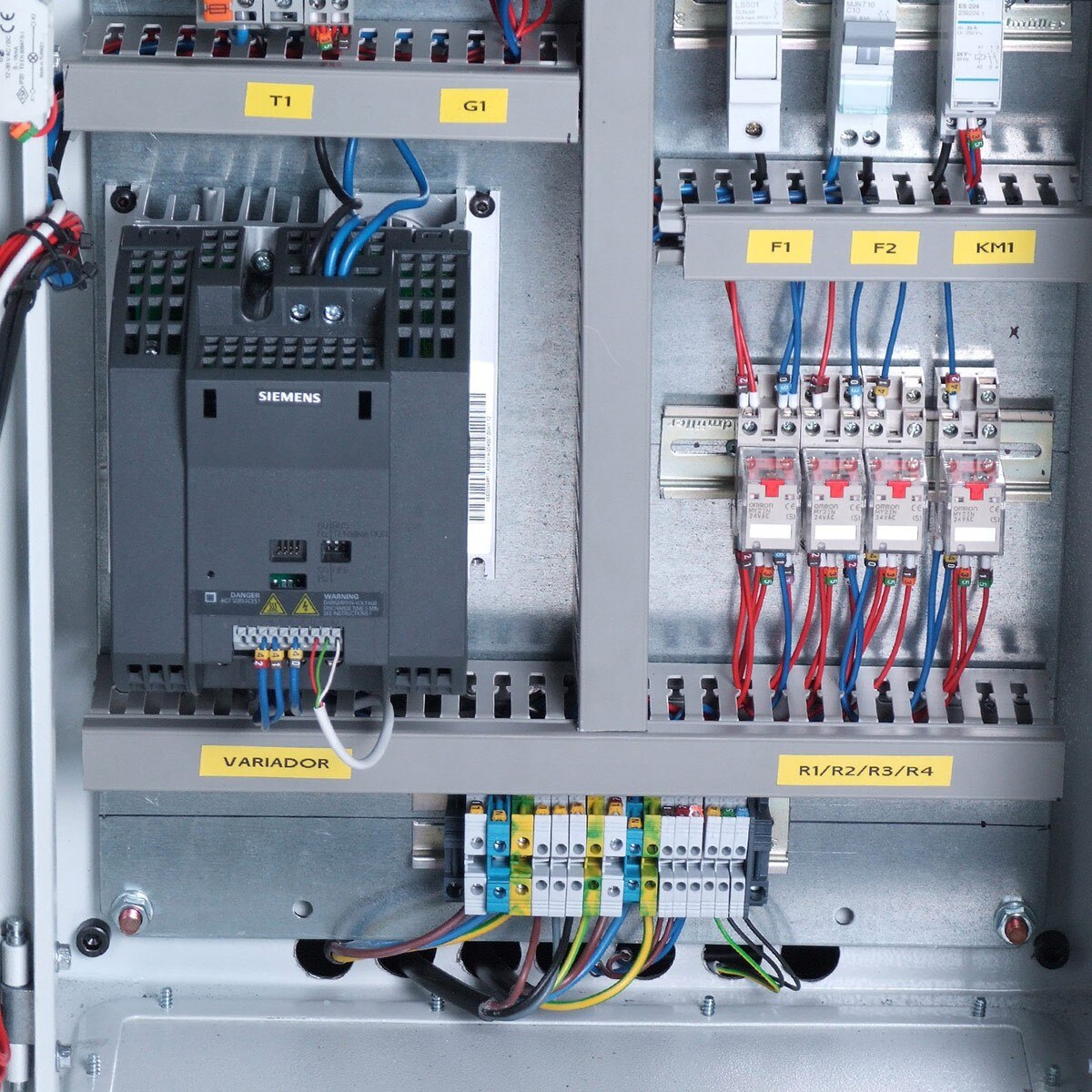

- Variable-speed inverter allows you to adjust the rolling speed to suit you material and project.

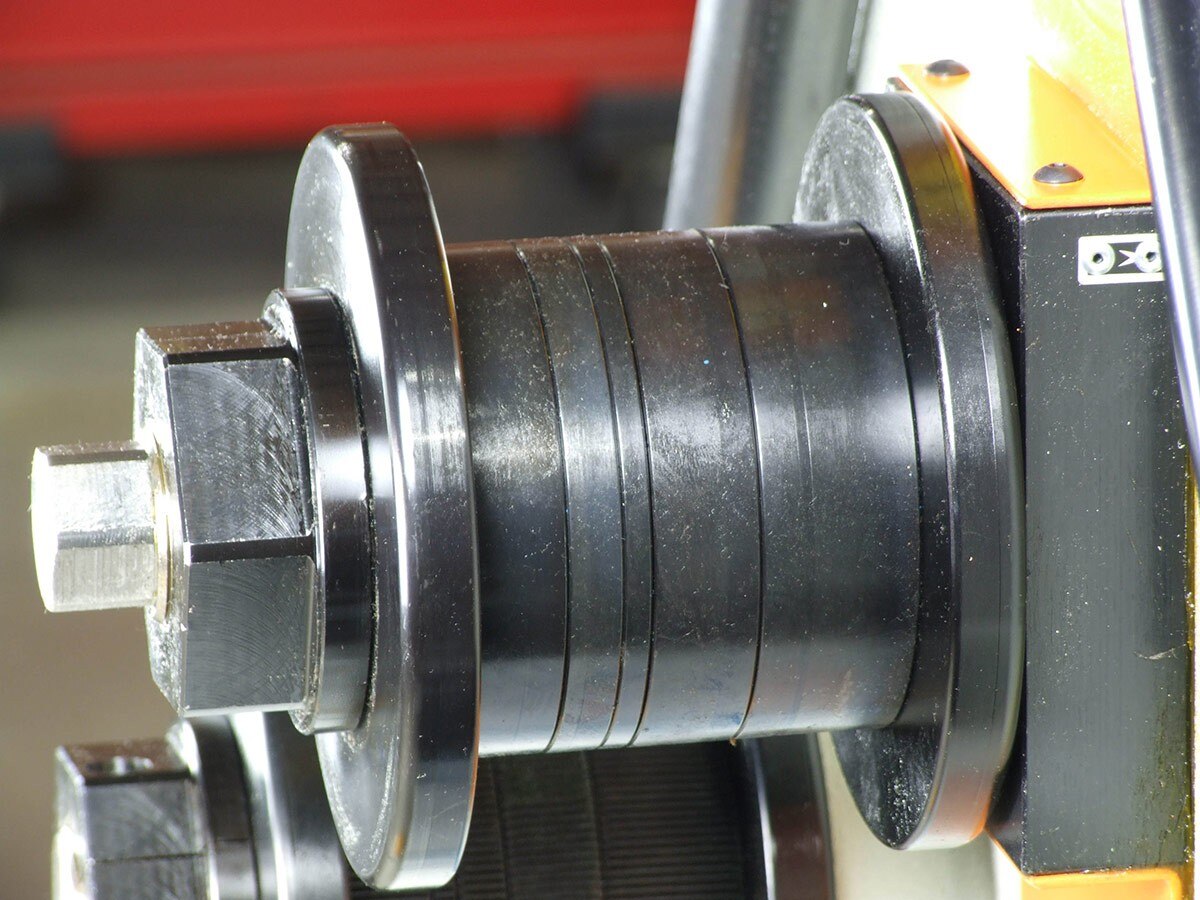

- Comes standard with roll sets that you can configure to suit many applications.
- Constructed from heavy steel plate to maintain accuracy and minimize flex.
- Baileigh covers this hydraulic roll bender with a 1-year parts warranty.
Baileigh Industrial 1006859 Specifications
| Roll Adjustment | Hydraulic |
| Pipe Capacity Size | 2" (sch. 40) / Min. Dia. |
| Round Tube Capacity Size | 2.75" (.083") / Min. Dia. |
| Square Tube Capacity Size | 2" (.083") / Min. Dia. |
| Solid Round Capacity Size | 1.375" / Min. Dia. |
| Flat Bar Easy Way Size | 4" (.5") / Min. Dia. |
| Flat Bar Hard Way Size | 2.25" (.375") / Min. Dia. |
| Angle Iron Capacity Size | 2" (.250") / Min. Dia. |
| Shaft Diameter | 1.968" |
| Shaft Center Distance | 13.12" |
