Baileigh Industrial BA9-1006968 3 in 1 Shear Brake Roll Machine SBR-4020
Description
Description
Baileigh Industrial 1006968 Description

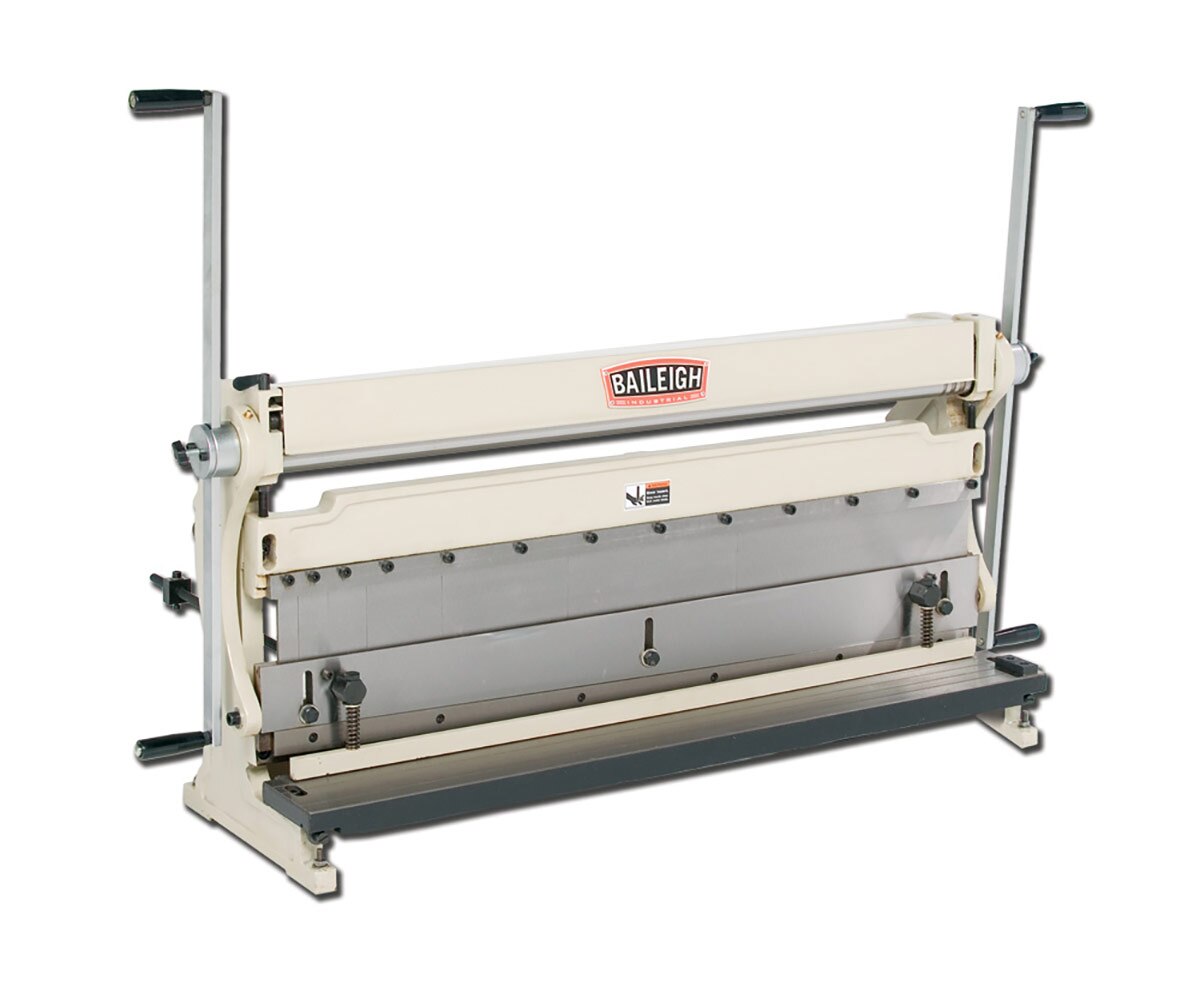

Baileigh Industrial's SBR-4020 combination shear, brake and roll has a very small floor plan that can be bench or stand mounted. It combines a metal shear, a press brake and a slip roll all into one machine making it perfect for those small sheet metal shops or garage shops with limited space. 3 in 1 sheet metal machine recommended for: Hobbyists, maintenance, and R&D shops.
Baileigh Industrial 1006968 Includes
- (1) 3 in 1 Shear Brake Roll Machine
Baileigh Industrial 1006968 Features
- 40” working width for rolling, bending, and shearing.
- Maximum capacity of 20 gauge mild steel and 16 gauge aluminum for all functions.

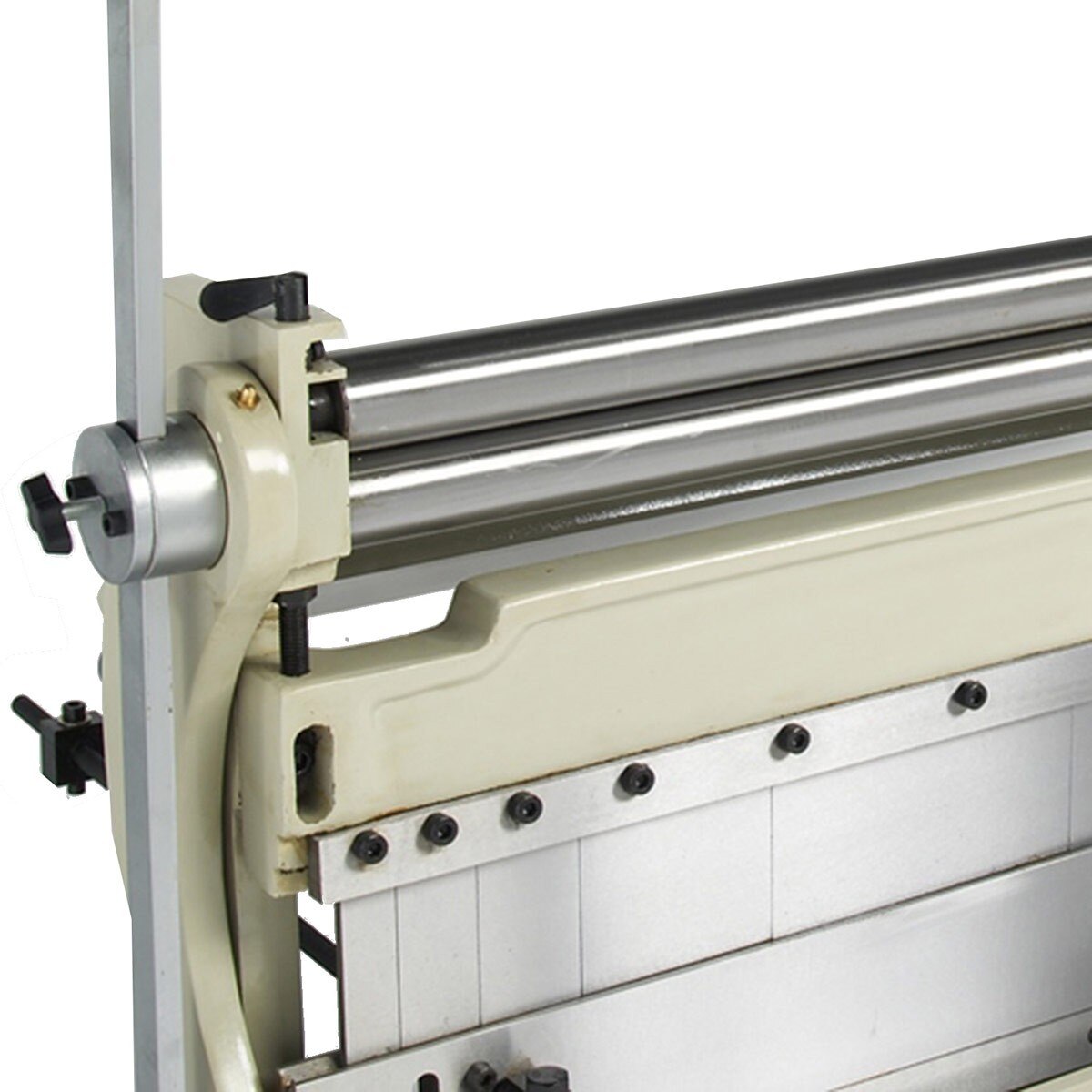

- Manual slip roll on the top portion of the machine can create sheet metal rolls with a 1.70” minimum diameter.

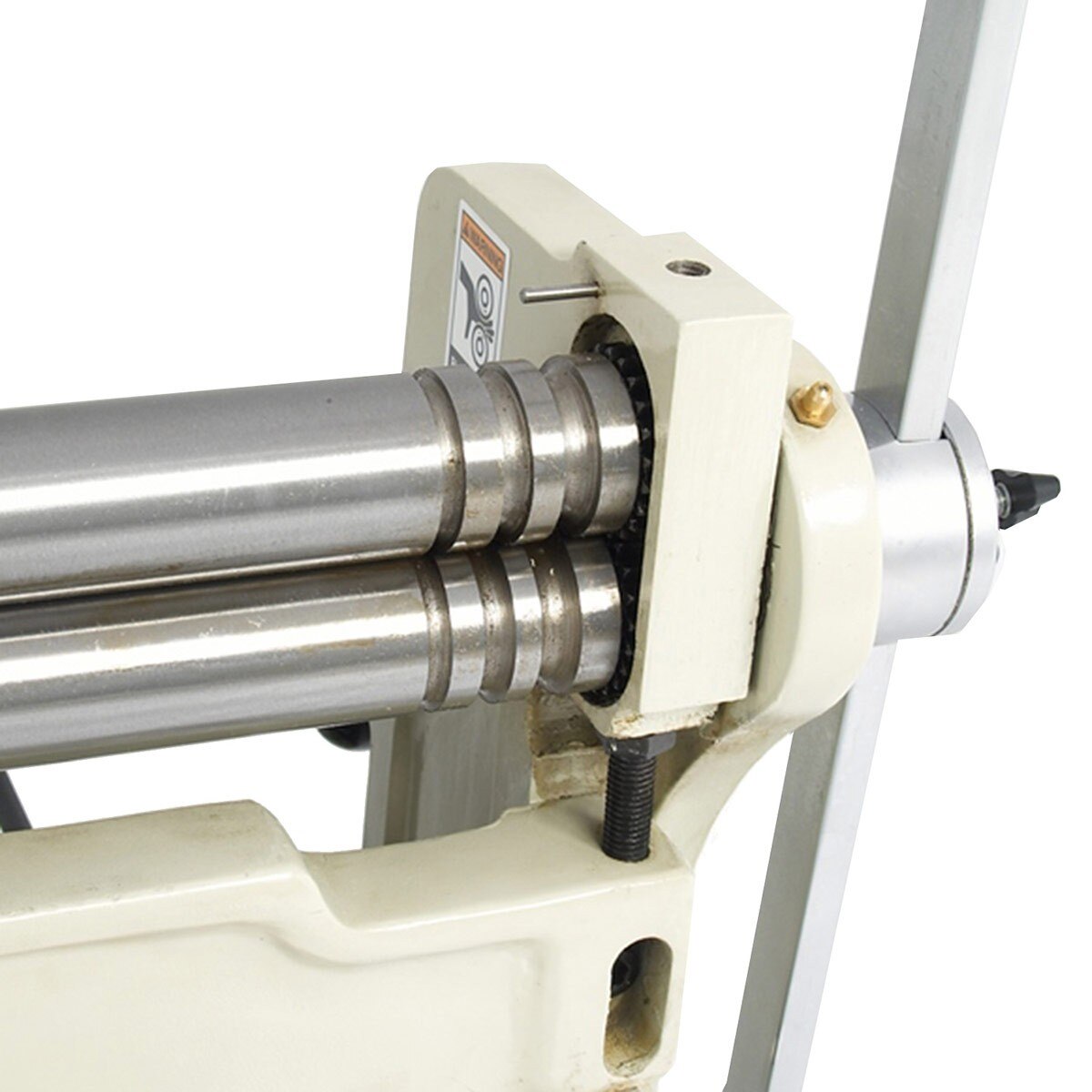

- Hardened rolls with 3 grooves can form wire or small round stock.
- Manual press brake bends up to 90° and includes a V die set.
- Crowning feature lets you set the camber of the tooling so it bends consistently across the machine’s full width.
- Hardened adjustable dies (from 1” to 10-?”) on the upper beam of the press brake can make boxes and pans.

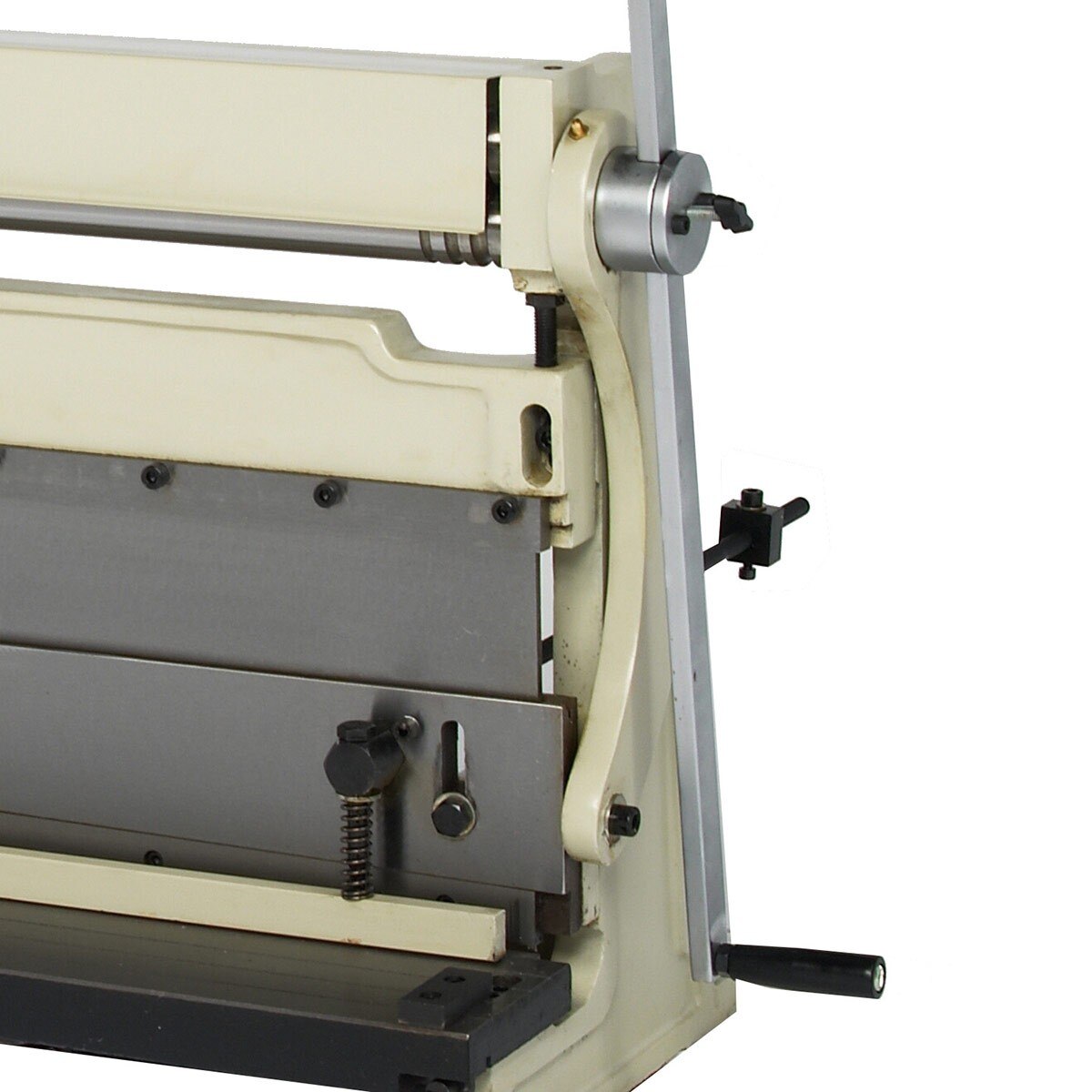

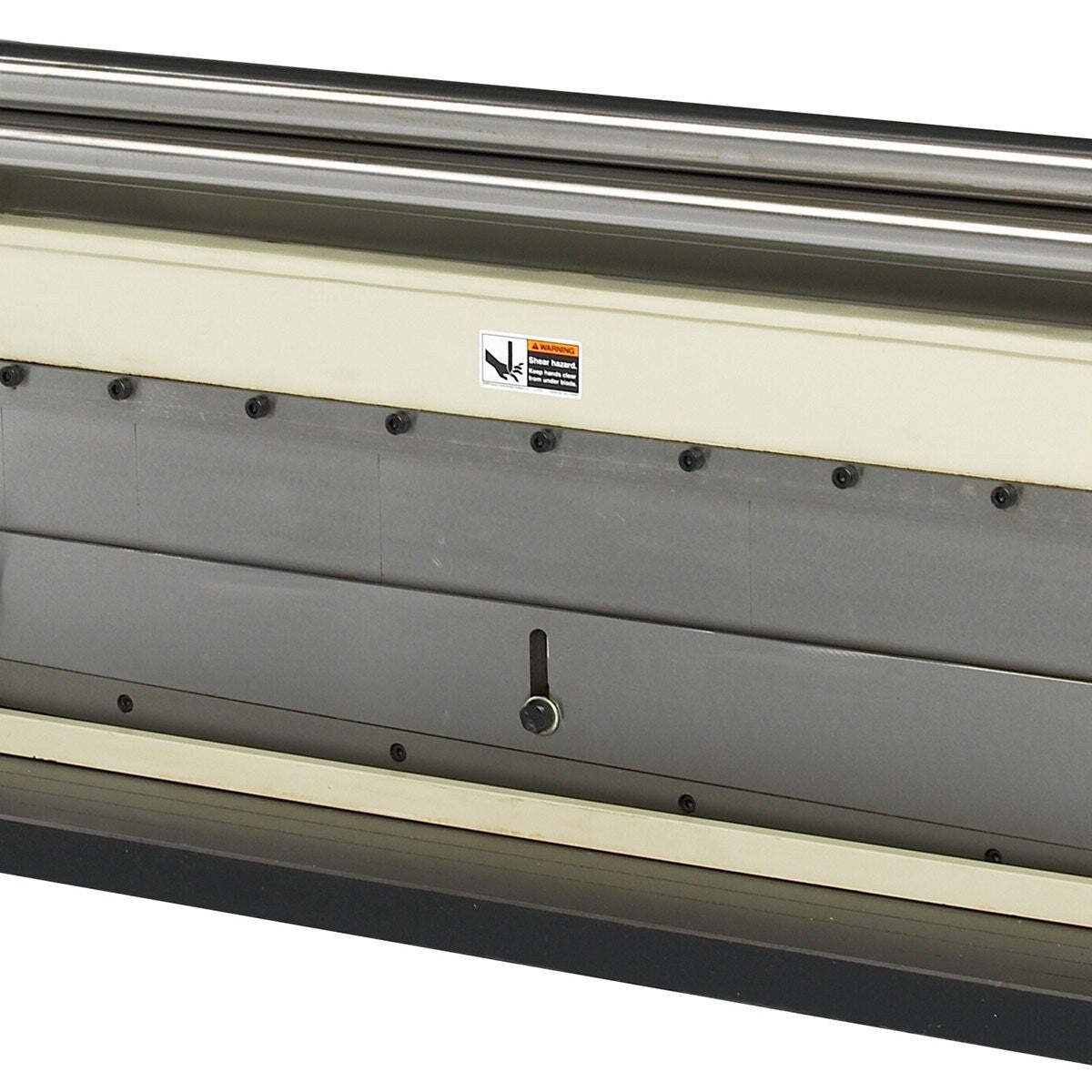

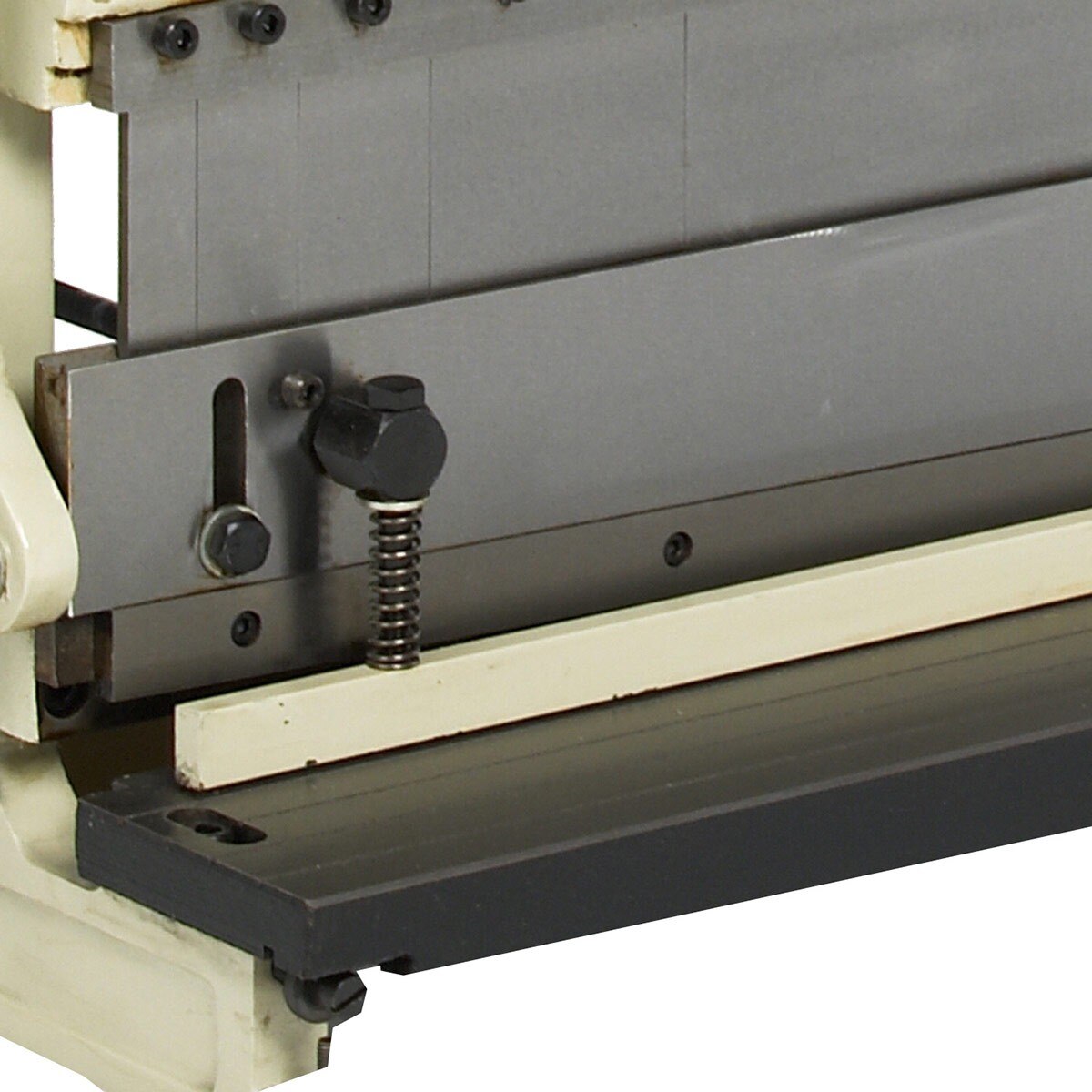

- Metal shear on the bottom uses spring-loaded clamps to hold the material down and produce clean, crisp shearing across the machine.
- Shear blades are hardened and reversible, so they stay sharp.
- Large handles with grips on both sides allow 2 operators to combine their force and make the machine easier to use.
- Each 360° turn of the handles gives you a full cycle on each of the machines.
- Back gauge helps ensure repeatability.
- Heavy-duty steel frame adds strength to the 461-pound machine, so it delivers accurate results for many years.
- 3 in 1 sheet metal machine covered by a 1-year parts warranty.
Baileigh Industrial 1006968 Specifications
Max. Material Thickness (Stainless Steel) | .019" |
Rolling Capacity | 20 Gauge (.036”) |
Shear Capacity | 20 Gauge (.036”) |
Min. Rolling Dia. | 1.70” |
Bed Width | 40" |
Bending Capacity | 20 Gauge (.036”) |
Power | Manual |
Shipping Dimensions | 53" x 18" x 28" |
Country of Origin | China |
