Baileigh Industrial | SKU:
BA9-1006972
Baileigh Industrial BA9-1006972 Shear Brake Roll SBR-5216
Free Shipping
$4,629.00
$5,620.93
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1006972 Description

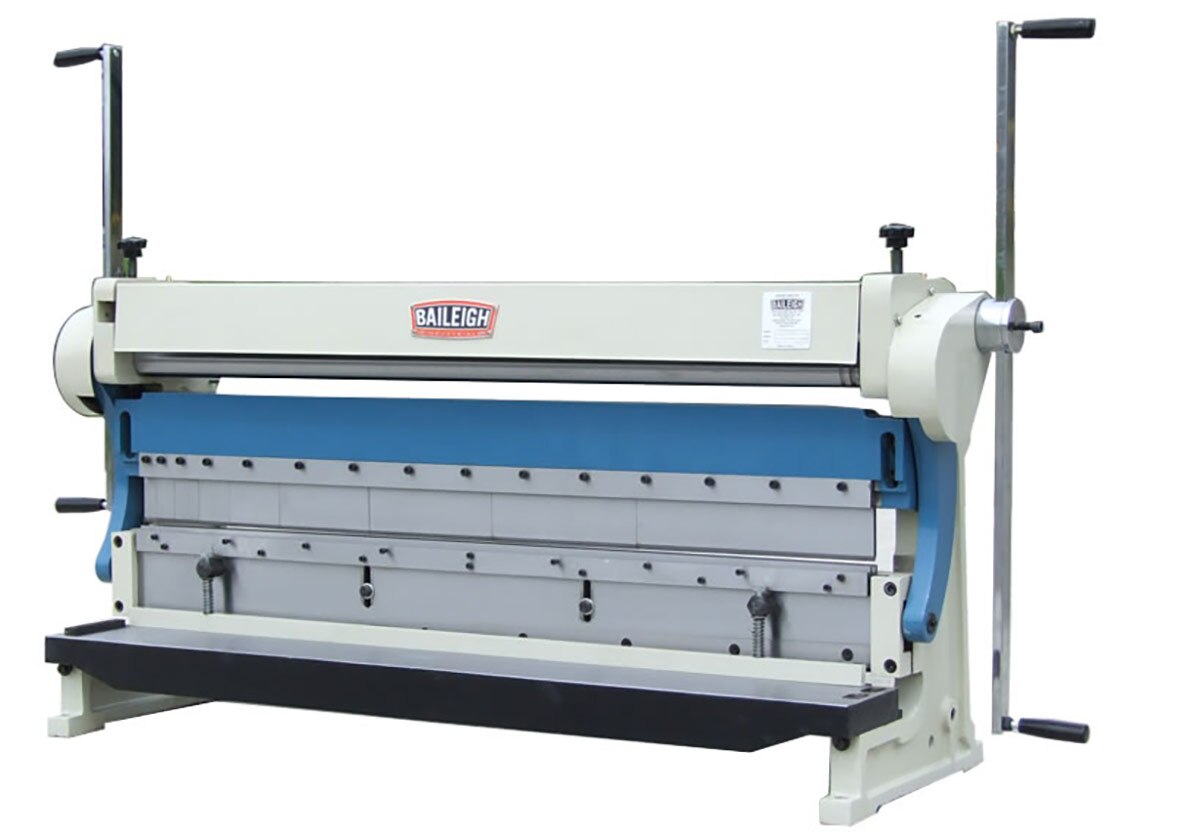

The SBR-5216 is unlike anything on the market, this shear roller brake has a massive 16 gauge mild steel capacity over its entire with of 52”. This one machine consists of a low production press brake, slip roll, and sheet metal shear. The SBR-5216 is the most powerful 3-in-1 combination machine on the market and is offered at an economical price making it perfect for home shops, industrial art shops, and other facilities where small production runs don't justify dedicated individual machines.
Baileigh Industrial 1006972 Includes
- (1) Shear Brake Roll
Baileigh Industrial 1006972 Features
- 52” width lets you roll, bend, and shear 4’ x 8’ sheets.

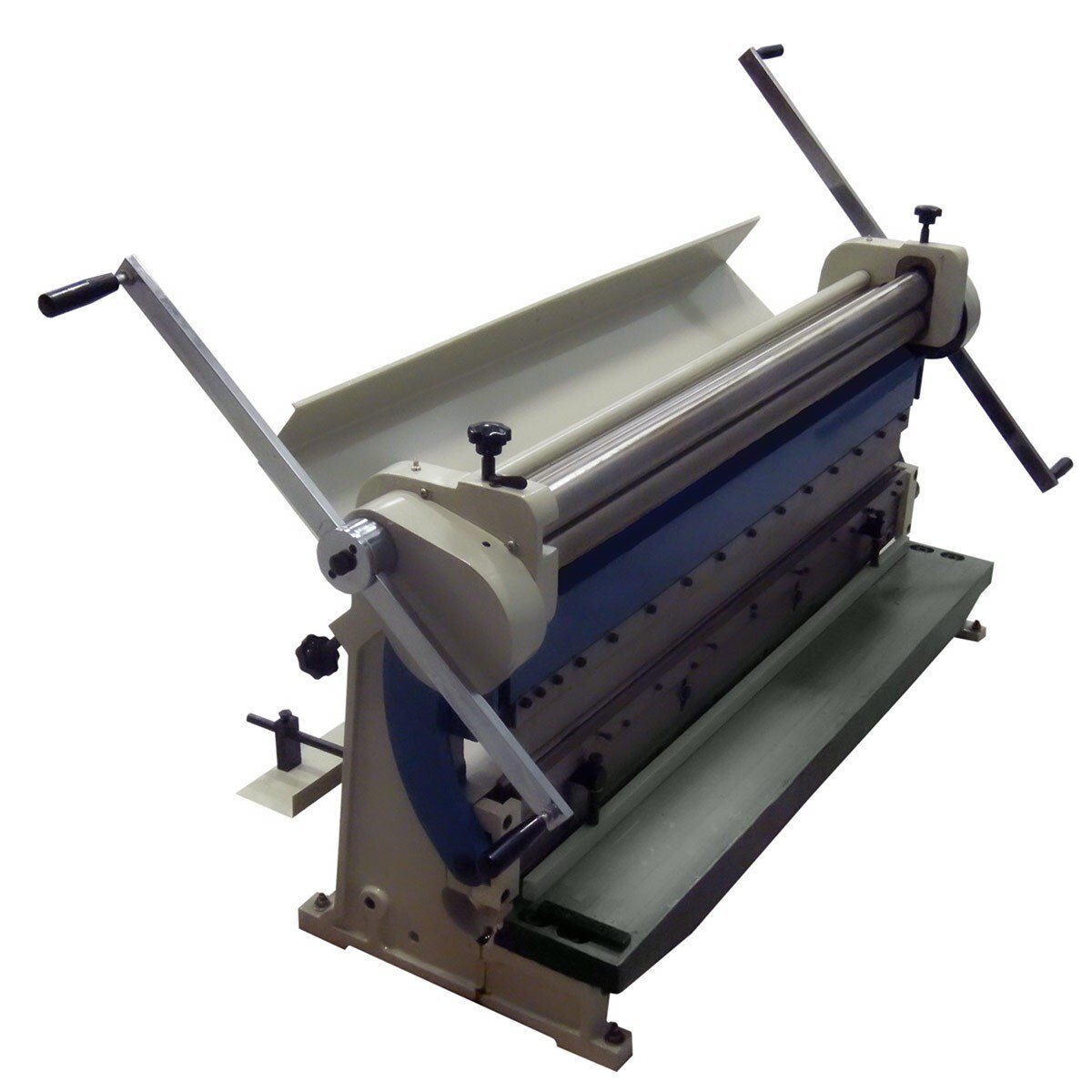

- Slip roll portion is on top, press brake in the middle, and sheet metal shear on the bottom.
- 1.70” minimum rolling diameter.

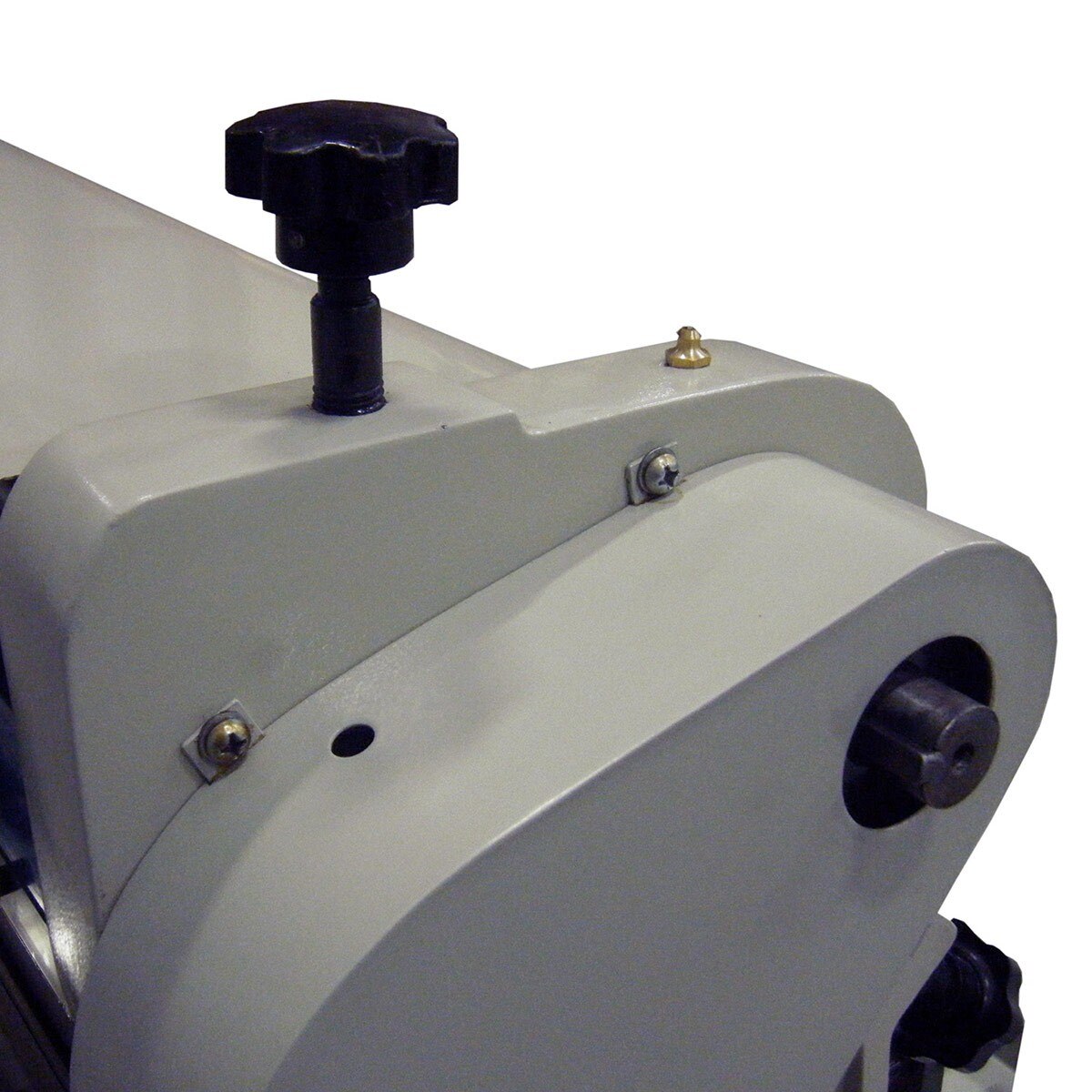

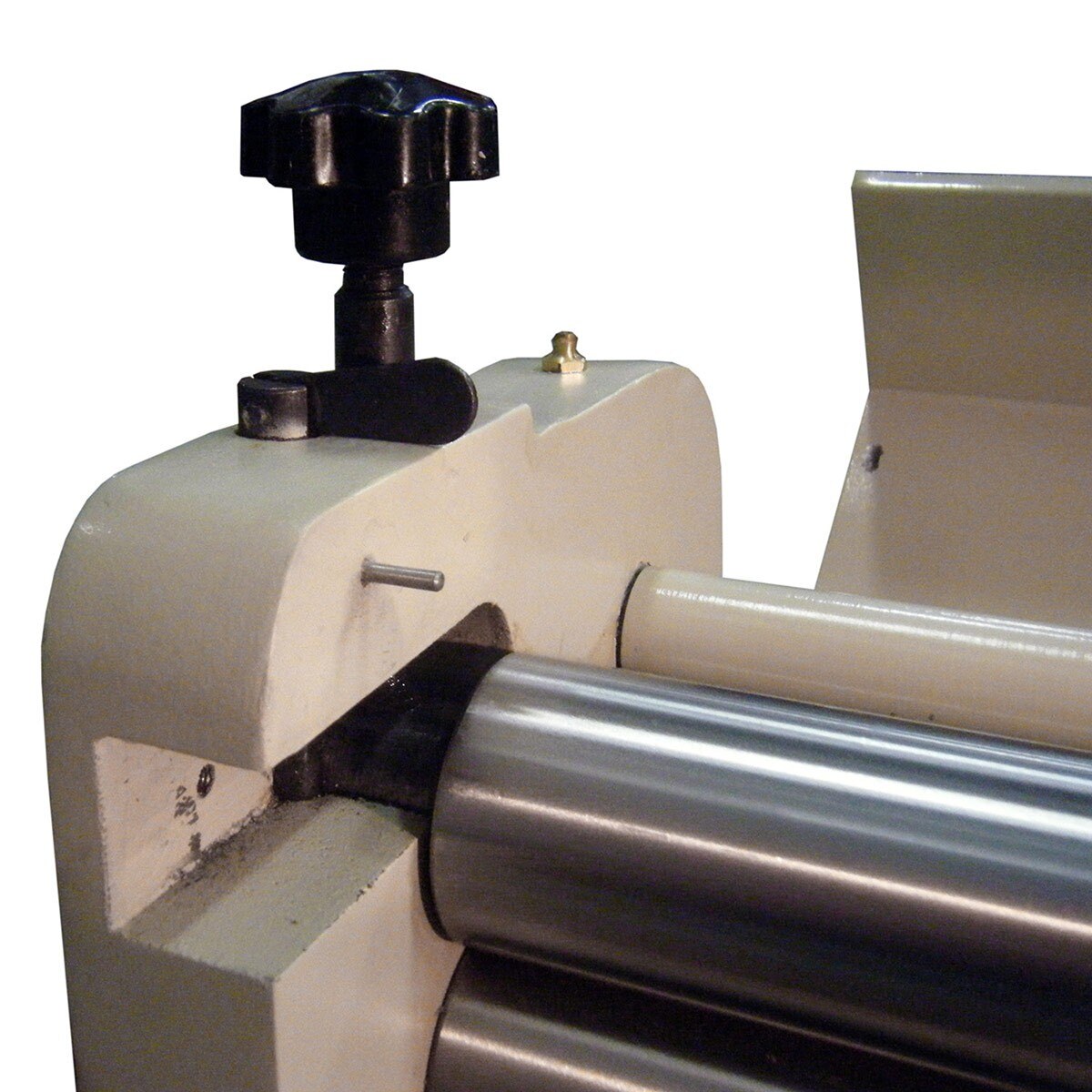

- Hardened, adjustable back and top rolls can form different thicknesses.
- Top roll can swing away from the machine for convenient material removal.

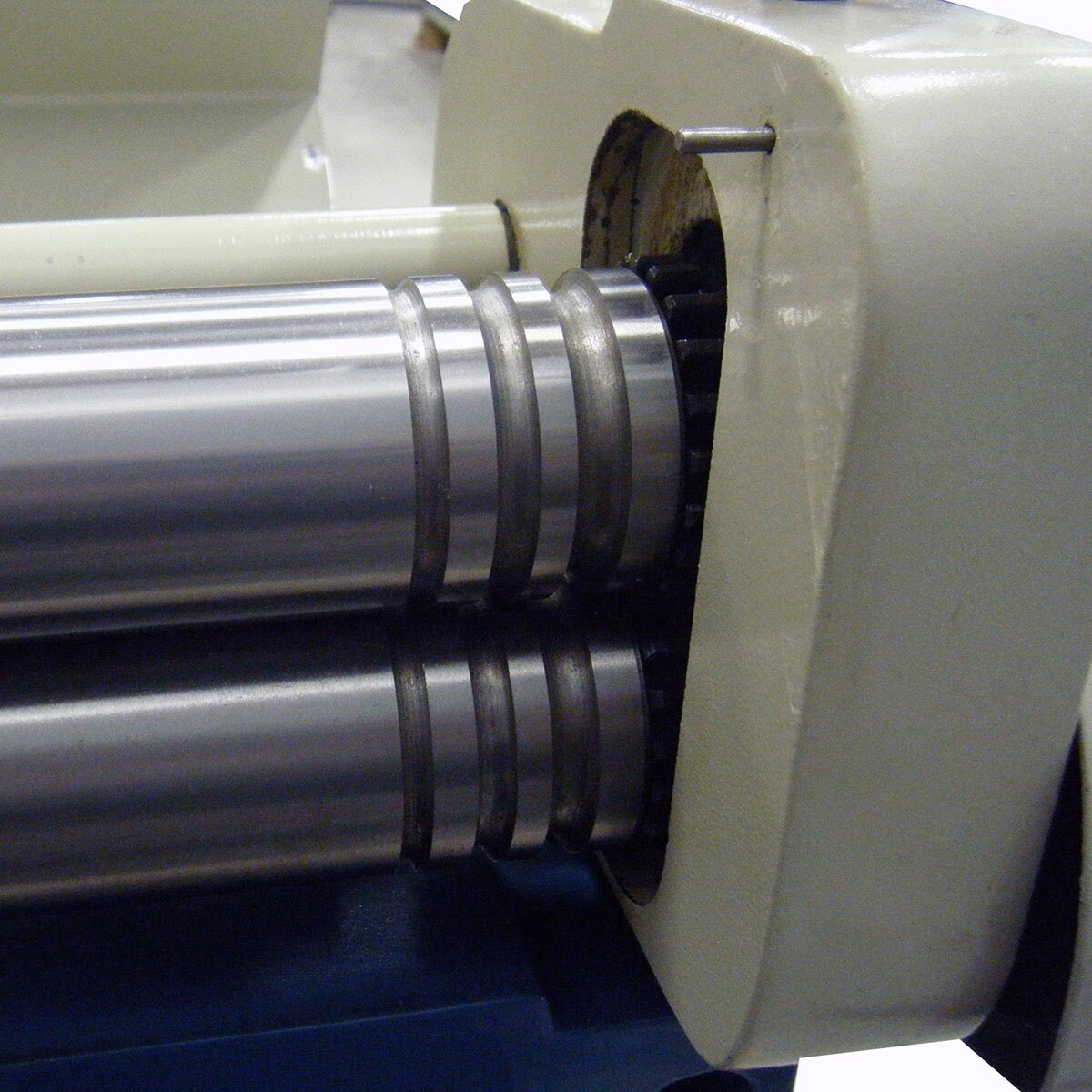

- 3 grooves on the roll can form wire or round rod.
- Manual press brake section comes with a fixed bottom V-block die.
- The SBR-5216 combination shear brake roller bends up to 90°, so you can make perfect corners.
- 9 movable fingers on the top beam can make many sizes of boxes and pans.
- Crowning feature adjusts the camber of press brake tooling to make consistent bends across your material.

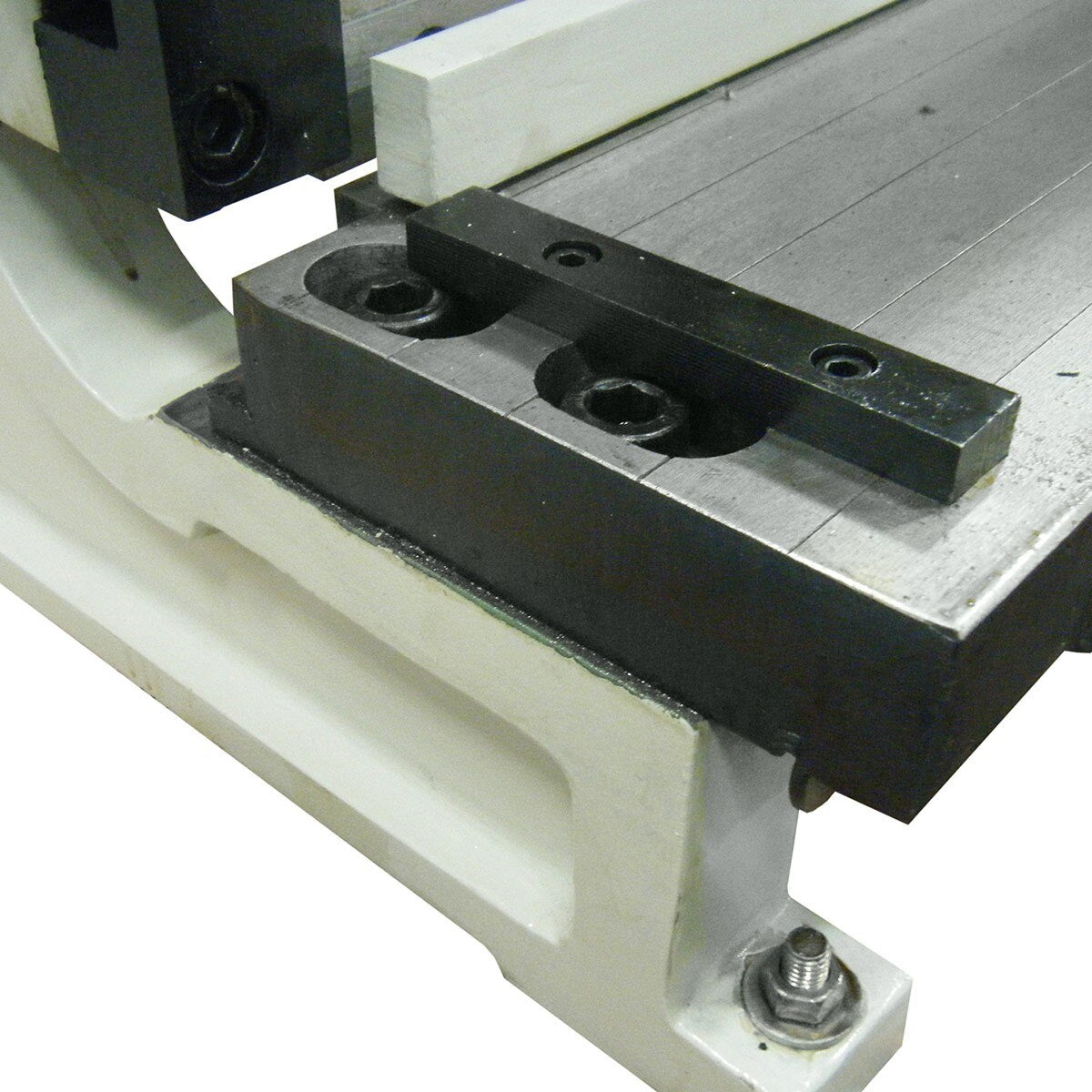

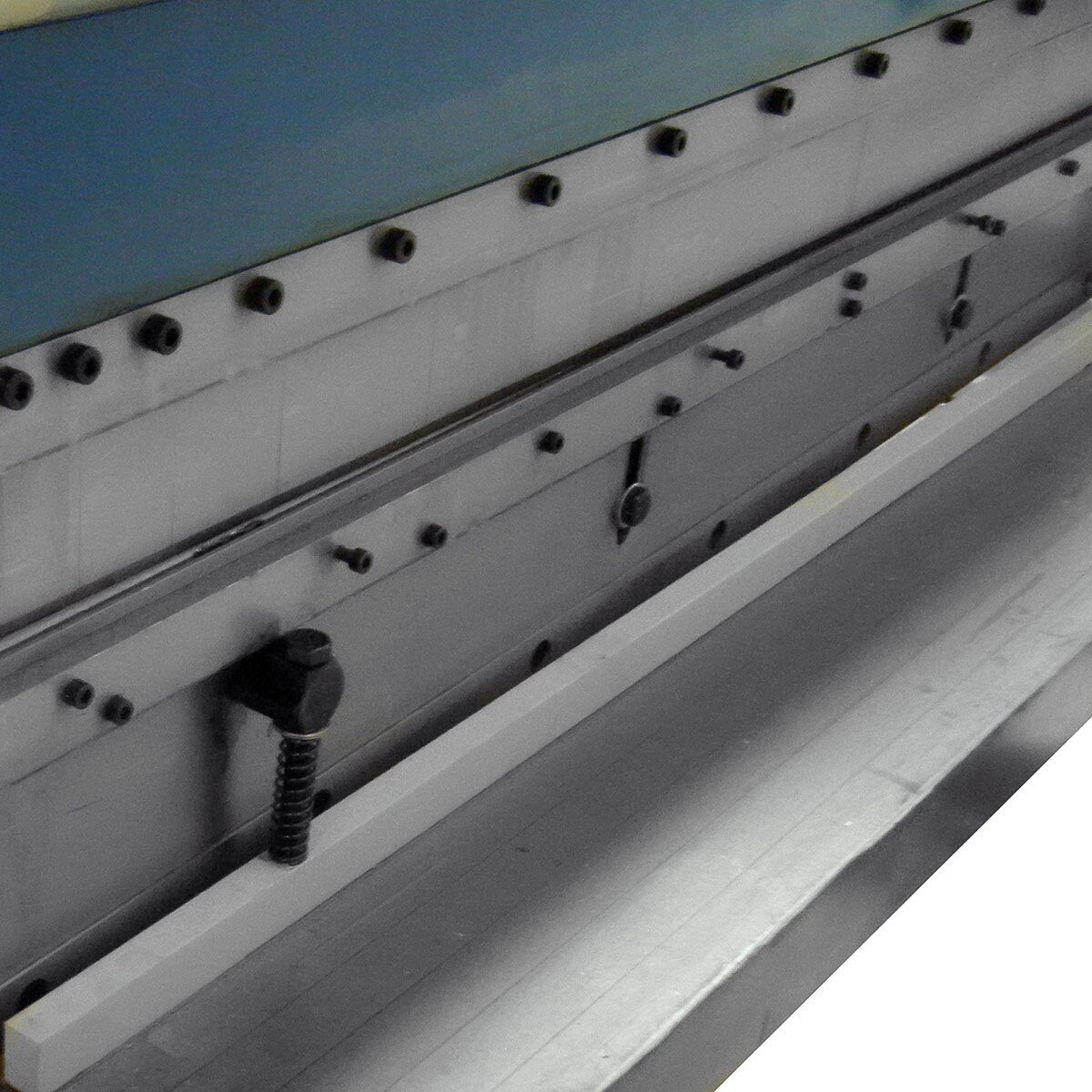

- Shear portion includes a spring-loaded clamp or hold-down to keep the material from lifting up, extend blade life, improve cut quality.
- You can adjust the blade gap to fit different gauges of sheet metal.

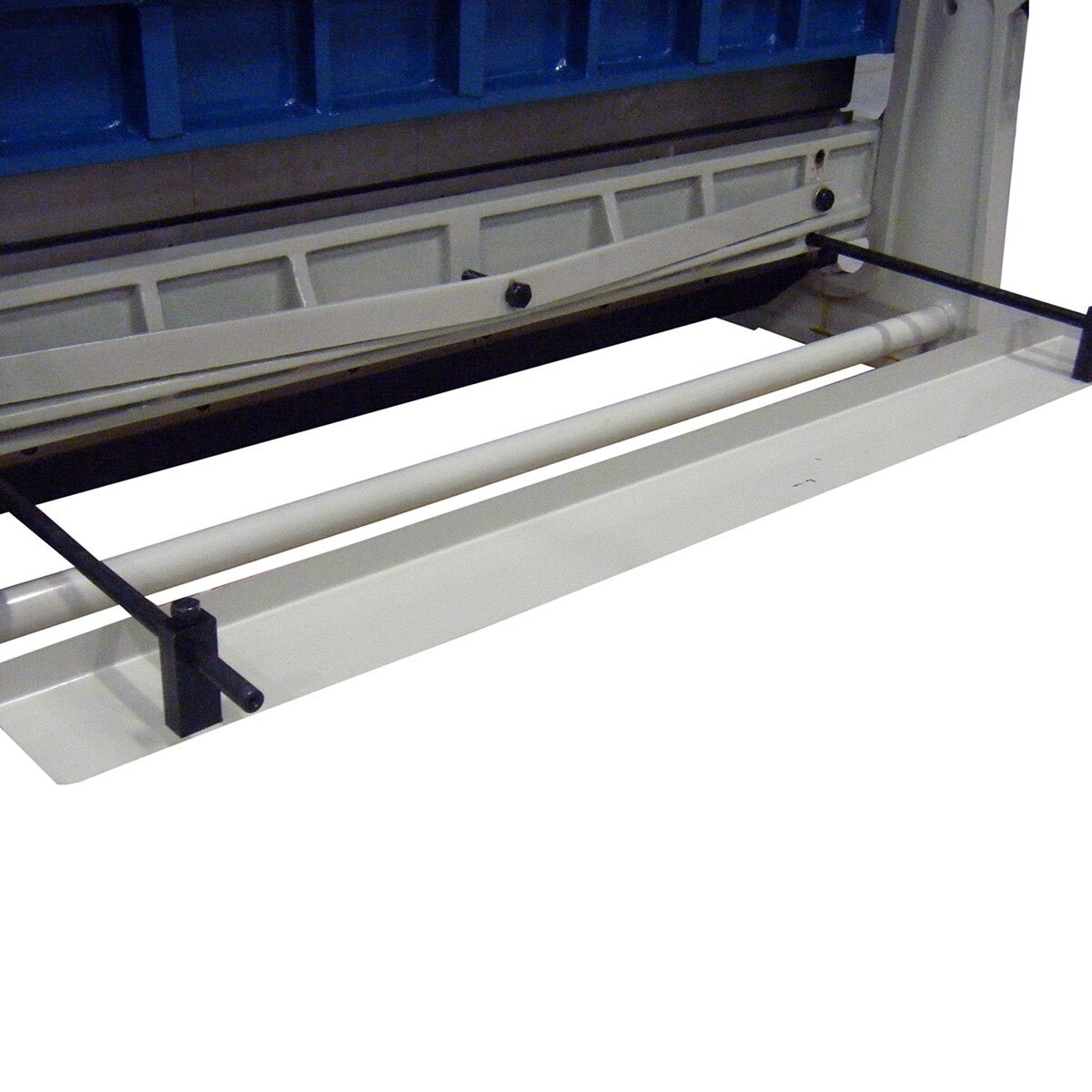

- Includes a material guide.
- Hardened, reversible blades stay sharp.
- Manual back gauge helps you easily produce repeatable parts.
- Heavy steel construction, weighing 1,200 lbs., gives this combo machine the power to deliver accurate results for many years.
- The SBR-5216 combination shear brake and roll is covered by a 1-year parts warranty.
Baileigh Industrial 1006972 Specifications
| Top Roll Dia. | 2.38" |
| Max. Material Thickness (Stainless Steel) | .039" |
| Rolling Capacity | 16 Gauge (.060”) |
| Shear Capacity | 16 Gauge (.060”) |
| Min. Rolling Dia. | 3.57” |
| Bed Width | 52" |
| Bending Capacity | 16 Gauge (.060”) |
| Maximum Bend Angle | 90° |
| Power | Manual |
| Accessories | Included |
