Baileigh Industrial 1007100 Description

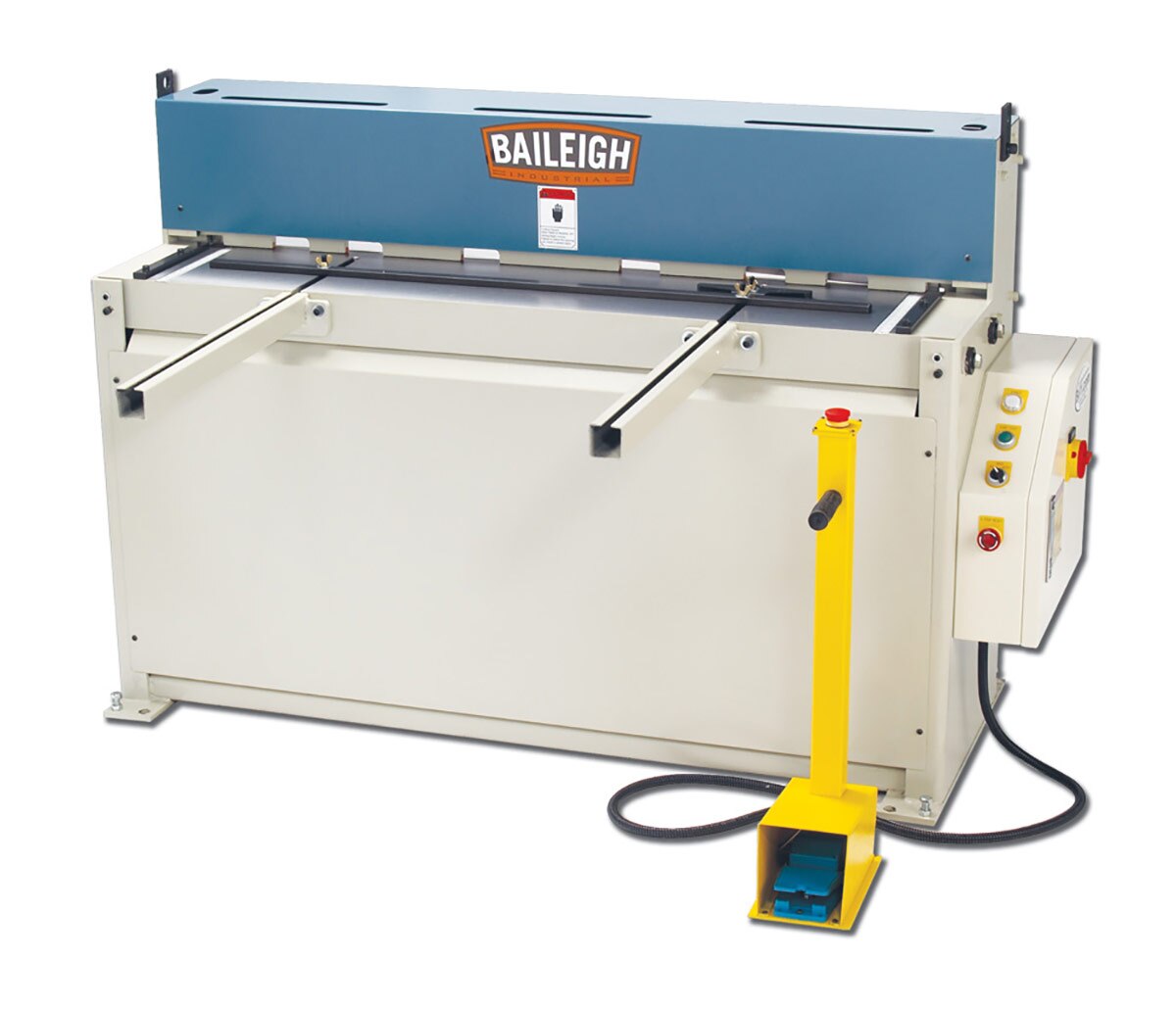

This hydraulic shear was one of the machines that got us started and built Baileigh’s quality reputation. With its welded steel frame, the SH-5210 sheet metal shear makes perfect cuts every time.
Baileigh Industrial 1007100 Includes
- (1) Sheet Metal Shear
Baileigh Industrial 1007100 Features
- 52” length.
- 10 gauge mild steel maximum capacity.
- Minimum capacity of 24 gauge mild steel.
- 5 hp motor runs on 220-volt single-phase power.
- Up to 28 strokes per minute.

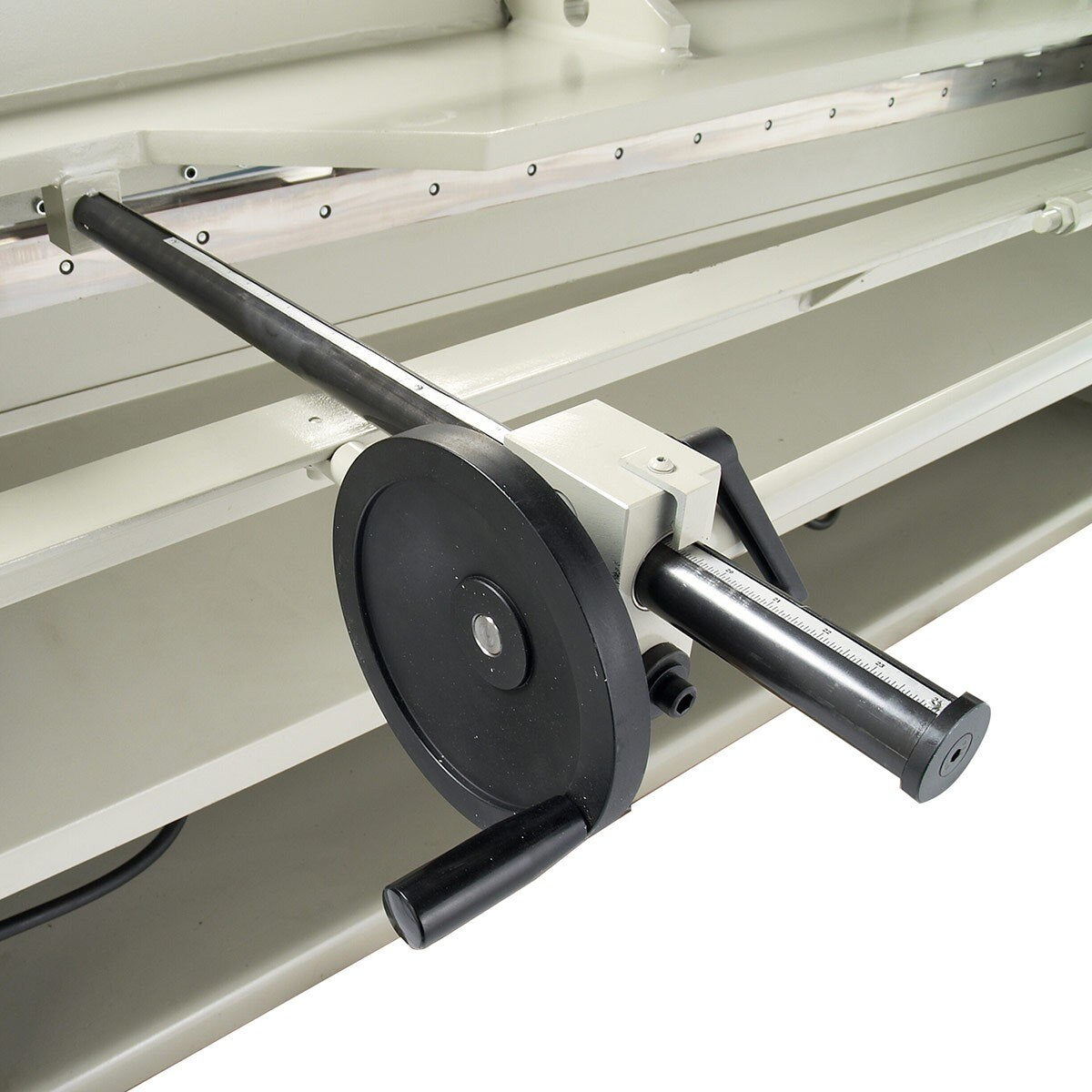

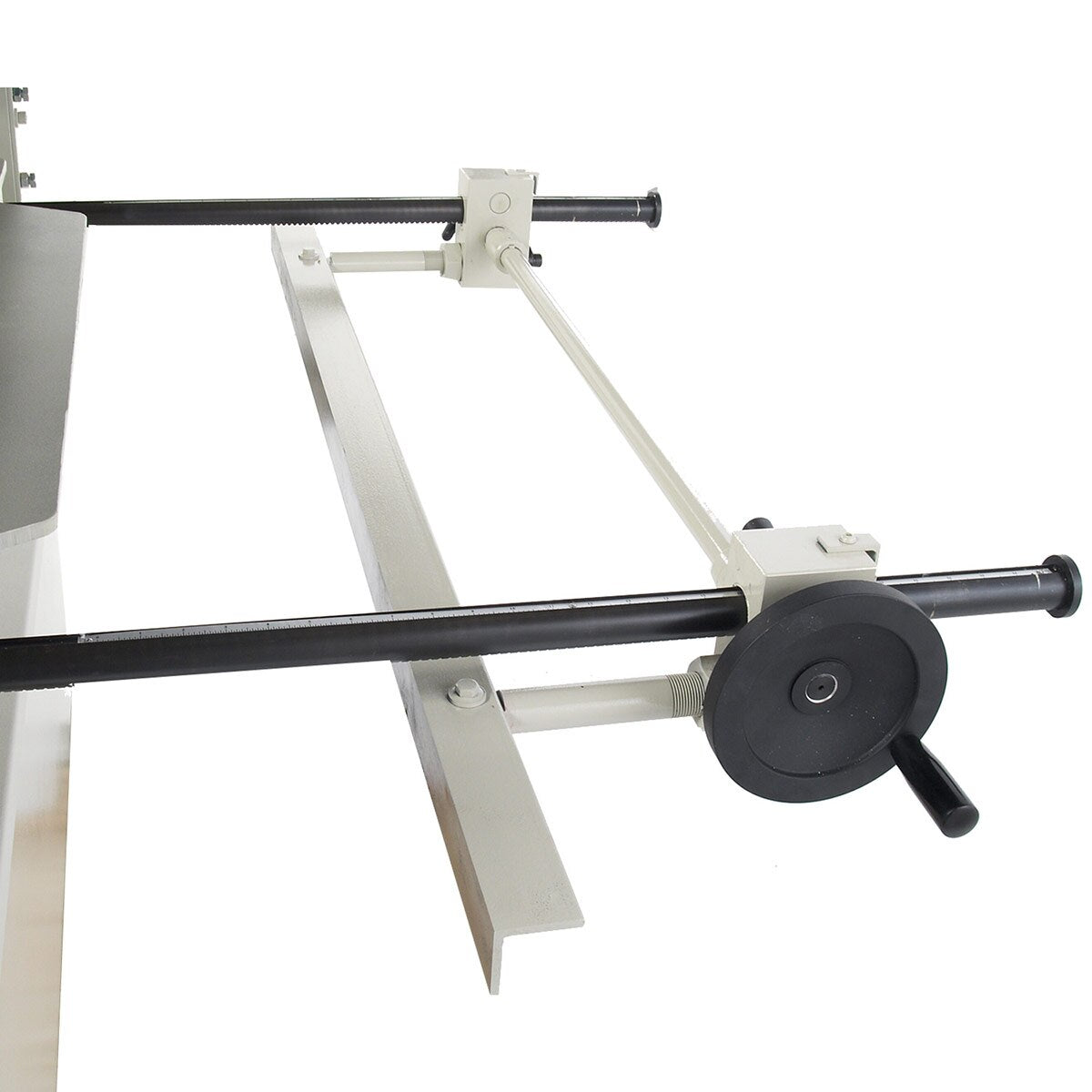

- Adjustable 24” backgauge ensures precise repeatability.

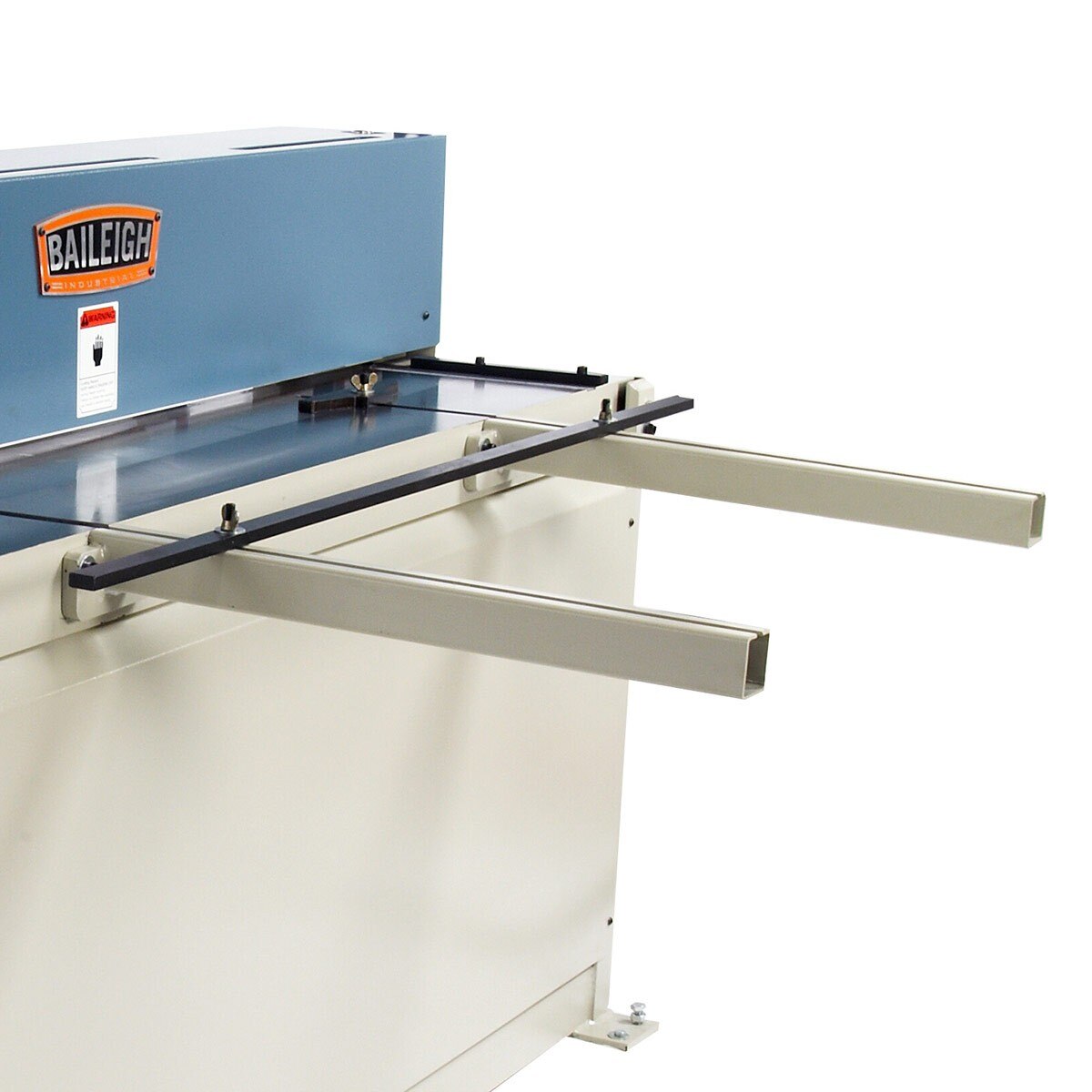

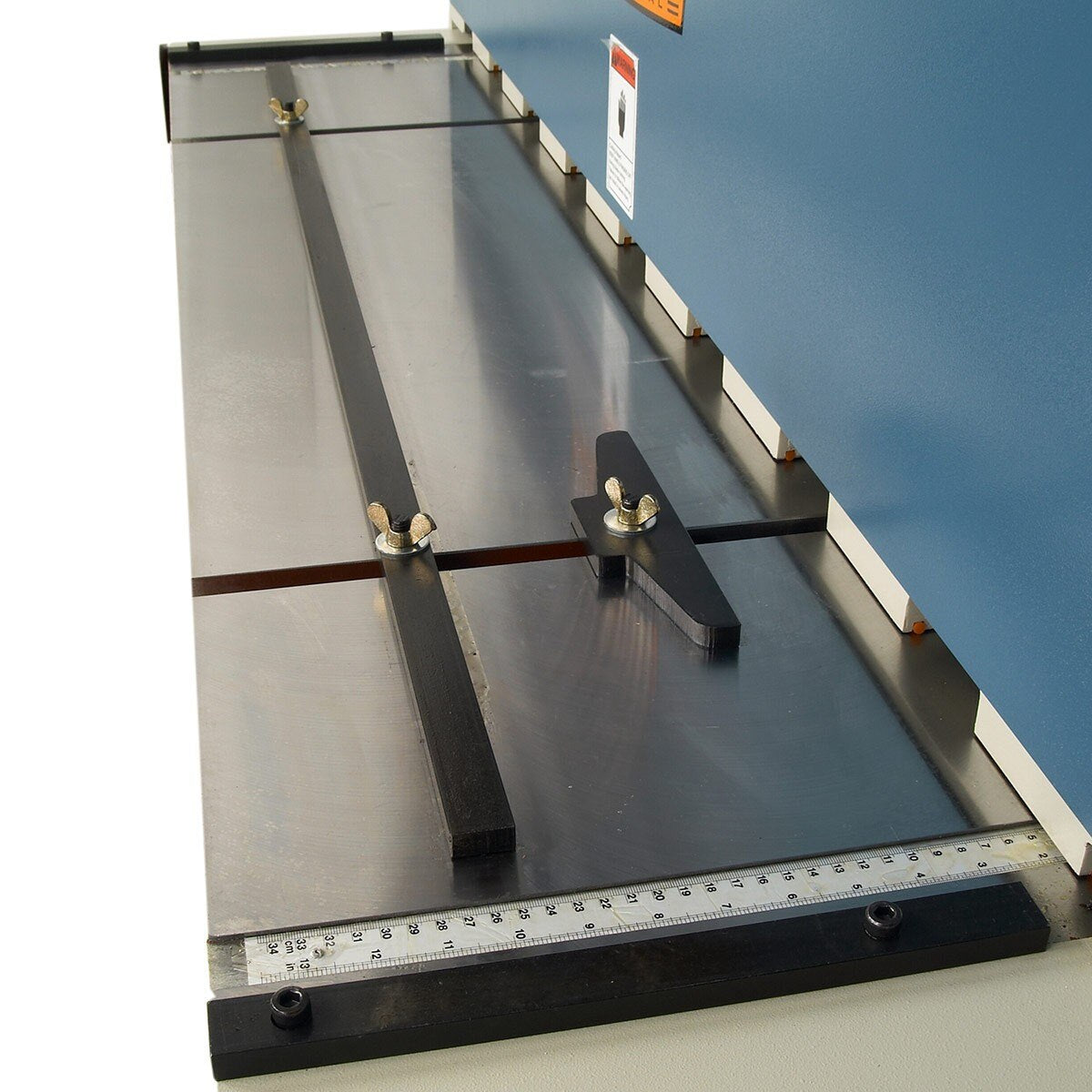

- Front support arms and table guides keep the material square to the blade.

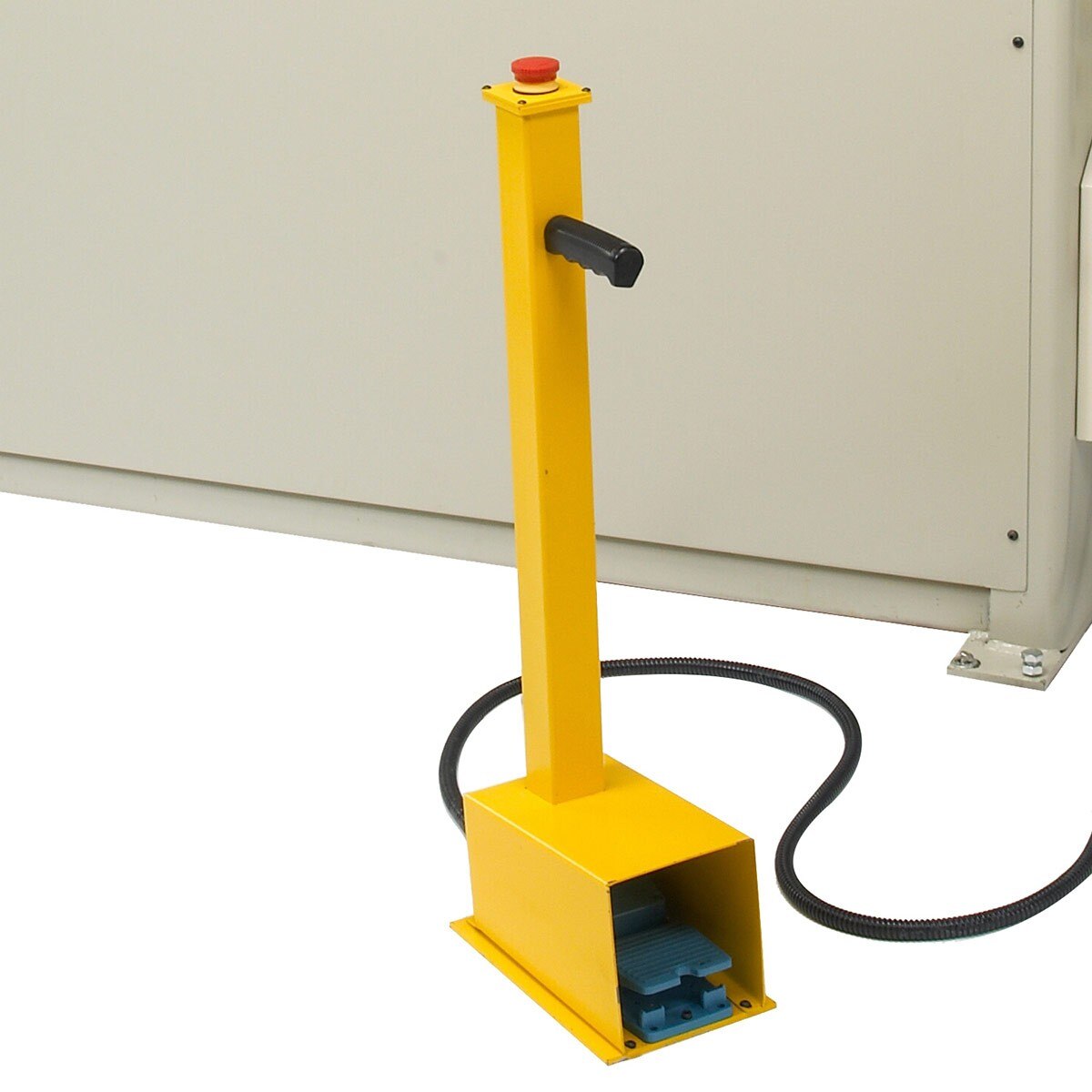

- 3 modes on the operator console: Inch mode: Jog the control and ease the blade down to the material. Single mode: Make one cut cycle per foot pedal push. Auto mode: Continue cycling as you hold the pedal down.
- This hydraulic shear comes standard with high carbon chromium blades.
- Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
- Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.

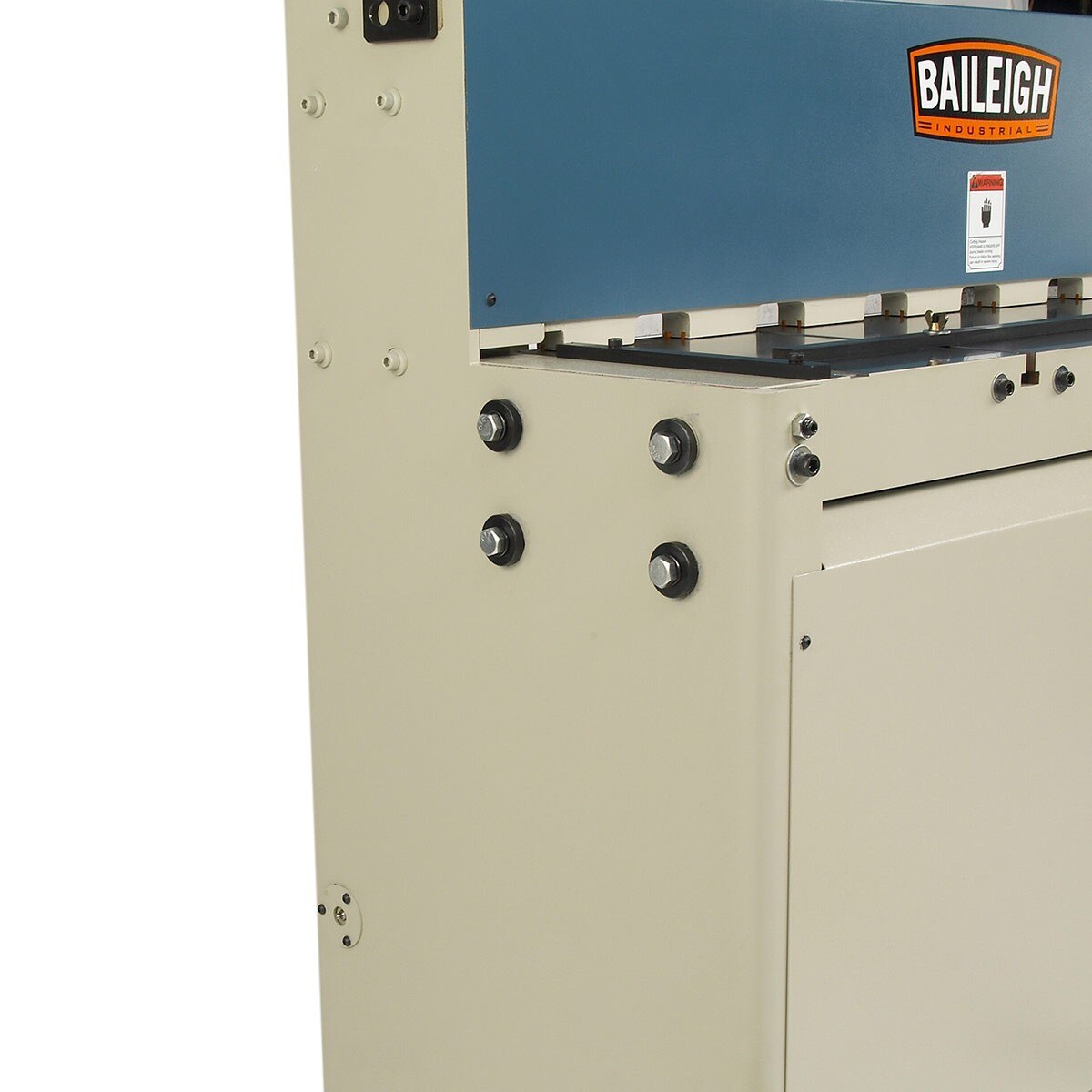

- Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.
- This 10 gauge sheet metal shear is covered by a 1-year parts warranty.
Baileigh Industrial 1007100 Specifications
| Back Gauge Length | 24" |
| Shear Length | 52" |
| Motor | 5 HP |
| Thickness (SS) | 10 Gauge (13 ga.) |
| Strokes Per Minute | 28 |
| Front Gauge Length | 24" |
| Blade Angle | 1° |
| Power | 220V / 1-phase |
| Minimum Material Thickness | 24 Gauge |
| Shipping Dimensions | 75" x 35" x 59" |
