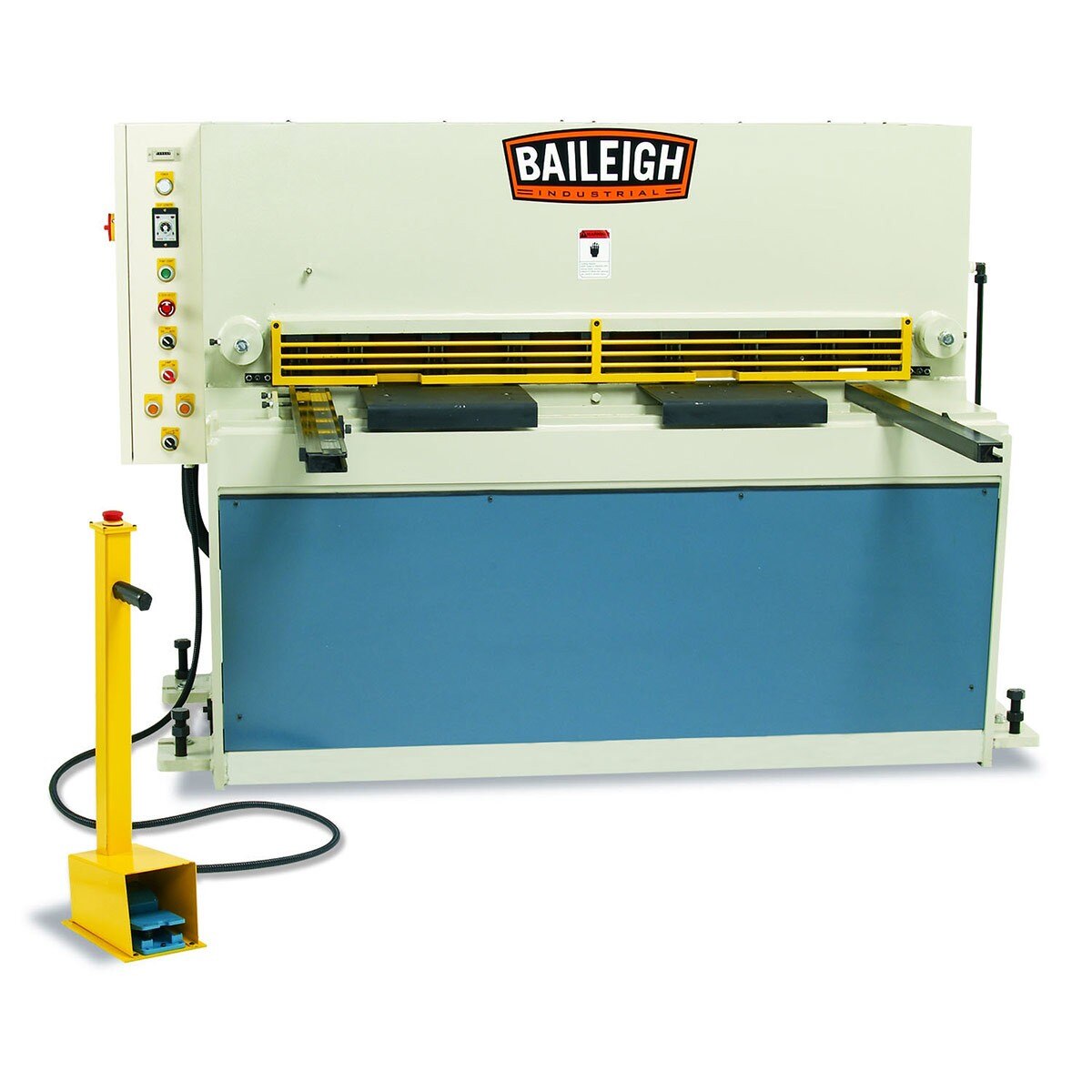

Baileigh Industrial BA9-1007122 Heavy Duty Hydraulic Sheet Metal Shear SH-5210-HD

Free Shipping
$29,839.00 $36,233.07

Description

Baileigh Industrial 1007122 Description

The SH-5210-HD heavy duty hydraulic shear is a heavy duty machine built for years of production. It will take what you can throw at it and keep coming back for more. With its welded steel frame, this hydraulic sheet metal shear offers a long lifespan of use cutting thick materials for high production. The adjustable blade gap and rake angle ensure quality cuts.

Baileigh Industrial 1007122 Includes

  • (1) Hydraulic Sheet Metal Shear

Baileigh Industrial 1007122 Features

  • 52” length.
  • 10 gauge mild steel maximum capacity.
  • Minimum capacity of 24 gauge mild steel.

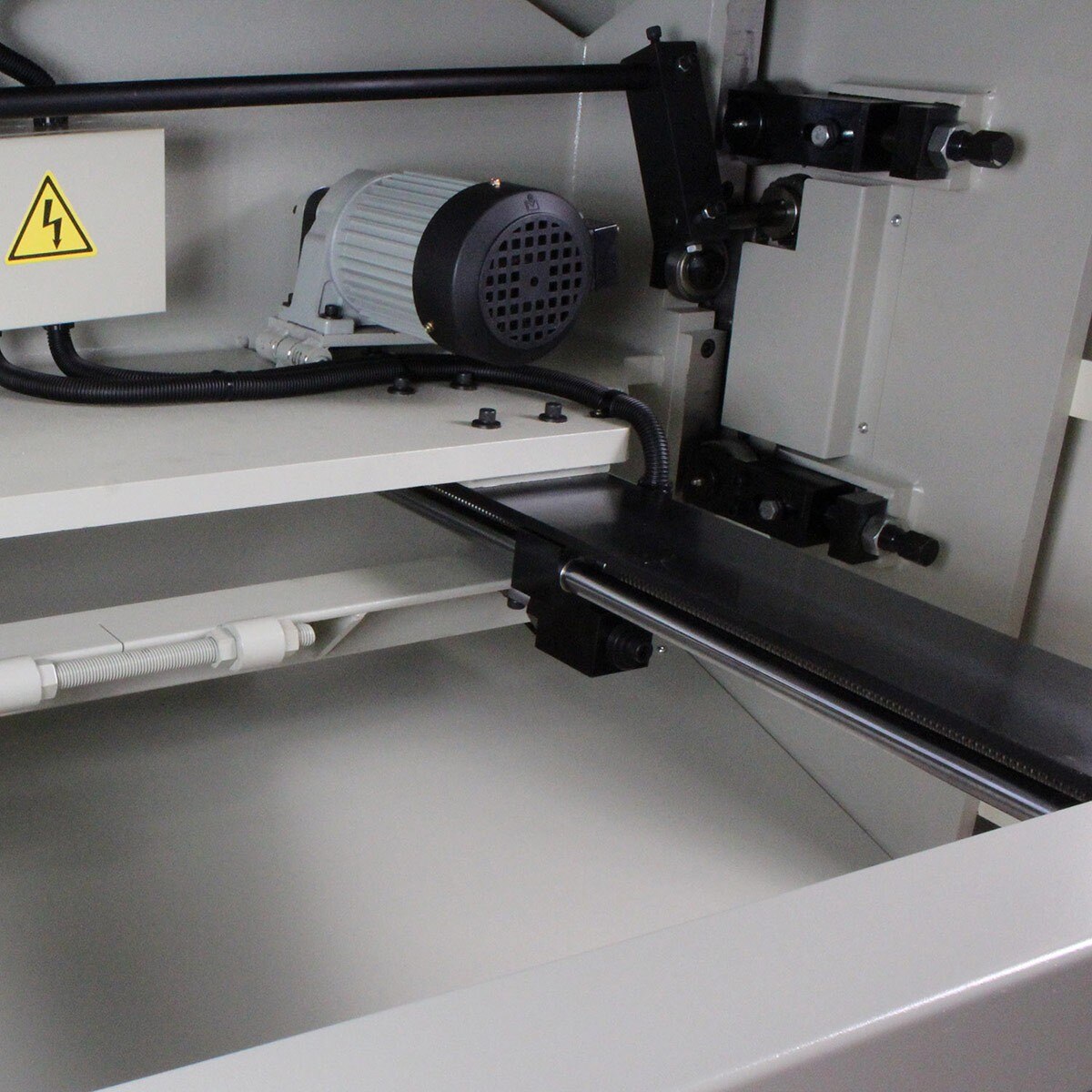

  • 7.5 hp motor runs on 220-volt 3-phase power.

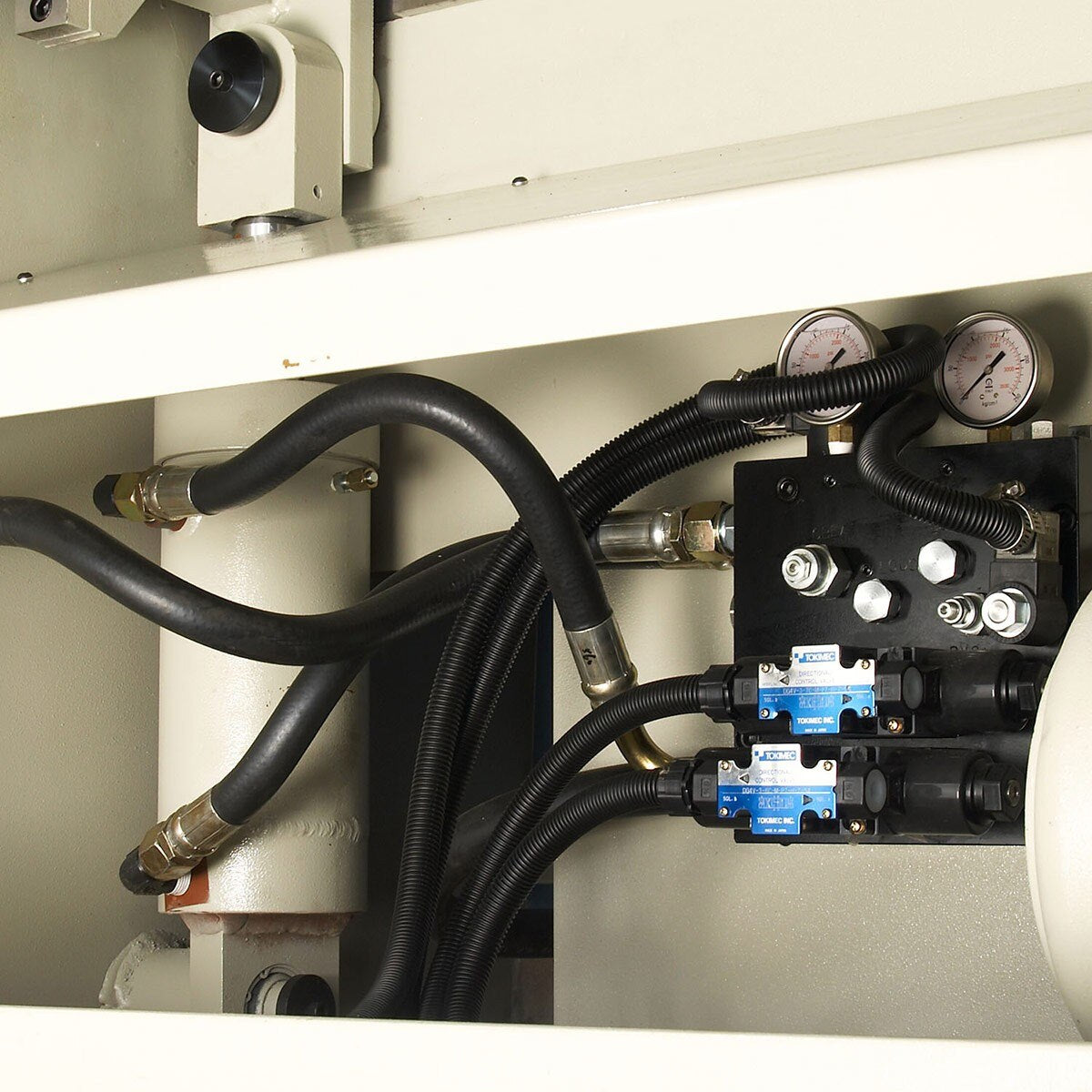

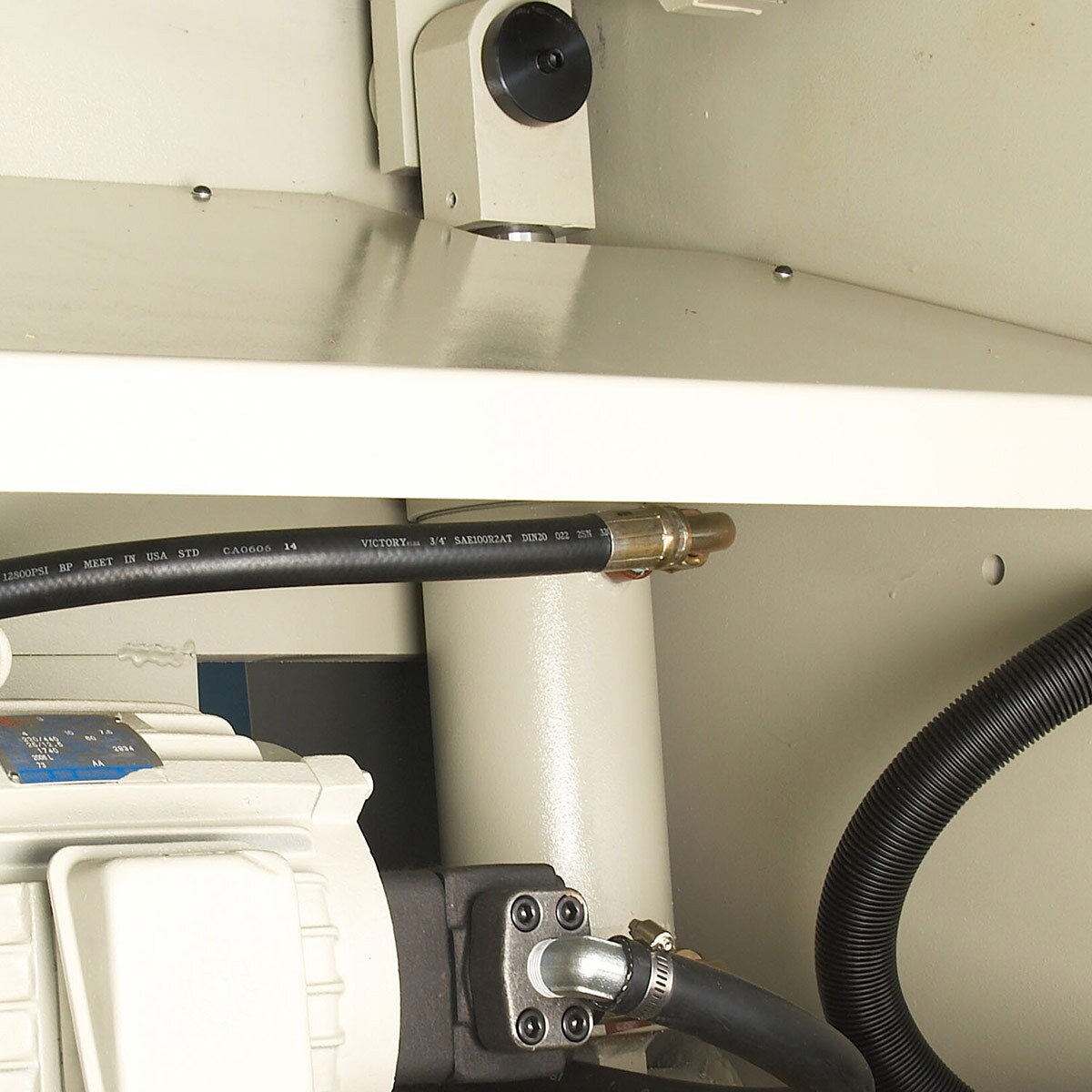

  • Industrial-grade hydraulic system is located in the front for easy fluid changes.
  • 35 to 47 strokes per minute for speedy production.

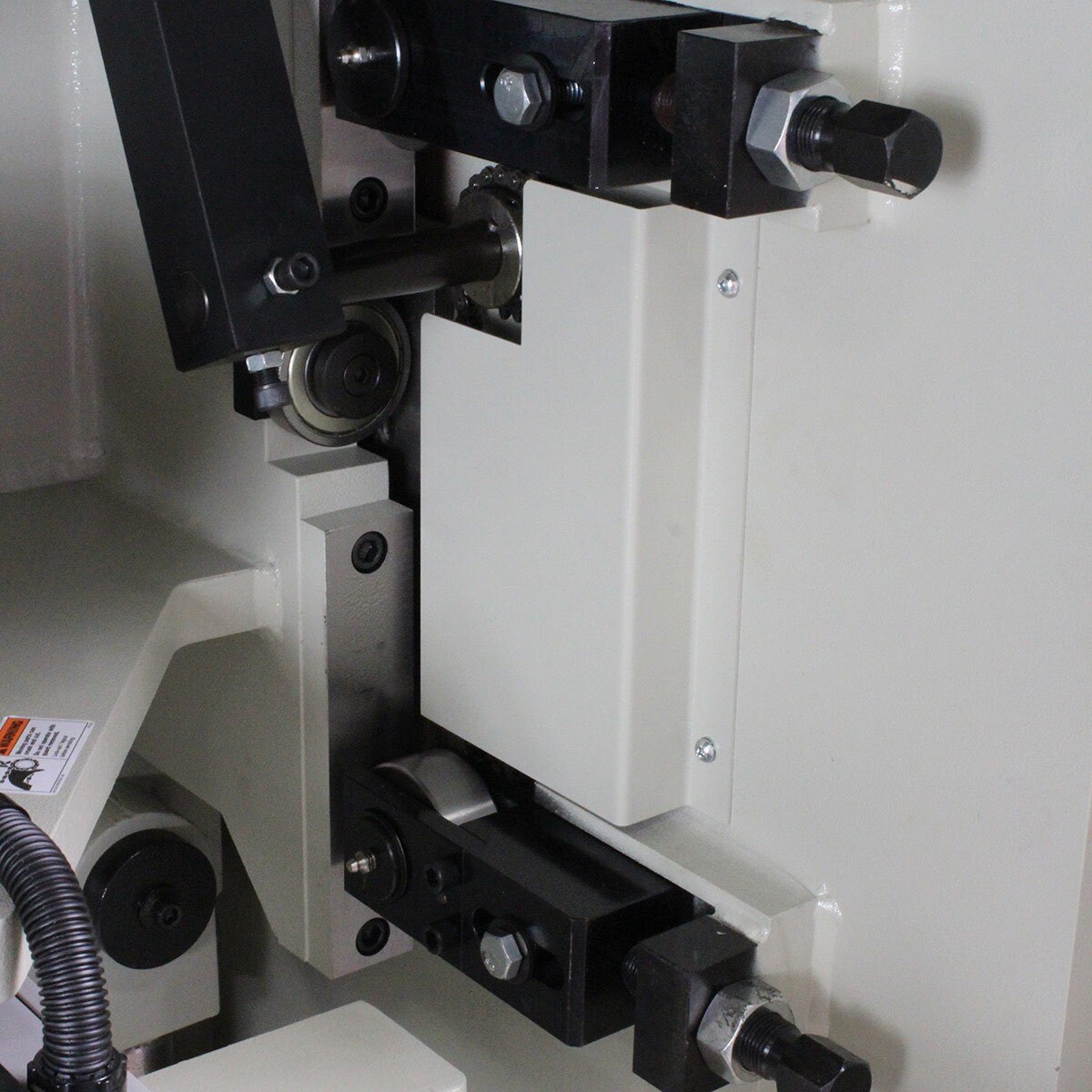

  • Shearing carriage rides on hardened ways and uses heavy-duty bearings to reduce friction.
  • Manually adjustable 23.62” backgauge ensures precise repeatability.

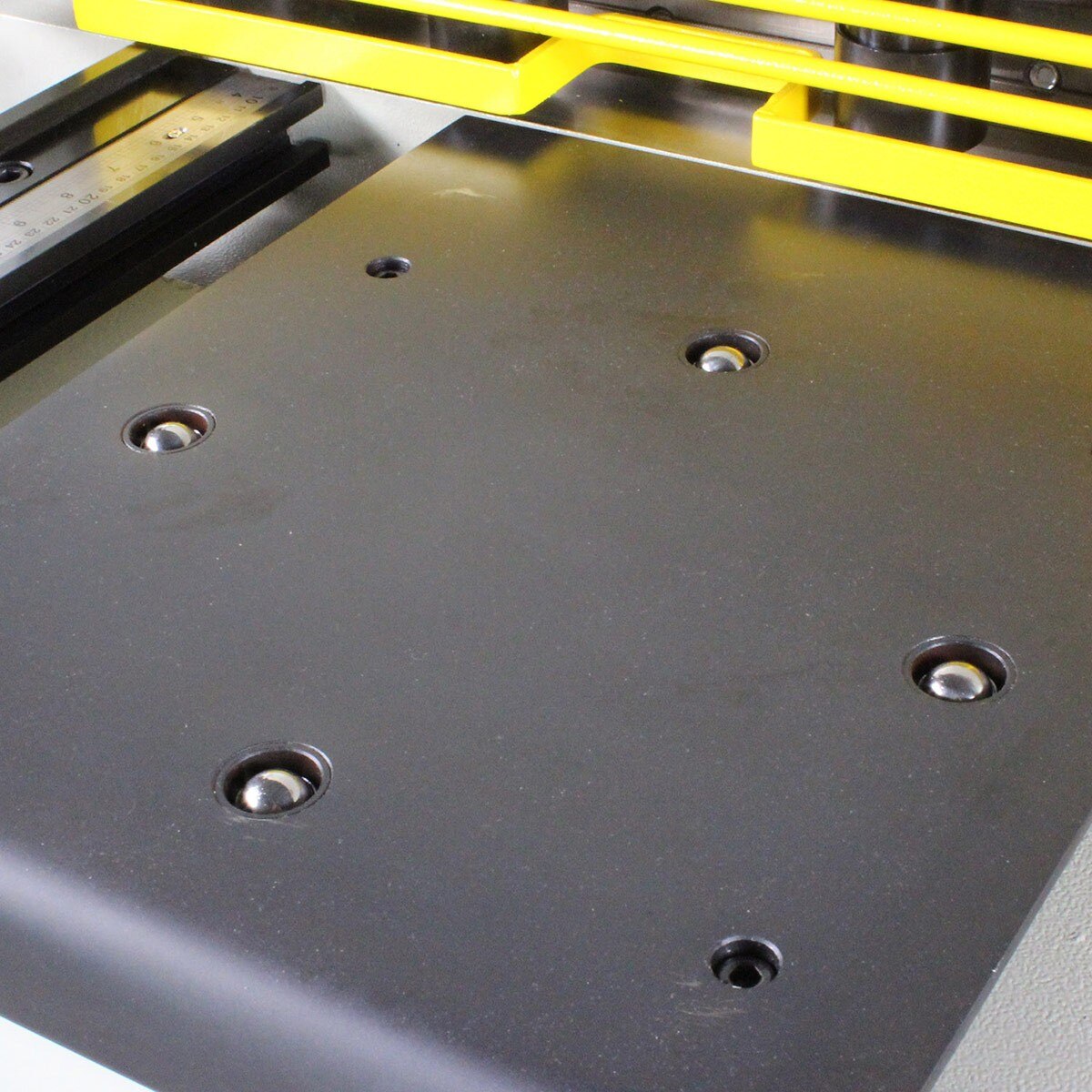

  • Heavy duty table with roller bars slides material into the machine more easily.

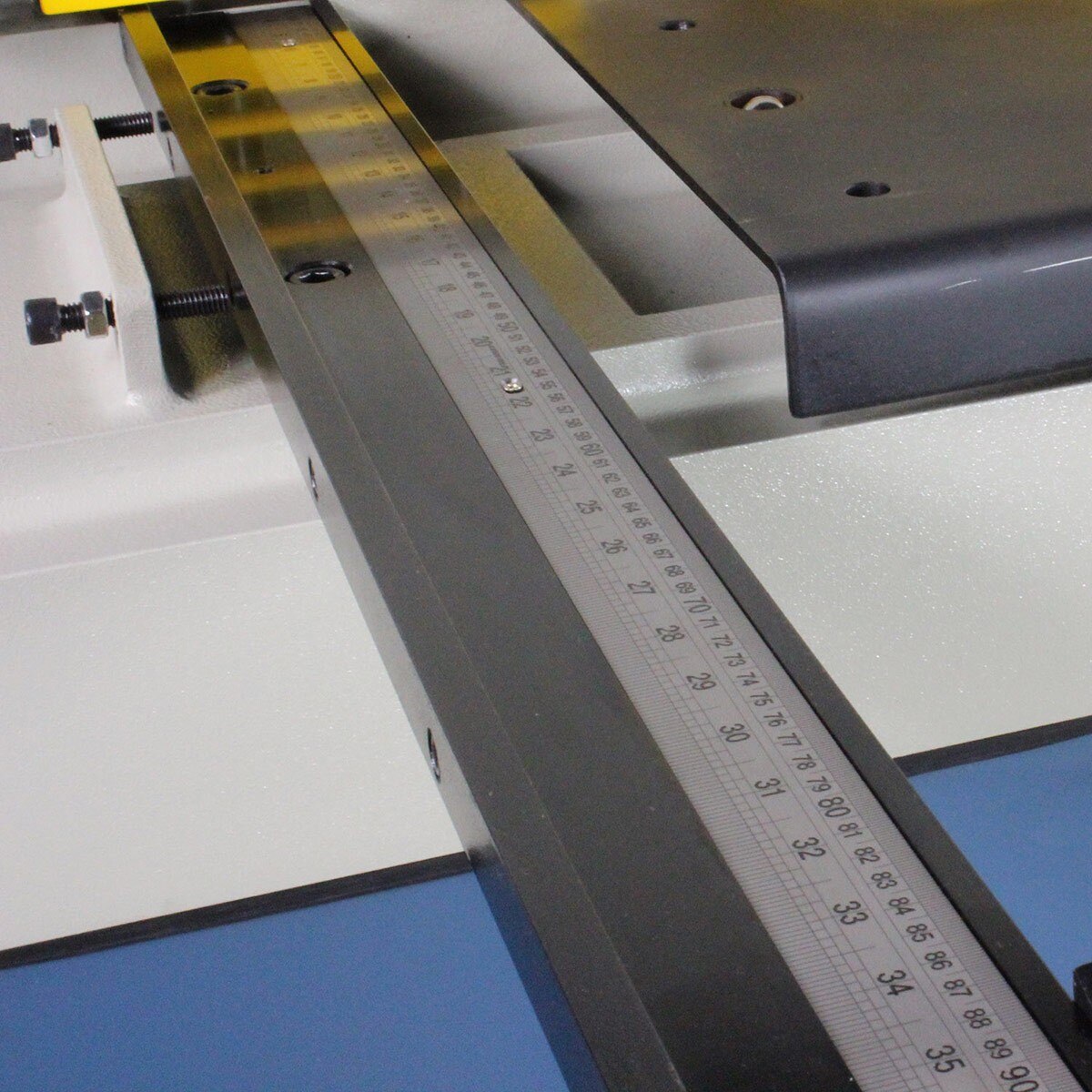

  • Side gauges keep the cut at 90° (if you so choose) without you needing to make a guiding line on the material.
  • Switch between 3 modes as needed: Jog mode: Inching the blade down to the material. Single cycle mode: One cut for one pedal push. Automatic cycling mode: Continuously cutting for production runs.

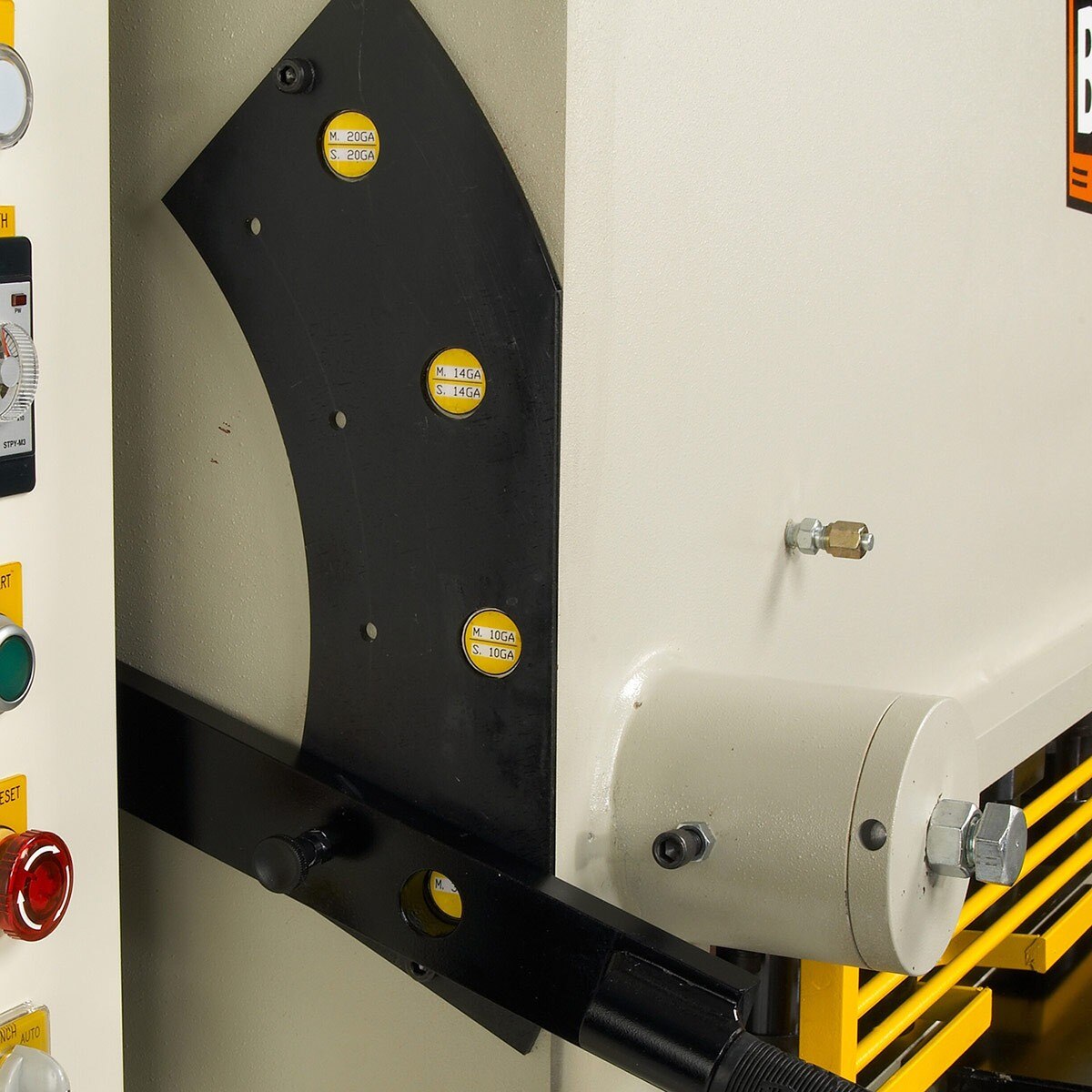

  • Adjustable rake angle dial makes it easy to fit your material thickness to minimize burr and put less strain on hydraulics.
  • Convenient blade gap adjustment lets you eliminate folding and twisting.
  • Comes standard with high carbon chromium blades.
  • 2-sided upper blades and 4-sided lower blades can be flipped and resharpened as needed, saving money.

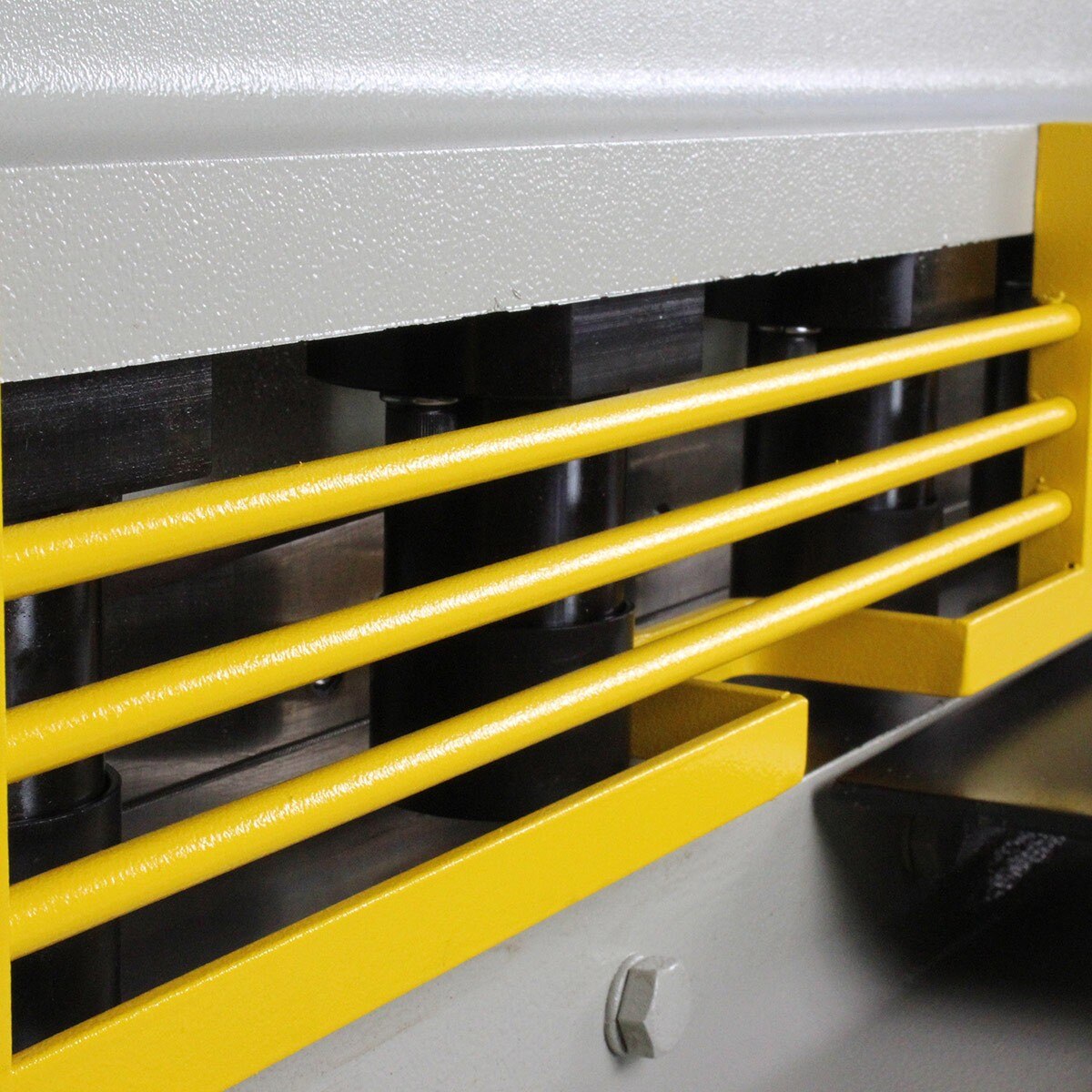

  • Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
  • Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.

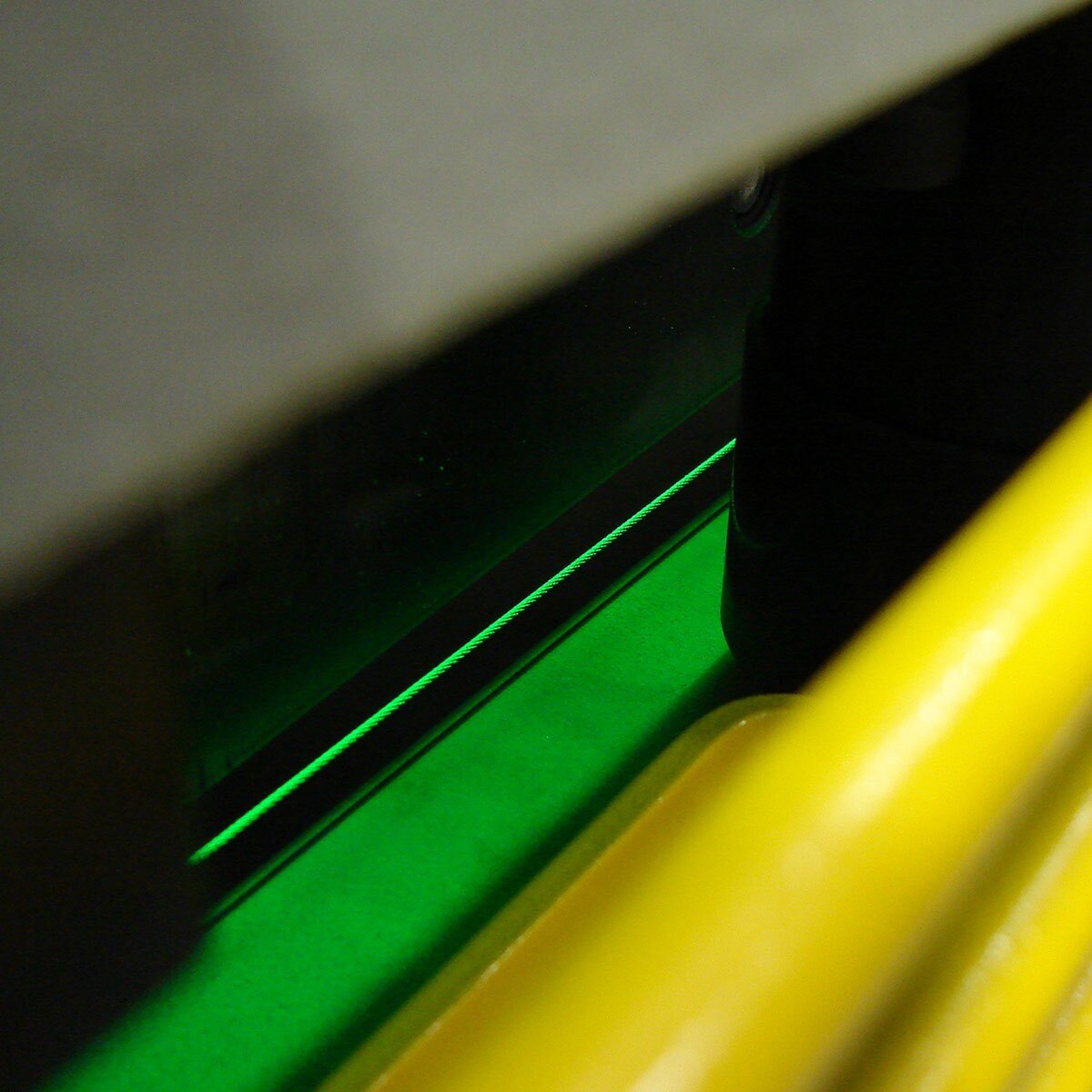

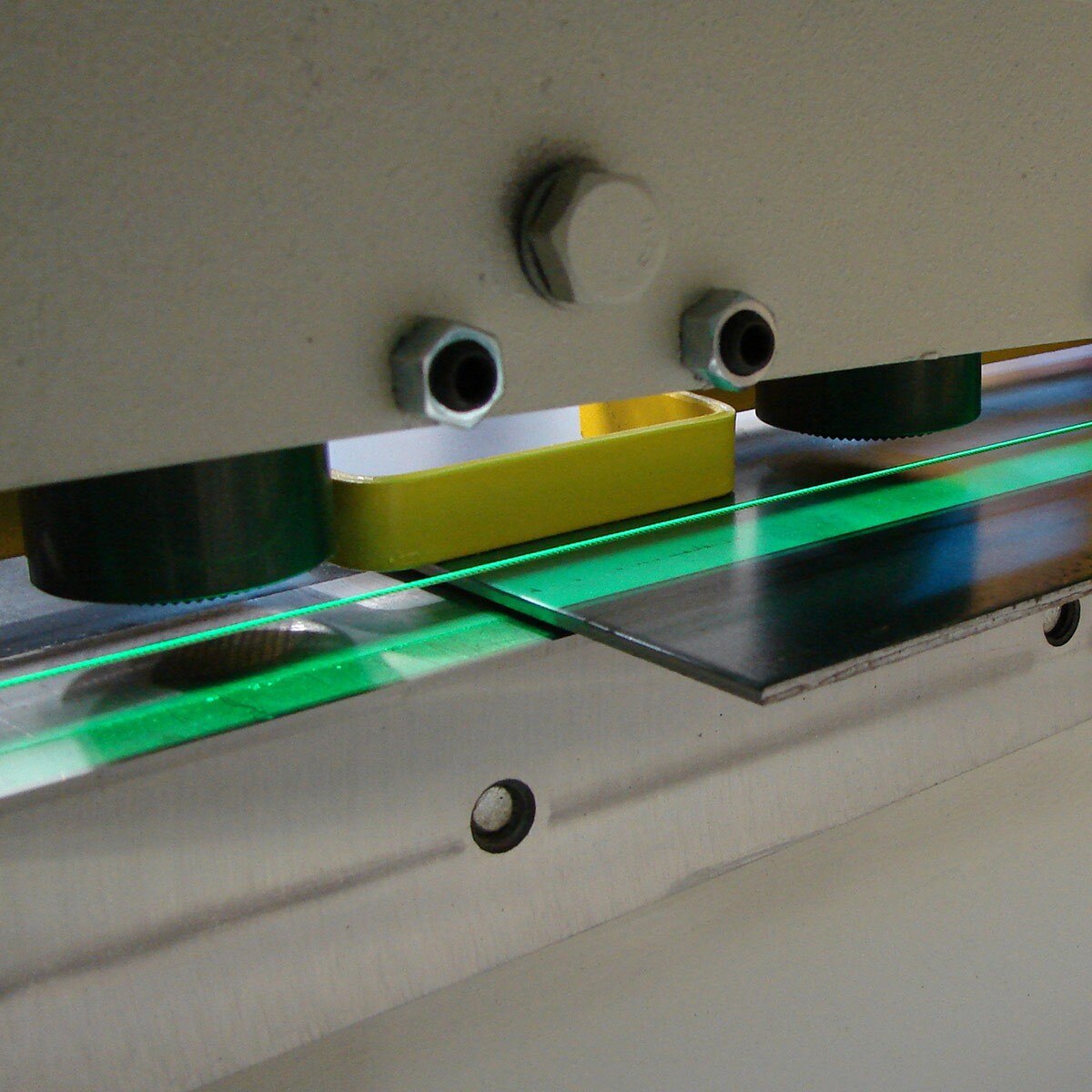

  • Shadow line creates a reference line on the material so you know exactly where the cut will be.
