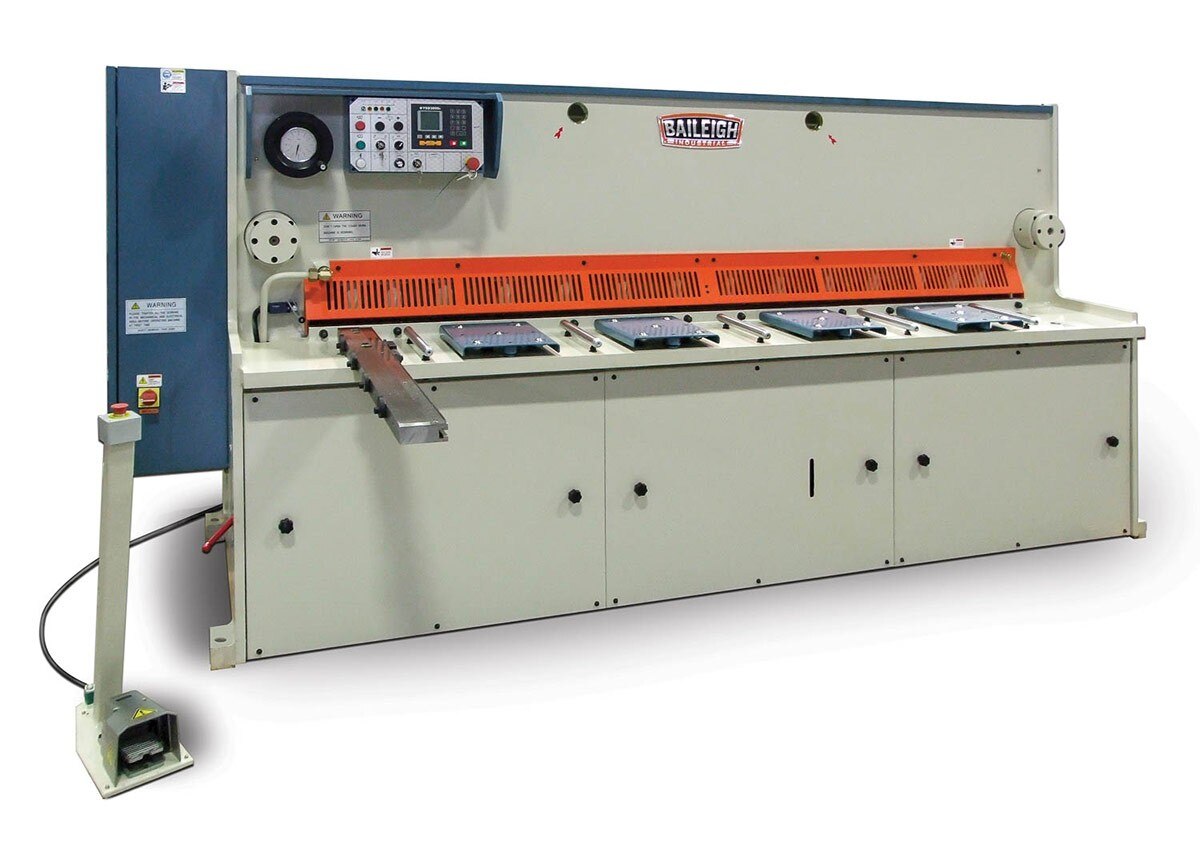

Baileigh Industrial BA9-1007179 Heavy Duty Hydraulic Shear SH-70250-HD
Description
Description
Baileigh Industrial 1007179 Description
This NC shear enables fast, precise production runs with a programmable backgauge. The fully welded steel frame on this heavy-duty shear steel frame eliminates vibrations commonly found on other models.
Baileigh Industrial 1007179 Includes
- (1) Heavy Duty Hydraulic Shear
Baileigh Industrial 1007179 Features
- 96” length
- Maximum capacity of ¼”-thick mild steel.
- 10 hp motor runs on 220-volt 3-phase power.

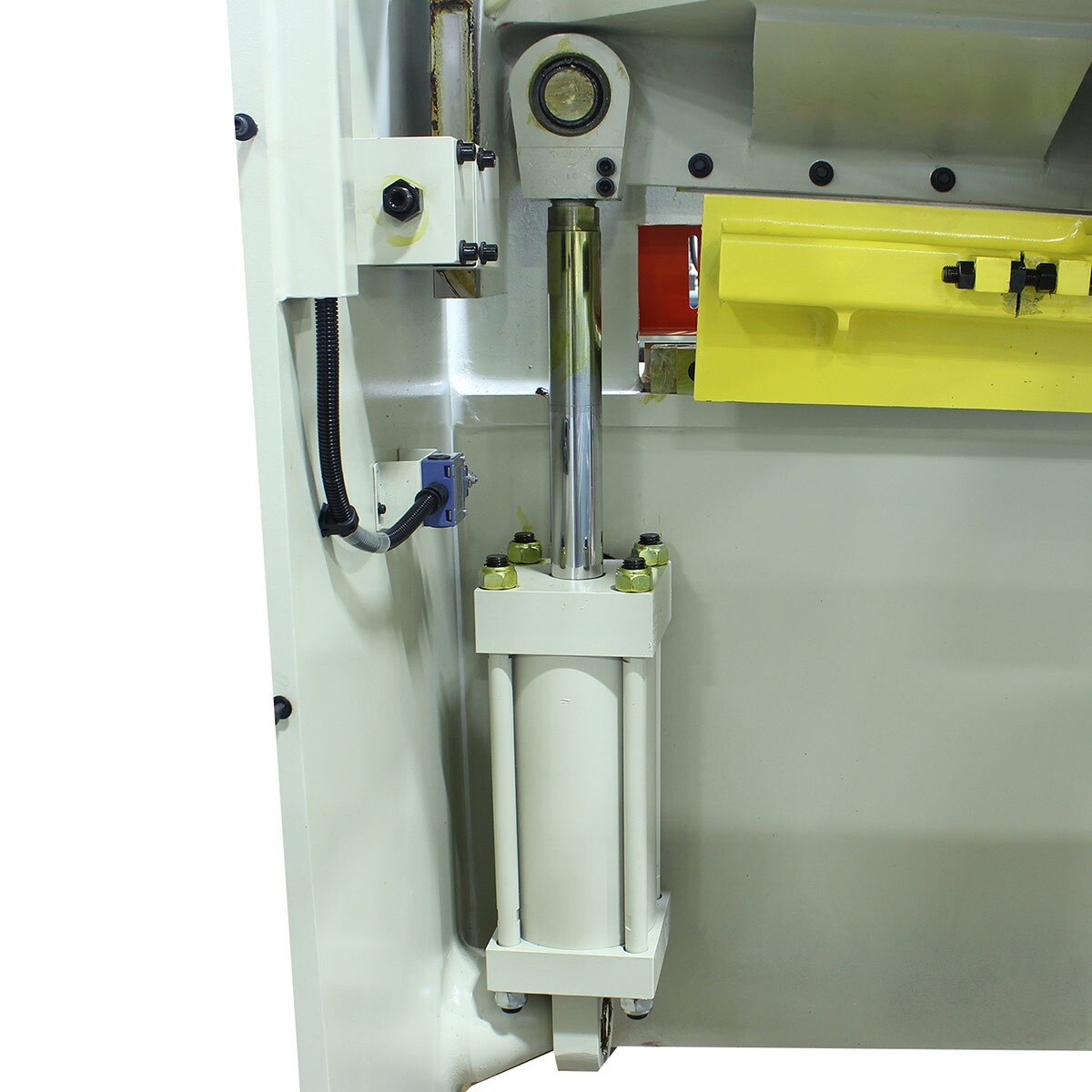

- Uses only the best components, like Schneider electrical parts, Rexroth hydraulics, and NOK seals from Japan.
- Hydraulics are located in the front for simple fluid changes. Just lift the panels using the convenient handles.

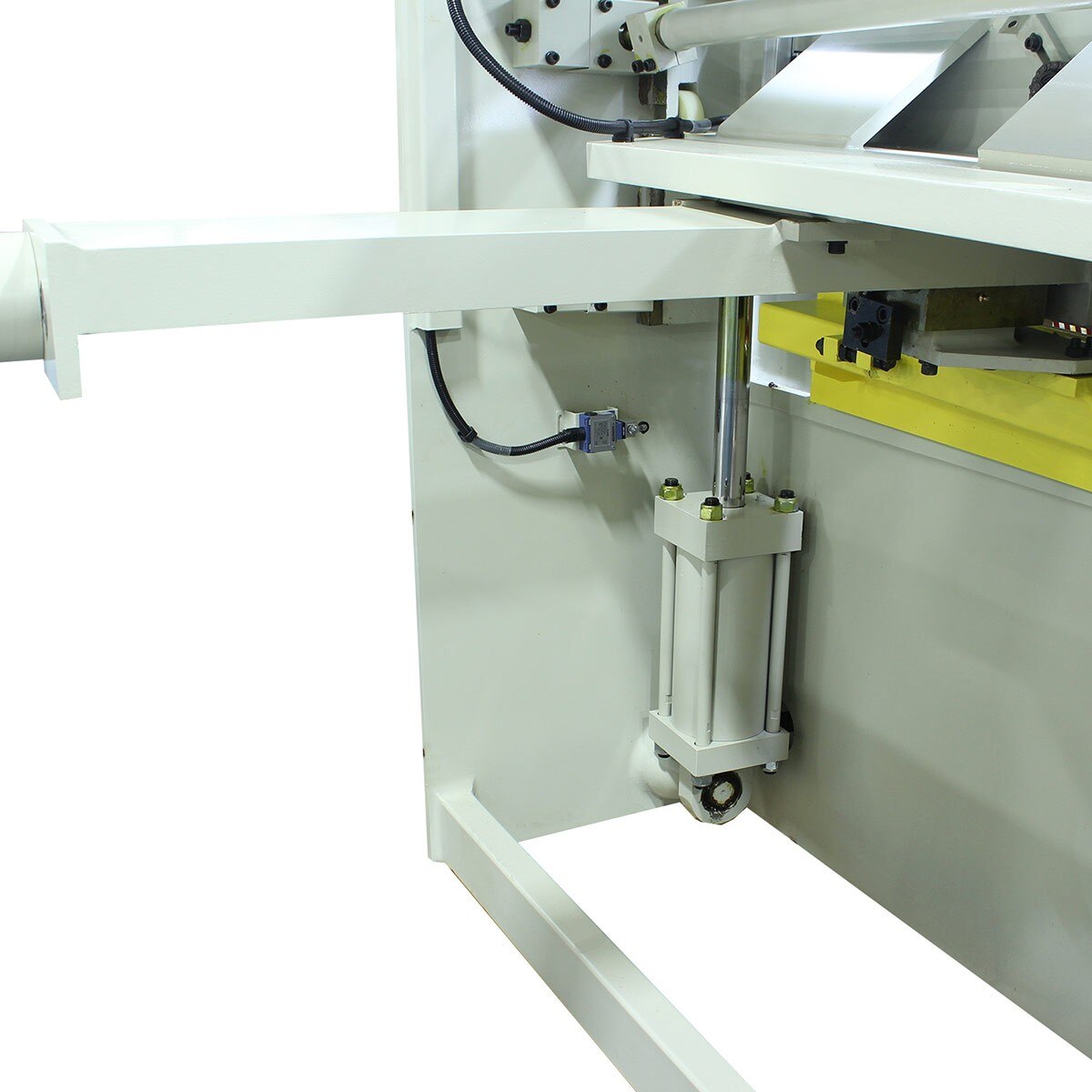

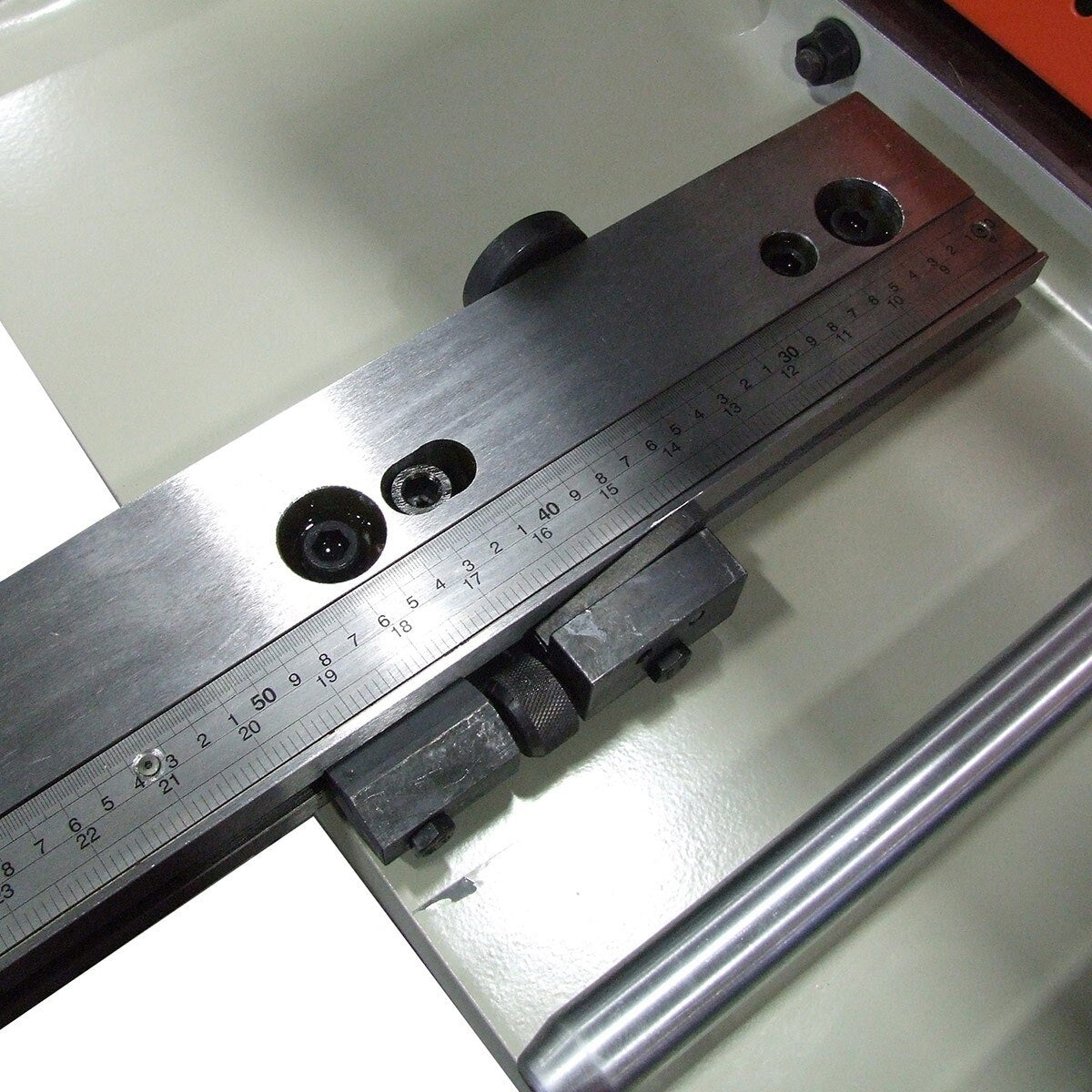

- Squaring arms support the material and keep it square to the blade.

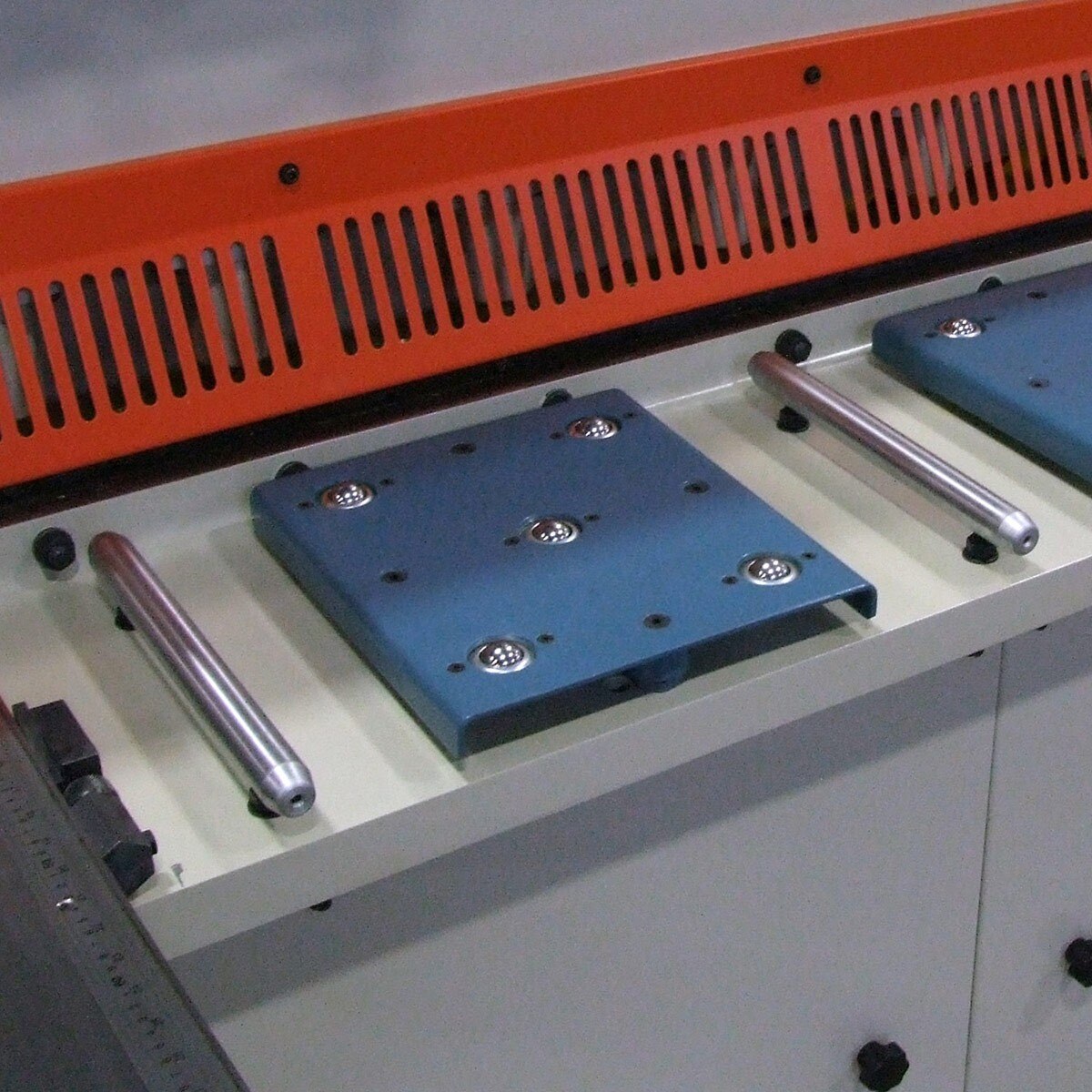

- Roller infeed tables, mounted on the front, help you load heavy materials.

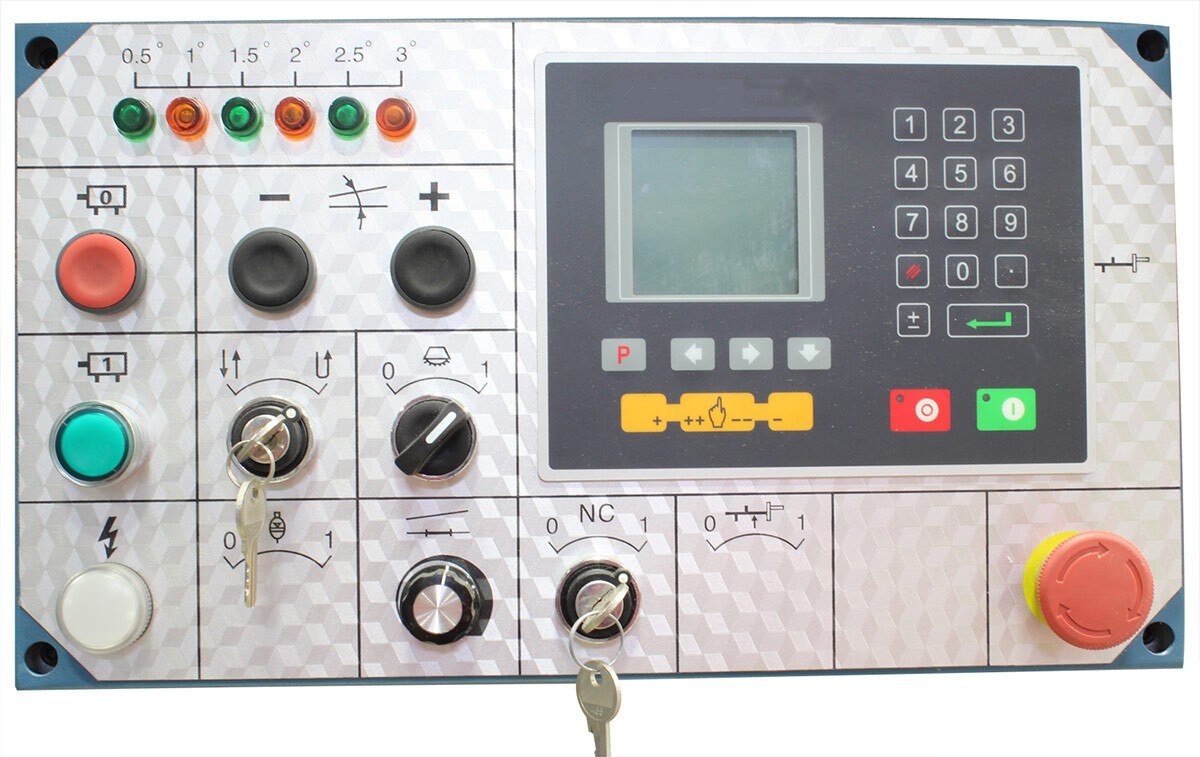

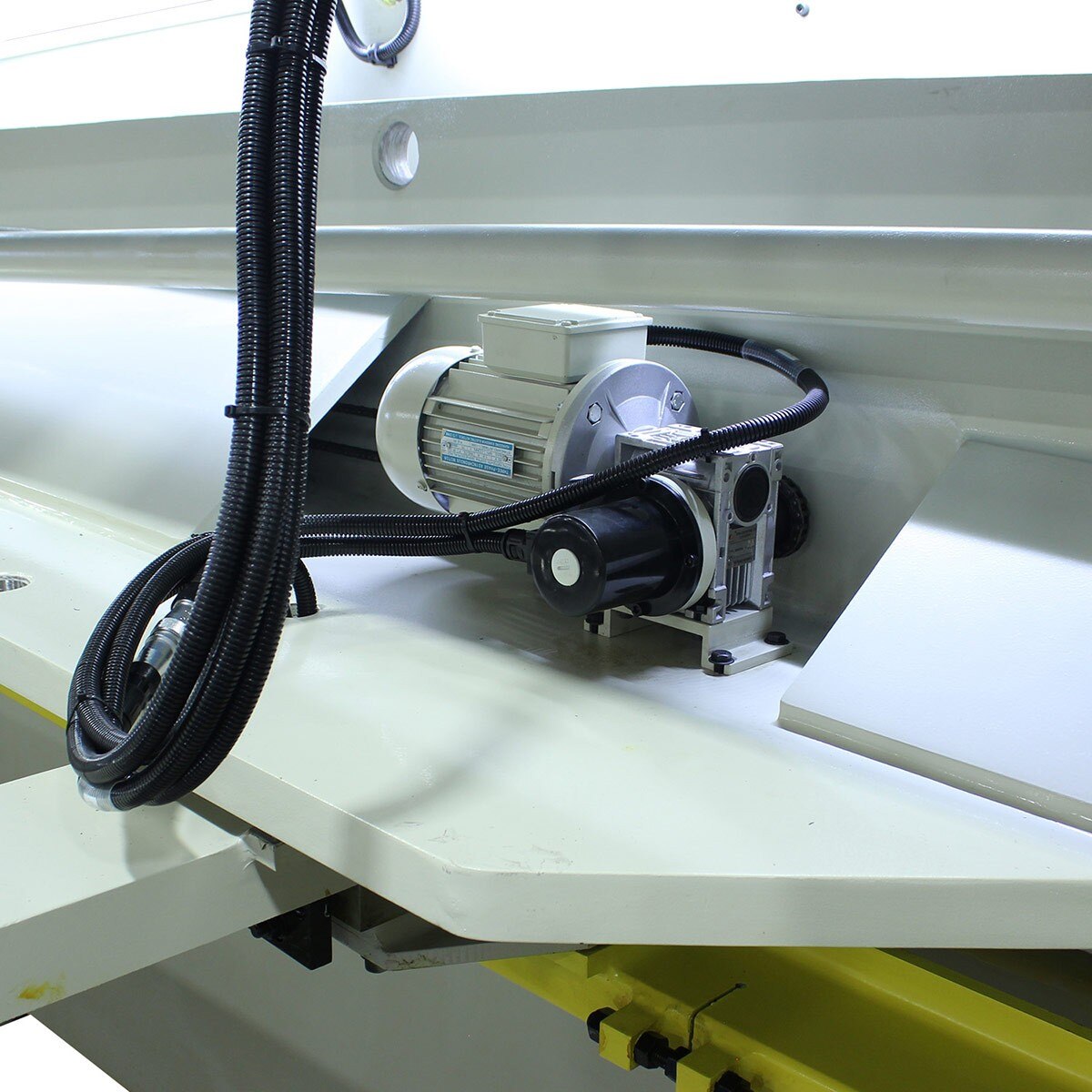

- Fully programmable backgauge is accurate to =/- .01mm.
- Internal memory can hold up to 100 programs.

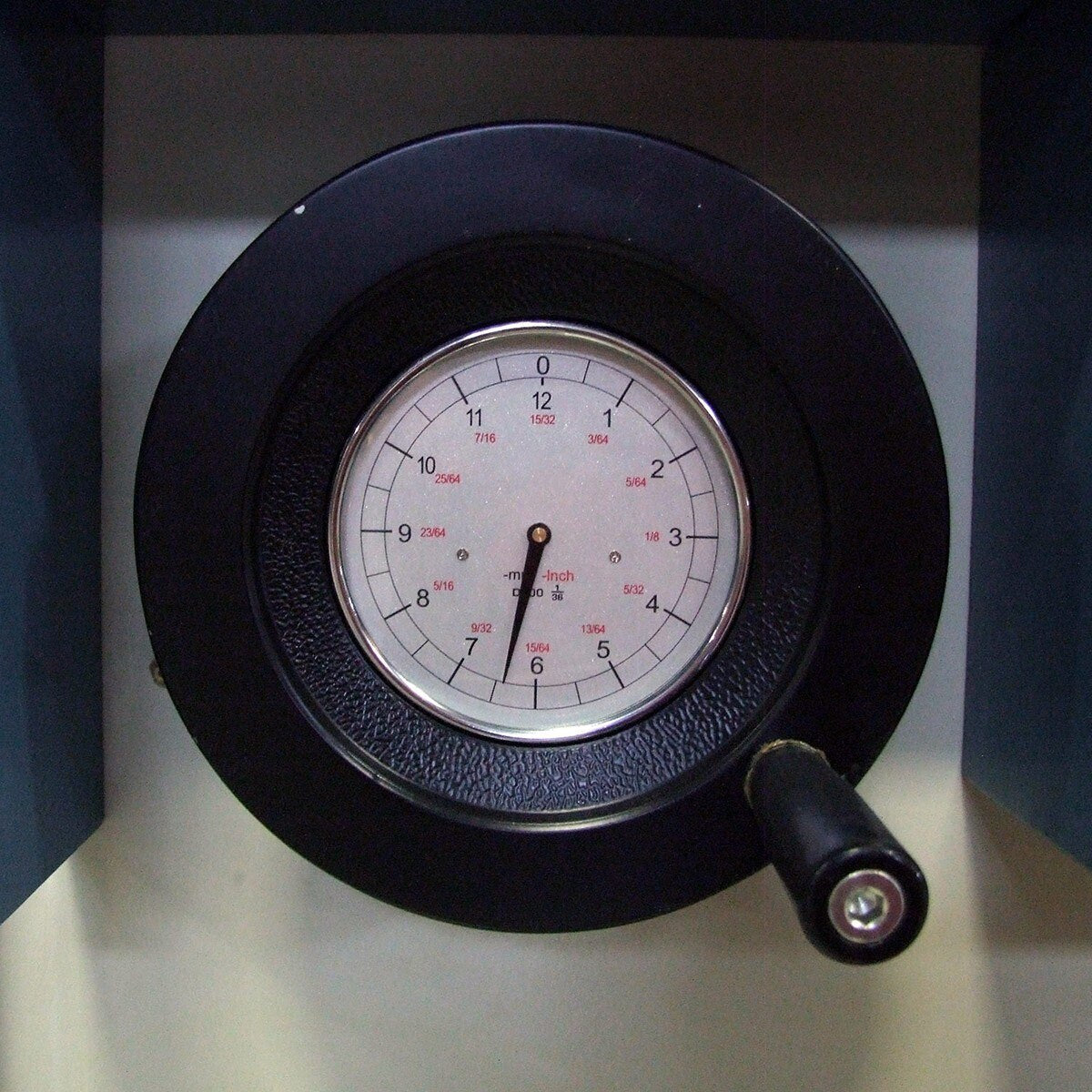

- Adjustable blade gap prevents crimping or folding. Just turn the handwheel.

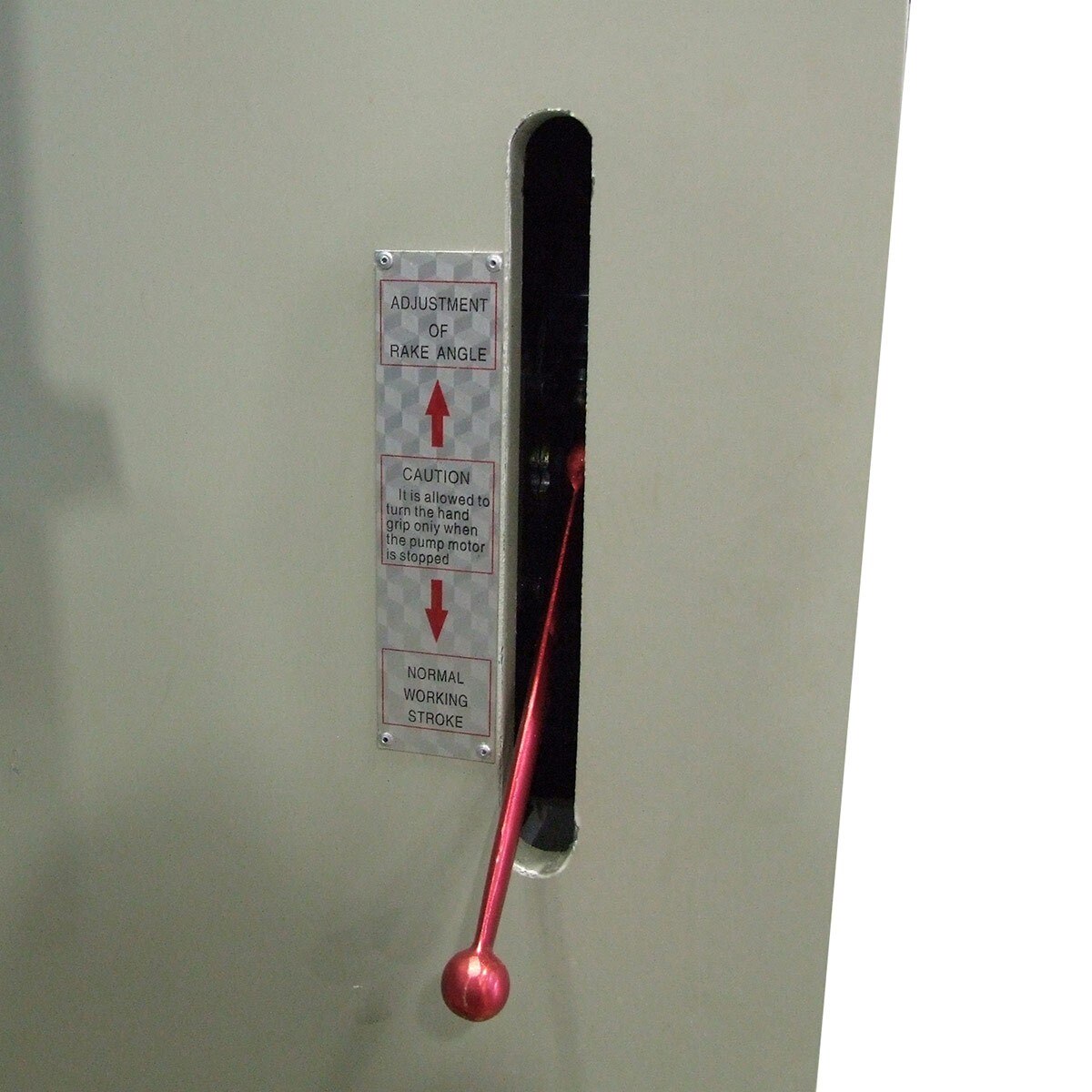

- You can adjust the raked angle for your material thickness to minimize burr and reduce strain on the hydraulics. Press a button, then pull the lever until the light goes on.
- Comes standard with shadow line positioner for accurate material placement.
- Fully welded and integrated steel plate frame eliminates vibrations and stress on the cutting process.
- This hydraulic sheet metal shear is covered by a 1-year parts warranty.
Baileigh Industrial 1007179 Specifications
Max. Material Thickness | 1/4" |
Max. Thickness (Stainless Steel) | .177" |
Thickness (mild steel) | .250" |
Max. Material Thickness (Stainless Steel) | .125" |
Blade Rake Angle | 1.5 Degrees |
Blade Clearance | Manual Hand Wheel |
Back Gauge Length | 23.62" |
Shear Length | 96" |
Motor | 10 HP |
