At a Glance
Voltage
220 V
Cutting Capacity
14 ga
Motor Horsepower
3 HP
Sold As
Individual
For Use On
Steel
Description
Description
Baileigh Industrial 1007207 Description

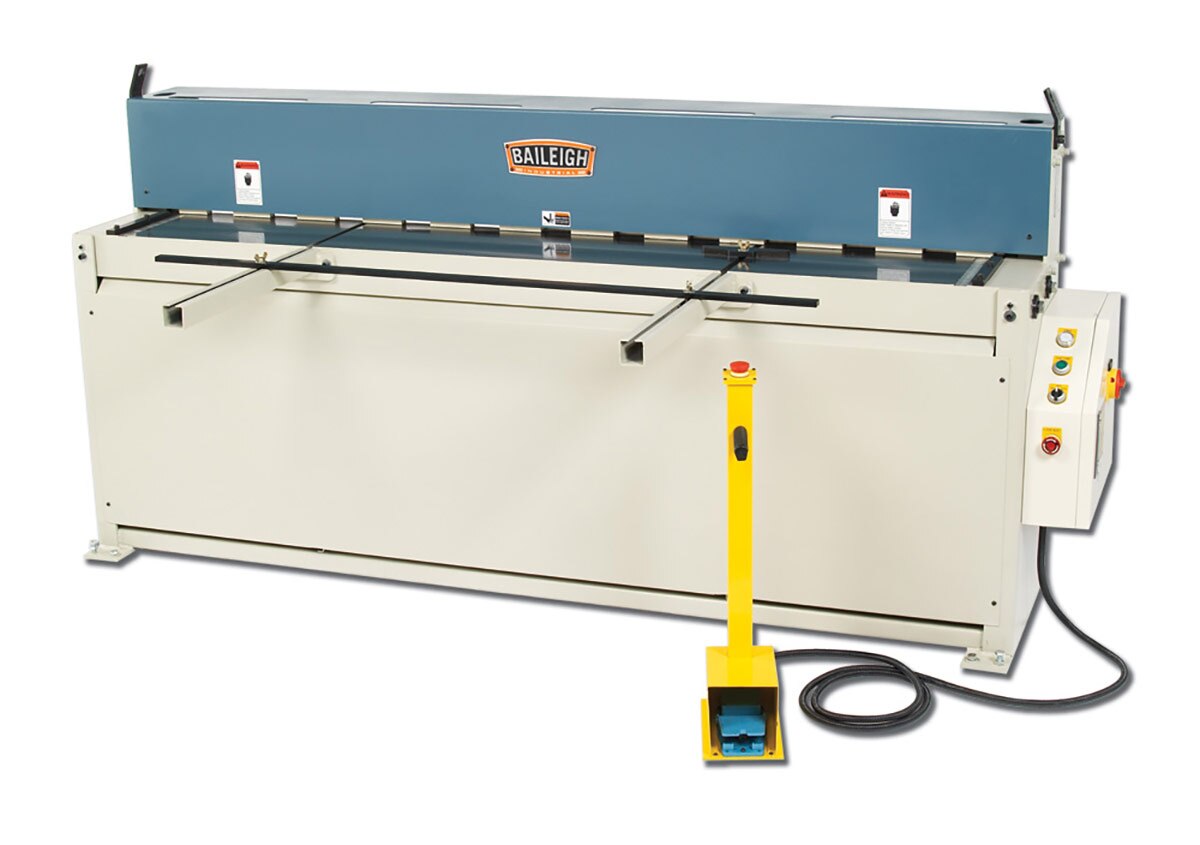

This hydraulic metal shear for sale is perfect for fabrication shops that mainly work with smaller gauges. Made from ground, polished steel plate, the SH-8014 14 gauge shear at full capacity all day long.
Baileigh Industrial 1007207 Includes
- (1) Compact Hydraulic Shear
Baileigh Industrial 1007207 Features
- 80” length.
- 14 gauge mild steel maximum capacity.
- Minimum capacity of 24 gauge mild steel.
- 3 hp motor runs on 220-volt 3-phase power.
- Up to 26 strokes per minute.

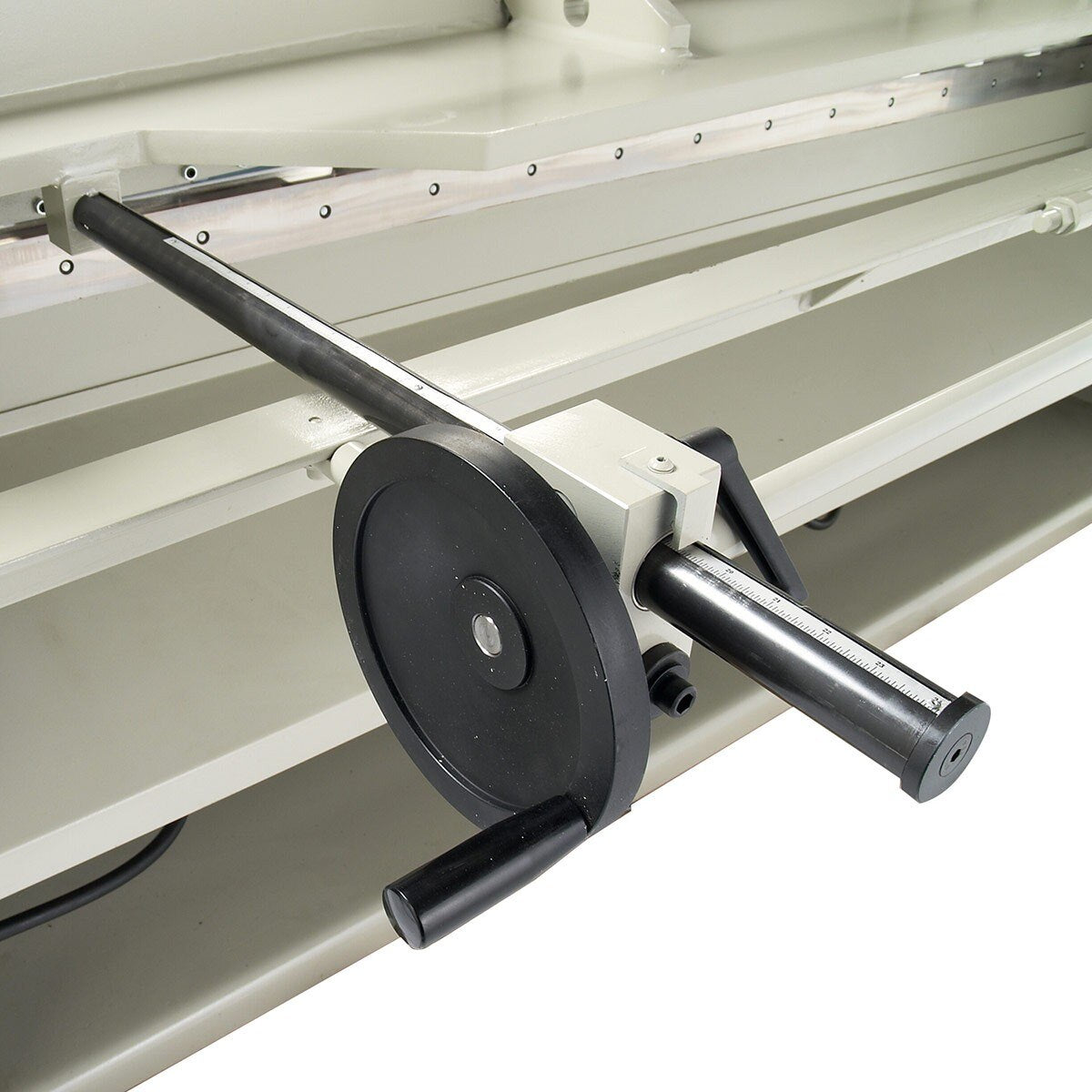

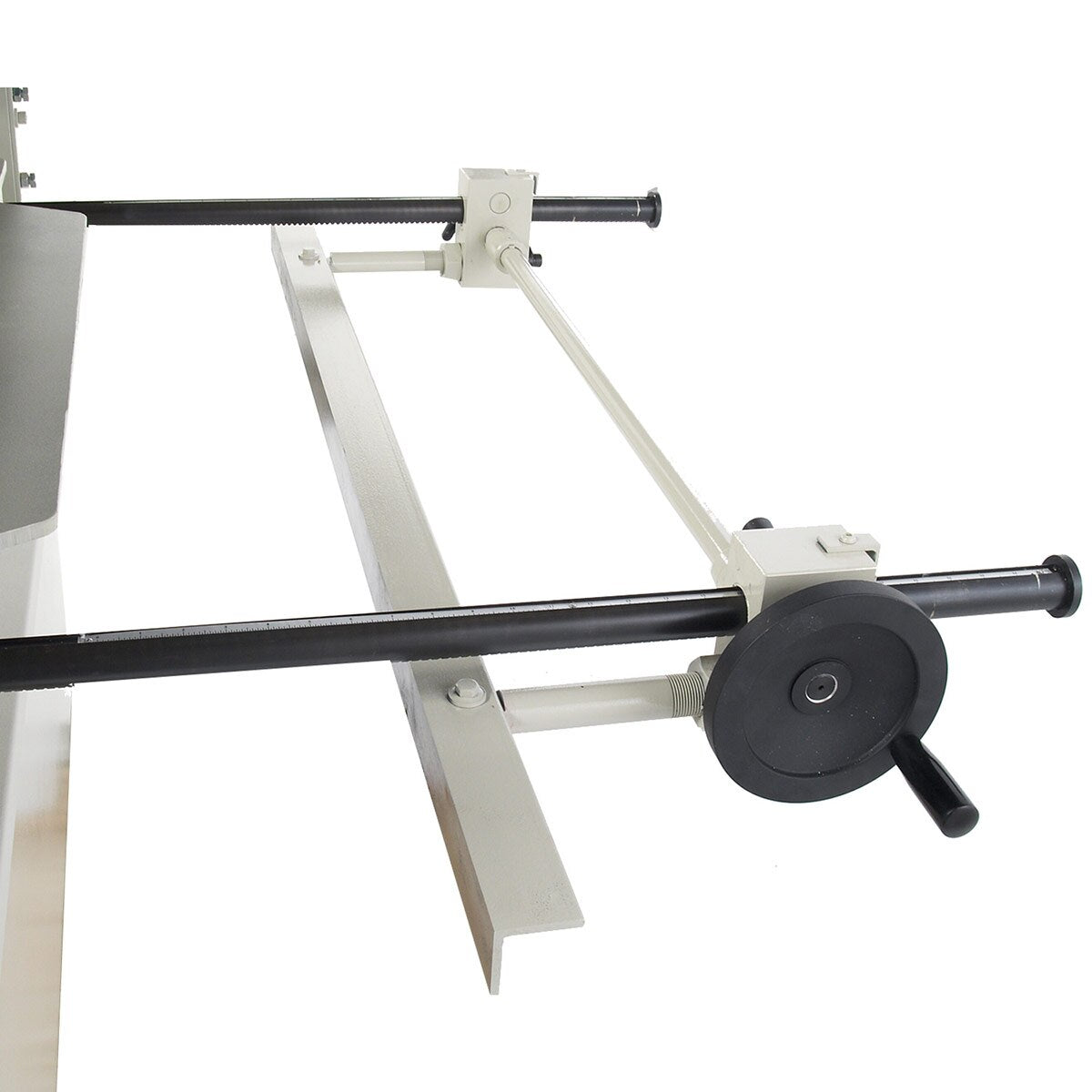

- Adjustable 24” backgauge ensures precise repeatability.

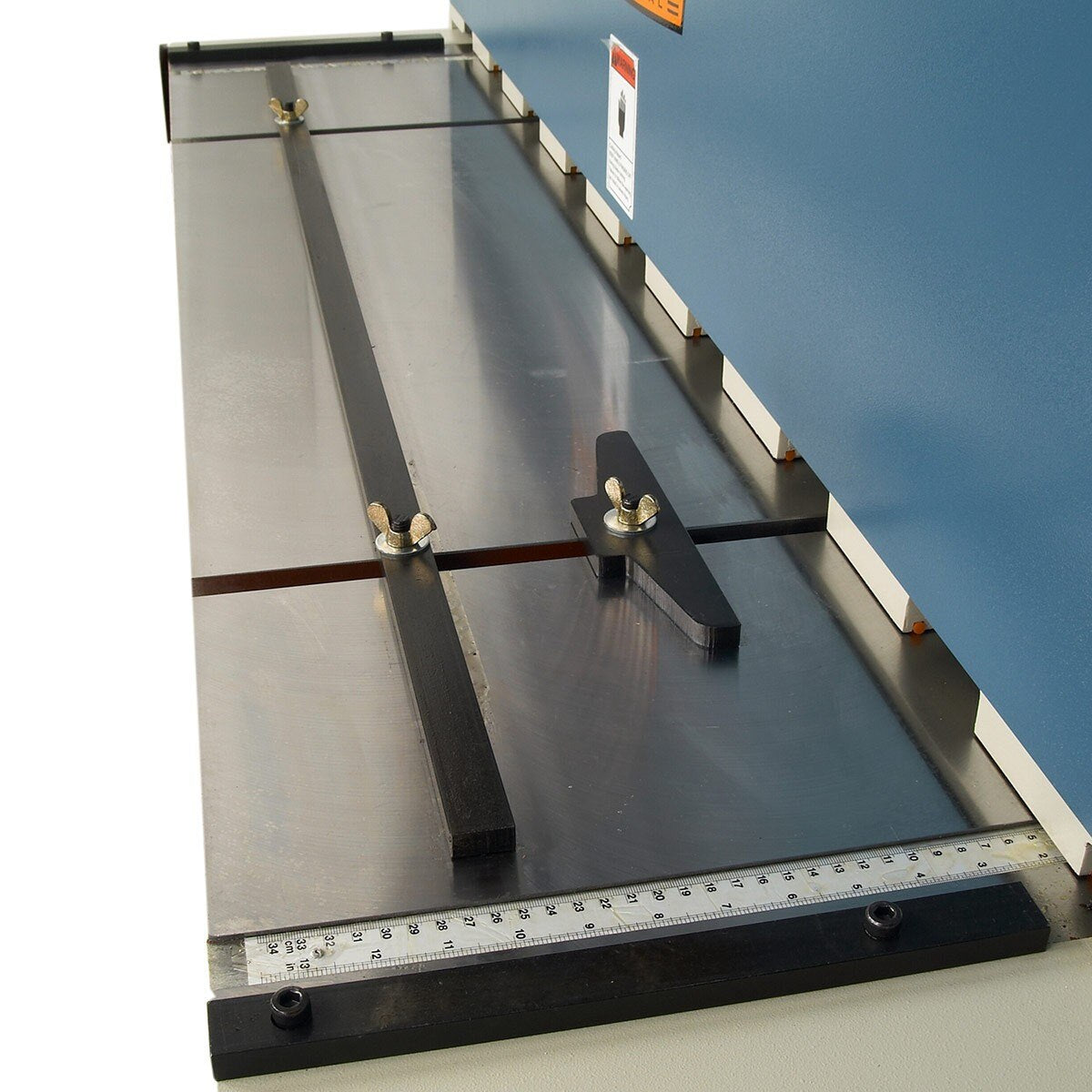

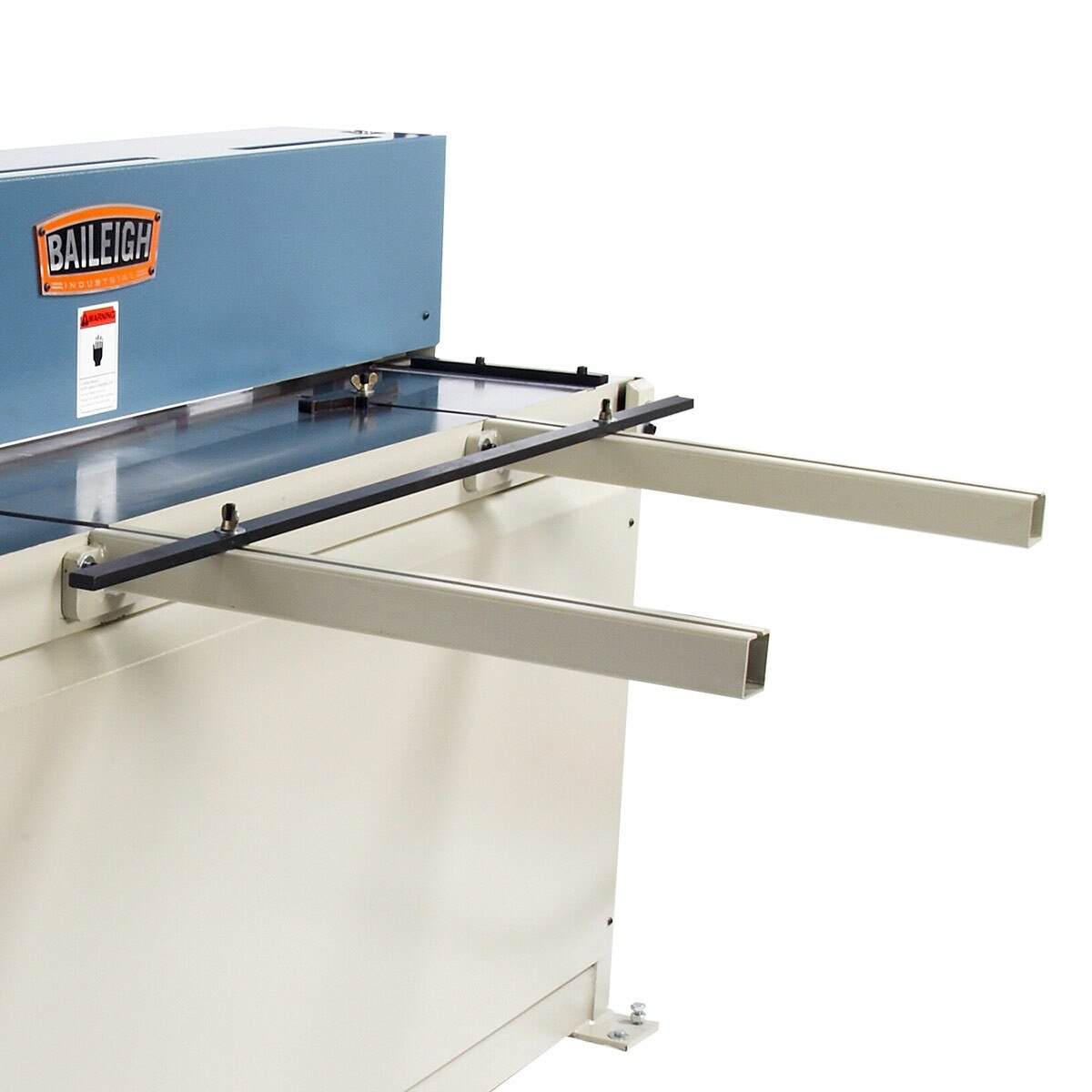

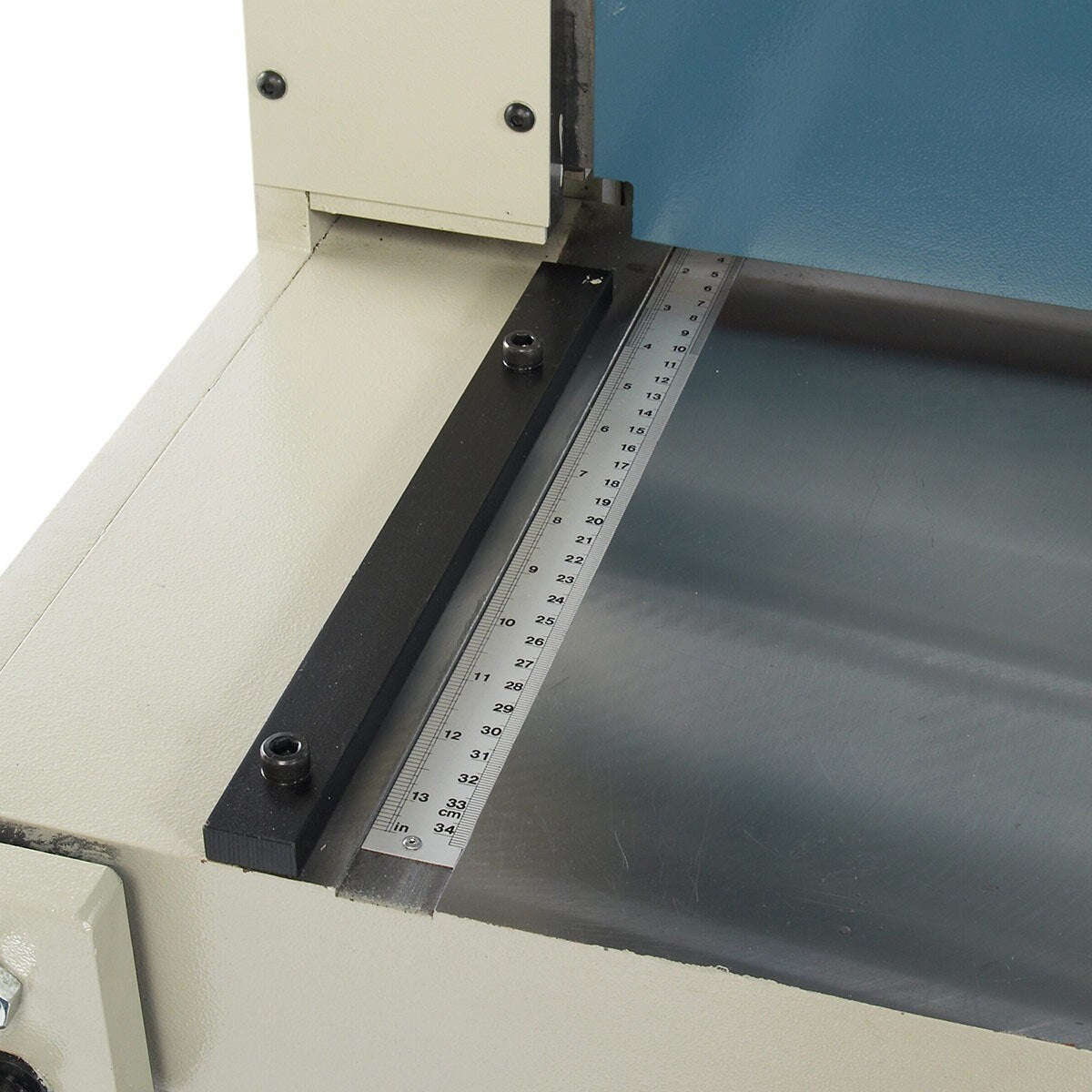

- Front support arms and table guides keep the material square to the blade.

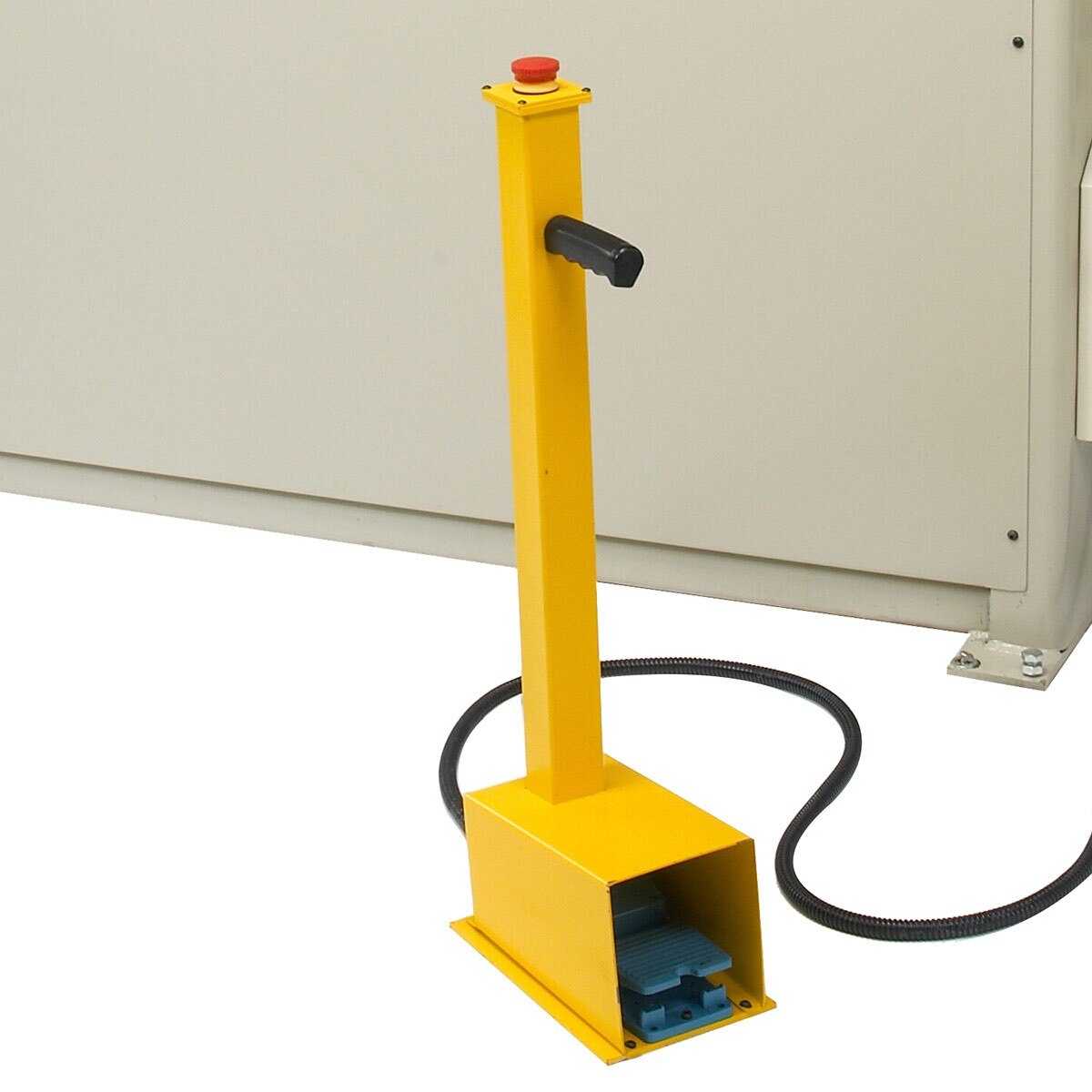

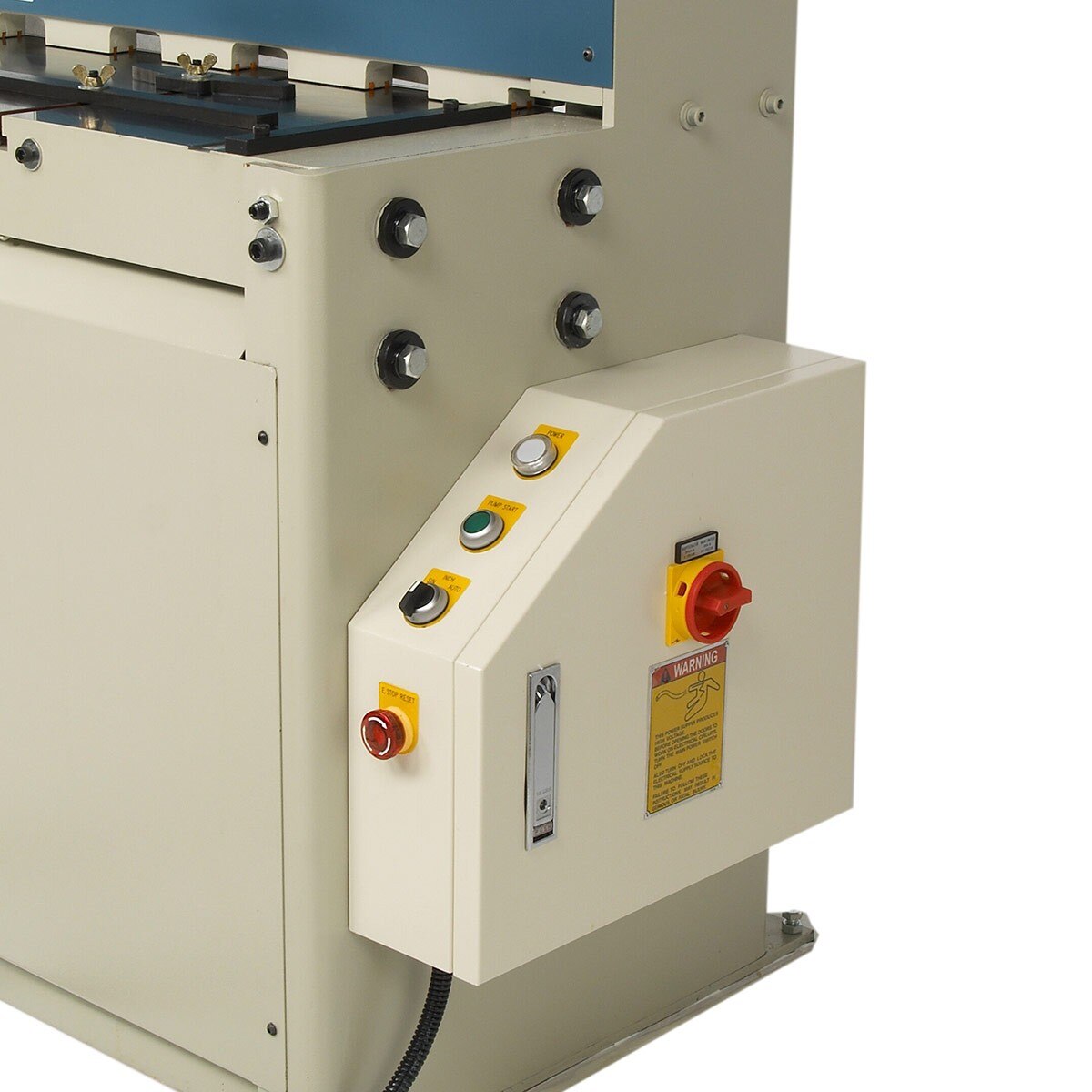

- 3 modes on the operator console: Inch mode: Jog the control and ease the blade down to the material. Single mode: Make one cut cycle per foot pedal push. Auto mode: Continue cycling as you hold the pedal down.
- Comes standard with high carbon chromium blades.
- Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
- Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.

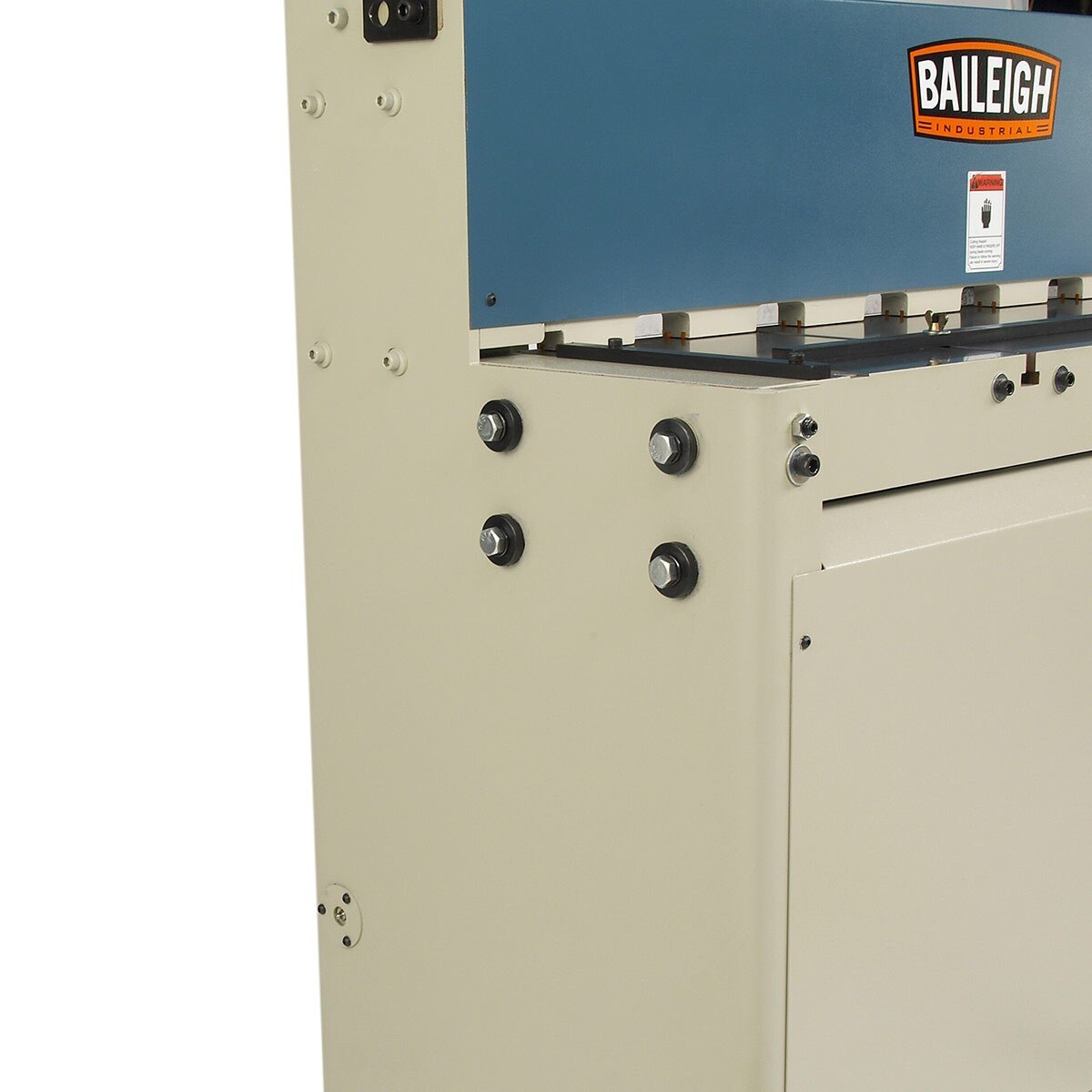

- Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1007207 Specifications
| Back Gauge Length | 24" |
| Shear Length | 80" |
| Motor | 3 HP |
| Thickness (SS) | 14 Gauge (18 ga.) |
| Strokes Per Minute | 26 |
| Front Gauge Length | 24" |
| Blade Angle | 1° |
| Power | 220V / 3-phase |
| Minimum Material Thickness | 24 Gauge |
| Shipping Dimensions | 106" x 37" x 57" |
Toolup Part # :
656006
