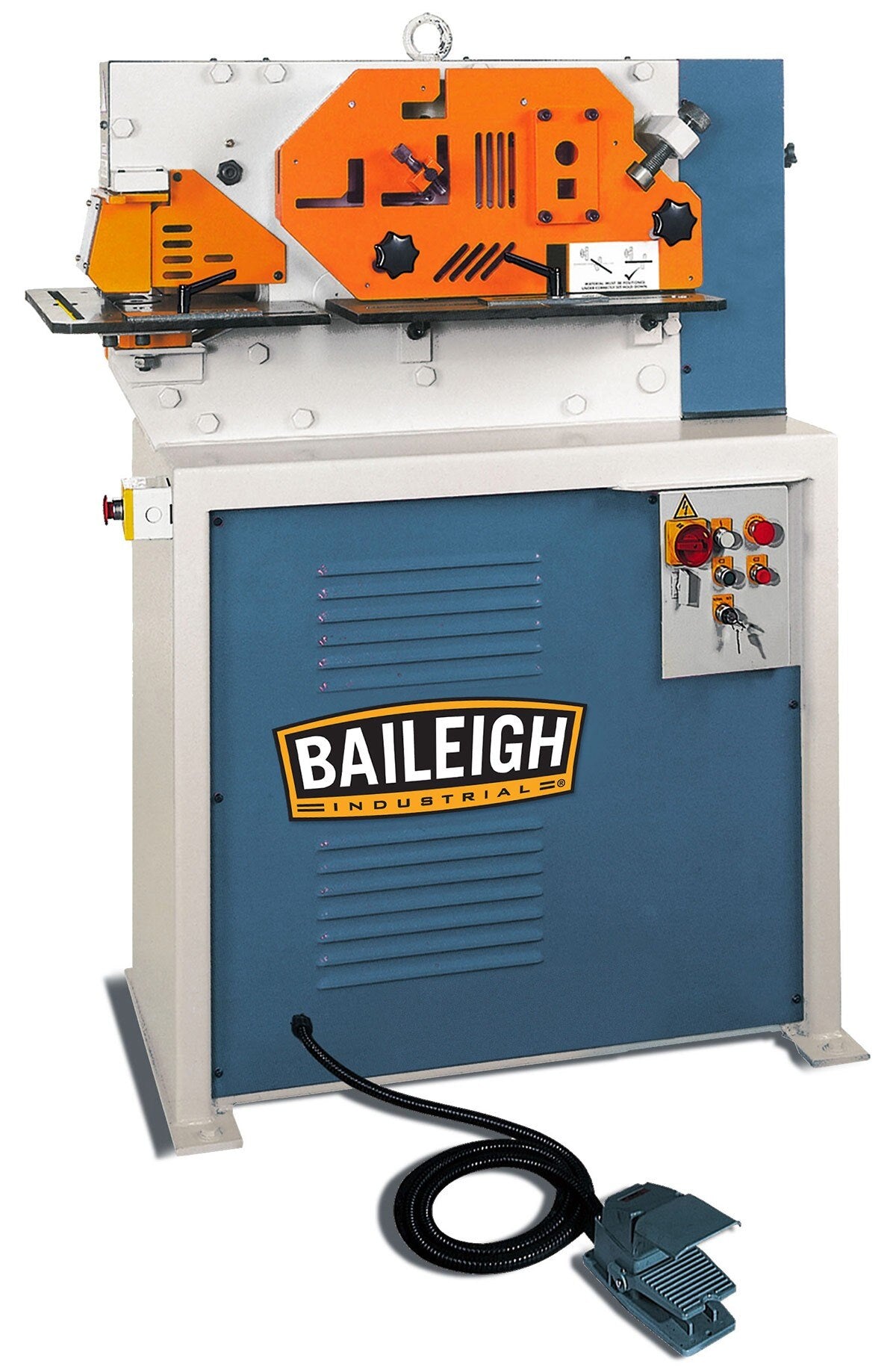

Baileigh Industrial BA9-1007757 4 Station Hydraulic Ironworker SW-443
Description
Description
Baileigh Industrial 1007757 Description
This pivot-style hydraulic ironworker combines a compact footprint with a budget-friendly price to meet the needs of small fabrication shops. The SW-443 includes just about every feature you’d want to help you shear and punch smoothly. This ironworker’s small footprint will fit into tight shop spaces and just about any job site. The SW-44 comes standard with features that you won’t find on most ironworkers in this price range, like a large table with product guides and a foot pedal. Quick-release punch and die system makes changeovers faster and more efficient. CE certifications vouch for the machine’s exacting quality and safety standards.
Baileigh Industrial 1007757 Includes
- (1) 4 Station Hydraulic Ironworker
Baileigh Industrial 1007757 Features
- Runs on 220-volt 3-phase power.
- Delivers 44 tons of force for punching and shearing.
- Stations for 4 main functions: flat-bar shearing, angle cutting, section cutting for multiple profiles, and punching.
- Runs at up to 23 cycles per minute, increasing the speed of your projects.

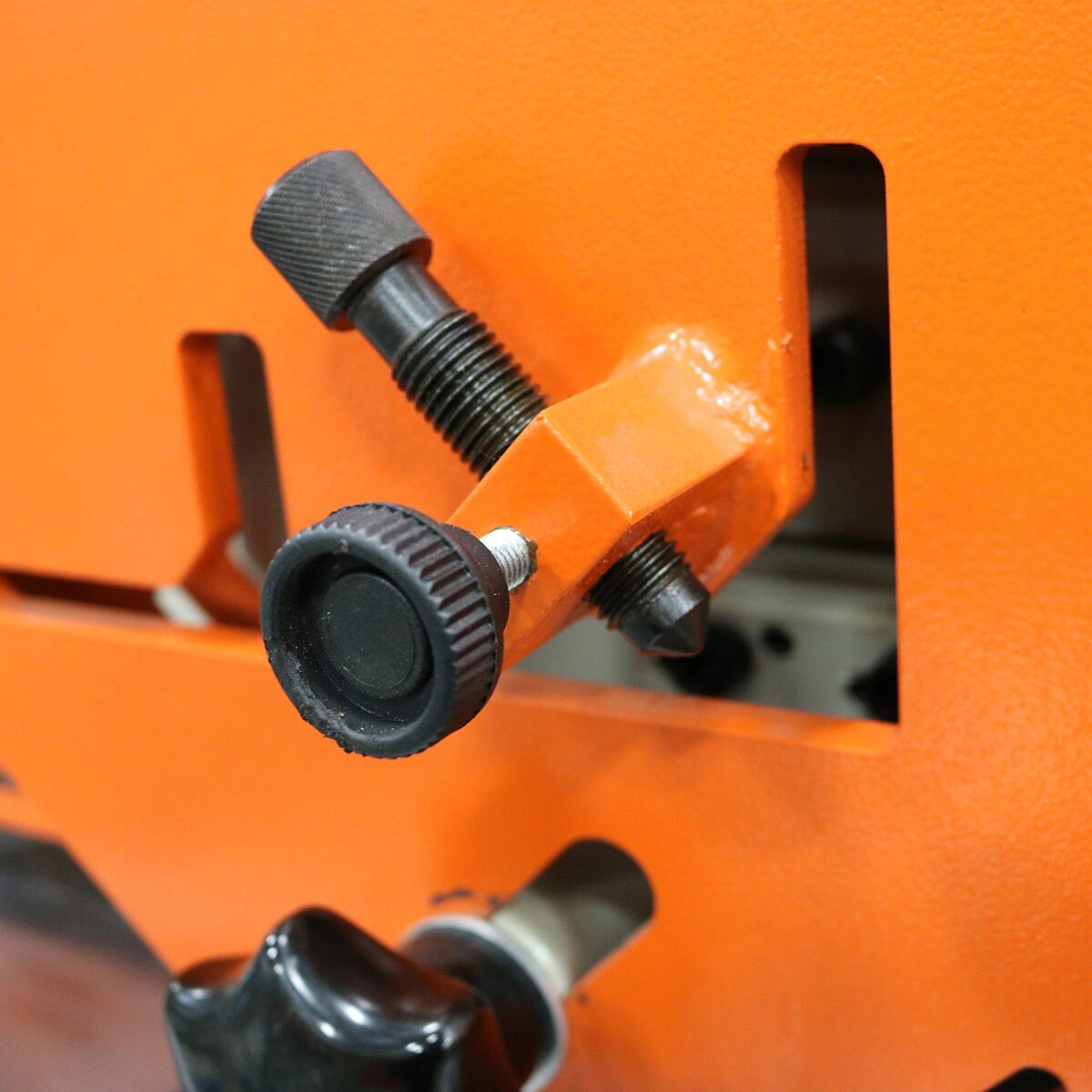

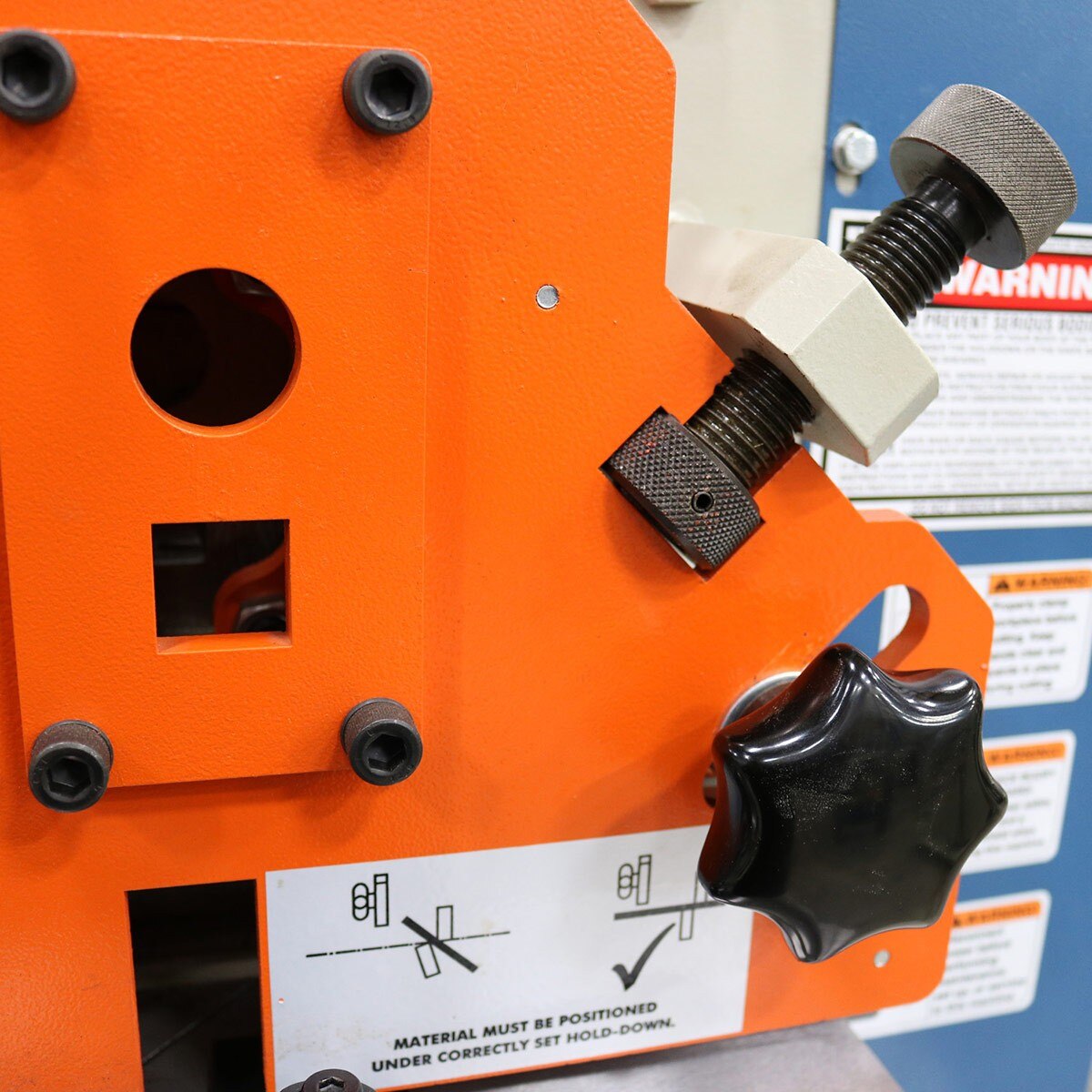

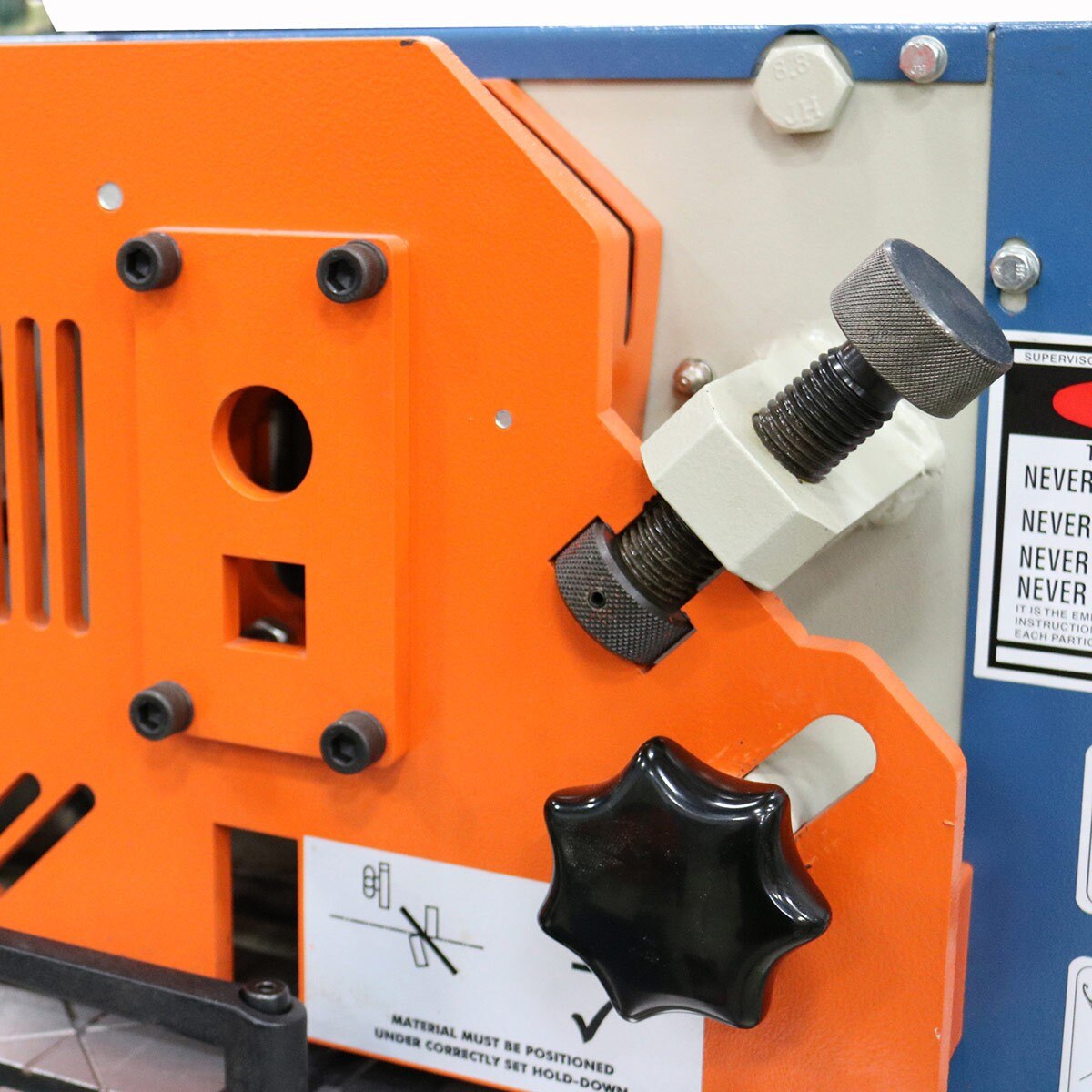

- Product hold-downs for all stations ensure clean, straight shearing.
- Large reference tables accommodate bigger pieces of material and easily pull out from the machine, so that you can get the punch closer to angle iron.

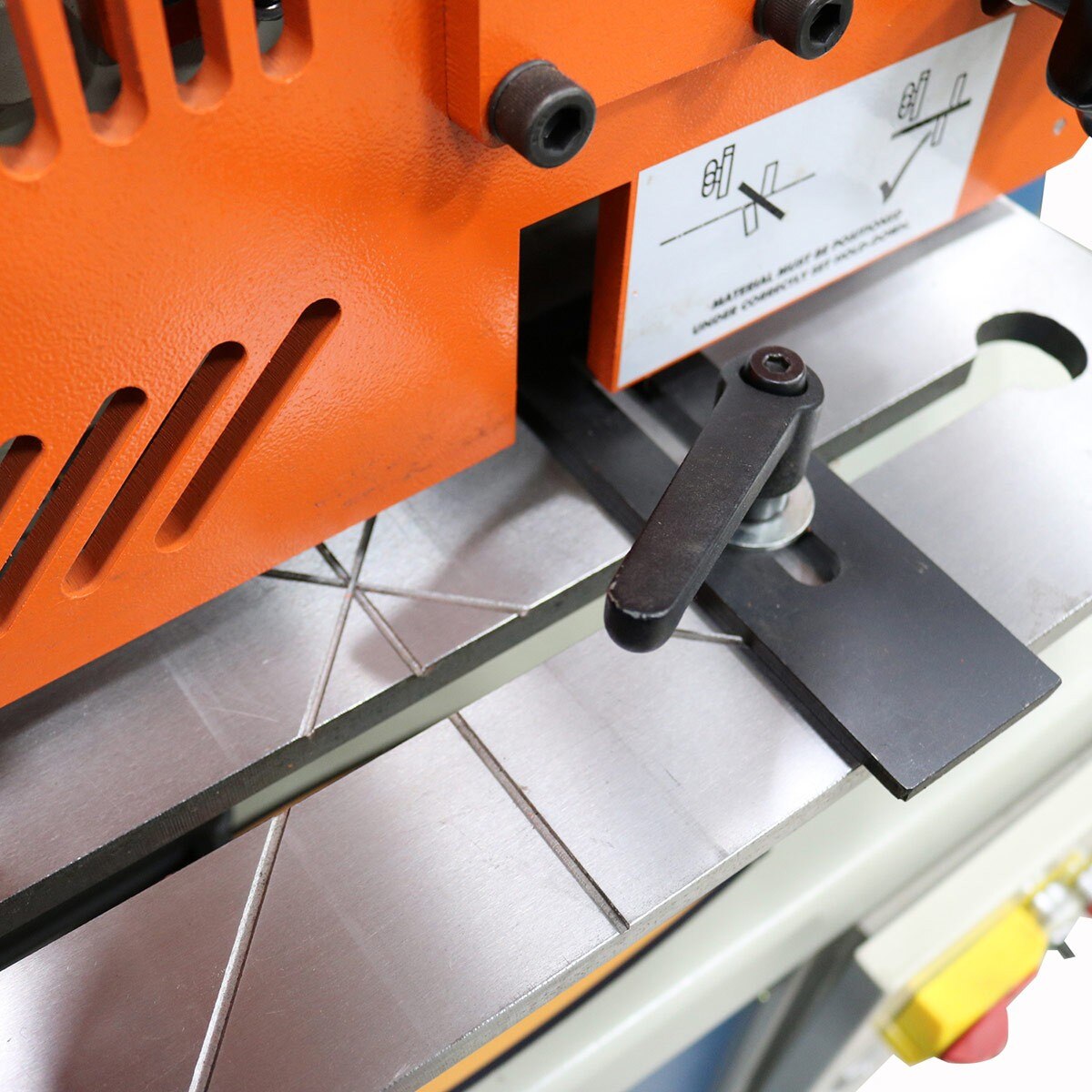

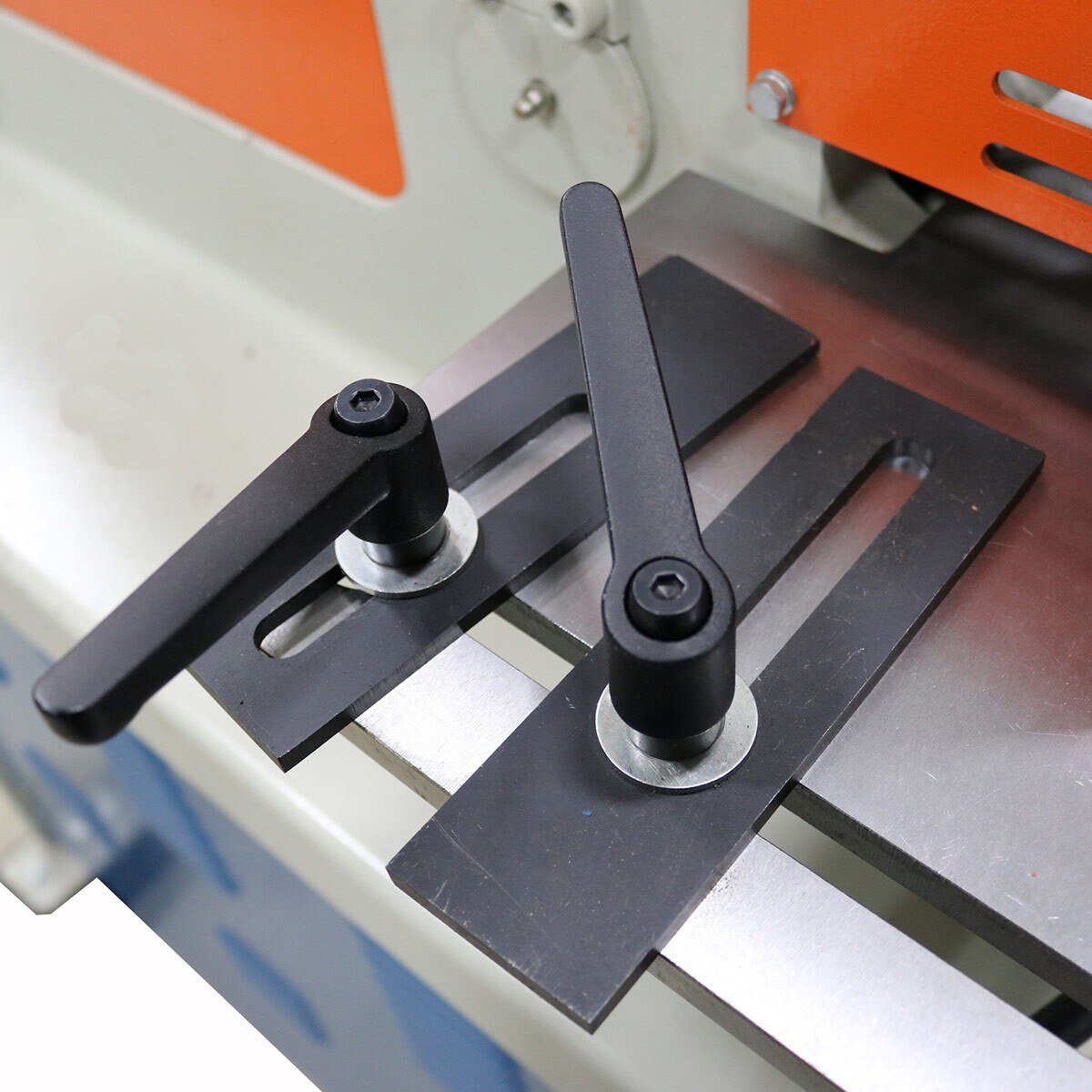

- Product guides make repeatability a cinch when you’re setting up production runs.

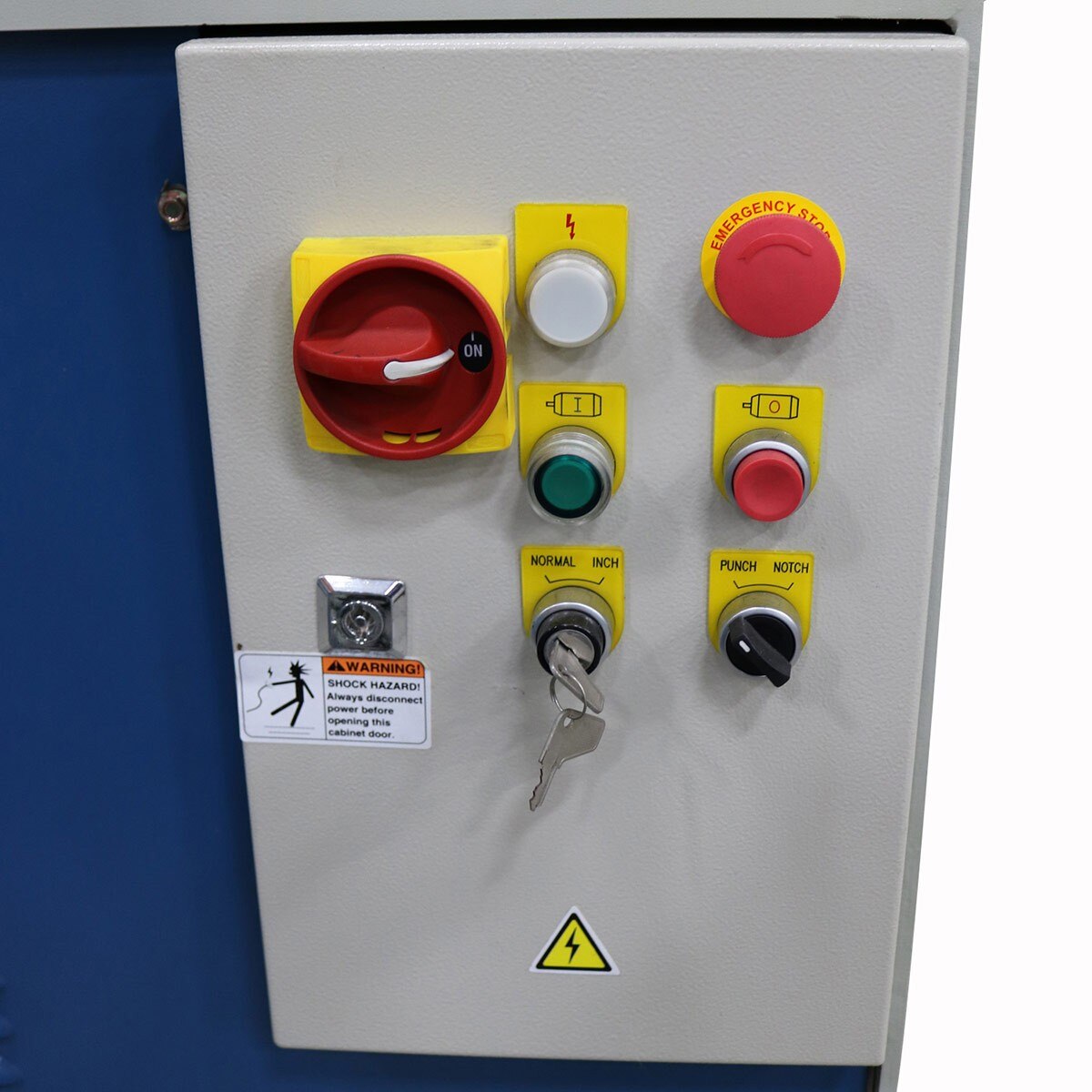

- Large-button control panel and foot pedal punch control are conveniently located.

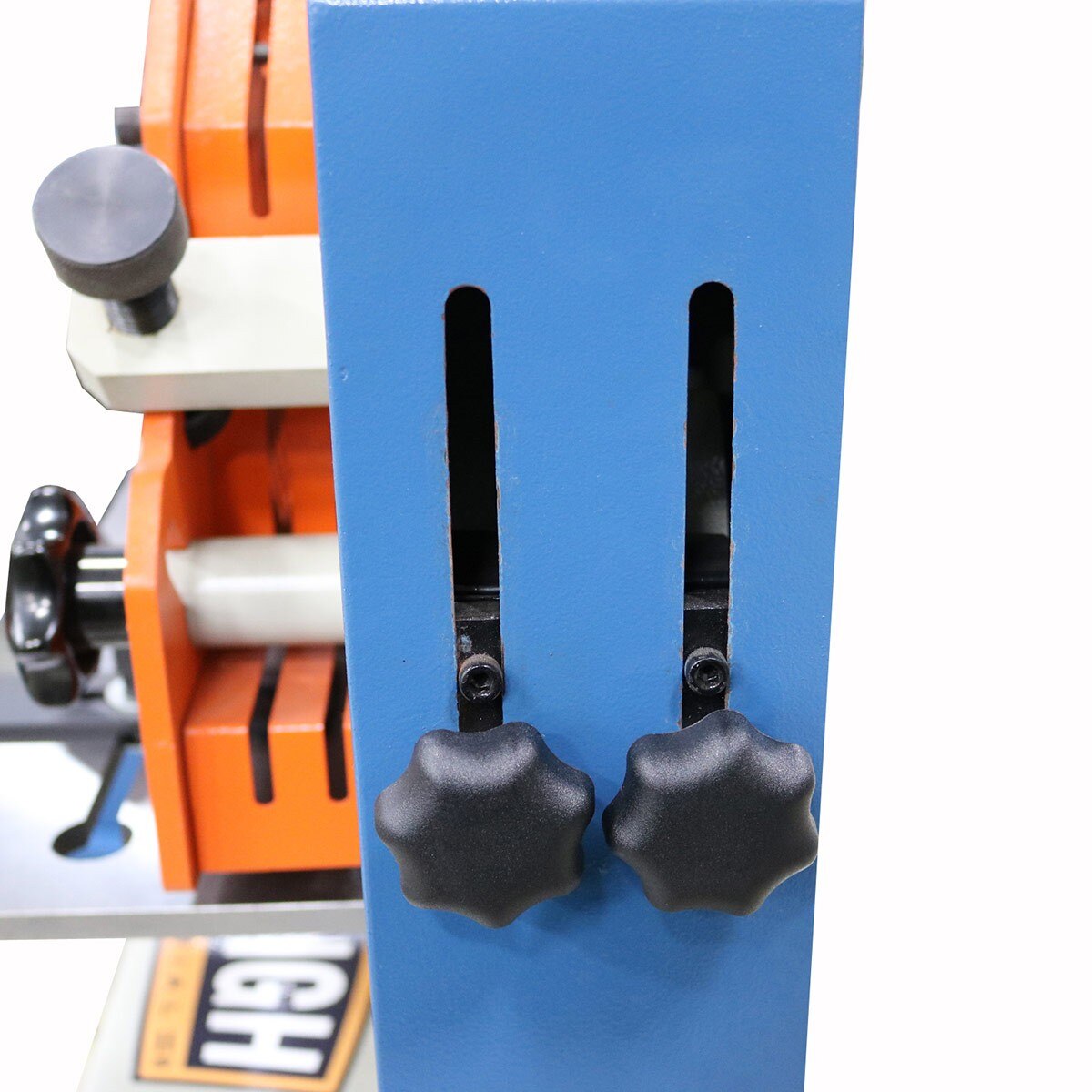

- Offers adjustable stroke control, with upstrokes and downstrokes for the punching and shearing sections and a maximum stoke length of 1.125".
- Accepts optional tooling available from Baileigh Industrial, such press brake attachments, to make this machine even more versatile.

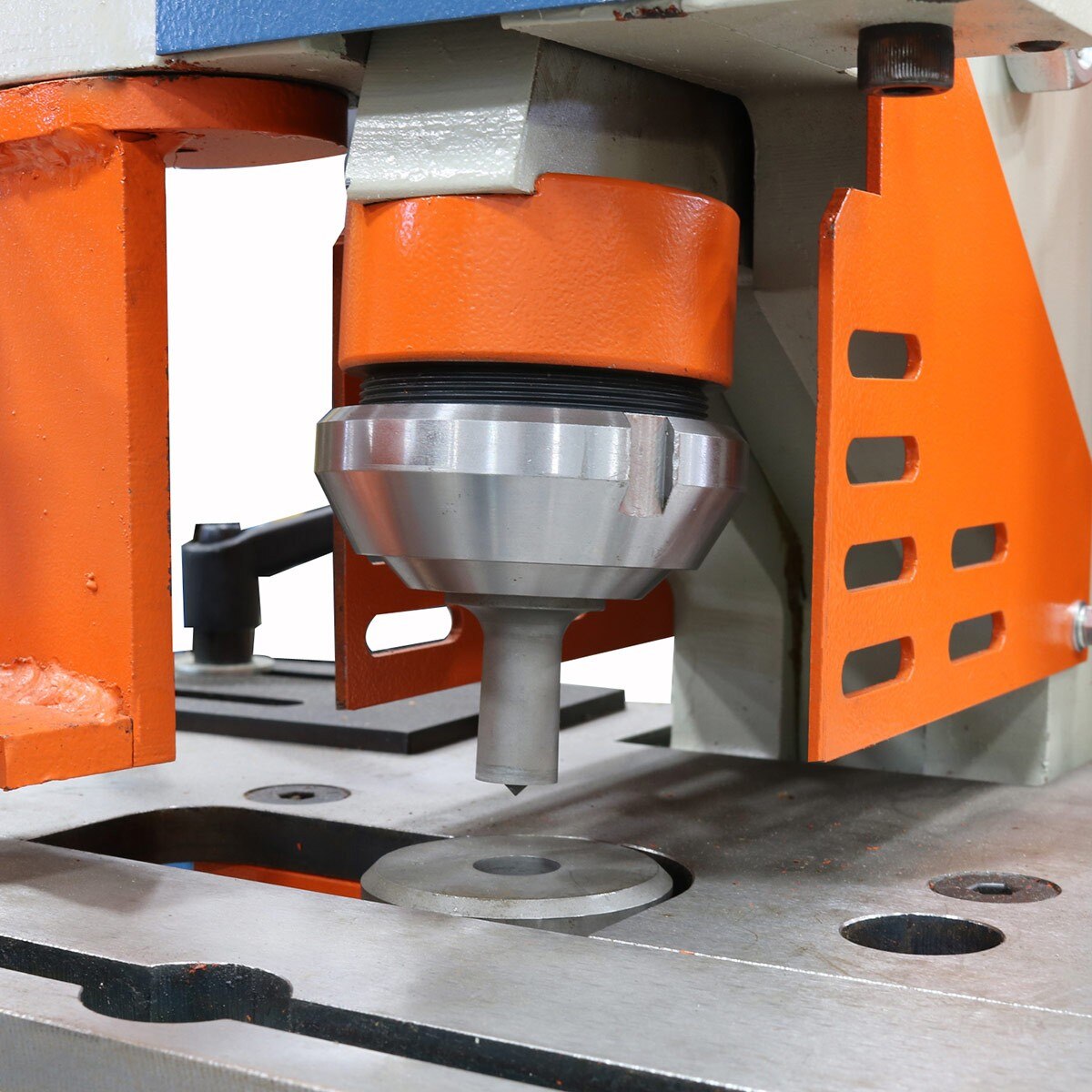

- Includes .75” punch and die.
- Heavy welded steel plate construction maintains accuracy, minimizes flex, and makes the machine last longer.
- Baileigh covers the SW-443 with a 1-year warranty.
Baileigh Industrial 1007757 Specifications
Motor | 3 HP |
Width x Thickness | 13.77" x .25" |
Round Bar Shear | 1.125" |
Punch Capacity | .75" x .625" |
Punching Pressure | 44 Tons |
Throat Depth | 6.88" |
Square Bar Shear | 1" x 1" |
Bar Shearing Working Height | 44.88" |
Angle Shearing Working Height | 40" |
Angle Shearing at 90° | 3" x 3" x .25" |
