Baileigh Industrial | SKU:
BA9-1008136

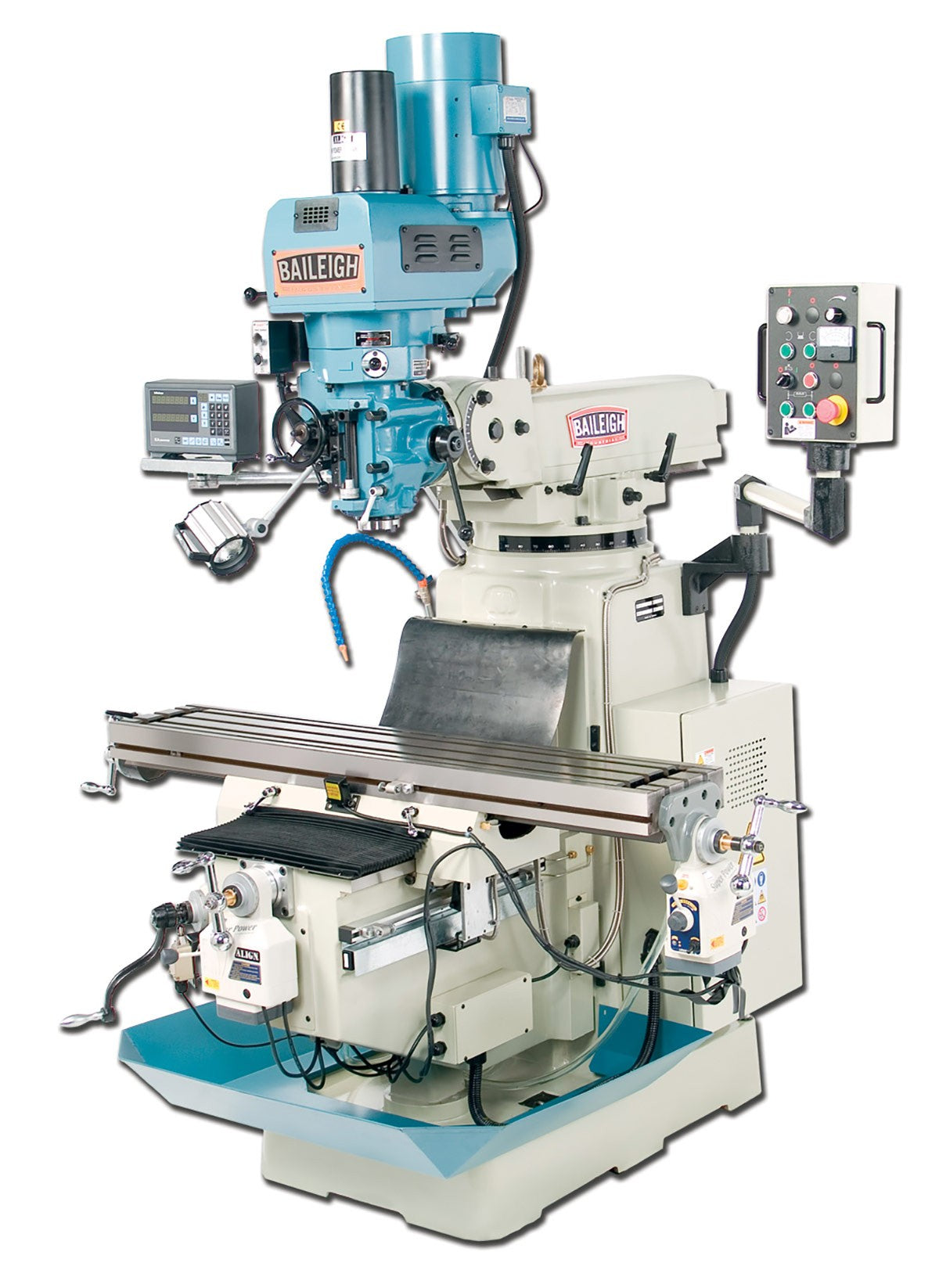

Baileigh Industrial BA9-1008136 Vertical Mill VM-1054-3
Free Shipping
$30,499.00
$35,617.14
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Baileigh Industrial 1008136 Description
Table size is very important when deciding which milling machine to buy. The VM-1054 from Baileigh Industrial has a 10” x 54” table that has been hardened, ground, polished, and coated with a special coating called Turcite® B to extend life and help eliminate corrosion.
Baileigh Industrial 1008136 Includes
- (1) Vertical Milling Machine
Baileigh Industrial 1008136 Features
- The VM-1054 is a variable speed milling machine that is powered by a Yaskawa® inverter.
- Powered by 220 volts of three phase power.
- Can be adjusted to any speed desired between 80 and 3800 rpm. By selecting the right speed tooling life is lengthened and cut quality improves, both of which save money.
- The spindle has specified a NMTB-40 spindle taper. This type spindle is stronger and give the operator a choice of larger tooling should the need arise
- Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame. The stronger you make he platform the better the cutting is.
- All three axis are powered on the VM-1054 making it easy on the operator.
- Another nice feature of the VM-1054 milling machine is the two axis digital readout that comes standard.
- This Mitutoyo® digital readout is accurate to 1/10 of 1 thousandth of an inch.
- A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1054.
Baileigh Industrial 1008136 Specifications
| Table Size | 54" x 10" |
| Spindle Center To Column Min Max | 7.87" – 26.77" |
| Spindle Diameter | 3.93" |
| Spindle Feed Per Rev | .0015"/.003"/.005" |
| Spindle Head Swivel | 45° (F&R) 90° (R&L) |
| Motor Spindle | 3 HP |
| Travel Auto X Axis | 32.25" |
| Travel Auto Y Axis | 15.75" |
| Travel Auto Z Axis | 16" |
| Travel Manual X Axis | 35.43" |
