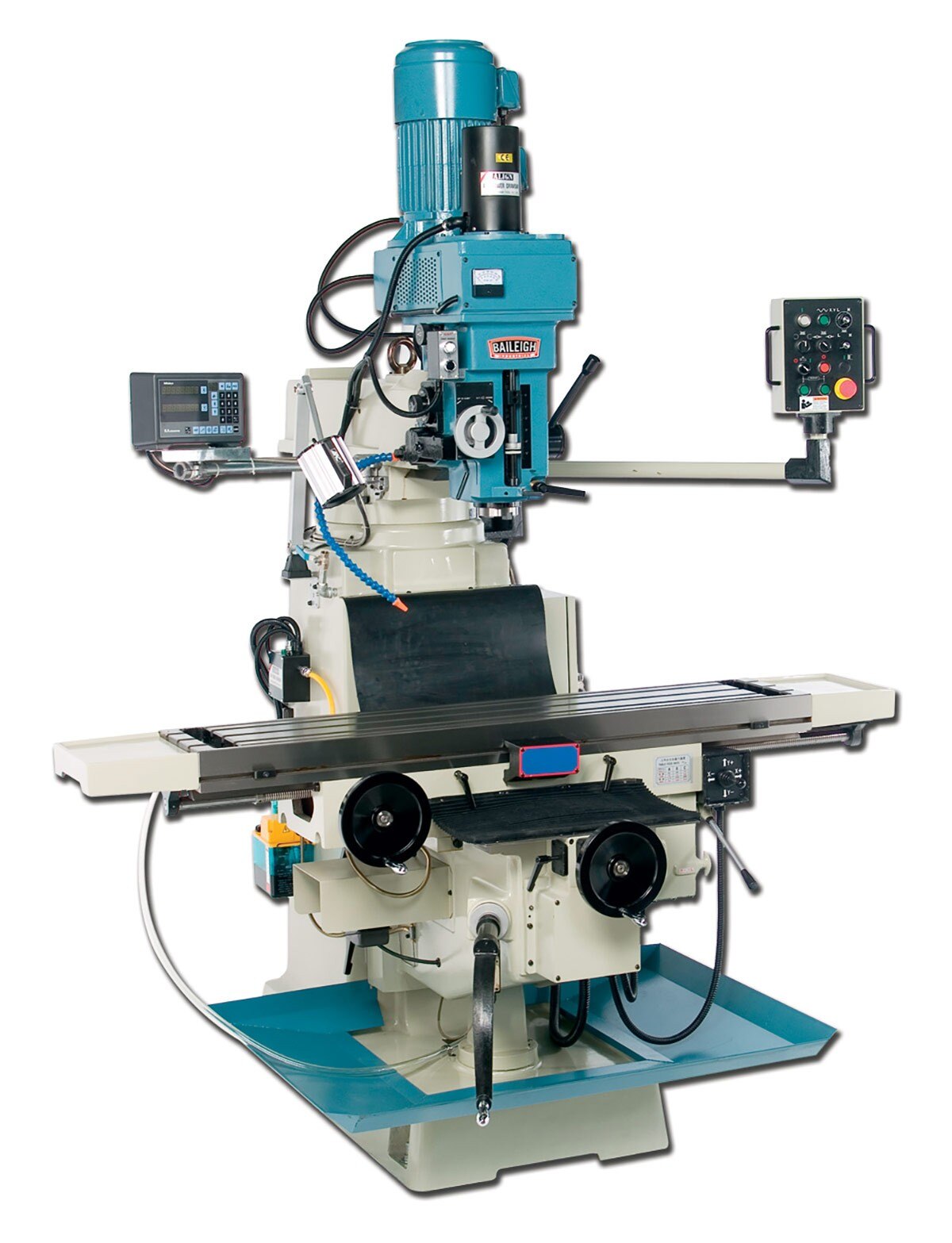

Baileigh Industrial BA9-1008169 Vertical Mill VM-1258-3

Baileigh Industrial 1008169 Features

• The VM-1258 vertical mill features a whopping 12” x 58” table, one of the largest you will find on any manual mill. This large oversized table isn’t just mounted on a wimpy machine either.
• The whole machine has been built to reflect the size and weight that this table brings.
• We selected one of the best spindle packages available, with an NST 40 spindle. A larger spindle is stronger and has tighter tolerances over a longer period of time.
• In order to spin a heavy duty spindle like that we decide to go with a Yaskawa® inverter powered by a 5hp 220 volt three phase motor.
• Lets the operator chose his RPM from 80 to 3800 rpm. Being able to choose the correct rpm will make for longer lasting tooling and better cuts.
• Movement on the three axis are powered to make it easier to operate.
• The X and Y axis also has a Mitutoyo® digital read out as a standard feature. No need to install it yourself, it is already done at the factory.
• The X and Y axis also have square slide ways with covers and ball screws for the best movement available.
• A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1258.
