Baileigh Industrial | SKU:
BA9-1008192

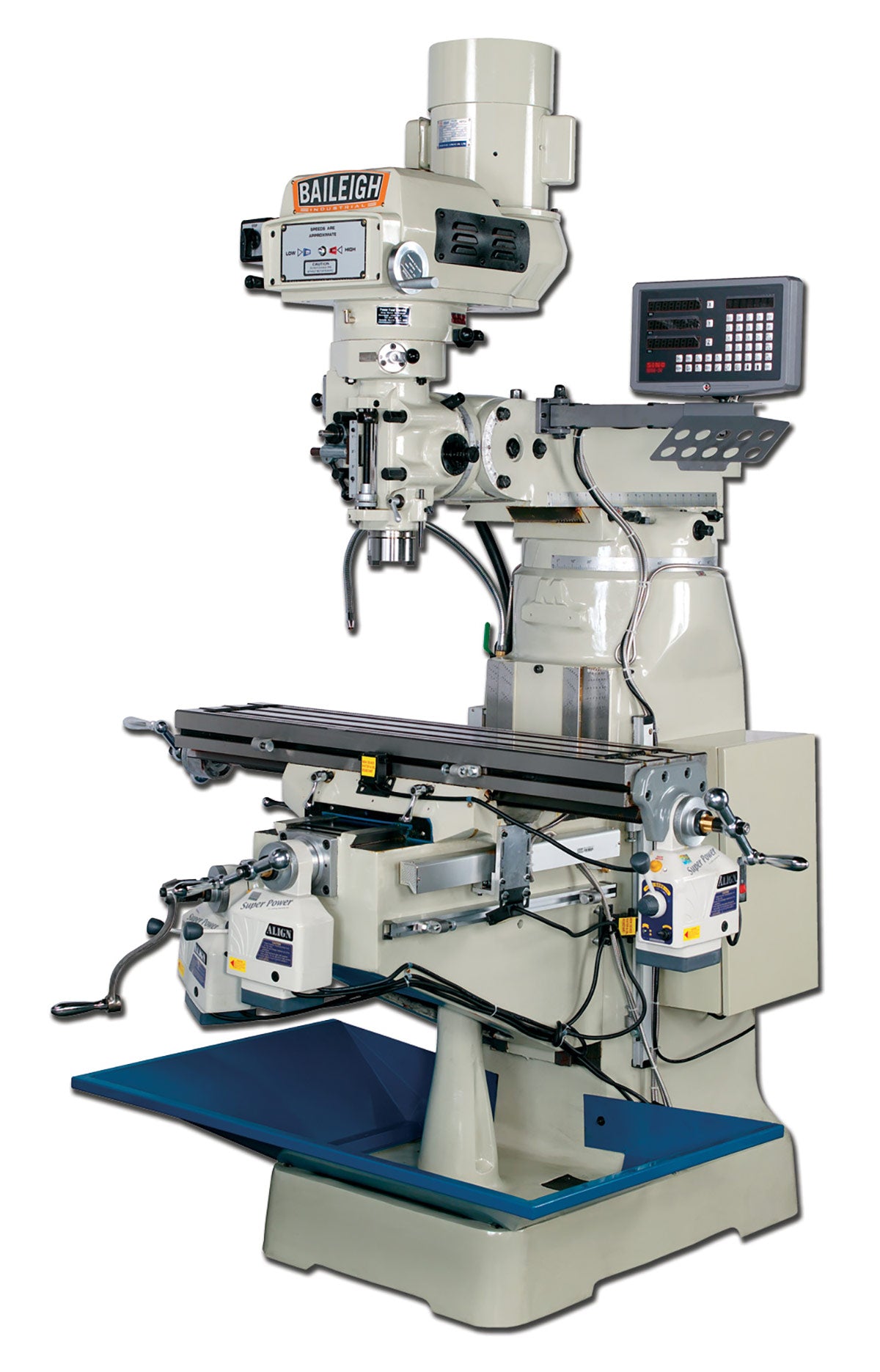

Baileigh Industrial BA9-1008192 Vertical Milling Machine VM-942-1
Free Shipping
$21,299.00
$25,491.43
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Baileigh Industrial 1008192 Description
The perfect mill for getting into machining for milling, drilling, tapping, boring, and reaming. This vertical milling machine meet any shops requirements, whether it is price, size, or power. Perfect for the machine shop or even a garage at the house
Baileigh Industrial 1008192 Includes
- (1) Vertical Milling Machine
Baileigh Industrial 1008192 Features
- A fully variable speed milling machine that allows infinite adjustment to the speed from 80 to 2,700 RPM
- Being able to fine tune the speed of the quill is important in prolonging tooling life and saving money
- Baileigh Industrial has specified a NST-40 spindle taper for the VM-942. The larger taper helps eliminate chatter and run out during the cutting process and make better cuts.
- Has a powerful 3 hp motor that runs on 220 volt single phase power and features a three axis digital read out.
- All three axis of the VM-942 are powered making this an operators dream.
- Other standard features of the Baileigh Industrial vertical mill include a coolant system with catch tray, square slide ways, and a halogen work light.
Baileigh Industrial 1008192 Specifications
| Spindle Speed Range | 80 to 2700 RPM |
| Table Size | 42" x 9" |
| Spindle Center To Column Min - Max | 0 – 12" |
| Spindle Diameter | 3.37" |
| Spindle Feed Per Rev | .0015"/.003"/.006" |
| Spindle Head Swivel | 45° (F&R) 90° (R&L) |
| Motor Spindle | 3 HP |
| Travel Auto X Axis | 28.5" |
| Travel Auto Y Axis | 12" |
| Travel Auto Z Axis | 16" |
