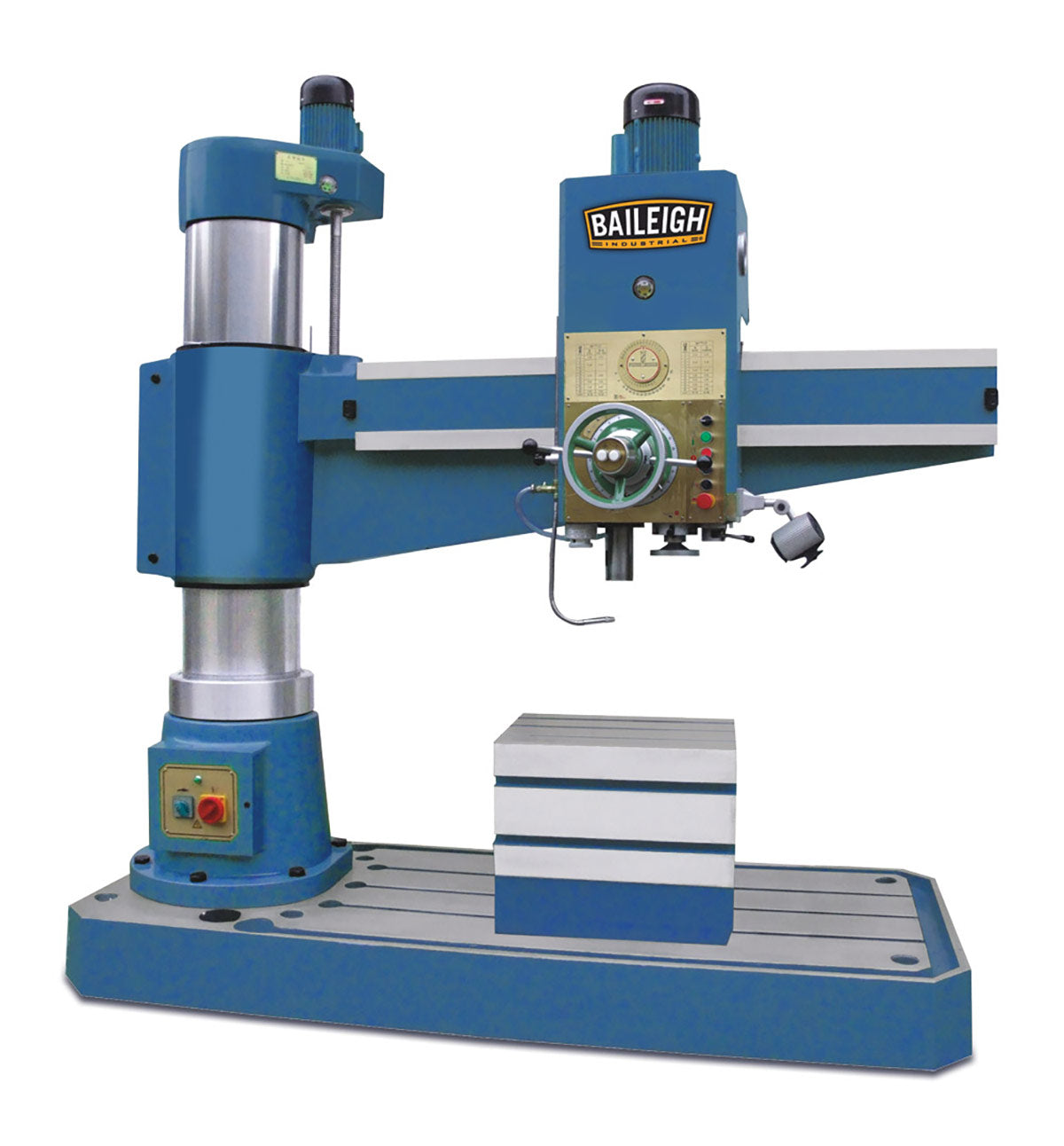

Baileigh Industrial BA9-1008486 RD-1600H Hydraulic Radial Drill Press
Free Shipping
$25,625.00
$31,102.86
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1008486 Description
Are you in the market for a large radial drill for you fabrication shop? Does it have to have a really y large swing? Then the RD-1600H hydraulic radial drill press is for you. This press has a 5.25hp motor that is powered by 220 volt three phase power.
Baileigh Industrial 1008486 Includes
- (1) Hydraulic Radial Drill Press
Baileigh Industrial 1008486 Features
- 2" maximum drilling capacity
- Heavy duty construction
- Power down feed
- MT5 spindle
- Large 63" column
- Box shape worktable
- 220V 3-phase
- Includes spindle protection cover, quick chuck, tapping chuck, Industrial coolant system, work light, and box shaped work table.
Baileigh Industrial 1008486 Specifications
| Max. Drill Capacity | 2" |
| Distance from Spindle to Column Center | 13.7" to 63" |
| Diameter of Column | 13.7" |
| Spindle Taper | MT5 |
| Spindle Travel | 12.4" |
| Spindle Speed Range | 25 to 2000 RPM |
| Range of Spindle Feeds | .001" to .125" |
| Spindle Feeds | 16 |
| Distance Between Spindle Nose and Base | 12.6" to 48" |
| Table Size | 24.8" x 19.6" x 19.6" |
