Baileigh Industrial | SKU:
BA9-1010425

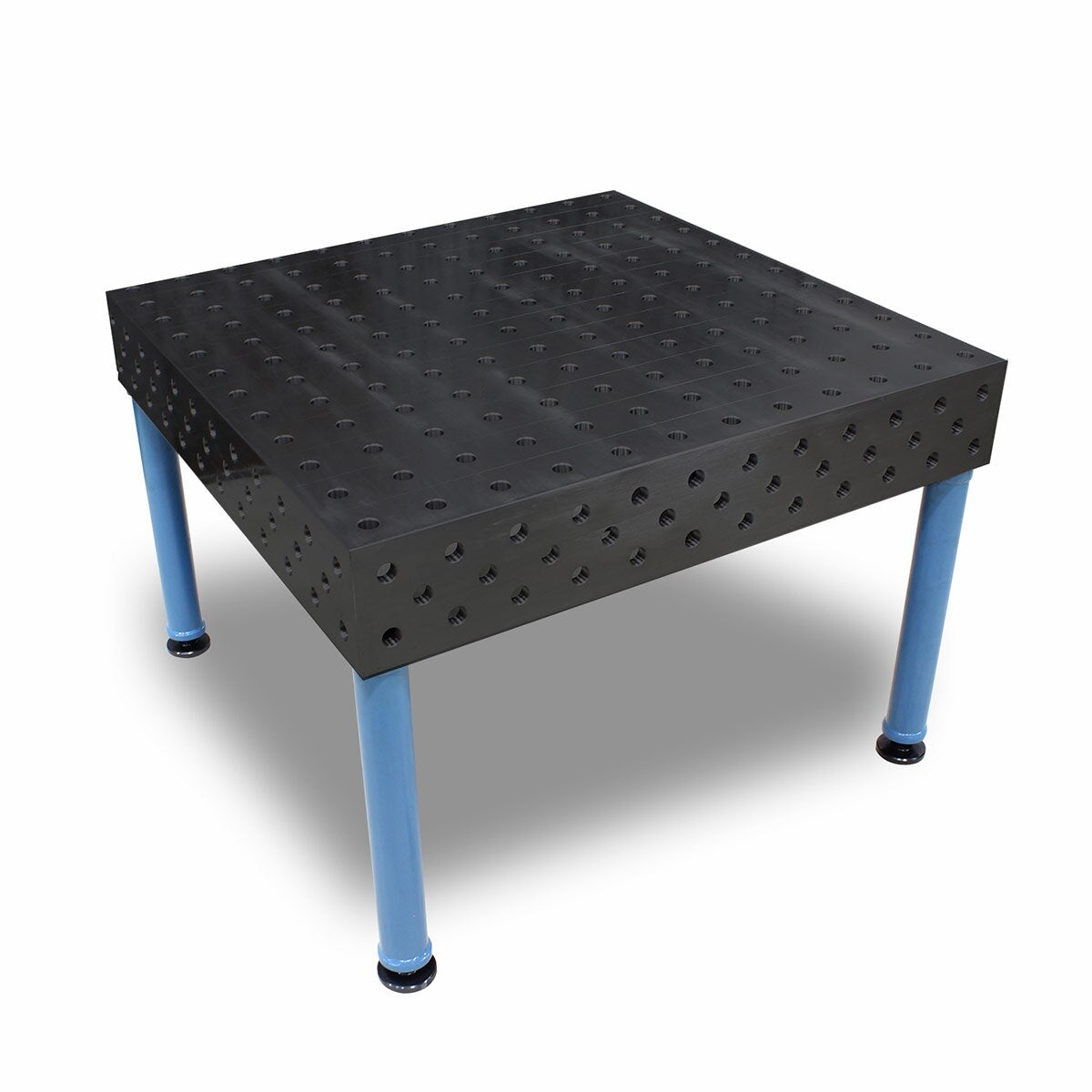

Baileigh Industrial BA9-1010425 Welding Table WJT-4747-HD
Free Shipping
$6,729.00
$8,170.93
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1010425 Description
The WJT-4747-HD has a table size of 47" x 47" and has a total of 5 mourning surfaces that use Industry standard 28mm holes that are spaced at 100mm to ensure the most options with the strongest holding power. Made from 250 cast iron, the WJT-4747-HD welding jig table from Baileigh Industrial is made to withstand the rigors of any shop. All of Baileigh Industrial's welding tables are made to exact tolerances and maintain flatness of +/- .0025" and have a hardness rating of 140 to 160 Brinell.
Baileigh Industrial 1010425 Includes
- (1) Welding Table
Baileigh Industrial 1010425 Features
- 47” x 47” table
- Made from 250 Cast Iron
- Brinell Hardness 140~160
- 5 Mounting Surfaces
- Expandable
- 2 ton weight capacity

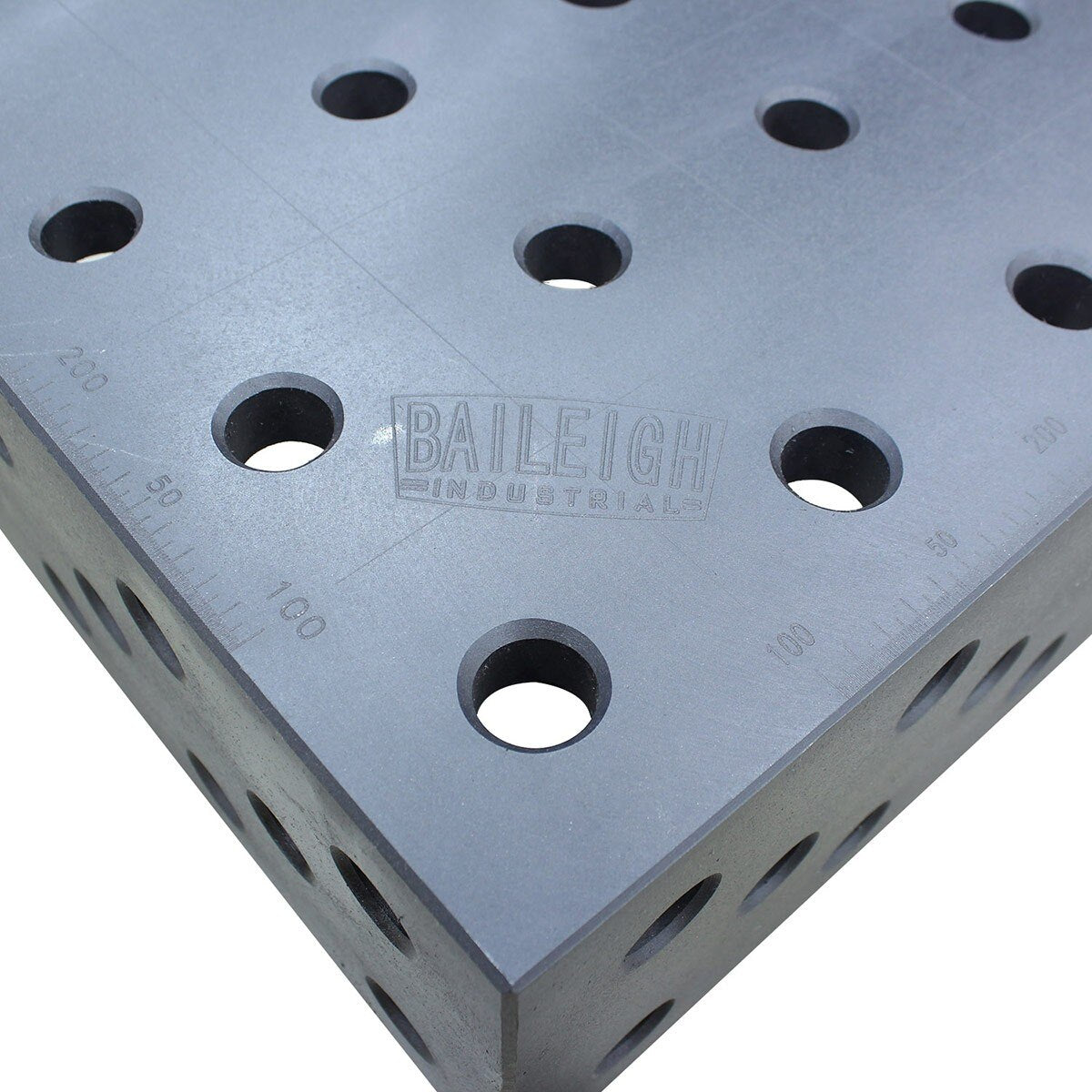

- Industry Standard 28mm Mounting holes
- 100mm hole spacing

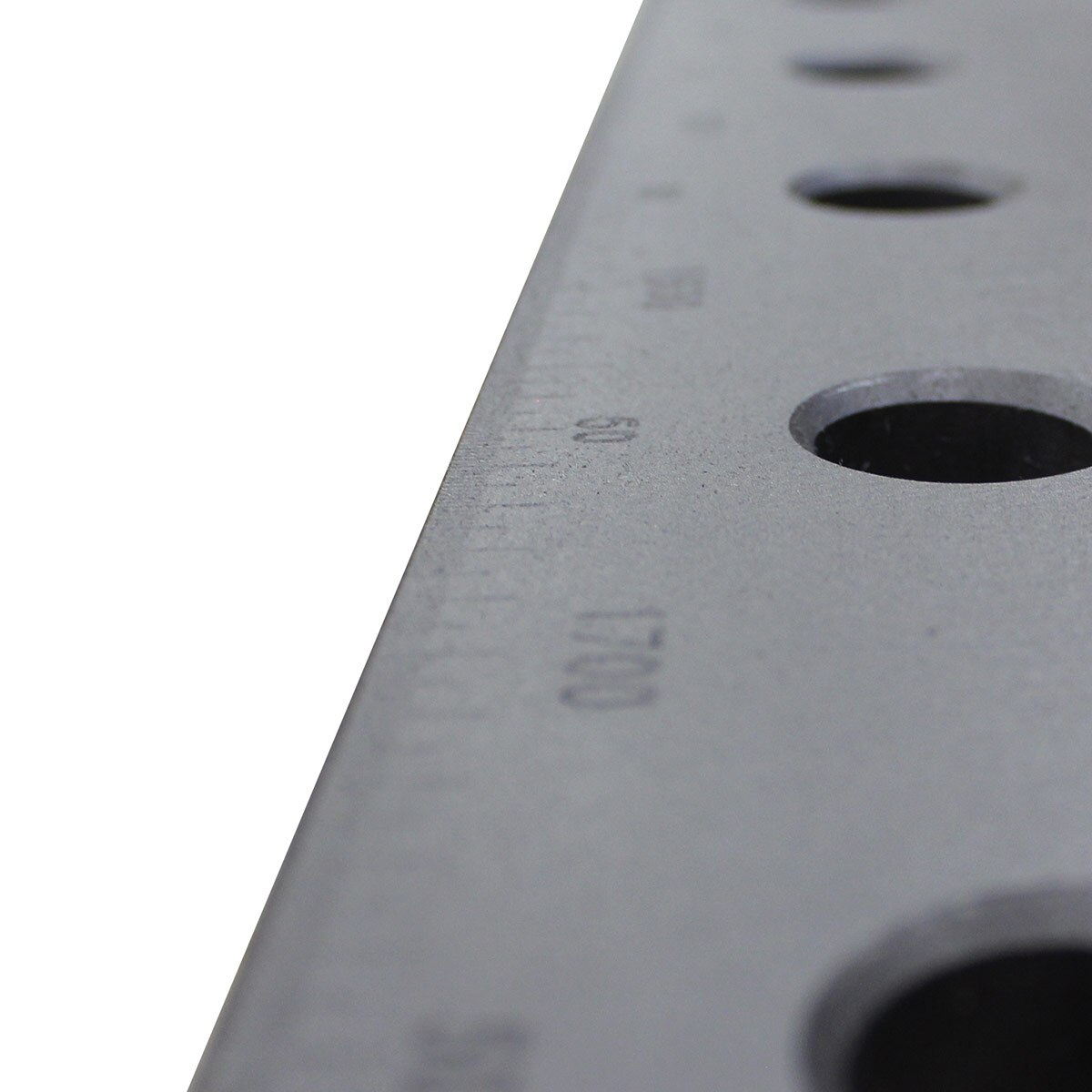

- Etched Position Marks
Baileigh Industrial 1010425 Specifications
| Working Table Size | 47" x 47" |
| Table Load Capacity | 2 Tons |
| Table Height | 33.5" |
| Table Flatness | +/- .0025" |
| Number of Mounting Surfaces | 5 |
| Mounting Hole Size | 28 mm |
| Mounting Hole Spacing | 100 mm |
| Dimensions (L x W x H) | 50" x 50" x 50" |
| Country of Origin | China |
