Baileigh Industrial BA9-1010426 HD Welding Table WJT-7839
Description
Description

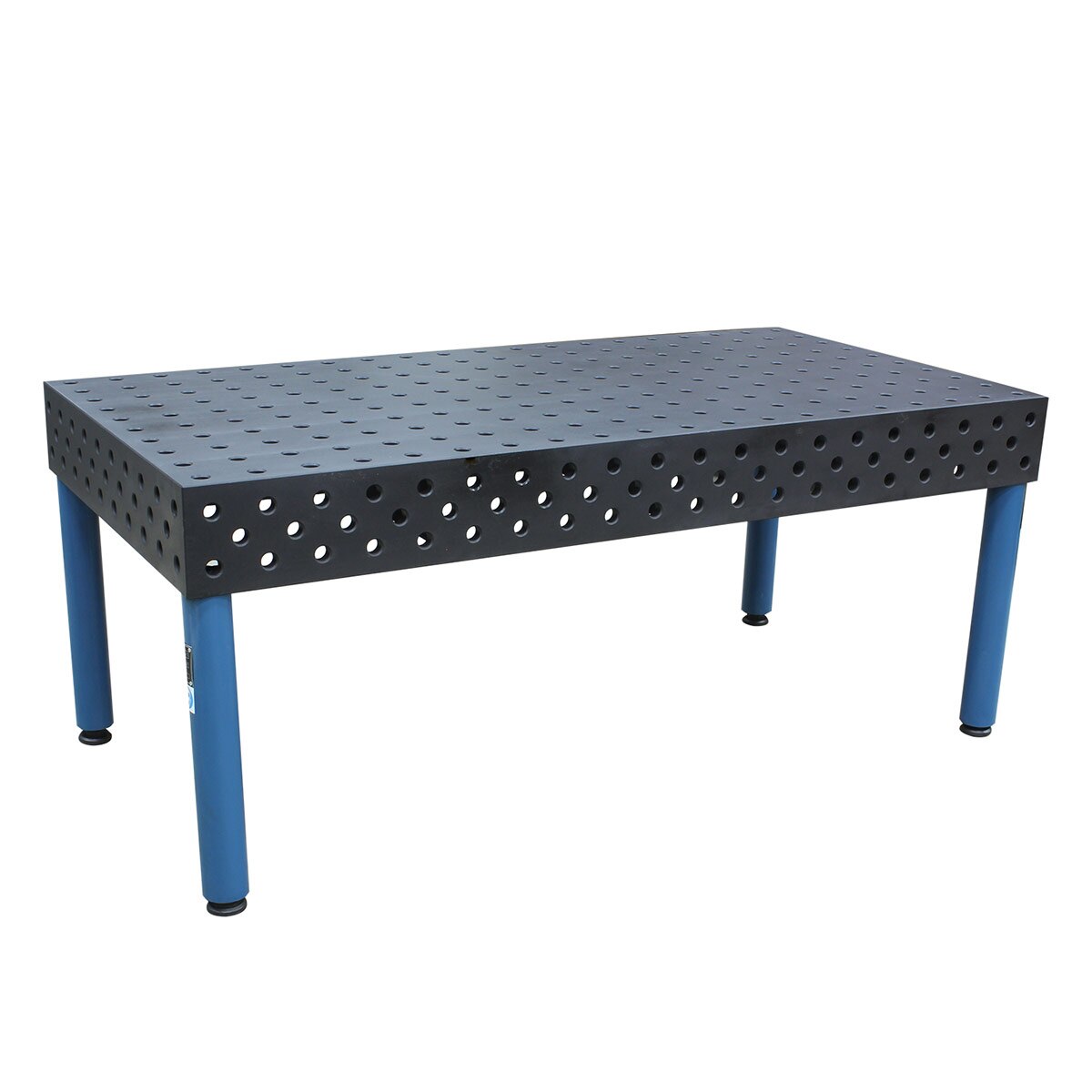

Baileigh Industrial 1010426 Description
Made from 250 Cast iron the WJT-7839-HD welding jig table from Baileigh Industrial is made to withstand the rigors of any shop. All of Baileigh Industrial's welding tables are made to exact tolerances and maintain flatness of +/- .0025" and have a hardness rating of 140 to 160 Brinell. The WJT-7839-HD Welding Jig Table has a table size of 78" x 39" and has a total of 5 mourning surfaces that use Industry standard 28mm holes that are spaced at 100mm to ensure the most options with the strongest holding power. For more information about our cast iron welding tables, contact a Baileigh representative.
Baileigh Industrial 1010426 Includes
- (1) Welding Table
Baileigh Industrial 1010426 Features
- 78” x 39” table
- Made from 250 Cast Iron with nitride coating
- Brinell Hardness 140~160
- 5 Mounting Surfaces
- Expandabl
- 2 ton weight capacity
- Industry Standard 28mm Mounting holes
- 100mm hole spacing

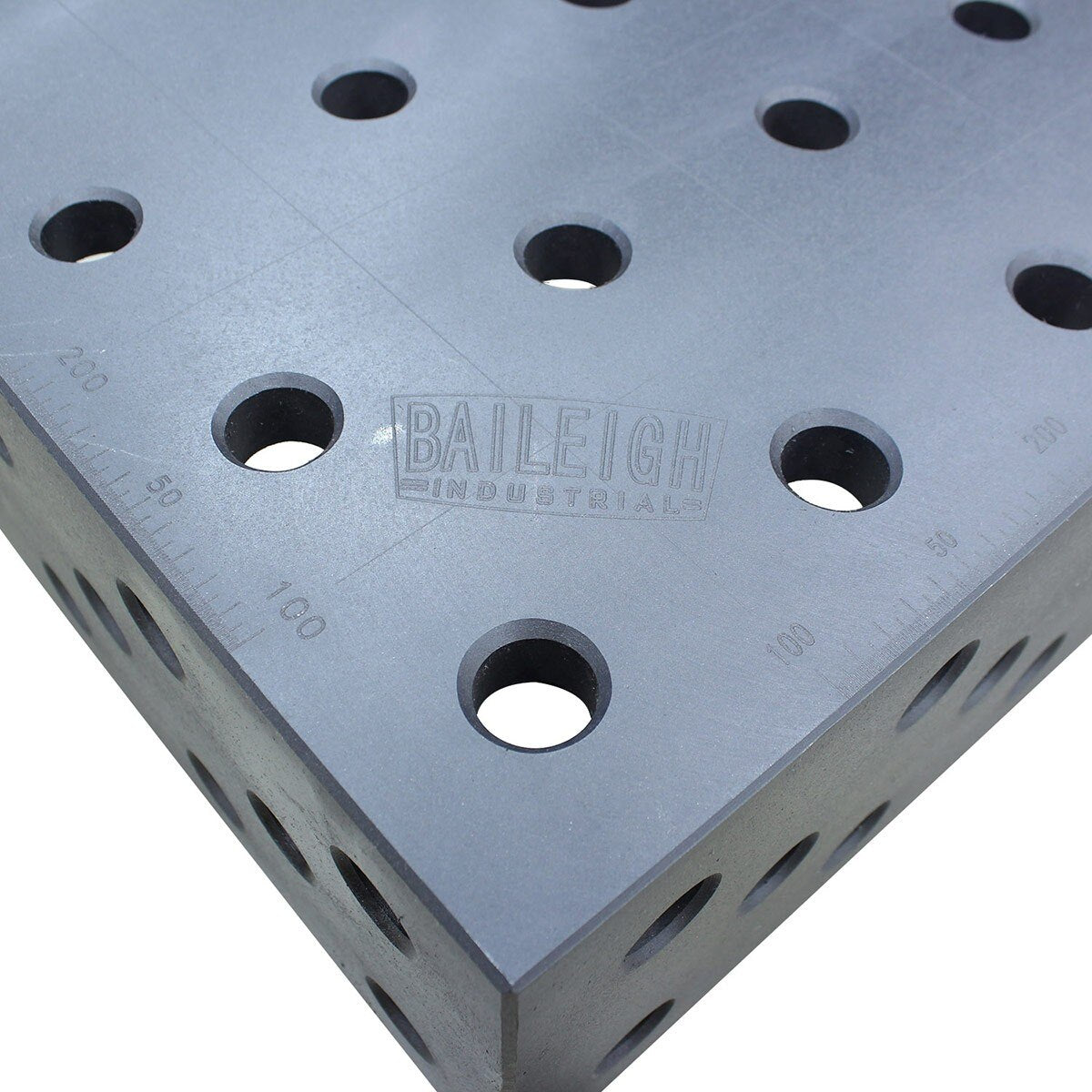

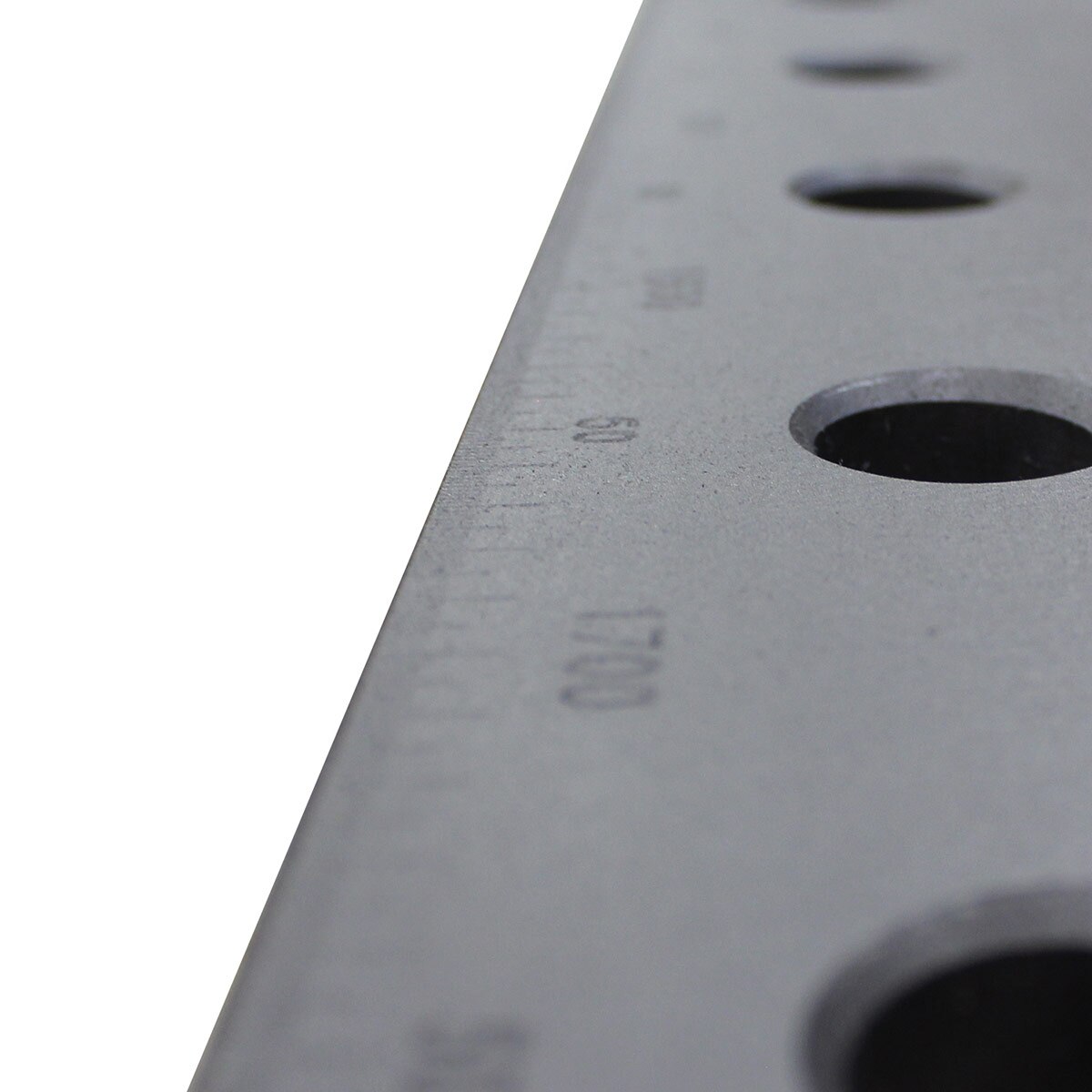

- Etched Position Marks
- Includes table Oiler, Brush and cleaning stone
Baileigh Industrial 1010426 Specifications
| Working Table Size | 78" x 39" |
| Table Load Capacity | 2 Tons |
| Table Height | 33.5" |
| Table Flatness | +/- .0025" |
| Number of Mounting Surfaces | 5 |
| Mounting Hole Size | 28 mm |
| Mounting Hole Spacing | 100 mm |
| Dimensions (L x W x H) | 80" x 45" x 45" |
| Country of Origin | China |
