Baileigh Industrial | SKU:
BA9-1012401

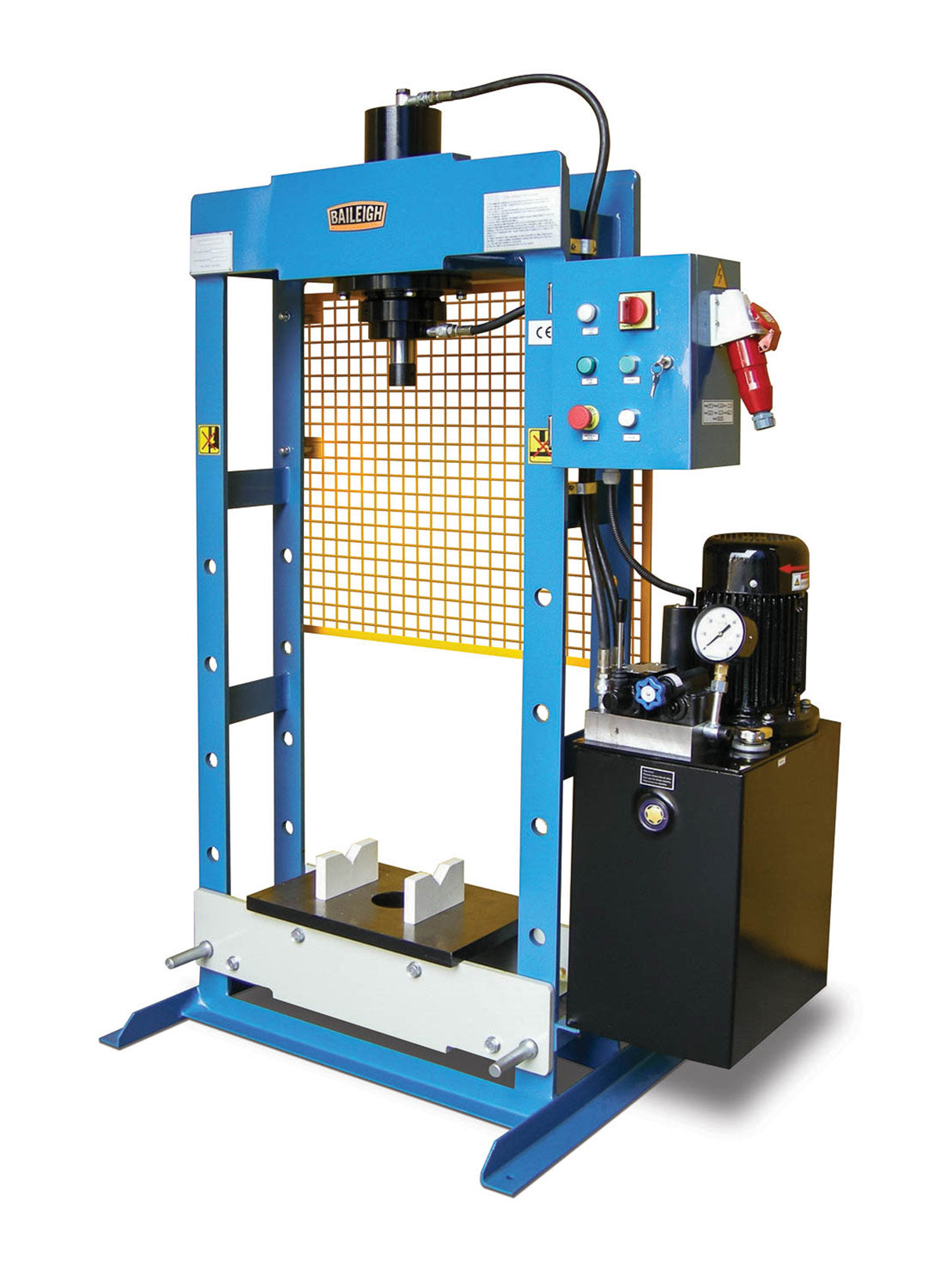

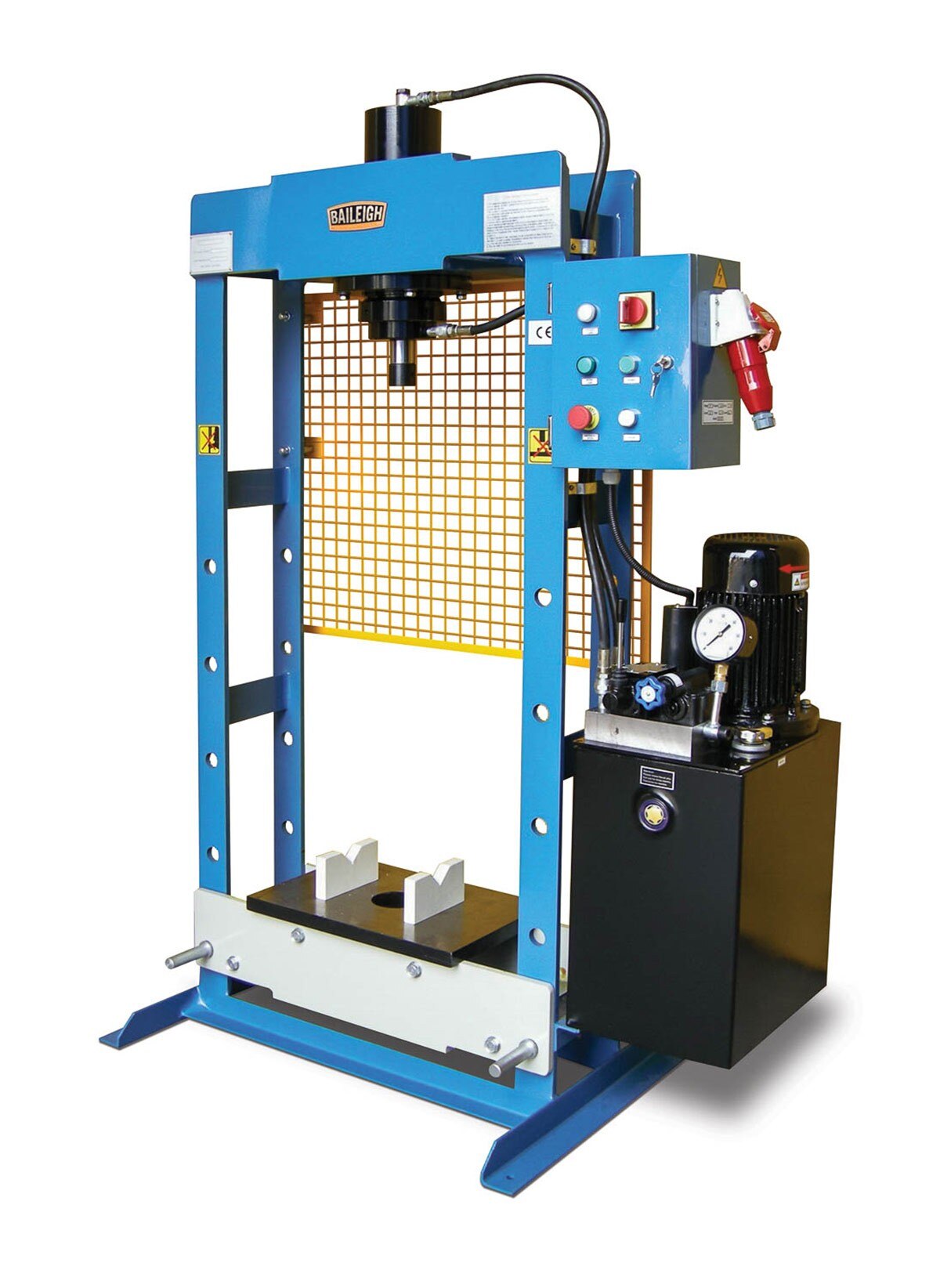

Baileigh Industrial BA9-1012401 Hydraulic Press HSP-30M
Free Shipping
$7,549.00
$8,814.50
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1012401 Description
This model is a Scratch and Dent version with minor paint damage only. Operates as normal but can be sold as new, our loss is your gain! With its sturdy plate steel construction and piston-style hydraulic pump, this hydraulic H-frame press offers one of the best values on the market.
Baileigh Industrial 1012401 Includes
- (1) Hydraulic Press
Baileigh Industrial 1012401 Features
- 30-ton capacity.
- 27.5” working width.
- 5.74” diameter cylinder with 9.8” stroke.
- 3 hp motor runs on 200-volt single-phase power.
- Cylinder can move left and right within the frame to deliver pressure at the point where you need it for off-center projects.
- Comes standard with a pressure gauge.
- Includes 2-piece V-block.
- Fully-welded steel frame enables you to use the machine’s force at full capacity without worrying about flexing.
- Baileigh covers this hydraulic shop press with a 1-year parts warranty.
Baileigh Industrial 1012401 Specifications
| Return Speed | .25" / sec. |
| Motor | 3 HP |
| Piston Head Diameter | 2" |
| Pump Speed | .95 gal/min |
| Oil Capacity | 13 Gallon |
| Working Speed | .197" / sec. |
| Working Width | 27.5" |
| Maximum Capacity | 30 Ton |
| Cylinder Stroke | 9.8" |
| Cylinder Movable | Yes |
