Baileigh Industrial | SKU:
BA9-1013217

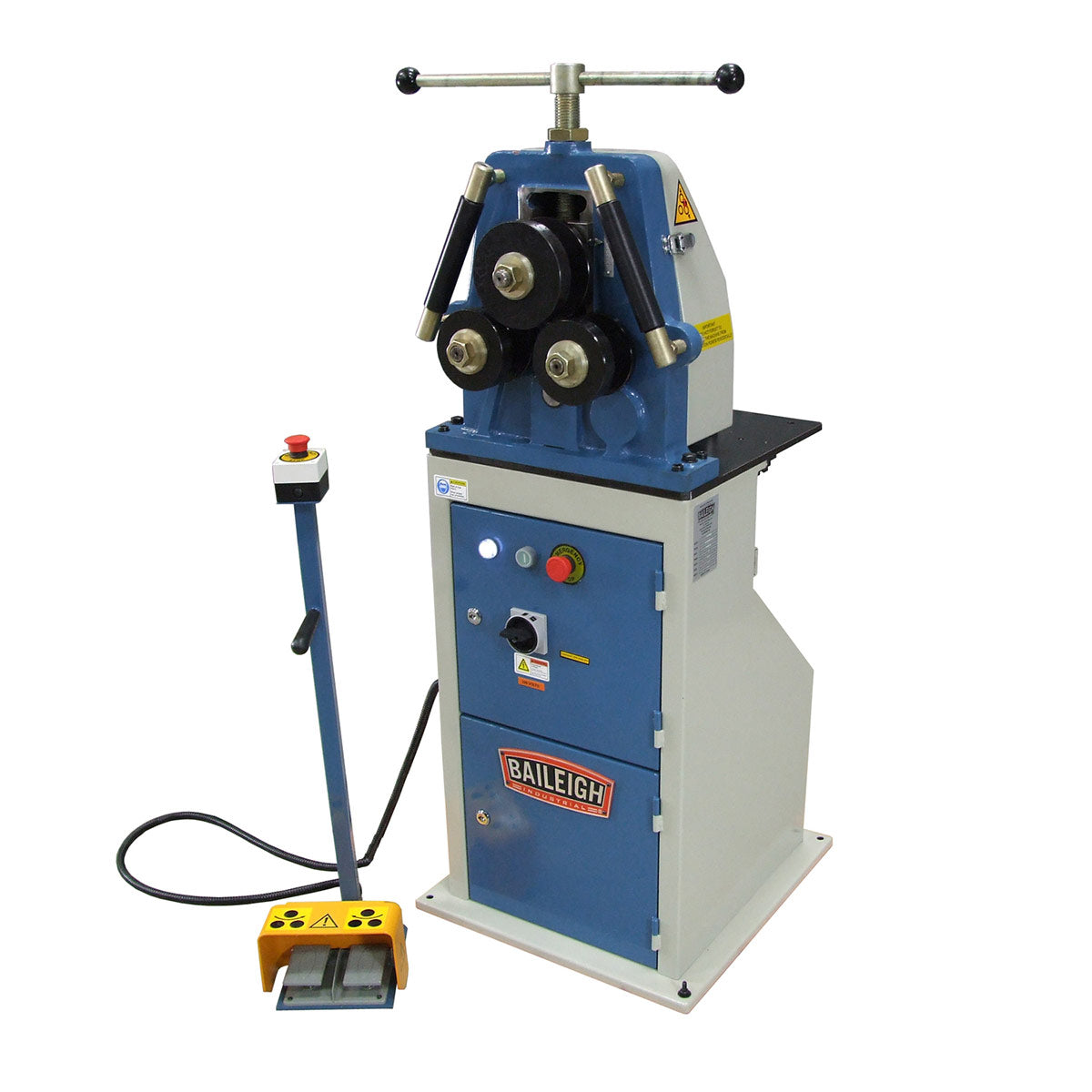

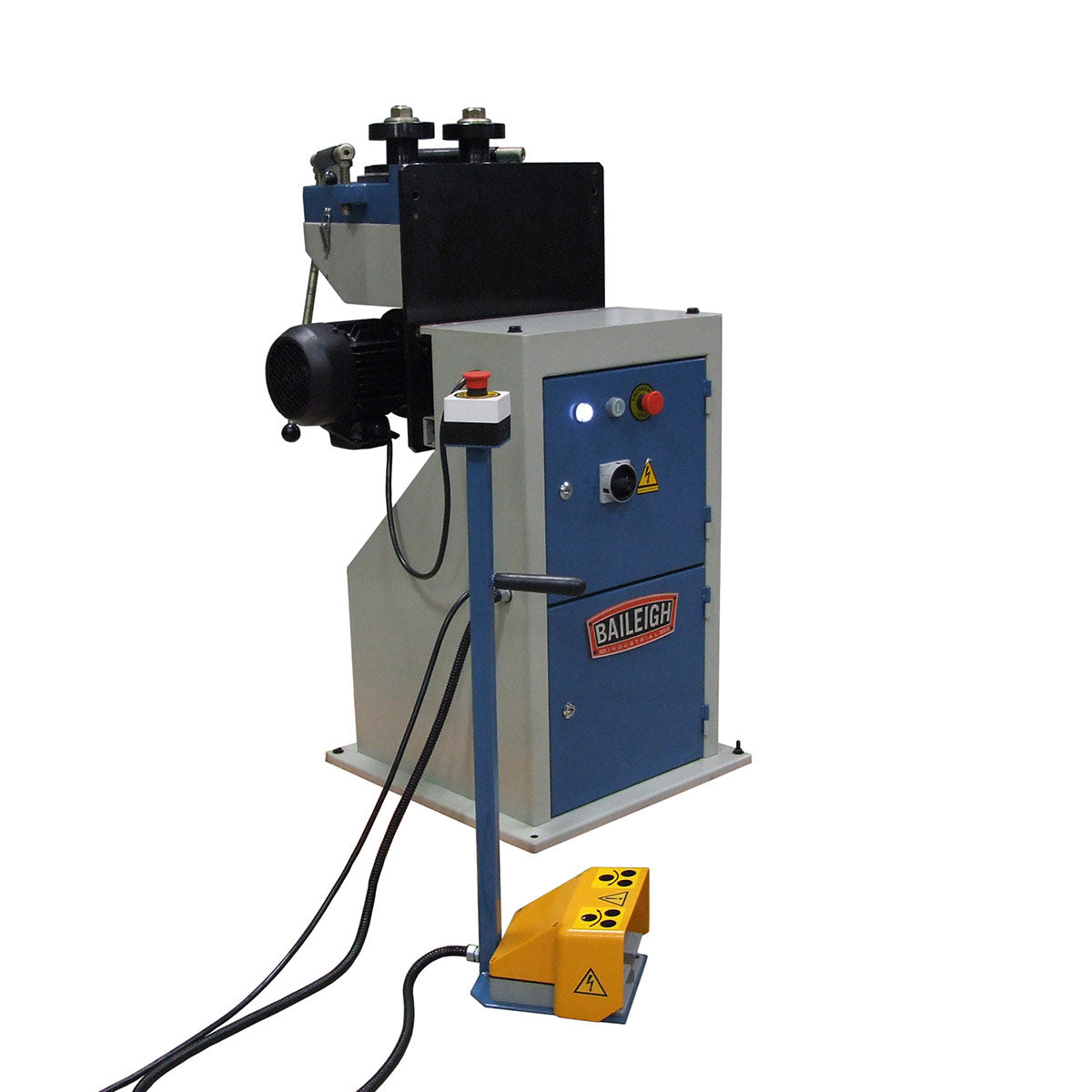

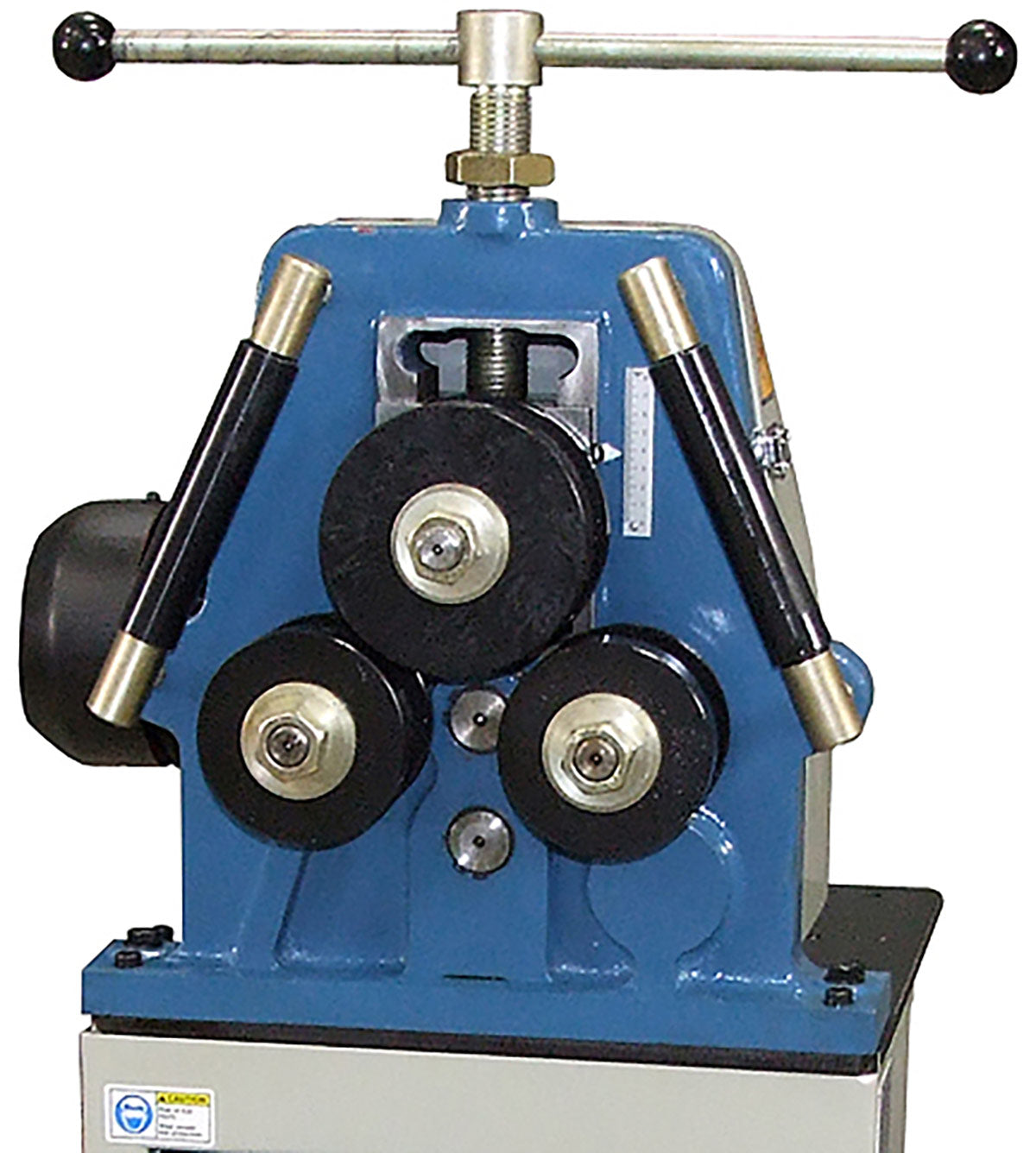

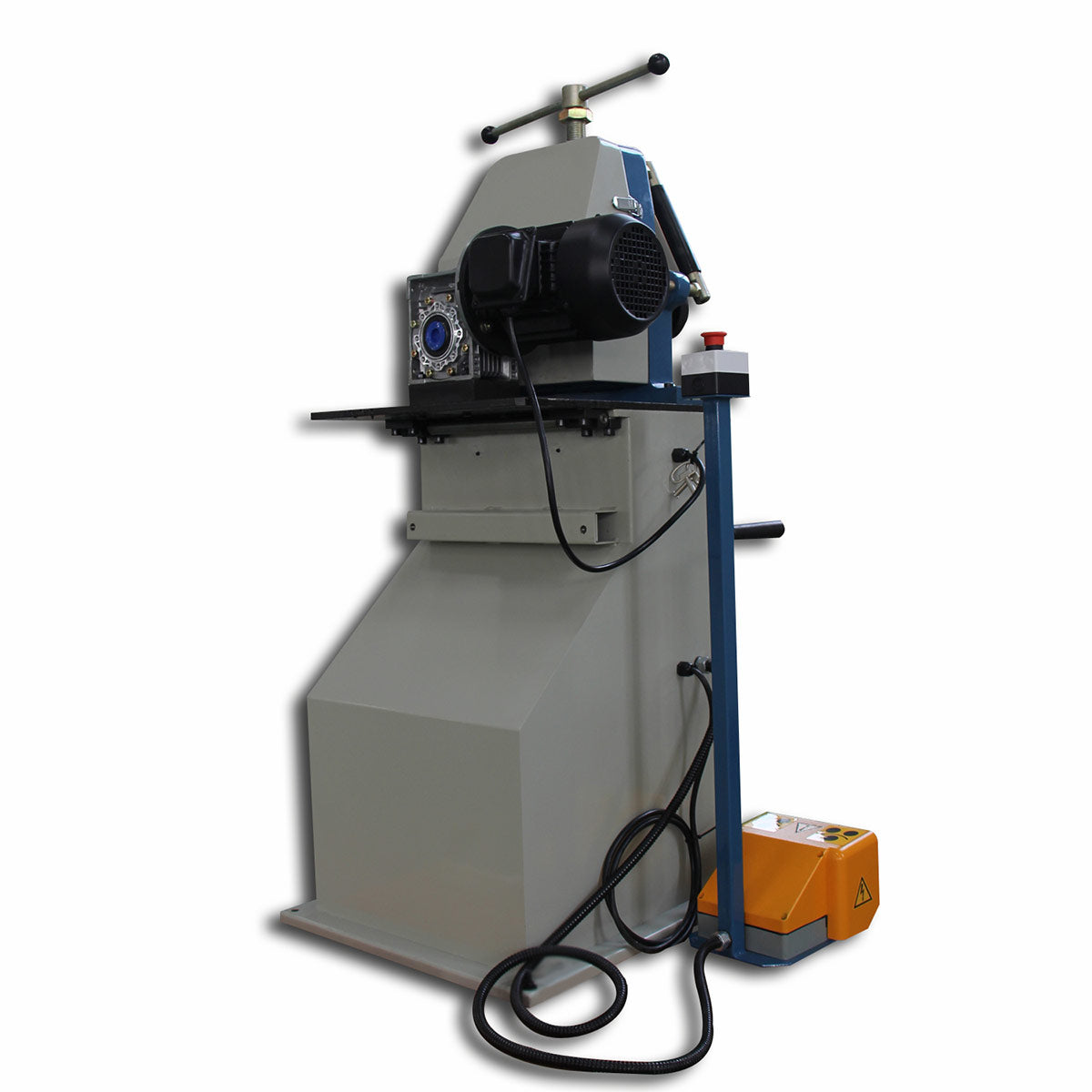

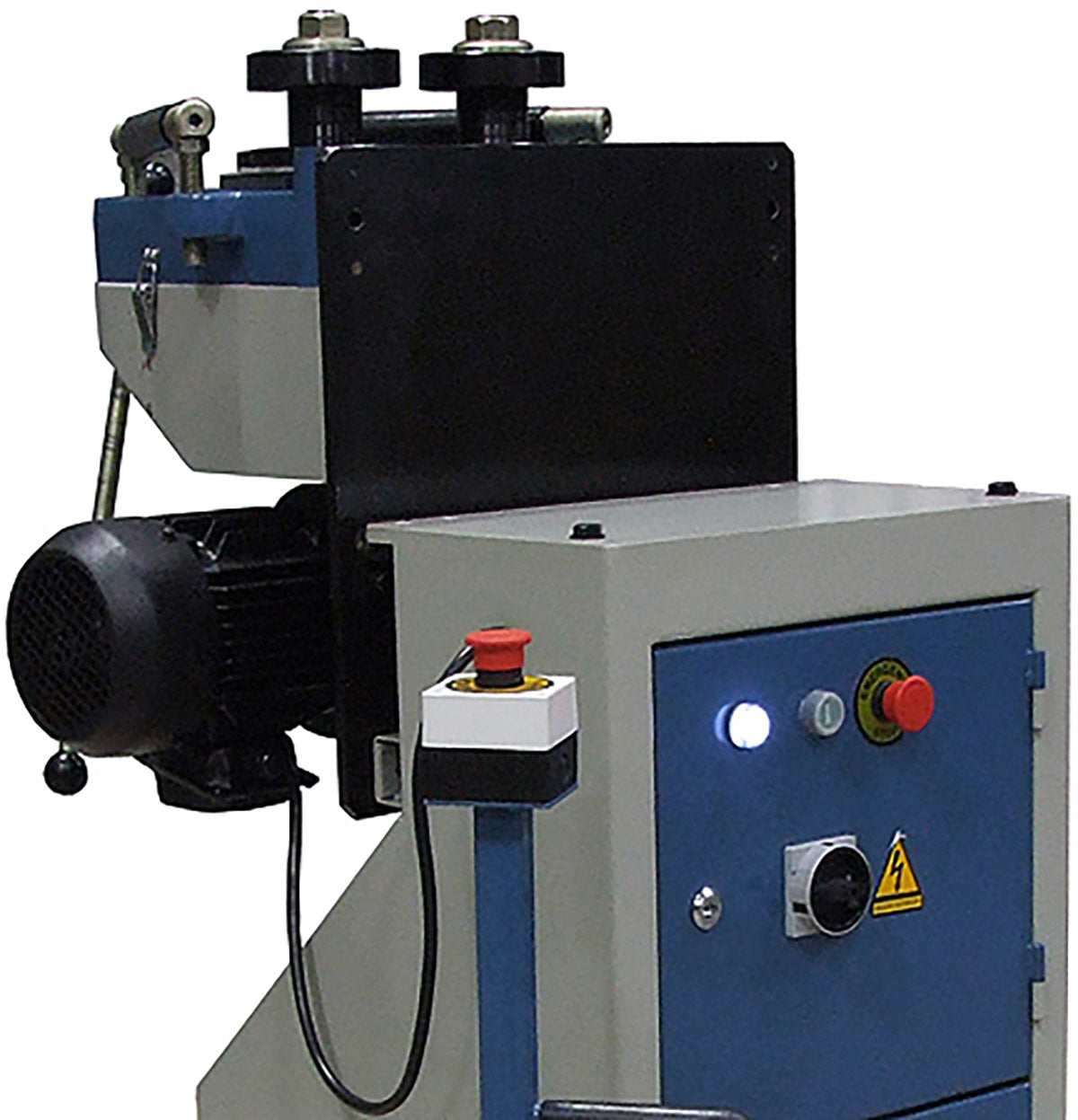

Baileigh Industrial BA9-1013217 Manual Roll Bender R-M10E
Free Shipping
$3,509.00
$4,260.93
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Baileigh Industrial 1013217 Description
Baileigh introduced the R-M10E as an answer to our custoemrs wants. This electric ring roller has proved to be a life saver for those fabrication shops that need s little more production that the R-M10 can provide.
Baileigh Industrial 1013217 Includes
- (1) Manual Roll Bender
Baileigh Industrial 1013217 Features
- 220 Volt 3 phase
- Maximum capacity of 1.25” (.078” wall) mild steel round tubing and 1” schedule 40 pipe capacity.
- Open-face design allows you to roll full circles.

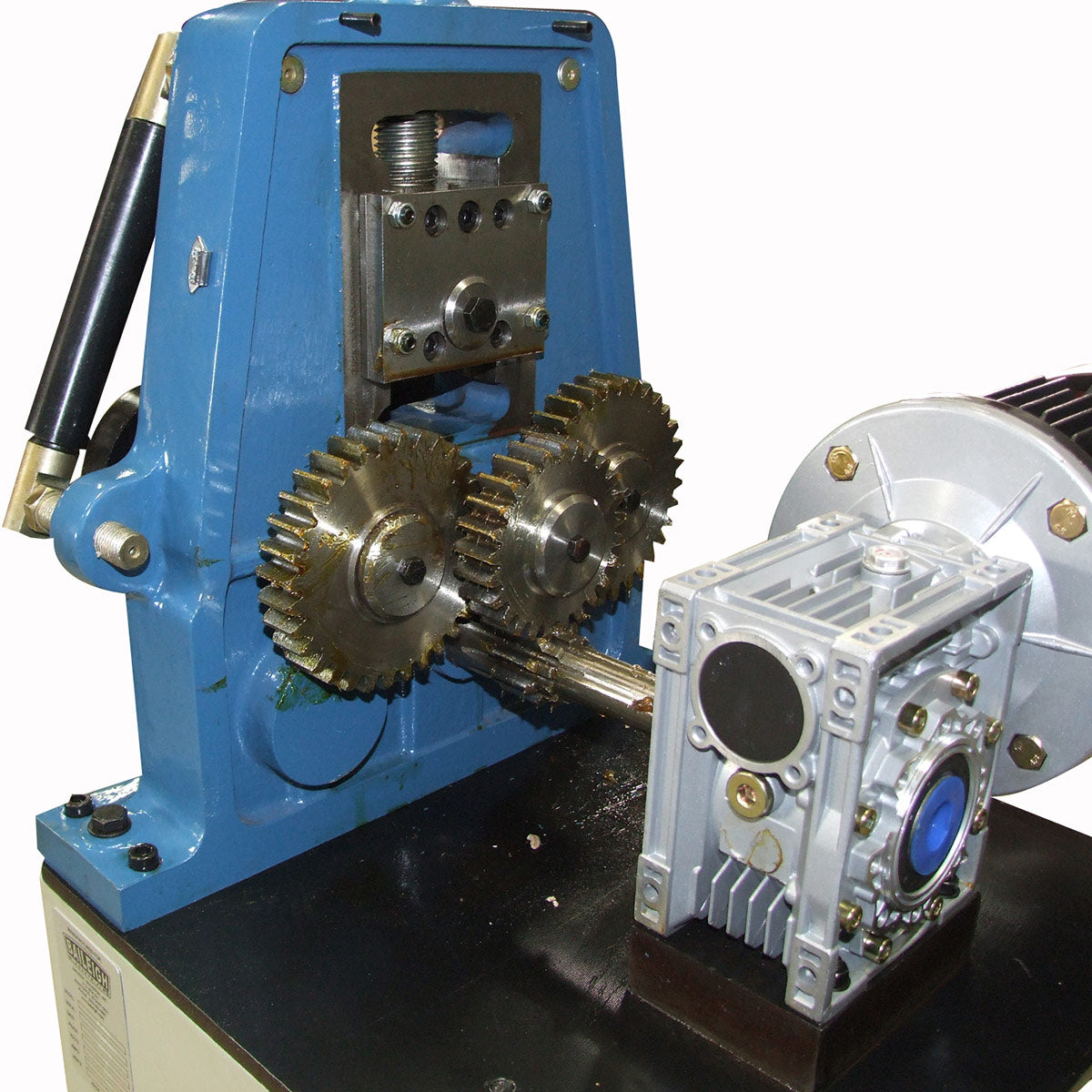

- Manual drive includes reduction gearbox to cut down on physical effort.

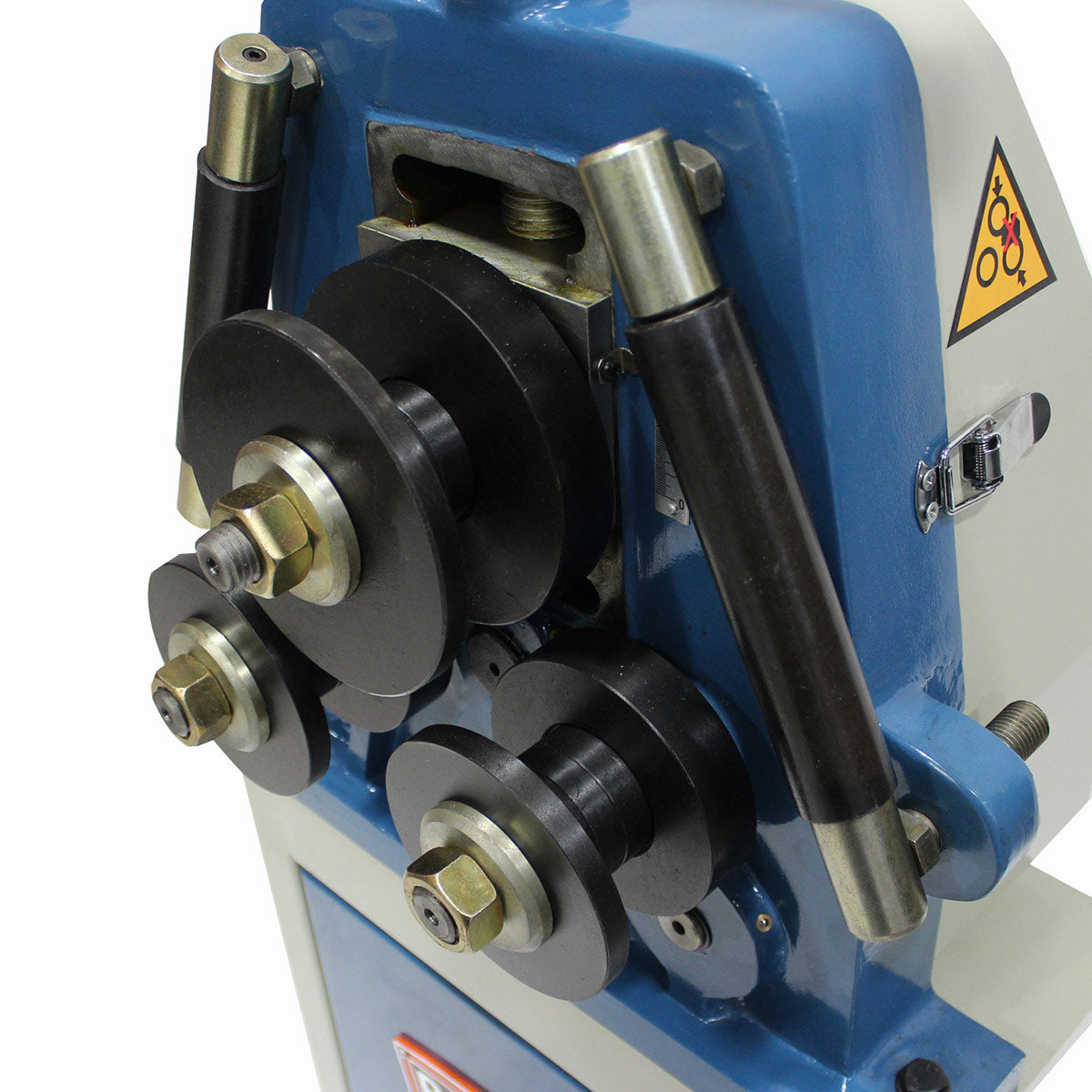

- Comes equipped with various segment rolls for different types of flat bar, angle iron, and square tubing.
- Hardened rolling shafts turn on bronze bushings, ensuring that the machine will last for years and wear well.
- Cast steel head, machined to exacting tolerances, maintains accuracy when bending at full capacity.
- Machine base opens to a handy storage cabinet.
- Many optional sizes of tooling are available for round tube and pipe, among other profiles.
- Backed by Baileigh’s 1-year parts warranty.
Baileigh Industrial 1013217 Specifications
| Motor | 2 HP |
| Roll Adjustment | Manual |
| Pipe Capacity Size | 1" (sch. 40) / Min. Dia. |
| Round Tube Capacity Size | 1.25" (.078") / Min. Dia. |
| Square Tube Capacity Size | 1.25" (.078") / Min. Dia. |
| Solid Round Capacity Size | .875" / Min. Dia. 20" |
| Flat Bar Easy Way | 1.96" (.39") / Min. Dia. |
| Flat Bar Hard Way | 1.18" (.39") / Min. Dia. |
| Angle Iron Capacity Size | 1.25" (.157") / Min. Dia. |
| Shaft Diameter | 1.181" |
