Baileigh Industrial BA9-1013589 HLT-4400 Hydraulic Lift Table
Description
Description
Baileigh Industrial 1013589 Description

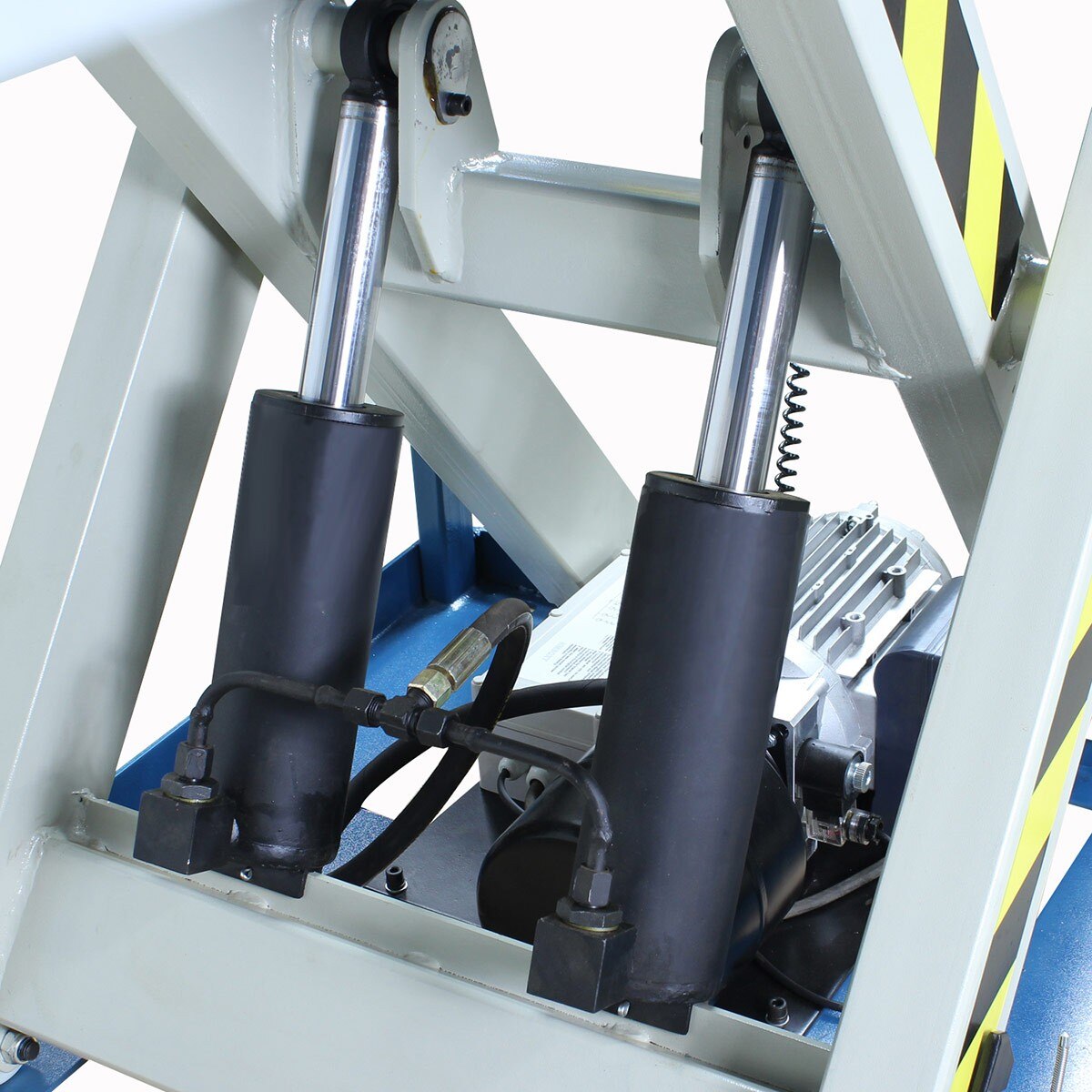

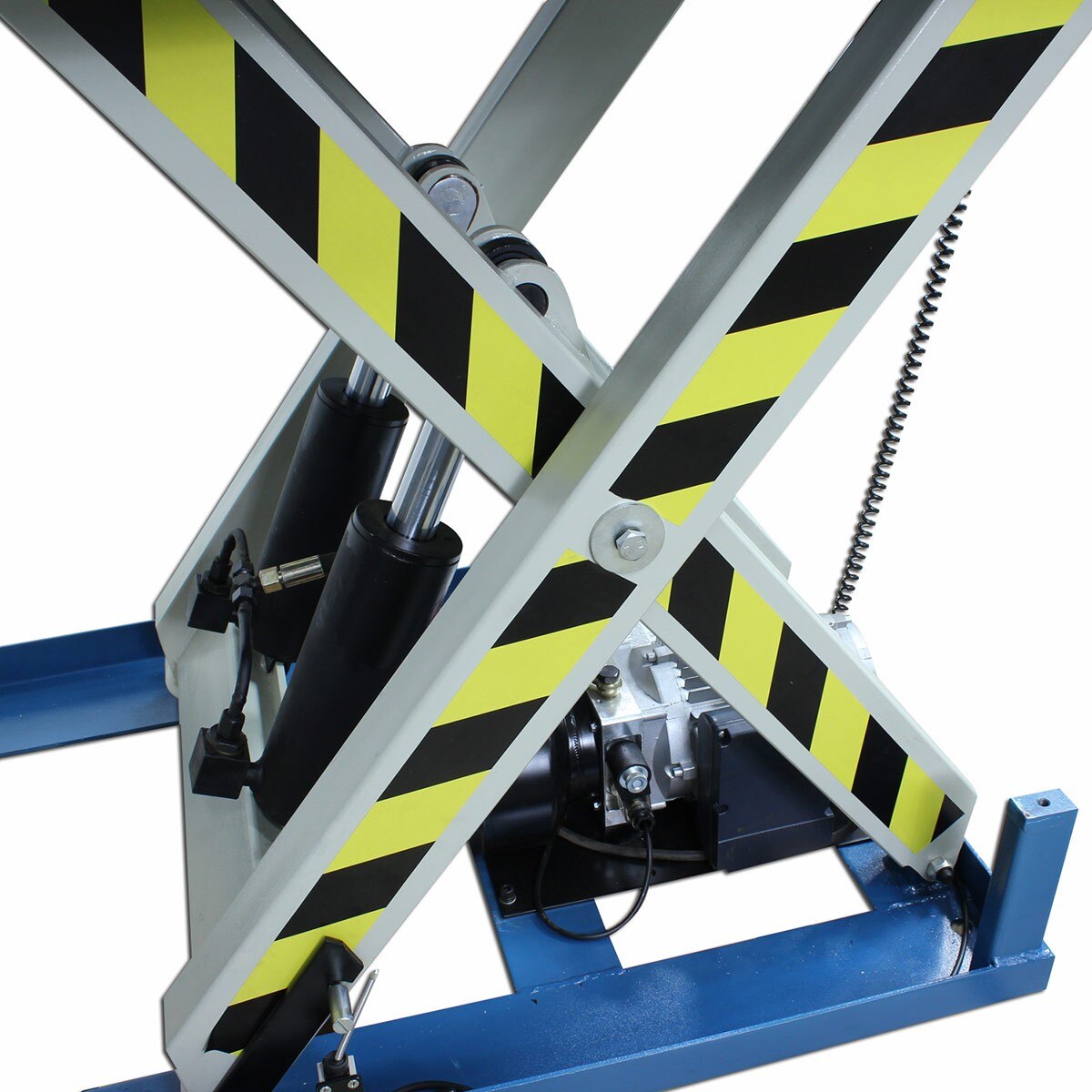

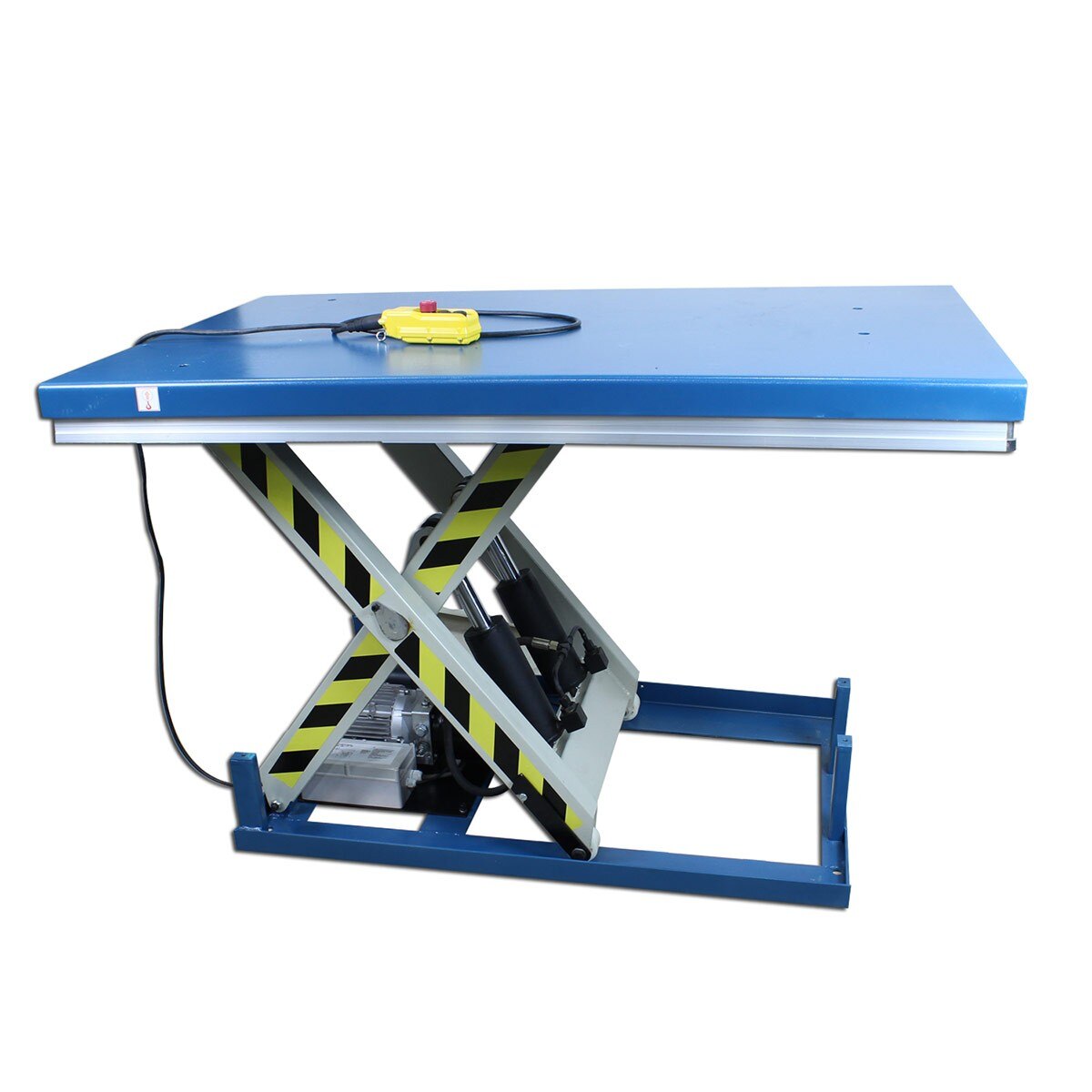

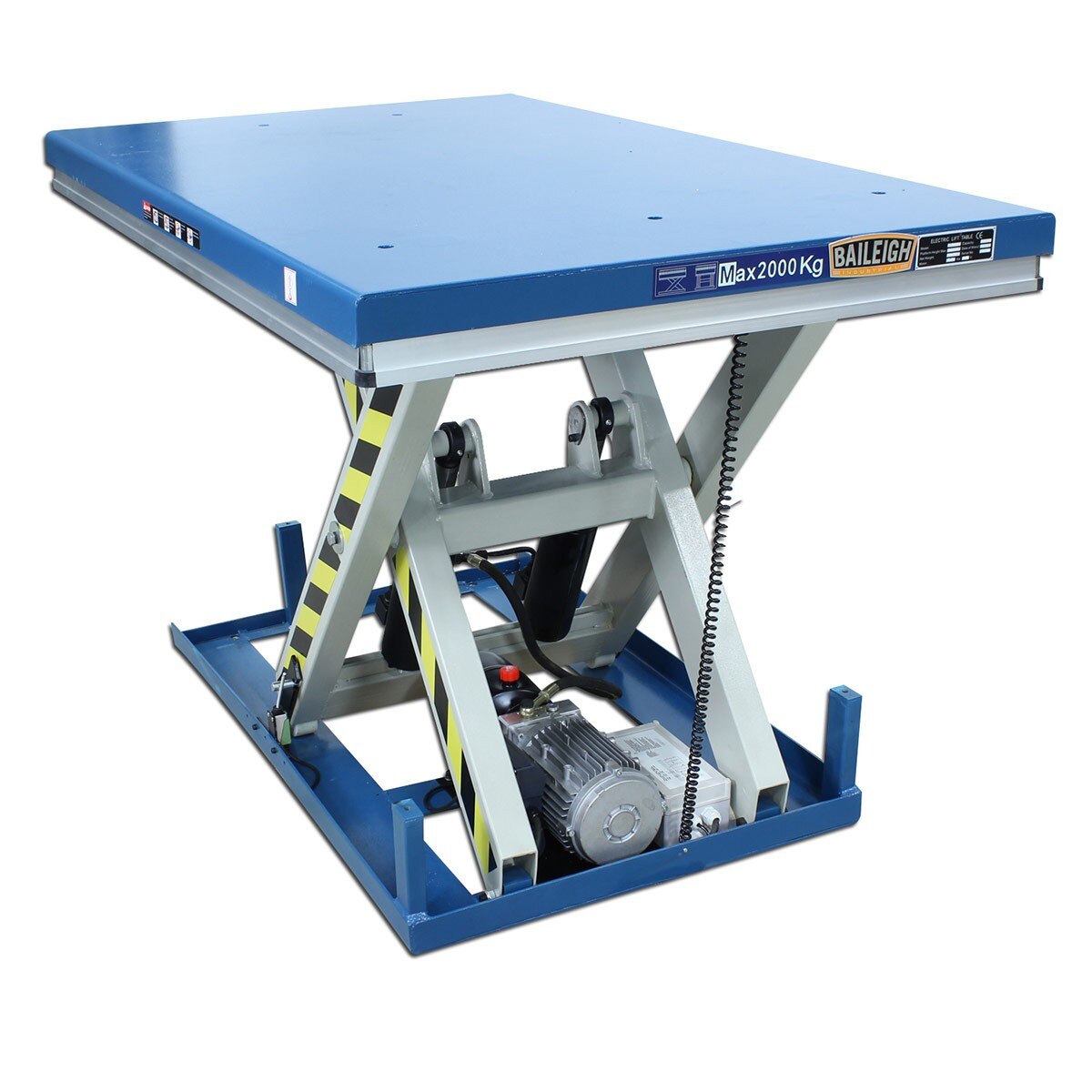

The Baileigh Industrial HLT-4400 hydraulic lift table is the perfect addition to any shop. This industrial lift table makes work easy by hydraulically lifting to the proper work height. The dual cylinder system can easily handle up to 4400lbs. The HLT-4400 hydraulic work table has many safety features built in which make it ANSI and ASME approved.
Baileigh Industrial 1013589 Includes
- (1) Hydraulic Lift Table
- (1) Down Pressure Safety Switch
Baileigh Industrial 1013589 Features
- 4400 lbs. capacity
- 63" x 39" table
- 9" min./39" max. height
- 25 Sec to max.height
- Full function safety bar emergency stop

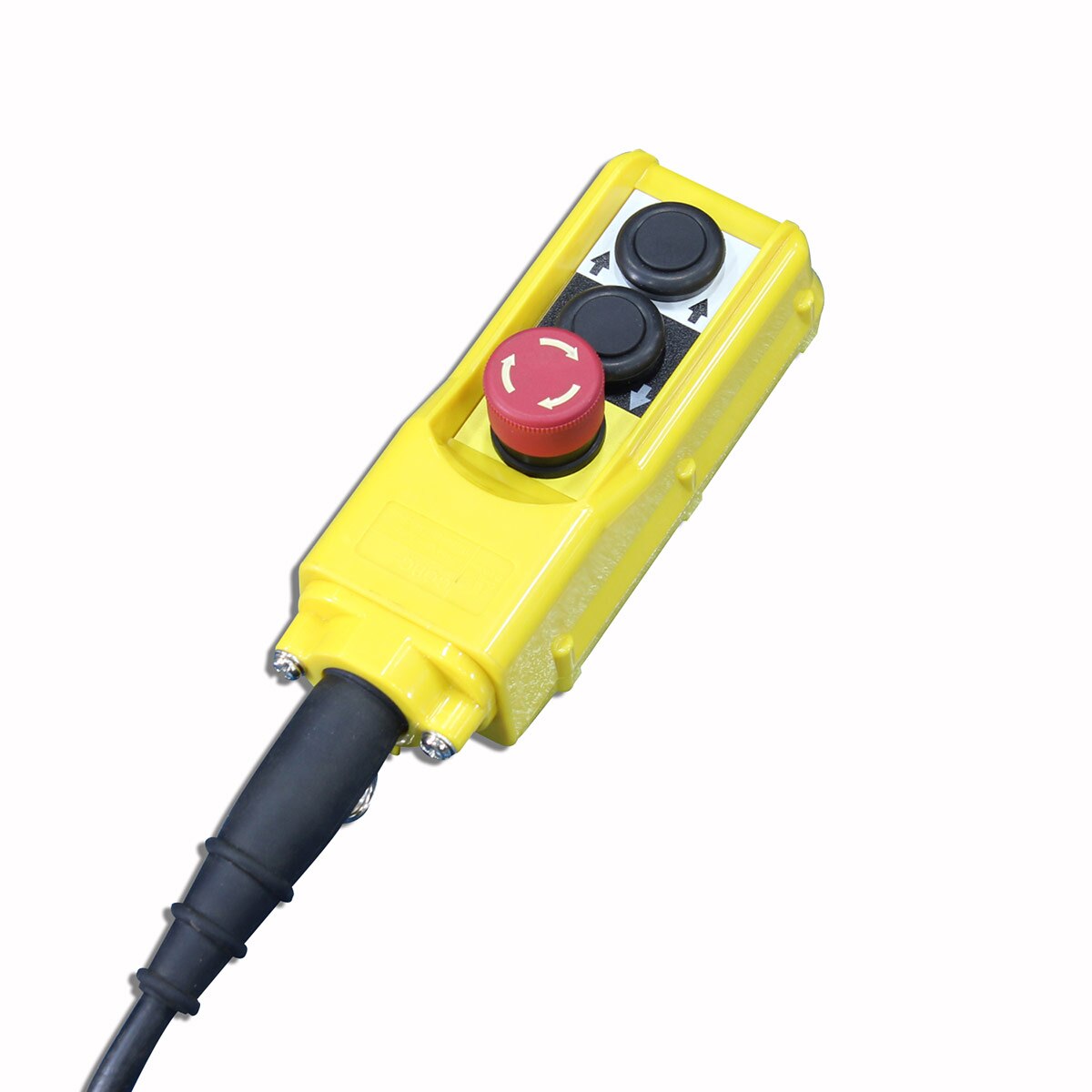

- Hand-held pendant control
- Self lubricating bearings for long life
- ANSI/ASME approved
- 220V single phase
Baileigh Industrial 1013589 Specifications
Table Size | 63" x 39" |
Base Size | 48" x 31" |
Max. Table Height | 39" |
Min. Table Height | 9" |
Travel Speed | 25 sec. for Max. Height |
Capacity | 4400 lbs |
Power | 220V / 1-phase |
Shipping Dimensions | 69" x 44" x 21" |
Country of Origin | China |
