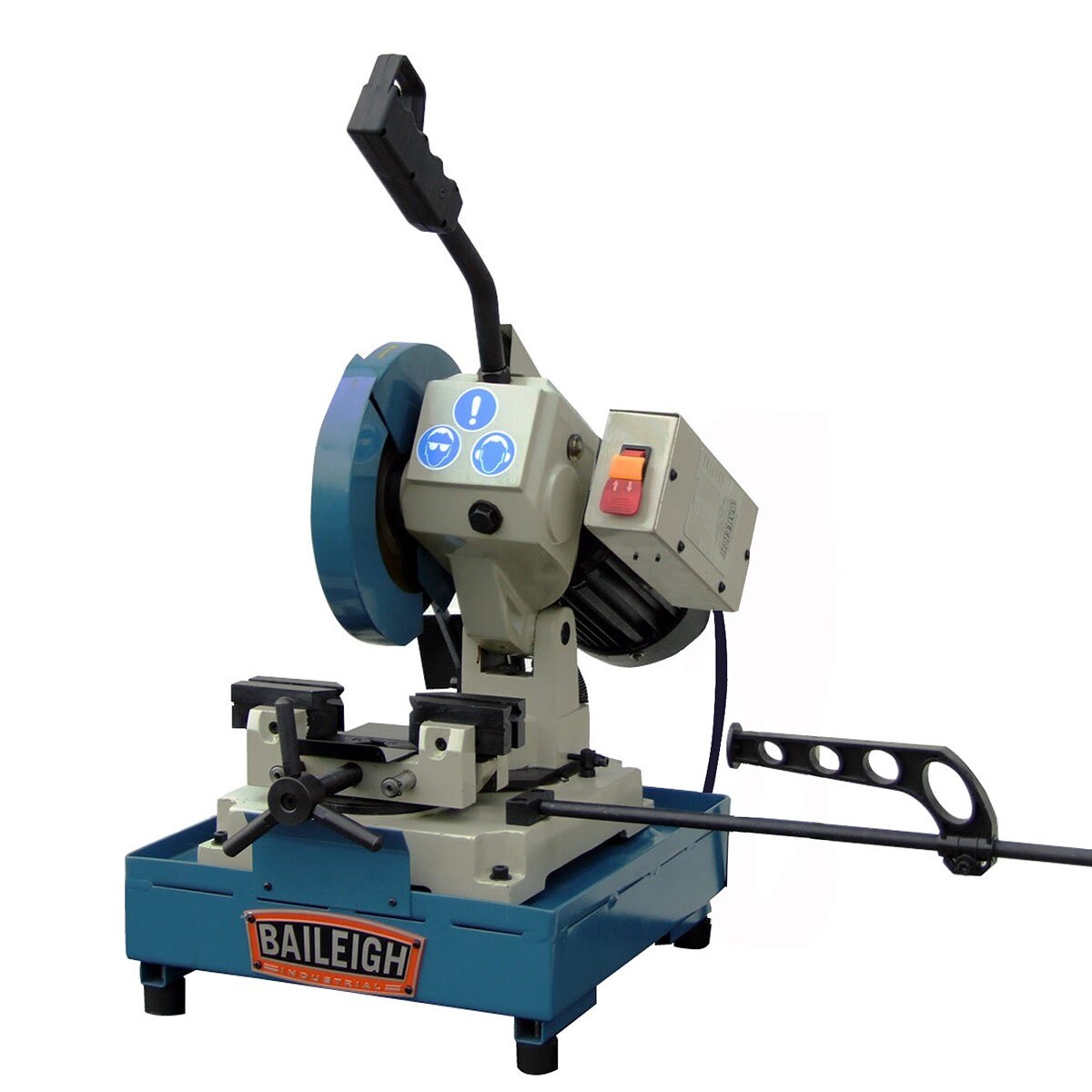

Baileigh Industrial BA9-1013715 Manually Operated Coldsaw CS-225M
Description
Description
Baileigh Industrial 1013715 Description
The CS-225M makes burr-free cuts like only a cold saw can. This portable benchtop saw has a cast base and a flood coolant system, often found only on more expensive models. The CS-225M cold cut saw from Baileigh Industrial is the perfect saw for any shop that has need for a light production or a portable saw that still provides great, mill-like cuts. Cold cut saws are great for cutting tubing, pipe, angle iron, solids and much more, the CS-225M is no exception. It has a 9” blade that allows for a maximum of 2-1/2” round capacity at 90 degrees, and has the ability to miter 45 degrees to the left. The CS-225M has a 1hp motor, powered by 110 volts, that spins at an optimal 50rpm for cutting many different kinds of materials.
Baileigh Industrial 1013715 Includes
- (1) Manual Cold Saw
Baileigh Industrial 1013715 Features
- Accepts a 9” blade (included).
- It’s our smallest cold saw.
- 2.5” round tube maximum capacity at 90°.

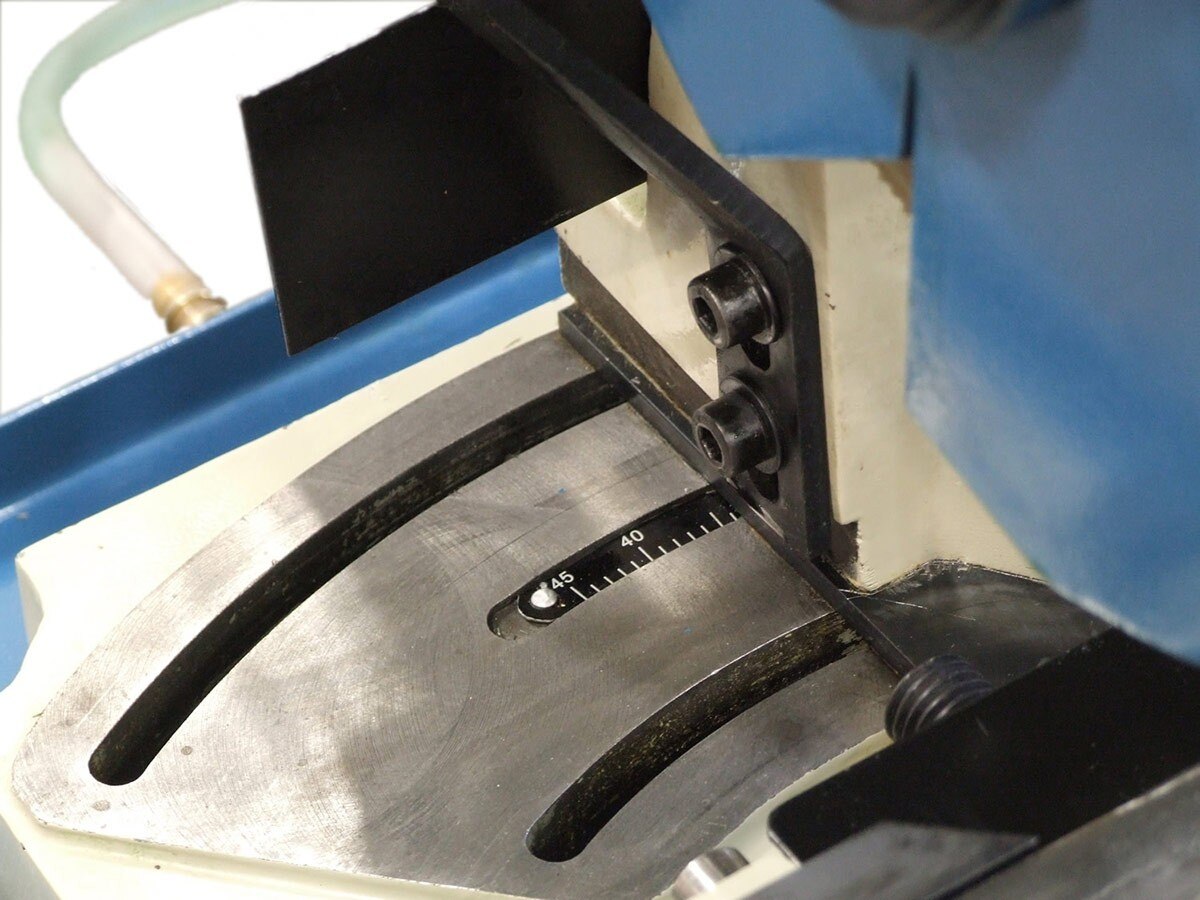

- Miters up to 45° to the left.
- Spins at 50 rpm, optimal for cutting many different kinds of materials.
- Cuts tubing, pipe, angle iron, solids, and much more.
- 1 hp motor runs on 110 volts, so you can plug it in anywhere.

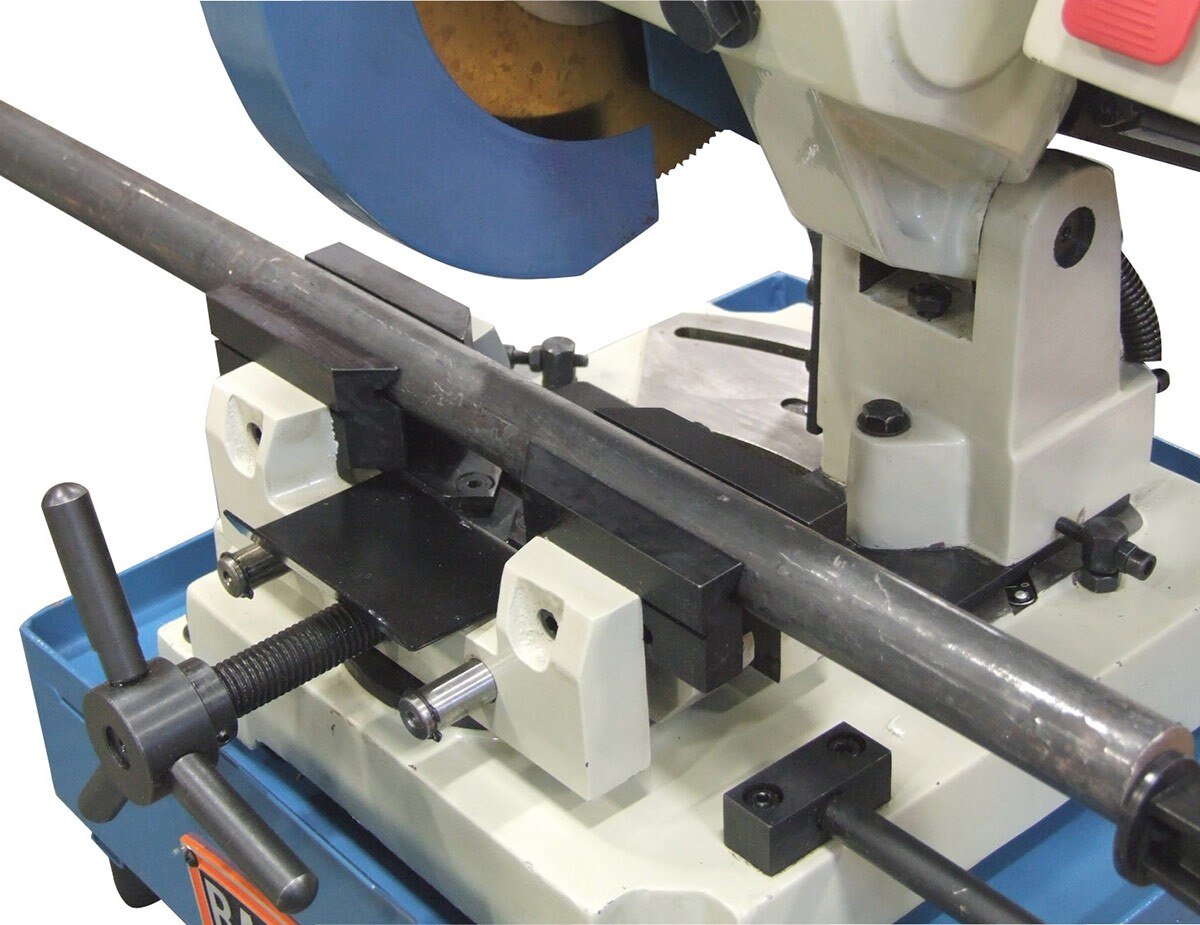

- Self-centering American-style vise keeps the material in the right position with respect to the blade.
- Vise grips the material on both sides of the blade for extra support.
- Direct drive gearbox (encased in a fully machined cast iron housing) ensures proper alignment and a long lifetime of use.

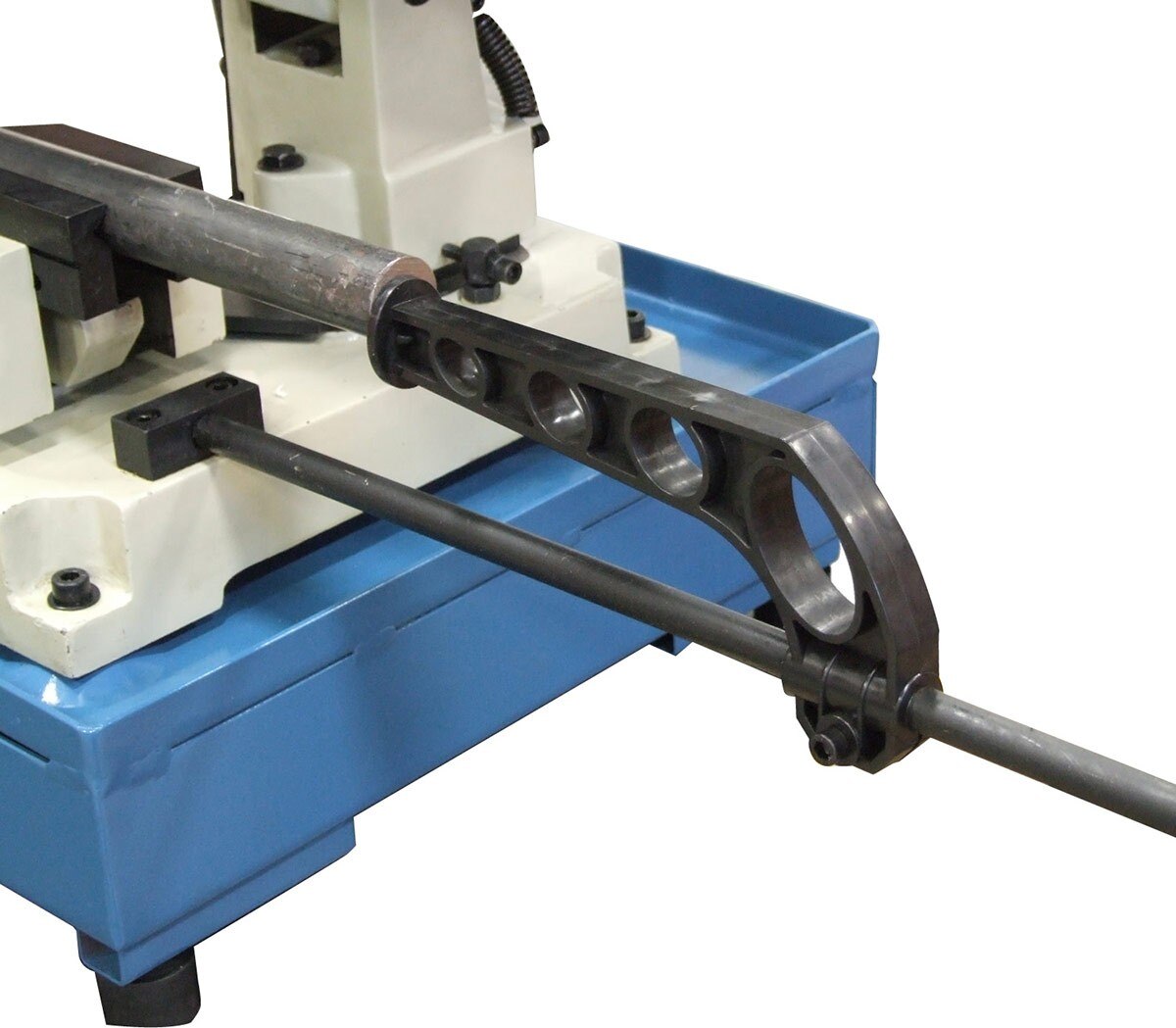

- Stop rod helps with repeatability for small production runs.
- Heavy-duty cast iron base stabilizes the machine, so that it can deliver accurate cuts for many years.

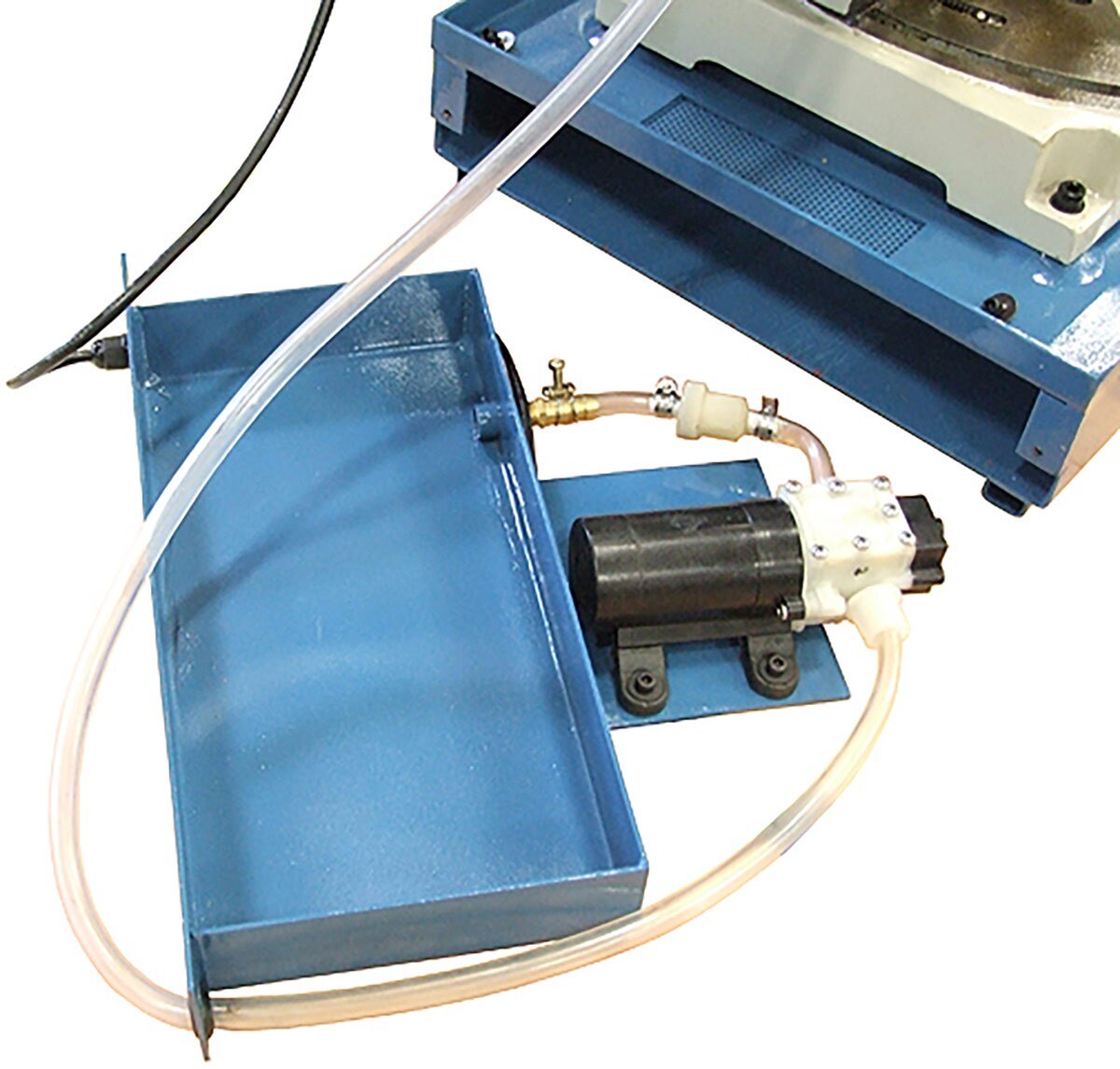

- Flood coolant system maintains high cut quality and helps both the saw and its blades last longer.
- Covered by a 1-year warranty.
Baileigh Industrial 1013715 Specifications
| Max. Blade Diameter | 9" |
| Operation | Manual |
| Head Miter | 45° Left / 30° Right |
| Round Solid at 45° | 1.5" |
| Square Tube at 45° | 2" x 2" |
| Round Tube at 45° | 2.125" |
| Round Solid at 90° | 1.75" |
| Square Tube at 90° | 2.25" x 2.25" |
| Round Tube at 90° | 2.5" |
| Coolant System | Yes |
