Baileigh Industrial  |  SKU: BA9-1016616  |  Barcode: 731325462708

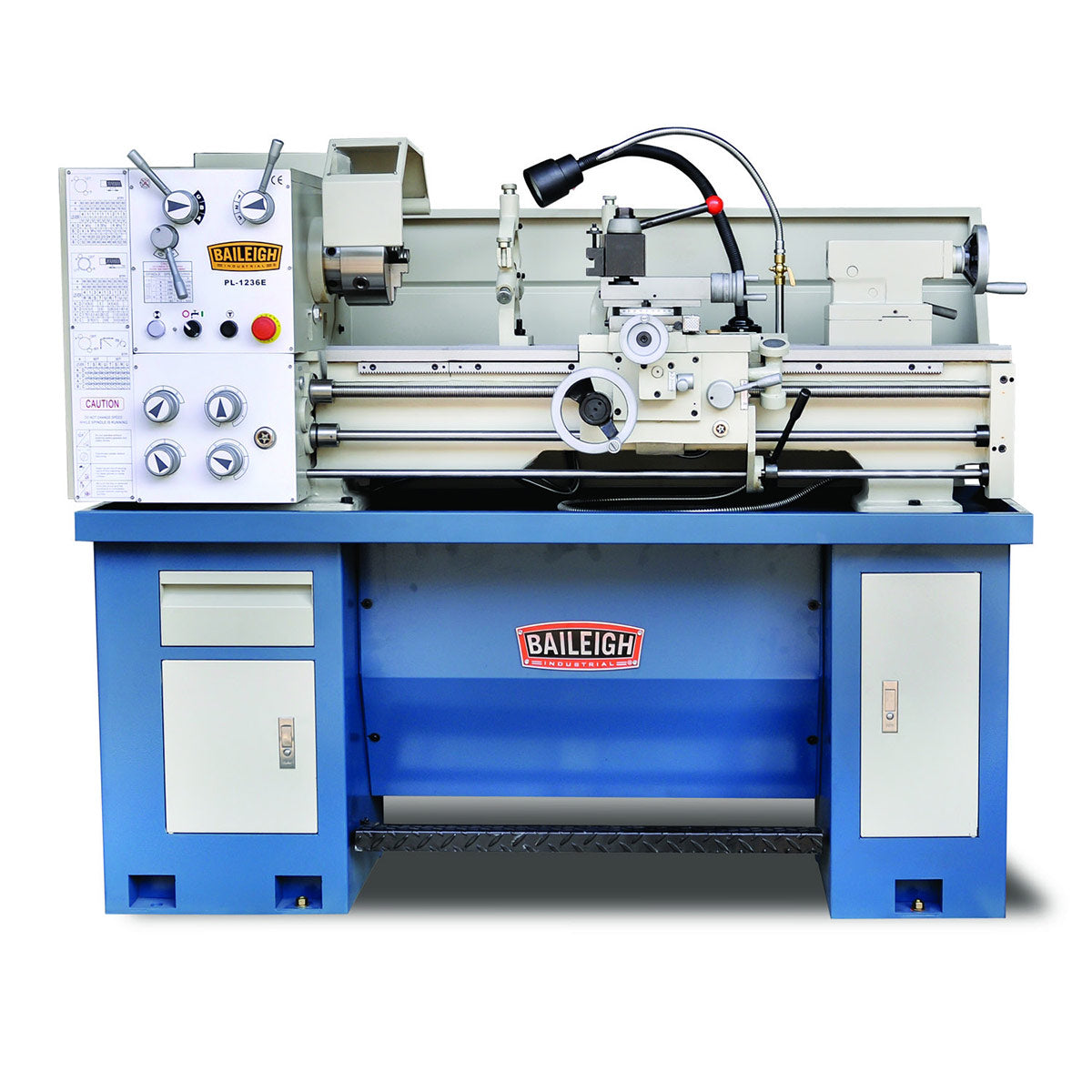

Baileigh Industrial BA9-1016616 Metal Lathe PL-1236E

Free Shipping
$8,148.00 $9,892.86

Description

Baileigh Industrial 1016616 Includes

  • (1) Metal Lathe

Baileigh Industrial 1016616 Features

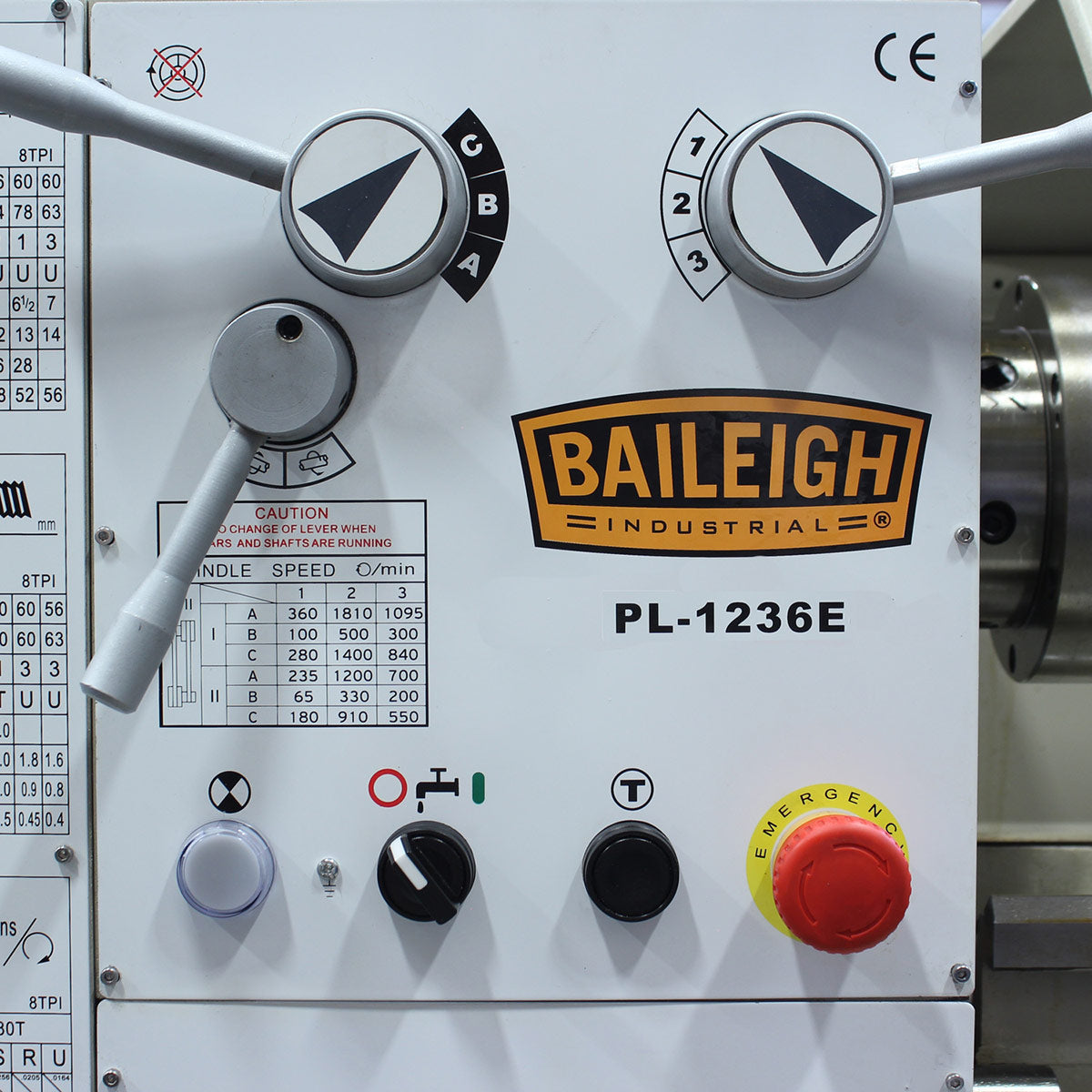

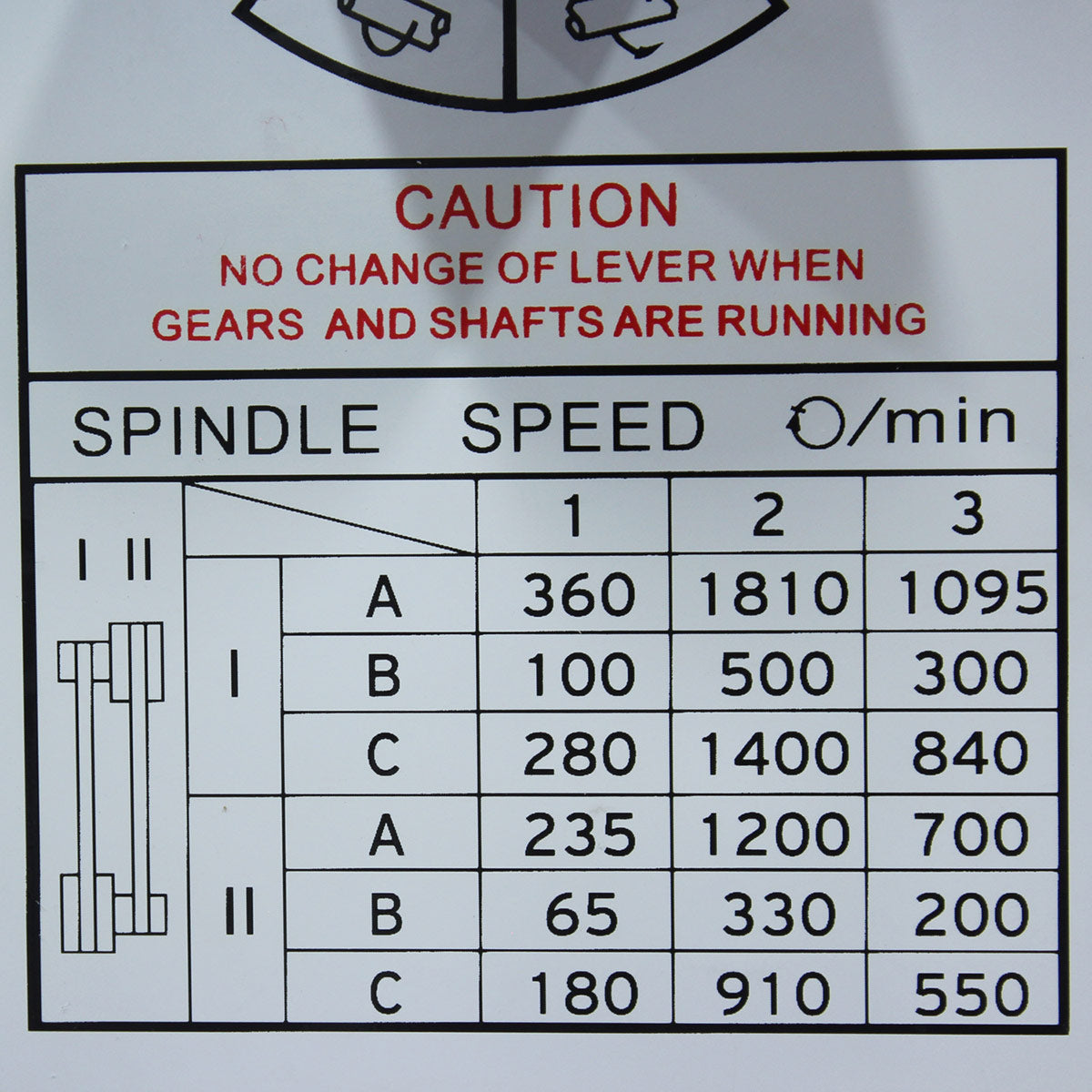

  • 70 to 1,400 rpm variable speed.

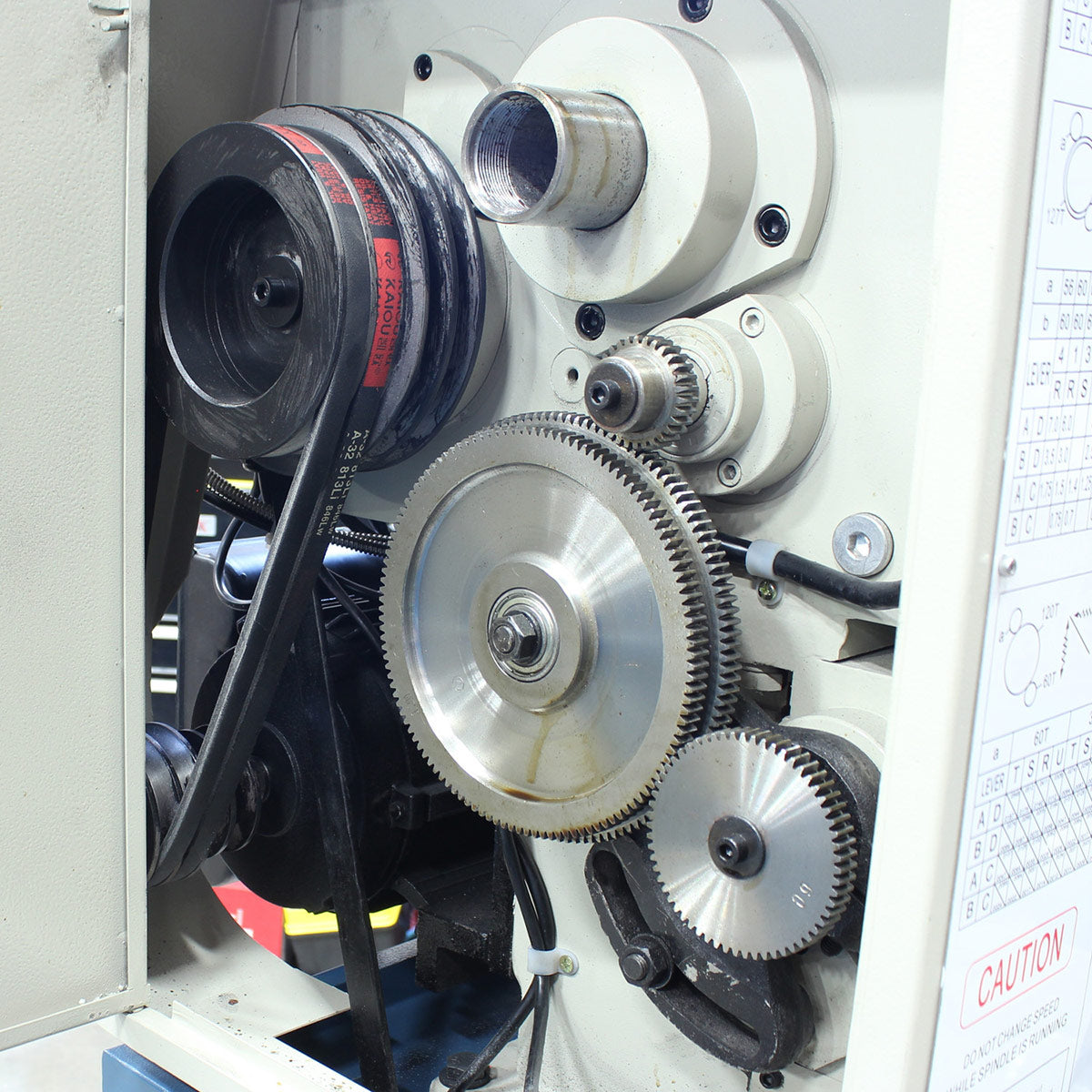

  • Integrated gear system allows for taping, turning, and polishing.
  • All ways are ground and hardened to ensure long life.

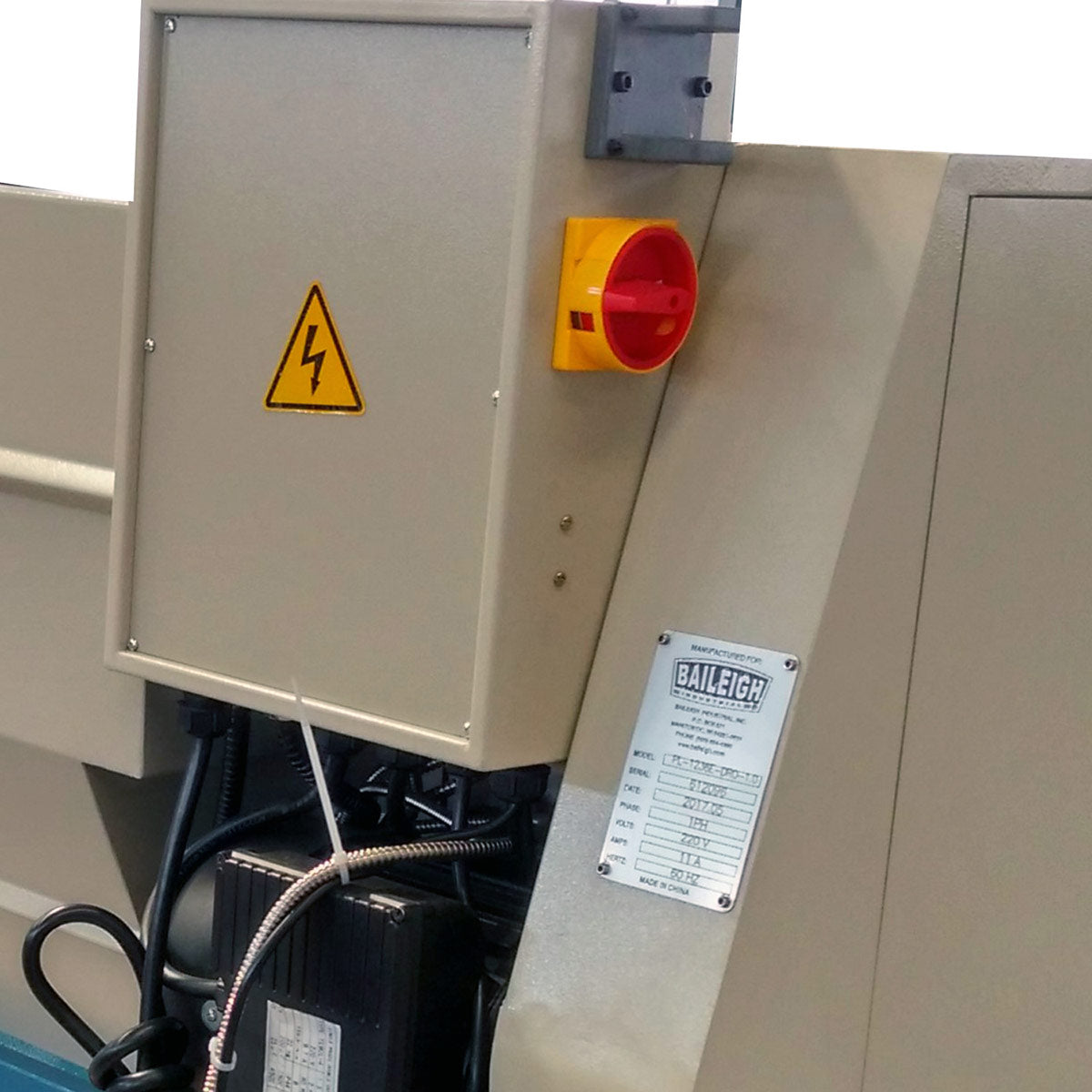

  • Runs on 220-volt single-phase power.

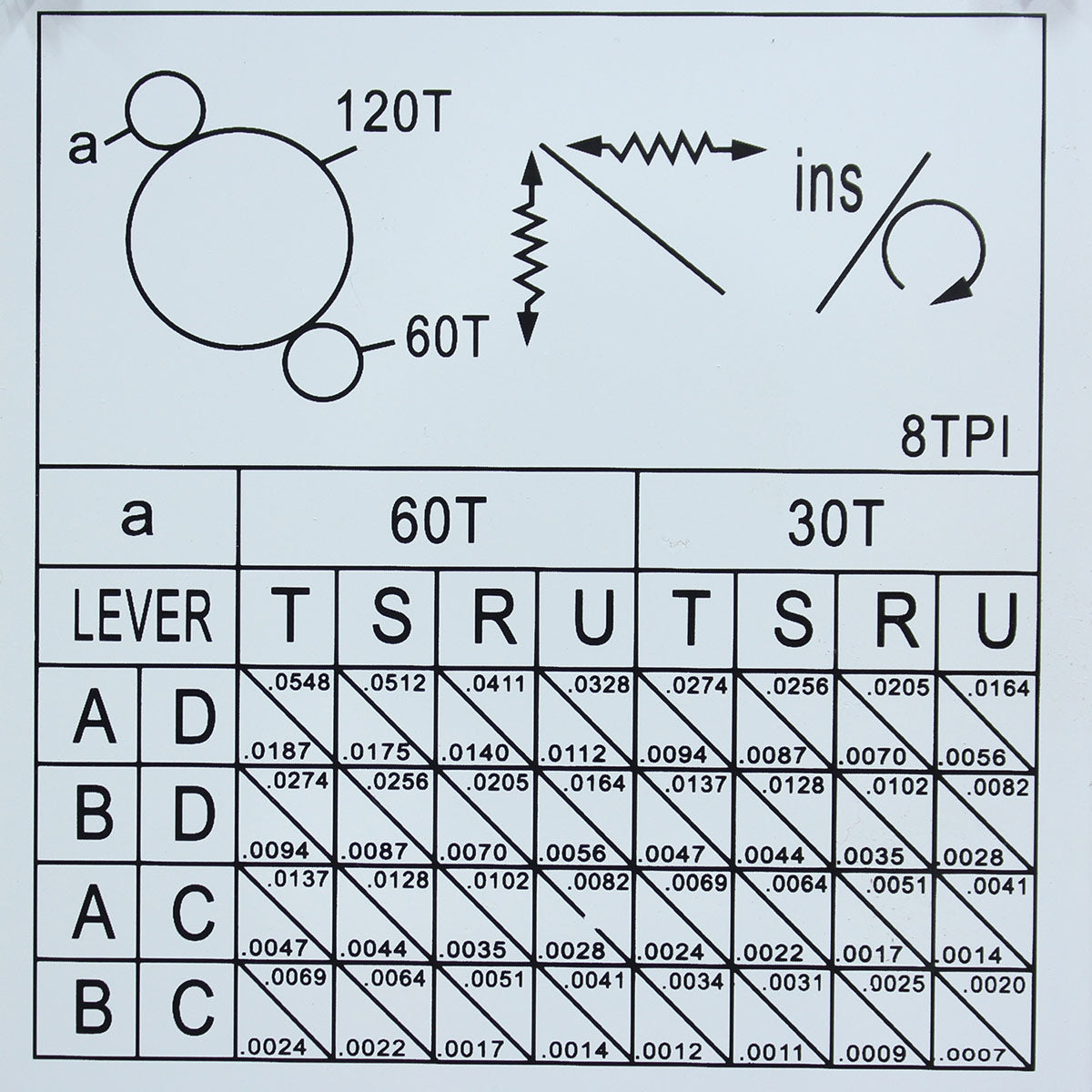

  • Capable of standard and metric threading.

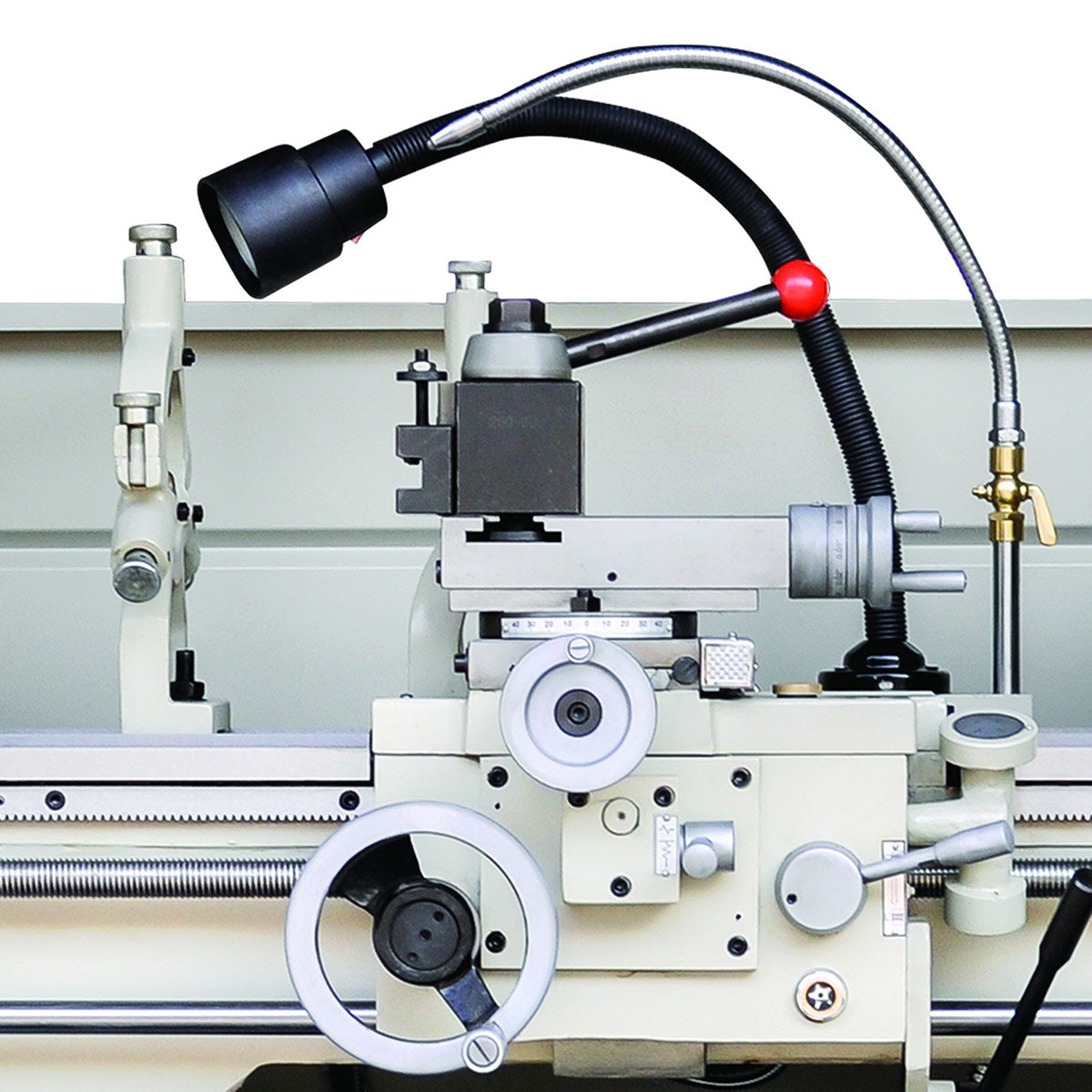

  • Quick-change tool post helps you save time.

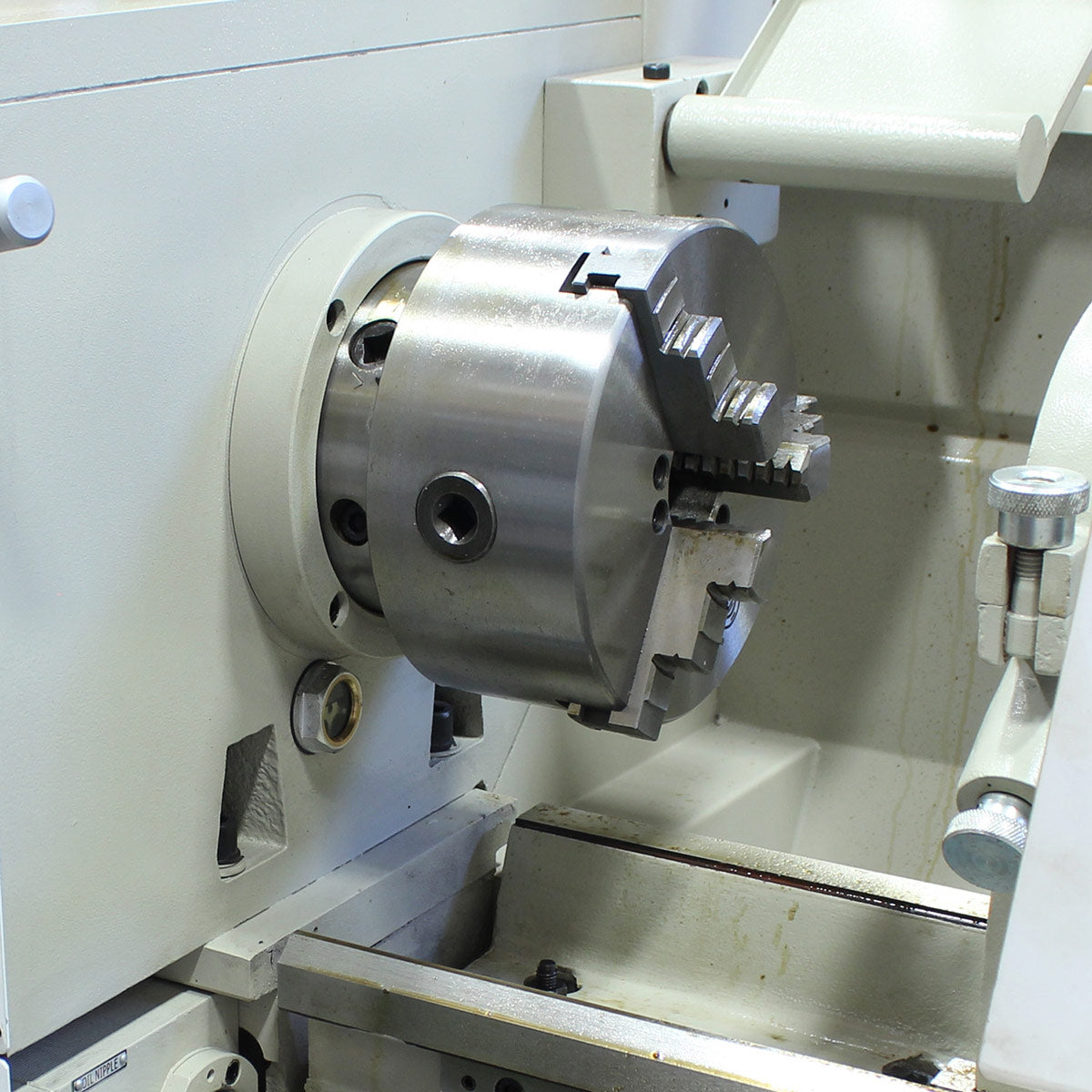

  • 3-jaw and 4-jaw chucks can hold both square and rounded materials.
  • Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy.
  • Facing plate lets you shape materials that are large but not long. Bolt your metal to the plate to keep it square and symmetrical.
  • Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed.
  • Foot brake helps keep your shop safe.
  • Halogen work light comes standard.
  • Covered by a 1-year parts warranty.The PL-1236E is a great metal lathe for anyone that is looking an economical lathe that is high in quality and features. Like all Baileigh Industrial lathes, the PL-1236E gear head metal lathe has an integrated gear system that allows for taping, turning, and polishing. As far as entry level metal lathes go, this one has all the features of the more expensive models. The included accessories are, three and four jaw chucks, steady rest, follow rest, face plate, live center, foot brake, coolant system, and halogen work light.

Baileigh Industrial 1016616 Specifications

Sleeve Travel 4"
Spindle Bore 1.50"
Spindle Bore Taper Morse #5
Sleeve Taper Morse #3
Sleeve Diameter 1.250"

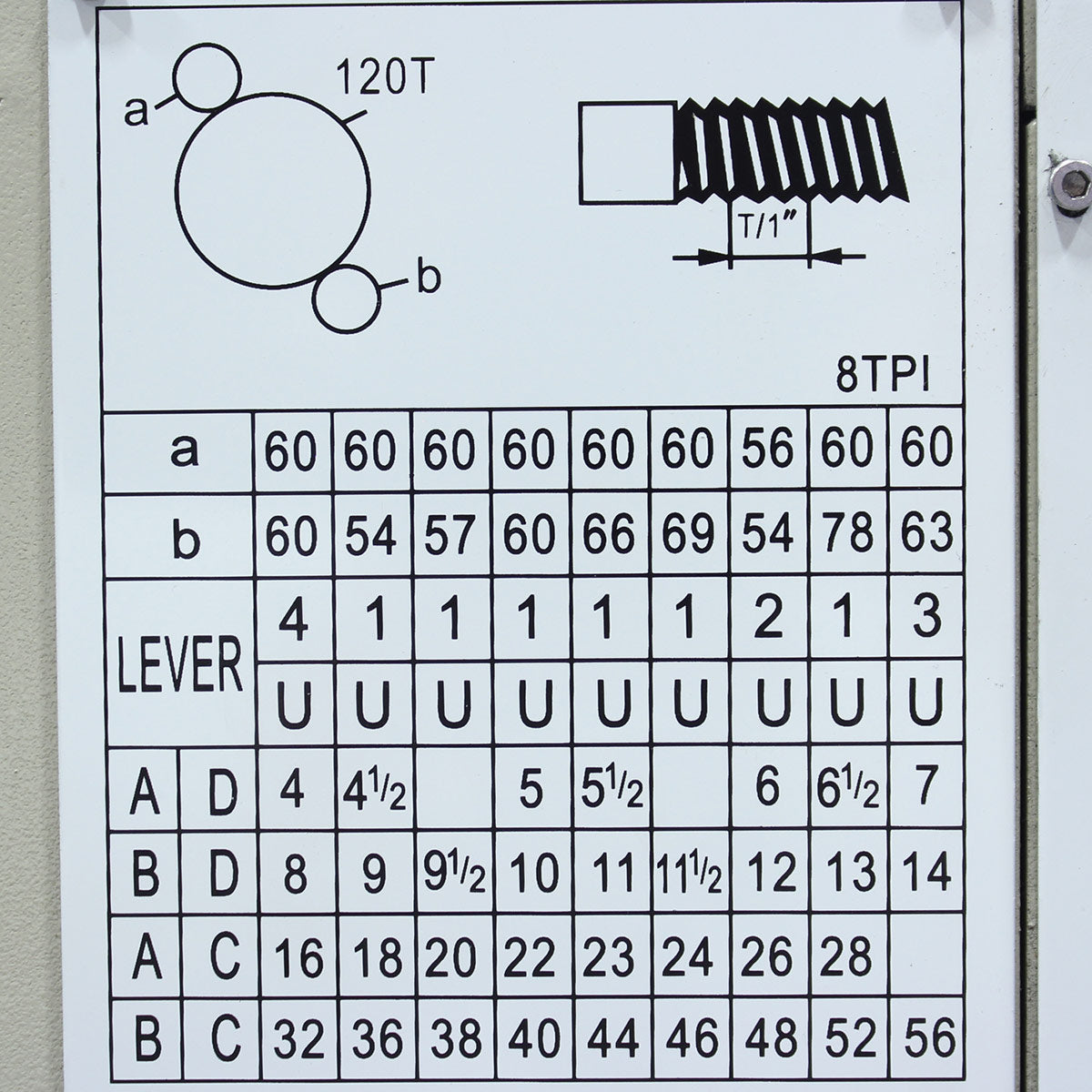

Range Of Inch Threads 4 - 56 T.P.I.
Metric Thread Range 0.4 – 7 mm
Spindle Nose D1-4"
Travel Of Cross Slide 5.312"
Travel Of Top Slide 3.250"
