Baileigh Industrial | SKU:
BA9-1016623

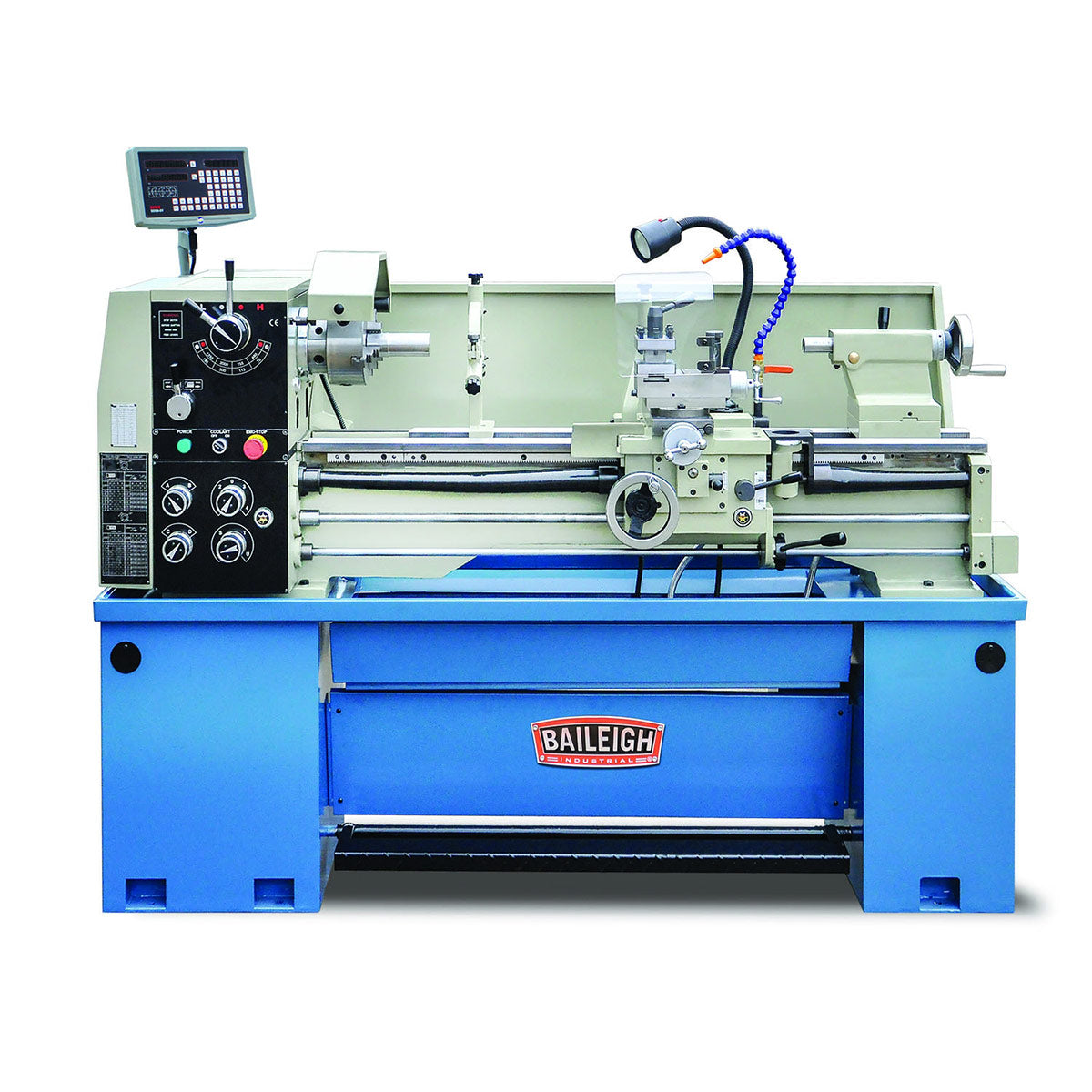

Baileigh Industrial BA9-1016623 Metal lathe PL-1440E
Free Shipping
$14,999.00
$18,427.14
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Baileigh Industrial 1016623 Description
The PL-1440E metalworking lathe from Baileigh Industrial raises the bar on what entry level lathes should be. The PL-1440E is the best choice for small to medium sized shops just getting into the machining aspect of fabrication or schools just looking for a high quality metal lathe at a great price. As with all Baileigh gear head metal lathes, the PL-1440E comes standard with precision ground and hardened ways offering years use without losing the lathes tight tolerances. Recommended for small to medium shops and schools.
Baileigh Industrial 1016623 Includes
- (1) Metal Lathe
- (1) 3 Jaw and 4 Jaw Chucks
- (1) Headstock Chuck Guard with Automatic Safety Switch

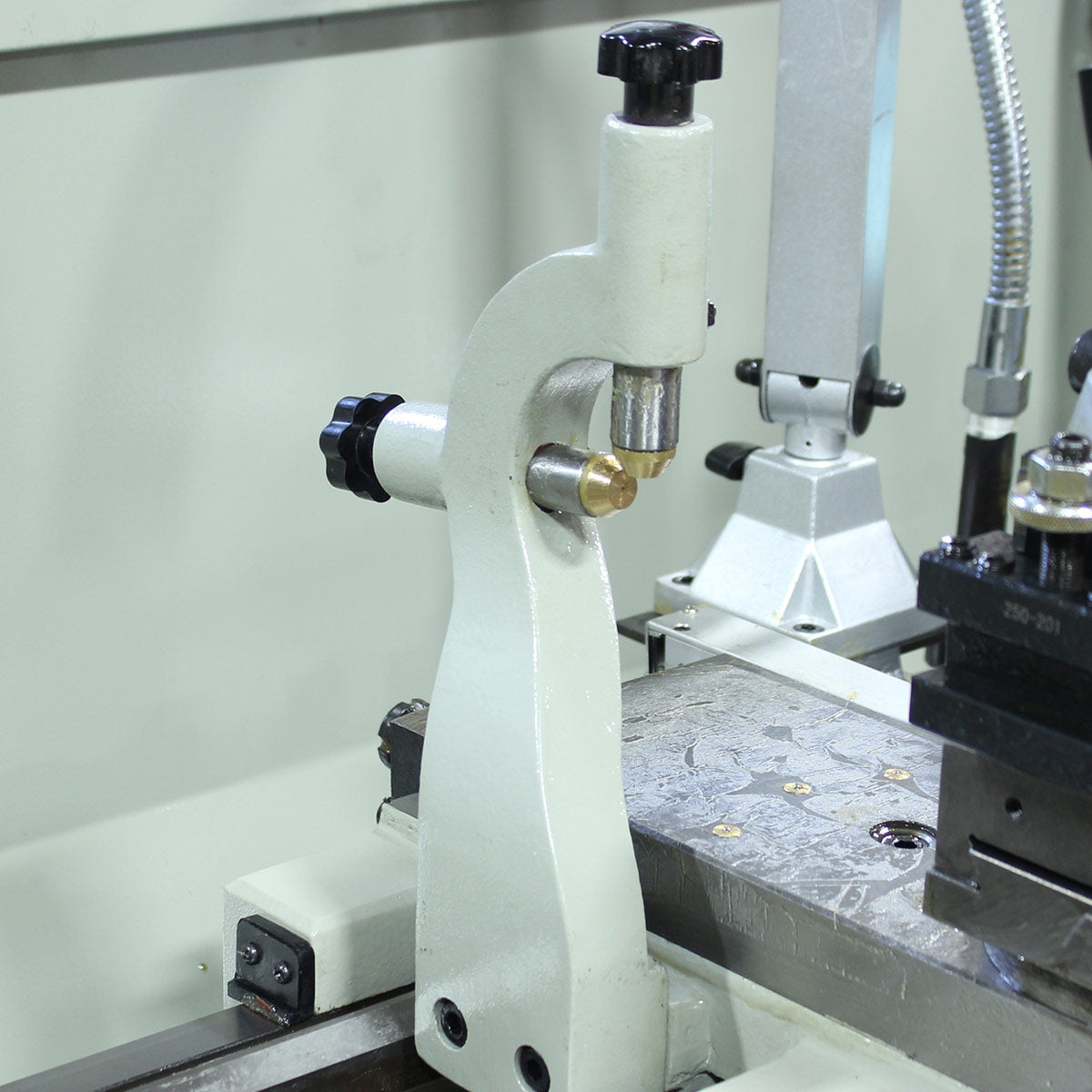

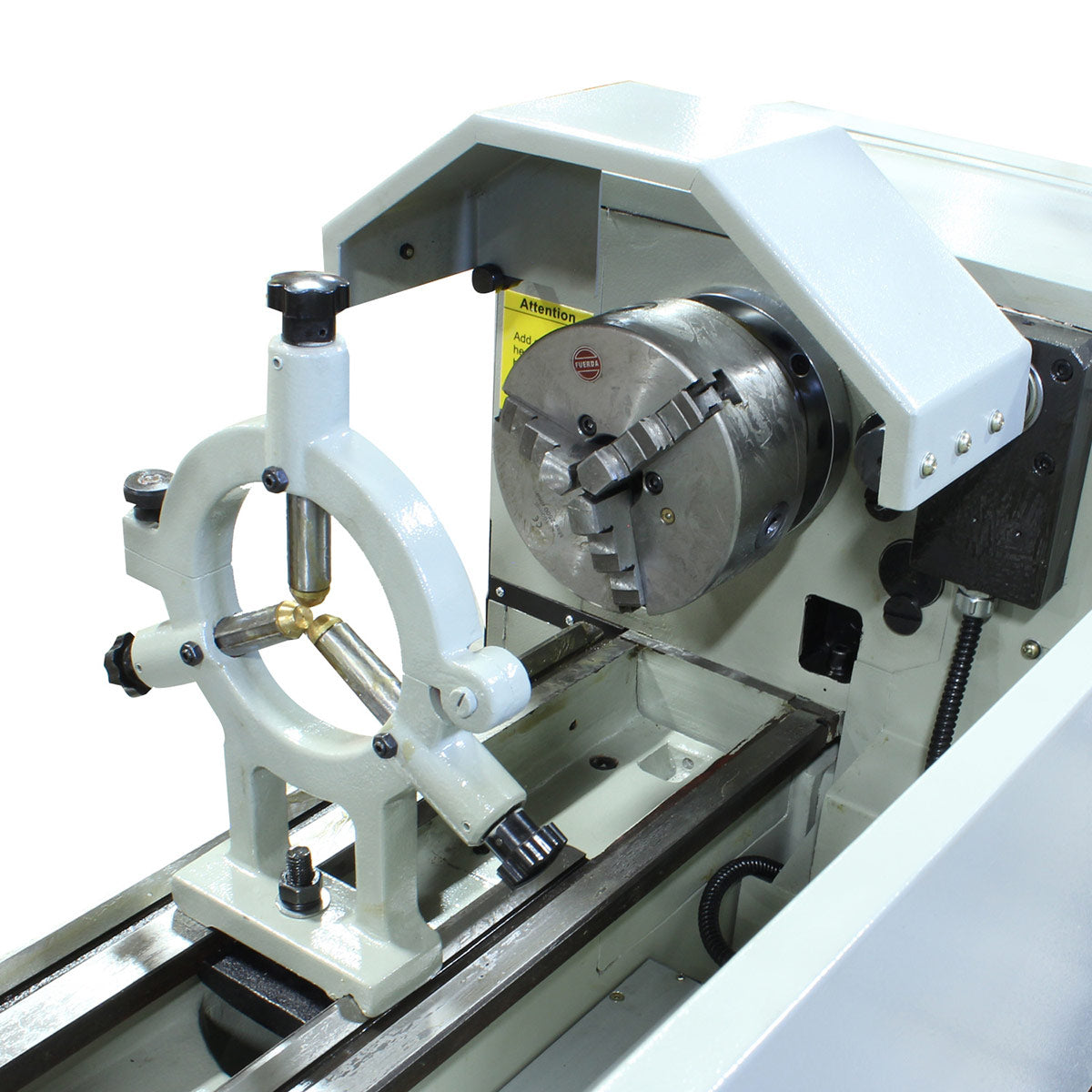

- (1) Steady Rest and Follow Rest
- (1) Face Plate
- (1) Safety Foot Brake

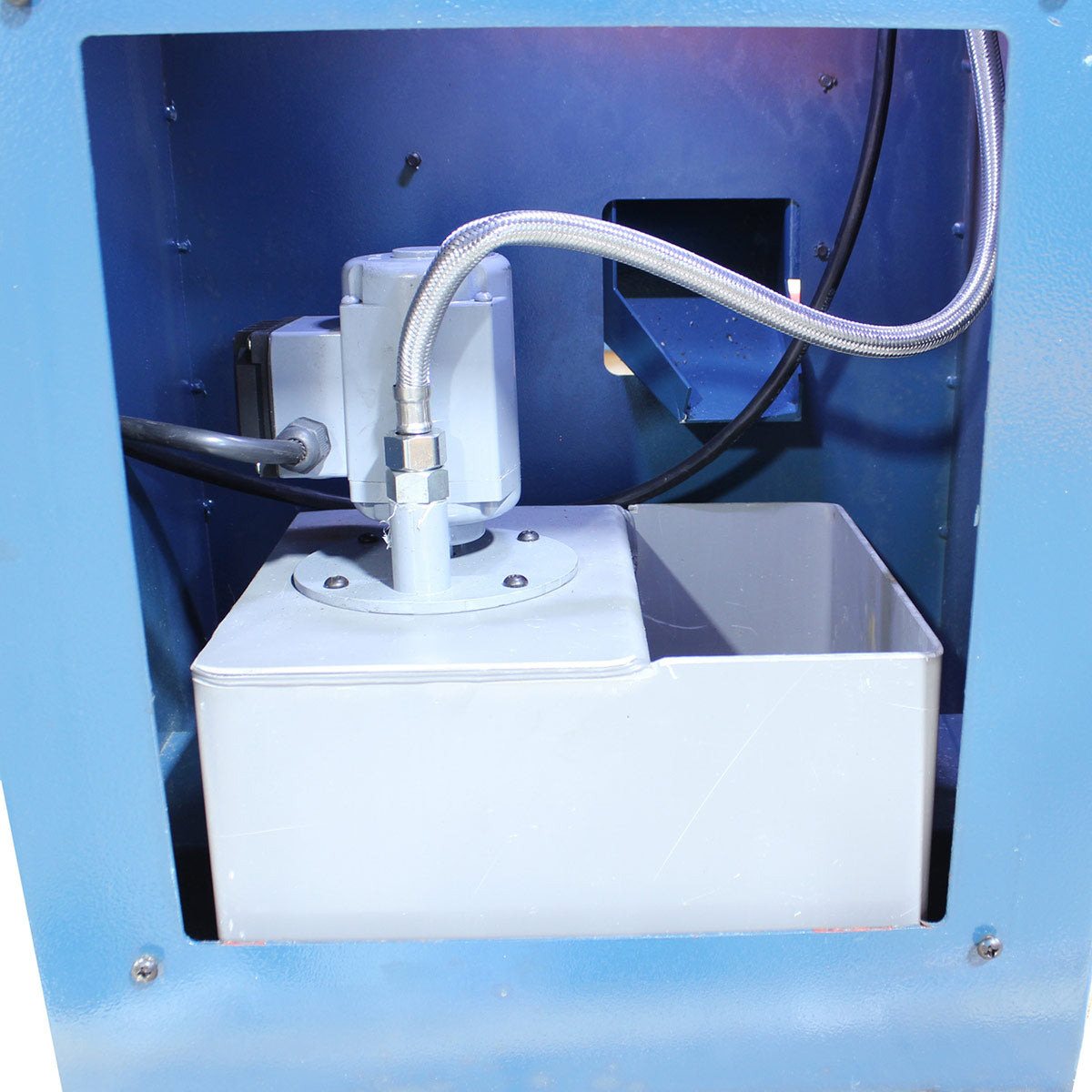

- (1) Integrated Coolant System
- (1) Halogen Work Light
Baileigh Industrial 1016623 Features

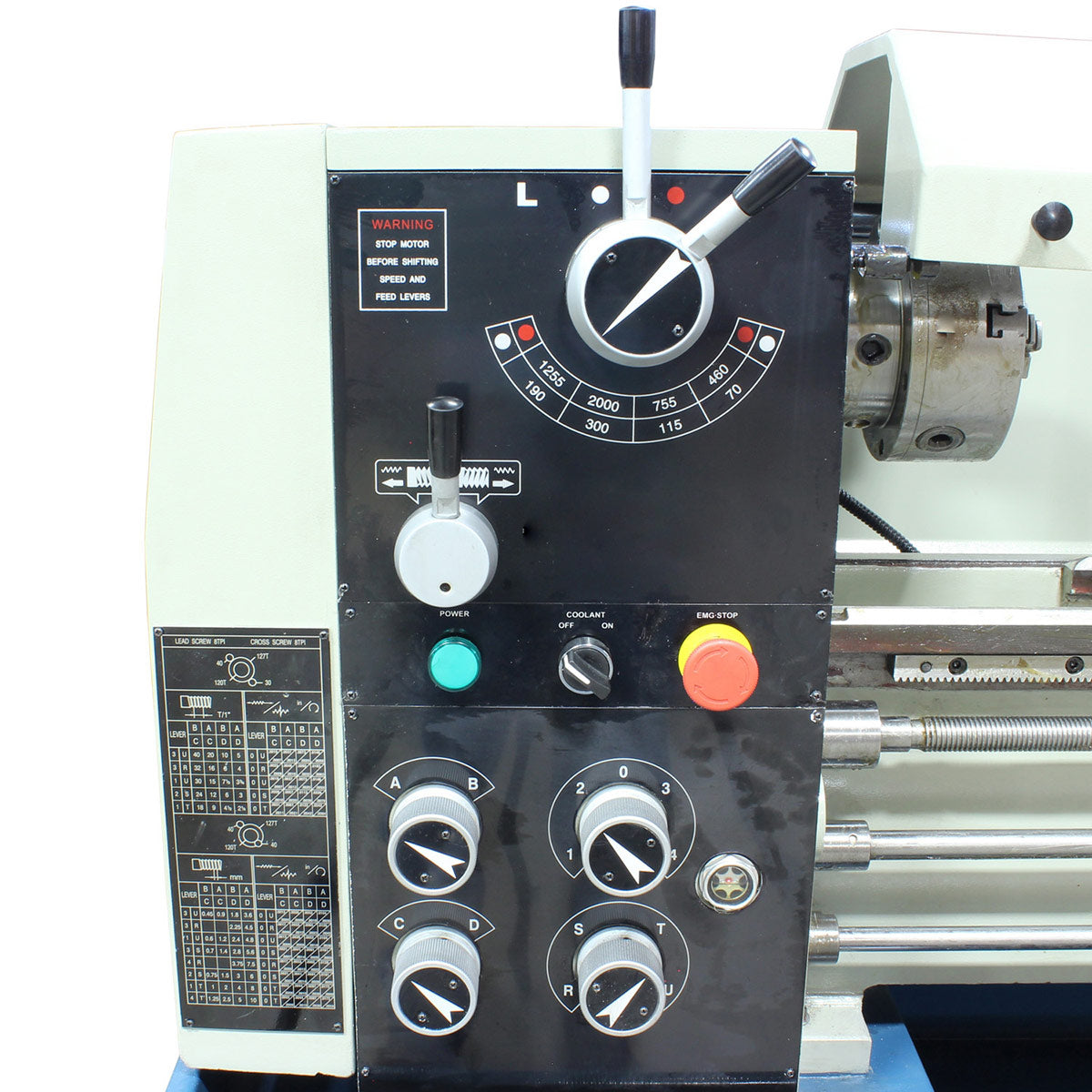

- 8 spindle speeds, ranging from 90 to 1,800 rpm.
- 3 hp motor runs on a 220-volt single-phase power, so you can use it almost anywhere.
- No assembly required. Just open the crate and wire it up.
- Precision-ground and hardened ways ensure years of tight tolerances.
- Digital readout (pre-installed) helps you make precise cuts.
- Capable of making metric and standard threads.
- Gap lathe design allows you remove a section of the slide to fit a slightly larger diameter.
- Comes standard with: 3-jaw and 4-jaw chucks., Headstock chuck guard with automatic safety switch, Steady rest and follow rest, Face plate, Safety foot brake, Integrated coolant system, which maintains accuracy and helps the machine last longer and Halogen work light.
- Optional taper attachment for making cones is sold separately.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1016623 Specifications
| Spindle Speeds | 90 - 1800 RPM |
| Spindle Bore | 1.5" |
| Spindle Nose | D1-4" |
| Threads Imperial Qty Speed | 44 / 4-112 T.P.I. |
| Threads Metric Qty Speed | 22 / .45-7.5 mm |
| Spindle Taper Sleeve | Morse #3 |
| Spindle Taper Nose | Morse #5 |

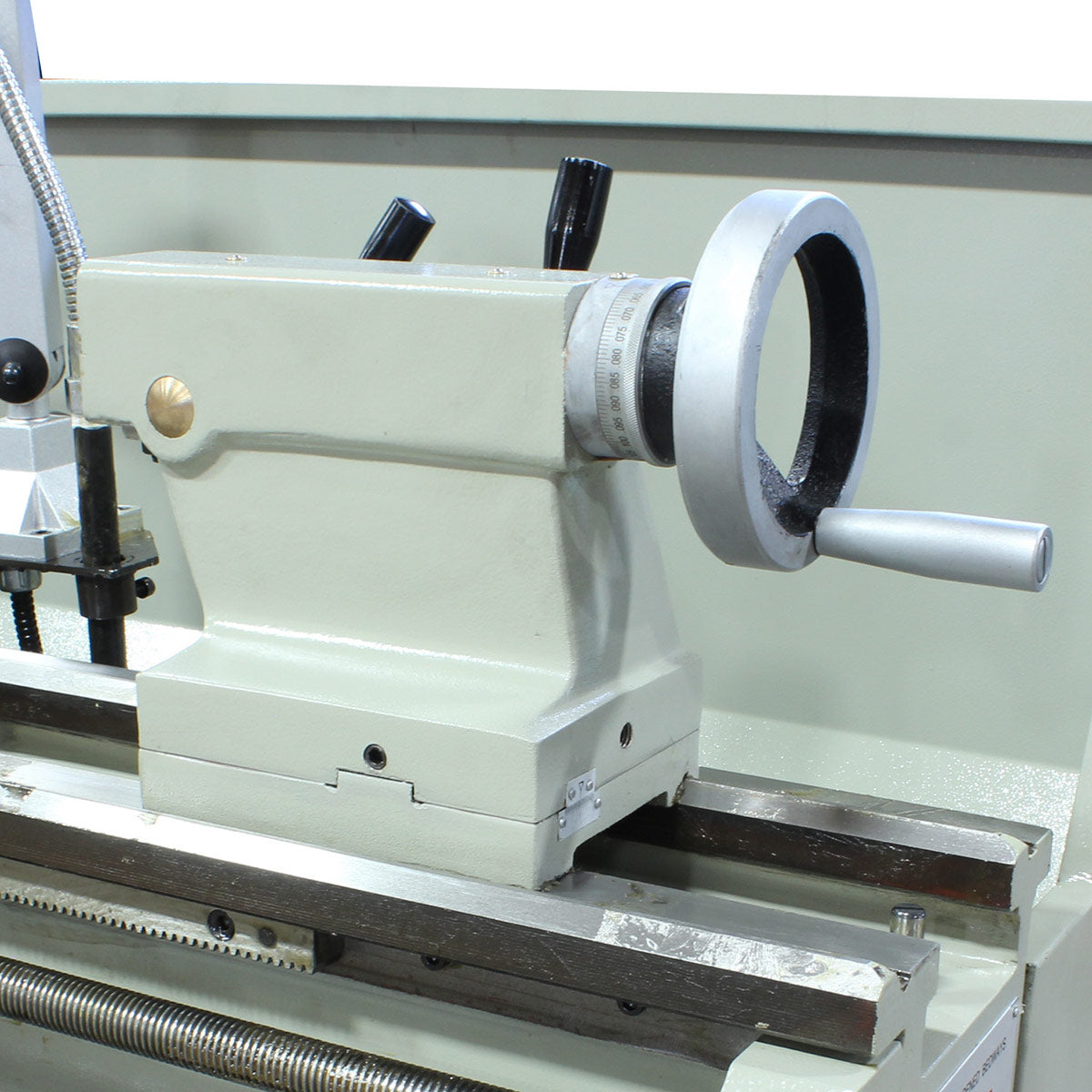

| Tailstock Quill Diameter | 1.772" |
| Tailstock Quill Taper | Morse #3 |
| Tailstock Quill Travel | 4.72" |
