Baileigh Industrial | SKU:
BA9-1016624

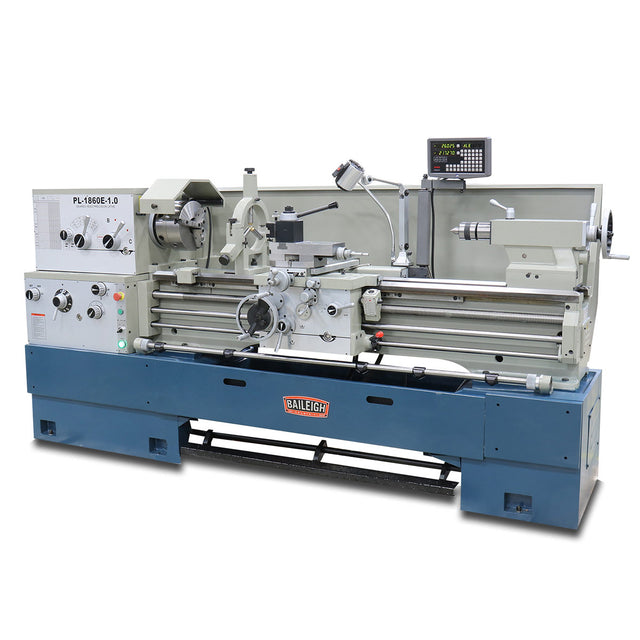

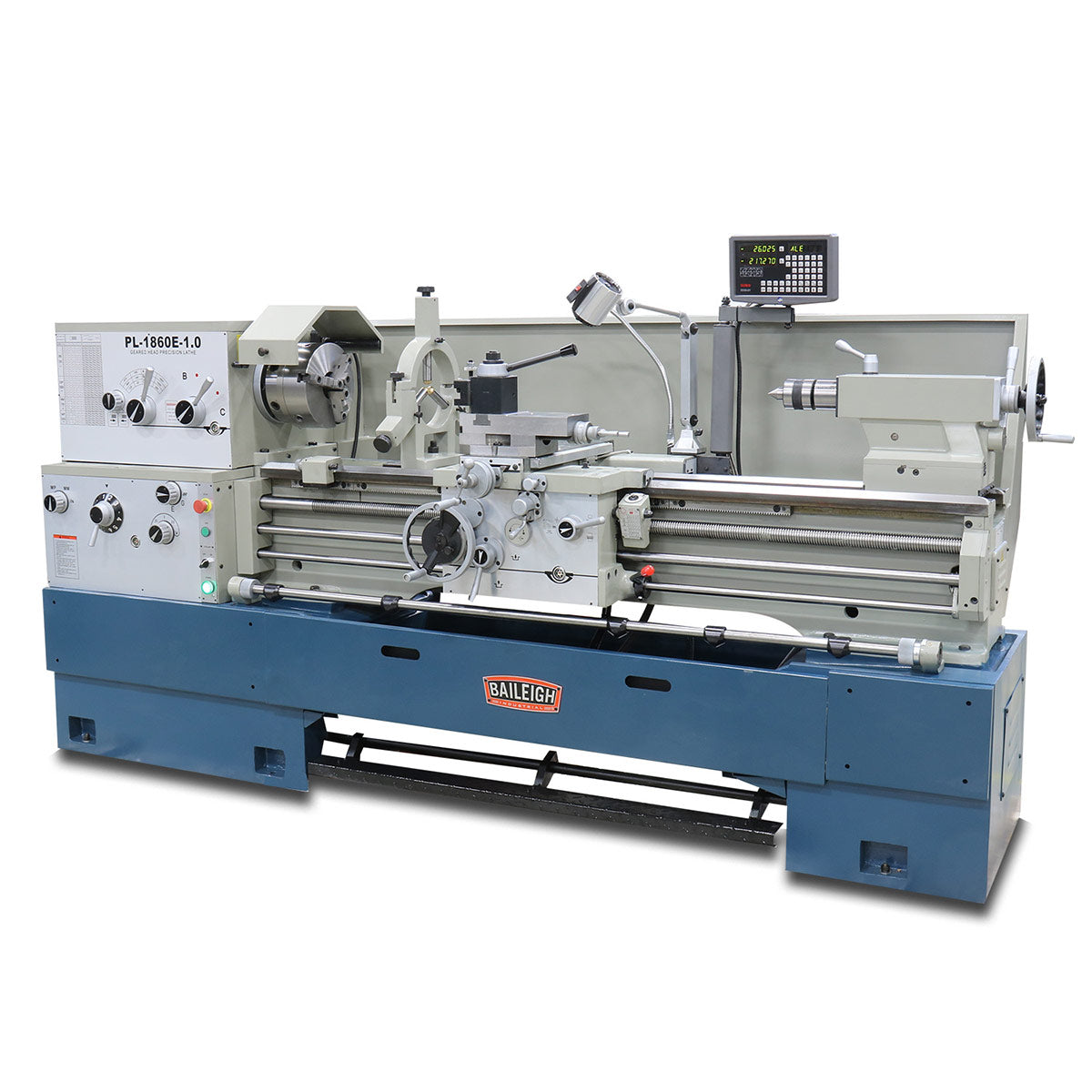

Baileigh Industrial BA9-1016624 Metal Lathe PL - 1860E
Free Shipping
$36,999.00
$45,455.71
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Baileigh Industrial 1016624 Description
If you are looking for a large tool room lathe at a good price, take a look at the Baileigh Industrial PL-1860E metal lathe. The PL-1860E includes a DRO, polished slideways, and a cast iron base—features you won’t find on many machines in this price range. The PL-1860E is made just like all of our other metal lathes with only the best components. The massive fully cast base is built to stand up to years of use and gives great support to the main frame of the machine. Perfect for shops or schools that need more capacity on a budget.
Baileigh Industrial 1016624 Includes
- (1) Metal Lathe
Baileigh Industrial 1016624 Features

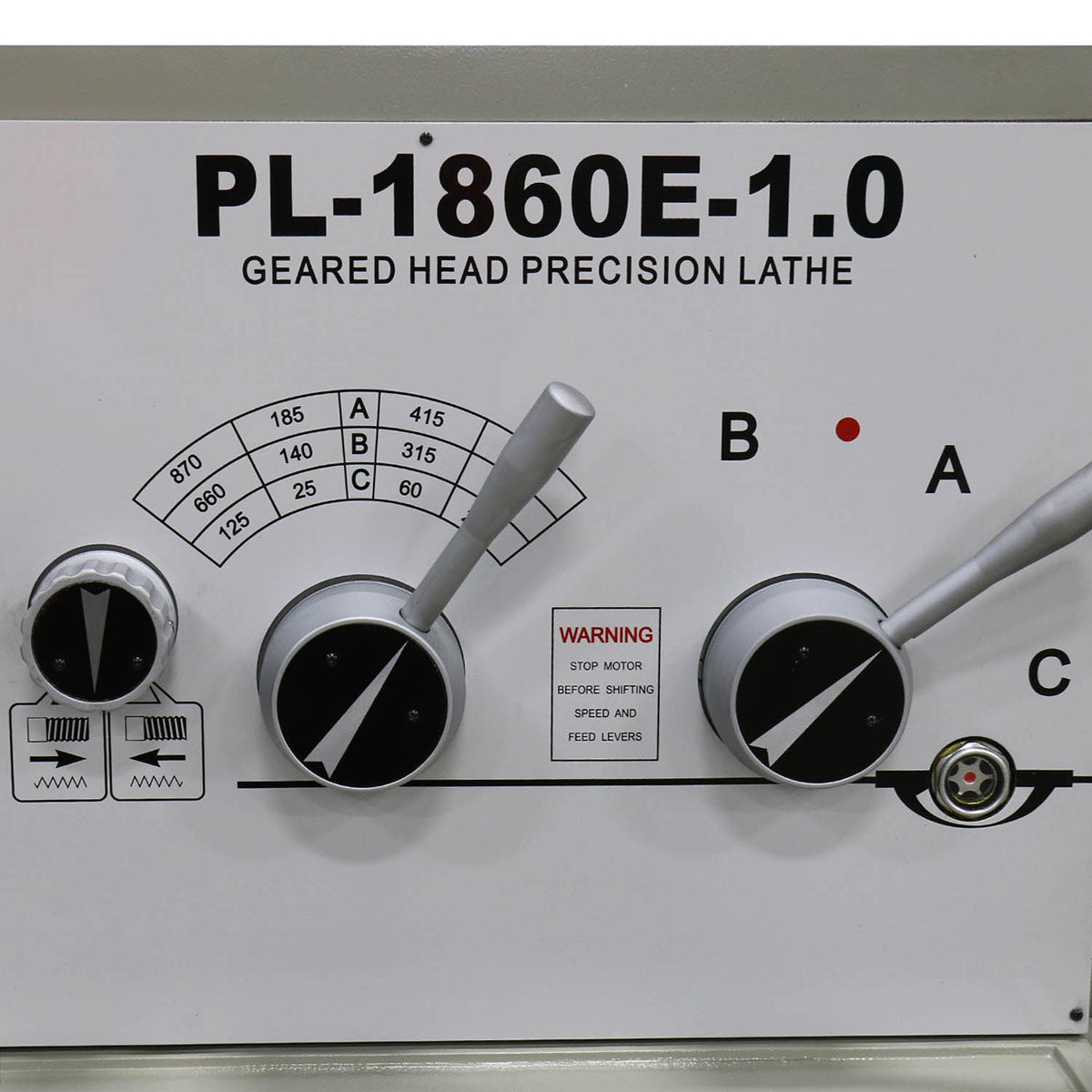

- 12 spindle speeds from 25 to 1,800 rpm.
- 7.5 hp motor runs on 220-volt 3-phase power.
- No assembly required.

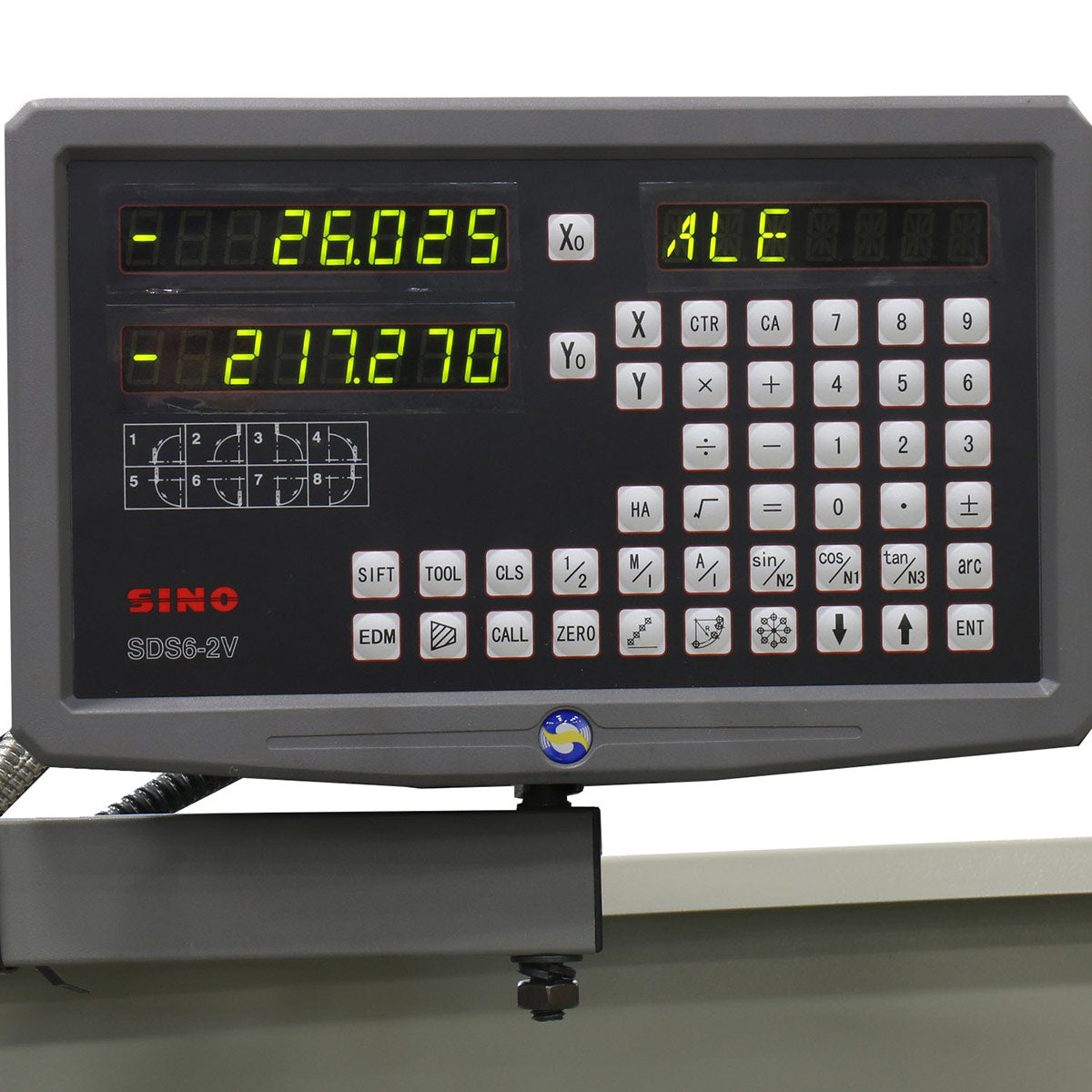

- 2-axis digital readout (DRO) system.
- All of the ways are precision ground, hardened, and then polished to ensure smooth movement.
- Cross-ribbed bed adds strength and stability.

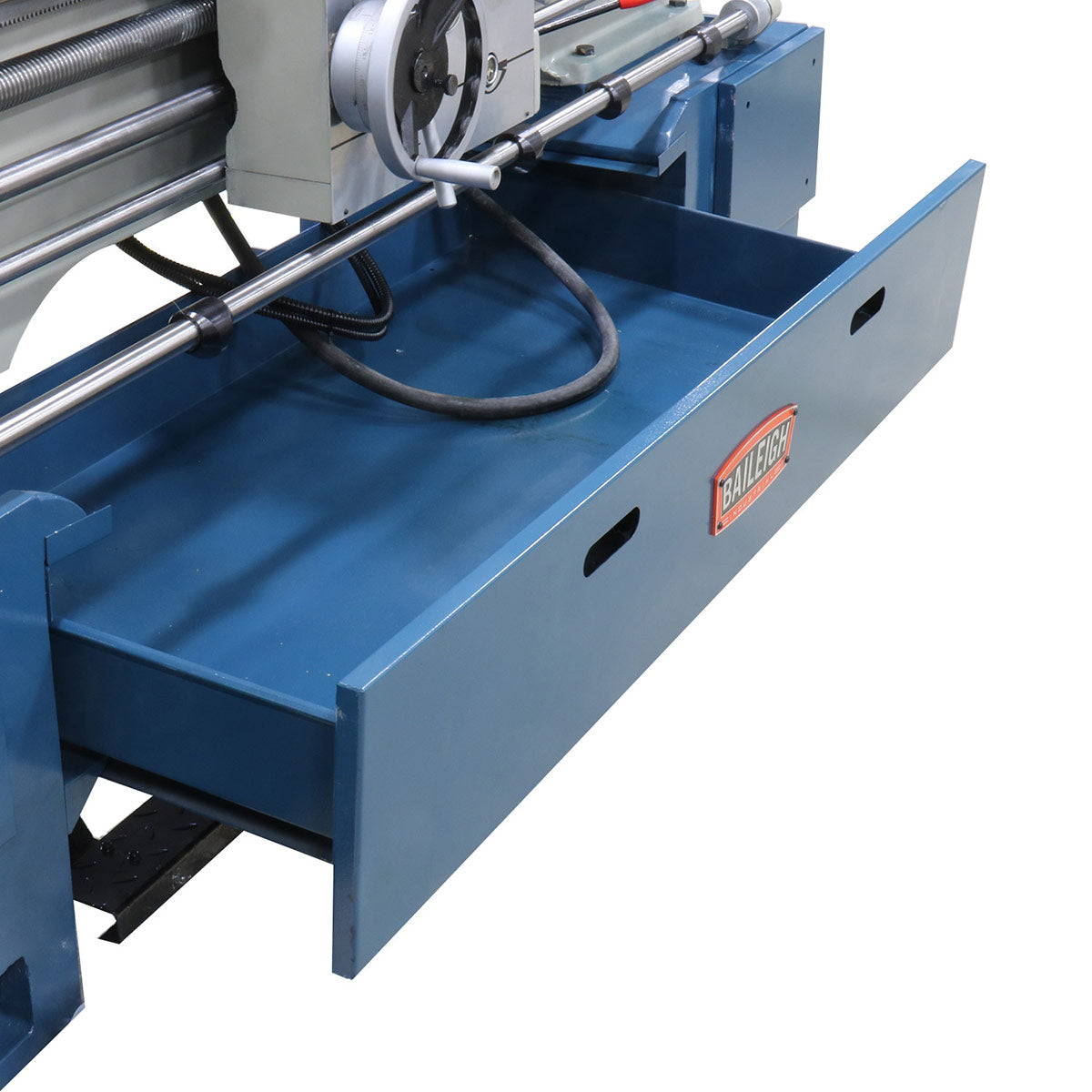

- Cast iron and sheet steel base supports the main frame and will stand up to years of use.
- Gap lathe design allows you to remove a section of the slide for slightly more diameter.

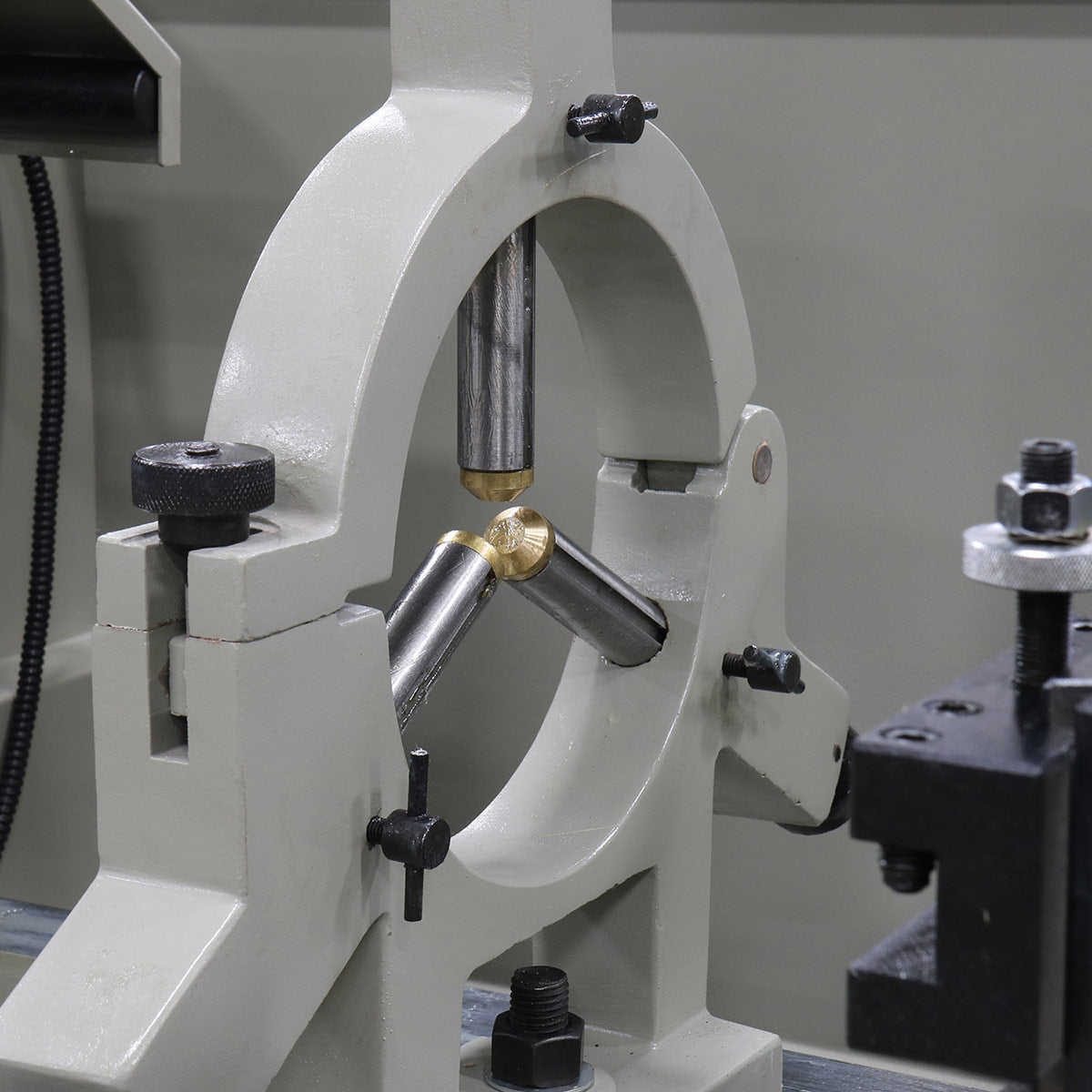

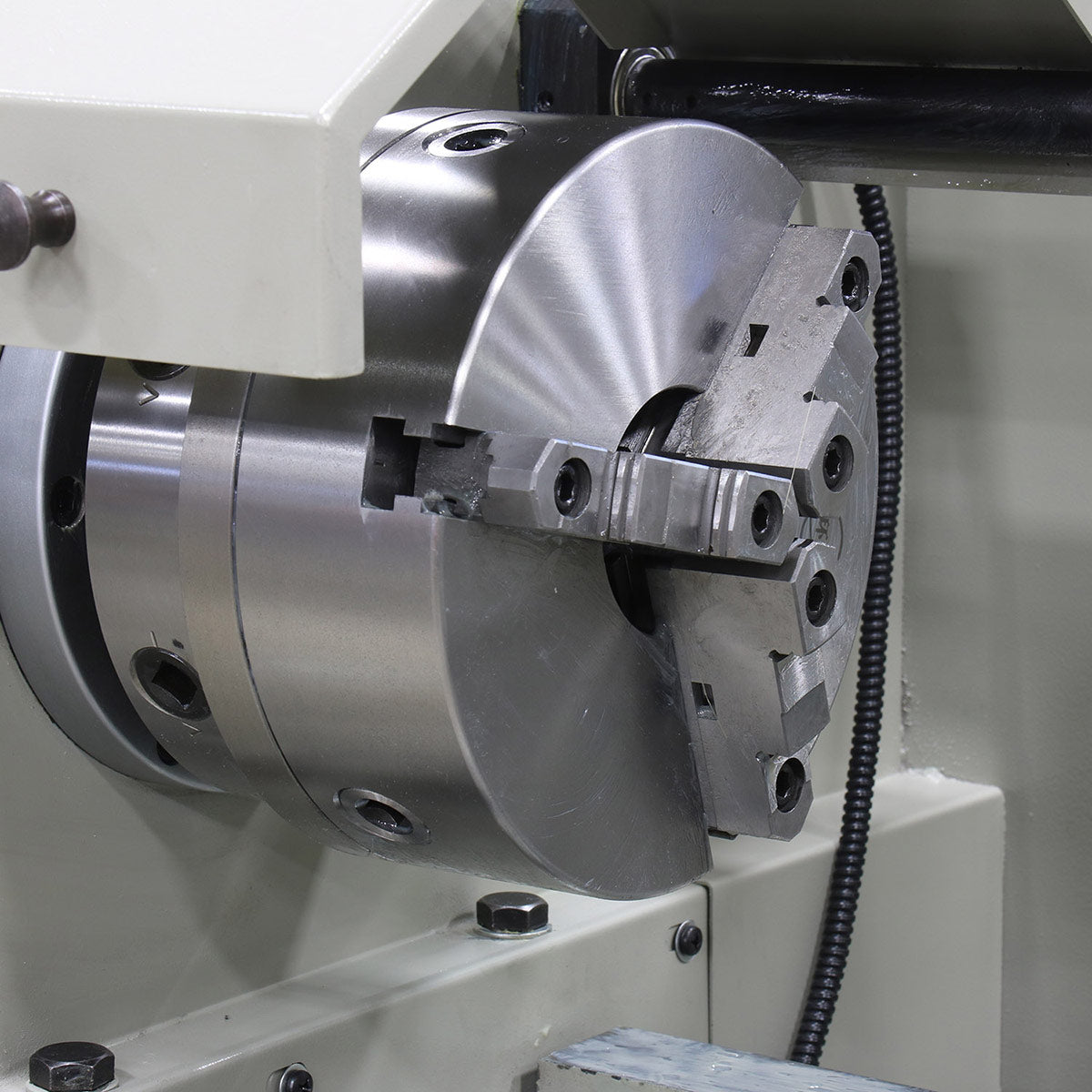

- Comes standard with: 3-jaw universal chuck (8”) and 4-jaw chuck (13”), 3-jaw universal chuck (8”) and 4-jaw chuck (13”), 8" back plate, Steady rest and follow rest, Emergency foot brake, Integrated coolant system with rear splash guard and Halogen work light.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1016624 Specifications
| Spindle Speeds | 25-1800 RPM |
| Longitudinal Feed Imperial (qty / type) | 122 / .0015"-.0913" / rev. |
| Speed Number | 12 |
| Spindle Bore | 3.125" |
| Motor | 7.5 HP |
| Spindle Nose | D1-8 |

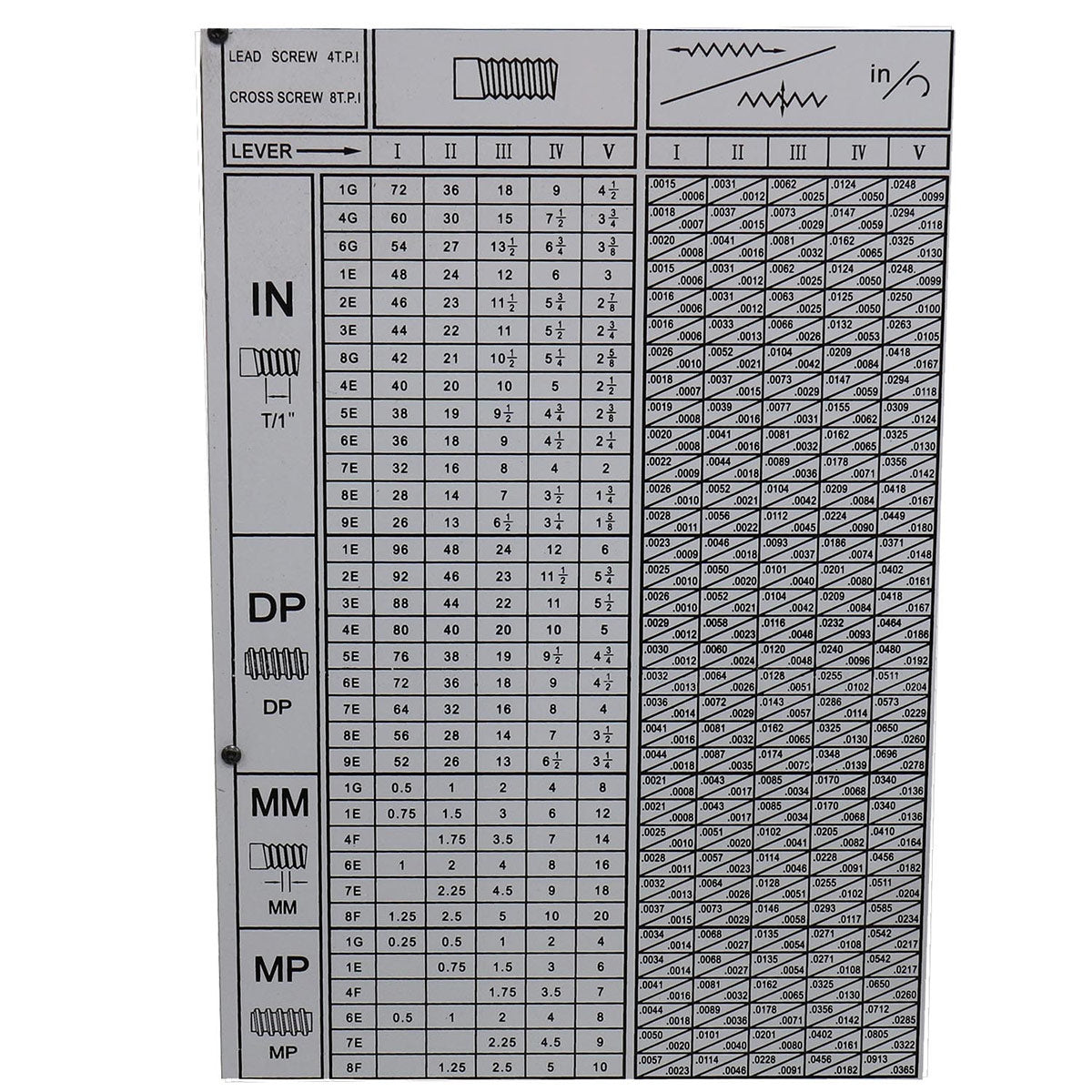

| Threads Diametrical Qty Type | 45 / 3-1/2 to 96 D.P |

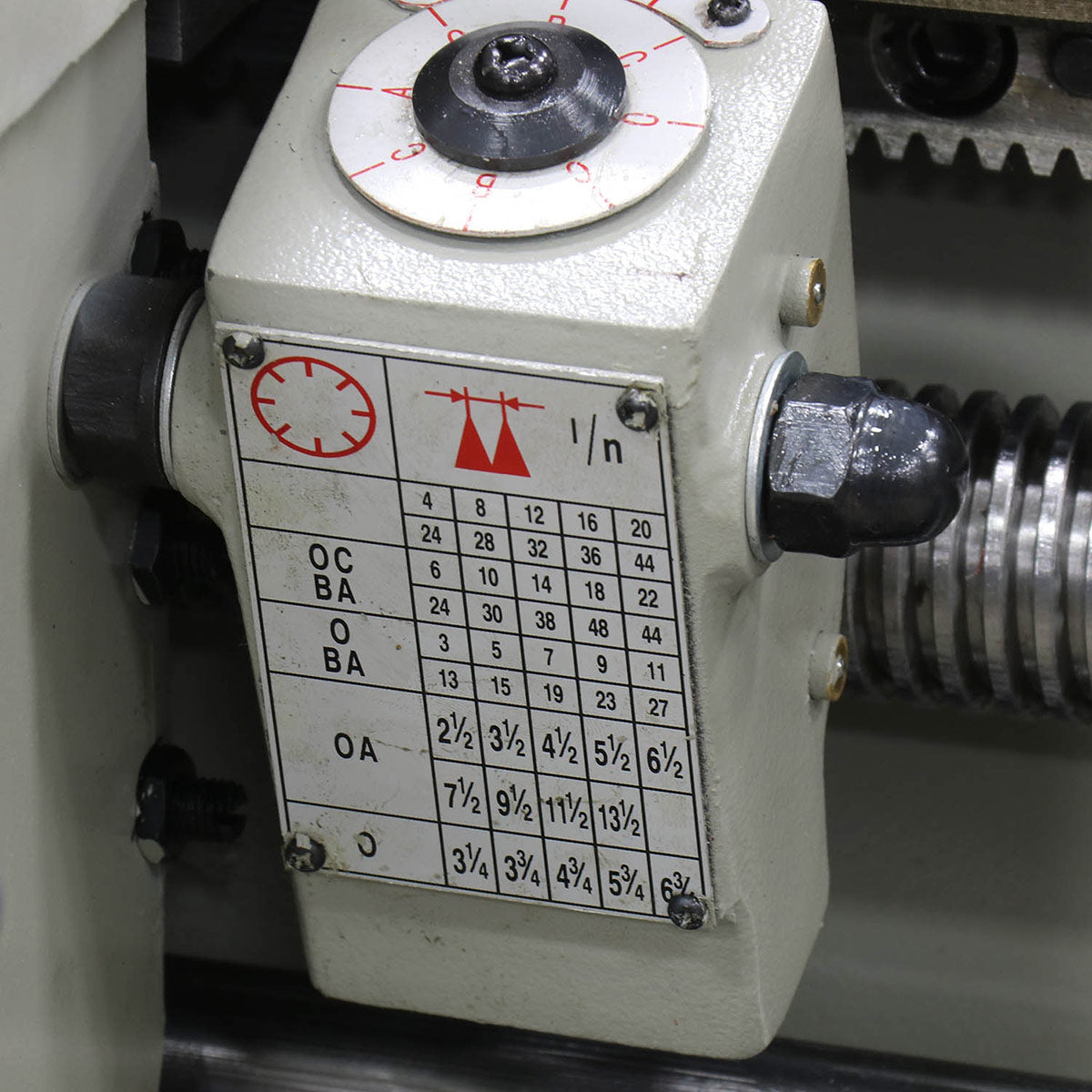

| Threads Imperial Qty Type | 61 / 1-5/8 to 72 T.P.I |
| Threads Metric Qty Type | 24 / .5-20mm Pitch |
| Threads Module Qty Type | 21 / .25 to 10 M.P |
