Baileigh Industrial 1017589 Description

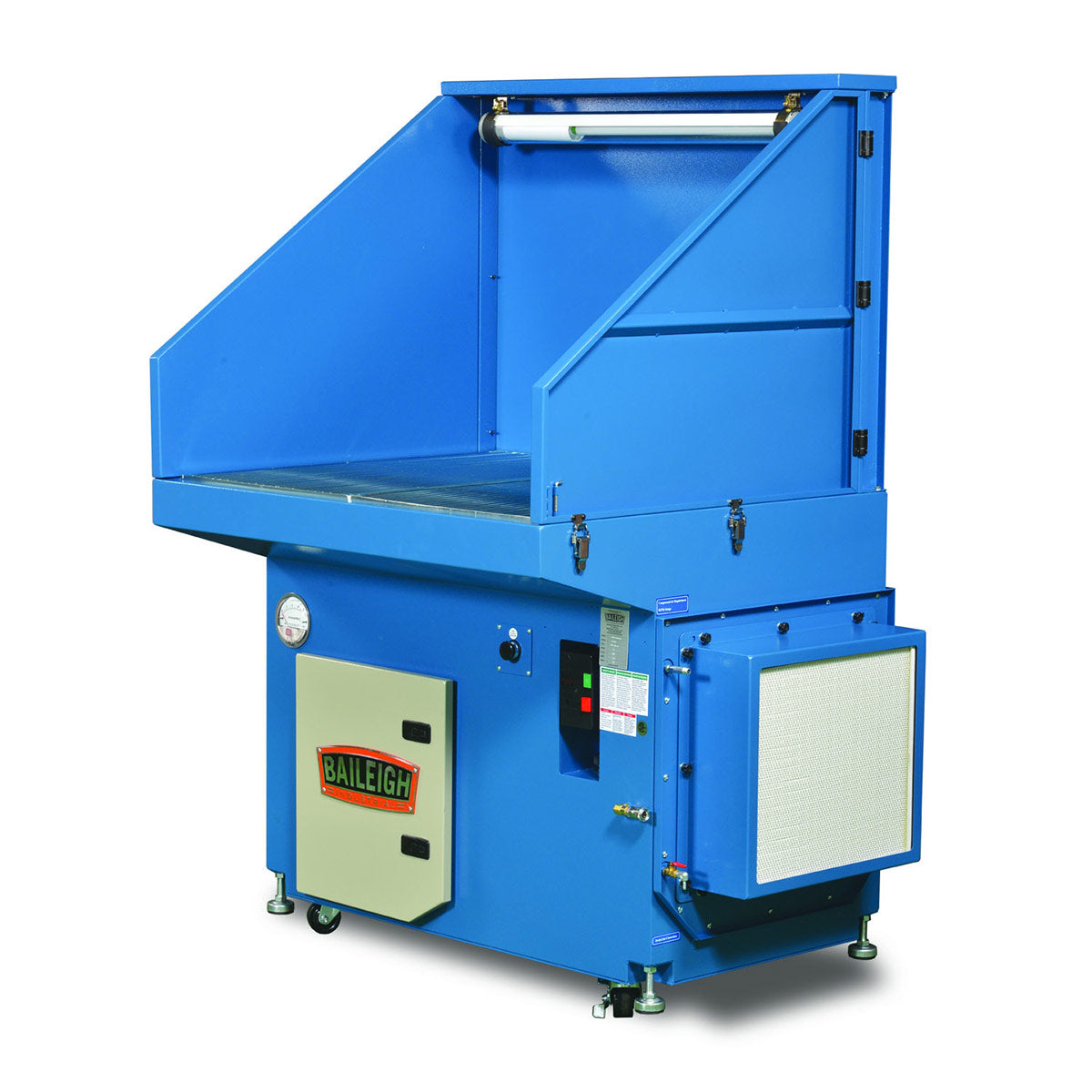

Downdraft tables are becoming more popular with all of the air quality regulations that are now in place. The Heavy Duty Downdraft Table DDTM-4840-HD is the perfect table for small shop tht has a need for a production table. This easy to use down draft table takes all the little partials that float around the shop and pull them straight down into a contained unit and also help to clean the air. The DDTM-4840-HD has a list of features that make it one of the best tables on the market.
Baileigh Industrial 1017589 Includes
- (1) Heavy Duty Downdraft Table
Baileigh Industrial 1017589 Features
- 48" x 40" Working area
- Standard equipment included: HEPA filter, fire resistant cartridge filter, spark arresting metallic pre-filter, magnehelic gauge, hinged side walls w/ back wall, work light, auxiliary 110V and air tool outlets, 12” overhang, casters and leveling feet. These are all options other companies charge for, but come standard with Baileig
- CSAus listed
- 100% Tool free cleaning and filter maintenance/changes

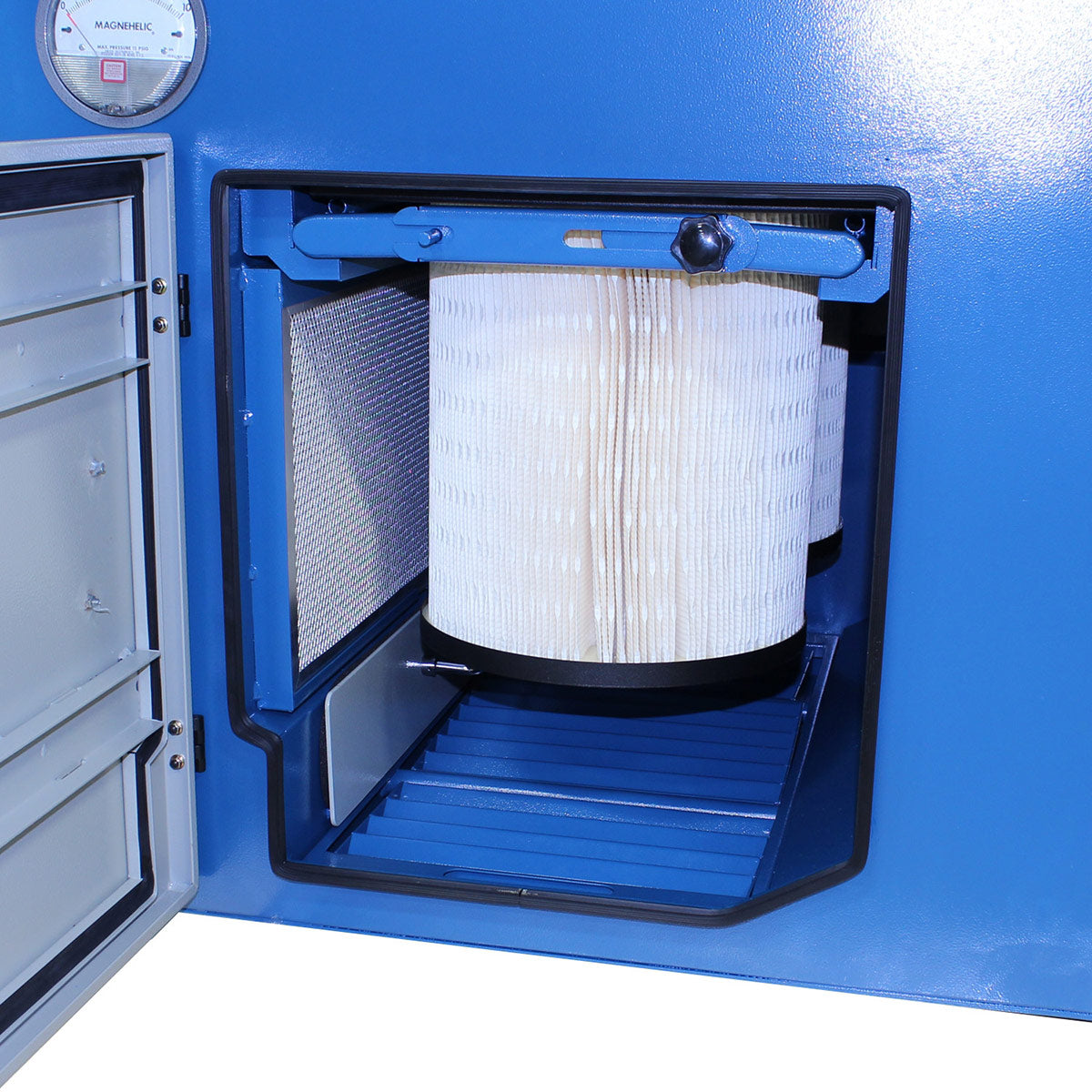

- Air pulse cleaning – When flow is restricted, simply shut the machine off, and press the air pulse button (requires 60-90psi air connection). An internal air tank automatically backflushes the cartridge filter, knocking off accumulated dust and debris (he debris falls into a removable pan for easy cleanout). The table can now be turned on and work resumed
- Safety – Under OSHA decibel limit (hearing protection not required). HEPA filter is now required by OSHA for equipment that vents back into occupied space (HEPA is standard on these models)
- Fully Assembled – Simply uncrate, wire, and begin use
- Table load capacity: maximum 1543lbs (700kgs) Evenly distruibuted over 80%-100% of table surface. Concentrated Contact Surface Contact Weight: 10% 192lbs (87kgs), 20% 384lbs (174kgs), 30% 575lbs (261kgs), 40% 767lbs (348kgs), 50% 959 lbs (435kgs), 60% 1151lbs (522kgs), 70% 1343lbs (609kgs), 80% 1543lbs (700kgs).
Baileigh Industrial 1017589 Specifications
| Working Table Size | 48" x 40" |
| CFM | 1350 |
| Motor | 2 HP |

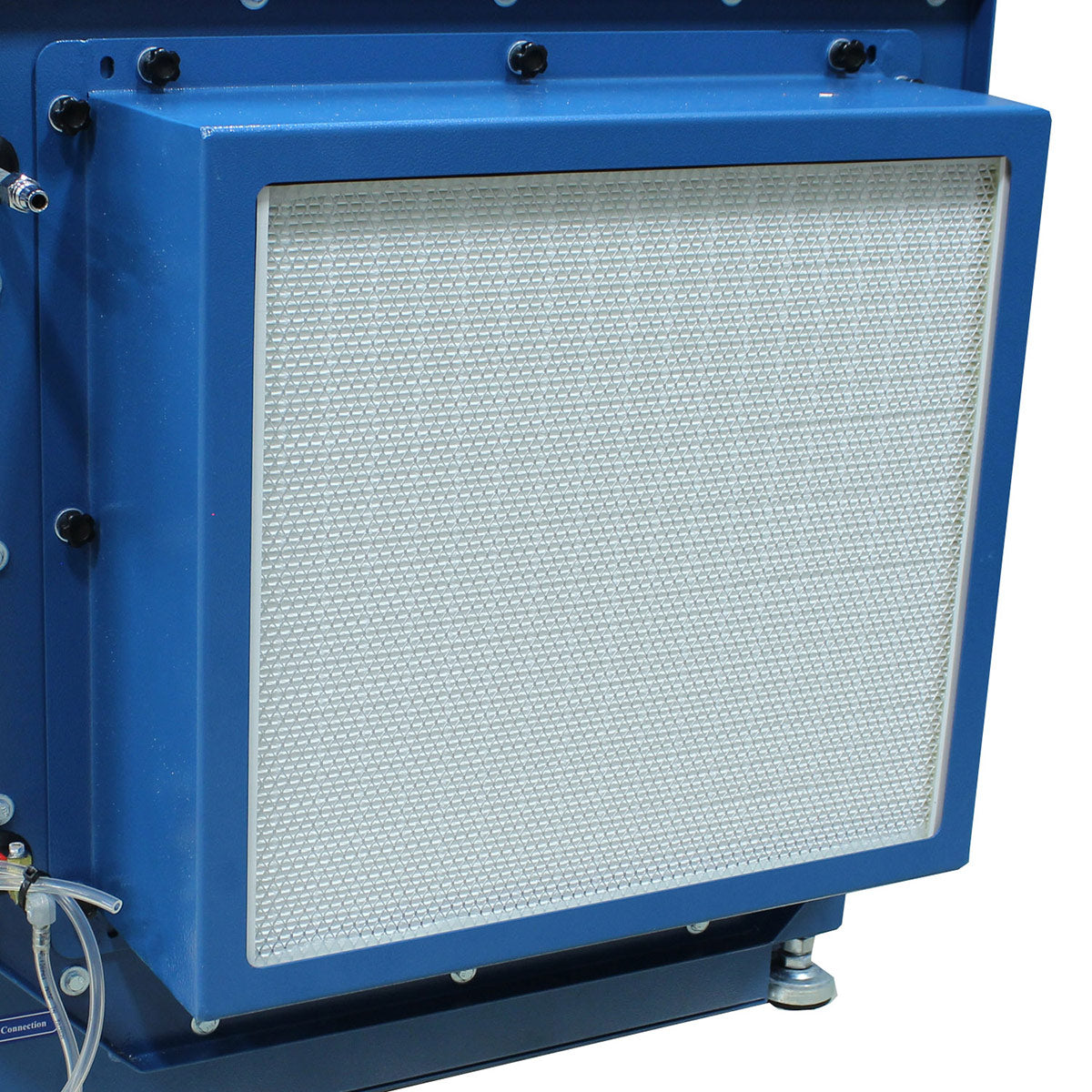

| Filter Type | Three Stage (Aluminum, Teflon Cartridge x 2, HEPA) |
| Number of Filters | 4 |
| Filter Size | Aluminum - 11.3" x 23.8" x 0.86", Cartridge x 2 - Ø11.25" x 13"L, HEPA - 18" x 20" x 5.9" |
| Table Load Capacity | Maximum 1543 lbs (700kgs) Evenly Distributed Over 80% - 100% of Table Surface. For Concentrated Weight Spec, See Chart in Description |
| Power | 220V 3-Phase / 60 Hertz |
| Shipping Dimensions | 62" x 45" x 81" |
| Country of Origin | Taiwan |
