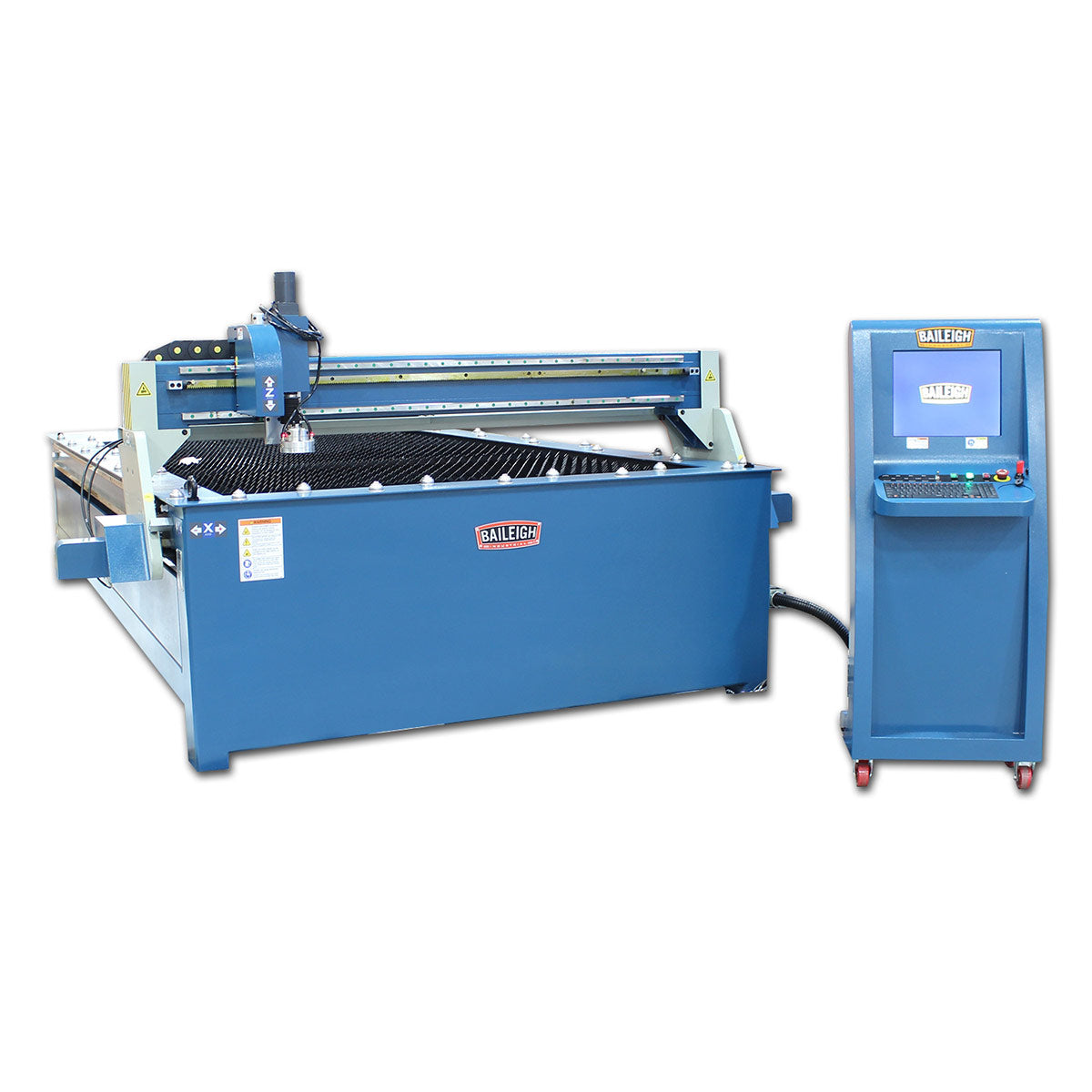

Baileigh Industrial BA9-1019070 CNC Plasma Table PT-105HD

Baileigh Industrial 1019070 Features

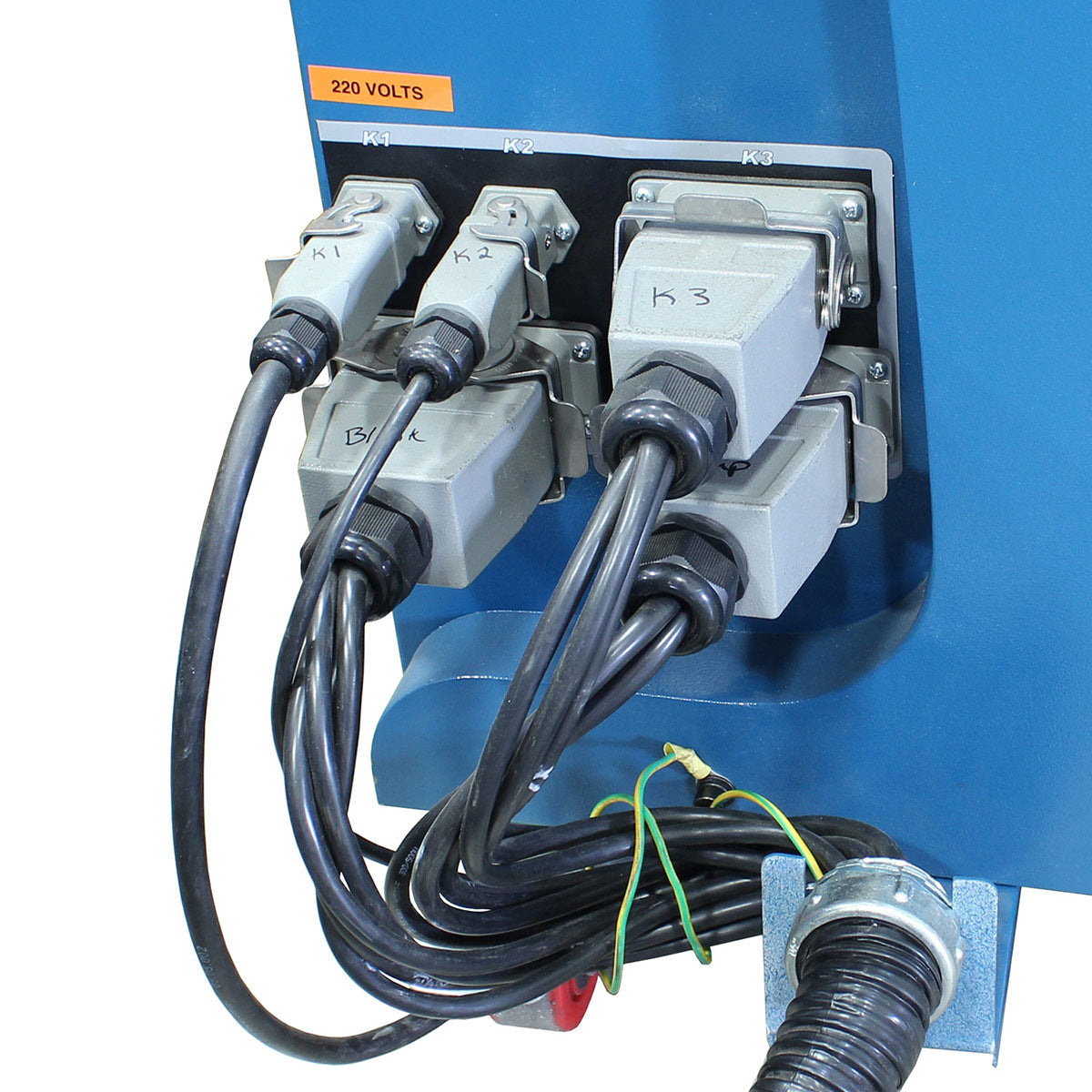

• Runs on 220-volt single-phase power.

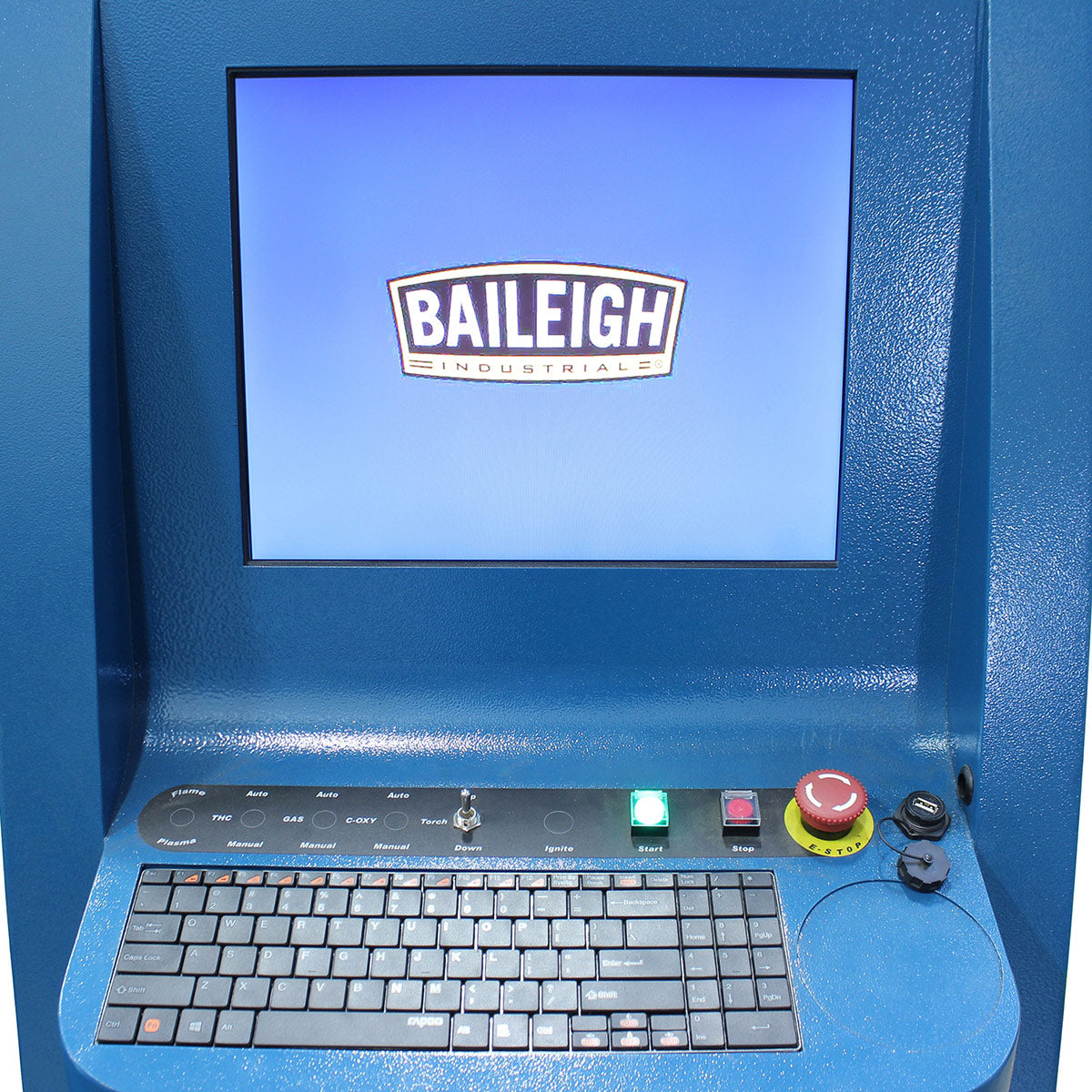

• Control the X, Y, and Z axis movement from the sturdy podium with large console screen and keypad.
• Includes easy-to-learn design software that you can load into any basic PC (more details below).
• Console offers a pre-loaded library of shapes that you can resize and alter at the table—without a computer.
• Automatic height detection on the Z-axis makes perfect cuts in corrugated or uneven materials.
• Panasonic® brushless servo motors, controlled by Panasonic® servo motion controllers, drive the gantry.
• Industrial-grade gantry travel system for the X, Y & Z axis made from extremely rigid structural steel.
• Gantry can move out of the way for a full 10-foot sheet during loading, minimizing the chance of machine damage.
• High gantry (one of the highest in the industry) lets you clearly see its movement for better adjustment and control.
• Axes ride on heavy-duty Hiwin square rails.
• Wipers on rails keep welding dust out of the slide for a smooth transfer without noisy friction caused by dirt build-up.
• Our design reduces the risk of damaging the table while loading or pinching your forklift—unlike competing plasma tables with recessed work areas.
• Weigh an impressive 3520 lbs.
• Fully-welded boxed tubing construction can easily support the weight of maximum capacity material.
• Steel framework will hold its shape and stay accurate for decades, unlike many competitors’ aluminum frames, which buckle and warp under heat.
• Arrives 80% Pre-built to save you time and effort.

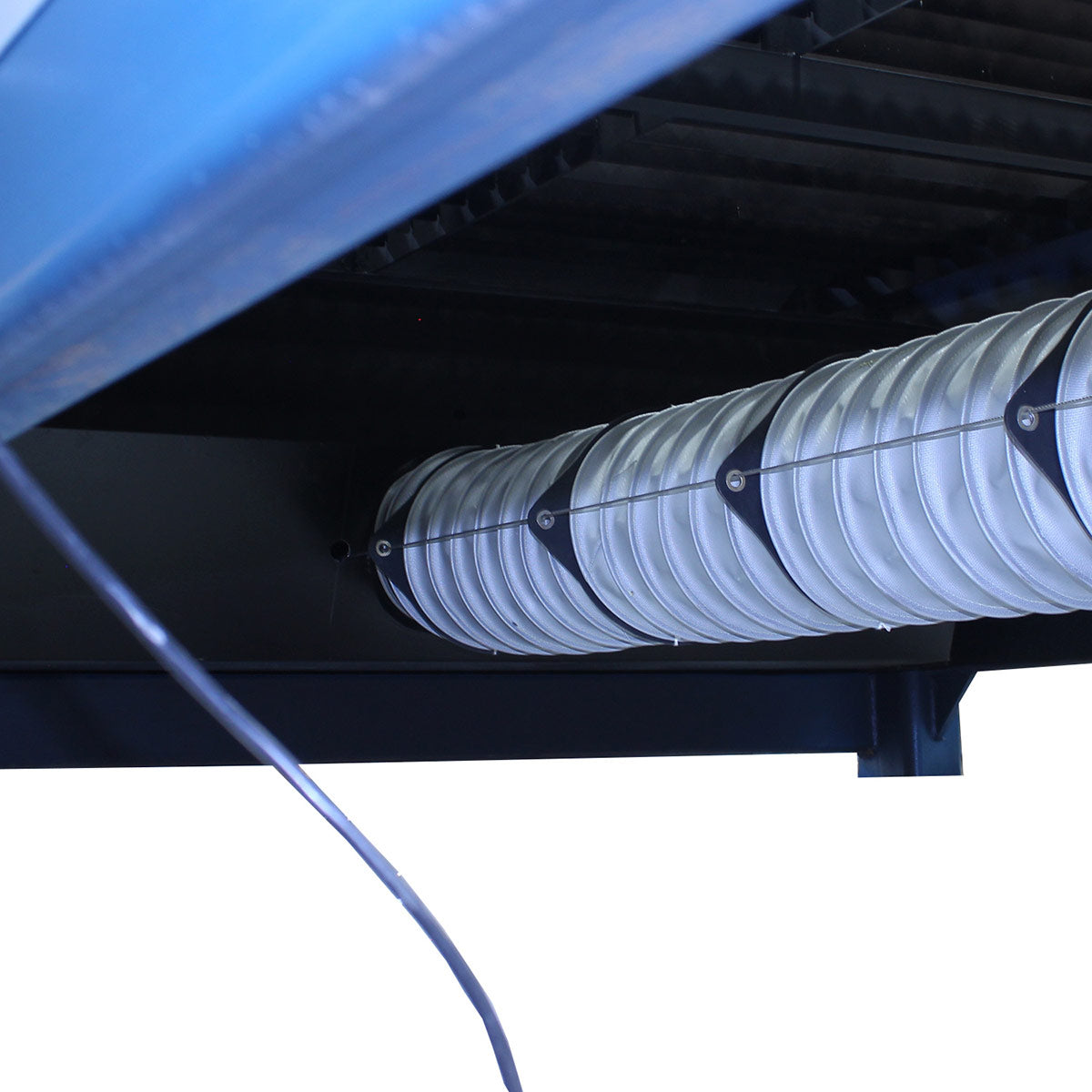

• The downdraft trolley follows the torch wherever it’s cutting for more focused fume extraction. It also catches your small parts so you can collect them at a convenient location.
• Covered by a 1-year parts warranty.
