Baileigh Industrial | SKU:
BA9-1019139

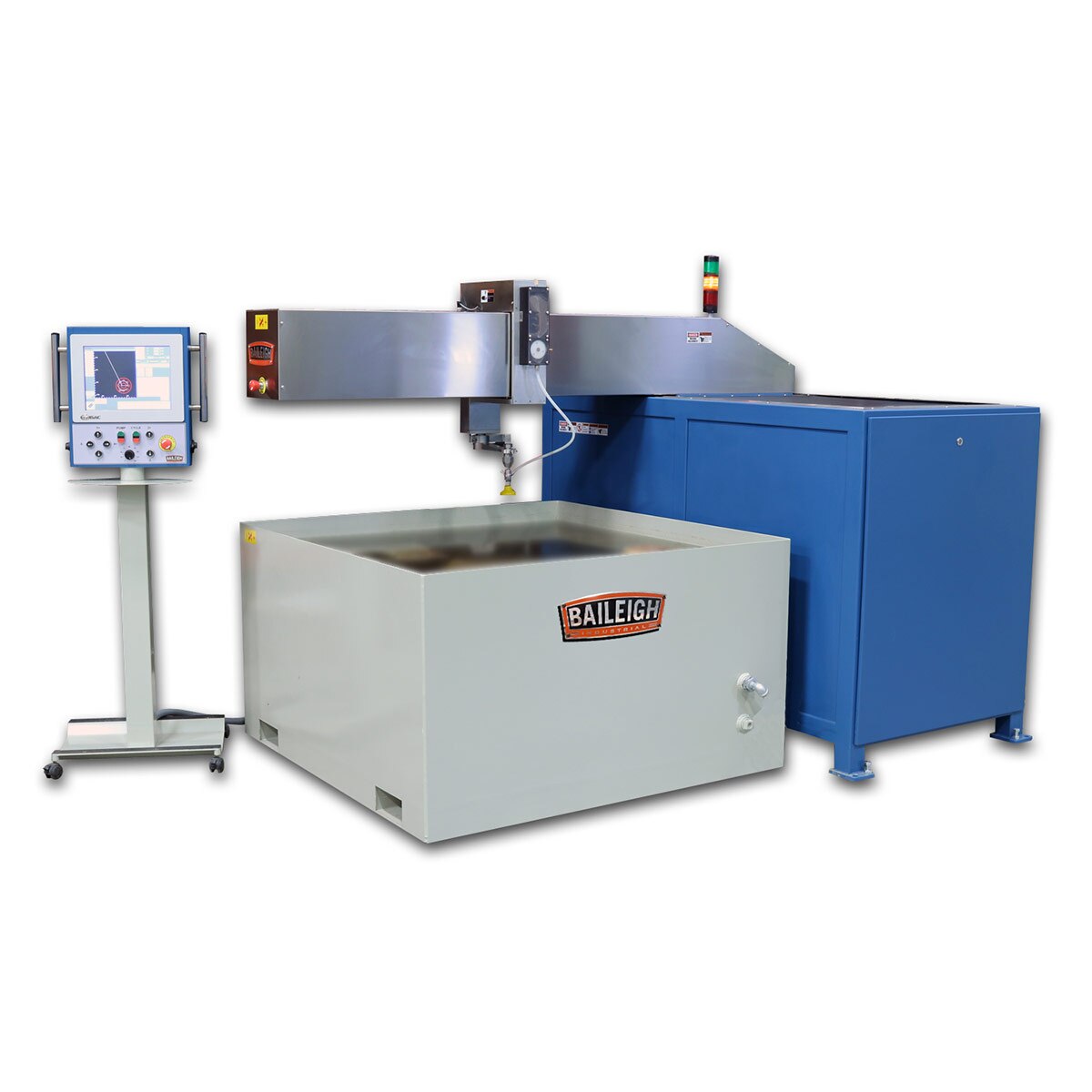

Baileigh Industrial BA9-1019139 Water Jet WJ-4X4CNC
Free Shipping
$160,139.00
$194,454.50
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1019139 Description
The WJ-4x4CNC water jet from Baileigh Industrial is a great value for anyone looking to get into water jet cutting. This great machine has the ability to cut just about any material with precision. This includes glass, granite, ceramic, plastic, foam, mild steel, stainless steel, titanium, aluminum, and copper in its 48” x 48” table.
Baileigh Industrial 1019139 Includes
- (1) Water Jet
Baileigh Industrial 1019139 Features
- The design is a cantilever design that allows for much easier material loading and unloading.
- This design also offers smoother action on the axis with exclusion of moving parts.

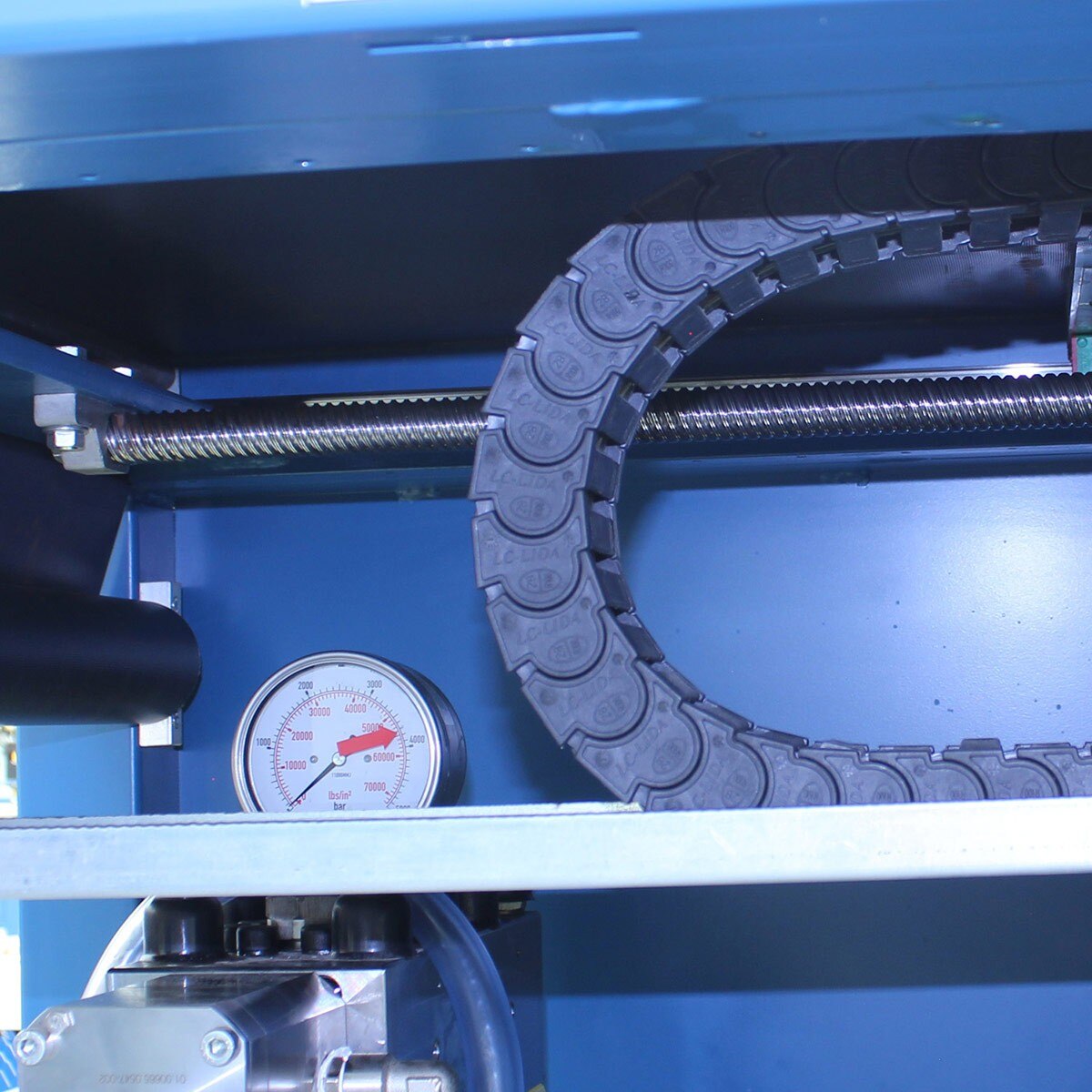

- All axis ride on precision balls screws with square slide ways. All slide ways are covered and protected from water for long life.
- The frame of the WJ-4x4CNC is laser cut and interlocked, then welded for strenght, rigidity, and accuracy.

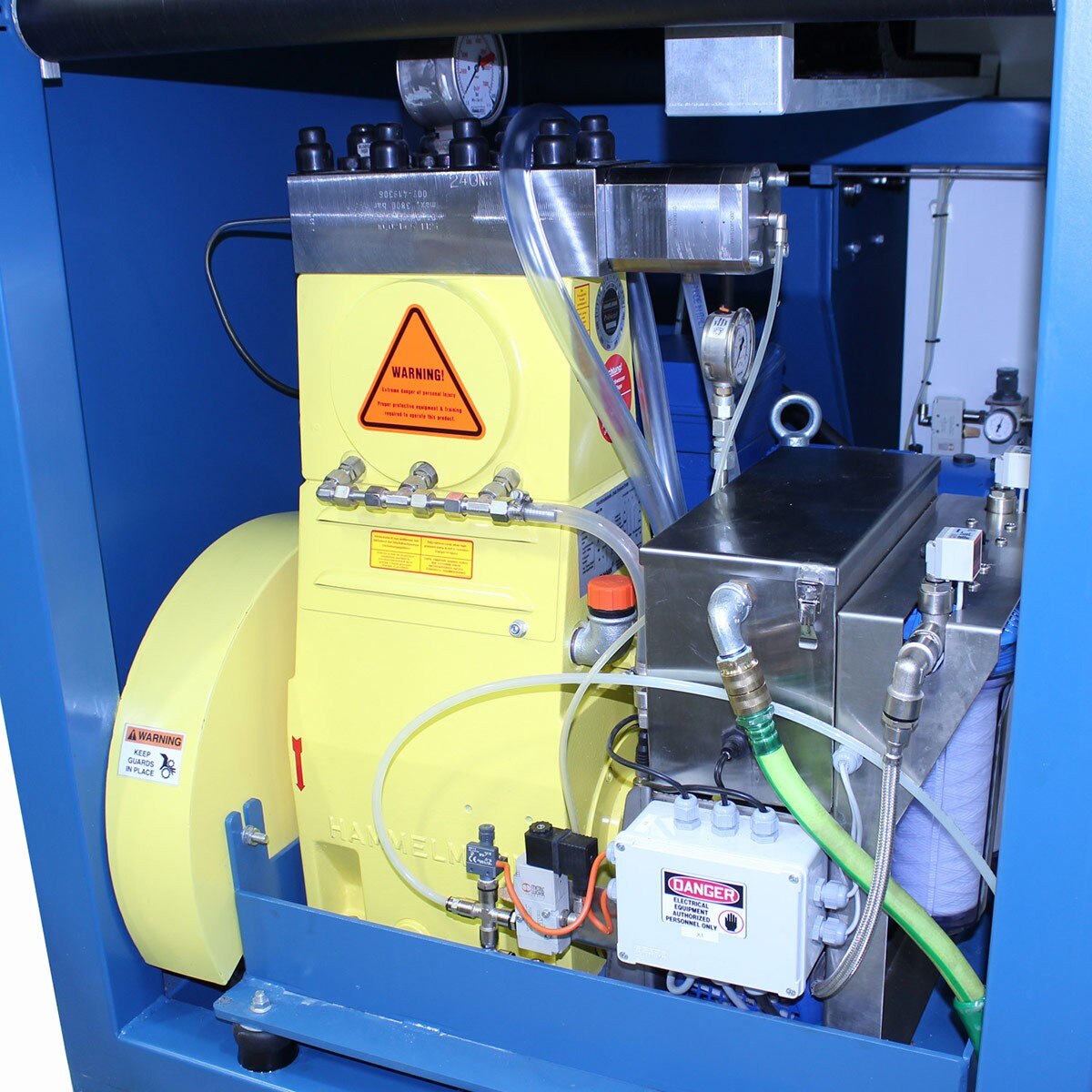

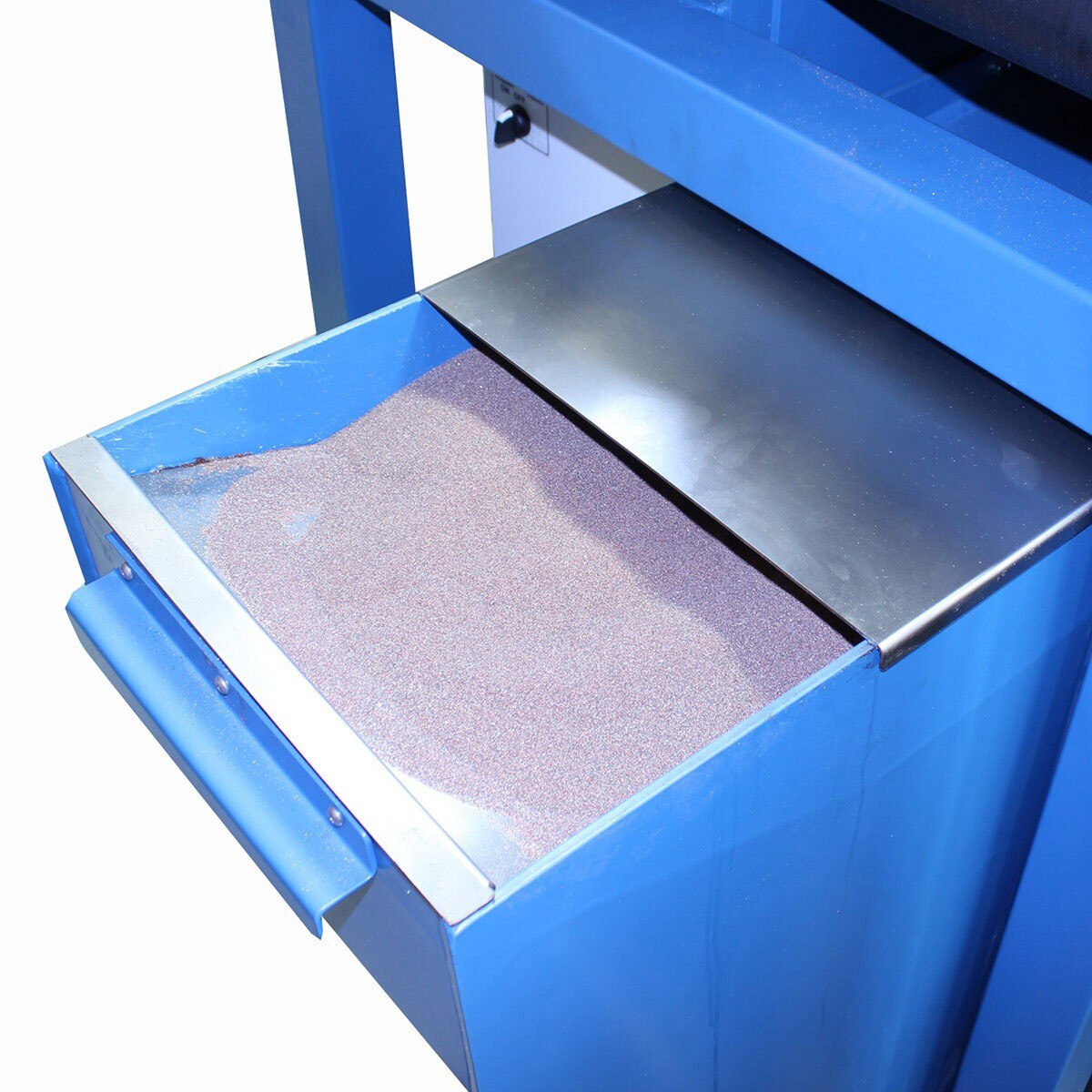

- Every WJ-4x4CNC includes our own proprietary abrasive auto feed system that is coupled with a powerful 55,000psi Hammelmann direct drive pump
- This system is unique to the Baileigh Industrial line and offers a low maintenance approach to water jet cutting.

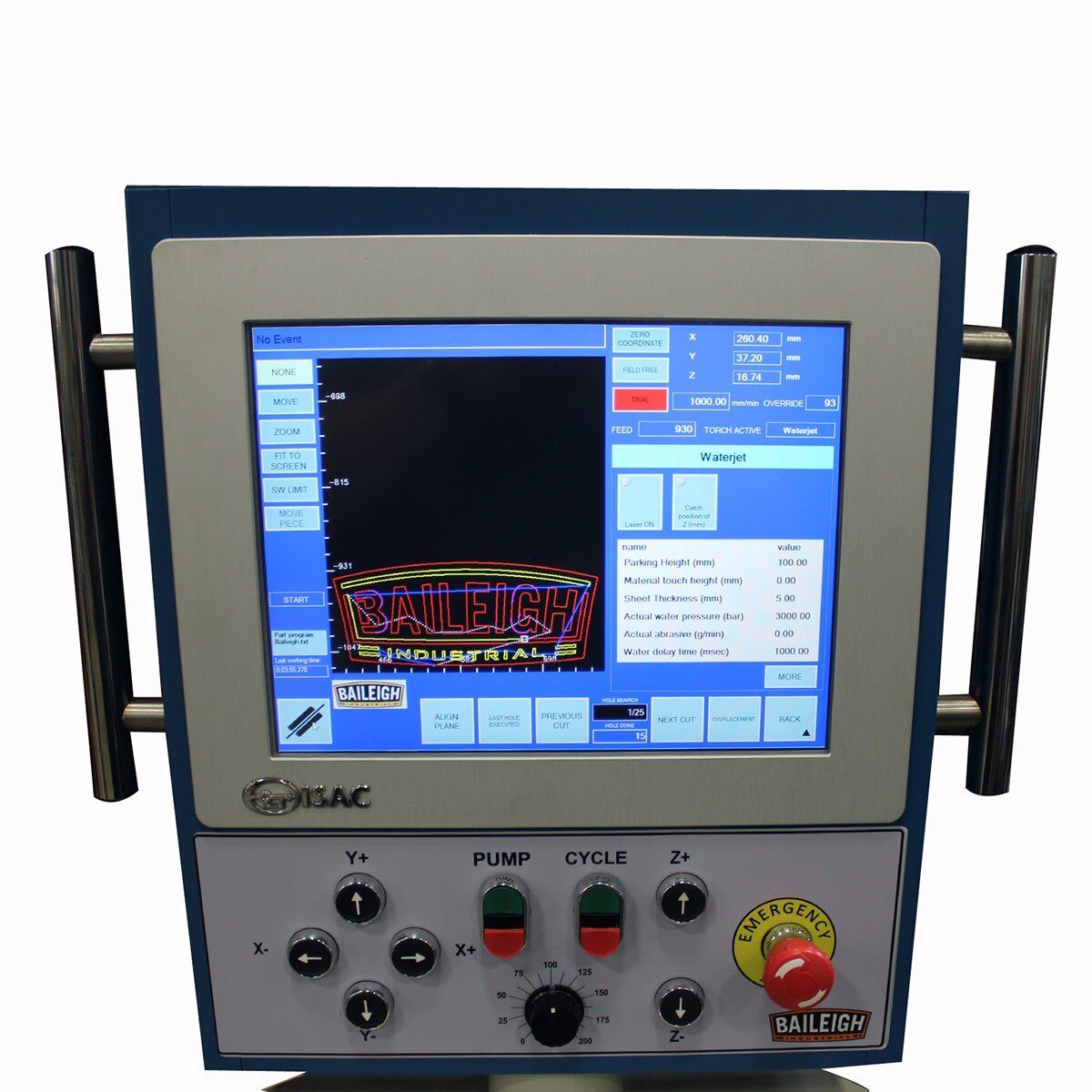

- To control the WJ-4x4CNC water jet Baileigh Industrial includes an easy to use windows based operator touchscreen. This programmer will support any DXF file.
Baileigh Industrial 1019139 Specifications
| Motor (KW) | 30 kw |
| Working Table Size | 48" x 48" |
| Working Table Travel (X/Y) | 48"/48" |
| Table Size | 59" x 59" |

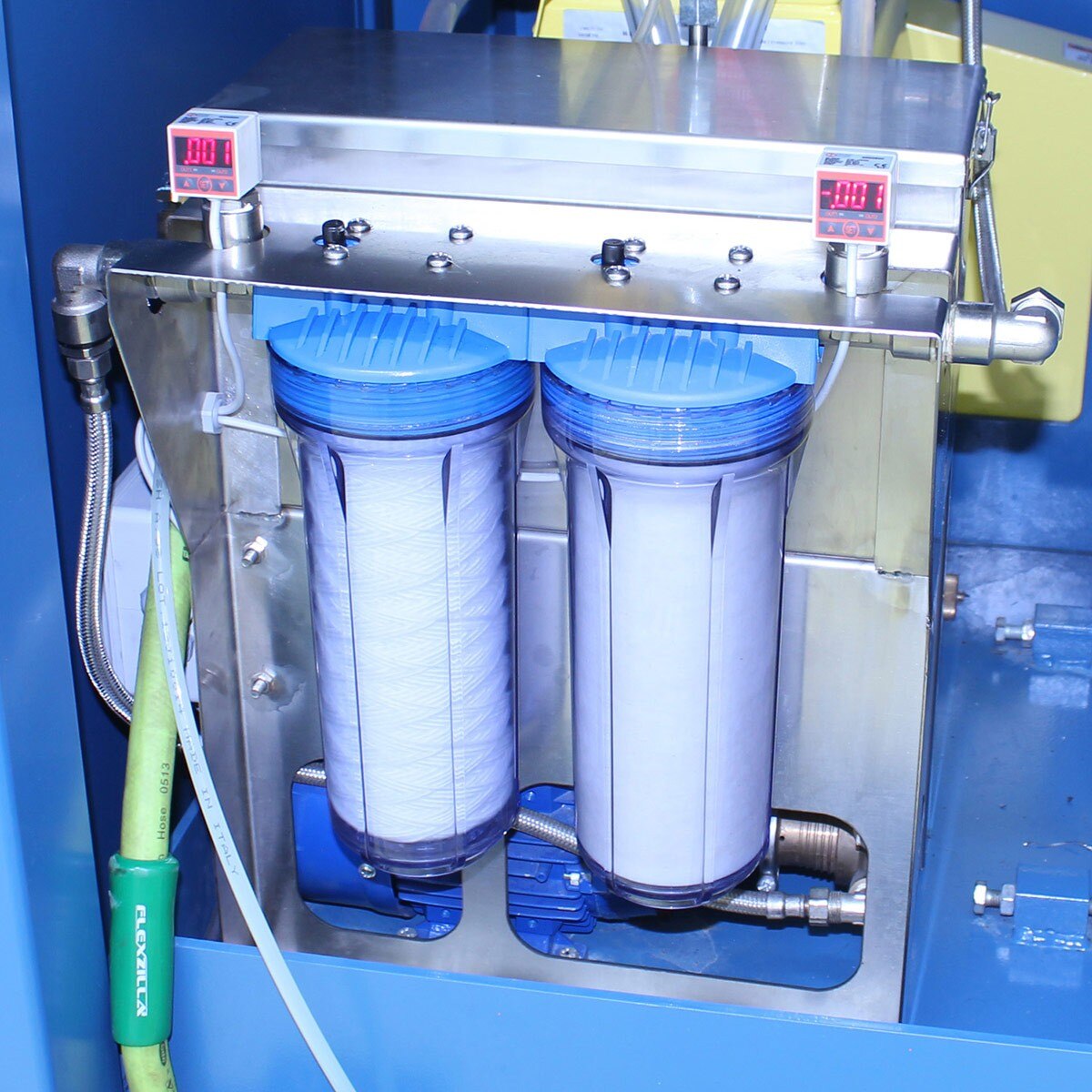

| Filter Type | 2 Stage/2 Filter, 10 Micron & 1 Micron |
| Number of Filters | 2 |
| Supported File Formats | DXF |
| Repeatability Accuracy | ± .001" |
| Production Pressure | 56000 PSI |
| Max. Flow Rate | 7.92 Gallons per Minute |
