Baileigh Industrial | SKU:
BA9-1019289

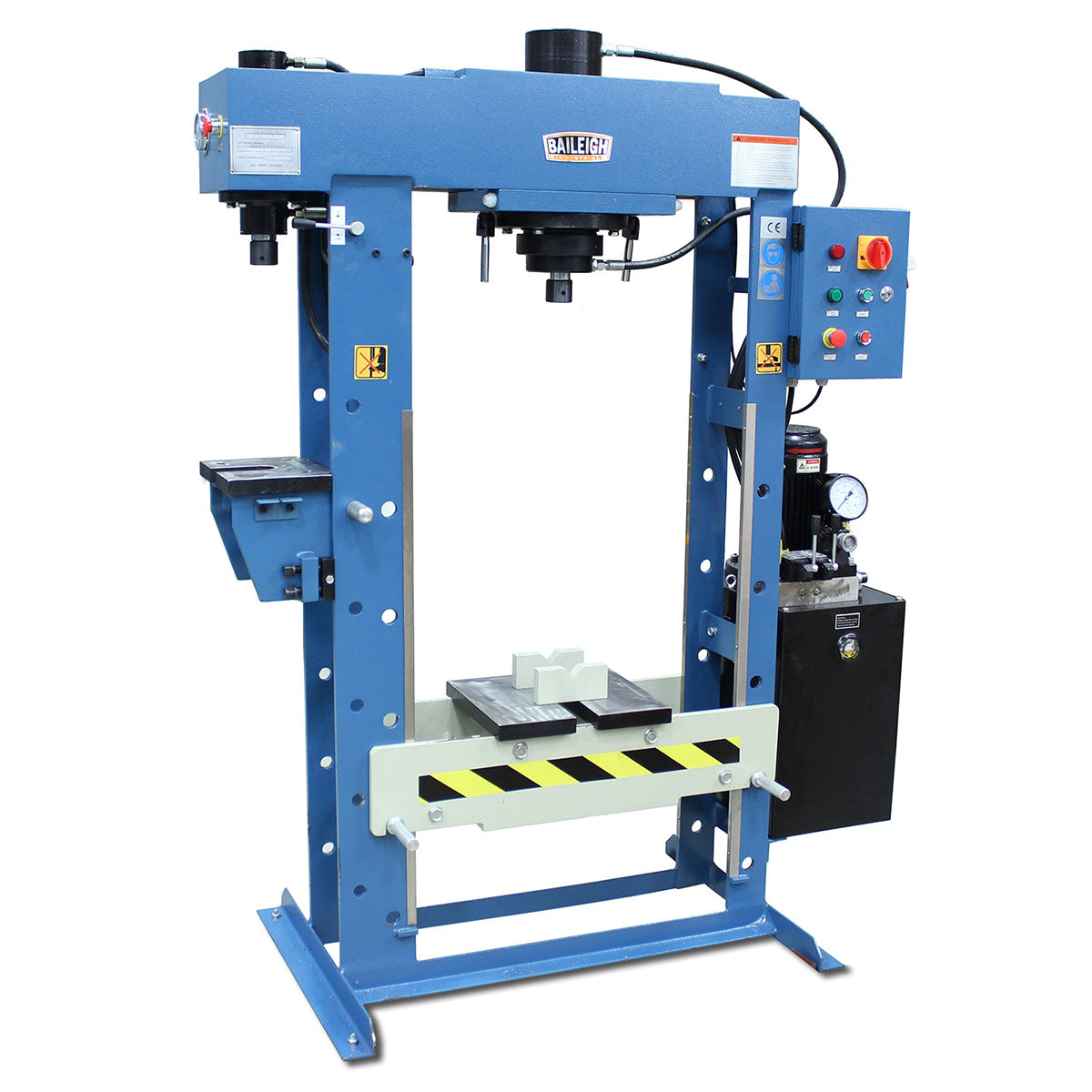

Baileigh Industrial BA9-1019289 Two Station Hydraulic Press HSP-30M-C
Free Shipping
$7,559.00
$9,178.79
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1019289 Description
With its additional work station, sturdy plate steel construction and piston-style hydraulic pump, this hydraulic H-frame press offers one of the best values on the market.
Baileigh Industrial 1019289 Includes
- (1) Two Station Hydraulic Press
Baileigh Industrial 1019289 Features
- 30-ton capacity on main press.

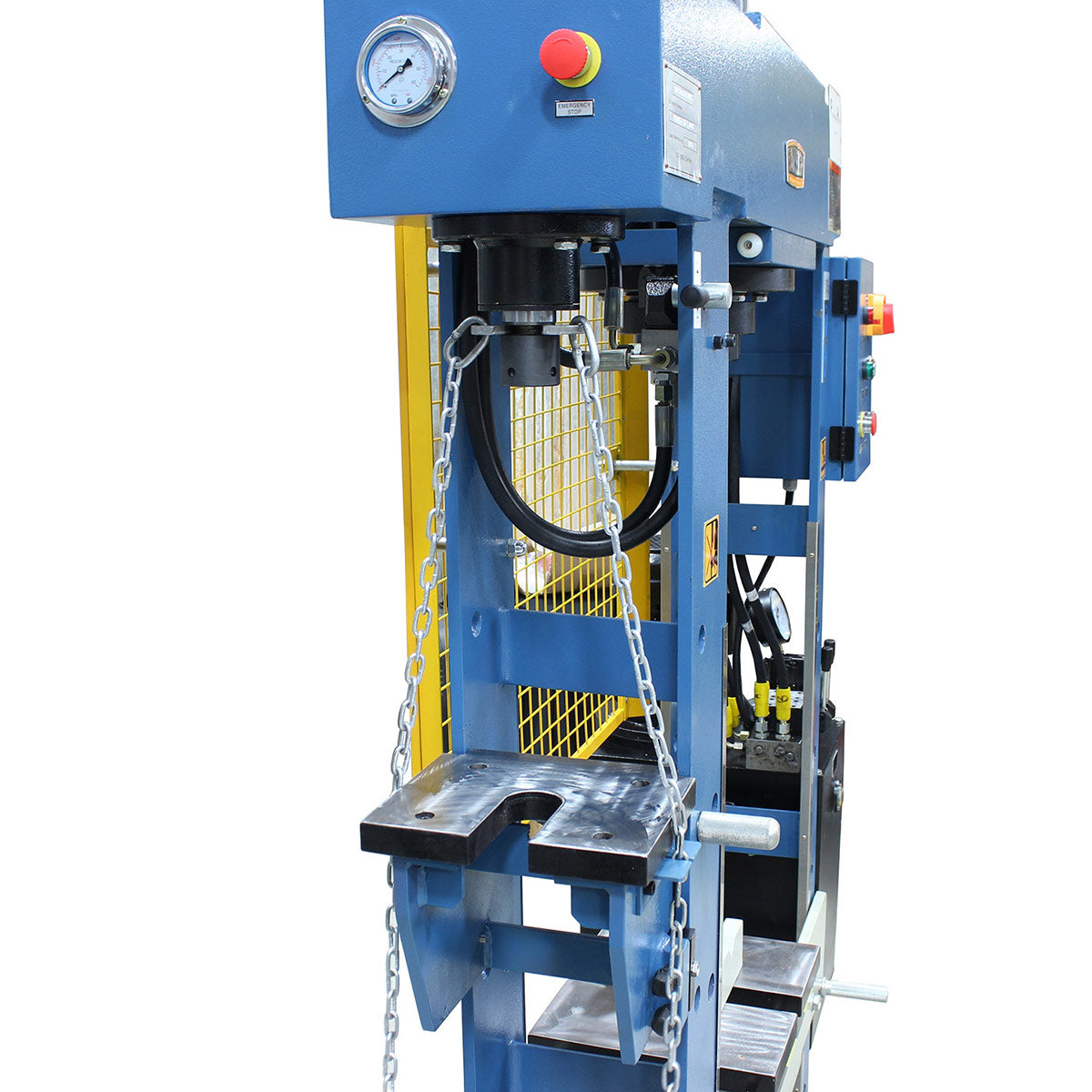

- 10-ton capacity on side press.
- 27.5” working width.
- 5.74” diameter cylinder with 9.8” stroke on main press.

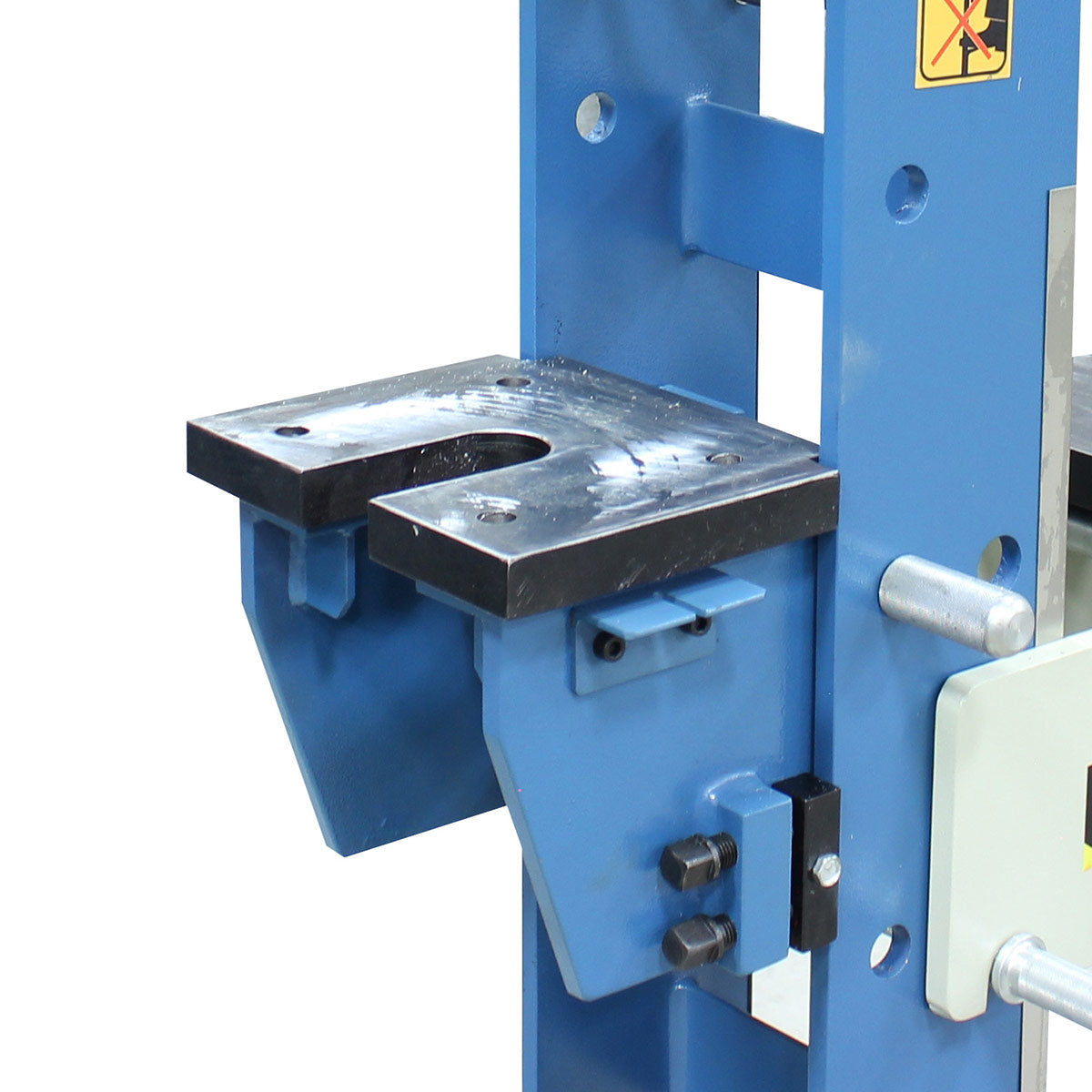

- 2.76” diameter cylinder with 7.75” stroke on side press .

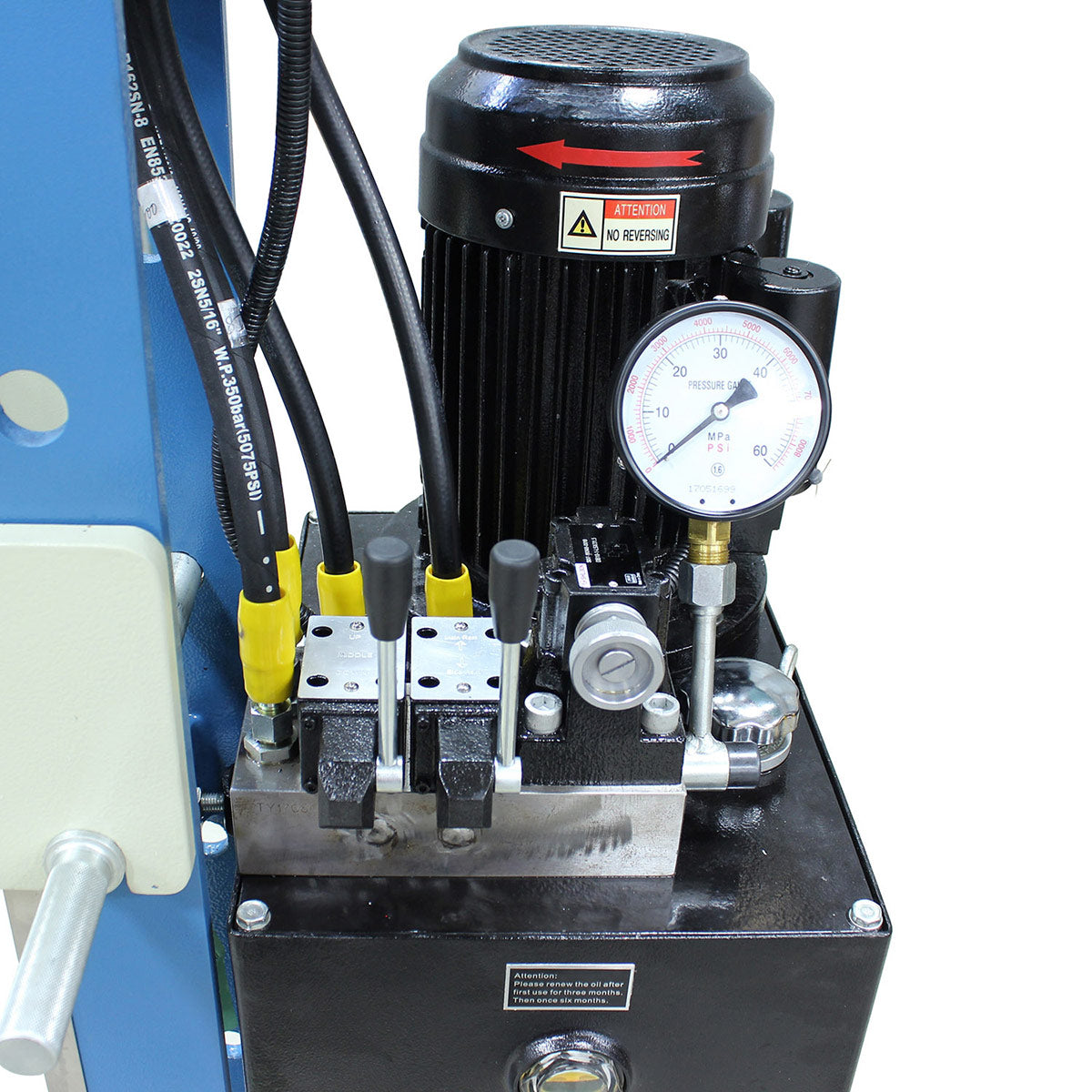

- 3 hp motor runs on 200-volt single-phase power.

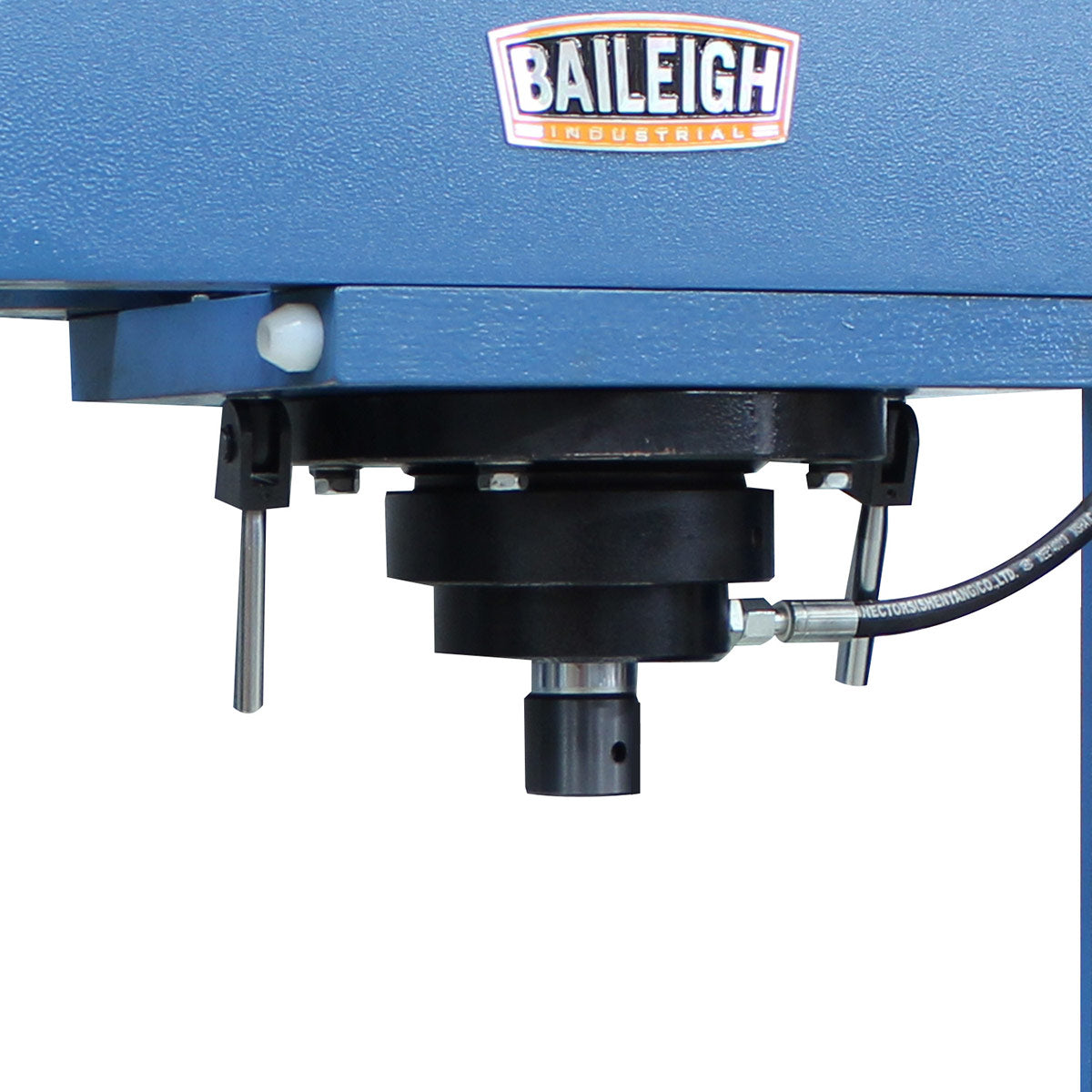

- Main cylinder can move left and right within the frame to deliver pressure at the point where you need it for off-center projects.

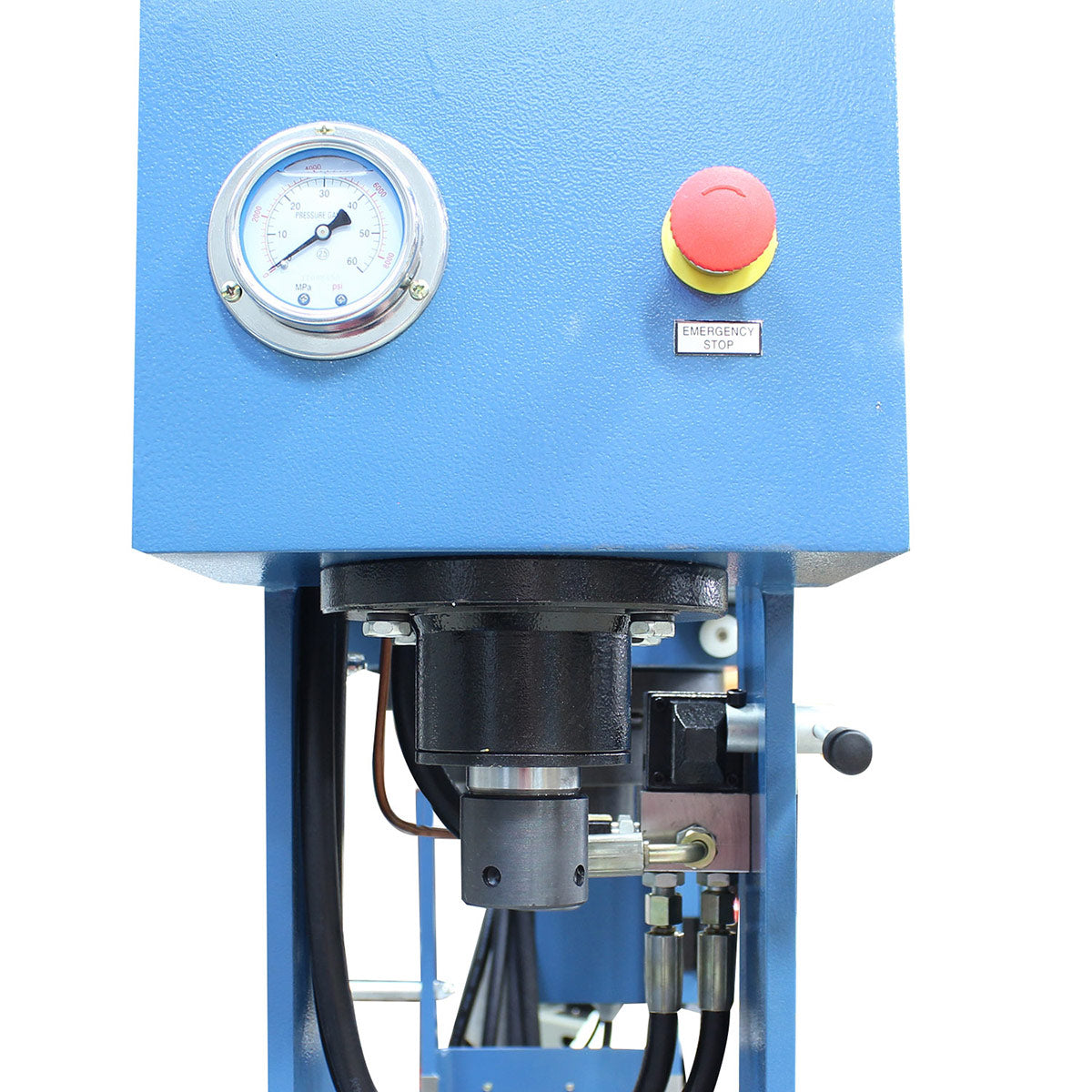

- Comes standard with dual pressure gauges.

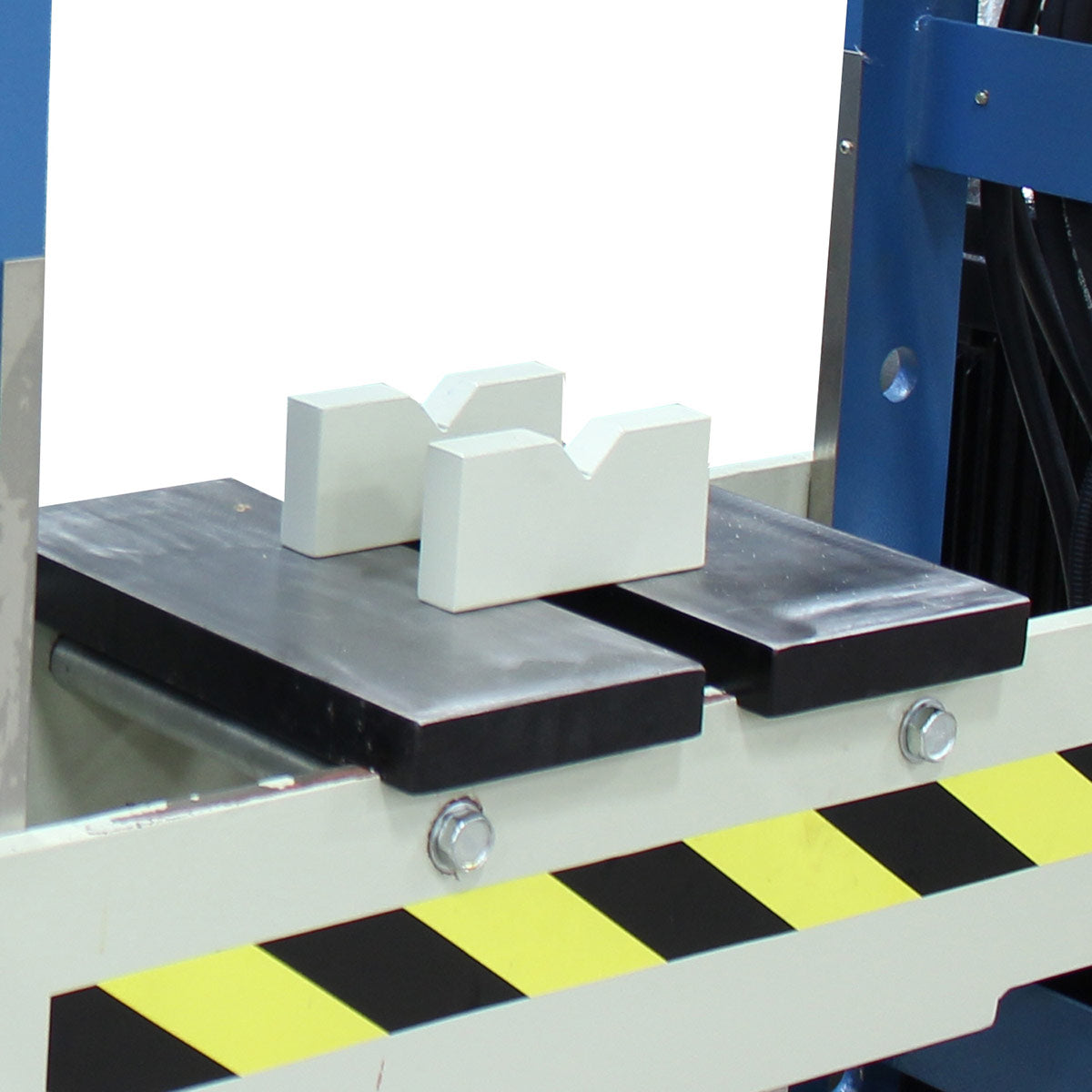

- Includes 2-piece V-block.
- Fully -welded steel frame enables you to use the machine's force t full capacity without about flexing.
- Baileigh covers this hydraulic shop press with a 1-year parts warranty.
Baileigh Industrial 1019289 Specifications
| Return Speed | .30" / sec. (Main), .60"/ sec. (Side) |
| Motor | 3 HP |
| Piston Head Diameter | 2" (Main), 1.97" (Side) |
| Pump Speed | .95 gal/min |
| Oil Capacity | 13 Gallon |
| Working Speed | .25" / sec. (Main), .78" / sec. (Side) |
| Working Width | 27.25" |
| Maximum Capacity | 30 ton (Main), 10 ton (Side) |
| Cylinder Stroke | 9.8" (Main), 7.75" (Side) |
| Cylinder Movable | Yes (Main) |
