Baileigh Industrial | SKU:
BA9-1019291

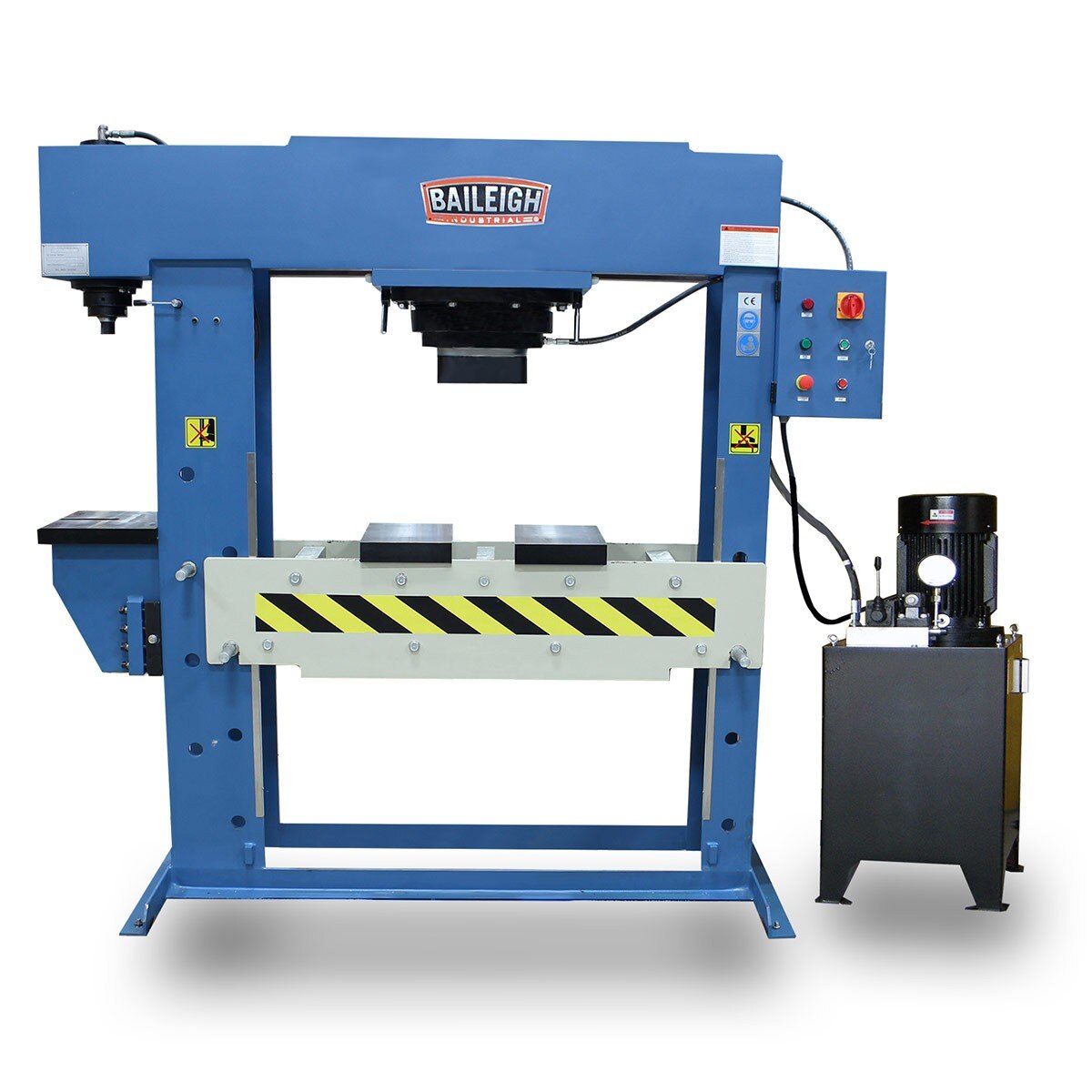

Baileigh Industrial BA9-1019291 HSP-200M-C Two Station Hydraulic Press
$4,870.35 off
Free Shipping
$27,598.65
$32,469.00
Unit price
/
Unavailable
Description
Description
Baileigh Industrial 1019291 Description
Our most powerful hydraulic shop press, the HSP-200M-C can deliver 200 tons of pressure on the main ram, but also includes a smaller 20 ton hydraulic arbor press attachment. A .375” cast steel framework makes this press one of the best values on the market.
Baileigh Industrial 1019291 Includes
- (1) Two Station Hydraulic Press
Baileigh Industrial 1019291 Features
- Unique two station design.
- 200-ton capacity on main press.

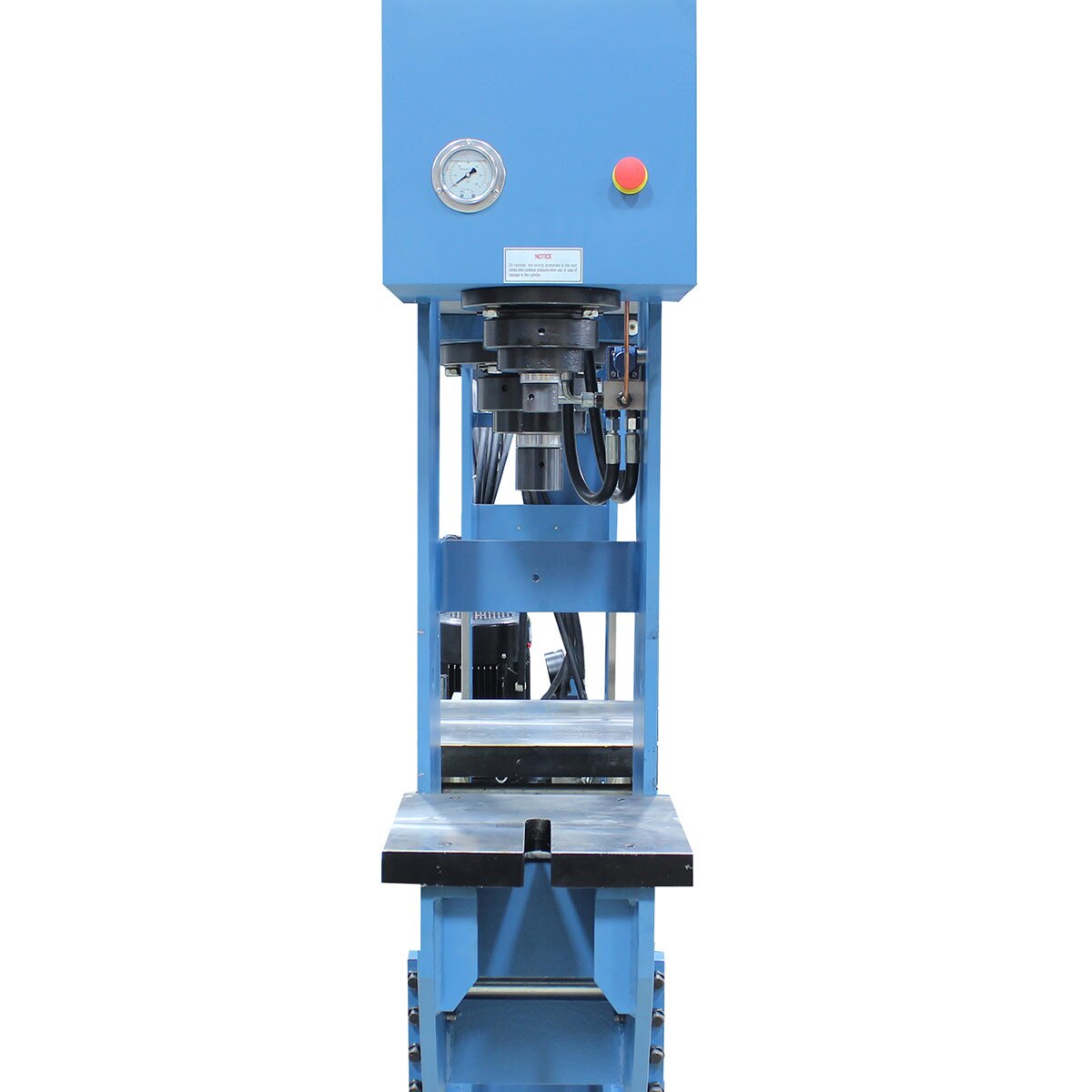

- 20-ton capacity on side press.
- 48” working width.
- 11”-diameter cylinder with 11.8” stroke.
- 10 hp motor runs on 220-volt 3-phase power.
- Stand-alone hydraulic system with a piston-style pump.
- Cylinder can move left and right within the frame, ideal for off-center projects.
- Pressure gauge comes standard.
- Includes a 2-piece V-block set.
- Baileigh Industrial covers this hydraulic H-frame press with a 1-year parts warranty.
Baileigh Industrial 1019291 Specifications
| Return Speed | .228" / sec. |
| Motor | 10 HP |
| Piston Head Diameter | 6.125" (Main), 1.77" (Side) |
| Pump Speed | 4 gal/min |
| Oil Capacity | 32 Gallon |
| Working Speed | .154" / sec. |
| Working Width | 48" (Main) |
| Maximum Capacity | 200 Ton (Main), 20 Ton (Side) |
| Cylinder Stroke | 11.8" (Main), 11.75" (Side) |
| Cylinder Movable | Yes (Main Only) |
