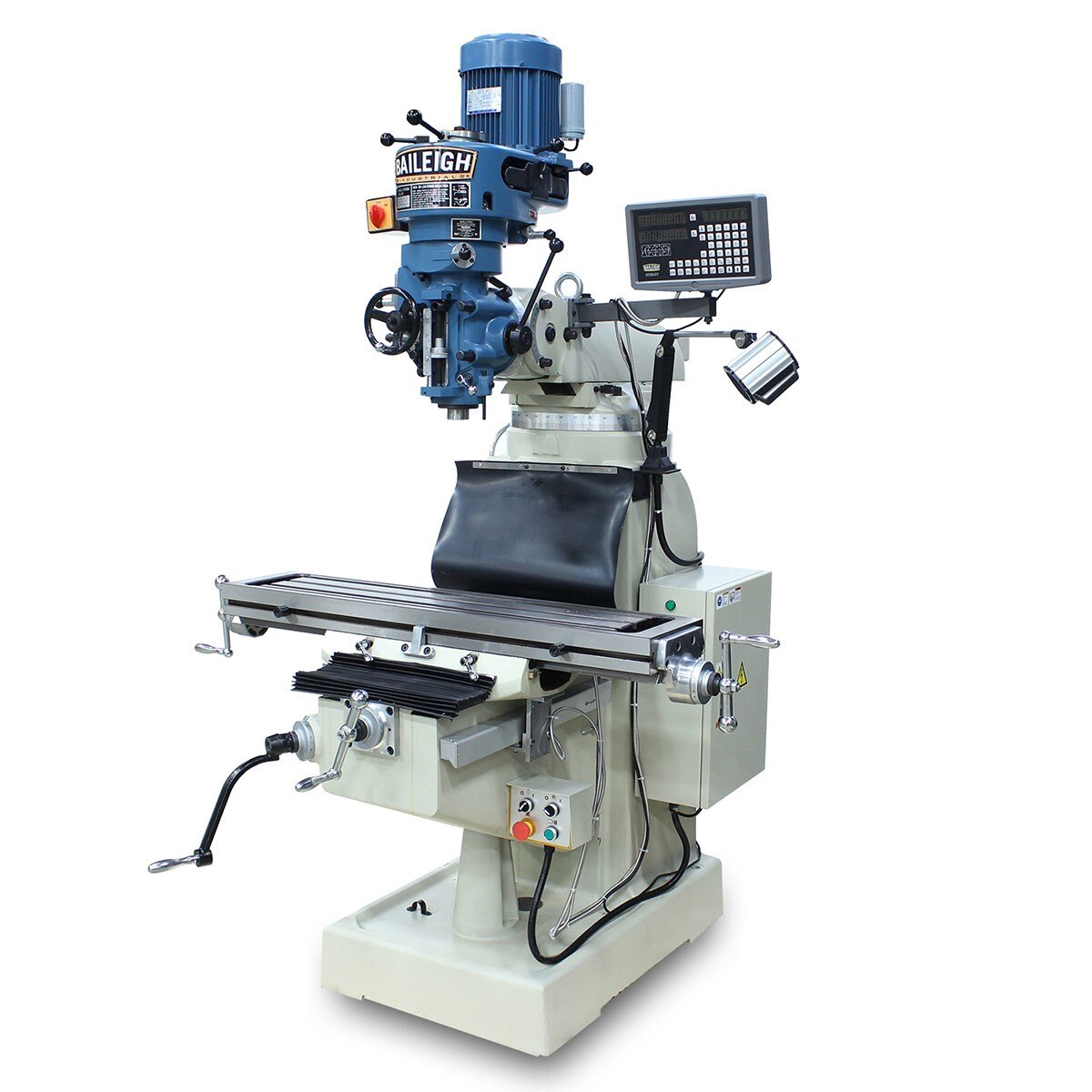

Baileigh Industrial BA9-1020695 Vertical Knee Mill VM-942E-1
Description
Description
Baileigh Industrial 1020695 Description

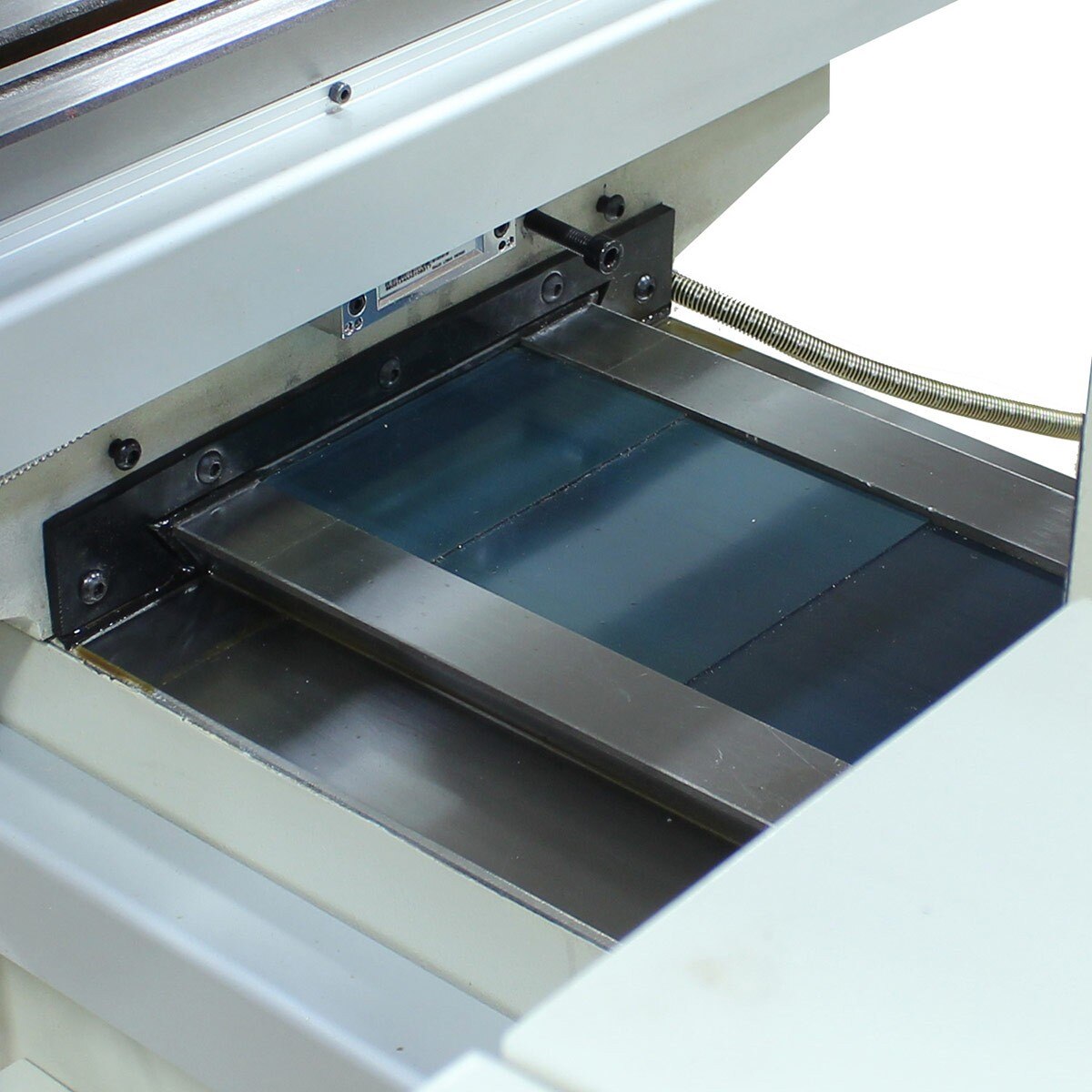

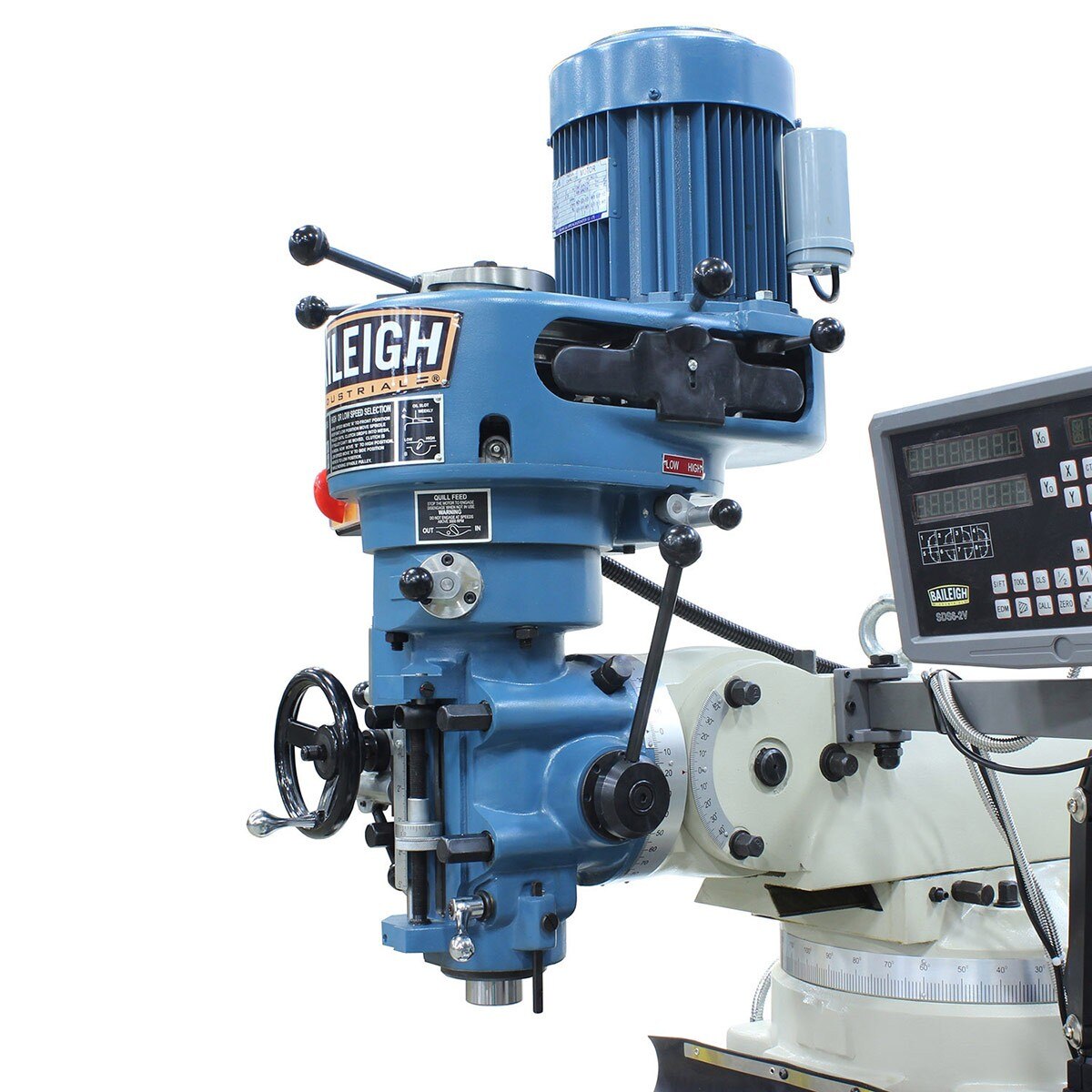

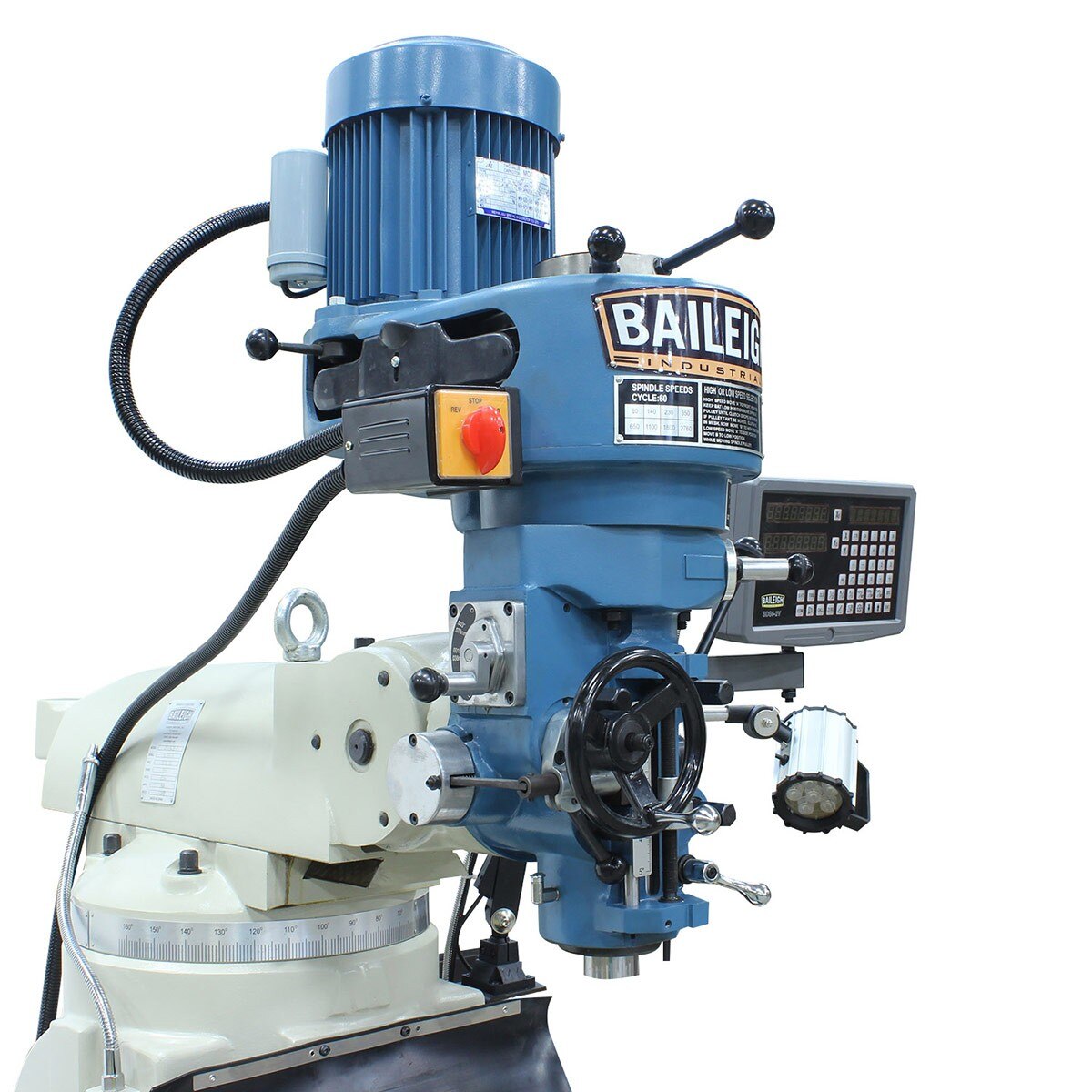

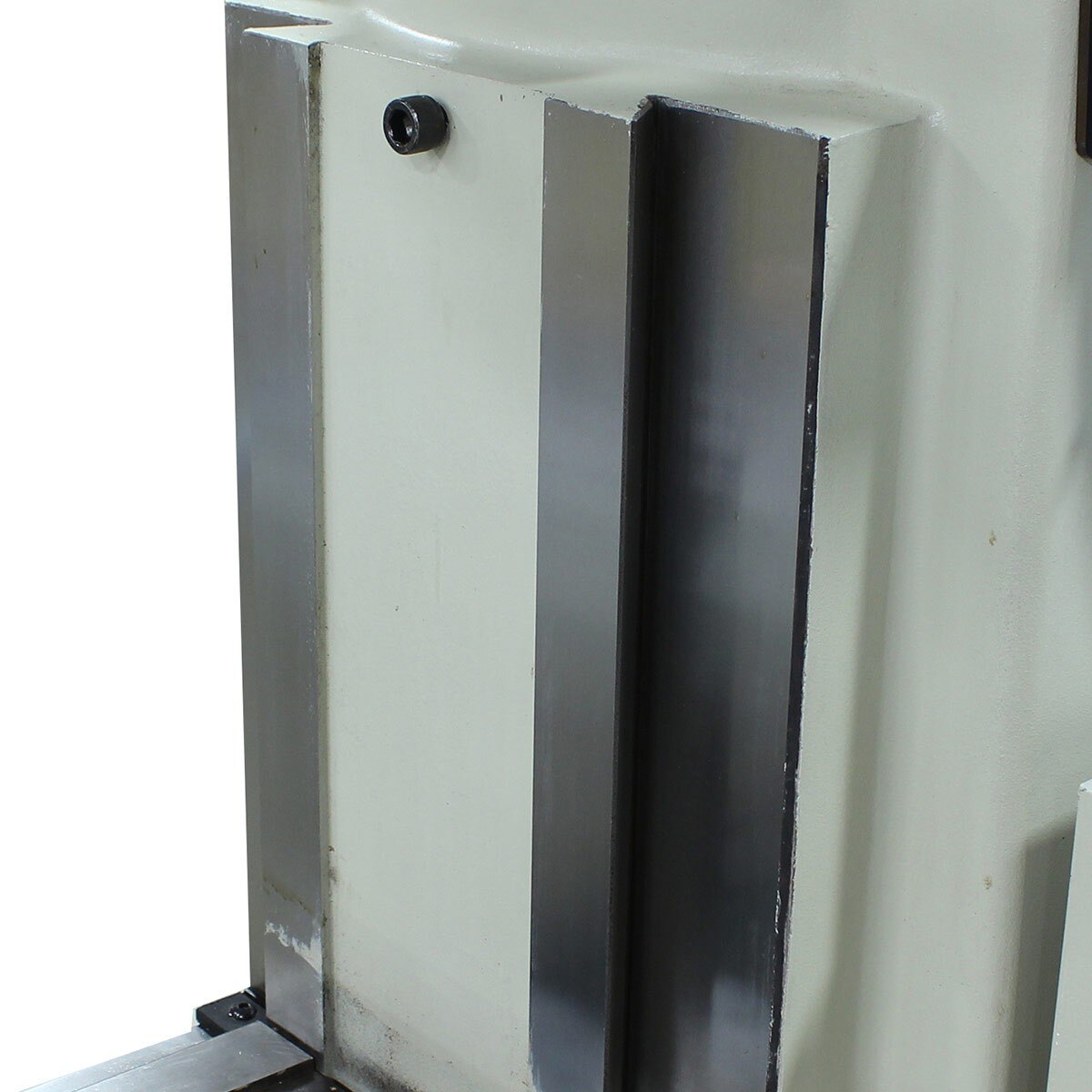

Baileigh Industrial's model VM-942E-1 vertical milling machine fits into the price category, but that does not mean that it doesn’t have features to back it up and make it a great value. The VM-942 is an 8 speed milling machine that allows speed adjustments from 60 to 2760 rpm. Being able to fine tune the speed of the quill is important in prolonging tooling life and saving money. Speaking of the quill or spindle Baileigh Industrial has specified a R8 spindle taper for the VM-942E-1. The R8 taper is the most common taper in the industry making tooling easy to source. The VM-942E-1 has a powerful 3 hp motor that runs on 220 volt single phase power and features a two axis digital read out. Other standard features of the VM-942 milling machine include a, coolant system dovetail slide ways, way covers, and halogen wok light.
Baileigh Industrial 1020695 Includes
- (1) Vertical Knee Mill
Baileigh Industrial 1020695 Features
- 9"x 42" work table

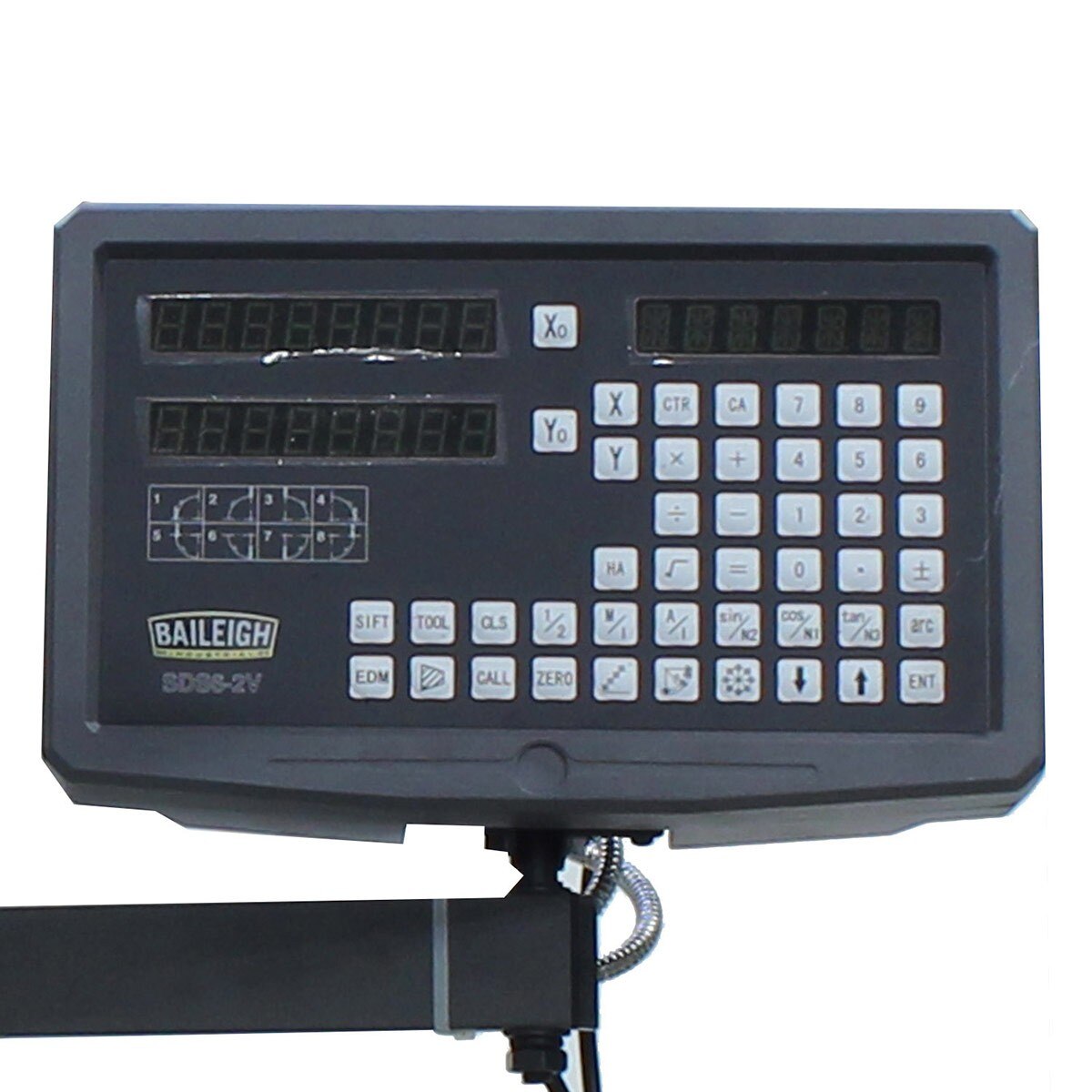

- 2-Axis digital readout
- R8 spindle Perfect for milling, drilling, tapping, boring, and reaming
- 5 speeds
- Headstock tilts 90 degree left and right
- 220V, 1-phase
Baileigh Industrial 1020695 Specifications
| Spindle Speeds | 8 |
| Spindle Travel | 5" |
| Spindle Speed Range | 80, 140, 230, 350, 650, 1100, 1800, 2760 RPM |
| T-Slot Width | 5/8" |
| Table Size | 42" x 9" |
| Spindle Center To Column Min - Max | 0 – 12" |
| Spindle Diameter | 3-11/32" |
| Spindle Feed Per Rev | .0015"/.003"/.006" |

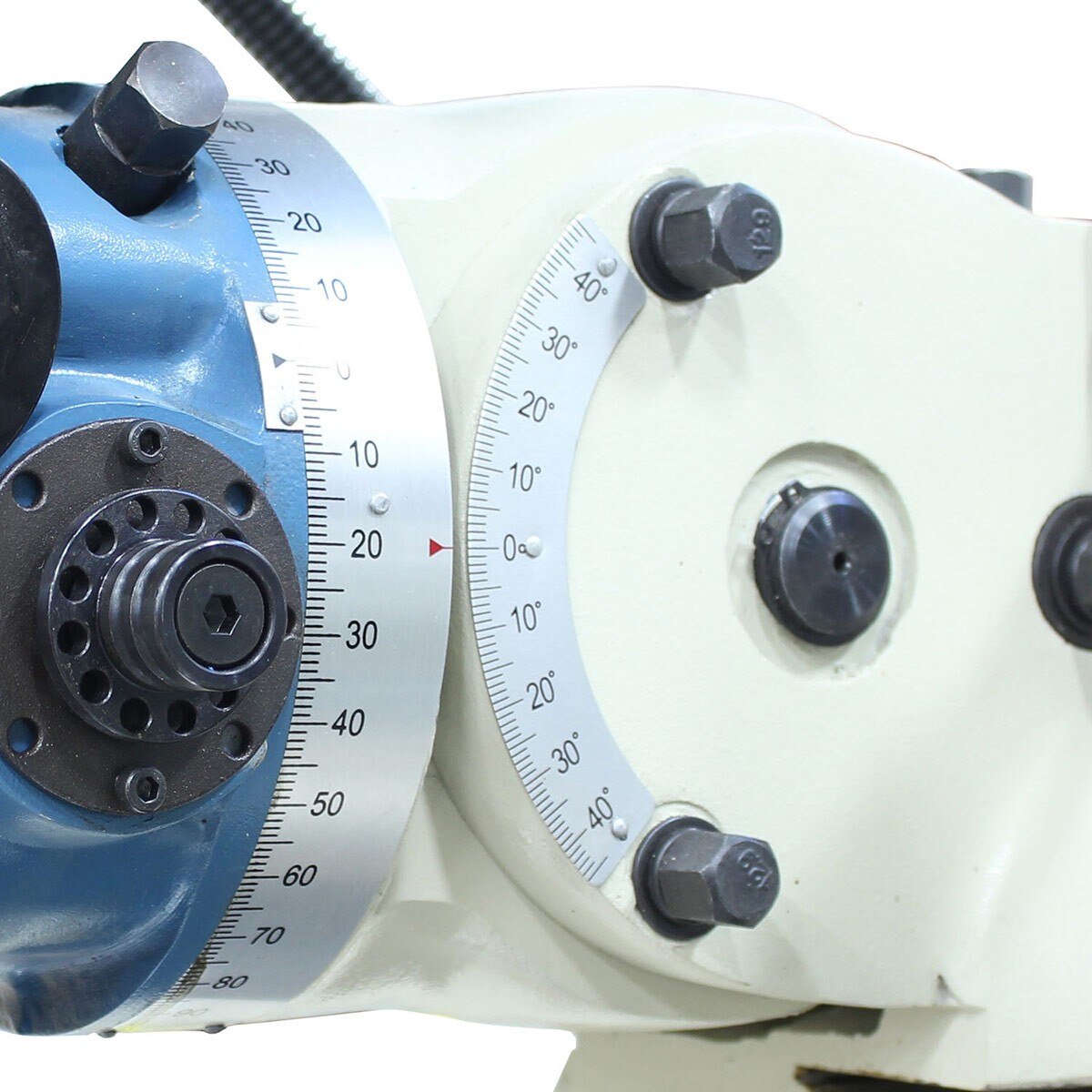

| Spindle Head Swivel | 45° (F&R) 90° (R&L) |
| Motor Spindle | 3 HP |
